Aseko ASIN Pool User manual

1
L N
GNDA B2 3 4 5 6 GND GND
REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7
GND
n1 n2 n3
STOP
SENSOR POWER
USER MANUAL
www.aseko.com
ASIN Pool
INTELLIGENT NETWORK CONTROLLER
to Control the Pool Technology with Smartphone
ASIN Pool VS Pump Module
1
EN

EN
2
General Safety Information
This user manual has basic information that should be observed during
assembly, start-up, operation, and maintenance. Therefore, this user manual
must be read by installers and operators prior to assembly and start/up, and
must be accessible to every user of this unit. Additionally, all further safety
information in this document absolutely must be observed. Read and follow
all instructions. In order to minimise the danger of injury, do not allow children
to use this product. Hazards from non-compliance with safety information.
Non-compliance with safety information can result in hazards to persons, the
environment, and the equipment. Non-compliance with safety information
will result in a forfeit of any potential right to damage compensation.
Non-Observance of Safety Instructions
Failure to observe the safety instructions given in this User Manual can result
in damage to Device and/or health and property, including environment.
FailuretoobservethesafetyinstructionsandinformationgiveninthisUserManual
shallresultinexclusionorrestrictionoftheprospectiverighttocompensationfor
damage.
Insufficient Qualification of Person Using the Device
Hazards in the event of insuciently qualified personnel,
potential consequence: Injury, heavy material damage.
• The system operator must ensure compliance
with the required qualification level.
• Any and all work may only be performed by
correspondingly qualified personnel.
• Access to the system must be prevented for insuciently
qualified persons, e.g. via access codes and passwords.
Non-compliance with informational text
There is a great deal of informational text indicating hazards and their
avoidance. Not observing informational text may lead to hazards. Potential

EN 3
consequence: gravest degree of injury, heavy material damage.
• Read all informational text carefully.
• Cancel the process if you are unable to exclude all potential hazards.
Use of Device New Functions
Because of the continued development, a ASIN Aqua® unit may contain
functions, which are not completely described in this version of the user
manual. The use of such new or extended functions without a profound
and secure understanding by the operator may result in malfunctions and
severe problems. Potential consequence: Injury, heavy material damage.
• Make sure to get a profound and secure understanding of a function
and relevant boundary conditions, before you start to use it.
• Check for an updated version of the user manual or additional
documentation available for the relevant functions.
• Make use of the integrated help function of the ASIN Aqua® to get
detailed information on functions and their parameter settings.
• In case it should not be possible to get a profound
and secure understanding of a function based on the
available documentation, do not use this function.
Conditions to be Met before You Start Using Device
Make sure you have a newest and updated version of the user manual
and other documentation for all functions of the unit. Use and read the
integrated help features. In case of not understanding the information
about certain features of the unit, do not use these features.

EN
4
1
L N
GNDA B2 3 4 5 6 GND GND
REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7
GND
n1 n2 n3
STOP
SENSOR POWER

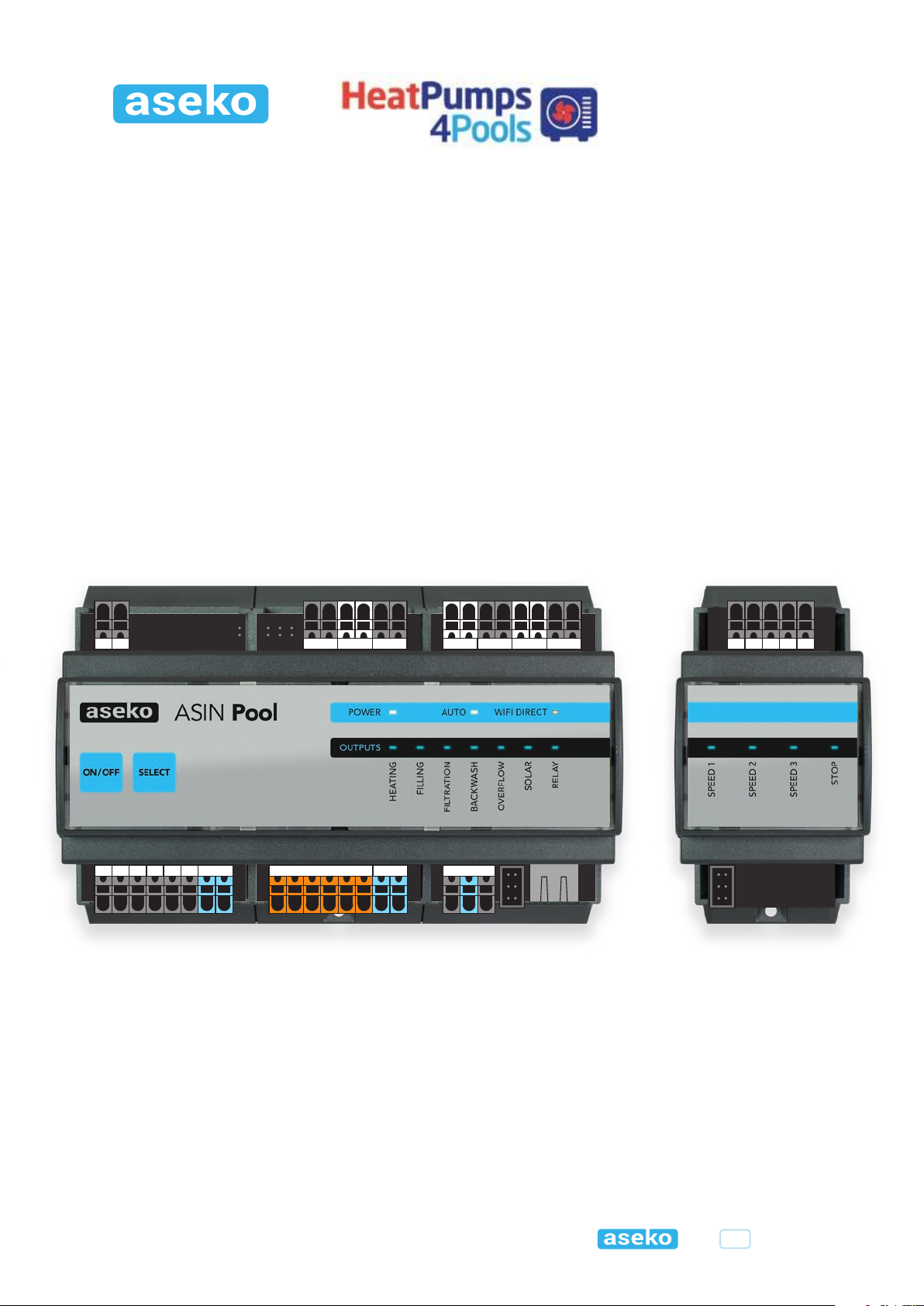

Box Content
ASIN Pool
Power supply 110-240 VAC / 50 Hz / 60 Hz
Input power 10 VA
Overvoltage category II
Protection degree IP30
Climatic resistance +5 to +40°C
Weight 800 g
Installation wall DIN rail mounting
Relay output contacts max 230 V / 1 A, potential free contact - NO
Dimensions 160 x 110 x 60 mm

EN 5
1
L N
GNDA B2 3 4 5 6 GND GND
REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7
GND
n1 n2 n3
STOP
SENSOR POWER

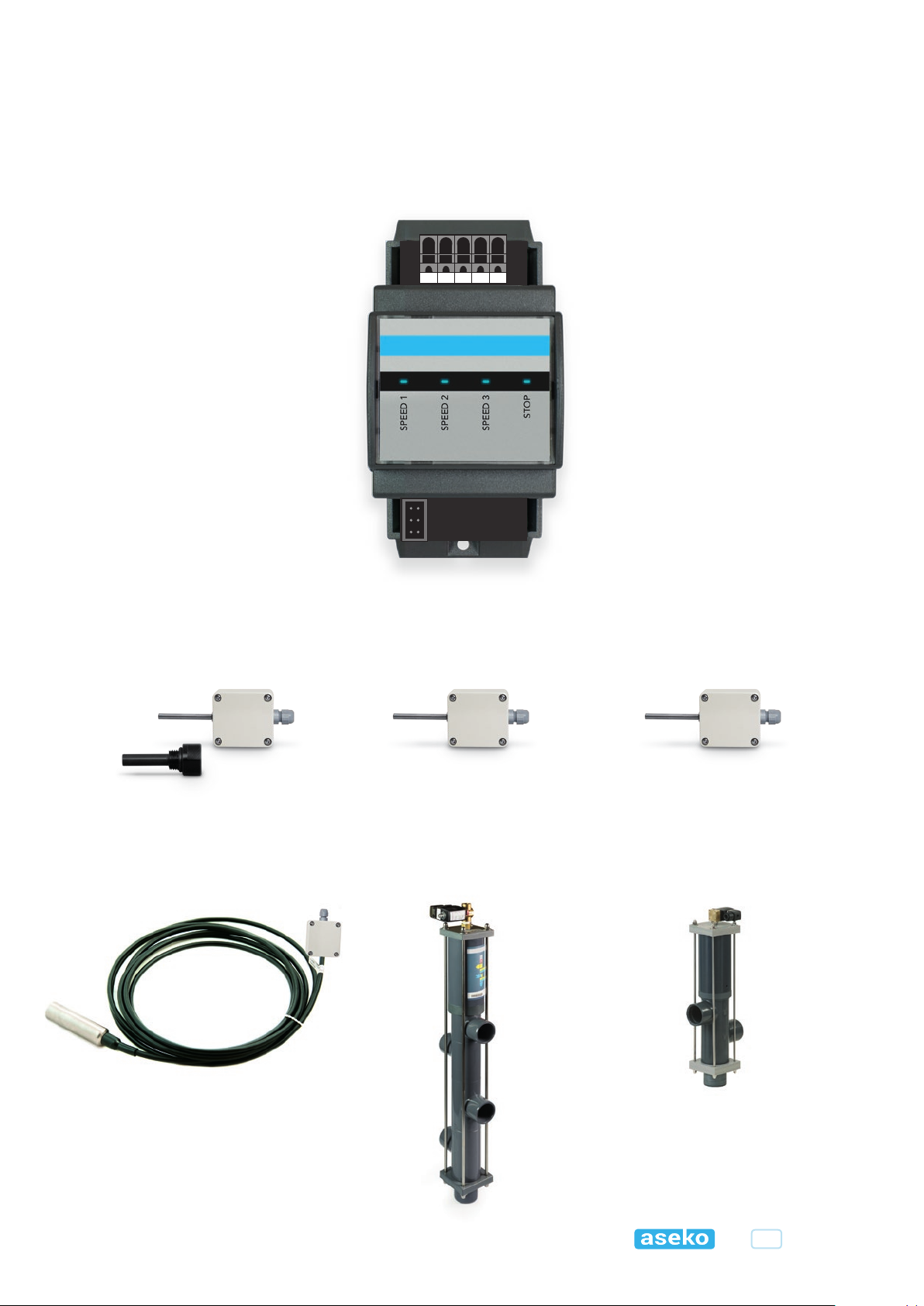

Accessories Available for Purchase
Water thermometer with well #12010 Air thermometer Solar collector thermometer
VS Pump Module
Pressure-type level sensor #12086 5-way BESGO valve 3-way BESGO valve

EN
6
STOP
ASIN Pool
The network controller to control the pool technology.
The ASIN Pool network controller is able to control and adjust all the pool
technology elements. The ASIN Pool can be adjusted and controlled by
means of the perfectly designed user friendly application via the internet.
In case of the internet failure, it is possible to establish connection to the
controller directly through the WIFI Direct. The ASIN Pool is intended for the
DIN rail mounting directly into the switchboard.
Basic Functions.
The ASIN Pool has capacity for 6 preset basic pool operation modes.
OFF All is switched o.
ON The circulating pump is switched on at speed 2 (variable pumps
can be set to 3 speeds) and heating switched o.
COMFORT This mode is intended for routine pool operation when the
priority is to achieve the required temperature.
This mode alow to preset four filtering periods in the day when
you can preset the pumping power and select if to use the
overflow or the bottom drainage.
PARTY This mode switches the circulating pump at the speed 2 and
heating the the required temperature.
This mode has no time functions.
SMART The same as COMFORT mode together SMART Heating
function.
WINTER To enable this function is necessary to install the outdoor
thermometer.
• If outdoor temperature drops below 0 °C the circulating pump
is switched on.
• After 15 minutes system check the water temperature .
• If the water temperature is still below the preset freezing
temperature (e.g. 4 °C), the relay switchesthe heating on.
• After the preset temperature is reached, the circulating pump
stops. Next test of pool temperature and the circulating
pump start will follow in 6 hours.
1
L N
GNDA B2 3 4 5 6 GND GND
REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7
GND
n1 n2 n3
STOP
SENSOR POWER

EN 7

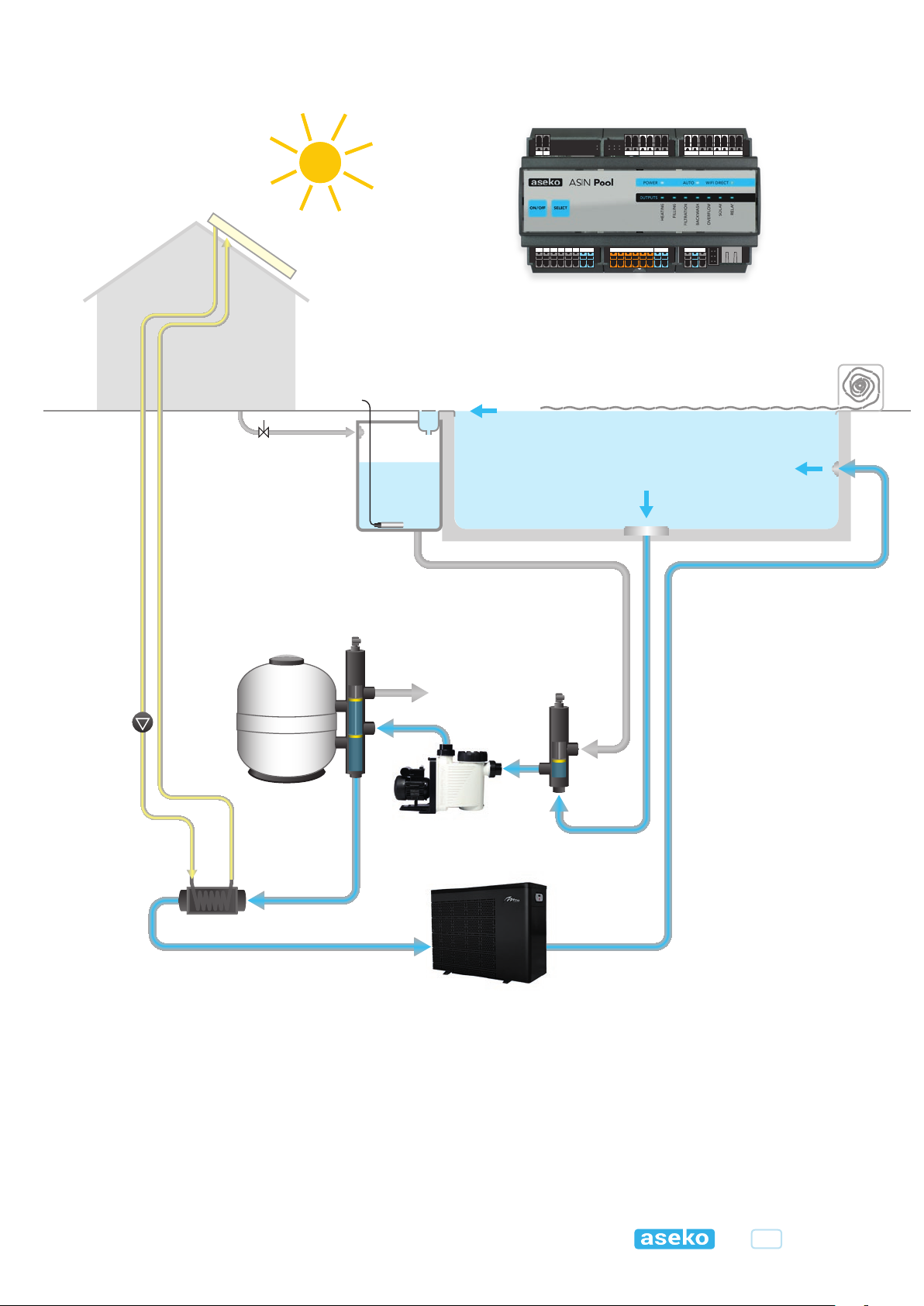

Solar
collector
pump
Solar
collector
heat
exchanger
Heat exchanger /
heating
5-way BESGO valve for
filter backwashing
3-way BESGO valve
for gutter/outlet
switching over
Solar
collector
Pool blind/
cover
Water level
sensorr
Automatic
refilling
Gutter
Equalisation tank or
skimmer
Bottom outlet
Pool nozzle
1
L N
GNDA B2 3 4 5 6 GND GND
REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7
GND
n1 n2 n3
STOP
SENSOR POWER

EN
8
GND
n1 n2 n3
STOP
L N
TOPENÍ
DOPOUŠTĚNÍ
FILTRACE
NAPÁJENÍ
PRANÍ FILTRU (Besgo)
DNO / ŽLÁBEK (Besgo)
SOLÁRNÍ KOLEKTOR
OSVĚTLENÍ BAZÉNU
L N REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7
T
RCD
TOPENÍ L je logický
signál
Nezávislý logický
signál
Čerpadlo filtrace
Relé filtrace
Solenoid
dopouštění
REL 1
1
TOPENÍ
REL 1
2
Besgo
(praní filtru)
Besgo
(dno/žlábek)
Čerpadlo
solárního kolektoru
Osvětlení
M
230 Vac
M
230 Vac
230 ~
24 =
+
–
M
230 Vac
Filtrační čerpadlo
s variabilní rychlostí
L
N
TOPENÍ
DOPOUŠTĚNÍ
FILTRACE
PRANÍ FILTRU (Besgo)
DNO / ŽLÁBEK (Besgo)
SOLÁRNÍ KOLEKTOR
OSVĚTLENÍ BAZÉNU
Teploměr vody
Teploměr venkovního vzduchu
Hladinoměr
Teploměr soláru
GND
GND
LAN
Propojení
ASIN Pool
a VS Pump
modulu
Napájení senzorů
A
GND
B
1
L N
GNDA B2 3 4 5 6 GND GND
REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7
GND
n1 n2 n3
STOP
SENSOR POWER
GND
n 1
n 2
n 3
STOP
Terminal Board
Water thermometer
Air thermometer
Water level sensor
Solar collector thermometer
Power supply of
sensors
Connection
of ASIN Pool
and VS Pump
module
HEATING
REFILLING
FILTRATION
FILTER WASHING
(BESGO)
BOTTOM/GUTTER
(BESGO)
SOLAR COLLECTOR
POOL LIGHTING

EN 9
GND
n1 n2 n3
STOP
L N
TOPENÍ
DOPOUŠTĚNÍ
FILTRACE
NAPÁJENÍ
PRANÍ FILTRU (Besgo)
DNO / ŽLÁBEK (Besgo)
SOLÁRNÍ KOLEKTOR
OSVĚTLENÍ BAZÉNU
L N REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7
T
RCD
TOPENÍ L je logický
signál
Nezávislý logický
signál
Čerpadlo filtrace
Relé filtrace
Solenoid
dopouštění
REL 1
1
TOPENÍ
REL 1
2
Besgo
(praní filtru)
Besgo
(dno/žlábek)
Čerpadlo
solárního kolektoru
Osvětlení
M
230 Vac
M
230 Vac
230 ~
24 =
+
–
M
230 Vac
Filtrační čerpadlo
s variabilní rychlostí
Electrical Connection
POWER SUPPLY
HEATING
REFILLING
FILTRATION
FILTER WASHING
(BESGO)
BOTTOM/GUTTER
(BESGO)
SOLAR COLLECTOR
POOL LIGHTING
Filter pump with
variable speed
HEATING
HEATING
L is logic signal
Independent logic
signal
Refilling
solenoid
Filtration
relay
Filtration pump
BESGO
(filter washing)
BESGO
(bottom/gutter)
Solar collector pump
Lighting

EN
10
Control and Settings
Manual Button Operation
For easier installation and necessary events...
1
L N
GNDA B2 3 4 5 6 GND GND
REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7
GND
n1 n2 n3
STOP
SENSOR POWER

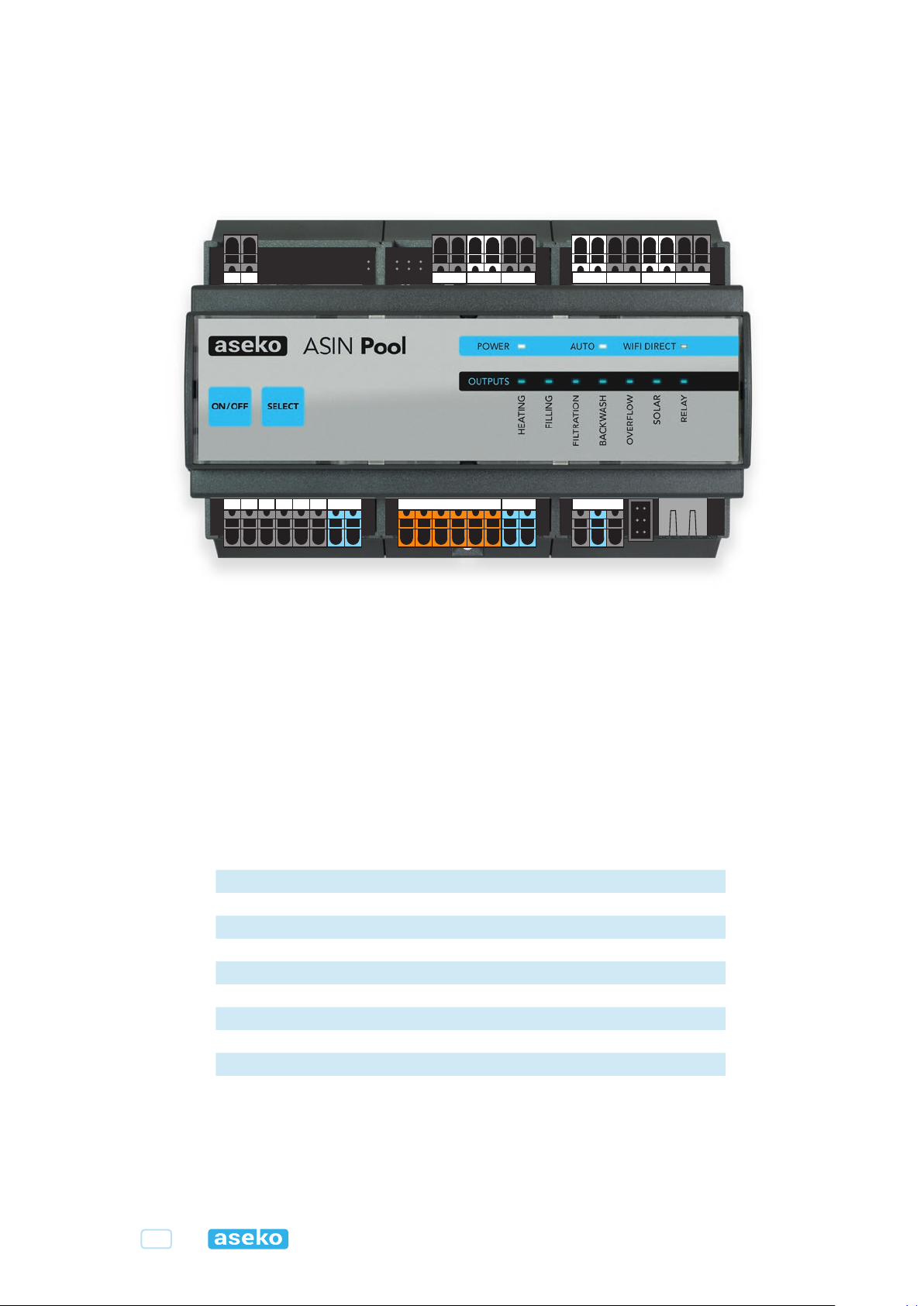

Turning on/off
POWER:
On/O
AUTO:
automatic mode / manual
mode (testing)
WIFI DIRECT:
On/O
Relay status indication:
ON/OFF
Relay selection

EN 11
Control with iPool Control Application
iPool Control Installation
Install the iPool Control application from App Store on iOS device.
Prior to the first connection to the ASIN Pool, confirm your acceptance of
"ASIN Pool Terms and Conditions".
Serial number
Enter the serial number of your ASIN Pool.
Password
When signing in for the first time, choose a password you will use. ASIN Pool
will remember the password. From this moment use the serial number and
this password to log in to your ASIN Pool.
E-mail
Provide a valid e-mail address to which you have access. E-mail address
serves to remind the forgotten password.
Forgotten password
To recover a forgotten password, click for reminding the password.
Connecting via Wifi Direct
To connect to ASIN Pool via Wifi Direct, you must be within range of the ASIN
Pool internal antenna (approx. 3 m).
Click "Connect via Wifi Direct" to open the iPool Connect window.
Click on „Go to settings Wifi“.
AlistofWifinetworkswillshowup,findyourASINPoolserialnumber,selectitand
connect.
Return to the iPool Control application.

EN
12

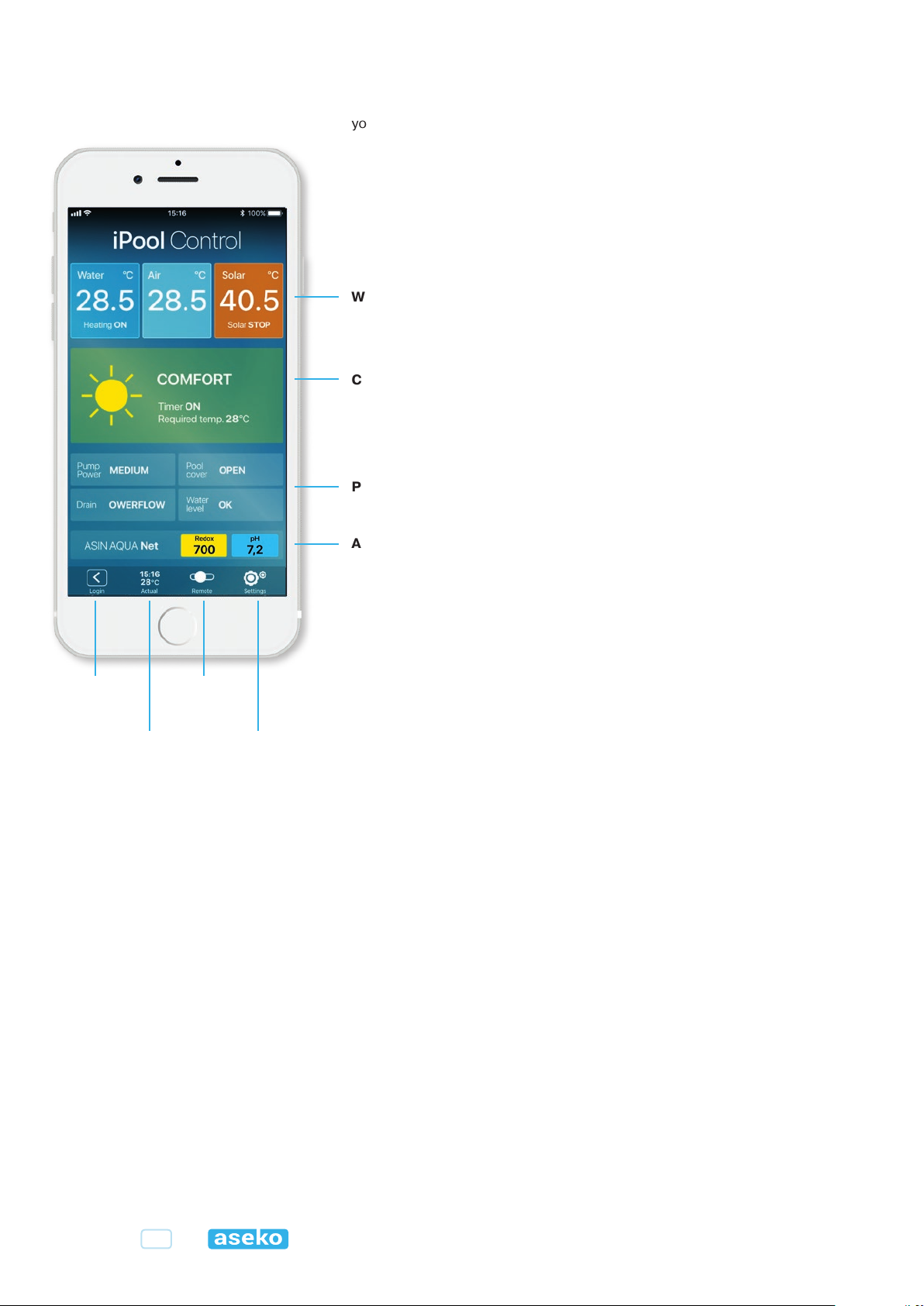

Current status
The screen provides all the important information about the current status of
your pool and the connected components controlled by ASIN Pool.
Water temperature, air temperature, solar panel temperature
Current mode
Pool components status
ASIN AQUA paired device status
Login screen Control
Current
status
Settings

EN 13

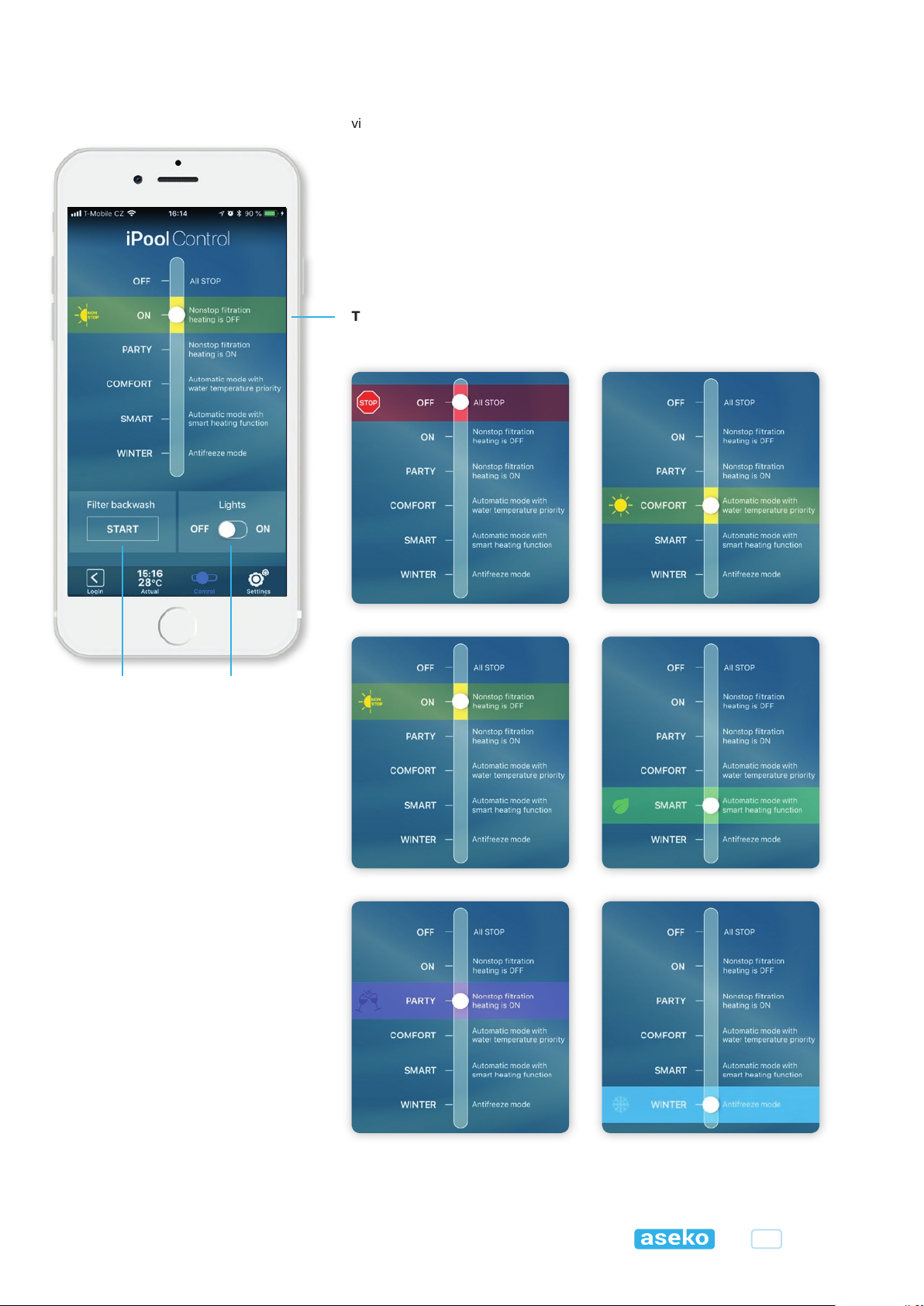

Control
The screen serves to switch between operation modes of your pool controlled
via ASIN Pool.
The slider serves to control your pool operation modes.
Switches
on the filter
washing
process
Turns the
lights on/off

EN
14
Settings
The screen serves to set the ASIN Pool and characteristic of each mode in-
cluding the filtration timer.

EN 15

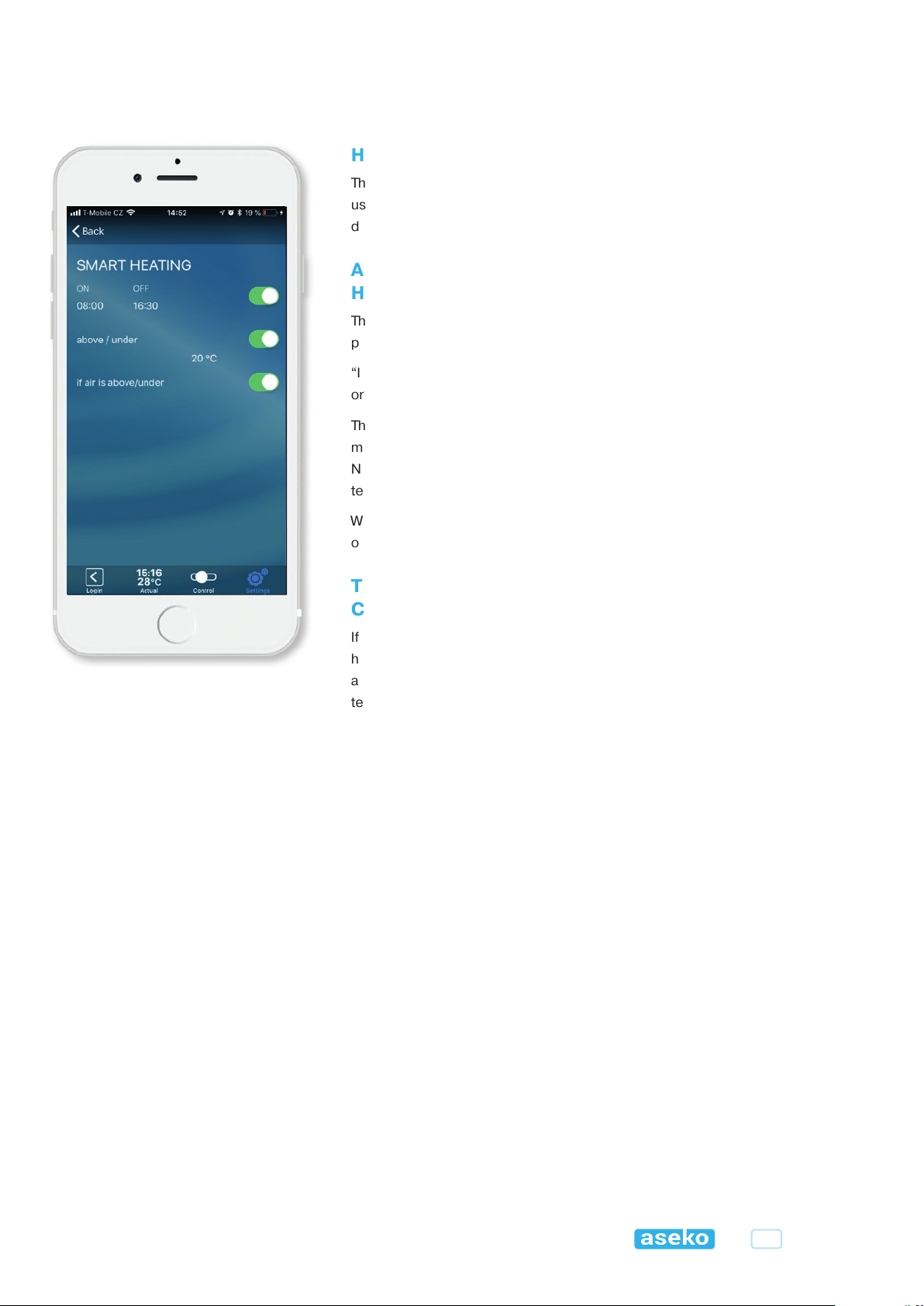

SMART Heating
Heating Time Adjustment
This function allows to adjust time of heating operation. This is particularly
useful for switching on the heat pumps that have higher eciency during the
day time when outdoor temperature is higher.
Adjustment of Temperature above/below which
Heating is in Operation
This function allow you to customize the pool heating and achieve the highest
possible eciency of the heat pump.
“I heat just when the outdoor.temperature is higher than ......,
or I heat just till the outdoor temperature reaches ...... .”
The high-accuracy electronic thermometer is used for water temperature
measurement. It should be installed to the inlet pipe comming from the pool.
Never install it downstream of the heat exchanger. Significant distortion of
temperature would occur.
When temperature drops below the required value, the relay No. 1 switches
on the heat source (heat pump, electric heating, gas boiler circulating pump).
Temperature Control Takes Priority over Filtration
Control
If you select the temperature control to take priority over the filtration timer,
heating as well as the circulating pump will be in operation even after the
adjusted time of filtering. The circulation pump will stop after the required
temperature is achieved. It will restart at next preset period of the timer.

EN
16
Measuring the level and
Automatic water Refilling
The water level is measured by the pressure-dependent level sensor. This
allows very easy installation by inserting the sensor into the storage reservoir
or skimmer. Water Level is controlled at four adjustable height levels that are
easily entered in centimetres.
The level sensor cable must not be broken anywhere in order to prevent the
balancing tube that is a part of the cable from being clogged.
OVER - too much water in the overflow tank
When this level is reached:
1. The circulating pump starts
2. If the automatic filter washing is enabled, one filter washing cycle starts.
OK - required level
Refilling stops
ON - level at which pool refilling starts
Refilling starts after 10 seconds during which the level is permanently below
this value in order to prevent oscillating
Small amount of water
The circulating pump as well as heating will be disabled
Maximum Refilling Time
The maximum refilling time acts as protection for case of any failure of the
level measuring. This function will switch o the pool refilling after the adjusted
time has elapsed regardless of a level sensor signal.

EN 17
Automatic Filter Washing
The automatic washing function ensures the filter washing on a regular basis
in the preselected intervals. To enable this function is necessary to use
the automatic 5-way BESGO valve. Its moving controlled by the relay No. 4
switching on/o. When the relay switches on, the BESGO valve is activated
and moved to the required position by the action of pressure water or air. See
the BESGO manual.
Overflow/Bottom Switching
Over
To use this function, it is necessary to install the 3-way BESGO switching-over
valve. It is possible to make a decision whether water shall circulate through
the overflow or the bottom drainage. If a closed blind control signal appears
at the (logic) input No. 5, the relay No. 5 closes and the overflow is switched
over to the bottom drainage.
Variable speed Pump Control
The ASIN Pool with the additional ASIN Pump module enable to control the
circulating pumps with a SPECK and PENTAIR variable drive. Power of such
pump (1 or 2) can be selected at preset periods in individual modes. In case
of backwashing, the pump is running at speed 3. Individual speeds 1, 2, 3 are
adjusted directly on the pump according to the respective pump manual.

EN
18

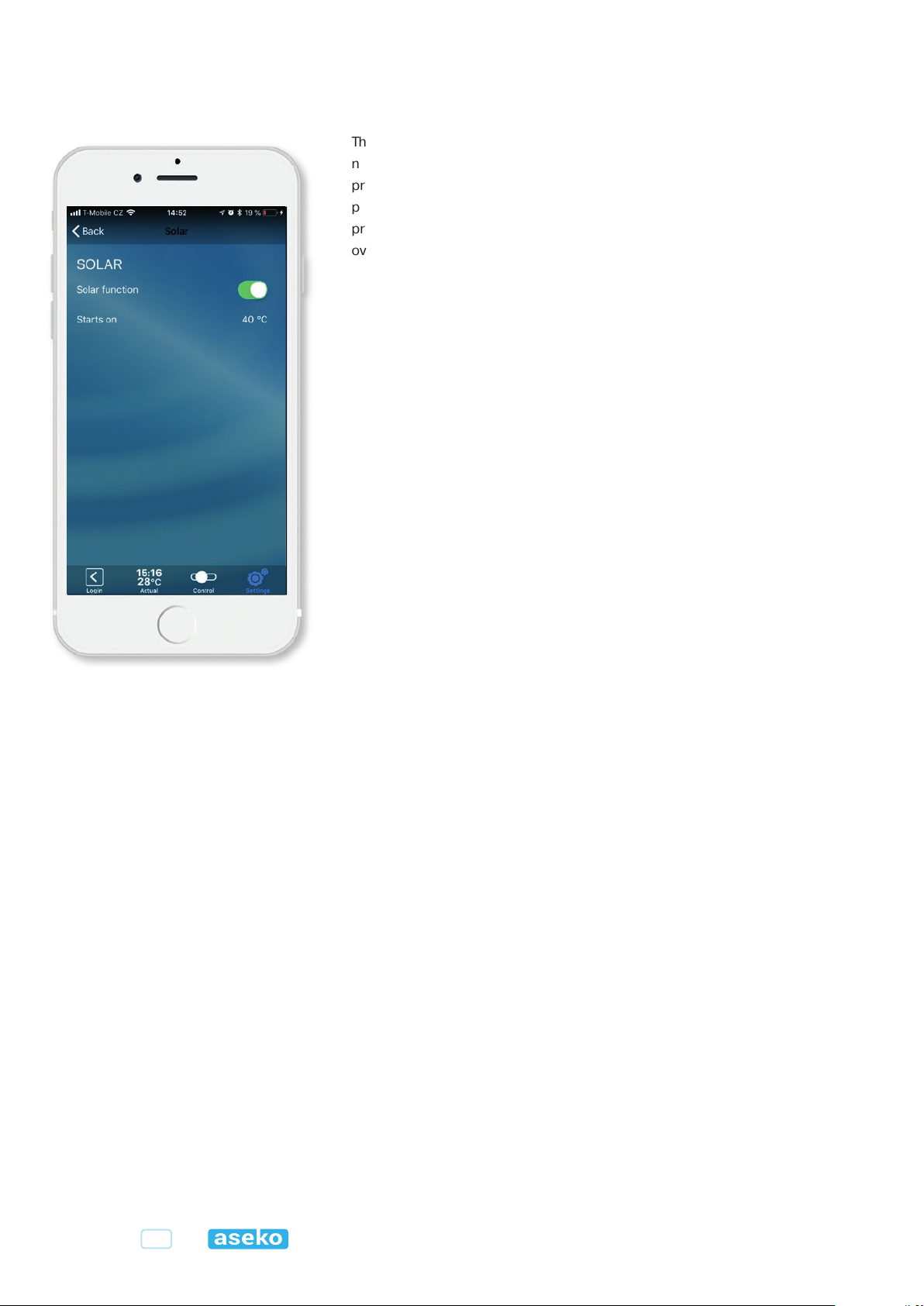

Solar
The ASIN Pool allows control of the solar heating. To enable this function is
necessary to install the outdoor thermometer to the solar collector. At the
preset temperature of the solar collector, e.g. 40°C will solar system circulating
pump (relay No. 6) as well as the filter pump start on. This start takes absolute
priority over other settings in order to prevent the solar collector from being
overheated.

EN 19

EN
20
