Ashley M9X832 User manual

Serial No.
M9X832
M9X842
M9X852
M9X872
M9X932
M9X942
M9X952
M9X972
M9
X8
32
OWNER’S MANUAL
Installation & Operation
Rev 3 8/2019

Table of Contents
Customer Service Toll Free:
Safety & Warranty Warnings ……………………………………………… 01
Parts List …………………………………………………………………………… 02
1-800-248-5988
Installat ion Guide ……………………………………………………………… 03
Headboard Bracket Installat ion Guide (Opt ional) ……………… 10
M9X8/M9X9 Electronics Quick Reference Guide ……………… 06
M9X8/M9X9 Remote Control Instruct
ions ………………………… 07
Se
ing Programmable Posit ions and Pairing Remote ………… 08
M9X872/M9X972 Synchronizing Two Foundat
ions …………… 09
Troubleshoot
ing ………………………………………………………………… 11

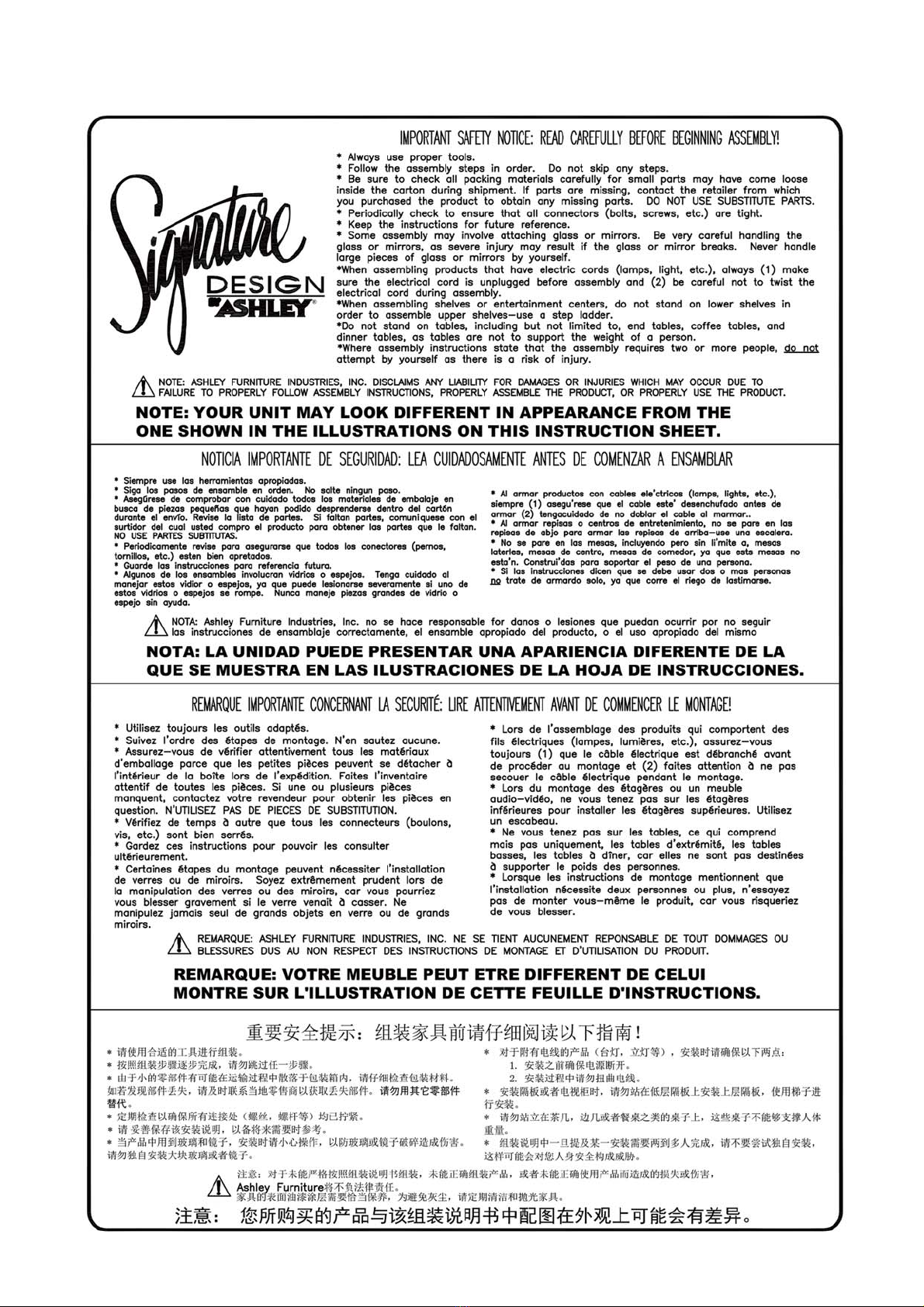

Safety & Warranty Warnings
—01—
CAREFULLY READ THE FOLLOWING INFORMATION BEFORE USING THIS PRODUCT
Failure to read, understand and follow all warnings and instructions may result in property damage,
personal injury or death. If unable to understand warnings, cautions, and/or instructions, contact the
dealer or technical personnel if applicable, before attempting to assemble, install or use the equipment.
FCC COMPLIANCE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
To comply with the FCC RF exposure requirements, no change to the antenna or the device is permitted. Any change to the antenna or the
device could result in the device exceeding the RF exposure requirement and void user’s right to operate the device.
RADIO FREQUENCY: 2.4 GHz
SAFETY WARNINGS:
• Do not use power foundation outdoors.
• Do not use power foundation near any flammable chemicals,
vapors or compounds.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instructions concerning use of the appliance by a
person responsible for their safety.
• Do not allow any person or pet under the power foundation at any
time.
• During bed operation, make sure body is positioned within the
confines of the bed.
WARNINGS: Clear area below power foundation before
lowering the foundation to reduce risk of injury or death.
WARRANTY WARNINGS:
Tampering with or opening the control box, motors, or remote
control(with the exception of replacing batteries) will void the
warranty.
Operating Information:
• After power foundation assembly is completed, operate remote
control to ensure proper functions before occupying the bed.
• Keep moving parts free of obstruction during power foundation
operation (including sheets, clothing, tubing, wiring, and products
using electric power cords).
• Distribute body weight evenly over bed surface during operation.
Do not operate the bed while sitting directly on the head or foot
sections of the bed.
Customer Service Toll Free: 1-800-248-5988

(1)
Mattress Retainer
Bar (2 for King)
(1)
Power Supply with
Battery Backup Box
M9X9 PARTS LIST
(1) AC Power Cord
HOME SELECT
1
STOP
2
TV Z-G
SNORE
(1)Remote Control
(3)AAA Batteries
(1)Sync Cord
(TXL Only)
(2) Mounting
Bracket
(2) Motion
Sensor

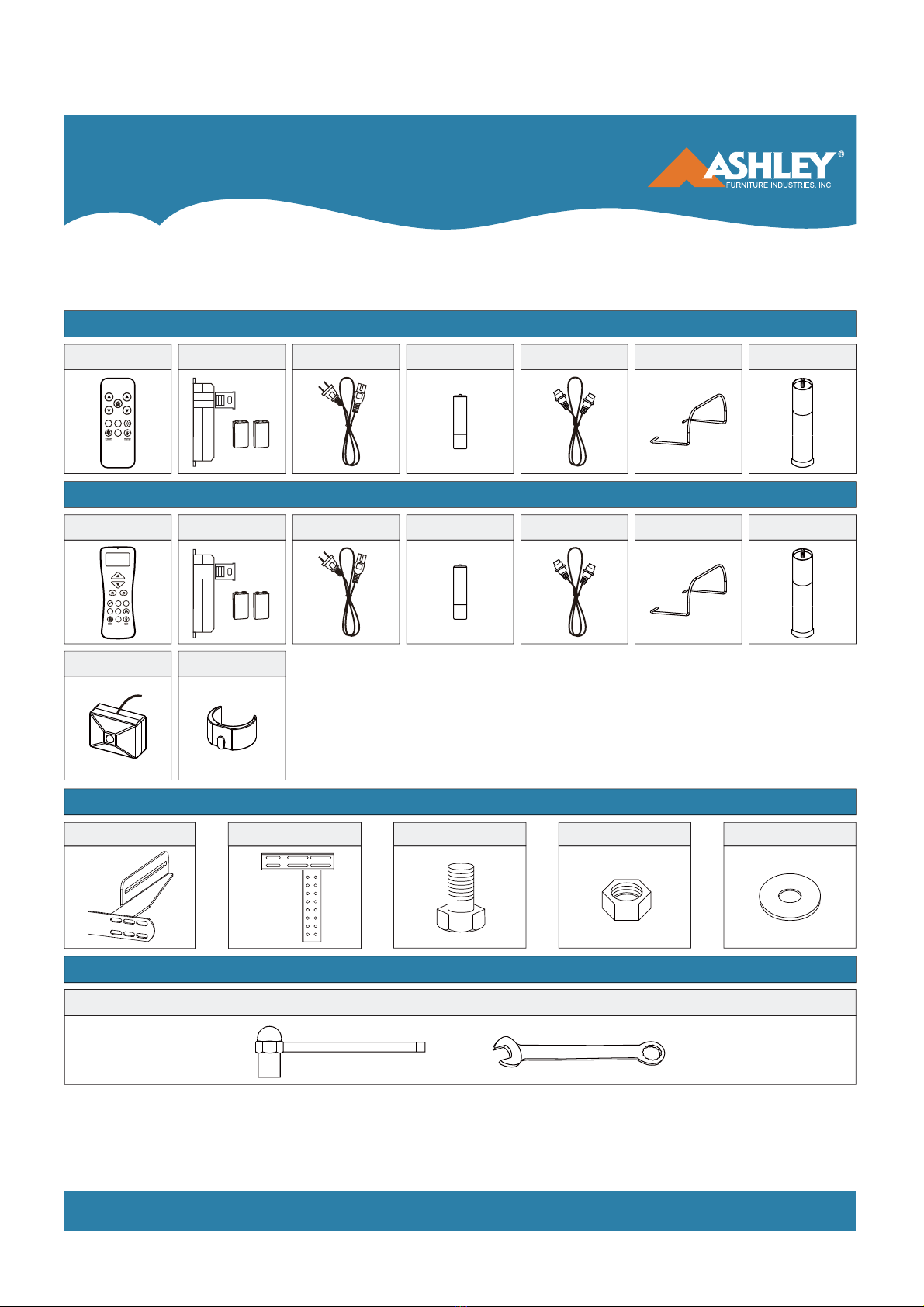

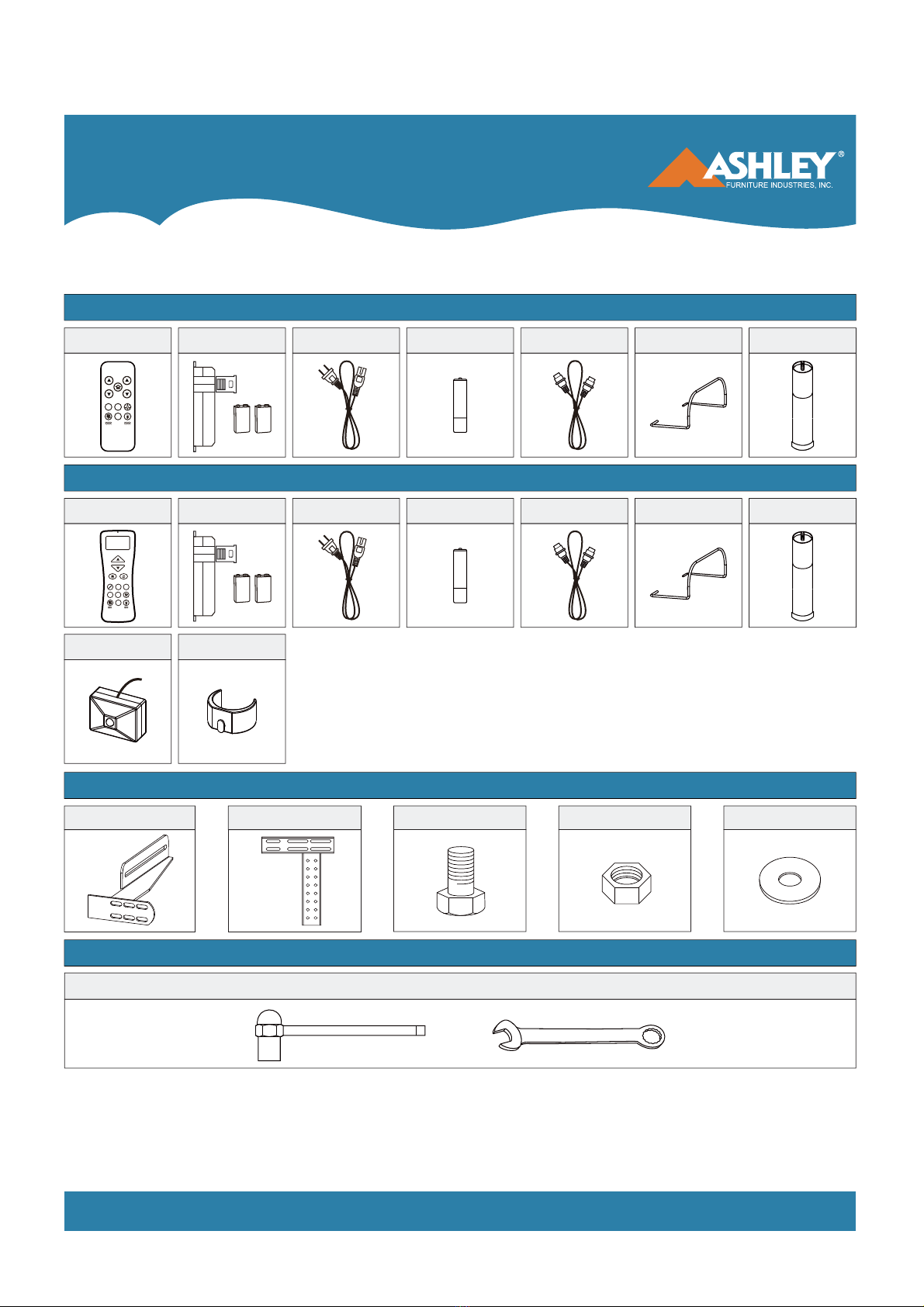

Parts List
—02—
All electronics and components that need to be installed are located in boxes under the foundation or
attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for.
M9X8 PARTS LIST
(1) AC Power Cord (3)AAA Batteries
(1)Sync Cord
(TXL Only) (6)Adjustable Legs
(Two-section per leg)
(1)
Mattress Retainer
Bar (2 for King)
(optional)
9V 9V
9V
(optional)
9V 9V
9V
(1)
Power Supply with
Battery Backup Box
(1)Remote Control
HEAD FOOT
1
STOP
2
OPTIONAL EQUIPMENT (NOT INCLUDED)
OPTIONAL HEADBOARD BRACKET COMPONENTS (NOT INCLUDED)
Socket and Wrench 1/2'' (13mm)
(2) Headboard Brackets (2) T-Brackets (8) M8*16 (4) Nuts (4) Washers
Customer Service Toll Free: 1-800-248-5988
(6)Adjustable Legs
(Two-section per leg)

—03—
4
HEAD BOARD
Remove the bed from the box with a flipping motion,
let the bed stand on the 4 legs.
3Install 4 legs, make sure
the legs are tight.
HEAD BOARD
1Open the box lid.
HEAD BOARD
×1(2 for king)
Mattress Retainer Bar
×1
Accessories Box
2Take out all the accessories from the packaging and
put them aside.
ACCESSORIES BOX:
×6
Adjustable Legs
(Two-section per leg)
×1
Power Supply
×1
Sync Cord
（TXL Only）
×1
AC Power Cord
×1
M9X9 Remote
Control
HOME SELECT
1
STOP
2
TV Z-G
SNORE
HEAD FOOT
1
STOP
2
×1
M9X8 Remote
Control
×3
AAA
Batteries
M9X9 Mounting
Bracket
×2×2
M9X9 Motion
Sensor
Two people are required to set up the foundation.
WARNING: It is important that you read and carefully follow all foundation assembly instructions. Do not plug the power
cord into an electrical outlet until all assembly has been properly completed. Failure to follow all foundation assembly
instructions may cause the bed to operate improperly possibly resulting in the risk of personal injury or death.
Installat ion Guide
Customer Service Toll Free: 1-800-248-5988
* Make sure the adjustable legs are properly tight, and the plastic caps have been placed at the
bottom of the legs. Incorrect installation might cause the part to fail or damage the floor.

Installat ion Guide
—04—
5Flip the foot end of the bed from the box
and lay it on top of the head end.
HEAD BOARD
6Install the remaining 2 legs on the foot
end of the bed, make sure the legs are
tight. Uncoil the DC power cord
(connected to the control box)
and put it to the side of the bed.
Connect The Motion Sensor Connectors.
7(M9X9) Motion sensor installation
Motion
Sensor
Mounting
Bracket
=+
Prepare The Motion Sensor Hardware.
STEP 1: Connect the motion sensor
to the mounting bracket.
STEP 2: Rotate the mounting
bracket 90 degrees clockwise
STEP 3:
DONE !
STEP 2: Connected the motion sensor connectors as illustrated.
Note there are two connectors, one on each side of the bed.
STEP 1: Clip the mounting bracket onto the center adjustable legs
as illustrated.
HEAD BOARD
HEAD BOARD
DC Power Cord
Control Box
Customer Service Toll Free: 1-800-248-5988

Installat ion Guide
—05—
(M9X9)
(M9X9)

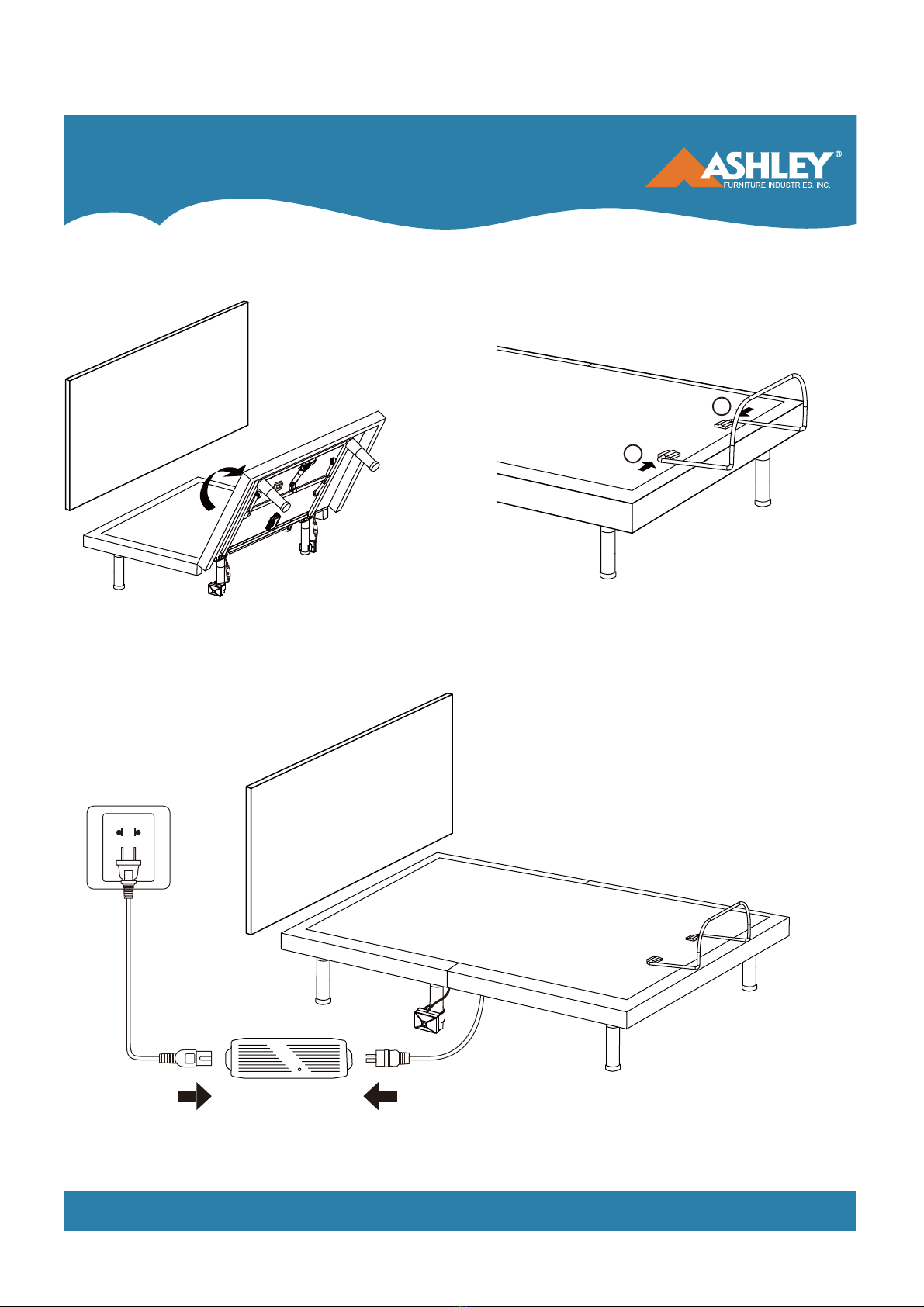

10 Uncoil the AC power cord, connect the DC power cord to the power supply and then connect
the power supply to the AC power source. Insert the batteries into the remote control.
DONE!
9Install the mattress retainer bar one side
after another.
2
1
8Make the bed completely flat.
HEAD BOARD
AC Power Cord
AC Power Source
DC Power Cord
Power Supply
HEAD BOARD
Customer Service Toll Free: 1-800-248-5988

1-800-248-5988
—06—
Customer Service Toll Free:
Electronics Quick Reference Guide
M9X8 OVERVIEW
USB
Charger
Sync Cord
Head Motor Foot Motor
Power Supply
Foot Massage
Motor(2 for King)
Head Massage
Motor(2 for King)
HD Motor FT Motor
HD Massage FT Massage
LED SYN
USB
Power
LED
DC
Power Cord
AC
Power Cord
CB18
Control Box
Remote Control
HEAD FOOT
1
STOP
2
M9X9 OVERVIEW
USB
Charger
Sync Cord Motion Sensor
Head Motor Foot Motor
Neck Motor
Foot Massage
Motor(2 for King)
Head Massage
Motor(2 for King)
LED
HD Motor FT Motor Neck Motor
HD Massage FT Massage
LED
SYNC MOTION
USB
CB20B
Control Box
Remote Control
HOME SELECT
1
STOP
2
TV Z-G
SNORE
Power Supply
DC
Power Cord
AC
Power Cord

1-800-248-5988
—07—
Customer Service Toll Free:
WARNING: Clear area below bed before lowering to reduce risk of injury or death.

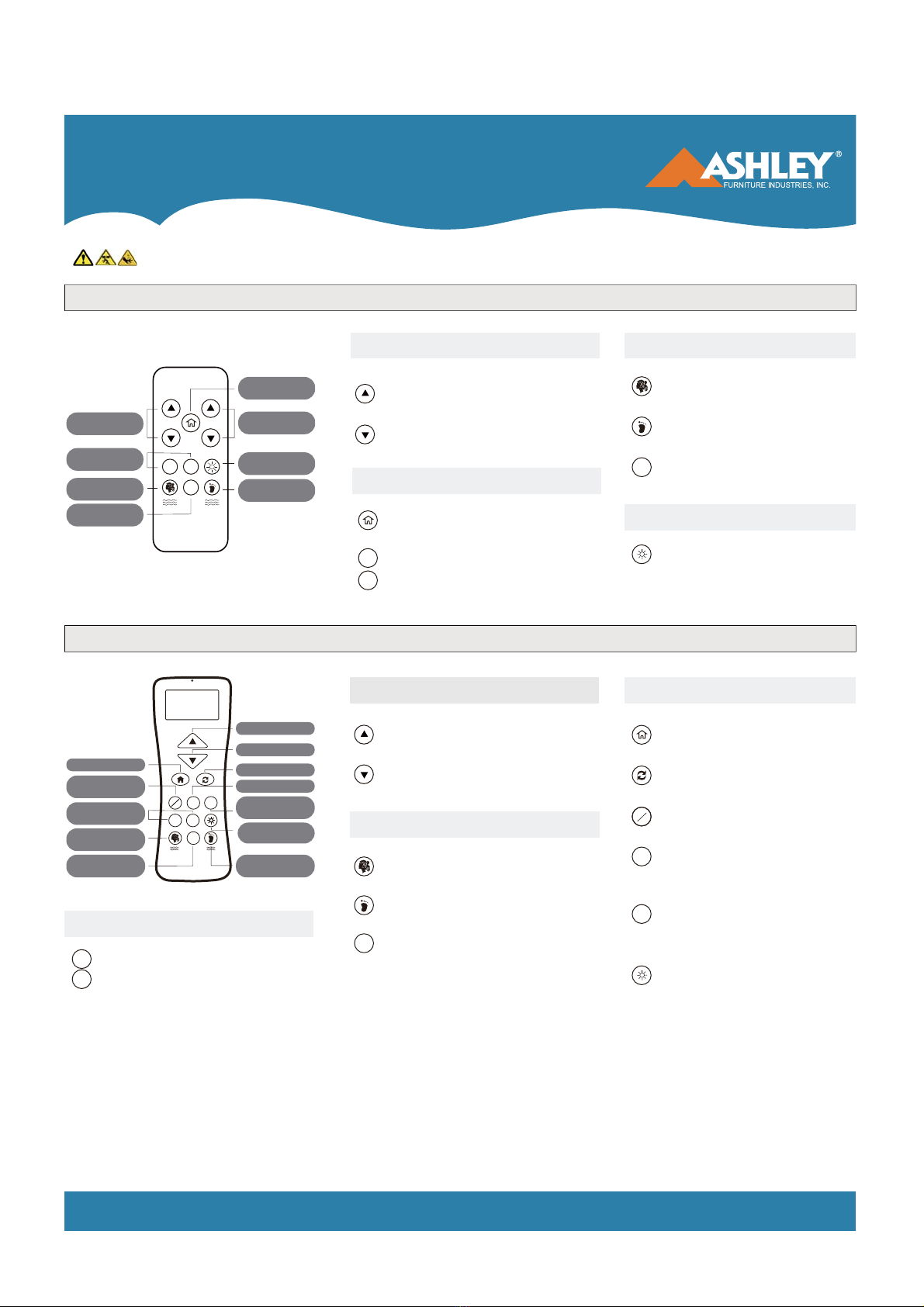

M9X8 REMOTE
M9X9 REMOTE
Lifts
Lowers
Program
Select Zone
TV Position
Home Position
Foot Massage on
（3 Intensity Levels）
Head Massage on
（3 Intensity Levels）
MASSAGE FEATURES
Turn off the head/foot massage.
STOP
Turn on the head massage. Cycle
through 3 massage intensities.
Turn on the foot massage. Cycle
through 3 massage intensities.
ADJUST
This button lifts the head/foot/neck
section of the foundation.
This button lowers the head/foot/neck
section of the foundation.
One touch programmable positions.
2
1
SETTING PROGRAMMABLE POSITION
Zero G Preset
Position
Programmable
Positions
Anti-Snore
Preset Position
Head/Foot
Massage off
HOME SELECT
1
STOP
2
TV Z-G
SNORE
Under Bed
LED on/off
HOME POSITION BUTTONS
Press and hold to return to the flat
position.
One touch Select button.Select head
or foot zone.
One touch ANTI-SNORE preset
position.
SNORE
One touch TV preset position.
TV
One touch ZERO G preset position.
ZERO G adjusts your legs to a
higher level than your heart, helping
to relieve pressure of the lower back
and promote circulation.
Z-G
One touch underneath LED lighting
on/off.
ADJUST
This button lifts the head/foot/neck section
of the foundation.
This button lowers the head/foot/neck
section of the foundation.
UNDERNEATH LED LIGHTING
One touch underneath LED lighting
on/off.
HOME POSITION BUTTONS
One touch programmable positions.
2
1
Press and hold to return touch flat
position.
MASSAGE FEATURES
Turn on the head massage.Cycle
through 3 massage intensities.
Turn off the head/foot massage.
STOP
Turn on the foot massage.Cycle
through 3 massage intensities.
Lifts and
Lowers Head
Lifts and
Lowers Foot
Foot Massage on
（3 Intensity Levels）
Home Position
Head Massage on
（3 Intensity Levels）
Head/Foot
Massage off
HEAD FOOT
1
STOP
2
Under Bed
LED on/off
Programmable
Positions
Remote Control Instruct ions

1-800-248-5988
—08—
Customer Service Toll Free:
M9X8 REMOTE
M9X9 REMOTE
Make sure the batteries are
good. Replace them when
needed.
STEP 1：
Unplug the power cord
from the power source.
If 9V backup batteries
were installed in the
power supply, remove
them.
STEP 2：
STEP 3：
Press and hold
and simultaneously
until the blue backlights
of the remote control
are off.
Press And
Hold
Plug the DC power cord back into the power source.
You will hear an activation
sound in 2 seconds,
indicating the remote is paired to the power
foundation.
STEP 4：
Adjust the head and foot to your desired position.
To adjust a saved position, repeat step 1 and 2
and the new position will be saved.
STEP 1：
STEP 3：
Press and hold the LED on/off button for about
5 seconds until the LCD screen shows SAVE, and
press picture programmable buttons until you
hear 2 beep sounds.
1 2
STEP 2：
Make sure the
batteries are good.
Replace them when
needed.
STEP 1：
Unplug the power cord from the power source. If
9V backup batteries were installed in the power
supply, remove them.
STEP 2：
Press and hold Select button until the LCD
screen of the remote control shows PAIR.
STEP 3：
STEP 4：
Plug the power cord back into the power source.
You will hear an activation sound in 2 seconds,
indicating the remote is paired to the power
foundation.
The original remote that comes in the box is already paired to the foundation. No further action is required.
In the event when the remote is not paired with the foundation, follow the following to pairing instructions.
M9X8 PAIRING REMOTE M9X9 PAIRING REMOTE
HOME SELECT
1
STOP
2
TV Z-G
SNORE
SETTING PROGRAMMABLE POSITION
The M9X8 and M9X9 power bed has a programmable feature that
allows you to save two custom positions.
Please read all the instructions below before setting your custom
presets on the remote.
The LCD screen will show LOW once the batteries are in
low power.
LOW BATTERY
LOCK
Press and hold the HOME and SELECT buttons
simultaneously for about 5 seconds until the LCD screen
shows LOCK.
UNLOCK
Press and hold the HOME and SELECT buttons for
about 5 seconds until the LOCK disappears on the LCD
screen.
SETTING REMOTE LOCK
The M9X9 power bed has a lock feature that allows you to lock the
remote. Read all the instructions below.
Adjust the head and foot to your desired position.
STEP 1：
To adjust a saved position, repeat step 1 and 2
and the new position will be saved.
STEP 3：
Press and hold the LED on/off button first,
then press and hold one of the picture programmable
buttons for 5 seconds until you hear a beep
sound. The position is then saved.
1 2
STEP 2：
Se ions
and Pairing Remote
ing Programmable Posit
HEAD FOOT
1
STOP
2

—09—
1-800-248-5988Customer Service Toll Free:
STEP 1：Unplug foundations from the power source.
STEP 2：Connect the male ends of the sync cord to the female sync plugs of the control boxes (Refer to below illustration).
STEP 3：Plug foundations back into the power source.
STEP 4：Check to ensure all cords are securely attached.Either remote will operate both foundations simultaneously.
Sync Plug
Sync Plug
Control Box 1 Control Box 2
Sync Cord
HD Motor FT Motor Neck Motor
HD Massage FT Massage
LED PROG APP SYN
USB
Power
HD Motor FT Motor Neck Motor
HD Massage FT Massage
LED PROG APP SYN
USB
Power
If simultaneous operation of two foundations is desired, use the sync cord
to connect the electronics of both foundations together.
M9X872 Synchronizing Two Foundations
M9X972 Synchronizing Two Foundations
Sync Plug
Sync Plug
Control Box 1
Control Box 2
HD Motor FT Motor Neck Motor
HD Massage FT Massage
LED
SYNC MOTION
USB
HD Motor FT Motor Neck Motor
HD Massage FT Massage
LED
SYNC MOTION
USB
Sync Cord
Synchronizing Two Foundat
M9X872/M9X972 ions

—10—
1-800-248-5988Customer Service Toll Free:
Headboard Bracket Installat
Guide (Opt
Headboard brackets are an optional accessory and are not included.
A 1/2'' (13 mm) socket and 1/2'' (13 mm) wrench are necessary to complete installation.
OPTIONAL HEADBOARD BRACKET COMPONENTS
(2) Headboard Brackets (2) T-Brackets (8) M8*16 (4) Nuts
a)Align the slot hole of the headboard bracket to the sleeve into
which the leg threads. DO NOT OVERTIGHTEN. Too much force
may damage the thread.
b)The headboard bracket has 2 adjustable slots to accommodate
any frame type. Use the bolts and Washers to secure the bracket.
Make sure the bolts are tight.
a)To put the T-Bracket and Headboard Bracket together, you will
need (2) M8×16 bolts and (2) nuts. Slip the bolts through the holes
from T-Bracket to Headboard Bracket with the head of bolt facing
outward. Use the 1/2” (13 mm) socket and 1/2” (13mm) wrench to
tighten the bolts.
You may now connect your headboard to the attachment plates using the remaining short bolts and nuts to secure it to the brackets. The heads of
the bolts will face outward. Use a 1/2” (13mm) socket and 1/2” (13mm) wrench to tighten the bolts.
(4) Washers
12
2
1
ion
ional)

—11—
1-800-248-5988Customer Service Toll Free:
In the event that the power foundation fails to operate, assess the symptoms and possible solutions
provided in the chart below.
SYMPTOMS SOLUTIONS
Remote control illuminates and appears to be operable, but will not
activate bed.
Head or foot section will elevate, but will not return to the horizontal
(flat) position.
No features of the power foundation will activate.
Remote will not illuminate. Replace the batteries in the remote.
Verify that the power cord is plugged into a working, grounded
electrical outlet. Test the outlet by plugging in another working
appliance.
Program the remote control (see the Setting Programmable Positions
and Pairing Remote section of this manual for programming
procedures).
Unplug the power cord, wait 30 seconds and plug back to reset
electronic components.
The electrical outlet may be defective. Test the outlet by plugging in
another working appliance.
Bed mechanism may be obstructed. Elevate bed and check for
obstruction. Remove obstruction.
Head section may be too close to the wall.
Headboard may be too close to the edge of the mattress. Verify
that there is enough distance between the headboard brackets and
mattress. Adjust if required.
Troubleshoot ing

—12—
1-800-248-5988Customer Service Toll Free:
In the event that the power foundation fails to operate, assess the symptoms and possible solutions
provided in the chart below.
SYMPTOMS SOLUTIONS
Head, Foot and/or Neck lift function has minor interference durling
operation.
Excessive massage motor noise.
A clicking noise is heard under the bed when raising or lowering.
Check batteries in remote control, replace with three (3) new AAA
batteries if necessary.
Make sure that you are following the duty cycle of the motors (do
not operate more than [2] minutes in an [18] minute time period or
approximately 10% duty cycle).
Press the lift buttons squarely and accurately.
Remote control may be experiencing common Radio Frequency
Interference from other radio transmitting devices. Wait several
seconds, and then try pressing appropriate button again, See FCC
COMPLIANCE statement on page 1 of this guide.
If the bed is located on hard surface flooring, place carpet pieces or
rubber pieces (not included) under each leg.
Using the remote control, elevate the head, foot or neck section a
short distance to realign the lift/lower mechanisms with the bed
support platform.
Verify that your ASHLEY Power Foundation is not positioned against
a wall, nightstand, or other object that may cause the vibration or
noise.
If the ASHLEY Power Foundation is installed over a bed frame, verify
that the massage motors are not causing the bed frame (or bed
frame components) to vibrate.
Verify that the headboard attachment hardware is properly tightened
(if used).
This is normal. The lift motor relays “click” when they are engaged.
No action is required.
Troubleshoot ing

Table des mat
Numéro sans frais du service à la clientèle : 1-800-248-5988
Consignes de sécurité et condit ions de garant ie ………………… 01
Liste des pièces…………………………………………………………………… 02
Guide d’installat
ion …………………………………………………………… 03
Guide d’installat
ion du support de tête de lit (facultat if) …… 10
M9X8/M9X9 – Guide de référence rapide des composants
électroniques……………………………………………………………………… 06
M9X8/M9X9 – Ut
ilisat ion de la télécommande ………………… 07
Programmat
ion des posit ions et jumelage de la télécommande
…………………………………………………………………………………………… 08
M9X872/M9X972 – Synchronisat
ion de deux bases ajustables
…………………………………………………………………………………………… 09
Dépannage ………………………………………………………………………… 11
ières

Numéro sans frais du service à la clientèle : 1-800-248-5988
—01—
CONSIGNES DE SÉCURITÉ :
• N’utilisez pas la base ajustable à l’extérieur
• N’utilisez pas la base ajustable près de matières explosives
• L’utilisation de cet appareil n’est pas recommandée pour les
personnes (y compris les enfants) inexpérimentées ou dont les
capacités physiques, sensorielles ou mentales sont réduites, sauf
si elles ont reçu des instructions préalables ou si elles sont sous la
supervision d’une personne responsable de leur sécurité.
• Ne laissez aucun humain ou animal de compagnie aller sous la base
ajustable en tout temps.
• Lorsque le lit est en fonction, assurez-vous qu’aucune partie du
corps ne dépasse en dehors du lit.
AVERTISSEMENTS : Dégagez l’espace en dessous
de la base ajustable avant de l’abaisser pour réduire les risques
de blessure ou de mort.
CONDITIONS DE GARANTIE :
moteurs
ou de la télécommande (sauf pour remplacer les piles) entraînera
l’annulation de la garantie.
Renseignements sur le fonctionnement :
• Une fois la base ajustable montée, essayez la télécommande
pour vous assurer de son bon fonctionnement avant de vous
installer dans le lit.
• Assurez-vous que les parties mobiles ne sont pas obstruées
lorsque la base ajustable est en fonction (y compris par des draps,
des vêtements, des tubes, des câbles et des articles dotés de
cordons d’alimentation).
• Répartissez votre poids de façon égale sur la surface du lit lorsqu’il
est en fonction. N’actionnez pas le lit en vous assoyant directement
aux extrémités.
CONFORMITÉ AUX NORMES DE LA FCC:
Cet appareil est conforme à la partie 15 des directives de la Commission fédérale des communications (FCC). Le fonctionnement de l’appareil
est sujet aux deux conditions suivantes : (1) Cet appareil ne doit pas causer d’interférences nuisibles et (2) il doit accepter toute interférence
reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable.
Pour respecter les exigences de la Commission fédérale des communications en matière d’exposition à des radiofréquences, aucune
dépasse les limites permises d’exposition aux radiofréquences et pourrait annuler l’autorisation de l’utilisateur de se servir de l’appareil.
FRÉQUENCE RADIO : 2,4 GHz
VEUILLEZ LIRE ATTENTIVEMENT LES INFORMATIONS SUIVANTES AVANT D’UTILISER CE
PRODUIT
Le fait de ne pas lire, comprendre et suivre l’ensemble des avertissements et des instructions
pourrait entraîner des dommages matériels, des blessures ou la mort. Si vous ne comprenez pas les
avertissements, les mises en garde ou les instructions, communiquez avec le détaillant ou avec l’équipe
technique, le cas échéant, avant d’assembler, d’installer ou d’utiliser l’équipement.
Consignes de sécurité et
condit ie
ions de garant

LISTE DES PIÈCES M9X9
HOME SELECT
1
STOP
2
TV Z-G
SNORE
(1)Télécommande
(2) Support de
montage
(2) Capteur de
mouvement
Liste des pièces
Numéro sans frais du service à la clientèle : 1-800-248-5988
—02—
L’ensemble des composantes et des appareils électroniques nécessaires à l’installation se trouvent dans
des boîtes fixées à la structure ou sous la base. Avant de vous débarrasser de l’emballage, assurez-vous
d’avoir toutes les pièces suivantes.
LISTE DES PIÈCES M9X8
(3)Piles AAA
(1)
Prise pour câble (TG
lits simples seulement)
(6) Pieds réglables
(Deux sections par jambe)
(Facultatif)
(1) Bloc d’alimentation
à batterie de secours (1)
Cordon d’alimentation
de la prise c.a.
(1)Télécommande
HEAD FOOT
1
STOP
2
ÉQUIPEMENT FACULTATIF (NON INCLUS)
COMPOSANTS POUR SUPPORT DE TÊTE DE LIT FACULTATIF (NON INCLUS)
Clé à douille et clé de 13 mm (1/2 po)
(2) Supports de tête de lit (2) Supports en T (8) M8*16 (4) Écrous (4) Rondelles
(1)
Barre de retenue du
matelas
(2 pour un très grand lit)
(3)Piles AAA
(1)
Prise pour câble (TG
lits simples seulement)
(Facultatif)
(1) Bloc d’alimentation
à batterie de secours (1)
Cordon d’alimentation
de la prise c.a.
(1)
Barre de retenue du
matelas
(2 pour un très grand lit)
9V 9V
9V
9V 9V
9V
(6) Pieds réglables
(Deux sections par jambe)

Numéro sans frais du service à la clientèle : 1-800-248-5988
—03—
4
TÊTE DE LIT
Retirez le lit de la boîte avec un mouvement de
bascule, puis laissez le lit se tenir sur les 4 pieds.
3Installez les 4 pieds,
assurez-vous que les jambes
sont serrées.
TÊTE DE LIT
1Ouvrez le couvercle de la boîte.
TÊTE DE LIT
x 1 (2 pour un
très grand lit)
Barre de retenue du matelas
×1
Boîte d’accessoires
2Sortez tous les accessoires de l’emballage et
mettez-les de côté.
BOÎTE D’ACCESSOIRES :
×6
Pieds réglables
(Deux sections par jambe)
×1
Bloc
d’alimentation
×1
Prise pour câble (TG
lits simples seulement)
×1
Cordon d’alimentation
de la prise c.a.
×1
Télécommande
M9X9
HOME SELECT
1
STOP
2
TV Z-G
SNORE
HEAD FOOT
1
STOP
2
×1
Télécommande
M9X8
×3
Piles
AAA
Support de
montage M9X9
×2×2
Capteur de
mouvement M9X9
L’installation de la base ajustable demande deux personnes.
AVERTISSEMENT : Prenez soin de lire et de suivre attentivement toutes les instructions pour
l’assemblage de la base ajustable. Ne branchez pas le cordon d’alimentation dans une prise électrique
tant que l’assemblage n’est pas correctement terminé. À défaut de suivre toutes les instructions pour
l’assemblage de la base ajustable, le lit pourrait ne pas fonctionner correctement, ce qui pourrait causer
un risque de blessures ou de mort.
Guide d’installat ion
* Assurez-vous que les pieds ajustables sont bien serrés et que les capuchons en plastique ont
été placés au bas des pieds. Une installation incorrecte peut provoquer la défaillance de la
pièce ou endommager le sol.

Numéro sans frais du service à la clientèle : 1-800-248-5988
—04—
5Sortez l’extrémité du lit du côté pied de la
boîte et placez-la sur la tête de lit.
TÊTE DE LIT
6Installez les 2 pieds restants sur
l’extrémité du lit du côté pied,
assurez-vous que les jambes sont
serrées. Déroulez le cordon
d’alimentation de la prise c.c.
(connecté au module de commande) et
placez-le à côté du lit.
Connectez les connecteurs du capteur de mouvement.
7
Installation du capteur de mouvement (M9X9)
Capteur de
mouvement M9X9 Support de montage M9X9
=+
Préparez le matériel du capteur de mouvement.
ÉTAPE 1 : Fixez le capteur de
mouvement au support de
montage.
ÉTAPE 2 : Tournez le support de
montage de 90 degrés dans le
sens
horaire.
ÉTAPE 3 :
TERMINÉ !
ÉTAPE 2 : Connectez les connecteurs du capteur de mouvement
comme illustré. Notez qu’il y a deux connecteurs, un de chaque
côté du lit.
ÉTAPE 1 : Fixez le support de montage sur les pieds réglables
au centre comme illustré.
TÊTE DE LIT
TÊTE DE LIT
Cordon d’alimentation c.c.
Boîtier de
commande
Guide d’installat ion
