Ashley AP130 Operation and maintenance manual

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
© 2021 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380 Ph. 800-750-2723
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
Owner’sInstructionandOperationManual
U.S. Environmental Protection Agency
Certied to comply with 2020 particulate
emissions standards.
SAFETY NOTICE: If this heater is not properly installed, a house re may result.
For your safety, follow the installation instructions. Never use make-shift
compromises during the installation of this heater. Contact local building or
re ofcials about permits, restrictions and installation requirements in your
area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.
CAUTION! Please read this entire manual before you install or use your new room
heater. Failure to follow instructions may result in property damage, bodily injury,
or even death. Improper Installation Could Void Your Warranty!
Save These Instructions In A Safe Place For Future Reference.
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to www.P65warnings.ca.gov
Model Number:
853146K-0202K
AP130
R
Report Number: F20-570
Certied to ASTM E1509-12 (2017),
and Certied to ULC-S627-00-REV1
Mobile Home Approved

2
© 2021 United States Stove Company
For Customer Service, please call:
1-800-750-2723 Ext 5050 or;
Text to 423-301-5624 or;
Email us at:
[e-mail]
Note: Register your product online at
www.usstove.com or download the
free app today. This app is available only
on the App Store for iPhone and iPad.
Search US Stove. Save your receipt with
your records for any claims.
WARNING:
IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER
INCONSISTENT WITH THE OPERATING INSTRUCTIONS IN THE OWNER’S MANUAL.
Your pellet stove has been safety tested and listed to ASTM E1509-12 (2017), ULC-S627-00. This manual
describes the installation and operation of the Ashley, AP130 pellet stove. This heater meets the 2020 U.S.
Environmental Protection Agency’s crib wood emission limits for wood-heaters sold after May 15, 2020.
Under specic EPA test conditions burning wood pellet fuel this heater has been shown to deliver heat at
a rate of 8,932 to 25,701 Btu/hr. This heater achieved a particulate emissions rate of 1.3 g/hr when tested to
method ASTM E 2779 / EPA Method 28R and 64% efciency.
Heating Specications
Fuel Burn Rate* 1.5 - 5.0 lbs./hr. (0.7 - 2.3 kg/hr) * Pellet size may effect the actual rate of
fuel feed and burn times. Fuel feed rates
may vary by as much as 20%. Use PFI
listed fuel for best results.
Burn Time (lowest setting) 80 hrs.
Hopper Capacity 130lbs. (59kg)
Electrical Specications
Electrical Rating 110-120 volts, 60 HZ, 3.0 Amps
Watts (operational) 175 (approx.)
Watts (igniter running) 425 (approx.)
Dimensions
Overall: Height x Width X
Depth 34”(864mm) X 26”(660mm) X 26”(686mm)
INTRODUCTION

© 2021 United States Stove Company
3
INSTALLATION CHECKLIST
Your Wood Stove should be installed by a qualied installer only. An NFI qualied Installer can be found at
www.ncertied.org/public/nd-an-n-pro/
CUSTOMER SERVICE
1-800-750-2723 ext 5050
Text to 423-301-5624
Email to: [e-mail]
COMMISSIONING CHECKLIST
This Checklist is to be completed in full by the qualied person who installs this unit. Keep this page for
future reference.
Failure to install and commission according to the manufacturer’s instructions and complete this checklist
will invalidate the warranty.
Please Print
Customer Name: Telephone Number:
Address:
Model:
Serial Number:
Installation Company Name: Phone Number:
Installation Technician’s Name: License Number:
DESCRIPTION OF WORK
Location of installed appliance: _________________________________________________________________________
Venting System: New Venting System Yes No If yes, Brand __________________________________
If no, Date of inspection of existing venting system:______________________________________________________
COMMISSIONING
Conrm Hearth Pad Installation as per Installation Instructions..............................................................................................
Conrm proper placement of internal parts ...........................................................................................................................................
Check soundness of door gasket and door seals .................................................................................................................................
Conrm clearances to combustibles as per installation instructions in this manual.................................................
Check the operations of the air controls ....................................................................................................................................................
Conrm the venting system is secure and sealed...............................................................................................................................
Conrm the stove starts and operates properly....................................................................................................................................
Check to ensure a CO alarm is installed as per local building codes and is functional .............................................
Explain the safe operation, proper fuel usage, cleaning, and routine maintenance requirements .................
Declaration of Completion: As the qualied person responsible for the work described above, I conrm that
the appliance as associated work has been installed as per manufacturer’s instructions and following any
applicable building and installation codes.
Signed: ___________________________________Print Name: ______________________________ Date: _____________
Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE

4
© 2021 United States Stove Company
INSTALLATION
FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050
SAFETY NOTICE
• IF THIS STOVE IS NOT PROPERLY INSTALLED,
A HOUSE FIRE MAY RESULT. TO REDUCE THE
RISK OF FIRE, FOLLOW THE INSTALLATION
INSTRUCTIONS.
• CONTACTYOURLOCALBUILDINGOFFICIALS
TO OBTAIN A PERMIT AND INFORMATION
ON ANY ADDITIONAL INSTALLATION
RESTRICTIONS OR INSPECTION
REQUIREMENTS IN YOUR AREA.
• DO NOT PLACE CLOTHING OR OTHER
FLAMMABLE ITEMS ON OR NEAR THIS
STOVE.
• NEVER USE GASOLINE, GASOLINE-TYPE
LANTERN FUEL, KEROSENE, CHARCOAL
LIGHTER FLUID, OR SIMILAR LIQUIDS TO
START OR ’FRESHEN UP’ A FIRE IN THIS
STOVE. KEEP ALL SUCH LIQUIDS WELL
AWAY FROM THE STOVE WHILE IT IS IN USE.
• THIS APPLIANCE IS A FREESTANDING
HEATER. IT IS NOT INTENDED TO BE
ATTACHED TO ANY TYPE OF DUCTING. IT
IS NOT A FURNACE. DO NOT CONNECT THIS
UNIT TO ANY AIR DISTRIBUTION DUCT OR
SYSTEM. THIS APPLIANCE IS NOT INTENDED
FOR COMMERCIAL USE.
• INSTALL VENT AT CLEARANCES SPECIFIED
BY THE VENT MANUFACTURER.
• DO NOT INSTALL A FLUE DAMPER IN THE
EXHAUST VENTING SYSTEM OF THIS UNIT.
• YOUR STOVE REQUIRES PERIODIC
MAINTENANCE AND CLEANING (SEE
”MAINTENANCE”). FAILURE TO MAINTAIN
YOUR STOVE MAY LEAD TO IMPROPER
AND/OR UNSAFE OPERATION.
• A POWER SURGE PROTECTOR IS REQUIRED.
THIS UNIT MUST BE PLUGGED INTO A 110
- 120V, 60 HZ GROUNDED ELECTRICAL
OUTLET. DO NOT USE AN ADAPTER
PLUG OR SEVER THE GROUNDING PLUG.
DO NOT ROUTE THE ELECTRICAL CORD
UNDERNEATH, IN FRONT OF, OR OVER
THE HEATER. DO NOT ROUTE THE CORD IN
FOOT TRAFFIC AREAS OR PINCH THE CORD
UNDER FURNITURE.
CAUTION:
BURNING FUEL CREATES CARBON MONOXIDE
AND CAN BE HAZARDOUS TO YOUR HEALTH
IF NOT PROPERLY VENTED.
ATTENTION:
• A WORKING SMOKE DETECTOR MUST BE
INSTALLED IN THE SAME ROOM AS THIS
PRODUCT.
• INSTALL A SMOKE DETECTOR ON EACH
FLOOR OF YOUR HOME; INCASE OF
ACCIDENTAL FIRE FROM ANY CAUSE IT
CAN PROVIDE TIME FOR ESCAPE.
• THE SMOKE DETECTOR MUST BE INSTALLED
AT LEAST 15 FEET (4,57 M) FROM THE
APPLIANCE IN ORDER TO PREVENT UNDUE
TRIGGERING OF THE DETECTOR WHEN
RELOADING.
CAUTION:
• USE OF OUTSIDE AIR IS NOT REQUIRED FOR
THIS UNIT.
• DO NOT UNPLUG THE STOVE IF YOU
SUSPECT A MALFUNCTION. TURN THE ON/
OFF SWITCH TO ”OFF’ AND CONTACT YOUR
DEALER.
• THE HEATER WILL NOT OPERATE DURING
A POWER OUTAGE. IF A POWER OUTAGE
DOES OCCUR, CHECK THE HEATER FOR
SMOKE SPILLAGE AND OPEN A WINDOW IF
ANY SMOKE SPILLS INTO THE ROOM.
• NEVER BLOCK FREE AIRFLOW THROUGH
THE OPEN VENTS OF THE UNIT.
US Stove highly recommends your stove be installed
by a qualied NFI (US) or WETT (Canada) technician.
To nd the nearest qualied installer, go to:
https://ncertied.org,
https://www.wettinc.ca/

© 2021 United States Stove Company
5
INSTALLATION
INSTALLATION OPTIONS
Freestanding Unit - Supported by pedestal/legs
and placed on a non-combustible oor surface
in compliance with clearance requirements for a
freestanding stove installation.
Alcove Unit - Supported by pedestal/legs and
placed on a non-combustible oor surface in
compliance with clearance requirements for an
alcove installation.
IMPROPER INSTALLATION
The use of other components other than stated
herein could cause bodily harm, heater damage,
and void your warranty. The manufacturer will not
be held responsible for damage caused by the
malfunction of a stove due to improper venting or
installation.

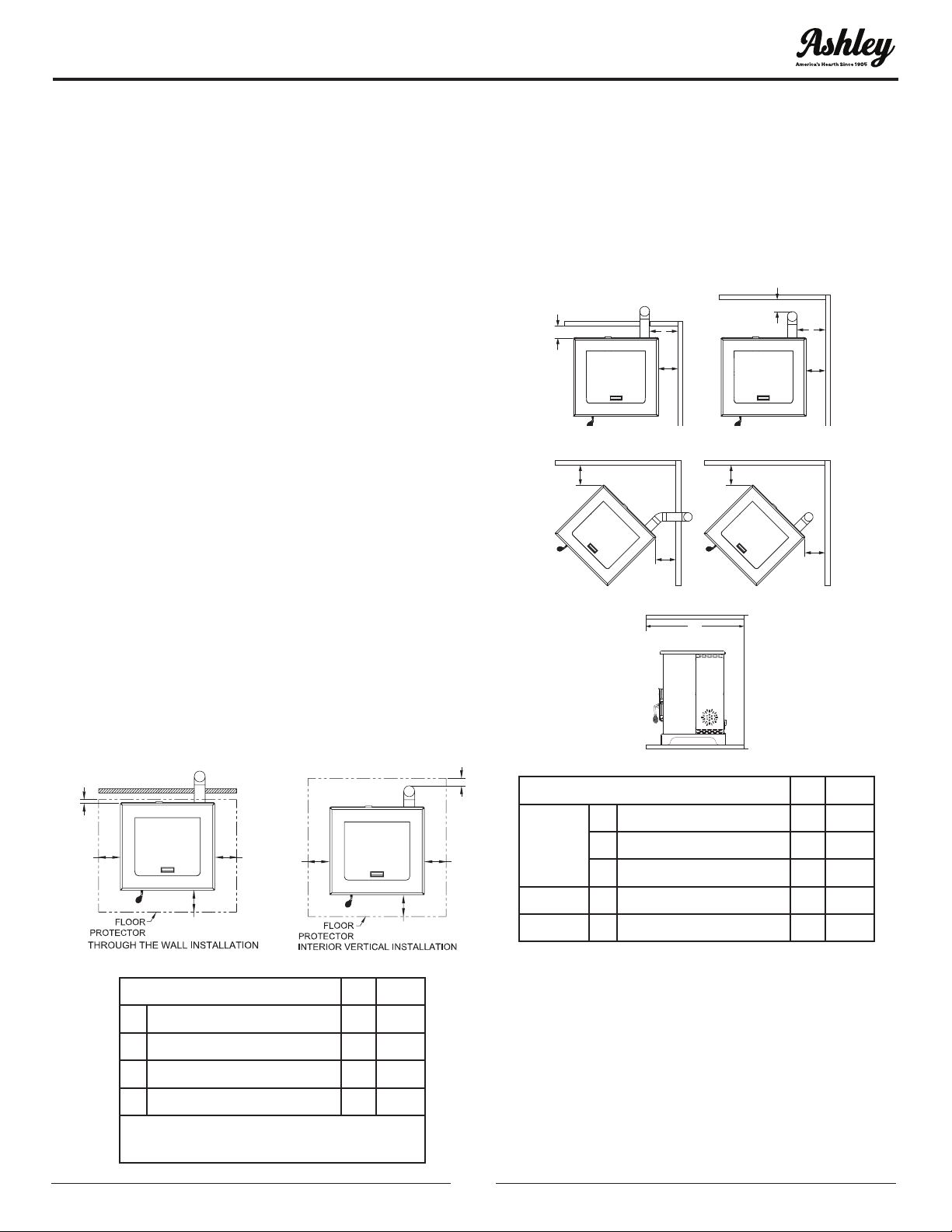

FLOOR PROTECTION
This unit must be installed on a non-combustible
oor surface. If a oor pad is used, it should be
certied or equal. The oor pad or non-combustible
surface should be large enough to extend a
minimum of 6” (153 mm) in front, 6” (153 mm) on
each side, and 1” (26 mm) behind the stove. Floor
protection must extend under and 2” (51 mm) to
each side of the chimney tee for an interior vertical
installation. A Floor Protector of 1” (26 mm) thick
is recommended for this installation. Canadian
installations require 18” (450 mm) in front of the
unit.
BB
D
C
A
B B
C
Dimensions in mm
A Rear (through wall) 1 25
B Side 6152
C Front *6 *152
DRear (interior vertical) 2 50
* Canada installation requires 18”
(450 mm) in front of the unit.
CLEARANCES
Your pellet stove has been tested and listed for
installation in residential, mobile home, and alcove
applications in accordance with the clearances
given in this manual. NOTE: Distance “B” on the side
of your pellet stove may need to be greater than the
minimum required clearance for suitable access to
the control panel.
E
BACK WALL
BACK WALL
SIDEWALL
SIDEWALL
FF
GG
E
ADJACENT WALL
ADJACENT WALL
H
ADJACENT WALL
H
H
ADJACENT WALL
H
J
in mm
Parallel
E Backwall to unit 2 50
FSidewall to ue 13 330
GSidewall to top edge 8203
Corner H Adjacent wall to unit 8203
Alcove JAlcove depth 36 914
OUTSIDE AIR SUPPLY (OPTIONAL, UNLESS
INSTALLING IN A MOBILE HOME)
Depending on your location and home
construction, outside air may be necessary for
optimal performance. Your stove is approved to be
installed with an outside air intake (69FAK) which
is necessary for a mobile home. You can purchase
the 69FAK through your heater dealer. Installation
instructions are supplied with the air intake kit.

6
© 2021 United States Stove Company
INSTALLATION
ATTENTION:
DO NOT VENT UNDER ANY PORCH, DECK,
AWNING, OR IN ANY SEMI ENCLOSED OR
ROOFED AREA. DOING SO MAY RESULT IN
UNPREDICTABLE AIRFLOW AT THE VENT
CAP UNDER CERTAIN CONDITIONS AND CAN
AFFECT THE PERFORMANCE OF YOUR STOVE,
AS WELL AS, OTHER UNFORESEEABLE ISSUES.

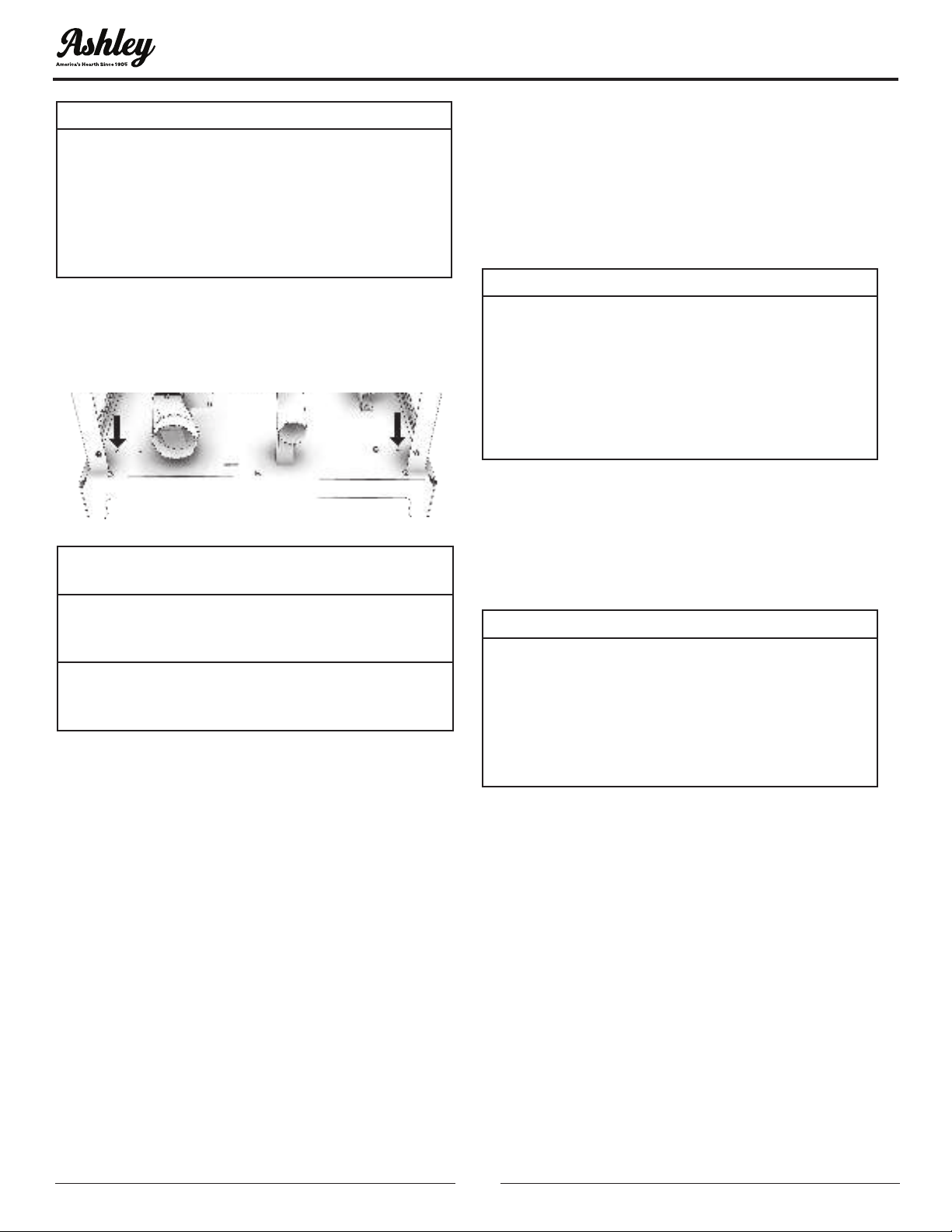

SECURING APPLIANCE TO THE FLOOR
Use the designated holes to secure the unit to the
oor.
WARNING! DO NOT INSTALL IN SLEEPING
ROOM.
CAUTION! THE STRUCTURAL INTEGRITY
OF THE MOBILE HOME FLOOR, WALL, AND
CEILING/ROOF MUST BE MAINTAINED.
WHEN INSTALLED IN A MOBILE HOME, THE
STOVE MUST BE GROUNDED DIRECTLY TO THE
STEEL CHASSIS AND BOLTED TO THE FLOOR.
In addition to the previously detailed installation
requirements, mobile home installations must
meet the following requirements:
• This stove must be securely fastened to the oor
of the mobile home using two 1/4” lag bolts that
are long enough to go through both a hearth pad,
if used, and the oor of the home.
• The heater must be electrically grounded to the
steel chassis of the mobile home with 8 GA copper
wire using a serrated or star washer to penetrate
paint or protective coating to ensure grounding.
• Vent must be 3 or 4-inch “PL” Vent and must
extend a minimum or 36” (914 mm) above the roof
line of the mobile home and must be installed
using a certied ceiling re stop and rain cap.
• When moving your mobile home, all exterior
venting must be removed while the mobile home
is being relocated. After relocation, all venting
must be reinstalled and securely fastened.
• Outside Air is mandatory for mobile home
installation. See Outside Air Supply section and
your dealer for purchasing.
• Check with your local building ofcials as other
codes may apply.
VENTING REQUIREMENTS
WARNING:
• INSTALL VENT AT CLEARANCES SPECIFIED
BY THE VENT MANUFACTURER.
• DO NOT CONNECT THE PELLET VENT TO A
VENT SERVING ANY OTHER APPLIANCE OR
STOVE.
• DO NOT INSTALL A FLUE DAMPER IN THE
EXHAUST VENTING SYSTEM OF THIS UNIT.
The following installation guidelines must be
followed to ensure conformity with both the safety
listing of this stove and to local building codes. Do
not use makeshift methods or compromise in the
installation.
IMPORTANT:
THIS UNIT IS EQUIPPED WITH A NEGATIVE
DRAFT SYSTEM THAT PULLS AIR THROUGH
THE BURN POT AND PUSHES THE EXHAUST
OUT OF THE DWELLING. IF THIS UNIT IS
CONNECTED TO A FLUE SYSTEM OTHER THAN
THE WAY EXPLAINED IN THIS MANUAL, IT
WILL NOT FUNCTION PROPERLY.
MAXIMUM VENTING DISTANCE
Installation MUST include at least 3-feet of vertical
pipe outside the home. This will create some natural
draft to reduce the possibility of smoke or odor
during appliance shutdown and keep exhaust from
causing a nuisance or hazard by exposing people
or shrubs to high temperatures. The maximum
recommend vertical venting height is 12-feet for
3-inch type “PL” vent. Total length of horizontal
vent must not exceed 4-feet. This could cause back
pressure. Use no more than 180 degrees of elbows
(two 90-degree elbows, or two 45-degree and one
90-degree elbow, etc.) to maintain adequate draft.
IMPORTANCE OF PROPER DRAFT
Draft is the force which moves air from the
appliance up through the chimney. The amount of

© 2021 United States Stove Company
7
INSTALLATION
draft in your chimney depends on the length of the
chimney, local geography, nearby obstructions and
other factors. Too much draft may cause excessive
temperatures in the appliance. Inadequate
draft may cause backpufng into the room and
‘plugging’ of the chimney. Inadequate draft will
cause the appliance to leak smoke into the room
through appliance and chimney connector joints.
An uncontrollable burn or excessive temperature
indicates excessive draft. Take into account the
chimney’s location to ensure it is not too close to
neighbors or in a valley which may cause unhealthy
or nuisance conditions.
PELLET VENT TYPE
A certied 3-inch or 4-inch type “PL” pellet vent
exhaust system must be used for installation and
attached to the pipe connector provided on the
back of the stove (use a 3-inch to 4-inch adapter for
4-inch pipe). Connection at back of stove must be
sealed using Hi-Temp RTV. Use 4-inch vent if the
vent height is over 12-feet or if the installation is over
2,500 feet above sea level. We recommend the use
of Simpson Dura-Vent® or Metal-Fab® pipe (if you
use other pipe, consult your local building codes
and/or building inspectors). Do not use Type-B
Gas Vent pipe or galvanized pipe with this unit.
The pellet vent pipe is designed to disassemble
for cleaning and should be checked several times
during the burning season. Pellet vent pipe is not
furnished with the unit and must be purchased
separately.
PELLET VENT INSTALLATION
The installation must include a clean-out tee to
enable collection of y ash and to permit periodic
cleaning of the exhaust system. 90-degree elbows
accumulate y ash and soot thereby reducing
exhaust ow and performance of the stove. Each
elbow or tee reduces draft potential by 30% to 50%.
All joints in the vent system must be fastened by
at least 3 screws, and all joints must be sealed with
Hi-Temp RTV silicone sealant to be airtight. The
area where the vent pipe penetrates to the exterior
of the home must be sealed with silicone or other
means to maintain the vapor barrier between the
exterior and the interior of the home. Vent surfaces
can get hot enough to cause burns if touched by
children. Noncombustible shielding or guards may
be required.
PELLET VENT TERMINATION
Do not terminate the vent in an enclosed or semi-
enclosed area, such as; carport, garage, attic,
crawl space, under a sun deck or porch, narrow
walkway, or any other location that can build up
a concentration of fumes. Termination in one of
these areas can also lead to unpredictable pressure
situations with the appliance, and could result
in improper performance and/or malfunction.
The termination must exhaust above the outside
air inlet elevation. The termination must not be
located where it will become plugged by snow or
other materials. Do not terminate the venting into
an existing steel or masonry chimney.
VENT TERMINATION CLEARANCES
A. Minimum 4-foot (1.22m) clearance below or
beside any door or window that opens.
B. Minimum 1-foot (0.3m) clearance above any
door or window that opens.
C. Minimum 3-foot (0.91m) clearance from any
adjacent building.
D. Minimum 7-foot (2.13m) clearance from any
grade when adjacent to public walkways.

8
© 2021 United States Stove Company
INSTALLATION
E. Minimum 2-foot (0.61m) clearance above any
grass, plants, or other combustible materials.
F. Minimum 3-foot (0.91m) clearance from an
forced air intake of any appliance.
G. Minimum 2-foot (0.61m) clearance below eves
or overhang.
H. Minimum 1-foot (0.3m) clearance horizontally
from combustible wall.
I. Must be a minimum of 3 foot (0.91m) above the
roof and 2 foot (0.61m) above the highest point
or the roof within 10 feet (3.05m).

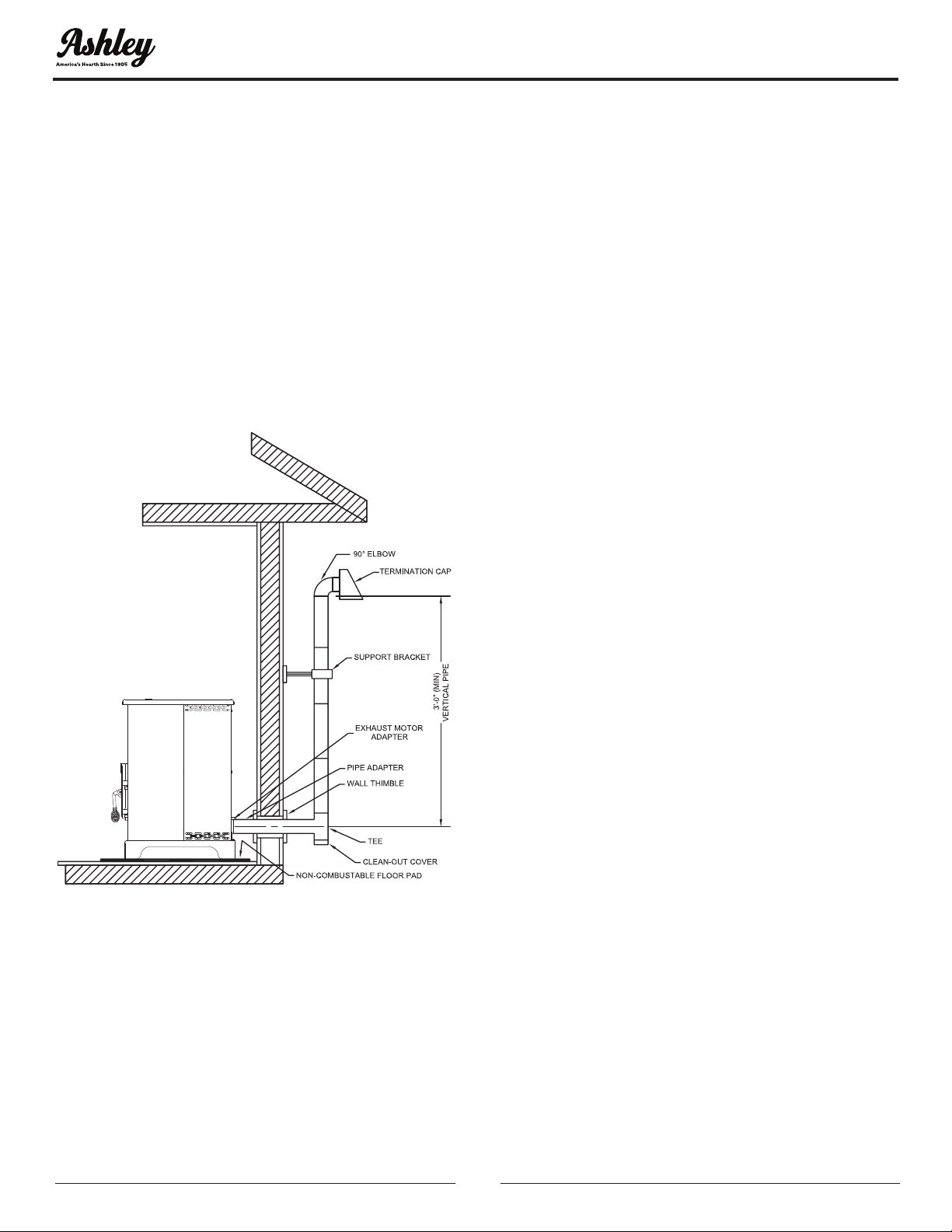

THROUGH THE WALL INSTALLATION
(RECOMMENDED INSTALLATION)
Canadian installations must conform to CAN/
CSA-B365. To vent the unit through the wall,
connect the pipe adapter to the exhaust motor
adapter. If the exhaust adapter is at least 18” (457
mm) above ground level, a straight section of
pellet vent pipe can be used through the wall.
Your heater dealer should be able to provide you
with a kit that will handle most of this installation,
which will include a wall thimble that will allow
the proper clearance through a combustible
wall. Once outside the structure, a 3” (76 mm)
clearance should be maintained from the outside
wall and a clean out tee should be placed on the
pipe with a 90-degree turn away from the house.
At this point, a 3ft (0.91m) (minimum) section of
pipe should be added with a horizontal cap, which
would complete the installation. A support bracket
should be placed just below the termination cap
or one every 4ft (1.22m) to make the system more
stable. If you live in an area that has heavy snowfall,
it is recommended that the installation be taller
than 3ft (0.91m) to get above the snowdrift line.
This same installation can be used if your heater is
below ground level by simply adding the clean-out
section and vertical pipe inside until ground level is
reached. With this installation you have to be aware
of the snowdrift line, dead grass, and leaves. We
recommend a 3ft (0.91m) minimum vertical rise on
the inside or outside of the house. The “through the
wall” installation is the least expensive and simplest
installation. Never terminate the end vent under a
deck, in an alcove, under a window, or between two
windows. We recommend Simpson Dura-Vent® or
Metal-Fab® kits.
THROUGH THE ROOF/CEILING
INSTALLATION
• When venting the heater through the ceiling, the
pipe is connected the same as through the wall,
except the clean-out tee is always on the inside
of the house, and a 3” (76 mm) adapter is added
before the clean-out tee.
• You must use the proper ceiling support
anges and roof ashing (supplied by the pipe
manufacturer; follow the pipe manufacturer’s
directions). It is important to note that if your
vertical run of pipe is more than 12ft (3.7m), the
pellet vent pipe size should be increased to 4” (102
mm) in diameter.
• Do not exceed more than 4ft (1.22m) of pipe on a
horizontal run and use as few elbows as possible. If
an offset is required, it is better to install 45-degree
elbows rather than 90-degree elbows.

© 2021 United States Stove Company
9
OPERATION INSTRUCTIONS
NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

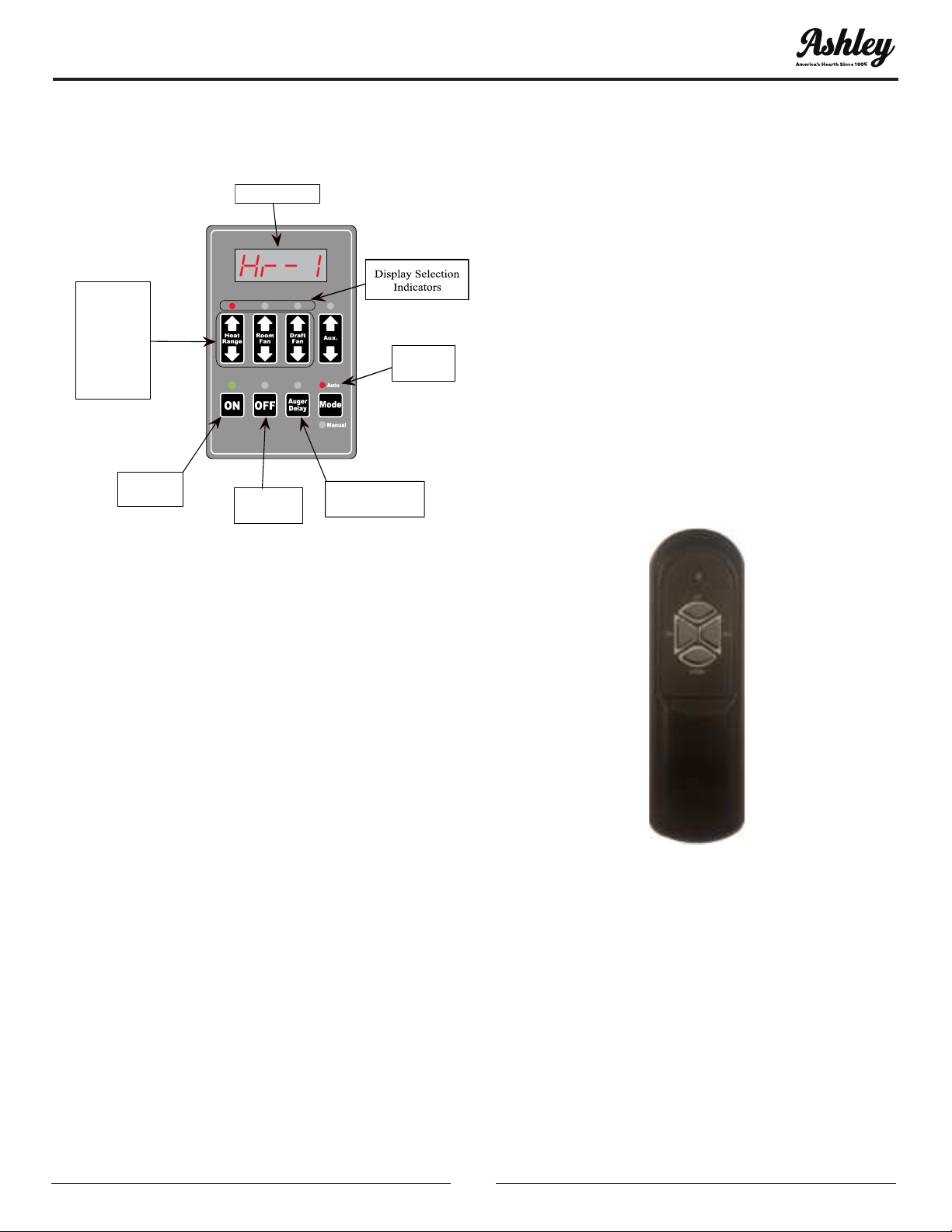

HOW YOUR STOVE WORKS
4 Digit Display
Up / Down
Buttons :
Heat Range
Room Fan
Draft Fan
Auto Mode
Indicator
Auger Delay
Indicator & Button
Off Indicator
& Button
On Indicator
& Button
Your pellet stove utilizes a inclined auger fuel
feed system that is operated by a microprocessor
controlled digital circuit board. The digital circuit
board allows the inclined auger fuel feed system
to run in a timer-based, non-continuous cycle; this
cycling allows the auger to run for a predetermined
period of seconds. The auger pushes pellets up a
chute located at the front/bottom of the hopper
which in turn falls through another chute into the
burnpot. Your stove is equipped with an automatic
ignition system that should ignite the fuel within
5-10 minutes from pressing the ON button. As
pellets enter the burn pot and ignite, outside air
is drawn across the fuel and heated during the
combustion process which is then pulled through
the heat exchanger by the exhaust motor or draft
fan. As the stove heats up, room air is circulated
around the heat exchanger by means of a room air
blower, distributing warm air into the room.
The amount of heat produced by the stove is
proportional to the rate of the fuel that is burned, and
this rate is controlled by the “HEAT RANGE” setting.
In order to maintain combustion of the fuel at a
desired rate, the air provided to the burn chamber
by the exhaust or draft fan must be maintained
precisely. Too little air will result in a ame that is
non-energetic or lazy. If the fuel continues to ow
with too little air for long enough, the burn pot will
ll with too much fuel and the re will smother out.
To much air will result in a ame that is overactive
or aggressive. The ame in this situation is typically
very blue at the bottom and resembles a blow torch.
If this situation continues, the fuel in the burn pot
will be consumed and the re will go out. Matching
the amount of air required for proper combustion
to the fuel rate is the primary objective in effectively
burning pellets of various brands and qualities in
your stove. The air to fuel ratio can be adjusted to
allow almost any fuel quality to burn effectively by
following the procedures detailed in the remainder
of this manual. Because a forced draft pressure is
required for the combustion process inside your
stove, it is extremely important that the exhaust
system be properly installed and maintained. And,
that when operating your stove, you make sure that
the viewing door is properly sealed.
PANEL/REMOTE CONTROLS
The operation of this appliance can be controlled
from the panel located on the side of the stove and/
or by the remote control. The control functions are
as follows:
A. On/Off Switch (“Power” Button)
• When pushed, the stove will automatically ignite.
No other re starter is necessary. The igniter
will stay on for at least 10 and up to 12 minutes,
depending on when Proof of Fire is reached. The
re should start in approximately 5 minutes.
• After pushing “POWER”, the auger motor is on for
3.5 minutes, off for 1 minute. During the remainder
of the start-up period, the auger motor operates

10
© 2021 United States Stove Company
on the heat range “1” setting.
• During start up the heat level advance (Up and
Down keys) will change the heat range indicator
level accordingly, but there is no change in the
stoves operating conditions until start-up is
completed.
• During start-up ignition must occur within 12
minutes or the stove will error out and show E3.
• During the start-up phase, the Mode key does not
function.
B. Heat Range Arrow Buttons
• These buttons when pushed will set the pellet
feed rate, hence the heat output or heat range
of your stove. When using the hand-held remote
this function can be performed with the “Up/
Down” buttons.
• The levels of heat output will incrementally
change on the bar graph starting from heat
range “1” to heat range “5”.
CONTROL PANEL OVERVIEW
Turning the heater ON/OFF, as well as adjustments
for the fuel feed rate and room fan speed are
performed by pressing the appropriate button(s)
on the control panel which is located on the lower
left-hand side of your heater.
• ON/OFF
Pressing the “ON” button on the control panel will
begin the start-up sequence for the heater. Fuel
will begin to feed through the auger feed system
then ignite after approximately 5 minutes.
Pressing the “OFF” button on the control panel will
cause the heater to enter its shut-down sequence.
The fuel feed system will stop pulling fuel from the
hopper and, once the re goes out and the heater
cools down, the fans will stop running.
• HEAT RANGE
Pressing the “Heat Range” arrows, up or down, will
adjust the amount of fuel being delivered to the
burnpot.
• DRAFT FAN
The draft fan (exhaust) will come on as soon as the
“ON” button is pressed. The fan will automatically
adjust its speed in accordance to the heat range
setting. However, this speed can be manually
operated by pressing the “Draft Fan” arrows up or
down. “Draft Fan” when pressed, the display will
show “Df-A”, which is automatic. Press the arrows
again to adjust fan speed. When the heater is in
the manual mode, the optional thermostat will
not properly control the unit. When adjusting the
Draft Fan setting, try only 1 setting above or below
the heat setting. It is better to leave the stove in the
automatic mode.
• ROOM FAN
The room fan will come on once the unit has
reached operating temperature. By pressing the
“Room Fan” buttons, the display will show “Rf-
A” which is automatic or “Rf-1” through “Rf-9” for
manual settings. In auto mode, the room fan’s
speed will automatically be adjusted in accordance
with the heat range setting. By pressing the “Room
Fan” up arrow, you can adjust the fan speed setting
up to “Rf-9”. The room fan must operate at a level
greater than or equal to the heat range setting.
• AUX - USED TO RETURN THE STOVE TO THE
FACTORY SETTINGS
To return the stove to it’s original factory settings,
press and hold the AUX UP and AUX DOWN buttons
simultaneously for 3 seconds.
• AUGER DELAY
The “Auger Delay” button can be used to pause
rotation of the Auger for approximately 1 minute.
This can be cancelled by pressing the “ON” button.
The “Auger Delay” is normally used only during the
start up cycle to slow the fuel delivery down during
the initial ignition.
• MODE
The “Mode” button is not used on this model.
During normal operation, the unit is constantly
monitored for problems. In the event of an error
condition, the unit will stop and an error will be
displayed. See the list of error codes found at the
end of this manual.
OPERATION INSTRUCTIONS

© 2021 United States Stove Company
11
THERMOSTAT HOOK-UP
1. Put female terminals on the lead wires to
your low voltage thermostat.
2. Plug one thermostat lead onto each of the
terminal posts on the circuit board.
The Jumper Must
Be Removed First
Use 18 gauge, 2
conductor wire
IMPORTANT NOTE: The purpose of the T’Stat is
to make the stove cycle between the
preselected desired heat range setting (”1” to
“5”) and the minimum heat range setting of “1”.
The T’Stat will not turn the stove on and off.
When the desired room temperature has been
reached and the T’Stat no longer requires heat
it will reduce to a minimum heat range setting of
“1”. The unit will not turn completely off. Once
the room temperature has dropped and the
T’Stat requires more heat, the unit will begin to
feed pellets at the preselected heat setting
ranging from “1” to “5”.
OPERATION INSTRUCTIONS

12
© 2021 United States Stove Company
WARNING:
• DO NOT USE CHEMICALS OR FLUIDS TO
START THE FIRE - NEVER USE GASOLINE,
GASOLINE-TYPE LANTERN FUEL,
KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TO START OR “FRESHEN
UP” A FIRE IN THIS STOVE. KEEP ALL SUCH
LIQUIDS WELL AWAY FROM THE STOVE
WHILE IT IS IN USE.
• HOT WHILE IN OPERATION. KEEP
CHILDREN, CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE SKIN BURNS.
This heater is designed to burn only PFI Premium
grade pellets. DO NOT BURN:
1. Garbage;
2. Lawn clippings or yard waste;
3. Materials containing rubber, including tires;
4. Materials containing plastic;
5. Waste petroleum products, paints or paint
thinners, or asphalt products;
6. Materials containing asbestos;
7. Construction or demolition debris;
8. Railroad ties or pressure-treated wood;
9. Manure or animal remains;
10. Salt water driftwood or other previously salt
water saturated materials;
11. Unseasoned wood; or
12. Paper products, cardboard, plywood, or
particleboard. The prohibition against burning
these materials does not prohibit the use of re
starters made from paper, cardboard, saw dust,
wax and similar substances for the purpose of
starting a re in an affected wood heater.
Burning these materials may result in release of
toxic fumes or render the heater ineffective and
cause smoke.
PROPER FUEL
ATTENTION:
THIS APPLIANCE IS DESIGNED FOR THE USE
OF PELLETIZED FUEL THAT MEET OR EXCEED
THE STANDARD SET BY THE PELLET FUEL
INSTITUTE (PFI).
Your pellet stove is designed to burn premium
hardwood pellets that comply with the Pellet Fuels
Institute (PFI) standard (minimum of 40 lbs density
per cubic ft, 1/4” to 5/16” diameter, length no greater
than 1.5”, not less than 8,200 BTU/lb, moisture under
8% by weight, ash under 1% by weight, and salt
under 300 parts per million). Pellets that are soft,
contain excessive amounts of loose sawdust, have
been, or are wet, will result in reduced performance.
Store your pellets in a dry place. DO NOT store the
fuel within the installation clearances of the unit
or within the space required for refuelling and ash
removal. Doing so could result in a house re. Do
not over re or use volatile fuels or combustibles,
doing so may cause a personal and property
damage hazards.
THIS STOVE IS APPROVED FOR BURNING
PELLETIZED WOOD FUEL ONLY ! Factory-approved
pellets are those 1/4” or 5/16” in diameter and not
over 1” long. Longer or thicker pellets sometimes
bridge the auger ights, which prevents proper
pellet feed. Burning wood in forms other than
pellets is not permitted. It will violate the building
codes for which the stove has been approved and
will void all warranties. The design incorporates
automatic feed of the pellet fuel into the re at
a carefully prescribed rate. Any additional fuel
introduced by hand will not increase heat output
but may seriously impair the stoves performance
by generating considerable smoke. Do not burn
wet pellets. The stove’s performance depends
heavily on the quality of your pellet fuel. Avoid pellet
brands that display these characteristics:
• Excess Fines – “Fines” is a term describing crushed
pellets or loose material that looks like sawdust or
sand. Pellets can be screened before being placed
in hopper to remove most nes.
• Binders – Some pellets are produced with
materials to hold the together, or “bind” them.
• High ash content – Poor quality pellets will often
create smoke and dirty glass. They will create a
need for more frequent maintenance. You will
have to empty the burn pot plus vacuum the
entire system more often. Poor quality pellets
could damage the auger. We cannot accept
responsibility for damage due to poor quality
pellet.
OPERATION INSTRUCTIONS

© 2021 United States Stove Company
13
CAUTION:
• KEEP FOREIGN OBJECTS OUT OF THE
HOPPER.
• THE MOVING PARTS OF THIS STOVE ARE
PROPELLED BY HIGH TORQUE ELECTRIC
MOTORS. KEEP ALL BODY PARTS AWAY
FROM THE AUGER WHILE THE STOVE IS
PLUGGED INTO AN ELECTRICAL OUTLET.
THESE MOVING PARTS MAY BEGIN TO
MOVE AT ANY TIME WHILE THE STOVE IS
PLUGGED IN.
PRE-START-UP CHECK
Remove burn pot, making sure it is clean and none
of the air holes are plugged. Clean the rebox, and
then reinstall burn pot. Clean door glass if necessary
(a dry cloth or paper towel is usually sufcient).
Never use abrasive cleaners on the glass or door.
Check fuel in the hopper, and rell if necessary.
BUILDING A FIRE
Never use a grate or other means of supporting
the fuel. Use only the burn pot supplied with this
heater. Hopper lid must be closed in order for the
unit to feed pellets. During the start-up period:
• Make sure the burn pot is free of pellets.
• DO NOT open the viewing door.
• The damper may need to be closed during
startup.
• DO NOT add pellets to the burn pot by hand.
NOTE: During the rst few res, your stove will
emit an odor as the high-temperature paint cures
or becomes seasoned to the metal. Maintaining
smaller res will minimize this. Avoid placing items
on the stovetop during this period because the paint
could be affected. Attempts to achieve heat output
rates that exceed heater design specications can
result in permanent damage to the heater.
OPTIMAL OPERATION
This pellet stove has been certied by the US EPA
to meet strict 2020 guidelines. To Insure this unit
produces the optimal minimal emissions, it is
critical to follow the following guidelines. To achieve
a “high burn” your stove should be set on setting 5.
To achieve a “medium burn” your stove should be
set on setting 2. To achieve a “low burn” your stove
should be set on setting 1. Settings 3 & 4 will give
you a higher heat output above medium burn rate.
If the door is opened while the stove is in operation
it must be closed within 30 seconds or the stove
will shut down. If the stove shuts down push the
“On/Off” button to re-start your stove. The stove will
have to fully shut down and turn off before you will
be able to restart the stove.
IGNITOR
1. Fill hopper and clean burn pot.
2. Press the “On/Off” button. Make sure the green
light comes on.
3. Adjust the feed rate to the desired setting by
pressing the “Heat Level Advance” button.
If the re doesn’t start in 12 minutes, press “On/Off”,
wait a few minutes, clear the burn pot, and start the
procedure again.
OPENING DOOR
CAUTION:
• DO NOT OPERATE YOUR STOVE WITH
THE VIEWING DOOR OPEN. THE AUGER
WILL NOT FEED PELLETS UNDER THESE
CIRCUMSTANCES AND A SAFETY CONCERN
MAY ARISE FROM SPARKS OR FUMES
ENTERING THE ROOM.
• THE DOOR MUST BE CLOSED AND SEALED
DURING OPERATION.
If the door is opened while the stove is in operation
it must be closed within 30 seconds or the stove
will shut down. If the stove shuts down push the
“On/Off” button to re-start your stove. The stove will
have to fully shut down and turn off before you will
be able to restart the stove.
ROOM AIR FAN
When starting your stove the Room Air Fan will not
come on until the stove’s heat exchanger warms up.
This usually takes about 10 minutes from start-up.
IF STOVE RUNS OUT OF PELLETS
The re goes out and the auger motor and blowers
will run until the stove cools. This will take 30 minutes
or longer depending on the heat remaining in
the appliance. After the stove components stop
running all lights on the display will go out and the
two digit display will begin ashing “E3”
OPERATION INSTRUCTIONS

14
© 2021 United States Stove Company
REFUELLING
WARNING:
• KEEP HOPPER LID CLOSED AT ALL TIMES
EXCEPT WHEN REFILLING.
• DO NOT OVERFILL HOPPER.
CAUTION:
• THE HOPPER AND STOVE TOP WILL BE
HOT DURING OPERATION; THEREFORE,
YOU SHOULD ALWAYS USE SOME TYPE
OF HAND PROTECTION WHEN REFUELING
YOUR STOVE.
• DO NOT TOUCH THE HOT SURFACES OF
THE STOVE. EDUCATE ALL CHILDREN ON
THE DANGERS OF A HIGH-TEMPERATURE
STOVE. YOUNG CHILDREN SHOULD BE
SUPERVISED WHEN THEY ARE IN THE SAME
ROOM AS THE STOVE.
• NEVER PLACE YOUR HAND NEAR THE
AUGER WHILE THE STOVE IS IN OPERATION.
• WE RECOMMEND THAT YOU NOT LET THE
HOPPER DROP BELOW 1/4 FULL.
TAMPER WARNING
This wood heater has a manufacturer-set minimum
low burn rate that must not be altered. It is against
federal regulations to alter this setting or otherwise
operate this wood heater in a manner inconsistent
with operating instructions in this manual.
SHUTDOWN PROCEDURE
WARNING:
NEVERSHUTDOWNTHISUNITBYUNPLUGGING
IT FROM THE POWER SOURCE.
Turning your stove off is a matter of pressing the
“POWER” button on the display board. The green
light will turn back to red when the “POWER”
button is pushed. The auger motor will stop, and the
blowers will continue to operate until the internal
rebox temperatures have fallen to a preset level.
1. Your stove is equipped with a high temperature
thermodisc. This unit has a manual reset
thermodisc. This safety switch has two functions.
A. To recognize an overheat situation in the stove
and shut down the fuel feed or auger system.
B. In case of a malfunctioning convection
blower, the high-temperature thermodisc will
automatically shut down the auger, preventing
the stove from overheating.
NOTE: On some units, once tripped, like a circuit
breaker, the reset button will have to be pushed
before restarting your stove. On other units the
thermodisc has no reset button and will reset
itself once the stove has cooled. The manufacturer
recommends that you call your dealer if this occurs
as this may indicate a more serious problem. A
service call may be required.
2. If the combustion blower fails, an air pressure
switch will automatically shut down the auger.
NOTE: Opening the stove door for more than
30 seconds during operation will cause enough
pressure change to activate the air switch, shutting
the fuel feed off. The stove will shut down and show
“E2” on the two digit display. The stove has to fully
shut down before restarting.
INTERIOR CHAMBERS
• Burn Pot - Periodically remove and clean the burn
pot and the area inside the burn pot housing. In
particular, it is advisable to clean out the holes in
the burn pot to remove any build up that may
prevent air from moving through the burn pot
freely.
Over time ash or dust may accumulate on the blades
of the circulation & exhaust fans. The fans should
be inspected, periodically, and if any accumulation
is present vacuumed clean as the ash or dust can
impede the fans performance. It is also possible
that creosote may accumulate in the exhaust fan
therefore, this must be brushed clean. The exhaust
fan can be found behind the left side panel (facing
the front of the heater), the circulation fan can
be found behind the right side panel. To access
the igniter, remove the air inlet tube and cover (2
screws). The auger motor is located in the center
rear of the unit. Note: When cleaning, take care not
to damage the fan blades.
If a vacuum is used to clean your stove, we suggest
using the AV15E AshVac vacuum. The AV15E AshVac
is designed for ash removal. Some regular vacuum
cleaner (i.e. shop vacs) may leak ash into the room.
DO NOT VACUUM HOT ASH.
OPERATION INSTRUCTIONS

© 2021 United States Stove Company
15
MAINTENANCE
NEVER OPERATE THIS PRODUCT WHILE UNATTENDED
CAUTION:
• FAILURE TO CLEAN AND MAINTAIN THIS
UNIT AS INDICATED CAN RESULT IN POOR
PERFORMANCE, SAFETY HAZARDS, FIRE,
AND EVEN DEATH.
• NEVER PERFORM ANY INSPECTIONS,
CLEANING, OR MAINTENANCE ON A HOT
STOVE.
• DISCONNECT THE POWER CORD BEFORE
PERFORMING ANY MAINTENANCE! NOTE:
TURNING THE ON/OFF SWITCH TO ”OFF”
DOES NOT DISCONNECT ALL POWER TO
THE ELECTRICAL COMPONENTS OF THE
STOVE.
• DO NOT OPERATE STOVE WITH BROKEN
GLASS, LEAKAGE OF FLUE GAS MAY RESULT.
• ATTEMPTS TO ACHIEVE HEAT OUTPUT
RATES THAT EXCEED HEATER DESIGN
SPECIFICATIONS CAN RESULT IN
PERMANENT DAMAGE TO THE HEATER.
CREOSOTE FORMATION, INSPECTION,
& REMOVAL
CAUTION:
THE EXHAUST SYSTEM SHOULD BE CHECKED
MONTHLY DURING THE BURNING SEASON FOR
ANY BUILD-UP OF SOOT OR CREOSOTE.
When any wood is burned slowly, it produces tar
and other organic vapors, which combine with
expelled moisture to form creosote. The creosote
vapors condense in the relatively cool chimney
ue or a newly started re or from a slow-burning
re. As a result, creosote residue accumulates
on the ue lining. When ignited, this creosote
makes an extremely hot re, which may damage
the chimney or even destroy the house. Despite
their high efciency, pellet stoves can accumulate
creosote under certain conditions. The chimney
connector and chimney should be inspected by
a qualied person annually or per ton of pellets
to determine if a creosote or y ash build-up has
occurred. If creosote has accumulated, it should
be removed to reduce the risk of a chimney re.
Inspect the system at the stove connection and
at the chimney top. Cooler surfaces tend to build
creosote deposits quicker, so it is important to
check the chimney from the top as well as from the
bottom. The creosote should be removed with a
brush specically designed for the type of chimney
in use. A qualied chimney sweep can perform this
service. It is also recommended that before each
heating season the entire system be professionally
inspected, cleaned and, if necessary, repaired. To
clean the chimney, disconnect the vent from the
stove.
FLY ASH
This accumulates in the horizontal portion of an
exhaust run. Though non-combustible, it may
impede the normal exhaust ow. It should therefore
be periodically removed.
ASH REMOVAL & DISPOSAL
CAUTION:
ALLOW THE STOVE TO COOL BEFORE
PERFORMING ANY MAINTENANCE OR
CLEANING. ASHES MUST BE DISPOSED IN A
METAL CONTAINER WITH A TIGHT FITTING
LID. THE CLOSED CONTAINER OF ASHES
SHOULD BE PLACED ON A NON-COMBUSTIBLE
SURFACE OR ON THE GROUND, WELL AWAY
FROM ALL COMBUSTIBLE MATERIALS,
PENDING FINAL DISPOSAL.
Remove the ashes periodically to avoid unnecessary
ash build up. Remove ashes when unit has cooled.
Ashes should be placed in a metal container with a
tight tting lid. The closed container of ashes should
be placed on a noncombustible oor or on the
ground, well away from all combustible materials,
pending nal disposal. If the ashes are disposed
of by burial in soil or otherwise locally dispersed,
they should be retained in the closed container
until all embers have been thoroughly cooled. The
container shall not be used for other trash or waste
disposal. If combined with combustible substances,
ashes and embers may ignite.
SMOKE & CO MONITORS
Burning wood naturally produces smoke and
carbon monoxide(CO) emissions. CO is a poisonous
gas when exposed to elevated concentrations

16
© 2021 United States Stove Company
for extended periods of time. While the modern
combustion systems in heaters drastically reduce
the amount of CO emitted out the chimney,
exposure to the gases in closed or conned areas
can be dangerous. Make sure you stove gaskets
and chimney joints are in good working order and
sealing properly to ensure unintended exposure. It
is recommended that you use both smoke and CO
monitors in areas having the potential to generate
CO.
CHECK & CLEAN THE HOPPER
Check the hopper periodically to determine if there
is any sawdust (nes) that is building up in the feed
system or pellets that are sticking to the hopper
surface. Clean as needed.
DOOR & GLASS GASKETS
Inspect the main door and glass window gaskets
periodically. The main door may need to be removed
to have frayed, broken, or compacted gaskets
replaced by your authorized dealer. This unit’s door
uses a 5/8” diameter rope gasket.
BLOWER MOTORS
Clean the air holes on the motors of both the
exhaust and distribution blowers annually. Remove
the exhaust blower from the exhaust duct and
clean out the internal fan blades as part of your fall
start-up. If you have indoor pets your power motors
should be inspected monthly to make sure they
are free of animal hair build up. Animal hair build
up in blowers can result in poor performance or
unforeseen safety hazards.
PAINTED SURFACES
Painted surfaces may be wiped down with a damp
cloth. If scratches appear, or you wish to renew your
paint, contact your authorized dealer to obtain a
can of suitable high-temperature paint.
GLASS
We recommend using a high-quality glass cleaner.
Should a buildup of creosote or carbon accumulate,
you may wish to use 000 steel wool and water to
clean the glass. DO NOT use abrasive cleaners. DO
NOT perform the cleaning while the glass is HOT.
Do not attempt to operate the unit with broken
glass. Replacement glass may be purchased from
your U.S. Stove dealer. If the glass is broken, follow
these removal procedures:
1. Once the heater has cooled, remove the door
from the heater.
2. Remove the rope gasket from the door followed
by the nuts holding the glass retainer in place.
3. While wearing gloves, carefully remove any
loose pieces of glass from the door frame.
4. Replace the glass and gasket, making sure the
gasket runs the full perimeter of the glass edge.
5. Re-install the retainer and eight nuts and rope
gasket using high-temperature silicone to
adhere the gasket to the door.
6. Never use substitute materials for the glass.
DO NOT abuse the door glass by striking, slamming,
or similar trauma. Do not operate the stove with the
glass removed, cracked, or broken.
FALL START UP
Prior to starting the rst re of the heating season,
check the outside area around the exhaust and air
intake systems for obstructions. Clean and remove
any y ash from the exhaust venting system. Clean
any screens on the exhaust system and on the
outside air intake pipe. Turn all of the controls on
and make sure that they are working properly. This
is also a good time to give the entire stove a good
cleaning throughout.
SPRING SHUTDOWN
After the last burn in the spring, remove any
remaining pellets from the hopper and the auger
feed system. Scoop out the pellets and then run
the auger until the hopper is empty and pellets
stop owing (this can be done by pressing the “ON”
button with the viewing door open). Vacuum out
the hopper. Thoroughly clean the burn pot, and
rebox. It may be desirable to spray the inside of
the cleaned hopper with an aerosol silicone spray
if your stove is in a high humidity area. The exhaust
system should be thoroughly cleaned.
MAINTENANCE

© 2021 United States Stove Company
17
MAINTENANCE SCHEDULE
Use the following as a guide under average use
conditions. Gaskets around door and door glass
should be inspected and repaired or replaced when
necessary.
Daily Weekly Monthly or
as needed
Burn Pot Stirred Empty
Combustion
Chamber Brushed
Ashes Check Empty
Interior
Chambers Vacuumed
Combustion
Blower Blades
Vacuumed
/ Brushed
Convection
Blower Impeller
Vacuumed
/ Brushed
Vent System Cleaned
Gaskets Inspected
Glass Wiped Cleaned
Hopper (end of
season)
Empty &
Vacuumed
MAINTENANCE

18
© 2021 United States Stove Company
TROUBLE SHOOTING
ATTENTION: THIS WOOD HEATER NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER
OPERATION. IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A
MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL.
• Disconnect the power cord before performing any maintenance! NOTE: Turning the ON/OFF Switch to
”OFF” does not disconnect all power to the electrical components of the stove.
• Never try to repair or replace any part of the stove unless instructions for doing so are given in this manual.
All other work should be done by a trained technician.
PROBLEM CAUSE: To rich air/fuel mixture
Orange, lazy ame
excessive fuel build-
up in the burnpot
Clean out the burnpot and burnpot housing
Make sure that the viewing door is closed and sealed properly. If not, adjust door
catch and/or replace door gaskets.
Check that all outside connections are clear of any obstructions.
Check the exhaust system; clean as needed.
PROBLEM CAUSE: Burnpot burns out of fuel
Fire goes out or
stove shuts down.
Hopper is empty, rell the hopper.
Loss of draft pressure. Make sure that the viewing door is closed and sealed
properly. If not, adjust door catch and/or replace door gaskets. Check that all
outside connections are clear of any obstructions. Check the exhaust system; clean
as needed.
Check that the pressure switch connection to the rebox is free of ash or clear of
obstructions.
Auger system is jammed or there is a “bridging” of the fuel in the hopper, preventing
fuel from owing into the auger feed system.
PROBLEM CAUSE: Auto-Start Igniter fails to ignite the fuel in the burn pot.
Stove does not
start a re when
the “ON” button is
pushed
Turn the stove “OFF”. Clear the unburned fuel from the burnpot and try again.
Check the pellet quality. Replace if moist, wet, or dirty.
Loss of draft pressure. Make sure that the viewing door is closed and sealed
properly. If not, adjust door catch and/or replace door gaskets. Check that all
outside connections are clear of any obstructions. Check the exhaust system; clean
as needed.
Check that the auto-start igniter is not blocked with ash or soot. (The igniter is
located behind the burnpot on the back wall of the rebox.)
Check that the pressure switch connection to the rebox is free of ash or clear of
obstructions.
The auto-start igniter gets “red hot” during start-up. If you can not visibly see the
igniter glowing during start-up, then the igniter may need to be replaced or there
is a problem with the electrical control system.
PROBLEM CAUSE: Power outage
Experiencing low
exhaust pressure Turn off the circuit board and turn it back on.

© 2021 United States Stove Company
19
TROUBLE SHOOTING
Error Code Error Description Possible Causes
Err1 The high limit temperature sensor
has tripped.
Inadequate ventilation.
Room fan failure.
Exhaust Blockage.
Electrical Open in wiring.
Err2 Stove ran out of fuel during normal
operation.
Hopper Empty.
Auger output failure or jam.
Flame of fuel quality caused re to burn too slowly
or go out.
Electrical Open in wiring.
The high limit thermosdisc has tripped and will
need to be manually reset.
Err3
The stove was unable to reach the
Room Fan On temperature within
the start-up time.
Flame or Fuel quality caused the re to burn too
slowly or go out.
Auger output failure or jam Hopper empty on start-
up.
Err4
The power failed while the stove was
hot, and when power was restored,
the re was out.
Electrical Open in wiring.
Power loss
Err5 The Auger output fuse has blown. Auger motor jammed or bad.
Err6 The Ignitor output fuse has blown. Ignitor shorted out or bad.
Err7 The Draft Fan (Exhaust Fan) output
fuse has blown. Draft Fan motor jammed or bad.
Err8 The Room Fan output fuse has blown. Room fan motor jammed or bad.
DISPLAY INDICATORS
Several situations or events are indicated in
normal operation by blinking display indicators or
segments in the display:
Flashing On - This means that the stove is in the
“Start Up” state waiting for the ignition procedure
to complete.
Flashing Off - This indicates that the stove is in the
“Shut Down” state waiting for the off button, or for
a 15 minute period after the stove was turned off,
or for the stove to cool down, or for the door to be
closed.
Flashing dash in Heat Range Display - This
indicates that the stove is in the normal run mode
and is ramping from the current heat range setting
to the target heat range setting. Once the ramp is
complete, the dash will stop ashing. For ramping
from heat range 1 to 5, the default time is 12 minutes
(with a 90 second ramp time).
Flashing Automatic Mode - This indicates that
the stove is in normal operation and is running in
the automatic mode. However, either the draft fan
or room fan setting is manually congured.
Flashing Draft Fan Setting - This indicates that the
stove is in normal operation and that the vacuum
sensor detects a loss of pressure either because the
door is open or because there is a negative pressure
in the room with respect to the exhaust.
Flashing Aux - This indicates that the ignitor is on
during the lighting stage.
Quickly (changes twice per second) Flashing
Heat Range Setting - This indicates that the stove
is in normal operation and that an over-temperature
condition exists causing the fuel to stop.
Slowly (changes once per second) Flashing
Heat Range Setting - This indicates that the stove
is in a cut back condition in an attempt to prevent
an over-temperature shut down.
FACTORY DEFAULTS
To return the control to its original factory default
settings, press and hold the AUX UP and AUX
DOWN buttons together for three seconds.

20
© 2021 United States Stove Company
47
46
48 49

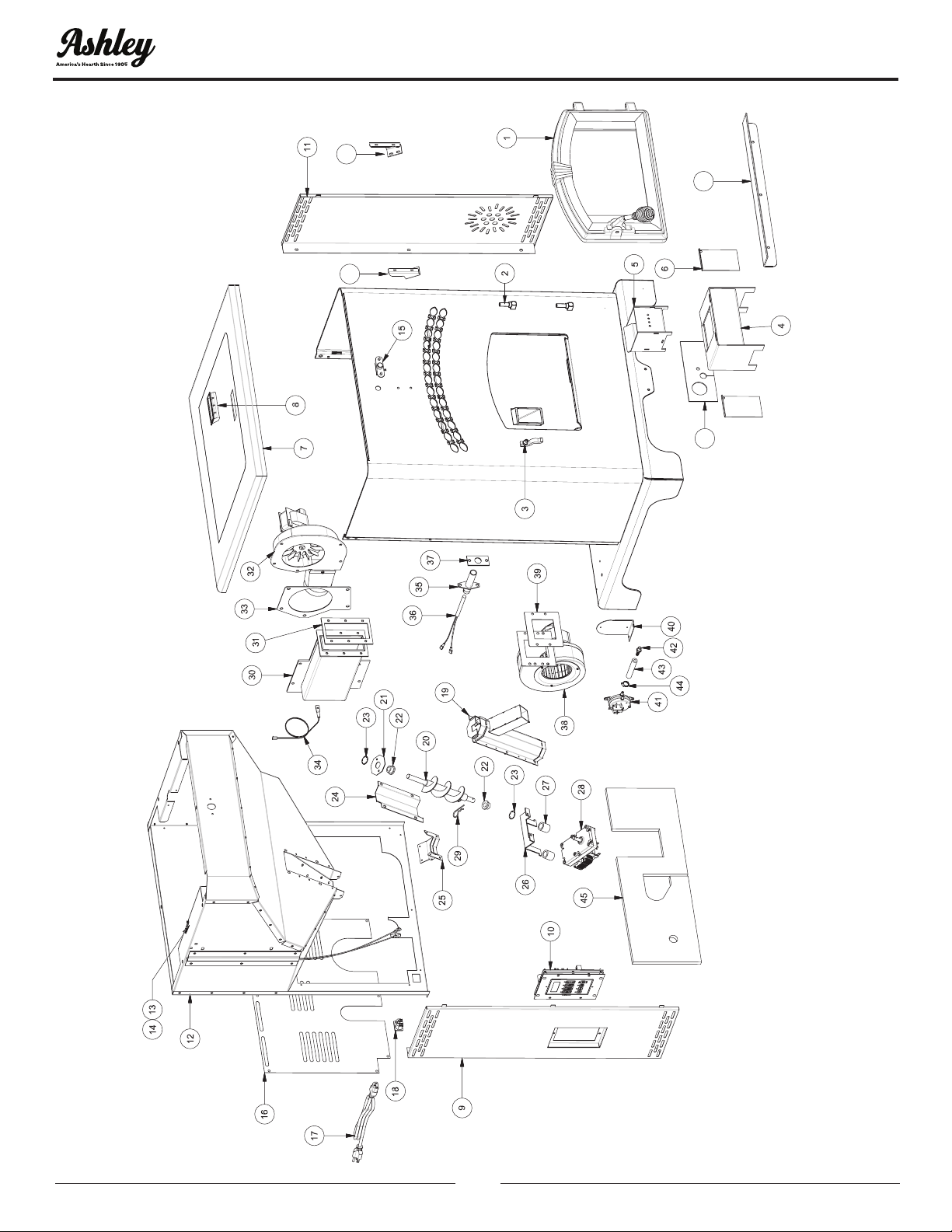

PARTS DIAGRAM
