Ashley AP5613-W Operation and maintenance manual

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
© 2023 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380 Ph. 800-750-2723
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
Owner’s Instruction and Operation Manual
U.S. Environmental Protection Agency
Certied to comply with 2020 particulate
emissions standards.
SAFETY NOTICE: If this heater is not properly installed, a house re may result.
For your safety, follow the installation instructions. Never use make-shift
compromises during the installation of this heater. Contact local building or
re ofcials about permits, restrictions and installation requirements in your
area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.
CAUTION! Please read this entire manual before you install or use your new room
heater. Failure to follow instructions may result in property damage, bodily injury,
or even death. Improper Installation Will Void Your Warranty!
Save These Instructions In A Safe Place For Future Reference.
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to www.P65warnings.ca.gov
853993-0704M
AP5613-W
R
Report Number: F22-771
Certied to ASTM E1509-2022 and Certied to
CAN/ULC S627:2023; Complies to CAN ICES-3(B)/
NMB-3(B); Contains IC:23243-WBR1DIPEX
Mobile Home / Transportable Building Approved
Model Number:

2
© 2023 United States Stove Company
INTRODUCTION
Your pellet stove has been approved for installation in the USA and Canada. It may also be installed in
a manufactured or mobile home / transportable building. Your stove is Certied to ASTM E1509-2022
and Certied to CAN/ULC S627:2023. This manual describes the installation and operation of the Ashley,
AP5613-W wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s crib wood
emission limits for wood heaters sold after May 15, 2020. Under specic test conditions this heater has been
shown to deliver heat at rates ranging from 10,609 to 24,676 Btu/hr. This heater achieved a particulate
emissions rate of 1.5 g/hr when tested to method ASTM E2779-10 (*and an efciency of 76%).
WARNING:
IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER
INCONSISTENT WITH THE OPERATING INSTRUCTIONS IN THE OWNER’S MANUAL.
Heating Specications
Fuel Burn Rate* (lowest setting) 1.65 lbs./hr. (0.75 kg/hr) * Pellet size may effect the actual rate of fuel
feed and burn times. Fuel feed rates may
vary by as much as 20%. Use PFI listed fuel
for best results.
Burn Time (lowest setting) 30 hrs. (approximate)
Hopper Capacity 50 lbs. (22.7 kg)
Flue Size 3” or 4”
Electrical Specications
Electrical Rating 110-120 Volts AC, 60 HZ, 3.0 Amps
Watts (operational) 125
Watts (igniter running) 310
Dimensions
Overall: Height x Width X Depth 33-3/8” (848 mm) x 19” (482 mm) x 23” (585 mm)
For Customer Service, please call:
1-800-750-2723 Ext 5050 or;
Text to 423-301-5624 or;
Email us at:
[e-mail]
Note: Register your product online at
www.usstove.com or download the free
app today. This app is available only on the
App Store for iPhone and iPad. Search US
Stove. Save your receipt with your records
for any claims.
Note: To enable WiFi or Bluetooth®
connectivity for your stove, download the
US Stove Co. App. The US Stove Co. app
allows you to operate and monitor your
stove. The App is available for both iOS and
Android and can be found by searching for
the following: US Stove Company Heating
Made Simple.

© 2023 United States Stove Company
3
INSTALLATION CHECKLIST
Your Wood Stove should be installed by a qualied installer only. An NFI qualied Installer can be found at
www.ncertied.org/public/nd-an-n-pro/
CUSTOMER SERVICE
1-800-750-2723 ext 5050
Text to 423-301-5624
Email to: [e-mail]
COMMISSIONING CHECKLIST
This Checklist is to be completed in full by the qualied person who installs this unit. Keep this page for
future reference.
Failure to install and commission according to the manufacturer’s instructions and complete this checklist
will invalidate the warranty.
Please Print
Customer Name: Telephone Number:
Address:
Model:
Serial Number:
Installation Company Name: Phone Number:
Installation Technician’s Name: License Number:
DESCRIPTION OF WORK
Location of installed appliance: _________________________________________________________________________
Venting System: New Venting System Yes No If yes, Brand __________________________________
If no, Date of inspection of existing venting system:______________________________________________________
COMMISSIONING
Conrm Hearth Pad Installation as per Installation Instructions..............................................................................................
Conrm proper placement of internal parts...........................................................................................................................................
Check soundness of door gasket and door seals .................................................................................................................................
Conrm clearances to combustibles as per installation instructions in this manual.................................................
Check the operations of the air controls ....................................................................................................................................................
Conrm the venting system is secure and sealed...............................................................................................................................
Conrm the stove starts and operates properly....................................................................................................................................
Check to ensure a CO alarm is installed as per local building codes and is functional .............................................
Explain the safe operation, proper fuel usage, cleaning, and routine maintenance requirements .................
Declaration of Completion: As the qualied person responsible for the work described above, I conrm that
the appliance as associated work has been installed as per manufacturer’s instructions and following any
applicable building and installation codes.
Signed: ___________________________________Print Name: ______________________________ Date: _____________
Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE

4
© 2023 United States Stove Company
ASSEMBLY INSTRUCTIONS
FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050
1. Pull the factory installed 5 Pin Main Wiring
Harness and 7 Pin Com Cabel out of the top of
the stove.
5 Pin Main Wiring Harness
7 Pin Com Cable
2. Unpack the top mount controls and ensure that
all wires are securely attached.
3. Connect the factory installed 5 Pin Main Wiring
Harness to the top right-hand corner of the
control panel. Connect the factory installed
7 Pin Com Cabel to the control panel directly
below the 5 Pin Main Wiring Harness.
7 Pin Com Cable
5 Pin Main Wiring Harness
4. Secure the control panel to the top of the stove
with two sheet metal screws.

© 2023 United States Stove Company
5
INSTALLATION
SAFETY NOTICE
• IF THIS STOVE IS NOT PROPERLY INSTALLED,
A HOUSE FIRE MAY RESULT. TO REDUCE THE
RISK OF FIRE, FOLLOW THE INSTALLATION
INSTRUCTIONS.
• CONTACTYOURLOCALBUILDINGOFFICIALS
TO OBTAIN A PERMIT AND INFORMATION
ON ANY ADDITIONAL INSTALLATION
RESTRICTIONS OR INSPECTION
REQUIREMENTS IN YOUR AREA.
• DO NOT PLACE CLOTHING OR OTHER
FLAMMABLE ITEMS ON OR NEAR THIS
STOVE.
• NEVER USE GASOLINE, GASOLINE-TYPE
LANTERN FUEL, KEROSENE, CHARCOAL
LIGHTER FLUID, OR SIMILAR LIQUIDS TO
START OR ’FRESHEN UP’ A FIRE IN THIS
STOVE. KEEP ALL SUCH LIQUIDS WELL
AWAY FROM THE STOVE WHILE IT IS IN USE.
• THIS APPLIANCE IS A FREESTANDING
HEATER. IT IS NOT INTENDED TO BE
ATTACHED TO ANY TYPE OF DUCTING. IT
IS NOT A FURNACE. DO NOT CONNECT THIS
UNIT TO ANY AIR DISTRIBUTION DUCT OR
SYSTEM. THIS APPLIANCE IS NOT INTENDED
FOR COMMERCIAL USE.
• INSTALL VENT AT CLEARANCES SPECIFIED
BY THE VENT MANUFACTURER.
• DO NOT INSTALL A FLUE DAMPER IN THE
EXHAUST VENTING SYSTEM OF THIS UNIT.
• YOUR STOVE REQUIRES PERIODIC
MAINTENANCE AND CLEANING (SEE
”MAINTENANCE”). FAILURE TO MAINTAIN
YOUR STOVE MAY LEAD TO IMPROPER
AND/OR UNSAFE OPERATION.
• A POWER SURGE PROTECTOR IS REQUIRED.
THIS UNIT MUST BE PLUGGED INTO A 110
- 120V, 60 HZ GROUNDED ELECTRICAL
OUTLET. DO NOT USE AN ADAPTER
PLUG OR SEVER THE GROUNDING PLUG.
DO NOT ROUTE THE ELECTRICAL CORD
UNDERNEATH, IN FRONT OF, OR OVER
THE HEATER. DO NOT ROUTE THE CORD IN
FOOT TRAFFIC AREAS OR PINCH THE CORD
UNDER FURNITURE.
CAUTION:
BURNING FUEL CREATES CARBON MONOXIDE
AND CAN BE HAZARDOUS TO YOUR HEALTH
IF NOT PROPERLY VENTED.
ATTENTION:
• A WORKING SMOKE DETECTOR MUST BE
INSTALLED IN THE SAME ROOM AS THIS
PRODUCT.
• INSTALL A SMOKE DETECTOR ON EACH
FLOOR OF YOUR HOME; INCASE OF
ACCIDENTAL FIRE FROM ANY CAUSE IT
CAN PROVIDE TIME FOR ESCAPE.
• THE SMOKE DETECTOR MUST BE INSTALLED
AT LEAST 15 FEET (4,57 M) FROM THE
APPLIANCE IN ORDER TO PREVENT UNDUE
TRIGGERING OF THE DETECTOR WHEN
RELOADING.
CAUTION:
• USE OF OUTSIDE AIR IS NOT REQUIRED FOR
THIS UNIT.
• DO NOT UNPLUG THE STOVE IF YOU
SUSPECT A MALFUNCTION. TURN THE
ON/OFF SWITCH TO ”OFF’ AND CONTACT
CUSTOMER SERVICE.
• THE HEATER WILL NOT OPERATE DURING
A POWER OUTAGE. IF A POWER OUTAGE
DOES OCCUR, CHECK THE HEATER FOR
SMOKE SPILLAGE AND OPEN A WINDOW IF
ANY SMOKE SPILLS INTO THE ROOM.
• NEVER BLOCK FREE AIRFLOW THROUGH
THE OPEN VENTS OF THE UNIT.
US Stove highly recommends your stove be installed
by a qualied NFI (US) or WETT (Canada) technician.
To nd the nearest qualied installer, go to:
https://ncertied.org,
https://www.wettinc.ca/

6
© 2023 United States Stove Company
IMPROPER INSTALLATION
The use of other components other than stated
herein could cause bodily harm, heater damage,
and void your warranty. The manufacturer will not
be held responsible for damage caused by the
malfunction of a stove due to improper venting or
installation.
FLOOR PROTECTION
This heater must have a non-combustible oor
protector (UL1618 ember protection) installed
beneath it if the oor is of combustible material.
USA- The oor protector should be listed to UL 1618
or equivalent to type 1 ember oor protection. The
oor protection must extend 6” (153mm) to the
front, 6” (153mm) on each side and 1” to the rear of
the appliance. Under and 2” (51mm) beyond each
side of cleanout tee if indoor vertical installation.
See diagram for further information
Canada - Floor protector must comply with CAN/
ULC standards. Must extend 18” (458mm) forward
and 8” (204mm) beyond each side of unit.
A Back to Stove U.S.A 1” 26 mm
CAN 8” 204 mm
BSide to Stove U.S.A 6” 153 mm
CAN 8” 204 mm
C Front to Stove U.S.A 6” 153 mm
CAN 18” 458 mm
D Back to Flue 2” 51 mm
CLEARANCES
Your pellet stove has been tested and listed
for installation in residential, mobile home /
transportable building in accordance with the
clearances given below. For safety reasons, please
adheretothe installationclearancesandrestrictions.
Any reduction in clearance to combustibles may
only be done by means approved by a regulatory
authority.
E Side Wall to Stove 8” 204 mm
FSide Wall to PL Vent Pipe 10” 254 mm
GBack Wall to Stove 9.25” 235 mm
HBack Wall to PL Vent
Pipe 3” 76 mm
J Ceiling to Floor 60” 1524 mm
KCeiling to Stove 27.5 699 mm
L Wall to Stove 7-1/2” 191 mm
MSide Wall to PL Vent Pipe 11-1/4” 286 mm
NWall to PL Vent Pipe 7-1/2” 191 mm
OUTSIDE AIR SUPPLY 


Depending on your location and home
construction, outside air may be necessary for
optimal performance. Your stove is approved to be
installed with an outside air intake (69FAK) which
is necessary for a mobile home / transportable
building. You can purchase the 69FAK through your
heater dealer. Installation instructions are supplied
with the air intake kit.
INSTALLATION


© 2023 United States Stove Company
7
ATTENTION:
DO NOT VENT UNDER ANY PORCH, DECK,
AWNING, OR IN ANY SEMI ENCLOSED OR
ROOFED AREA. DOING SO MAY RESULT IN
UNPREDICTABLE AIRFLOW AT THE VENT
CAP UNDER CERTAIN CONDITIONS AND CAN
AFFECT THE PERFORMANCE OF YOUR STOVE,
AS WELL AS, OTHER UNFORESEEABLE ISSUES.
SECURING APPLIANCE TO THE FLOOR
Use the designated holes to secure the unit to the
oor.
Fresh Air
Intake
Exhaust
Pipe
WARNING! DO NOT INSTALL IN SLEEPING ROOM.
CAUTION! THE STRUCTURAL INTEGRITY OF THE
MOBILE HOME / TRANSPORTABLE BUILDING
FLOOR, WALL, AND CEILING/ROOF MUST BE
MAINTAINED.
WHEN INSTALLED IN A MOBILE HOME /
TRANSPORTABLE BUILDING, THE STOVE
MUST BE GROUNDED DIRECTLY TO THE STEEL
CHASSIS AND BOLTED TO THE FLOOR.
In addition to the previously detailed installation
requirements, mobile home / transportable
building installations must meet the following
requirements:
• This stove must be securely fastened to the oor
of the mobile home / transportable building
through the two holes in the rear of the stove
using 2, 1/4” lag bolts that are long enough to go
through both a hearth pad, if used, and the oor
of the home.
• The heater must be electrically grounded to the
steel chassis of the mobile home / transportable
building with 8 GA copper wire using a serrated
or star washer to penetrate paint or protective
coating to ensure grounding.
• Vent must be 3 or 4-inch “PL” Vent and must
extend a minimum or 36” (914 mm) above the roof
line of the mobile home / transportable building
and must be installed using a certied ceiling re
stop and rain cap.
• When moving your mobile home / transportable
building, all exterior venting must be removed
while the mobile home / transportable building is
being relocated. After relocation, all venting must
be reinstalled and securely fastened.
• Outside Air is mandatory for mobile home /
transportable building installation. See Outside
Air Supply section and your dealer for purchasing.
• Check with your local building ofcials as other
codes may apply.
VENTING REQUIREMENTS
WARNING:
• INSTALL VENT AT CLEARANCES SPECIFIED
BY THE VENT MANUFACTURER.
• DO NOT CONNECT THE PELLET VENT TO A
VENT SERVING ANY OTHER APPLIANCE OR
STOVE.
• DO NOT INSTALL A FLUE DAMPER IN THE
EXHAUST VENTING SYSTEM OF THIS UNIT.
The following installation guidelines must be
followed to ensure conformity with both the safety
listing of this stove and to local building codes. Do
not use makeshift methods or compromise in the
installation.
IMPORTANT:
THIS UNIT IS EQUIPPED WITH A NEGATIVE
DRAFT SYSTEM THAT PULLS AIR THROUGH
THE BURN POT AND PUSHES THE EXHAUST
OUT OF THE DWELLING. IF THIS UNIT IS
CONNECTED TO A FLUE SYSTEM OTHER THAN
THE WAY EXPLAINED IN THIS MANUAL, IT
WILL NOT FUNCTION PROPERLY.
MAXIMUM VENTING DISTANCE
Installation MUST include at least 3-feet of vertical
pipe outside the home. This will create some natural
draft to reduce the possibility of smoke or odor
during appliance shutdown and keep exhaust from
causing a nuisance or hazard by exposing people
or shrubs to high temperatures. The maximum
recommend vertical venting height is 12-feet for
3-inch type “PL” vent. Total length of horizontal
vent must not exceed 4-feet. This could cause back
INSTALLATION

8
© 2023 United States Stove Company
pressure. Use no more than 180 degrees of elbows
(two 90-degree elbows, or two 45-degree and one
90-degree elbow, etc.) to maintain adequate draft.
IMPORTANCE OF PROPER DRAFT
Draft is the force which moves air from the
appliance up through the chimney. The amount of
draft in your chimney depends on the length of the
chimney, local geography, nearby obstructions and
other factors. Too much draft may cause excessive
temperatures in the appliance. Inadequate
draft may cause backpufng into the room and
‘plugging’ of the chimney. Inadequate draft will
cause the appliance to leak smoke into the room
through appliance and chimney connector joints.
An uncontrollable burn or excessive temperature
indicates excessive draft. Take into account the
chimney’s location to ensure it is not too close
to neighbours or in a valley which may cause
unhealthy or nuisance conditions.
PELLET VENT TYPE
A certied 3-inch or 4-inch type “PL” pellet vent
exhaust system must be used for installation and
attached to the pipe connector provided on the
back of the stove (use a 3-inch to 4-inch adapter for
4-inch pipe). Connection at back of stove must be
sealed using Hi-Temp RTV. Use 4-inch vent if the
vent height is over 12-feet or if the installation is over
2,500 feet above sea level. We recommend the use
of Simpson Dura-Vent® or Metal-Fab® pipe (if you
use other pipe, consult your local building codes
and/or building inspectors). Do not use Type-B
Gas Vent pipe or galvanized pipe with this unit.
The pellet vent pipe is designed to disassemble
for cleaning and should be checked several times
during the burning season. Pellet vent pipe is not
furnished with the unit and must be purchased
separately.
PELLET VENT INSTALLATION
The installation must include a clean-out tee to
enable collection of y ash and to permit periodic
cleaning of the exhaust system. 90-degree elbows
accumulate y ash and soot thereby reducing
exhaust ow and performance of the stove. Each
elbow or tee reduces draft potential by 30% to 50%.
All joints in the vent system must be fastened by
at least 3 screws, and all joints must be sealed with
Hi-Temp RTV silicone sealant to be airtight. The
area where the vent pipe penetrates to the exterior
of the home must be sealed with silicone or other
means to maintain the vapor barrier between the
exterior and the interior of the home. Vent surfaces
can get hot enough to cause burns if touched by
children. Noncombustible shielding or guards may
be required.
PELLET VENT TERMINATION
Do not terminate the vent in an enclosed or semi-
enclosed area, such as; carport, garage, attic,
crawl space, under a sun deck or porch, narrow
walkway, or any other location that can build up
a concentration of fumes. Termination in one of
these areas can also lead to unpredictable pressure
situations with the appliance, and could result
in improper performance and/or malfunction.
The termination must exhaust above the outside
air inlet elevation. The termination must not be
located where it will become plugged by snow or
other materials. Do not terminate the venting into
an existing steel or masonry chimney.
VENT TERMINATION CLEARANCES
A. Minimum 4-foot (1.22m) clearance below or
beside any door or window that opens.
B. Minimum 1-foot (0.3m) clearance above any
door or window that opens.
C. Minimum 3-foot (0.91m) clearance from any
adjacent building.
D. Minimum 7-foot (2.13m) clearance from any
grade when adjacent to public walkways.
INSTALLATION

© 2023 United States Stove Company
9
E. Minimum 2-foot (0.61m) clearance above any
grass, plants, or other combustible materials.
F. Minimum 3-foot (0.91m) clearance from an
forced air intake of any appliance.
G. Minimum 2-foot (0.61m) clearance below eves
or overhang.
H. Minimum 1-foot (0.3m) clearance horizontally
from combustible wall.
I. Must be a minimum of 3 foot (0.91m) above the
roof and 2 foot (0.61m) above the highest point
or the roof within 10 feet (3.05m).
THROUGH THE WALL INSTALLATION

TYPICAL THROUGH THE
WALL INSTALLATION
To Stove
Canadian installations must conform to CAN/
CSA-B365. To vent the unit through the wall,
connect the pipe adapter to the exhaust motor
adapter. If the exhaust adapter is at least 18” (457
mm) above ground level, a straight section of
pellet vent pipe can be used through the wall.
Your heater dealer should be able to provide you
with a kit that will handle most of this installation,
which will include a wall thimble that will allow
the proper clearance through a combustible
wall. Once outside the structure, a 3” (76 mm)
clearance should be maintained from the outside
wall and a clean out tee should be placed on the
pipe with a 90-degree turn away from the house.
At this point, a 3ft (0.91m) (minimum) section of
pipe should be added with a horizontal cap, which
would complete the installation. A support bracket
should be placed just below the termination cap
or one every 4ft (1.22m) to make the system more
stable. If you live in an area that has heavy snowfall,
it is recommended that the installation be taller
than 3ft (0.91m) to get above the snowdrift line.
This same installation can be used if your heater is
below ground level by simply adding the clean-out
section and vertical pipe inside until ground level is
reached. With this installation you have to be aware
of the snowdrift line, dead grass, and leaves. We
recommend a 3ft (0.91m) minimum vertical rise on
the inside or outside of the house. The “through the
wall” installation is the least expensive and simplest
installation. Never terminate the end vent under a
deck, in an alcove, under a window, or between two
windows. We recommend Simpson Dura-Vent® or
Metal-Fab® kits.

INSTALLATION
• When venting the heater through the ceiling, the
When venting the heater through the ceiling, the
pipe is connected the same as through the wall,
except the clean-out tee is always on the inside
of the house, and a 3” (76 mm) adapter is added
before the clean-out tee.
• You must use the proper ceiling support
anges and roof ashing (supplied by the pipe
manufacturer; follow the pipe manufacturer’s
directions). It is important to note that if your
vertical run of pipe is more than 12ft (3.7m), the
pellet vent pipe size should be increased to 4” (102
mm) in diameter.
• Do not exceed more than 4ft (1.22m) of pipe on a
horizontal run and use as few elbows as possible. If
an offset is required, it is better to install 45-degree
elbows rather than 90-degree elbows.
WARNING:
YOU MAY WANT TO LOCATE ANY UTILITIES
OR OBSTACLES INSIDE THE WALL BEFORE
ATTEMPTING THIS INSTALL. MAKE SURE TO
KEEP IN MIND YOUR UNIT’S CLEARANCE
REQUIREMENTS.
INSTALLATION

10
© 2023 United States Stove Company
INSTALLATION
1. Mark the area and then cut the wall for vent
installation if needed.
2. Install the wall thimble as specied by the
manufacturer. (wall thimble sold separately)
3. Install venting.
VENTING YOUR PELLET STOVE INTO
AN EXISTING CLASS A 6” CHIMNEY
SYSTEM
IMPORTANT:
IF YOU ARE INSTALLING YOUR PELLET STOVE
AS A REPLACEMENT TO AN EXISTING WOOD
STOVE, YOU CAN INSTALL YOUR PELLET
STOVE USING THE EXISTING CLASS A 6”
VENTING SYSTEM.
1. You must have the existing chimney system
cleaned and/ or inspected by a qualied
chimney sweep before proceeding with the
installation of your pellet stove.
2. To the right is an example of an installation
using part number 860001, 3-6” transition into
6” connector pipe. The illustration is only an
example. Please conform to any local building
codes or regulations having jurisdiction before
you have a qualied installer proceed with this
installation.
Existing Class ‘A’
6” Chimney System
3” PL Vent
Clean Out Tee
Support
Bracket
Ceiling
Support
3” to 6” Pipe
Adapter
To Stove

© 2023 United States Stove Company
11
OPERATION INSTRUCTIONS
NEVER OPERATE THIS PRODUCT WHILE UNATTENDED
HOW YOUR HEATER WORKS
Your pellet heater operates on a timer based auger
fuel feed system, that is controlled by a digital circuit
board. The fuel is delivered from the auger into a
burn pot, which is the vessel where the combustion
process takes place. Based upon the heat ranges
(1-5), the heater will feed the appropriate amount
of fuel to reach a set temperature range. Note that
the amount of heat produced by the heater is
proportional to the rate of the fuel that is burned.
Your heater is equipped with an automatic ignition
system that should ignite the fuel within 5-10
minutes from pressing the ON button. As pellets
fall into the burn pot and ignite, outside air is drawn
in to feed the re by a combustion blower. The post
combustion gases are then pulled through the heat
exchanger as they are traveling out the exhaust. As
the heater warms up, room air is circulated around
the heat exchanger by means of a room air blower,
distributing warm air into the room. Because a
forced draft pressure is required for the combustion
process inside your heater, it is extremely important
that the exhaust system be properly maintained.
And, that when operating your heater, you make
sure that the viewing and combustion doors are
properly closed and/or sealed.

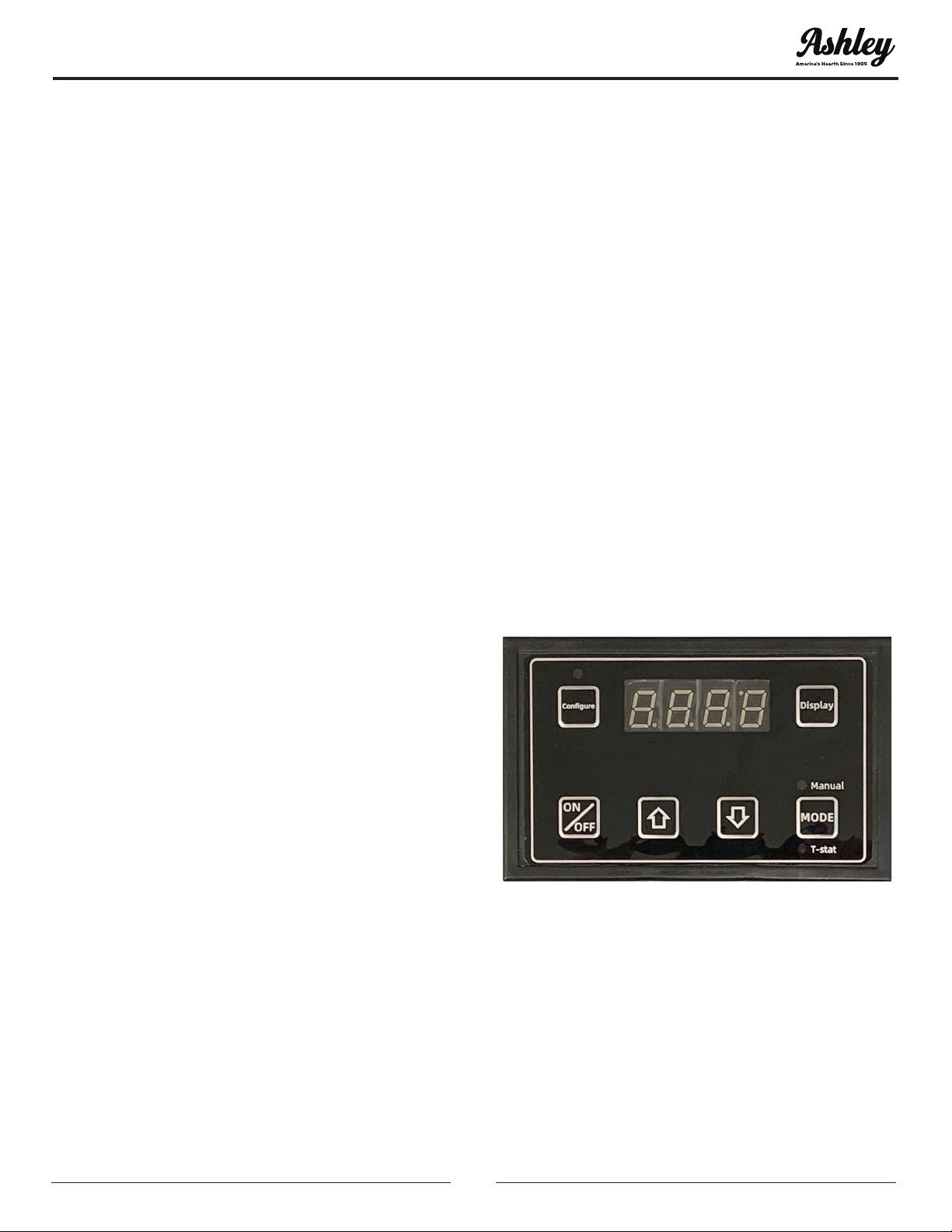

CONTROL PANEL OVERVIEW
Turning the heater ON/OFF, as well as adjustments
for the fuel feed rate is performed by pressing the
appropriate button(s) on the control panel which is
located on the front, lower left-hand corner of your
heater.
ON/OFF
• Pressing the “ON” button on the control panel will
begin the start-up sequence for the heater. Fuel
will begin to feed through the auger feed system
then ignite after approx. 5 minutes.
• Pressing the “OFF” button on the control panel
will cause the heater to enter its shut-down
sequence. The fuel feed system will stop pulling
fuel from the hopper and, once the re goes out
and the heater cools down, the fans will stop
running.
HEAT RANGE
• Pressing the “Heat Range” arrows, up or down,
will adjust the amount of fuel being delivered to
the burn pot.
• The exhaust blower will start. Note that this
appliance pulses the exhaust blower in order to
achieve the proper air to fuel ratio, and to also aid
in the cleaning of the burn pot.
• Once the heater reaches a set temperature, the
room fan will come on.
CONFIGURE
• Press the “Congure” button to begin pairing the
unit to your phone.
DISPLAY
• Pressing the “Display” button toggles the
display between the heat range and the room
temperature.
MODE
• Use the “Mode” button to switch between manual
mode and thermostat mode.

12
© 2023 United States Stove Company

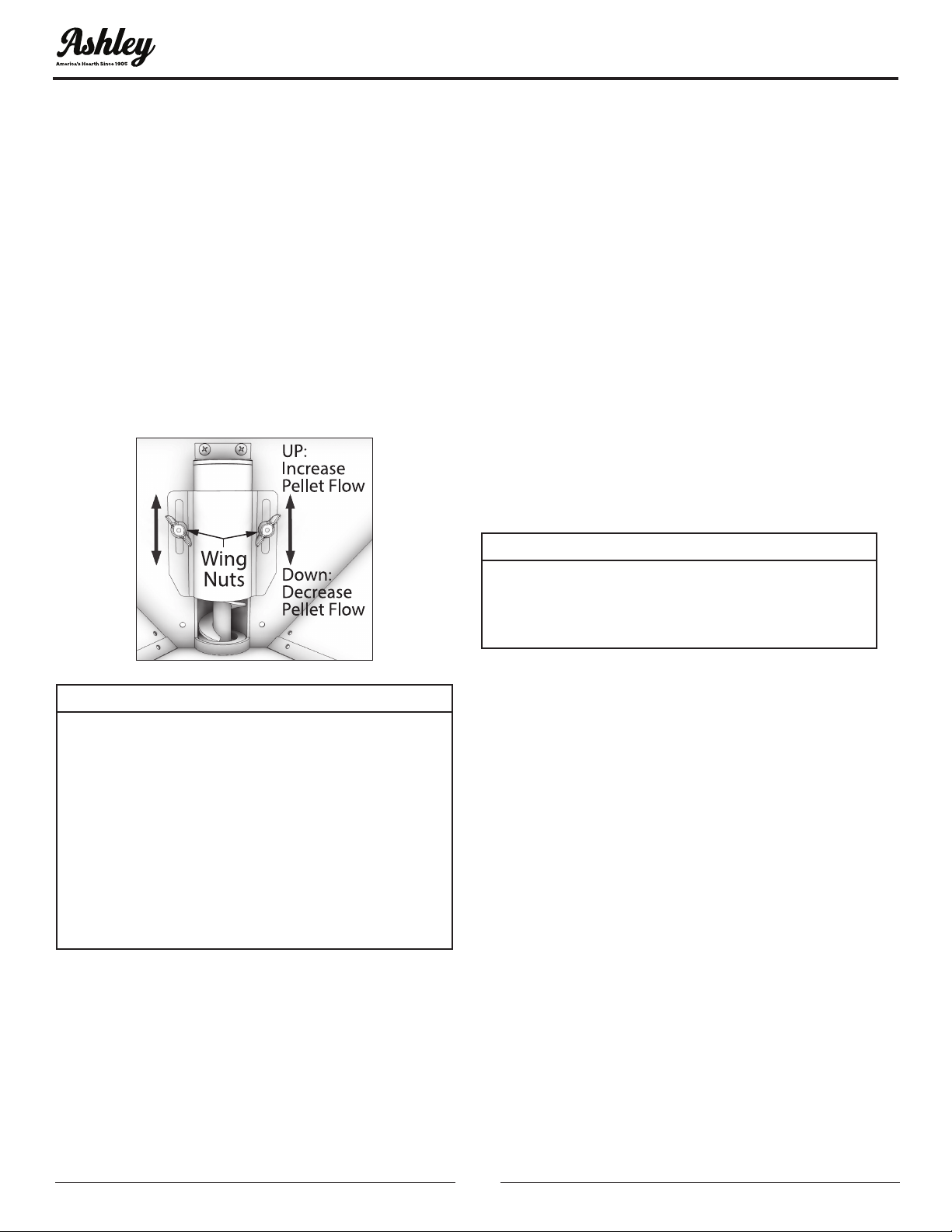

HOW TO ADJUST THE FUEL ADJUSTER
It is a common occurrence in the pellet industry for
the average pellet size to vary. Due to the varying
sizes of pellets, this appliance is equipped with a
fuel adjuster to adjust the amount of fuel allowed
to pass into the auger assembly. The fuel adjuster is
located inside the hopper. Note: The factory default
setting for this is full open. To decrease the ow of
pellets, move the fuel adjuster down.
1. Turn off and unplug the appliance.
2. Loosen the two wing-nuts.
3. Adjust up to increase, or down to reduce the
fuel usage based on the size of the pellets.
4. Tighten the two wing-nuts.
WARNING:
• DO NOT USE CHEMICALS OR FLUIDS TO
START THE FIRE - NEVER USE GASOLINE,
GASOLINE-TYPE LANTERN FUEL,
KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TO START OR “FRESHEN
UP” A FIRE IN THIS STOVE. KEEP ALL SUCH
LIQUIDS WELL AWAY FROM THE STOVE
WHILE IT IS IN USE.
• HOT WHILE IN OPERATION. KEEP
CHILDREN, CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE SKIN BURNS.
This heater is designed to burn only PFI Premium
grade pellets. DO NOT BURN:
1. Garbage;
2. Lawn clippings or yard waste;
3. Materials containing rubber, including tires;
4. Materials containing plastic;
5. Waste petroleum products, paints or paint
thinners, or asphalt products;
6. Materials containing asbestos;
7. Construction or demolition debris;
8. Railroad ties or pressure-treated wood;
9. Manure or animal remains;
10. Salt water driftwood or other previously salt
water saturated materials;
11. Unseasoned wood; or
12. Paper products, cardboard, plywood, or
particleboard. The prohibition against burning
these materials does not prohibit the use of re
starters made from paper, cardboard, saw dust,
wax and similar substances for the purpose of
starting a re in an affected wood heater.
Burning these materials may result in release of
toxic fumes or render the heater ineffective and
cause smoke.
PROPER FUEL
ATTENTION:
THIS APPLIANCE IS DESIGNED FOR THE USE
OF PELLETIZED FUEL THAT MEET OR EXCEED
THE STANDARD SET BY THE PELLET FUEL
INSTITUTE (PFI).
Your pellet stove is designed to burn premium
hardwood pellets that comply with the Pellet Fuels
Institute (PFI) standard (minimum of 40 lbs density
per cubic ft, 1/4” to 5/16” diameter, length no greater
than 1.5”, not less than 8,200 BTU/lb, moisture under
8% by weight, ash under 1% by weight, and salt
under 300 parts per million). Pellets that are soft,
contain excessive amounts of loose sawdust, have
been, or are wet, will result in reduced performance.
Store your pellets in a dry place. DO NOT store the
fuel within the installation clearances of the unit
or within the space required for refuelling and ash
removal. Doing so could result in a house re. Do
not over re or use volatile fuels or combustibles,
doing so may cause a personal and property
damage hazards.
THIS STOVE IS APPROVED FOR BURNING
PELLETIZED WOOD FUEL ONLY ! Factory-approved
pellets are those 1/4” or 5/16” in diameter and not
over 1” long. Longer or thicker pellets sometimes
bridge the auger ights, which prevents proper
pellet feed. Burning wood in forms other than
pellets is not permitted. It will violate the building
codes for which the stove has been approved and
OPERATION INSTRUCTIONS

© 2023 United States Stove Company
13
will void all warranties. The design incorporates
automatic feed of the pellet fuel into the re at
a carefully prescribed rate. Any additional fuel
introduced by hand will not increase heat output
but may seriously impair the stoves performance
by generating considerable smoke. Do not burn
wet pellets. The stove’s performance depends
heavily on the quality of your pellet fuel. Avoid pellet
brands that display these characteristics:
• Excess Fines – “Fines” is a term describing crushed
pellets or loose material that looks like sawdust or
sand. Pellets can be screened before being placed
in hopper to remove most nes.
• Binders – Some pellets are produced with
materials to hold the together, or “bind” them.
• High ash content – Poor quality pellets will often
create smoke and dirty glass. They will create a
need for more frequent maintenance. You will
have to empty the burn pot plus vacuum the
entire system more often. Poor quality pellets
could damage the auger. We cannot accept
responsibility for damage due to poor quality
pellet.
CAUTION:
• KEEP FOREIGN OBJECTS OUT OF THE
HOPPER.
• THE MOVING PARTS OF THIS STOVE ARE
PROPELLED BY HIGH TORQUE ELECTRIC
MOTORS. KEEP ALL BODY PARTS AWAY
FROM THE AUGER WHILE THE STOVE IS
PLUGGED INTO AN ELECTRICAL OUTLET.
THESE MOVING PARTS MAY BEGIN TO
MOVE AT ANY TIME WHILE THE STOVE IS
PLUGGED IN.

Remove burn pot, making sure it is clean and none
of the air holes are plugged. Clean the rebox, and
then reinstall burn pot. Clean door glass if necessary
(a dry cloth or paper towel is usually sufcient).
Never use abrasive cleaners on the glass or door.
Check fuel in the hopper, and rell if necessary.
BUILDING A FIRE
Never use a grate or other means of supporting
the fuel. Use only the burn pot supplied with this
heater. Hopper lid must be closed in order for the
unit to feed pellets. During the start-up period:
• Make sure the burn pot is free of pellets.
• DO NOT open the viewing door.
• DO NOT add pellets to the burn pot by hand.
NOTE: During the rst few res, your stove will
emit an odor as the high-temperature paint cures
or becomes seasoned to the metal. Maintaining
smaller res will minimize this. Avoid placing items
on the stovetop during this period because the paint
could be affected. Attempts to achieve heat output
rates that exceed heater design specications can
result in permanent damage to the heater.
OPTIMAL OPERATION
This pellet stove has been certied by the US EPA
to meet strict 2020 guidelines. To Insure this unit
produces the optimal minimal emissions, it is
critical to follow the following guidelines. To achieve
a “high burn” your stove should be set on setting 5
with the damper fully open. To achieve a “medium
burn” your stove should be set on setting 1 with the
damper fully closed. To achieve a “low burn” your
stove should be set on setting 1 with the damper
closed. Settings 2, 3 & 4 will give you a higher heat
output above medium and the damper should be
open for these settings. If the door is opened while
the stove is in operation it must be closed within
30 seconds or the stove will shut down. If the stove
shuts down push the “On/Off” button to re-start
your stove. The stove will have to fully shut down
and turn off before you will be able to restart the
stove.
IGNITOR
1. Fill the hopper and clean the burn pot.
2. Press the “On/Off” button.
3. Set the heat range/temperature. Manual Mode
- Press the “Display Button” to see the current
heat range. Use the up and down arrows to
adjust the heat range. T-stat Mode - Press the
“Display Button” to see the current temperature
setting. Use the up and down arrows to adjust
the temperature as needed.
If the re doesn’t start in 12 minutes, press “On/Off”,
wait a few minutes, clear the burn pot, and start the
procedure again.
OPERATION INSTRUCTIONS

14
© 2023 United States Stove Company
DAMPER CONTROL
The damper control lever is located on the back of
the stove on the lower left side. The default setting
for the damper control should be full open. The
damper adjusts the combustion air. This control
is necessary due to the varied burn characteristics
of individual installations, different pellet brands
and pellet feed rates. It allows you to improve
the efciency of your stove. Providing correct
combustion air will reduce the frequency of cleaning
your glass door and prevent the rapid buildup of
creosote inside your stove and chimney. You should
adjust the damper based on the re’s appearance.
A low, reddish, dirty re can be improved by turning
the damper slightly to the right. A “blow torch” re
can be improved by turning the dampener to the
left a little bit. For optimal burning results, refer to
“Optimal Operation” section of this manual.
OPENING DOOR
CAUTION:
• DO NOT OPERATE YOUR STOVE WITH
THE VIEWING DOOR OPEN. THE AUGER
WILL NOT FEED PELLETS UNDER THESE
CIRCUMSTANCES AND A SAFETY CONCERN
MAY ARISE FROM SPARKS OR FUMES
ENTERING THE ROOM.
• THE FEED DOOR MUST BE CLOSED AND
SEALED DURING OPERATION.
If the door is opened while the stove is in operation
it must be closed within 30 seconds or the stove
will shut down. If the stove shuts down push the
“On/Off” button to re-start your stove. The stove will
have to fully shut down and turn off before you will
be able to restart the stove.
ROOM AIR FAN
When starting your stove the Room Air Fan will not
come on until the stove’s heat exchanger warms up.
This usually takes about 10 minutes from start-up.
IF STOVE RUNS OUT OF PELLETS
The re goes out and the auger motor and blowers
will run until the stove cools. This will take 30 minutes
or longer depending on the heat remaining in
the appliance. After the stove components stop
running all lights on the display will go out and the
two digit display will begin ashing “E3”
REFUELLING
CAUTION:
• THE HOPPER AND STOVE TOP WILL BE
HOT DURING OPERATION; THEREFORE,
YOU SHOULD ALWAYS USE SOME TYPE
OF HAND PROTECTION WHEN REFUELING
YOUR STOVE.
• DO NOT TOUCH THE HOT SURFACES OF
THE STOVE. EDUCATE ALL CHILDREN ON
THE DANGERS OF A HIGH-TEMPERATURE
STOVE. YOUNG CHILDREN SHOULD BE
SUPERVISED WHEN THEY ARE IN THE SAME
ROOM AS THE STOVE.
• NEVER PLACE YOUR HAND NEAR THE
AUGER WHILE THE STOVE IS IN OPERATION.
• WE RECOMMEND YOU NOT LET THE
HOPPER DROP BELOW 1/4 FULL.
OPERATION INSTRUCTIONS

© 2023 United States Stove Company
15
WARNING:
• KEEP HOPPER LID CLOSED AT ALL TIMES
EXCEPT WHEN REFILLING.
• DO NOT OVERFILL HOPPER.
TAMPER WARNING
This wood heater has a manufacturer-set minimum
low burn rate that must not be altered. It is against
federal regulations to alter this setting or otherwise
operate this wood heater in a manner inconsistent
with operating instructions in this manual.
SHUTDOWN PROCEDURE
WARNING:
NEVERSHUTDOWNTHISUNITBYUNPLUGGING
IT FROM THE POWER SOURCE.
Turning your stove off is a matter of pressing the
“POWER” button on the display board. The auger
motor will stop, and the blowers will continue to
operate until the internal rebox temperatures
have fallen to a preset level.
1. Your stove is equipped with a high temperature
thermodisc. This unit has a manual reset
thermodisc. This safety switch has two functions.
A. To recognize an overheat situation in the stove
and shut down the fuel feed or auger system.
B. In case of a malfunctioning convection
blower, the high-temperature thermodisc will
automatically shut down the auger, preventing
the stove from overheating.
NOTE: On some units, once tripped, like a circuit
breaker, the reset button will have to be pushed
before restarting your stove. On other units the
thermodisc has no reset button and will reset
itself once the stove has cooled. The manufacturer
recommends that you call customer service if this
occurs as this may indicate a more serious problem.
A service call may be required.
2. If the combustion blower fails, an air pressure
switch will automatically shut down the auger.
NOTE: Opening the stove door for more than
30 seconds during operation will cause enough
pressure change to activate the air switch, shutting
the fuel feed off. The stove will shut down and show
“E2” on the two digit display. The stove has to fully
shut down before restarting.
INTERIOR CHAMBERS
• Burn Pot - Periodically remove and clean the burn
pot and the area inside the burn pot housing. In
particular, it is advisable to clean out the holes in
the burn pot to remove any build up that may
prevent air from moving through the burn pot
freely.
• Heat Exchanger - There is a clean out plate on
both sides of the heat exchanger that need to be
removed to clean y ash out of the heat exchanger.
The cleanouts are located inside the cabinet doors,
on the lower front corners of the heat exchanger.
To access these clean outs, you must remove both
side panels. The clean outs are secured to the
rebox with (2) 5/16” screws. Remove the clean
outs and vacuum out any accumulated ash. This
should be done at least once per month or more
frequently if large amounts of ash are noticed
while cleaning or if the stove does not seem to be
burning properly.
If a vacuum is used to clean your stove, we suggest
using the AV15E AshVac vacuum. The AV15E AshVac
is designed for ash removal. Some regular vacuum
cleaner (i.e. shop vacs) may leak ash into the room.
DO NOT VACUUM HOT ASH.
WARNING:
FAILURE TO PROPERLY MAINTENANCE
THE CLEAN OUTS WILL RESULT IN POOR
PERFORMANCE OF THIS STOVE.
Clean-Out
Plate
Clean-Out
Plate
OPERATION INSTRUCTIONS

16
© 2023 United States Stove Company
MAINTENANCE
CAUTION:
• FAILURE TO CLEAN AND MAINTAIN THIS
UNIT AS INDICATED CAN RESULT IN POOR
PERFORMANCE, SAFETY HAZARDS, FIRE,
AND EVEN DEATH.
• NEVER PERFORM ANY INSPECTIONS,
CLEANING, OR MAINTENANCE ON A HOT
STOVE.
• DISCONNECT THE POWER CORD BEFORE
PERFORMING ANY MAINTENANCE! NOTE:
TURNING THE ON/OFF SWITCH TO ”OFF”
DOES NOT DISCONNECT ALL POWER TO
THE ELECTRICAL COMPONENTS OF THE
STOVE.
• DO NOT OPERATE STOVE WITH BROKEN
GLASS, LEAKAGE OF FLUE GAS MAY RESULT.
CREOSOTE FORMATION, INSPECTION,
& REMOVAL
CAUTION:
THE EXHAUST SYSTEM SHOULD BE CHECKED
MONTHLY DURING THE BURNING SEASON FOR
ANY BUILD-UP OF SOOT OR CREOSOTE.
When any wood is burned slowly, it produces tar
and other organic vapors, which combine with
expelled moisture to form creosote. The creosote
vapors condense in the relatively cool chimney
ue or a newly started re or from a slow-burning
re. As a result, creosote residue accumulates
on the ue lining. When ignited, this creosote
makes an extremely hot re, which may damage
the chimney or even destroy the house. Despite
their high efciency, pellet stoves can accumulate
creosote under certain conditions. The chimney
connector and chimney should be inspected by
a qualied person annually or per ton of pellets
to determine if a creosote or y ash build-up has
occurred. If creosote has accumulated, it should
be removed to reduce the risk of a chimney re.
Inspect the system at the stove connection and
at the chimney top. Cooler surfaces tend to build
creosote deposits quicker, so it is important to
check the chimney from the top as well as from the
bottom. The creosote should be removed with a
brush specically designed for the type of chimney
in use. A qualied chimney sweep can perform this
service. It is also recommended that before each
heating season the entire system be professionally
inspected, cleaned and, if necessary, repaired. To
clean the chimney, disconnect the vent from the
stove.
GLASS
We recommend using a high quality glass cleaner.
Should a buildup of creosote or carbon accumulate,
you may wish to use 000 steel wool and water to
clean the glass. DO NOT use abrasive cleaners. DO
NOT perform the cleaning while the glass is HOT.
Do not attempt to operate the unit with broken
glass. Replacement glass may be purchased from
your U.S. Stove dealer. If glass is broken, follow these
removal procedures:
1. Remove the four (8) screws and glass retainers.
2. While wearing leather gloves (or any other
gloves suitable for handling broken glass),
carefully remove any loose pieces of glass from
the door frame. Dispose of all broken glass
properly. ONLY high temperature ceramic glass
of the correct size and thickness may be used.
DO NOT substitute alternative materials for the
glass. Contact your authorized dealer to obtain
this glass.
3. Re-install the new glass by re-attaching the
retainers and screws, be careful not to over
tighten the screws for this could damage the
glass.
DO NOT abuse the door glass by striking, slamming,
or similar trauma. Do not operate the stove with the
glass removed, cracked, or broken.
FLY ASH
This accumulates in the horizontal portion of an
exhaust run. Though non-combustible, it may
impede the normal exhaust ow. It should therefore
be periodically removed.
NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

© 2023 United States Stove Company
17
ASH REMOVAL & DISPOSAL
CAUTION:
ALLOW THE STOVE TO COOL BEFORE
PERFORMING ANY MAINTENANCE OR
CLEANING. ASHES MUST BE DISPOSED IN A
METAL CONTAINER WITH A TIGHT FITTING
LID. THE CLOSED CONTAINER OF ASHES
SHOULD BE PLACED ON A NON-COMBUSTIBLE
SURFACE OR ON THE GROUND, WELL AWAY
FROM ALL COMBUSTIBLE MATERIALS,
PENDING FINAL DISPOSAL.
Remove the ashes periodically to avoid unnecessary
ash build up. Remove ashes when unit has cooled.
Ashes should be placed in a metal container with a
tight tting lid. The closed container of ashes should
be placed on a noncombustible oor or on the
ground, well away from all combustible materials,
pending nal disposal. If the ashes are disposed of
by burial in soil or otherwise locally dispersed, they
should be retained in the closed container until all
embers have been thoroughly cooled. The container
shall not be used for other trash or waste disposal. If
combined with combustible substances, ashes and
embers may ignite. Ash removal is as follows:
1. Let the re burn out and allow the unit to cool
to room temperature.
2. Make sure the pellet stove is at room
temperature before touching. Open the door,
remove the burn pot and empty it into a metal
container.
3. Vacuum ashes from the rebox. BE SURE THAT
ASHES ARE COOL TO THE TOUCH BEFORE
VACUUMING. Some vacuum cleaners may leak
ash into the room. Your vacuum cleaner should
have a special lter or bag to eliminate leakage.
4. Reinstall the burn pot.
SMOKE & CO MONITORS
Burning wood naturally produces smoke and
carbon monoxide(CO) emissions. CO is a poisonous
gas when exposed to elevated concentrations
for extended periods of time. While the modern
combustion systems in heaters drastically reduce
the amount of CO emitted out the chimney,
exposure to the gases in closed or conned areas
can be dangerous. Make sure you stove gaskets
and chimney joints are in good working order and
sealing properly to ensure unintended exposure. It
is recommended that you use both smoke and CO
monitors in areas having the potential to generate
CO.
CHECK & CLEAN THE HOPPER
Check the hopper periodically to determine if there
is any sawdust (nes) that is building up in the feed
system or pellets that are sticking to the hopper
surface. Clean as needed.
DOOR & GLASS GASKETS
Inspect the main door and glass window gaskets
periodically. The main door may need to be removed
to have frayed, broken, or compacted gaskets
replaced by your authorized dealer. This unit’s door
uses a 3/4” diameter rope gasket.
BLOWER MOTORS
Clean the air holes on the motors of both the
exhaust and distribution blowers annually. Remove
the exhaust blower from the exhaust duct and
clean out the internal fan blades as part of your fall
start-up. If you have indoor pets your power motors
should be inspected monthly to make sure they
are free of animal hair build up. Animal hair build
up in blowers can result in poor performance or
unforeseen safety hazards.
PAINTED SURFACES
Painted surfaces may be wiped down with a damp
cloth. If scratches appear, or you wish to renew your
paint, contact your authorized dealer to obtain a
can of suitable high-temperature paint.
FALL START UP
Prior to starting the rst re of the heating season,
check the outside area around the exhaust and air
intake systems for obstructions. Clean and remove
any y ash from the exhaust venting system. Clean
any screens on the exhaust system and on the
outside air intake pipe. Turn all of the controls on
and make sure that they are working properly. This
is also a good time to give the entire stove a good
cleaning throughout.
SPRING SHUTDOWN
After the last burn in the spring, remove any
remaining pellets from the hopper and the auger
feed system. Scoop out the pellets and then run
the auger until the hopper is empty and pellets
stop owing (this can be done by pressing the “ON”
button with the viewing door open). Vacuum out
MAINTENANCE

18
© 2023 United States Stove Company
the hopper. Thoroughly clean the burn pot, and
rebox. It may be desirable to spray the inside of
the cleaned hopper with an aerosol silicone spray
if your stove is in a high humidity area. The exhaust
system should be thoroughly cleaned.
MAINTENANCE SCHEDULE
Use the following as a guide under average use
conditions. Gaskets around door and door glass
should be inspected and repaired or replaced when
necessary.
Daily Weekly Monthly or
as needed
Burn Pot Stirred Empty
Combustion
Chamber Brushed
Ashes Check Empty
Interior
Chambers Vacuumed
Combustion
Blower Blades Vacuumed / Brushed
Convection
Blower Impeller
Vacuumed
/ Brushed
Vent System Cleaned
Gaskets Inspected
Glass Wiped Cleaned
Hopper (end of
season) Empty & Vacuumed
MAINTENANCE

The information in this owner’s manual is specic to your unit. When ordering replacement parts the
information in this manual will help to ensure the correct items are ordered. Before contacting customer
service write down the model number and the serial number of this unit. That information can be found on
the certication label attached to the back of the unit. Other information that may be needed would be the
part number and part description of the item(s) in question. Part numbers and descriptions can be found
in the “Repair Parts” section of this manual. Once this information has been gathered you can contact
customer service by phone [phone] Ext 5051 or Email [e-mail].
Model Information
Model Number
Serial Number
HOW TO ORDER REPAIR PARTS

© 2023 United States Stove Company
19
INSTRUCTIONS SPECIFIC FOR CANADIAN
INSTALLATIONS
Do not obstruct the space under the heater and do
not obstruct the combustion air openings.
Refer to the chimney manufacturer’s instructions
for disassembling the chimney/venting for
transportation of a transportable building.
The parts or materials to be employed for ember
protectors and the minimum areas to be covered
and their relation to the space heater, as well as
the notice: “In Canada, to comply with CSA B365,
Installation Code for Solid-Fuel-Burning Appliances
and Equipment, any combustible covering beneath
the appliance and/or within the area extending
horizontally at least 450 mm (18 in) beyond the
appliance on any side equipped with a door, and at
least 200 mm (8 in) beyond the appliance on other
sides, shall be protected by a continuous, durable,
non-combustible pad that will provide ember
protection. The 450 mm (18 in) ember protection
required on any side with a door shall extend for
the full width of the appliance plus the 200 mm (8
in) required on each side of the appliance without a
door. Where an appliance is installed less than 200
mm (8 in) from a wall, the ember pad need only
extend to the base of the wall. An ember pad shall
not be placed on top of a carpet unless the pad is
structurally supported to prevent displacement
and distortion.
If this appliance is installed in a transportable
building, removal of the chimney/venting is
required for transportation of the building.
DO NOT INSTALL IN AN ALCOVE
DO NOT INSTALL IN ANY FIREPLACE














































 







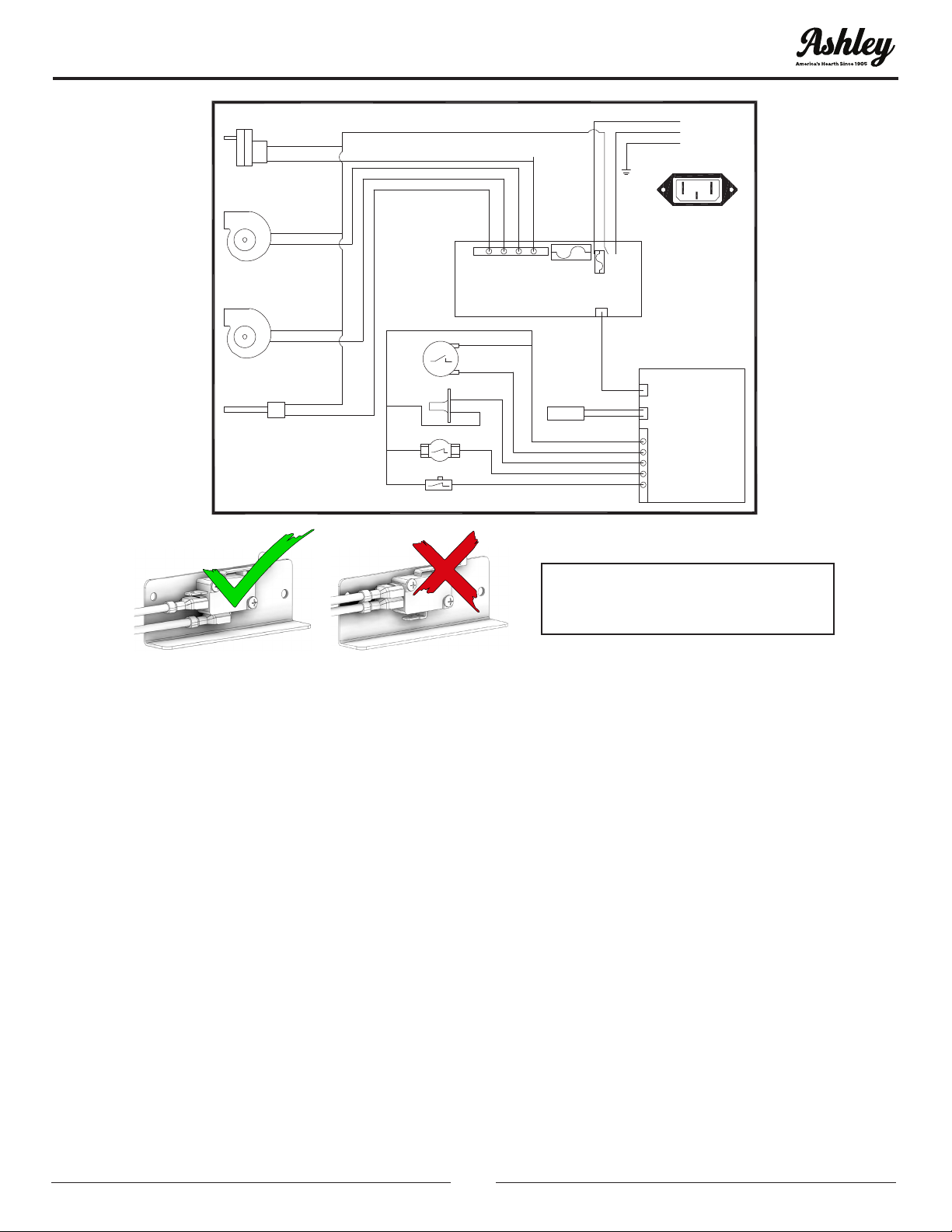

CORRECT WRONG
Ensure the wires are connected


WIRING DIAGRAM

20
© 2023 United States Stove Company
When your stove acts out of the ordinary, the rst reaction is to call for help. This guide may save time and
money by enabling you to solve simple problems yourself. Problems encountered are often the result of
only ve factors: 1) poor fuel; 2) poor operation or maintenance; 3) poor installation; 4) component failure; 5)
factory defect. You can usually solve those problems related to 1 and 2. Customer service can solve problems
relating to 3, 4 and 5. Refer to diagram in the “Repair Parts” section to help locate indicated parts. For the
sake of troubleshooting and using this guide to assist you, you should look at your heat level setting to see
which light is ashing.
• Disconnect the power cord before performing any maintenance! NOTE: Turning the ON/OFF Switch to
”OFF” does not disconnect all power to the electrical components of the stove.
• Never try to repair or replace any part of the stove unless instructions for doing so are given in this manual.
All other work should be done by a trained technician.
Display is Flashing “E1”
Possible Causes Possible Remedies: (Unplug stove rst when possible)
The stove is consuming too much fuel
Adjust the fuel adjuster slide (see the “How To Adjust The
Fuel Adjuster” section of this manual). Close the slide
about 1/4” after your stove cools down. Restart your stove.
If your display shows E1 again, close the slide another 1/4”
and restart.
The convection blower is overheating and
tripping the internal temperature shutoff.
Clean any dust off of the windings and fan blade. If oiling
the blower does not help, the blower may be bad.
The stove is being left on the highest setting
for extended periods of time.
If operating the heater on the highest heat setting, the
room temperature could increase enough and lead
to potential overheating situations. If this happens try
operating at a lower heat setting.
Fuel other than wood pellets is being burned
in the stove.
This pellet stove is designed and tested to use wood pellets.
Check for signs of fuel other than wood pellets. No other
types of fuel have been approved for this pellet stove. If
there are signs of other types of fuel being used, stop using
them immediately.
Power surge or brown out situation.
A power surge, spike, or voltage drop could cause the high
limit switch to trip. Check to see if a surge protector is being
used on the stove. If not, recommend one to the customer.
High Limit Switch is malfunctioning. If the other items check out OK, replace the high limit
switch.
ATTENTION: THIS WOOD HEATER NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER
OPERATION. IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A
MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL.
TROUBLESHOOTING GUIDE
