Ashley AP5780 Operation and maintenance manual

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
© 2021 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380 Ph. 800-750-2723
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
Owner’s Instruction and Operation Manual
U.S. Environmental Protection Agency
Certied to comply with 2020 particulate
emissions standards.
SAFETY NOTICE: If this heater is not properly installed, a house re may result.
For your safety, follow the installation instructions. Never use make-shift
compromises during the installation of this heater. Contact local building or
re ofcials about permits, restrictions and installation requirements in your
area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.
CAUTION! Please read this entire manual before you install or use your new room
heater. Failure to follow instructions may result in property damage, bodily injury,
or even death. Improper Installation Will Void Your Warranty!
Save These Instructions In A Safe Place For Future Reference.
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to www.P65warnings.ca.gov
AP5780
852925K-0204K
R
Report Number: F19-550
Certied to ASTM E1509-12 (2017)
and Certied to ULC S627-00-REV1
Mobile Home Approved
Model Number:

2
© 2021 United States Stove Company
WARNING:
IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER
INCONSISTENT WITH THE OPERATING INSTRUCTIONS IN THE OWNER’S MANUAL.
Heating Specications
Fuel Burn Rate* (lowest setting) 1.4 lbs./hr. (0.6 kg/hr) * Pellet size may effect the actual rate of
fuel feed and burn times. Fuel feed rates
may vary by as much as 20%. Use PFI
listed fuel for best results.
Burn Time (lowest setting) 32 hrs
Hopper Capacity 46 lbs (21 kg)
Flue Size 3“ or 4” (77 mm to 102 mm)
Electrical Specications
Electrical Rating 120 Volts AC, 60 HZ, 3.0 Amps
Watts (operational) 125
Watts (igniter running) 310
Dimensions
Overall: Height x Width X Depth 37.16” (944 mm) x 20.81” (529 mm) x 22.25” (566 mm)
Weight 162 lbs (73 kg)
INTRODUCTION
For Customer Service, please call:
1-800-750-2723 Ext 5050 or;
Text to 423-301-5624 or;
Email us at:
[e-mail]
Note: Register your product online at
www.usstove.com or download the
free app today. This app is available only
on the App Store for iPhone and iPad.
Search US Stove. Save your receipt with
your records for any claims.
Your pellet stove has been approved for installation in the USA and Canada. It may also be installed in a
manufactured or mobile home. Your stove conforms to ASTM E1509-12 (2017) and Certied to ULC S627-00.
This manual describes the installation and operation of the Ashley, AP5780 wood heater. This heater meets
the 2020 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after May
15, 2020. Under specic test conditions this heater has been shown to deliver heat at rates ranging from
12,293 to 26,386 Btu/hr. This heater achieved a particulate emissions rate of 1.3 g/hr when tested to method
ASTM E2779-10 (*and an efciency of 72%).

© 2021 United States Stove Company
3
INSTALLATION CHECKLIST
Your Wood Stove should be installed by a qualied installer only. An NFI qualied Installer can be found at
www.ncertied.org/public/nd-an-n-pro/
CUSTOMER SERVICE
1-800-750-2723 ext 5050
Text to 423-301-5624
Email to: [e-mail]
COMMISSIONING CHECKLIST
This Checklist is to be completed in full by the qualied person who installs this unit. Keep this page for
future reference.
Failure to install and commission according to the manufacturer’s instructions and complete this checklist
will invalidate the warranty.
Please Print
Customer Name: Telephone Number:
Address:
Model:
Serial Number:
Installation Company Name: Phone Number:
Installation Technician’s Name: License Number:
DESCRIPTION OF WORK
Location of installed appliance: _________________________________________________________________________
Venting System: New Venting System Yes No If yes, Brand __________________________________
If no, Date of inspection of existing venting system:______________________________________________________
COMMISSIONING
Conrm Hearth Pad Installation as per Installation Instructions..............................................................................................
Conrm proper placement of internal parts...........................................................................................................................................
Check soundness of door gasket and door seals .................................................................................................................................
Conrm clearances to combustibles as per installation instructions in this manual.................................................
Check the operations of the air controls ....................................................................................................................................................
Conrm the venting system is secure and sealed...............................................................................................................................
Conrm the stove starts and operates properly....................................................................................................................................
Check to ensure a CO alarm is installed as per local building codes and is functional .............................................
Explain the safe operation, proper fuel usage, cleaning, and routine maintenance requirements .................
Declaration of Completion: As the qualied person responsible for the work described above, I conrm that
the appliance as associated work has been installed as per manufacturer’s instructions and following any
applicable building and installation codes.
Signed: ___________________________________Print Name: ______________________________ Date: _____________
Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE

4
© 2021 United States Stove Company
1. Pull the factory installed wires out of the top of
the stove. There will be two wire harnesses, as
shown.
2. Unpack the top mount controls and ensure that
the wiring harness shown is attached securely.
3. Connect the factory installed wiring harnesses
to the control panel as shown.
4. Secure the control panel to the top of the stove
with two sheet metal screws.
ASSEMBLY INSTRUCTIONS
FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050

© 2021 United States Stove Company
5
INSTALLATION
SAFETY NOTICE
• IF THIS STOVE IS NOT PROPERLY INSTALLED,
A HOUSE FIRE MAY RESULT. TO REDUCE THE
RISK OF FIRE, FOLLOW THE INSTALLATION
INSTRUCTIONS.
• CONTACTYOURLOCALBUILDINGOFFICIALS
TO OBTAIN A PERMIT AND INFORMATION
ON ANY ADDITIONAL INSTALLATION
RESTRICTIONS OR INSPECTION
REQUIREMENTS IN YOUR AREA.
• DO NOT PLACE CLOTHING OR OTHER
FLAMMABLE ITEMS ON OR NEAR THIS
STOVE.
• NEVER USE GASOLINE, GASOLINE-TYPE
LANTERN FUEL, KEROSENE, CHARCOAL
LIGHTER FLUID, OR SIMILAR LIQUIDS TO
START OR ’FRESHEN UP’ A FIRE IN THIS
STOVE. KEEP ALL SUCH LIQUIDS WELL
AWAY FROM THE STOVE WHILE IT IS IN USE.
• THIS APPLIANCE IS A FREESTANDING
HEATER. IT IS NOT INTENDED TO BE
ATTACHED TO ANY TYPE OF DUCTING. IT
IS NOT A FURNACE. DO NOT CONNECT THIS
UNIT TO ANY AIR DISTRIBUTION DUCT OR
SYSTEM. THIS APPLIANCE IS NOT INTENDED
FOR COMMERCIAL USE.
• INSTALL VENT AT CLEARANCES SPECIFIED
BY THE VENT MANUFACTURER.
• DO NOT INSTALL A FLUE DAMPER IN THE
EXHAUST VENTING SYSTEM OF THIS UNIT.
• YOUR STOVE REQUIRES PERIODIC
MAINTENANCE AND CLEANING (SEE
”MAINTENANCE”). FAILURE TO MAINTAIN
YOUR STOVE MAY LEAD TO IMPROPER
AND/OR UNSAFE OPERATION.
• A POWER SURGE PROTECTOR IS REQUIRED.
THIS UNIT MUST BE PLUGGED INTO A 110
- 120V, 60 HZ GROUNDED ELECTRICAL
OUTLET. DO NOT USE AN ADAPTER
PLUG OR SEVER THE GROUNDING PLUG.
DO NOT ROUTE THE ELECTRICAL CORD
UNDERNEATH, IN FRONT OF, OR OVER
THE HEATER. DO NOT ROUTE THE CORD IN
FOOT TRAFFIC AREAS OR PINCH THE CORD
UNDER FURNITURE.
CAUTION:
BURNING FUEL CREATES CARBON MONOXIDE
AND CAN BE HAZARDOUS TO YOUR HEALTH
IF NOT PROPERLY VENTED.
ATTENTION:
• A WORKING SMOKE DETECTOR MUST BE
INSTALLED IN THE SAME ROOM AS THIS
PRODUCT.
• INSTALL A SMOKE DETECTOR ON EACH
FLOOR OF YOUR HOME; INCASE OF
ACCIDENTAL FIRE FROM ANY CAUSE IT
CAN PROVIDE TIME FOR ESCAPE.
• THE SMOKE DETECTOR MUST BE INSTALLED
AT LEAST 15 FEET (4,57 M) FROM THE
APPLIANCE IN ORDER TO PREVENT UNDUE
TRIGGERING OF THE DETECTOR WHEN
RELOADING.
CAUTION:
• USE OF OUTSIDE AIR IS NOT REQUIRED FOR
THIS UNIT.
• DO NOT UNPLUG THE STOVE IF YOU
SUSPECT A MALFUNCTION. TURN THE ON/
OFF SWITCH TO ”OFF’ AND CONTACT YOUR
DEALER.
• THE HEATER WILL NOT OPERATE DURING
A POWER OUTAGE. IF A POWER OUTAGE
DOES OCCUR, CHECK THE HEATER FOR
SMOKE SPILLAGE AND OPEN A WINDOW IF
ANY SMOKE SPILLS INTO THE ROOM.
• NEVER BLOCK FREE AIRFLOW THROUGH
THE OPEN VENTS OF THE UNIT.
US Stove highly recommends your stove be installed
by a qualied NFI (US) or WETT (Canada) technician.
To nd the nearest qualied installer, go to:
https://ncertied.org,
https://www.wettinc.ca/

6
© 2021 United States Stove Company
IMPROPER INSTALLATION
The use of other components other than stated
herein could cause bodily harm, heater damage,
and void your warranty. The manufacturer will not
be held responsible for damage caused by the
malfunction of a stove due to improper venting or
installation.
FLOOR PROTECTION
This heater must have a non-combustible oor
protector (UL1618 ember protection) installed
beneath it if the oor is of combustible material.
US: Floor protector should be UL listed or equal
too, needs to extend 16” (407 mm) to the front, 8”
(204 mm) to each side, 1” (26 mm) to the rear of the
unit. Under and 2” (51 mm) beyond each side of the
cleanout tee if an interior vertical installation.
Canada: Floor protector should comply with CAN/
ULC standards. Needs to extend 18” (458 mm) to
the front, 8” (204 mm) beyond each side of the unit.
D
INTERIOR VERTICAL INSTALLATION
A
B B
C
THROUGH THE WALL
INSTALLATION
ABack to Stove U.S.A 1” 26 mm
CAN 8” 204 mm
B Side to Stove U.S.A 6” 153 mm
CAN 8” 204 mm
C Front to Stove U.S.A 6” 153 mm
CAN 8” 204 mm
D Back and Sides to Flue 6” 153 mm
CLEARANCES
Your pellet stove has been tested and listed
for installation in residential, mobile home in
accordance with the clearances given below. For
safety reasons, please adhere to the installation
clearances and restrictions. Any reduction in
clearance to combustibles may only be done by
means approved by a regulatory authority.
G F
E
J
KH
M
L
LM
ESide Wall to Stove 8” 204 mm
FSide Wall to Vent Pipe 12” 305 mm
G Back Wall to Stove 12” 305 mm
H Back Wall to Vent Pipe 3” 77 mm
J Ceiling to Floor 84” 2134 mm
K Ceiling to Stove 46.875 1191 mm
LSide Wall to Stove 10” 254 mm
M Side Wall to Vent Pipe 3” 77 mm
OUTSIDE AIR SUPPLY  

ATTENTION:
DO NOT VENT UNDER ANY PORCH, DECK,
AWNING, OR IN ANY SEMI ENCLOSED OR
ROOFED AREA. DOING SO MAY RESULT IN
UNPREDICTABLE AIRFLOW AT THE VENT
CAP UNDER CERTAIN CONDITIONS AND CAN
AFFECT THE PERFORMANCE OF YOUR STOVE,
AS WELL AS, OTHER UNFORESEEABLE ISSUES.
Depending on your location and home
construction, outside air may be necessary for
optimal performance. Your stove is approved to be
INSTALLATION

© 2021 United States Stove Company
7
installed with an outside air intake (69FAK) which
is necessary for a mobile home. You can purchase
the 69FAK through your heater dealer. Installation
instructions are supplied with the air intake kit.
SECURING APPLIANCE TO THE FLOOR
Use the designated holes to secure the unit to the
oor.
MOBILE HOME
MOUNTING BOLT HOLES
WARNING! DO NOT INSTALL IN SLEEPING
ROOM.
CAUTION! THE STRUCTURAL INTEGRITY
OF THE MOBILE HOME FLOOR, WALL, AND
CEILING/ROOF MUST BE MAINTAINED.
WHEN INSTALLED IN A MOBILE HOME, THE
STOVE MUST BE GROUNDED DIRECTLY TO THE
STEEL CHASSIS AND BOLTED TO THE FLOOR.
In addition to the previously detailed installation
requirements, mobile home installations must
meet the following requirements:
• This stove must be securely fastened to the oor
of the mobile home through the two holes in the
rear of the stove using two, 1/4” lag bolts that are
long enough to go through both a hearth pad, if
used, and the oor of the home.
• The heater must be electrically grounded to the
steel chassis of the mobile home with 8 GA copper
wire using a serrated or star washer to penetrate
paint or protective coating to ensure grounding.
• Vent must be 3 or 4-inch “PL” Vent and must
extend a minimum or 36” (914 mm) above the roof
line of the mobile home and must be installed
using a certied ceiling re stop and rain cap.
• When moving your mobile home, all exterior
venting must be removed while the mobile home
is being relocated. After relocation, all venting
must be reinstalled and securely fastened.
• Outside air is mandatory for mobile home
installation. See Outside Air Supply section and
your dealer for purchasing.
• Check with your local building ofcials as other
codes may apply.
VENTING REQUIREMENTS
WARNING:
• INSTALL VENT AT CLEARANCES SPECIFIED
BY THE VENT MANUFACTURER.
• DO NOT CONNECT THE PELLET VENT TO A
VENT SERVING ANY OTHER APPLIANCE OR
STOVE.
• DO NOT INSTALL A FLUE DAMPER IN THE
EXHAUST VENTING SYSTEM OF THIS UNIT.
The following installation guidelines must be
followed to ensure conformity with both the safety
listing of this stove and to local building codes. Do
not use makeshift methods or compromise in the
installation.
IMPORTANT:
THIS UNIT IS EQUIPPED WITH A NEGATIVE
DRAFT SYSTEM THAT PULLS AIR THROUGH
THE BURN POT AND PUSHES THE EXHAUST
OUT OF THE DWELLING. IF THIS UNIT IS
CONNECTED TO A FLUE SYSTEM OTHER THAN
THE WAY EXPLAINED IN THIS MANUAL, IT
WILL NOT FUNCTION PROPERLY.
MAXIMUM VENTING DISTANCE
Installation MUST include at least 3-feet of vertical
pipe outside the home. This will create some natural
draft to reduce the possibility of smoke or odor
during appliance shutdown and keep exhaust from
causing a nuisance or hazard by exposing people
or shrubs to high temperatures. The maximum
recommend vertical venting height is 12-feet for
3-inch type “PL” vent. Total length of horizontal
vent must not exceed 4-feet. This could cause back
pressure. Use no more than 180 degrees of elbows
(two 90-degree elbows, or two 45-degree and one
90-degree elbow, etc.) to maintain adequate draft.
INSTALLATION

8
© 2021 United States Stove Company
IMPORTANCE OF PROPER DRAFT
Draft is the force which moves air from the
appliance up through the chimney. The amount of
draft in your chimney depends on the length of the
chimney, local geography, nearby obstructions and
other factors. Too much draft may cause excessive
temperatures in the appliance. Inadequate
draft may cause backpufng into the room and
‘plugging’ of the chimney. Inadequate draft will
cause the appliance to leak smoke into the room
through appliance and chimney connector joints.
An uncontrollable burn or excessive temperature
indicates excessive draft. Take into account the
chimney’s location to ensure it is not too close
to neighbours or in a valley which may cause
unhealthy or nuisance conditions.
PELLET VENT TYPE
A certied 3-inch or 4-inch type “PL” pellet vent
exhaust system must be used for installation and
attached to the pipe connector provided on the
back of the stove (use a 3-inch to 4-inch adapter for
4-inch pipe). Connection at back of stove must be
sealed using Hi-Temp RTV. Use 4-inch vent if the
vent height is over 12-feet or if the installation is over
2,500 feet above sea level. We recommend the use
of Simpson Dura-Vent® or Metal-Fab® pipe (if you
use other pipe, consult your local building codes
and/or building inspectors). Do not use Type-B
Gas Vent pipe or galvanized pipe with this unit.
The pellet vent pipe is designed to disassemble
for cleaning and should be checked several times
during the burning season. Pellet vent pipe is not
furnished with the unit and must be purchased
separately.
PELLET VENT INSTALLATION
The installation must include a clean-out tee to
enable collection of y ash and to permit periodic
cleaning of the exhaust system. 90-degree elbows
accumulate y ash and soot thereby reducing
exhaust ow and performance of the stove. Each
elbow or tee reduces draft potential by 30% to 50%.
All joints in the vent system must be fastened by
at least 3 screws, and all joints must be sealed with
Hi-Temp RTV silicone sealant to be airtight. The
area where the vent pipe penetrates to the exterior
of the home must be sealed with silicone or other
means to maintain the vapor barrier between the
exterior and the interior of the home. Vent surfaces
can get hot enough to cause burns if touched by
children. Noncombustible shielding or guards may
be required.
PELLET VENT TERMINATION
Do not terminate the vent in an enclosed or semi-
enclosed area, such as; carport, garage, attic,
crawl space, under a sun deck or porch, narrow
walkway, or any other location that can build up
a concentration of fumes. Termination in one of
these areas can also lead to unpredictable pressure
situations with the appliance, and could result
in improper performance and/or malfunction.
The termination must exhaust above the outside
air inlet elevation. The termination must not be
located where it will become plugged by snow or
other materials. Do not terminate the venting into
an existing steel or masonry chimney.

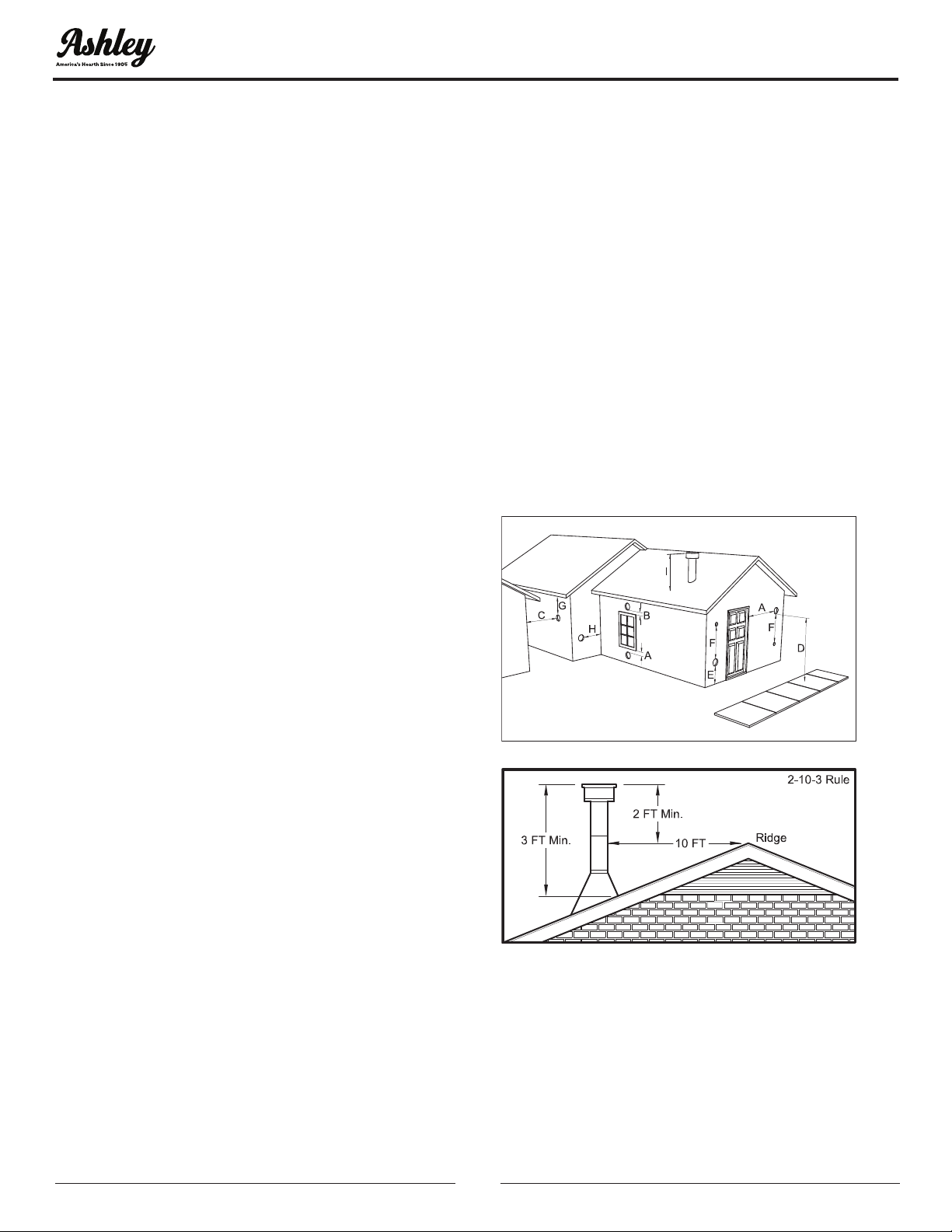

VENT TERMINATION CLEARANCES
A. Minimum 4-foot (1.22m) clearance below or
beside any door or window that opens.
B. Minimum 1-foot (0.3m) clearance above any
door or window that opens.
C. Minimum 3-foot (0.91m) clearance from any
adjacent building.
D. Minimum 7-foot (2.13m) clearance from any
grade when adjacent to public walkways.
INSTALLATION

© 2021 United States Stove Company
9
E. Minimum 2-foot (0.61m) clearance above any
grass, plants, or other combustible materials.
F. Minimum 3-foot (0.91m) clearance from an
forced air intake of any appliance.
G. Minimum 2-foot (0.61m) clearance below eves
or overhang.
H. Minimum 1-foot (0.3m) clearance horizontally
from combustible wall.
I. Must be a minimum of 3 foot (0.91m) above the
roof and 2 foot (0.61m) above the highest point
or the roof within 10 feet (3.05m).
THROUGH THE WALL INSTALLATION

Canadian installations must conform to CAN/
CSA-B365. To vent the unit through the wall,
connect the pipe adapter to the exhaust motor
adapter. If the exhaust adapter is at least 18” (457
mm) above ground level, a straight section of
pellet vent pipe can be used through the wall.
Your heater dealer should be able to provide you
with a kit that will handle most of this installation,
which will include a wall thimble that will allow
the proper clearance through a combustible
wall. Once outside the structure, a 3” (76 mm)
clearance should be maintained from the outside
wall and a clean out tee should be placed on the
pipe with a 90-degree turn away from the house.
At this point, a 3ft (0.91m) (minimum) section of
pipe should be added with a horizontal cap, which
would complete the installation. A support bracket
should be placed just below the termination cap
or one every 4ft (1.22m) to make the system more
stable. If you live in an area that has heavy snowfall,
it is recommended that the installation be taller
than 3ft (0.91m) to get above the snowdrift line.
This same installation can be used if your heater is
below ground level by simply adding the clean-out
section and vertical pipe inside until ground level is
reached. With this installation you have to be aware
of the snowdrift line, dead grass, and leaves. We
recommend a 3ft (0.91m) minimum vertical rise on
the inside or outside of the house. The “through the
wall” installation is the least expensive and simplest
installation. Never terminate the end vent under a
deck, in an alcove, under a window, or between two
windows. We recommend Simpson Dura-Vent® or
Metal-Fab® kits.
TYPICAL THROUGH THE
WALL INSTALLATION
  
INSTALLATION
When venting the heater through the ceiling, the
pipe is connected the same as through the wall,
except the clean-out tee is always on the inside of
the house, and a 3” (76 mm) adapter is added before
the clean-out tee. You must use the proper ceiling
support anges and roof ashing (supplied by the
pipe manufacturer; follow the pipe manufacturer’s
directions). It is important to note that if your vertical
run of pipe is more than 12ft (3.7m), the pellet vent
pipe size should be increased to 4” (102 mm) in
diameter. Do not exceed more than 4ft (1.22m) of
pipe on a horizontal run and use as few elbows as
possible. If an offset is required, it is better to install
45-degree elbows rather than 90-degree elbows.
INSTALLATION

10
© 2021 United States Stove Company
OPERATION INSTRUCTIONS
PANEL CONTROLS
The blowers and automatic fuel supply are
controlled from a panel on the top of this unit. The
control panel functions are a follows.
A. ON/OFF SWITCH (“POWER” BUTTON)
• When pushed, the stove will automatically ignite.
No other re starter is necessary. The igniter
will stay on for at least 10 and up to 12 minutes,
depending on when Proof of Fire is reached. The
re should start in approximately 5 minutes.
• The red light located above the “POWER” button
will turn green when pressed and remain green
until the stove is turned off.
• After pushing “POWER”, the auger motor is on for
3.5 minutes, off for 1 minute. During the remainder
of the start-up period, the auger motor operates
on the heat range “1” setting.
• During start up the heat level advance (Up and
Down keys) will change the heat range indicator
level accordingly, but there is no change in the
stoves operating conditions until start-up is
completed.
• During start-up ignition must occur within 12
minutes or the stove will error out and show E4.
• During the start-up phase, the Mode key does not
function.
B. LEVEL / TEMP ARROW BUTTONS
• These buttons when pushed will set the pellet
feed rate, hence the heat output or heat range of
your stove.
• The levels of heat output will incrementally
change on the bar graph starting from heat
range “1” to heat range “5”.
C. °C / °F Button
• The °C / °F button changes the two digit display
from degrees Celsius to degrees Fahrenheit.
D. MODE (M/T) BUTTON
• The Mode of the stove can be switched between
manual and controlled with a Thermostat.
Separate LEDs to the left of the two digit display
indicate the mode of operation – Manual or T-Stat.
The stove has to be in normal operation to be
switched from Manual to T-Stat mode.
• Manual mode operates according to the 5 set
levels of feed on the bar graph from heat range
“1” to heat range “5”.
T-Stat mode works as follows:
• The stove has a built in Thermostat into the
controls of the appliance. The temperature sensor
for the T-Stat is located on the back of the stove
behind the display board.
• Once the stove has gone into run mode the stove
can be switch into T-Stat mode.
• The Up and Down Level / Temp Arrow buttons are
used to change the desired set-point temperature.
Once the desired temperature is reached the two
digit display will ash for four seconds and reset
to the actual room temperature.
• Once the stove reaches within 3°F of the desired
temperature set point, it returns to the heat range
that the stove was set on before it was switched
to T-Stat mode (if the stove was running on heat
range “5” when switched to T-stat mode when
it gets within 3°F of the set point it will return to
heat range “5”).
• Once the stove reaches the desired set-point, the
stove will drop to heat range “1”.
• When room temperature drops below desired
set-point the stove will ramp back up until it
reaches the desired temperature.
NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

© 2021 United States Stove Company
11
OPERATION INSTRUCTIONS
WARNING:
• DO NOT USE CHEMICALS OR FLUIDS TO
START THE FIRE - NEVER USE GASOLINE,
GASOLINE-TYPE LANTERN FUEL,
KEROSENE, CHARCOAL LIGHTER FLUID, OR
SIMILAR LIQUIDS TO START OR “FRESHEN
UP” A FIRE IN THIS STOVE. KEEP ALL SUCH
LIQUIDS WELL AWAY FROM THE STOVE
WHILE IT IS IN USE.
• HOT WHILE IN OPERATION. KEEP
CHILDREN, CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE SKIN BURNS.
This heater is designed to burn only PFI Premium
grade pellets. DO NOT BURN:
1. Garbage;
2. Lawn clippings or yard waste;
3. Materials containing rubber, including tires;
4. Materials containing plastic;
5. Waste petroleum products, paints or paint
thinners, or asphalt products;
6. Materials containing asbestos;
7. Construction or demolition debris;
8. Railroad ties or pressure-treated wood;
9. Manure or animal remains;
10. Salt water driftwood or other previously salt
water saturated materials;
11. Unseasoned wood; or
12. Paper products, cardboard, plywood, or
particleboard. The prohibition against burning
these materials does not prohibit the use of re
starters made from paper, cardboard, saw dust,
wax and similar substances for the purpose of
starting a re in an affected wood heater.
Burning these materials may result in release of
toxic fumes or render the heater ineffective and
cause smoke.
PROPER FUEL
ATTENTION:
THIS APPLIANCE IS DESIGNED FOR THE USE
OF PELLETIZED FUEL THAT MEET OR EXCEED
THE STANDARD SET BY THE PELLET FUEL
INSTITUTE (PFI).
Your pellet stove is designed to burn premium
hardwood pellets that comply with the Pellet Fuels
Institute (PFI) standard (minimum of 40 lbs density
per cubic ft, 1/4” to 5/16” diameter, length no greater
than 1.5”, not less than 8,200 BTU/lb, moisture under
8% by weight, ash under 1% by weight, and salt
under 300 parts per million). Pellets that are soft,
contain excessive amounts of loose sawdust, have
been, or are wet, will result in reduced performance.
Store your pellets in a dry place. DO NOT store the
fuel within the installation clearances of the unit
or within the space required for refuelling and ash
removal. Doing so could result in a house re. Do
not over re or use volatile fuels or combustibles,
doing so may cause a personal and property
damage hazards.
THIS STOVE IS APPROVED FOR BURNING
PELLETIZED WOOD FUEL ONLY ! Factory-approved
pellets are those 1/4” or 5/16” in diameter and not
over 1” long. Longer or thicker pellets sometimes
bridge the auger ights, which prevents proper
pellet feed. Burning wood in forms other than
pellets is not permitted. It will violate the building
codes for which the stove has been approved and
will void all warranties. The design incorporates
automatic feed of the pellet fuel into the re at
a carefully prescribed rate. Any additional fuel
introduced by hand will not increase heat output
but may seriously impair the stoves performance
by generating considerable smoke. Do not burn
wet pellets. The stove’s performance depends
heavily on the quality of your pellet fuel. Avoid pellet
brands that display these characteristics:
• Excess Fines – “Fines” is a term describing crushed
pellets or loose material that looks like sawdust or
sand. Pellets can be screened before being placed
in hopper to remove most nes.
• Binders – Some pellets are produced with
materials to hold the together, or “bind” them.
• High ash content – Poor quality pellets will often
create smoke and dirty glass. They will create a
need for more frequent maintenance. You will
have to empty the burn pot plus vacuum the
entire system more often. Poor quality pellets
could damage the auger. We cannot accept
responsibility for damage due to poor quality
pellet.

12
© 2021 United States Stove Company
OPERATION INSTRUCTIONS
CAUTION:
• KEEP FOREIGN OBJECTS OUT OF THE
HOPPER.
• THE MOVING PARTS OF THIS STOVE ARE
PROPELLED BY HIGH TORQUE ELECTRIC
MOTORS. KEEP ALL BODY PARTS AWAY
FROM THE AUGER WHILE THE STOVE IS
PLUGGED INTO AN ELECTRICAL OUTLET.
THESE MOVING PARTS MAY BEGIN TO
MOVE AT ANY TIME WHILE THE STOVE IS
PLUGGED IN.

Remove burn pot, making sure it is clean and none
of the air holes are plugged. Clean the rebox, and
then reinstall burn pot. Clean door glass if necessary
(a dry cloth or paper towel is usually sufcient).
Never use abrasive cleaners on the glass or door.
Check fuel in the hopper, and rell if necessary.
BUILDING A FIRE
Never use a grate or other means of supporting
the fuel. Use only the burn pot supplied with this
heater. Hopper lid must be closed in order for the
unit to feed pellets. During the start-up period:
1. Make sure the burn pot is free of pellets.
2. DO NOT open the viewing door.
3. The damper may need to be closed during
startup.
4. DO NOT add pellets to the burn pot by hand.
NOTE: During the rst few res, your stove will
emit an odor as the high-temperature paint cures
or becomes seasoned to the metal. Maintaining
smaller res will minimize this. Avoid placing items
on the stovetop during this period because the paint
could be affected. Attempts to achieve heat output
rates that exceed heater design specications can
result in permanent damage to the heater.
AUTOMATIC IGNITOR
Fill hopper and clean burn pot.
1. Press “On/Off” button. Make sure green light
comes on.
2. The damper should be completely closed or
open no more than 1/4 of the way during start-
up. This will vary depending on your installation
and elevation. Once re is established adjust
for desired ame increasing the amount the
damper is open as the heat setting is increased.
(See “Damper Control”)
3. Adjust feed rate to desired setting by pressing
“Heat Level Advance” button.
If re doesn’t start in 12 minutes, press “On/Off”,
wait a few minutes, clear the burn pot, and start
procedure again.
DAMPER CONTROL
The damper control lever is located on the back
of the stove. The default setting for the damper
control should be full open. The damper adjusts the
combustion air. This control is necessary due to the
varied burn characteristics of individual installations,
different pellet brands and pellet feed rates. It
allows you to improve the efciency of your stove.
Providing correct combustion air will reduce the
frequency of cleaning your glass door and prevent
the rapid buildup of creosote inside your stove and
chimney. You should adjust the damper based on
the re’s appearance. A low, reddish, dirty re can
be improved by turning the damper slightly to the
right. A “blow torch” re can be improved by turning
the dampener to the left a little bit. As a general rule,
on lower feed rate settings, the damper should be
farther to the left closing it off. On higher feed rates,
the damper should be open more by having it set
more towards the right. Through trial and error, you
will nd the best setting. Consult your dealer if you
need help. NOTE: On heat range “1”, damper should
be either completely closed or open no more than
a 1/4 of the way. If damper is open to far, it can cause
the re to go out.

© 2021 United States Stove Company
13
OPERATION INSTRUCTIONS
OPENING DOOR
CAUTION:
• DO NOT OPERATE YOUR STOVE WITH
THE VIEWING DOOR OPEN. THE AUGER
WILL NOT FEED PELLETS UNDER THESE
CIRCUMSTANCES AND A SAFETY CONCERN
MAY ARISE FROM SPARKS OR FUMES
ENTERING THE ROOM.
• THE FEED DOOR MUST BE CLOSED AND
SEALED DURING OPERATION.
If the door is opened while the stove is in operation
it must be closed within 30 seconds or the stove
will shut down. If the stove shuts down push the
“On/Off” button to re-start your stove. The stove will
have to fully shut down and turn off before you will
be able to restart the stove.
ROOM AIR FAN
When starting your stove the Room Air Fan will not
come on until the stove’s heat exchanger warms up.
This usually takes about 10 minutes from start-up.
IF STOVE RUNS OUT OF PELLETS
The re goes out and the auger motor and blowers
will run until the stove cools. This will take 30 minutes
or longer depending on the heat remaining in
the appliance. After the stove components stop
running all lights on the display will go out and the
two digit display will begin ashing “E3”
REFUELLING
CAUTION:
• THE HOPPER AND STOVE TOP WILL BE
HOT DURING OPERATION; THEREFORE,
YOU SHOULD ALWAYS USE SOME TYPE
OF HAND PROTECTION WHEN REFUELING
YOUR STOVE.
• DO NOT TOUCH THE HOT SURFACES OF
THE STOVE. EDUCATE ALL CHILDREN ON
THE DANGERS OF A HIGH-TEMPERATURE
STOVE. YOUNG CHILDREN SHOULD BE
SUPERVISED WHEN THEY ARE IN THE SAME
ROOM AS THE STOVE.
Never place your hand near the auger while the
stove is in operation. We recommend that you not
let the hopper drop below 1/4 full.
TAMPER WARNING
This wood heater has a manufacturer-set minimum
low burn rate that must not be altered. It is against
federal regulations to alter this setting or otherwise
operate this wood heater in a manner inconsistent
with operating instructions in this manual.
WARNING:
• KEEP HOPPER LID CLOSED AT ALL TIMES
EXCEPT WHEN REFILLING.
• DO NOT OVERFILL HOPPER.
SHUTDOWN PROCEDURE
WARNING:
NEVERSHUTDOWNTHISUNITBYUNPLUGGING
IT FROM THE POWER SOURCE.
Turning your stove off is a matter of pressing the
“POWER” button on the display board. The green
light will turn back to red when the “POWER”
button is pushed. The auger motor will stop, and the
blowers will continue to operate until the internal
rebox temperatures have fallen to a preset level.
1. Your stove is equipped with a high temperature
thermodisc. This unit has a manual reset
thermodisc. This safety switch has two functions.
A. To recognize an overheat situation in the stove
and shut down the fuel feed or auger system.
B. In case of a malfunctioning convection
blower, the high-temperature thermodisc will
automatically shut down the auger, preventing
the stove from overheating.
NOTE: On some units, once tripped, like a circuit
breaker, the reset button will have to be pushed
before restarting your stove. On other units the
thermodisc has no reset button and will reset
itself once the stove has cooled. The manufacturer
recommends that you call your dealer if this occurs
as this may indicate a more serious problem. A
service call may be required.

14
© 2021 United States Stove Company
OPERATION INSTRUCTIONS
2. If the combustion blower fails, an air pressure
switch will automatically shut down the auger.
NOTE: Opening the stove door for more than
30 seconds during operation will cause enough
pressure change to activate the air switch, shutting
the fuel feed off. The stove will shut down and show
“E2” on the two digit display. The stove has to fully
shut down before restarting.
INTERIOR CHAMBERS
• Burn Pot - Periodically remove and clean the burn
pot and the area inside the burn pot housing. In
particular, it is advisable to clean out the holes in
the burn pot to remove any build up that may
prevent air from moving through the burn pot
freely.
• Heat Exchanger - There is a clean out plate on
both sides of the heat exchanger that need to be
removed to clean y ash out of the heat exchanger.
The cleanouts are located inside the cabinet doors,
on the lower front corners of the heat exchanger.
To access these clean outs, you must remove both
side panels. The clean outs are secured to the
rebox with (2) 5/16” screws. Remove the clean
outs and vacuum out any accumulated ash. This
should be done at least once per month or more
frequently if large amounts of ash are noticed
while cleaning or if the stove does not seem to be
burning properly.
If a vacuum is used to clean your stove, we suggest
using the AV15E AshVac vacuum. The AV15E AshVac
is designed for ash removal. Some regular vacuum
cleaner (i.e. shop vacs) may leak ash into the room.
DO NOT VACUUM HOT ASH.
WARNING:
FAILURE TO PROPERLY MAINTENANCE
THE CLEAN OUTS WILL RESULT IN POOR
PERFORMANCE OF THIS STOVE.
Clean-Out Plate
Clean-Out Plate

© 2021 United States Stove Company
15
MAINTENANCE
CAUTION:
• FAILURE TO CLEAN AND MAINTAIN THIS
UNIT AS INDICATED CAN RESULT IN POOR
PERFORMANCE, SAFETY HAZARDS, FIRE,
AND EVEN DEATH.
• NEVER PERFORM ANY INSPECTIONS,
CLEANING, OR MAINTENANCE ON A HOT
STOVE.
• DISCONNECT THE POWER CORD BEFORE
PERFORMING ANY MAINTENANCE! NOTE:
TURNING THE ON/OFF SWITCH TO ”OFF”
DOES NOT DISCONNECT ALL POWER TO
THE ELECTRICAL COMPONENTS OF THE
STOVE.
• DO NOT OPERATE STOVE WITH BROKEN
GLASS, LEAKAGE OF FLUE GAS MAY RESULT.
CREOSOTE FORMATION, INSPECTION, &
REMOVAL
CAUTION:
THE EXHAUST SYSTEM SHOULD BE CHECKED
MONTHLY DURING THE BURNING SEASON FOR
ANY BUILD-UP OF SOOT OR CREOSOTE.
When any wood is burned slowly, it produces tar
and other organic vapors, which combine with
expelled moisture to form creosote. The creosote
vapors condense in the relatively cool chimney
ue or a newly started re or from a slow-burning
re. As a result, creosote residue accumulates
on the ue lining. When ignited, this creosote
makes an extremely hot re, which may damage
the chimney or even destroy the house. Despite
their high efciency, pellet stoves can accumulate
creosote under certain conditions. The chimney
connector and chimney should be inspected by
a qualied person annually or per ton of pellets
to determine if a creosote or y ash build-up has
occurred. If creosote has accumulated, it should
be removed to reduce the risk of a chimney re.
Inspect the system at the stove connection and
at the chimney top. Cooler surfaces tend to build
creosote deposits quicker, so it is important to
check the chimney from the top as well as from the
bottom. The creosote should be removed with a
brush specically designed for the type of chimney
in use. A qualied chimney sweep can perform this
service. It is also recommended that before each
heating season the entire system be professionally
inspected, cleaned and, if necessary, repaired. To
clean the chimney, disconnect the vent from the
stove.
FLY ASH
This accumulates in the horizontal portion of an
exhaust run. Though non-combustible, it may
impede the normal exhaust ow. It should therefore
be periodically removed.
ASH REMOVAL & DISPOSAL
CAUTION:
ALLOW THE STOVE TO COOL BEFORE
PERFORMING ANY MAINTENANCE OR
CLEANING. ASHES MUST BE DISPOSED IN A
METAL CONTAINER WITH A TIGHT FITTING
LID. THE CLOSED CONTAINER OF ASHES
SHOULD BE PLACED ON A NON-COMBUSTIBLE
SURFACE OR ON THE GROUND, WELL AWAY
FROM ALL COMBUSTIBLE MATERIALS,
PENDING FINAL DISPOSAL.
Remove the ashes periodically to avoid unnecessary
ash build up. Remove ashes when unit has cooled.
Ashes should be placed in a metal container with a
tight tting lid. The closed container of ashes should
be placed on a noncombustible oor or on the
ground, well away from all combustible materials,
pending nal disposal. If the ashes are disposed of
by burial in soil or otherwise locally dispersed, they
should be retained in the closed container until all
embers have been thoroughly cooled. The container
shall not be used for other trash or waste disposal. If
combined with combustible substances, ashes and
embers may ignite. Ash removal is as follows:
1. Let the re burn out and allow the unit to cool
to room temperature.
2. Make sure the pellet stove is at room
temperature before touching. Open the door,
remove the burn pot and empty it into a metal
container.
3. Vacuum ashes from the rebox. BE SURE THAT
NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

16
© 2021 United States Stove Company
MAINTENANCE
ASHES ARE COOL TO THE TOUCH BEFORE
VACUUMING. Some vacuum cleaners may leak
ash into the room. Your vacuum cleaner should
have a special lter or bag to eliminate leakage.
4. Reinstall the burn pot.
SMOKE & CO MONITORS
Burning wood naturally produces smoke and
carbon monoxide(CO) emissions. CO is a poisonous
gas when exposed to elevated concentrations
for extended periods of time. While the modern
combustion systems in heaters drastically reduce
the amount of CO emitted out the chimney,
exposure to the gases in closed or conned areas
can be dangerous. Make sure you stove gaskets
and chimney joints are in good working order and
sealing properly to ensure unintended exposure. It
is recommended that you use both smoke and CO
monitors in areas having the potential to generate
CO.
CHECK & CLEAN THE HOPPER
Check the hopper periodically to determine if there
is any sawdust (nes) that is building up in the feed
system or pellets that are sticking to the hopper
surface. Clean as needed.
DOOR & GLASS GASKETS
Inspect the main door and glass window gaskets
periodically. The main door may need to be removed
to have frayed, broken, or compacted gaskets
replaced by your authorized dealer. This unit’s door
uses a 5/8” diameter rope gasket.
BLOWER MOTORS
Clean the air holes on the motors of both the
exhaust and distribution blowers annually. Remove
the exhaust blower from the exhaust duct and
clean out the internal fan blades as part of your fall
start-up. If you have indoor pets your power motors
should be inspected monthly to make sure they
are free of animal hair build up. Animal hair build
up in blowers can result in poor performance or
unforeseen safety hazards.
PAINTED SURFACES
Painted surfaces may be wiped down with a damp
cloth. If scratches appear, or you wish to renew your
paint, contact your authorized dealer to obtain a
can of suitable high-temperature paint.
GLASS
We recommend using a high quality glass cleaner.
Should a buildup of creosote or carbon accumulate,
you may wish to use 000 steel wool and water to
clean the glass. DO NOT use abrasive cleaners. DO
NOT perform the cleaning while the glass is HOT.
Do not attempt to operate the unit with broken
glass. Replacement glass may be purchased from
your U.S. Stove dealer. If glass is broken, follow these
removal procedures:
1. Once the heater has cooled, remove the door
from the heater.
2. Remove the rope gasket from the door along
with the screws holding the glass retainer in
place and the glass retainer.
3. While wearing leather gloves (or any other
gloves suitable for handling broken glass),
carefully remove any loose pieces of glass from
the door frame. Dispose of all broken glass
properly.
4. Replace the glass and gasket, making sure the
gasket runs the full perimeter of the glass edge.
5. Re-install the new glass by re-attaching the
retainers and screws, be careful not to over
tighten the screws for this could damage the
glass.
DO NOT abuse the door glass by striking, slamming,
or similar trauma. Do not operate the stove with the
glass removed, cracked, or broken.
FALL START UP
Prior to starting the rst re of the heating season,
check the outside area around the exhaust and air
intake systems for obstructions. Clean and remove
any y ash from the exhaust venting system. Clean
any screens on the exhaust system and on the
outside air intake pipe. Turn all of the controls on
and make sure that they are working properly. This
is also a good time to give the entire stove a good
cleaning throughout.
SPRING SHUTDOWN
After the last burn in the spring, remove any
remaining pellets from the hopper and the auger

© 2021 United States Stove Company
17
MAINTENANCE
feed system. Scoop out the pellets and then run
the auger until the hopper is empty and pellets
stop owing (this can be done by pressing the “ON”
button with the viewing door open). Vacuum out
the hopper. Thoroughly clean the burn pot, and
rebox. It may be desirable to spray the inside of
the cleaned hopper with an aerosol silicone spray
if your stove is in a high humidity area. The exhaust
system should be thoroughly cleaned.
MAINTENANCE SCHEDULE
Use the following as a guide under average use
conditions. Gaskets around door and door glass
should be inspected and repaired or replaced when
necessary.
Daily Weekly Monthly or
as needed
Burn Pot Stirred Empty
Combustion
Chamber Brushed
Ashes Check Empty
Interior
Chambers Vacuumed
Combustion
Blower Blades
Vacuumed
/ Brushed
Convection
Blower Impeller
Vacuumed
/ Brushed
Vent System Cleaned
Gaskets Inspected
Glass Wiped Cleaned
Hopper (end of
season)
Empty &
Vacuumed
For Parts Assistance Call: 800-750-2723 Ext 5051 or Email: [e-mail]
The information in this owner’s manual is specic to your unit. When ordering replacement parts the
information in this manual will help to ensure the correct items are ordered. Before contacting customer
service write down the model number and the serial number of this unit. That information can be found on
the certication label attached to the back of the unit. Other information that may be needed would be the
part number and part description of the item(s) in question. Part numbers and descriptions can be found
in the “Repair Parts” section of this manual. Once this information has been gathered you can contact
customer service by phone [phone] Ext 5051 or Email [e-mail].
Model Information
Model Number
Serial Number
HOW TO ORDER REPAIR PARTS

18
© 2021 United States Stove Company
TROUBLESHOOTING GUIDE
When your stove acts out of the ordinary, the rst reaction is to call for help. This guide may save time and
money by enabling you to solve simple problems yourself. Problems encountered are often the result of
only ve factors: 1) poor fuel; 2) poor operation or maintenance; 3) poor installation; 4) component failure;
5) factory defect. You can usually solve those problems related to 1 and 2. Your dealer can solve problems
relating to 3, 4 and 5. Refer to diagrams on page 25 to help locate indicated parts.
For the sake of troubleshooting and using this guide to assist you, you should look at your heat level setting
to see which light is ashing.
• Disconnect the power cord before performing any maintenance! NOTE: Turning the ON/OFF Switch to
”OFF” does not disconnect all power to the electrical components of the stove.
• Never try to repair or replace any part of the stove unless instructions for doing so are given in this manual.
All other work should be done by a trained technician.
Display is Flashing “E1”
Possible Causes Possible Remedies: (Unplug stove rst when possible)
The convection blower is overheating
and tripping the internal temperature
shutoff.
Clean any dust off of the windings and fan blade. If oiling the
blower does not help, the blower may be bad.
The stove is being left on the highest
setting for extended periods of time.
If operating the heater on the highest heat setting, the room
temperature could increase enough and lead to potential
overheating situations. If this happens try operating at a lower
heat setting.
Fuel other than wood pellets is being
burned in the stove.
This pellet stove is designed and tested to use wood pellets.
Check for signs of fuel other than wood pellets. No other
types of fuel have been approved for this pellet stove. If there
are signs of other types of fuel being used, stop using them
immediately.
Power surge or brown out situation.
A power surge, spike, or voltage drop could cause the high
limit switch to trip. Check to see if a surge protector is being
used on the stove. If not, recommend one to the customer.
High Limit Switch is malfunctioning. If the other items check out OK, replace the high limit switch.
ATTENTION: THIS WOOD HEATER NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER
OPERATION. IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A
MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL.

© 2021 United States Stove Company
19
TROUBLESHOOTING GUIDE
Display is Flashing “E2”
Possible Causes Possible Remedies: (Unplug stove rst when possible)
Airow switch hose or stove attachment
pipes for hose are blocked.
Unhook air hose from the air switch and blow through it. If air
ows freely, the hose and tube are ne. If air will not ow throw
the hose, use a wire coat hanger to clear the blockage.
The air inlet, burnpot, interior
combustion air chambers, combustion
blower, or exhaust pipe are blocked with
ash or foreign material.
Follow all cleaning procedures in the maintenance section of
the owner’s manual.
The rebox is not properly sealed. Make sure the door is closed and that the gasket is in good
shape.
Vent pipe is incorrectly installed. Check to make sure vent pipe installation meets criteria in
owner’s manual.
The airow switch wire connections are
bad.
Check the connectors that attach the gray wires to the air
switch.
Combustion blower failure.
With the stove on, check to see if the combustion blower is
running. If it is not, you will need to check for power going to
the combustion blower. It should be a full current. If there is
power, the blower is bad. If there is not, see #8.
Control board not sending power to
combustion blower.
If there is no current going to the combustion blower, check all
wire connections. If all wires are properly connected, you have
a bad control board.
Control board not sending power to air
switch.
There should be a 5-volt current (approximately) going to the
air switch after the stove has been on for 30 seconds.
Air switch has failed.
To test the air switch, you will need to disconnect the air hose
from the body of the stove. With the other end still attached
to the air switch, very gently suck on the loose end of the hose
(you may want to remove the hose entirely off the stove and
the air switch rst and make sure it is clear). If you hear a click,
the air switch is working. BE CAREFUL TOO MUCH VACUUM
CAN DAMAGE THE AIR SWITCH.

20
© 2021 United States Stove Company
Display is Flashing “E3”
Possible Causes Possible Remedies: (Unplug stove rst when possible)
The hopper is out of pellets Rell the hopper.
The air dampener is too far open for a
low feed setting
If on the low setting, you may need to close the dampener all
the way.
The burnpot holes are blocked. Remove the burnpot and thoroughly clean it.
The air inlet, the interior chambers, or
exhaust system has a partial blockage.
Follow all cleaning procedures in the maintenance section of
the owner's manual
The hopper safety switch has failed or
hopper is open.
When operating the unit, be sure the hopper lid is closed so
that the hopper safety switch will activate. Check the wires
leading from the hopper safety switch to the control panel and
auger motor for secure connections. Use a continuity tester to
test the hopper safety switch; replace if necessary.
The auger shaft is jammed.
"Start by emptying the hopper. Then remove the auger motor
by removing the auger pin, then remove the two bolts that
hold the auger bracket to the auger tube. The auger bracket
will now be able to be removed form the auger tube. Remove
the two bolts on the side of the auger tube to remove the lower
bearing of the auger. Pull the auger out of the tube to free the
jam.
The auger motor has failed.
Remove the auger motor from the auger shaft and try to
run the unit. If the motor will turn the shaft is jammed on
something. If the motor will not turn, the motor is bad.
The Proof of Fire (POF) thermodisc has
malfunctioned.
Temporarily bypass the POF thermodisc by disconnecting the
two wires and connecting them with a short piece of wire. Then
plug the stove back up. If the stove comes on and works, you
need to replace the POF thermodisc. This is for testing only. DO
NOT LEAVE THE THERMODISC BYPASSED. Your blowers will
never shut off and if the re went out the auger will continue
to feed pellets until the hopper is empty if you leave the POF
thermodisc bypassed.
The control board is not sending power
to the POF thermodisc or other auger
system components.
There should be a 5-volt (approximately) current going to the
POF thermodisc after the stove has been on for 10 minutes.
TROUBLESHOOTING GUIDE
