Ashly Protea NE8250.25 User manual

ASHLY AUDIO INC.
847 Holt Road Webster, NY 14580-9103 Phone: [phone]
Toll-Free: [phone] Fax: [phone] www.ashly.com
2016-2018 by Ashly Audio Corporation. All rights reserved worldwide.
All Trademarks referred to herein are the property of their respective owners.
ne4250, ne4250.25, ne4250.70, ne4250.10
Operating Manual
Network Enabled Multi-Channel Power Ampliers
ne8250, ne8250.25, ne8250.70, ne8250.10
Protea software is available for free download on the Ashly website.
Ashly no longer includes a software CD-ROM with new units.

Operating Manual - NE Multi Channel Power Amplier
2
Important Safety Instructions
Consignes de sécurité à lire attentivement
The lightning ash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufcient magnitude
to constitute a risk of electric shock to persons. The exclamation point
within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance instructions in the literature ac-
companying the device.
Le symbole de la èche dans un triangle équilateral symbolisant la foudre
est prévu pour sensibiliser l’utilisateur à la présence de tension de voltage
non isolée à l’intérieur de l’appareil. Elle pourrait constituer un danger de
risque de décharge électrique pour les utilisateurs. Le point d’exclamation
dans le triangle équilatérale alerte l’utilisateur de la présence de consignes
qu’il doit d’abord consulter avant d’utiliser l’appareil.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. To reduce the risk of re or electric shock, do not expose this apparatus
to rain or moisture.
6. Do not use this apparatus near water.
7. Clean only with dry cloth.
8. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
9. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus.
10. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not t into
your outlet, consult an electrician for replacement of the obsolete outlet.
11. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the ap-
paratus.
12. Only use attachments/accessories specied by the manufacturer.
13. Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
14. Unplug this apparatus during lightning storms or when unused for long
periods of time.
15. Refer all servicing to qualied service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
1. Lisez ces instructions.
2. Conservez ces instructions.
3. Observez les avertissements.
4. Suivez ces instructions.
5. Pour réduire le risque de feu ou la décharge électrique, ne pas exposer
cet appareil pour pleuvoir ou l'humidité.
6. Ne pas utiliser l’appareil près de l’eau.
7. Le nettoyer à l’aide d’un tissus sec.
8. Ne pas bloquer les ouvertures de ventilation, installer selon les con-
signes du fabricant.
9. Eloigner des sources de chaleur tel: radiateurs, fourneaux ou autres
appareils qui produisent de la chaleur.
10. Ne pas modier ou amputer le système de la mise à terre. Une prise avec
mise à terre comprend deux lames dont une plus large ainsi qu’une mise
à terre: ne pas la couper ou la modier. Si la prise murale n’accepte pas la
che, consulter un électricien pour qu’il remplace la prise désuète.
11. Protéger le cordon de secteur contre tous bris ou pincement qui pour-
raient l’endommager, soit à la che murale ou à l’appareil.
12. N’employer que les accessoires recommandés par le fabricant.
13. N’utiliser qu’avec les systèmes de xation,chariots, trépied ou autres,
approuvés par le fabricant ou vendus avec l’appareil.
14. Débrancher l’appareil lors des orages électriques ou si inutilisé pendant
une longue période de temps.
15. Un entretient effectué par un centre de service accrédité est exigé si
l’appareil a été endommagé de quelque façon: si il a été exposé à la pluie,,
l’humidité ou s’il ne fonctionne pas normalement ou qu’il a été échappé.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause undesired operation
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in both a commercial and residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help..

3
Operating Manual - NE Multi Channel Power Amplier
Table Of Contents
1 INTRODUCTION ..................................4
2 UNPACKING .....................................4
3 THE NE MULTICHANNEL AMP SERIES .................5
Overview ........................................5
Protection........................................5
PhysicalDescription.................................6
FrontPanelFeatures ................................6

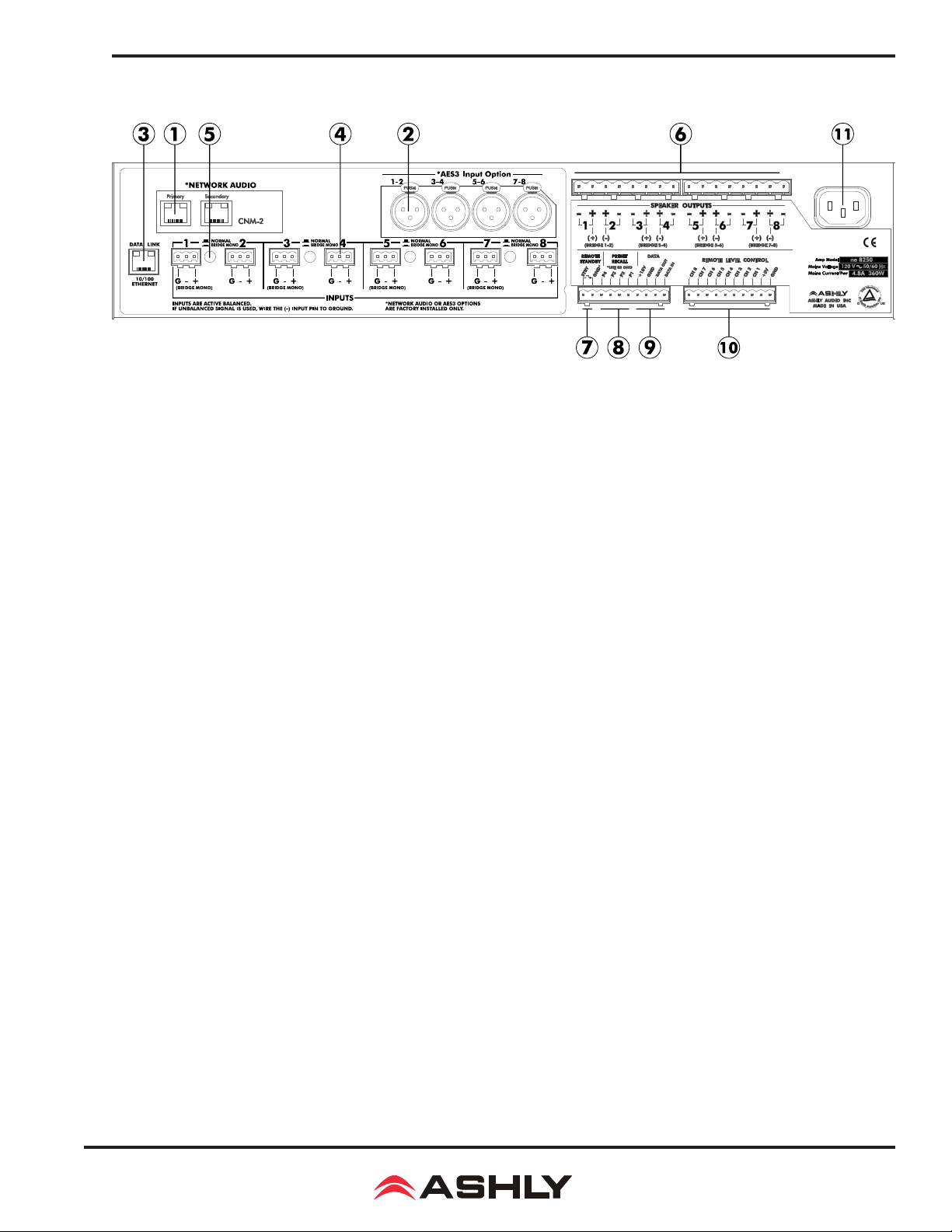

RearPanelFeatures................................. 7
Installation Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Constant Voltage Models and High Pass Filters . . . . . . . . . . . . . . 7
4 REMOTE CONTROL ................................ 8

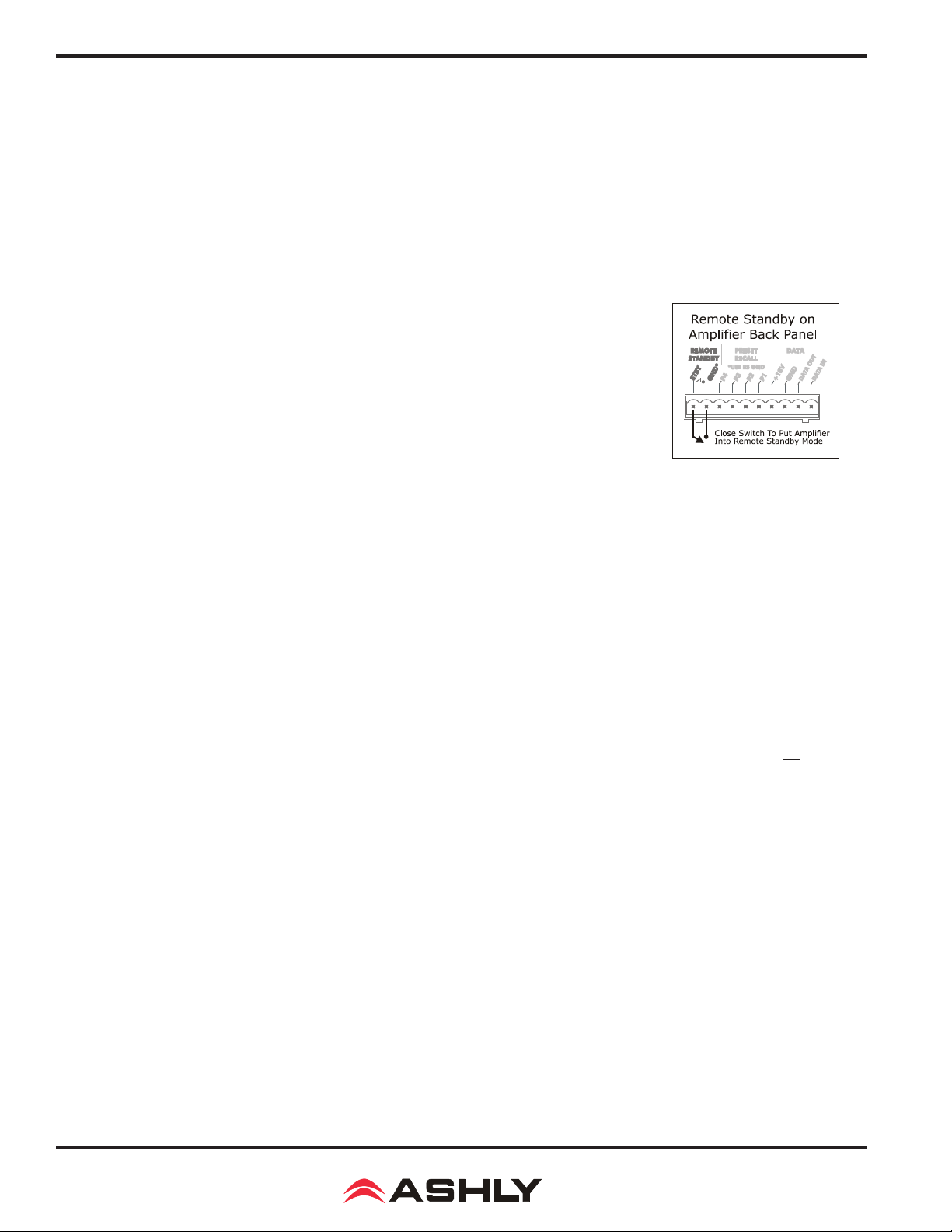

On/OffRemoteStandby..............................8
PresetRecall...................................... 8
WR-1 Remote Level Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
WR-2 Remote Preset Recall Switch . . . . . . . . . . . . . . . . . . . . . . 9
WR-1.5 Remote Level Control and Preset Switch . . . . . . . . . . . . . 9
RD-8C and RW-8C Remote Fader Control . . . . . . . . . . . . . . . . . 10
WR-5 Remote Programmable Button Control. . . . . . . . . . . . . . . 10
neWR-5 Networked Remote Programmable Button Control . . . . . 11
FR-8 and FR-16 Networked Programmable Fader Control . . . . . . 11
Ashly Remote App for iPad®.......................... 11
5 Proteane SOFTWARE ............................ 12
Overview ....................................... 12
 AmplierControlSurface ............................ 12
TheDSPWindow.................................. 13

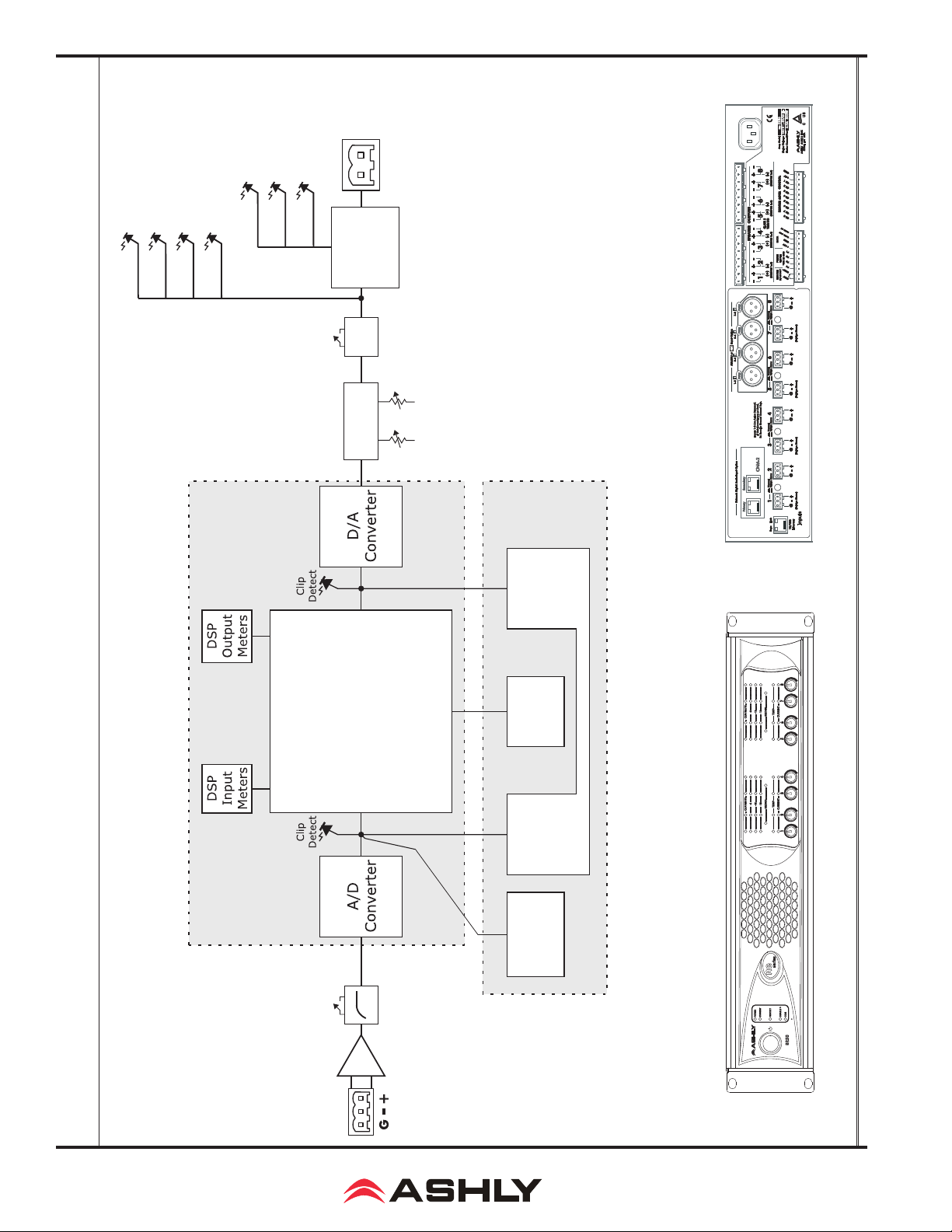

6 SPECIFICATIONS/BLOCK DIAGRAM ...............14-16
7 WARRANTY .................................... 17
WARNING:
THIS APPARATUS MUST BE EARTHED

Operating Manual - NE Multi Channel Power Amplier
4
1. INTRODUCTION
Thank you for your purchase of this NE (network enabled) multi channel power amplier. NE power ampliers combine light-
weight, state of the art, high efciency switching technology with integrated Ethernet control, and offer optional factory installed
expansion cards to provide comprehensive internal DSP processing, AES/EBU input, and networked digital audio input. Please
read the entire manual to fully understand the features and capabilities of this product.
About Ashly
Ashly Audio was founded in 1974 by a group of recording engineers, concert sound professionals, and electronics designers.
The rst products were elaborate custom consoles for friends and associates, but business quickly spread to new clients and
the business grew. The philosophy we established from the very beginning holds true today: to offer only the highest quality
audio tools at an affordable cost to the professional user – ensuring reliability and long life. Many years later, Ashly remains
committed to these principles.
Ashly’s exclusive Five Year, Worry- Free Warranty remains one of the most liberal policies available on any commercial- grade
product. The warranty covers every product with the Ashly brand name, and is offered at no extra cost.
FCC Compliance
This device complies with part 15 of the FCC Rules for Class B operation, subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause undesired operation.
2. UNPACKING
As a part of our system of quality control, every Ashly product is carefully inspected before leaving the factory to ensure aw-
less appearance. After unpacking, please inspect for any physical damage. Save the shipping carton and all packing materials
, as they were carefully designed to reduce to minimum the possibility of transportation damage should the unit again require
packing and shipping. In the event that damage has occurred, immediately notify your dealer so that a written claim to cover
the damages can be initiated.
The right to any claim against a public carrier can be forfeited if the carrier is not notied promptly and if the shipping carton
and packing materials are not available for inspection by the carrier. Save all packing materials until the claim has been settled.
3. THE NE MULTICHANNEL AMP SERIES
Models:
ne4250 - Four Channels, Low-Z, 250W per channel into 4 ohms
ne8250 - Eight Channels, Low-Z, 250W per channel into 4 ohms
ne4250.70 - Four Channels, 70 volt output, 250W per channel (must be ordered as 70V)
ne8250.70 - Eight Channels, 70 volt output, 250W per channel (must be ordered as 70V)
ne4250.25 - Four Channels, 25 volt output, 250W per channel (must be ordered as 25V)
ne8250.25 - Eight Channels, 25 volt output, 250W per channel (must be ordered as 25V)
ne4250.10 - Four Channels, 100 volt output, 250W per channel (must be ordered as 100V)
ne8250.10 - Eight Channels, 100 volt output, 250W per channel (must be ordered as 100V)

5
Operating Manual - NE Multi Channel Power Amplier
The basic NE multichannel ampliers come in either four channel or eight channel congurations with Euroblock input and output
connectors. Standard features on all models include balanced inputs, bridge mono mode, and Ethernet control using Proteane
software. Remote control functions include standby, contact closure preset recall, and DC level control. Programmable remotes
for NE ampliers with DSP include Ashly’s WR-5 or neWR-5 button controllers, RD-8C or FR-8/16 fader controllers, third
party RS-232 control, or Ashly Remote app for iPad®.
Factory Installed Options
Factory installed hardware options for NE multichannel power ampliers include the following:
1) Internal DSP - With Protea DSP installed, each input channel benets from pluggable DSP blocks for dynamics control, gain
functions, graphic and/or parametric EQ, Hi-pass/Lo-pass lters, time delay, metering, and test signal generator. A mixer section
with assignable routing allows any input to drive any or all amplier outputs. Output channels have the same DSP functions as
inputs, with the addition of automated crossover setup and FIR lter capability. Both inputs and outputs can copy/paste their
settings to other channels, or can link with one or more other channels to track their settings.
Presets store and retrieve parameters of an entire amplier control surface and DSP settings. In addition, Sub Presets allow for
a collection of individual DSP parameters within and across multiple channels of an amplier to be stored and recalled as a
set, affecting only those parameters and channels which have been tagged. Up to 35 presets/subpresets can be stored within the
amplier and can be recalled in real time from a computer, by a programmable remote control, or by on-board contact closure
switch connections on the back panel.
2) AES3 Input - With a four or eight channel AES3 option installed, AES3 outputs can plug directly into the amplier. Using
AES3, 2 channels of digital audio are sent over a single mic cable, maintaining a completely digital signal path until just before the
power amplication stage. 48kHz & 96kHz data rates are supported. AES3 can be installed with or without DSP.
3) Network Audio - Dante® or CobraNet® network audio modules can be factory installed, with or without installed DSP. Note
that ampliers without DSP must have a factory installed OPDAC4 module to use network audio.
Dante®, created by Audinate, is an Ethernet based digital AV network technology that uses existing 100MB or 1GB network
infrastructure for delivery of high performance, high channel count audio signals. Ashly products with network audio capability
can be integrated into a Dante™ digital audio system by purchasing our OPTDante module as a factory installed option, and
controlled using Proteane software.
CobraNet® is a technology developed and supported by Cirrus Logic (www.cirrus.com). It is a combination of software, hard-
ware and network protocol which allows distribution of multiple channels of real-time, high quality digital audio over a standard
Ethernet Network. For detailed information about CobraNet or its implementation or installation please visit www.cobranet.info.
Protection
NE multichannel ampliers use the following protection schemes:
Over Current Protection - Is controlled in the output stage.
Thermal Protection - The amplier senses output device temperature and adjusts a two-speed fan to keep the operating tem-
perature within acceptable limits. If device temperatures exceed that limit, the input to that channel is rst reduced, and as a last
resort the power supply will be switched off while the fan continues to run.
Mains Protections – Protection within the power supply includes: Inrush Current Limitation during power up, Mains Over
Voltage Detection, and internal Mains Fuse Protection. To protect the Mains fuse against AC overcurrent due to excessive au-
dio output current, there is also a protection scheme indicated on the amplier front panel and software control surface which
reduces audio output level until the overcurrent condition is no longer present.

Operating Manual - NE Multi Channel Power Amplier
6
Physical Description
Each model in the NE Multichannel series is 2RU. The model number is indicated in the lower left corner of the front panel.
Amplier Front Panel
1. Mounting Holes – For rack mounting
2. Power Switch – Switches the unit on or off. Note: The power switch can be disabled from software.
3. Status LEDs – Indicates status of Power, Standby, Protect, Power Switch Disable, and Ethernet activity.
4. Air Vents – Cool air enters the sides and is blown out the front.
5. Channel Controls – Channel control area.
6. Signal LEDs – The lowest LED will begin to light when the output voltage is -18dBu below rated output. The Clip LEDs
will begin to ash when output voltage is 1/2 volt below the rated output power supply voltage.
7. Bridge – This LED indicates that the channel pair is selected to BRIDGE mode from the back panel switch, and that only
the odd input channel level control is active.
8. Temp and Current LEDs – The Temp LED indicates an excessively high operating temperature and that countermeasures
are being used to cool the amplier. The Current LED conrms that the amplier output is delivered to a speaker load.
9. Channel Attenuators – These control the input signal level to the amplier. They can be disabled from software.
10. Factory Reset – To reset all internal congurations (including passwords) back to their original factory settings, press and
hold this recessed front panel momentary switch during power up until all channel LEDs are lit. Upon reset completion, the
LEDs will turn off and the amp will resume normal operating mode.
Amplier Rear Panel (illustration on next page)
1. Optional Network Audio – This factory option allows connection to a Dante or Cobranet audio network.
2. Optional AES3 - This slot is for factory installation of an AES3 digital audio input module.
3. Ethernet Port - This RJ45 jack is for connecting to an Ethernet network for software control.
4. Input Connector - This is used for a three wire (G, +, -) balanced input on Euroblock connectors.
5. Normal/Bridge Switch - This switches the channel pair to Bridge Mode.
6. Euroblock Speaker Connectors - Used to connect speakers to individual output channels or in bridged mode.
7. Remote Standby - These two contact closure pins are wired to a switch to remotely place the amp in standby.
8. Preset Recall - These four pins (and GND) can be wired to remote switches to recall up to four amplier presets.

7
Operating Manual - NE Multi Channel Power Amplier
9. Data - These four pins can be wired to remote serial data controllers such as the Ashly WR-5 or RD-8C.
10. Remote Level Control - These pins are wired to potentiometers such as the WR-1 for level control of individual channels
11. AC Inlet - Used for the detachable AC cord supplied with the amplier.
WARNING: Do not remove or lift the mains connector ground pin.
Installation
Before connecting to mains power, make sure that the switches and wiring are all set to the conguration needed for your par-
ticular application. Failure to do so could result in damage to the unit or to other components in your system.
CAUTION: Before mounting or connecting the amplier, always disconnect it from AC. Use four screws with lockwashers
when mounting the amplier to the front rack rails. Rear support is also recommended, especially for mobile or touring use. To
reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
Requirements
NE multichannel ampliers have specic physical, electrical and signal requirements for proper operation. These requirements
will vary depending on your specic application, setup, and settings on the amplier. When setting up and testing your system,
please take special care to double check all connections and settings. Refer to the specications section of this manual for spe-
cic input, output and other gures.
Constant Voltage Models (25V, 70V, and 100V) and High Pass Filters
Ampliers that are factory congured as constant voltage models (25V, 70V, or 100V) come standard with High Pass Filter (HPF)
hardware installed, allowing for software selectable 80Hz or 400Hz lters on each channel. High pass lters prevent low frequency
energy from saturating the iron core of low cost speaker tap transformers typically used in distributed constant voltage systems. Available
lters are 80Hz @12dB/oct, 400Hz @ 6dB/oct, and OFF. The 400Hz setting is commonly used in paging systems with horn speakers.
Note that with just the standard HPF hardware installed, DSP, network audio, or AES3 input are unavailable.
NE ampliers shipped with AES3 or network audio, but without DSP, also come with an Ashly OpDAC A/D converter card installed.
This OpDAC converter card offers the same software controlled HPF options as the standard amp.
Note: Constant voltage ampliers that ship with Protea DSP do not have the standard 80Hz/400Hz HPF circuitry installed, and as
such must have High Pass lters manually set in the software DSP section.
Amplier Rear Panel (continued)

Operating Manual - NE Multi Channel Power Amplier
8
4. REMOTE AMPLIFIER CONTROL
ON/OFF/Remote Standby
The NE multichannel ampliers have three possible states, OFF, ON, and STANDBY, each with a status LED on the front panel.
Control for these three states is managed by the following:
1) Power Switch - When the power switch is turned off the amplier is completely off, UNLESS the power switch has been
disabled from software, in which case the power switch on the amplier has no effect at all. If the power switch has been dis-
abled, the front panel DISABLE LED will be lit. Even if the AC power is removed, the amplier’s internal memory will retain
the <power switch disabled> status until changed again from software. Performing a factory reset will clear and restore all
internal amplier memory to original factory settings.
2) Remote Standby Contact Closure - When these two pins are wired to a switch and connected
closed, the amp will go into standby mode, whereby the amp is active but in a reduced power state.
For remote standby to work, the power switch must be turned on or on but disabled in software.
3) Software On/Standby - On/standby in software functions the same as the remote standby
contact closure on the back panel. Clicking on STANDBY places the amp into standby mode.
Software on/standby does not override the hardware Remote Standby, they both remain active.
4) Software Power Switch Enable/Disable - This feature disables the front panel power switch. If the power switch is disabled
from software, the front panel DISABLE LED is lit. The power switch remains disabled until enabled again from software, even
after the amp is unplugged from AC.
Preset Recall
The preset recall connections on the back panel allow different presets to be loaded from amplier memory when one of the
contacts is closed to the provided ground pin. Device presets are congured from software and can include gain settings, mute
status, polarity, and DSP functions if the amp has DSP installed.
The NE amplier stores up to 35 internal device presets. A device preset stores the most commonly used control data for that
amplier. A device preset (saved to amplier) differs from a computer preset le in that a computer preset le stores all infor-
mation associated with the amplier and its software settings, while the device preset only stores the most commonly used and
relevant audio settings. Changes to an individual preset can be saved to the amplier in software using <Preset Options/Save
Preset To Device>, or saved to a PC using <Preset Options/Save Preset To File>. Sub Presets (collections of DSP parameters
individually selected from software) are saved in a similar fashion. Individual preset les use the extension (*.pne).
Loading a preset can be done using software, using preset recall contact closure connections on the back panel, using an Ashly
programmable remote button controller, or using the Ashly Remote iPad® app. Contact closure pins P1 through P4 load device
presets 1-4 from the amplier memory.
Caution: A new preset may have dramatically different settings capable of damaging sound system components. Be careful not
to recall the wrong preset while the system is on.
Data Control
The data euroblock on the back of the amplier is used for connecting an Ashly WR-5 programmable zone controller or RD-8C
remote level controller. The data interface provides data and phantom power for these devices using four conductor bell wire.

9
Operating Manual - NE Multi Channel Power Amplier
WR-1 Remote Level Control - The WR-1 is a dual potentiometer remote volume control designed to mount in a standard single
US electrical wall box, and is wired to the amplier back panel Euroblock connector labeled “Remote Level Control” using four
conductor wire. Installed DSP is not required for WR-1 remote level control. If wiring a custom potentiometer assembly other than
the WR-1, connect +5V from the Remote Level Control Euroblock connector to the potentiometer’s CW pin, GND to the CCW
pin, and the channel under control to the wiper. Do not connect the WR-1 remote level control ground to any other external grounds.
WR-2 Remote Preset Recall Switches - The WR-2 (shown
at right) allows selection of one of four presets via interlocking
pushbutton switches. Each pushbutton switch can be connected to
a Preset Recall Pin on the back panel of the amplier. The termi-
nal numbers correspond to the rst 4 device presets stored in the
amplier. Pressing any button will select the corresponding preset.
Windows are provided by each switch for a user-generated label.
WR-1.5 Remote Level Control and Preset Recall Switch - The WR-1.5 (shown at left) combines
one potentiometer for remote level control with a four position rotary switch for preset recall.
WR-1 Remote Level Control
WR-2 Remote Preset Recall Switches
WR-1.5

Operating Manual - NE Multi Channel Power Amplier
10
RD-8C or RW-8C Remote Level Control -The RD-8C and
RW-8C are remote level controllers which are connected to the
amplier’s Data Port, and are phantom powered from the ampli-
er. They can only be used in NE ampliers which have DSP
installed, and are used in conjunction with the “Remote Gain”
pluggable DSP tool placed in an input or output in software.
Maximum cable length is 1000 ft using #24 gauge twisted pair.
The RD-8C is a desktop controller, while the RW-8C is elec-
tronically the same but mounts as a wall plate using a standard
North American 4-gang electrical box and connects using a
Euroblock.. There are eight channels and a master, each with a
fader control and an on/off button. Note: Only one RD-8C can
be used per amplier, and use of an RD-8C will exclude the use
of the data port for a WR-5. One or the other remote control
device may be connected, but not both
WR-5 Programmable Button Control-
ler - The WR-5 is a programmable button
remote control which mounts into a standard
US electrical wall box and connects to an
amplifier data port using four conductor
wire. Maximum cable length is 1000 ft using
#24 gauge twisted pair. A decora cover plate
(not included) can be purchased at hardware
stores to cover the WR-5 electrical box and
satisfy the aesthetic needs of the installation.
The WR-5 is phantom powered from the
amplier. Up to four different WR-5 remotes
can be phantom powered from one amplifer,
and more can be added by purchasing an
Ashly RPS-18 remote power supply.
WR-5 buttons are programmed from software, after the WR-5 is wired to an amplier and assigned a unique ID number in the
WR-5 device window associated with that amplier in software. Each WR-5 button has a status LED. Standard control functions
include preset recall/scroll and mute, and in ampliers with DSP installed the functions also include gain control, zone source
selection, individual channel and matrix point level control. Note: To use the WR-5 as a remote level control, a (ne)WR-5 Remote
Gain tool must be placed in one of the DSP processing blocks of the channels(s) to be controlled. A windowed mylar pocket is
available to insert custom button labels. A WR-5 label template is available on the Ashly web site.
INA-1 Inline RS-232 Adapter (not shown) - The amplier Data Port uses a proprietary serial communications protocol which
can be converted to RS-232 by purchasing the Ashly INA-1 RS-232 adapter. This allows the use of custom designed third party
RS-232 controllers.
RD-8C or RW-8C Remote Level Control
WR-5 Programmable Button Controller

11
Operating Manual - NE Multi Channel Power Amplier
neWR-5 Networked Programmable Button Controller - The neWR-5 remote control is a networked version of the WR-5, us-
ing Ethernet instead of the data port to communicate with the amplier. Connecting and powering the neWR-5 is done using Cat-5
Ethernet cable and a Class 1 IEEE 802.3af Power over Ethernet (PoE) switch, hub, or in-line PoE injector. If PoE is unavailable,
the Ashly RPS-18 (sold separately) is a 15-48VDC power supply capable of at least 2 watts per neWR-5 and can be hard wired to
the back of the neWR-5. PoE current draw is 38mA @48VDC and 80mA@15VDC. A decora cover plate (not included) can be
purchased at hardware stores to cover the neWR-5 electrical box and satisfy the aesthetic needs of the installation.
The neWR-5 appears in the software device menu tree and must be assigned within it’s device window to a specic amplier. The
neWR-5 has six programmable function buttons which can light up green, red, or amber to display status. Further information on
LED status is found in the neWR-5 owner’s manual, available on the Ashly website. To the right of the function buttons is a pocket
in the mylar overlay for a printed function label to be inserted, also available as a template on the website. The two other buttons
are used to adjust function parameters such as gain or preset number, and are indicated by the LED display. Without DSP installed
in the amplier, neWR-5 functions are limited to preset recall and mute. Note: To use the neWR-5 as a remote level control, a (ne)
WR-5 Remote Gain tool must be placed in one of the DSP processing blocks of the channels(s).
There is also a hard-wired Lock-Out feature on the neWR-5, where the closing
of a switch wired to the lockout Euroblock renders all buttons inactive.
FR-8 and FR-16 Networked Fader Controller - The FR-8 (shown at right)
and FR-16 are Ethernet based remote fader control units, with the ability to
assign each fader control of one or more input or output DSP gain stages or
level control for a DSP matrix mixer point. The button LEDs for each fader
are normally used to indicate as-
signable signal level/clip or mute
status, but can alternately select A/B signal source for that fader. The FR remotes can
be wall mounted to electrical box, panel mounted, or freestanding, and have a back
panel contact closure for full front panel lockout. See further details in the FR-8/16
owner’s manual on the Ashly website.
Ashly Remote App for iPad® - A custom and secure touch-screen control surface
for the iPad® can be designed using the <Ashly Remote> application, available free on
iTunes® or via the Ashly website. Controls, labels, and images are combined to manage
key amplier functions over a wireles network connection.
neWR-5 Networked Programmable Button Controller
FR-8 Networked Fader Controller
Ashly Remote App for iPad®

Operating Manual - NE Multi Channel Power Amplier
12
5. PROTEAne SOFTWARE
A software CD-ROM is no longer included with new ampliers. Proteane software is available for free download from the Ashly
Website, offering a comprehensive suite of tools for controlling Ashly NE multichannel ampliers. The standard ampliers
allow for Ethernet control and monitoring of power functions, mute, and preset control. With the DSP option installed, software
control and monitoring of audio functions can be custom congured on a per channel basis, as well as through linked channels.
More in depth discussion of software features can be found in the Proteane software online help.
The base amplier interface includes a main control surface, password protected security functions, and network property
management. Link Group Conguration and Power On Delay* can be set up under the Device Options menu tab. In addition,
provisions for implementing DSP functions, AES/EBU Inputs, and network audio inputs are available, presuming the necessary
hardware options have been installed in the amplier. Proteane software will auto-detect any installed hardware options and
display the resulting menu items once it recognizes the amplier on the network.
*Note - Power On Delay does not work when standby mode is activated via contact closure.
Link Group Conguration - Linking allows the controls for multiple DSP function blocks to track each other. For example, if
two different graphic equalizer blocks are assigned to a link group, any change made to a control within either of the equalizers
will result in an identical change to the other. Blocks may be linked across channels.
Each device will support up to 16 link groups. DSP function blocks can be individually assigned to these link groups. Once
assigned to a group, all similar functions within that group will track parameter changes. More than one function type may be
assigned to a group. Each link group can be assigned a name by the user, and can also be assigned a color for easy identication.
For further details about linking, see the software online help.
Preset Options - The preset options menu allows amplier setups to be saved to or recalled from an amplier or a computer. File
presets are the complete amplier and software settings, whereas device presets are limited to commonly used functions.
Sub Presets - Sub Presets are user dened groups of DSP functions within one channel or across multiple channels. Sub Presets
allow the user to instantly recall a pre-determined set of DSP parameters to quickly address changing environmental conditions,
without the risk of making undesirable or irrecoverable system changes.
The Amplier Control Surface Tab
The control surface tab is the main software interface for the amplier. Key features of this window include:
1) Channel and Offset Link Group Faders - The main level control provides up to 40dB of analog input attenuation. More than
40dB of cumulative attenuation causes the channel to mute. If a channel has been assigned to an offset link group, a colored
triangular marker appears on the left side of the fader graticule for secondary level control of all channels in that group. The
main level control faders can not be linked to a group.
2) Mute button - This mutes the input channel
3) Polarity button - This inverts the phase of the input channel
4) Offset link group - Up to 16 groups are available for the purpose of linking similar function parameters across multiple chan-
nels. In addition to the control surface secondary level control (not the main fader), most DSP functions have a link group check
box in their work window to assign a specic parameter to one of the eight link groups if desired. Link groups can be renamed
by clicking on any group name and entering the new name then pressing <enter> on the keyboard.
5) Attenuators - These two dials indicate the physical position of hardware controls on either the amp front panel or remote
DC level control (if present). Note that these will display the position of attenuators even when they are disabled by software.
6) Total Attenuation - This indicates the total amount of attenuation being applied to the channel. This is the sum of the follow-
ing attenuators: main fader, offset link group attenuation, front panel and remote attenuators.
7) Meters - Input and Output meters display the real time activity per channel, in dB below rated output. Also, the amplier’s
operating temperature and output current are shown. Output current shows that the amplier channel is actually delivering
output to a connected speaker load.

13
Operating Manual - NE Multi Channel Power Amplier
The Amplier DSP Tab
If the amplier has DSP installed, the DSP tab automatically appears. The DSP tab includes an input side and an output side,
with a cross linking matrix mixer in between. Key features of the DSP window include:
Input Channel Number - Right click on this to bring up Clear, Copy/Paste, Link, and Sub Preset for that input channel.
Input Channel Name - The user can name each input channel.
Input Mute Button - Mutes the input.
Pluggable DSP Tools - Six blocks are available on both inputs and outputs for custom conguration of pluggable DSP
processing blocks. Total DSP usage for the four input and output channel groups is indicated as a percentage at the bottom of
each input section in the DSP tab. Increasing the number and complexity of applied DSP tools increases the DSP usage. Note:
The total DSP usage per group of four channels is limited, and cannot exceed 100%. Available DSP tools include:
1) Dynamics controls - Brick Wall Limiter, Compressor, Autoleveler, Ducker, Noise Gate
2) Gain functions - Gain, Gain with VCA, Remote Gain, (ne)WR-5 Remote Gain
3) Equalization - 31 band Graphic Equalizer, 10/6/4/2 Band Parametric Equalizers, FIR lter (outputs only)
4) Crossover functions - Four Way, Three Way, and Two Way Crossovers are available on outputs only.
HPF and LPF lters are available on both inputs and outputs.
5) Delay - Speaker Delay at 48kHz sampling rate is 21mS, and Delay is 682mS. At 96kHz, 10.6mS and 341ms.
6) Metering - -60dBu to +20dBu display
7) Signal Generator - Pink noise, White Noise, Sine Wave from 20Hz to 12kHz.
Extensive online help information is available for all DSP blocks within the software. From within any DSP tool, simply press
<F1> on the keyboard for online help for that tool. Also look in the Proteane Software Help Menu/Contents and Index/Contents/
Protea NE Products/PE Multichannel Ampliers/DSP Control for details of all DSP functions.
Input/Output Matrix Router - Any input can be routed to any or all outputs. Click and drag from the input to output to
assign routing. For faster routing of a single input or output to multiple channels, highlight its node and then press Ctrl+Click
over the desired nodes to connect to. To delete a route or clear the matrix, right click on the routing line or node. Also, right
click anywhere in the matrix area to bring up a menu of common routing choices.
Output Mute Button - Mutes the output.
Output Channel Name - The user can name each output channel.
Output Channel Number - Right click on this to bring up Clear, Copy, Link, and Sub Preset functions for that output.

Operating Manual - NE Multi Channel Power Amplier
14
6. SPECIFICATIONS
General Power Amplier Specications 0dBu = 0.775V rms
Base Model 4250 8250
120VAC 230VAC 120VAC 230VAC
Continuous Average Power Output Per Channel
Low Z models, Stereo Mode, all channels driven
8Ω, 20Hz-20kHz 1%THD . . . . . . . . . . . . . . . . . . . .150W 150W 150W 150W
4Ω, 20Hz-20kHz 1%THD . . . . . . . . . . . . . . . . . . . .250W 250W 250W 250W
Low Z models, Bridge Mode, all channels driven
8Ω, 20Hz-20kHz 1%THD . . . . . . . . . . . . . . . . . . . .500W 500W 500W 500W
Hi Z models, 25V, 70V, or 100V distributed output
20Hz-20kHz 1%THD, per channel . . . . . . . . . . . . . 250W 250W 250W 250W
Line Current Draw (all channels driven)
Standby mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190mA 95mA 290mA 145mA
Idle (no signal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540mA 270mA 565mA 283mA
Typical (1/8 power pink noise). . . . . . . . . . . . . . . . . . 2.85A 1.43A 5.00A 2.50A
Maximum (1/3 power sine wave) . . . . . . . . . . . . . . . . 6.00A 3.00A 11.0A 5.50A
Thermal Dissipation (BTU/hr, all channels driven)
Standby mode, . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46.7 46.7 63.8 63.8
Idle (no signal). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 123 187 187
Typ (1/8 power pink noise). . . . . . . . . . . . . . . . . . . . . 341 341 700 700
Max (1/3 power sine wave) . . . . . . . . . . . . . . . . . . . . 378 378 775 775
Signal to Noise (20Hz-20KHz, unweighted) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>105dB
Distortion (SMPTE, typical) - 8 ohm load, 10dB below rated power: . . . . . . . . . . . . . . . . .<0.5%
Distortion (THD-N, typical) - 8 ohm load, 10dB below rated power, 20Hz-20kHz:. . . . . . .<0.5%
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20Hz-20kHz, +/-1dB
Damping Factor (8 ohm load, <1kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>250
Input Impedance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20K Ohm, balanced
Maximum Input Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+21dB
Cooling. . . . . . . . . . . . . . . temperature controlled fan, cool air is drawn in from the sides and blown out the front
Control Network. . . . . . . . Standard 100MB Ethernet
Front Panel Indicators. . . per channel: Clip/Mute, -6dB, -12dB, -18dB, Temp, Current, Bridge (per pair)
overall: Power, Standby, Protect, Power Switch Disable, Comm
Control Surface and Amp LEDs: Level meters are in dB below rated output
Attenuators. . . . . . . . . . . . per channel: front panel, software, offset link group, and remote
Input/Remote Connectors. Euroblock (5.08mm)
Output Connectors. . . . . . Euroblock (7.62mm)
Amplier Protection. . . . . inrush current limitation, temperature monitoring, output over-current protection, mains fuses
Power Requirements . . . . 120VAC or 240VAC (factory set) ±10%, 50/60Hz
Power Cable Connector. . 15A Edison
Unit Dimensions. . . . . . . . 19”W x 3.5”H x 16.84”D (483 x 89 x 428mm)
Unit Weight . . . . . . . . . . . ne4250: 23 lbs (10.4kg), ne8250: 24.7 lbs (11.2kg)
Shipping Weight . . . . . . . . ne4250: 29.1 lbs (13.2kg), ne8250: 30.8 lbs (13.9kg)
Environmental: . . . . . . . . 40°-120°F, (4°-49°C), noncondensing
Safety/Compliance . . . . . . cTUVus, FCC Class B, CE, RoHS

15
Operating Manual - NE Multi Channel Power Amplier
DSP Specications
Input . . . . . . . . . . . . . . . . . . . .Active Balanced, 10 kohms
Max Input Level . . . . . . . . . . .+21 dBu
Dynamics
Brick Wall Limiter
Threshold . . . . . . . . . . . . . . . .-20dBu to +20dBu
Ratio....................innite
Attack . . . . . . . . . . . . . . . . . . .0.2ms/dB to 50 ms/dB
Release . . . . . . . . . . . . . . . . . .5ms/dB to 1000ms/dB
Compressor
Threshold . . . . . . . . . . . . . . . .-20dBu to +20dBu
Ratio. . . . . . . . . . . . . . . . . . . .1.2:1 to innite
Attack . . . . . . . . . . . . . . . . . . .0.2 to 50ms
Release . . . . . . . . . . . . . . . . . .5ms/dB to 1000ms/dB
Detector . . . . . . . . . . . . . . . . .Peak/Average
Autoleveler
Target Level . . . . . . . . . . . . . .-40dBu to +20dBu
Action . . . . . . . . . . . . . . . . . . .gentle, normal, aggressive, user dened
Maximum Gain. . . . . . . . . . . .0dB to +15dB
Ratio. . . . . . . . . . . . . . . . . . . .1.2:1 to 10:1
Threshold Below Target . . . . .-30dB to 0dB
Gain Increase Rate. . . . . . . . .5ms/dB to 1000ms/dB
Hold Time. . . . . . . . . . . . . . . .0-6 sec
Ducker
Ducking Type high/low priority, trigger, libuster,
ducked program
Trigger Threshold . . . . . . . . . -80dBu to +20 dBu
Ducking Release. . . . . . . . . . .5ms/dB to 1000ms/dB
Ducking Depth . . . . . . . . . . . .0dB to -30dB
Gate
Threshold . . . . . . . . . . . . . . . .-80dBu to +20dBu
Range . . . . . . . . . . . . . . . . . . .off, 100dB to 0dB
Attack . . . . . . . . . . . . . . . . . . .0.2ms/dB to 50 ms/dB
Release . . . . . . . . . . . . . . . . . .5ms/dB to 1000ms/dB
Gain
Gain . . . . . . . . . . . . . . . . . . . .off, -50dB to +12dB
Gain w/VCA . . . . . . . . . . . . . .off, -50dB to +12dB
WR-5 Remote Gain . . . . . . . .off, -50dB to +12dB
Equalization
FIR Filter (Output only, 48kHz only, 2-384 Taps)
File types . . . . . . . . . . . . . . . .*.csv, *.r
31 Band Graphic
Filter Type . . . . . . . . . . . . . . .constant Q or proportional
Bandwidth . . . . . . . . . . . . . . .0.499oct to 0.25oct
2, 4, 6, or 10 Band Parametric
Filter Types
Parametric:
Frequency. . . . . . . . . . . . . . . .20-20kHz
Level....................-30dB to +15dB
Q Value. . . . . . . . . . . . . . . . . .0.016oct to 4oct
Hi/Low Shelf 6/12 dB
Frequency. . . . . . . . . . . . . . . .20Hz-20kHz
Level....................-15dB to +15dB
All Pass
Frequency 20Hz-20kHz
Variable Q HP/LP
Frequency. . . . . . . . . . . . . . . .20Hz-20kHz
Q Value. . . . . . . . . . . . . . . . . .3.047 to 0.267
Notch/Bandpass
Frequency. . . . . . . . . . . . . . . .20Hz-20kHz
Q Value. . . . . . . . . . . . . . . . . .92.436 to 0.267
Crossover
2 Way, 3 Way, 4 Way Crossover
High Pass/Low Pass Filters
Filter Types:
Bessel . . . . . . . . . . . . . . . . . . .12/18/24/48 dB/oct
Butterworth . . . . . . . . . . . . . .12/18/24/48 dB/oct
Linkwitz . . . . . . . . . . . . . . . . .12/24/48 dB/oct
Frequency. . . . . . . . . . . . . . . .off, 20Hz-20KHz
Delay
@ 48kHz Sampling Rate
Speaker Delay . . . . . . . . . . . .0-21ms
Delay ...................0-682ms
@ 96kHz Sampling Rate
Speaker Delay . . . . . . . . . . . .0-10.6ms
Delay ...................0-341ms
Tools
Audio Meter
Range . . . . . . . . . . . . . . . . . .-60dBu to +20dBu
Increments . . . . . . . . . . . . . .1dB
Peak Hold Indicator. . . . . . .yes
Signal Generator . . . . . . . . . .pink noise, white noise, sine wave
Sine Wave Frequency . . . . . .20Hz-12kHz
Signal Level . . . . . . . . . . . . .off, -50dBu to +20dBu
Cross Point Mixer
Gain . . . . . . . . . . . . . . . . . . . .Off., -50dB to +12dB
0.5dB increments with Mute at -50dB
Linking
All functions can be linked to 1 of 16 link groups
Processors
Input A/D . . . . . . . . . . . . . . . .24 bit (Burr Brown PCM4204)
Output D/A. . . . . . . . . . . . . . .24 bit (Burr Brown PCM4104)
DSP Processors . . . . . . . . . . .32-bit oating point (Sharc ADSP-21262)
Sample Rates . . . . . . . . . . . . .48kHz, 96kHz
Propagation Delay @ 48kHz 1.42 ms
Propagation Delay @ 96kHz 0.71 ms
Four or Eight Channel AES3 Digital Audio Input Option
Type . . . . . . . . . . . . . . . . . . . .110 ohm transformer balanced XLR
Sample Rates . . . . . . . . . . . . .48kHz, 96kHz
Max Cable Length . . . . . . . . .100 meters
Network Audio Option
Available Types . . . . . . . . . . .Dante®, CobraNet®

Operating Manual - NE Multi Channel Power Amplier
16
NE Multi-Channel Power Amplifier - Block Diagram
*HPF CURRENT
TEMP
BRIDGE
SPEAKER
OUTPUT
BALANCED
INPUT
*With Bridge Switch In,
Channel 1 is Used,
Channel 2 is Disabled
FRONT
PANEL
ATTEN.
DC
LEVEL
CONTROL
*BRIDGE MONO
SWITCH
POWER
AMPLIFIER
STAGE
One of Four or Eight Channels Shown
NETWORK
AUDIO
OPTION
*REMOTE
CONTROL
OPTIONS
-18dB
-12dB
-6dB Clip/Mute
NETWORK
AUDIO
OPTION
Available Factory Option Configurations: 1) Standard - Without Protea DSP or Network Audio 2) With Protea DSP 3) With Protea DSP and Network Audio or AES3 Input 4) With Network Audio or AES3 Input but Without DSP (factory installed DAC converter required) *Remote Control Options Vary With Configuration, DSP is Required for Most Programmable Remote Control Functions
Protea
NE Software
Control
Factory Options (bypassed if not installed)
Protea™DSP
DSP Processing
Load Impedance Monitoring
Attenuation
Matrix Routing
Preset Management
Event Scheduling
AES3
INPUT
OPTION
Dante®or CobraNet®
Models:
4250 8250
ne ne
Low Z, 25V, 70V, or 100V
576 8
BRIDGE
TEMP
CURRENT
-18 -12
-6
CLIP/MUTE
1 32 4
BRIDGE
TEMP
CURRENT
-18 -12
-6
CLIP/MUTE
POWER STANDBY PROTECT DISABLE COM
8250

17
Operating Manual - NE Multi Channel Power Amplier
LIMITED WARRANTY (USA ONLY)
(Other countries please contact your respective distributor or dealer.)
For units purchased in the USA, warranty service for this unit shall be provided by ASHLY AUDIO, INC. in accordance with
the following warranty statement.
ASHLY AUDIO, INC. warrants to the owner of this product that it will be free from defects in workmanship and materials for
a period of FIVE years from the original-date-of-purchase. ASHLY AUDIO INC. will without charge, repair or replace at its
discretion, any defective product or component parts upon prepaid delivery of the product to the ASHLY AUDIO, INC. factory
service department, accompanied with a proof of original-date-of-purchase in the form of a valid sales receipt. This warranty
gives you specic legal rights, and you may also have other rights, which vary from state to state.
EXCLUSIONS: This warranty does not apply in the event of misuse, neglect, or as a result of unauthorized alterations or repairs
made to the product. This warranty is void if the serial number is altered, defaced, or removed. ASHLY AUDIO, INC. reserves
the right to make changes in design, or make additions to, or improvements upon, this product without any obligation to install
the same on products previously manufactured.
Any implied warranties, which may arise under the operation of state law, shall be effective only for FIVE years from the
original-date-of-purchase of the product. ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself.
ASHLY AUDIO, INC. is not liable for any damage or injury, which may result from, or be incidental to, or a consequence of,
such defects. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion, or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you.
OBTAINING WARRANTY SERVICE:
For warranty service in the United States, please follow this procedure:
1) Return the product to ASHLY AUDIO, INC. freight prepaid, with a written statement describing the defect and application
that the product is used in. ASHLY AUDIO, INC. will examine the product and perform any necessary service, including re-
placement of defective parts, at no further cost to you.
2) Ship your product to:
ASHLY AUDIO, INC.
Attention: Service Department
847 Holt Road
Webster, NY 14580-9103

Operating Manual - NE Multi Channel Power Amplier
18
This page intentionally left blank

19
Operating Manual - NE Multi Channel Power Amplier
This page intentionally left blank

Operating Manual - NE Multi Channel Power Amplier
ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580
Phone: [phone] Fax: [phone]
Toll Free [phone] www.ashly.com
Ashly Audio is a division of Jam Industries, Ltd.
2016-2018 by Ashly Audio Inc. All rights reserved worldwide.
All features, specications, and graphical representations are subject to change or improvement without notice.
Printed in USA r12 0518
