Asko CW4176S User manual

700005811100
Instructions for use
CW4176S
WS12AAKBA / WS12AIKBA
CW4976S
WS90AAKAA / WS90AIKAA

EN
Manual EN 3 - EN 22
Pictograms used
Important information
Tip

EN 3
CONTENTS
Your cooker hood
Introduction 4
Use
Description 5
Operation 6
Cleaning filters 8
Maintenance
Cleaning 9
Installation
General 12
Connection 13
Build-in dimensions 14
Assembly 15
Appendix
Disposal 22

EN 4
Introduction
On reading these user manuals you will soon become familiar with
the features of this appliance. Please read the appliance’s safety and
maintenance instructions.
Please retain the operating and installation instructions as these may be
useful for future reference.
Please read the separate safety instructions
prior to use.
YOUR COOKER HOOD

EN 5
USE
Description
1. Switching on/off and dimming the lighting
2. Reducing air extraction capacity and switching off
3. Cleaning carbon filter indicator
4. Cleaning grease filter indicator
5. Display status
6. Timer function indicator
7. Clean Air function indicator
8. Switching on and increasing air extraction capacity
9. Switching on timer function
Note!
• Prior to activating or deactivating a function, the motor and lighting
should be switched off.
• If you have a cooker hood with a carbon filter, you should activate
the carbon filter indicator as described in the ‘Cleaning filters’
paragraph.
123456789

EN 6
USE

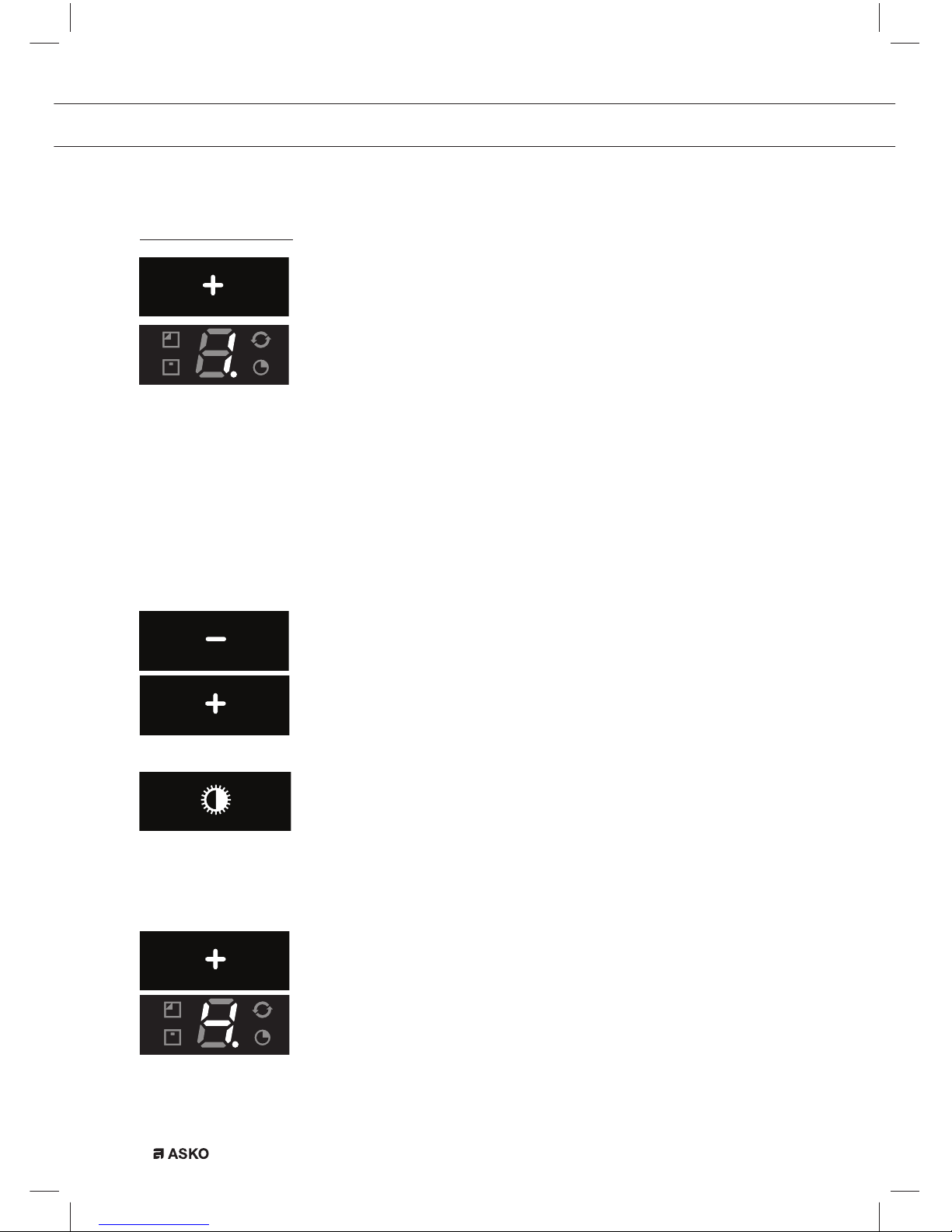

Operation
Switching extraction on and off
• Press the ‘+’ button (8).
The cooker hood will switch on at the lowest setting.
• Press the ‘+’ button (8) again to set a higher extraction setting.
Press and hold the ‘+’ button (8) for 2 seconds to select the highest
setting (boost) (see switching on intensive setting).
The extraction setting can be set between speeds 1 to 4 or 9
(depending on the model).
• Press the ‘-’ button (2) to select a lower setting.
The extraction setting is indicated in the display (5).
• If the extraction setting is set at 1, you can switch off the cooker
hood by quickly pressing and releasing the ‘-’ button (2).
• To switch off the cooker hood from whatever setting press and hold
the ‘-’ button (2) for at least 2 seconds.
Alter the number of speed-settings (models with 9 speed-settings)
You can choose between 9 speed-settings (standard) or 5 speed-
settings.
• Press and hold the ‘-’ button (2) and ‘+’ button (8) for at least 5
seconds.
This selects the 5 speed-setting option. Press and hold the ‘-’
button (2) and ‘+’ button (8) again for at least 5 seconds to select
the 9 speed-setting option.
Switching the lighting on and off
• Quickly press and release the lighting button (1).
The light switches on at maximum strength.
• Press and hold the lighting button (1) to set the lighting strength.
The lighting changes from maximum to minimum strength and
vice versa.
Switch on intensive setting:
• Press and hold the ‘+’ button (8) for approximately 2 seconds.
The intensive setting (setting ‘P’) is switched on for ten minutes
(depending on the model). The display will flash (5) during this
period. The original extraction setting will be reactivated after this
period.

EN 7
• Quickly press and release the ‘+’ (8) button to switch off the
intensive setting.
Switching on the timer
• Press the timer button (9).
The timer indicator will light up.
The cooker hood will switch off automatically after 10 minutes.
• Switch off the timer function by pressing the ‘-’ button ‘2’.
If the lighting is lit its strength will be reduced automatically by 30-40%
once the timer has finished.
Note!
If the intensive setting has been selected you cannot activate the timer
function.
Clean Air function
The Clean Air function allows you to freshen the air in your kitchen for a
maximum of 12 hours.
• Switch off the cooker hood.
• Press and hold the timer button (9) for approximately 4 seconds.
The cooker hood will switch on automatically for 10 minutes every
hour at the lowest speed setting. During extraction the Clean Air
indicator will flash (6).
When the hood switches off after 10 minutes, the Clean Air
indicator (6) will be lit continuously until the hood switches on again
after 50 minutes.
• Switch off the Clean Air function in the meantime by pressing a
random button (except the one for the lighting).
USE

EN 8
Cleaning filters
Saturation grease and carbon filters
The filters should be replaced or cleaned when the grease filter
indicator (4) or the carbon filter indicator (3) are lit.
Grease filter
The grease filter indicator (4) will flash after 30 operating hours.
• The grease filters should then be cleaned.
• Reset the memory by pressing and holding the ‘-’ button (2) until
the grease filter indicator (4) stops flashing.
Carbon filter
The carbon filter indicator (3) will flash after 120 operating hours.
• The carbon filter should then be cleaned or replaced.
• Reset the memory by simultaneously pressing and holding the ‘-’ (2)
and ‘+’ (8) buttons until the carbon filter indicator (3) stops flashing.
Switching on carbon filter indicator
• Simultaneously press and hold the ‘+’ (8) button and the lighting
button (1) until the carbon filter indicator (3) flashes twice.
The carbon filter indicator is activated.
Switching off carbon filter indicator
• Simultaneously press and hold the ‘+’ (8) button and the lighting
button (1) until the carbon filter indicator (3) flashes once.
The carbon filter indicator is switched on:
• The carbon filter indicator (3) lights up for 3 seconds.
The carbon filter indicator is switched off:
• The carbon filter indicator (3) flashes for 3 seconds.
USE

EN 9
Cleaning
Important!
For all maintenance first switch off the mains power to the cooker hood
by pulling the plug out of the socket or by turning off the home's master
switch. The hood needs to be cleaned regularly, both inside as well as
outside (at least in the same frequency as the grease filter cleaning).
Do not use abrasive cleaning products. Do not use alcohol!
Important!
If the instructions regarding cleaning the appliance or replacing the
filters are not followed, this can cause a fire. These instructions should
be followed! The manufacturer is not liable for damage to the hood
or fire damage resulting from incompetent maintenance or from
non-adherence to the above safety instructions.
Cooker hood
Clean the cooker hood with soapy water and a soft cloth.
Then wash off with clean water. Do not use aggressive cleaning agents
such as caustic soda. The cooker hood finish stays in good condition if
it is buffed periodically following the application of wax.
Stainless steel cooker hoods
Do not use scouring pads or other abrasive cleaners on stainless steel
cooker hoods. Finish with a non-abrasive, non-polishing agent and buff
the stainless steel in the direction of the grain.
Metal grease filters
Metal grease filters should be cleaned once a month (or when indicated
by the filter cleaning indicator – if present on the model) using a neutral
cleaning agent, either by hand or in the dishwasher on a short, low-
temperature program. Place the grease filters with the openings facing
downwards in the dishwasher so the water can drain out of the filter.
Aluminium grease filters become dull as a result of dishwasher cleaning
agents. This is normal and does not effect the working.
MAINTENANCE

EN 10

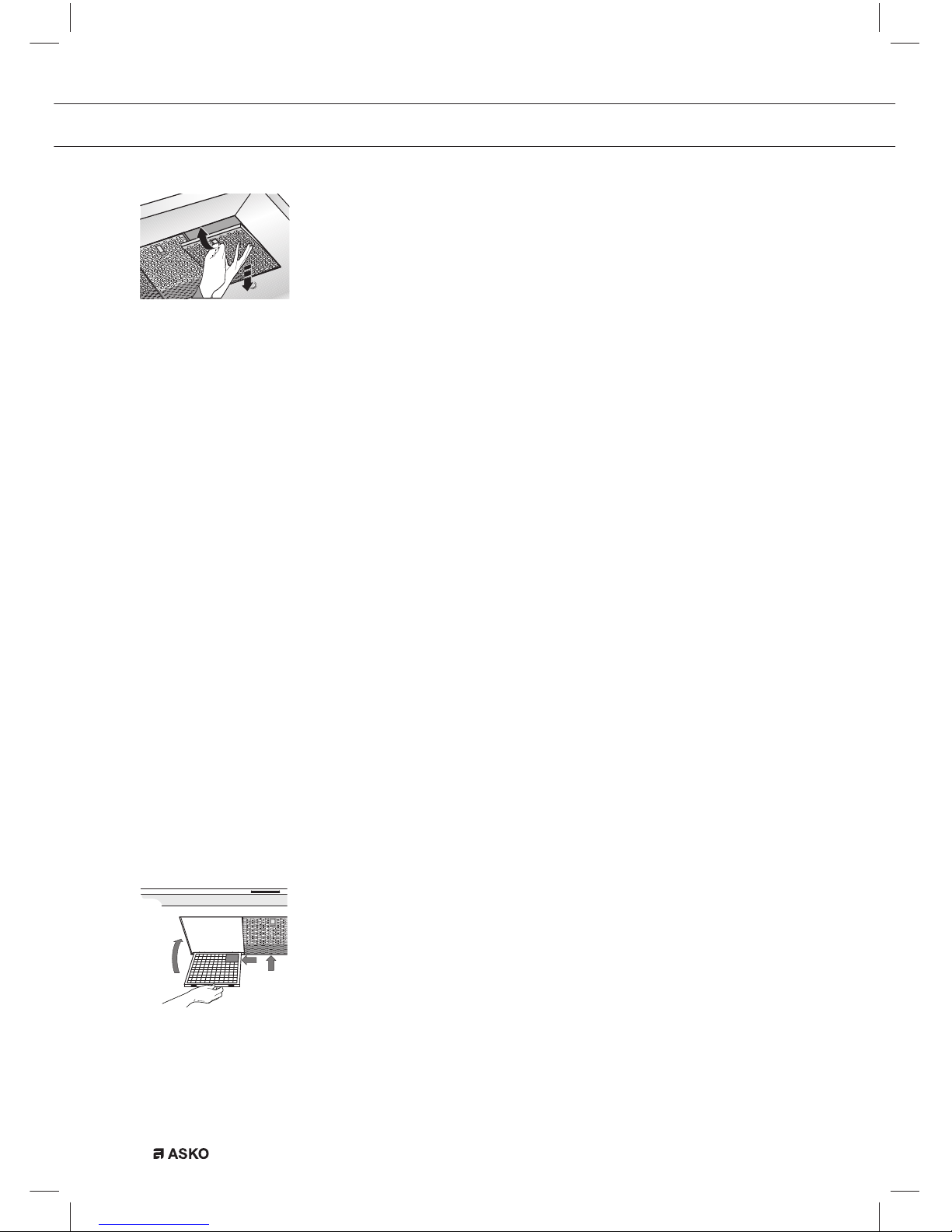

Removing cassette filter
1 Switch off the motor and lighting.
2 Open the access hatch.
3 Remove the filter from the hood.
Cleaning
The filters can be cleaned in the dishwasher. Allow the filters to drain
well before replacing.
The filters can also be cleaned by hand.
Clean the filters in soapy water with washing up liquid and rinse.
Allow the filters to drain well. The underside of the cooker hood can
be cleaned with a mild cleaning agent and a damp cloth. Dry off with
kitchen paper or a dry tea towel.
Replacing cassette filter
The filter should be placed with the locking mechanism on the side.
Open the filter access hatch. The notches at the side of the filter will
then slot in. Hold the access hatch in this position when placing the
filters.
1 Slot the notches at the back of the filter in the specially designed
opening to the side of the cooker hood.
2 Tilt the filter upwards.
3 Release the filter access hatch. The notches at the back of the
filter will extend outwards and slot into the specially designed
openings of the cooker hood.
The filter is now in position again.
Please note!
Replace the grease filters in their original assembled position (see
figure).
Positioning the grease filters correctly ensures the most efficient
extraction.
MAINTENANCE
1
2
1
2

EN 11
MAINTENANCE
Active carbon filters:
The regenerable active carbon filter must be washed by hand with
neutral cleaning products, or in the dishwasher at a maximum
temperature of 65 °C (the washing should be done without any plates,
dishes, cups, etc. in the machine).
Remove the excess water without damaging the filter, remove the
holder and let the filter dry in the oven for at least 15 minutes at a
maximum temperature of 100 °C.
To keep the regenerable carbon filter efficient, this action should be
repeated every 2 months or when indicated by the filter indicator.
The filter must be replaced after no more than 3 years, or if it has
been damaged.
It is important that the grease filters and the regenerable active
carbon filter are thoroughly dry before repositioning.
Replacing the carbon filter:
The grease filters should first be removed before replacing the
carbon filter.
• Press the two ‘B’ buttons on the carbon filter inwards.
• Tilt the carbon filter downwards to remove it.
Operation:
• Using a carbon filter creates more sound than when using the
cooker hood with an outlet.
• The carbon filter’s operation is optimal at a lower motor speed.
You should, therefore, avoid using the boost function.
Attention!
This hood is fitted with LED bulbs! These have to be replaced by a
specialized technician. Do not attempt to replace LED bulbs yourself.

EN 12
INSTALLATION
General
This appliance should be connected to the mains power by a registered
installer, who knows and applies the correct safety specifications.
We hereby declare that our products satisfy the applicable European
directives, orders and regulations, as well as the requirements stated in
the referenced standards.
Important information:
• The distance between the lowest point of the cooker hood and
a gas hob should be at least 65 cm. With an electric, ceramic or
induction hob this distance should be at least 55 cm.
• Follow the applicable local regulations regarding the ventilation of
gas appliances.
• The cooker hood will work better with a short outlet pipe and the
fewest bends possible.
• Prior to drilling check that there are no pipes or cables present.
• The cooker hood connection pipe is 120 mm, 125 mm or 150 mm
in diameter. Use the largest possible (150 mm) flue of the same
diameter.
• The installation material provided with this cooker hood is suitable
for reinforced concrete and brick walls. You will need special plugs
and screws for certain walls.

EN 13
INSTALLATION
Connection
Electrical connection
This is an insulation class II (double insulated) appliance. The cable
does not need to be connected to an earthed socket.
Check whether the voltage mentioned on the type plate corresponds
with the voltage of the domestic electric installation.
Connection to the mains power should be carried out as follows:
BROWN= Lphase
BLUE = Nzero.
Each cooker hood is equipped with a connection plug. Install the
cooker hood in such a way that the plug is accessible.
Please note!
If you want to make a fixed connection, make sure that an omnipolar
switch with a contact separation of at least 3 mm is fitted in the supply
line.

EN 14
INSTALLATION
Installation height:
The minimum distance between a gas hob’s
pan supports and the lower edge of the hood
should be 65 cm. For use with an electric,
ceramic or induction hob this distance should
be at least 55 cm.
max 150 cm
55 cm 65 cm
Build-in dimensions

EN 15
INSTALLATION
It is best that two people install this cooker hood.
- Outline the underside of the hood on the
wall, taking into account the minimum
distance between the hood and the hob.
- Place the template on the wall and ensure
that the line corresponds to the line
previously drawn on the wall. Mark the
position of the holes and drill these (Fig.2).
Fig.1 Fig.2
Assembly

EN 16
INSTALLATION
2
G
G
1
D
- To install the cooker hood fit the electric unit
upright (Fig.4).
- Secure the bracket with the four screws G,
as indicated in Figure 5.
Fig.4 Fig.5
- Place the bracket against the wall and secure with the two screws (supplied). For assembly,
screws and expansion plugs should be used that are suitable for the wall type (for example
reinforced concrete, plasterboard, etc.). If screws and plugs are supplied with the hood, make
sure in advance that these are suitable for the wall on which the hood is to be installed.
Fig.3

EN 17
1
2
3 mm
3
- Tilt the hood slightly and hook it securely to the bracket, as illustrated (Fig.6 step 1).
- Position the cooker hood and secure it to the bracket by applying the nut to the screw
(Fig.6 step 2).
- Hold an appropriate spanner in one hand and use a second spanner in the other hand to counter
the nut (Fig.6 step 3). The distance between the nut and the bracket should be at least 3 mm.
Fig.6
INSTALLATION

EN 18
INSTALLATION

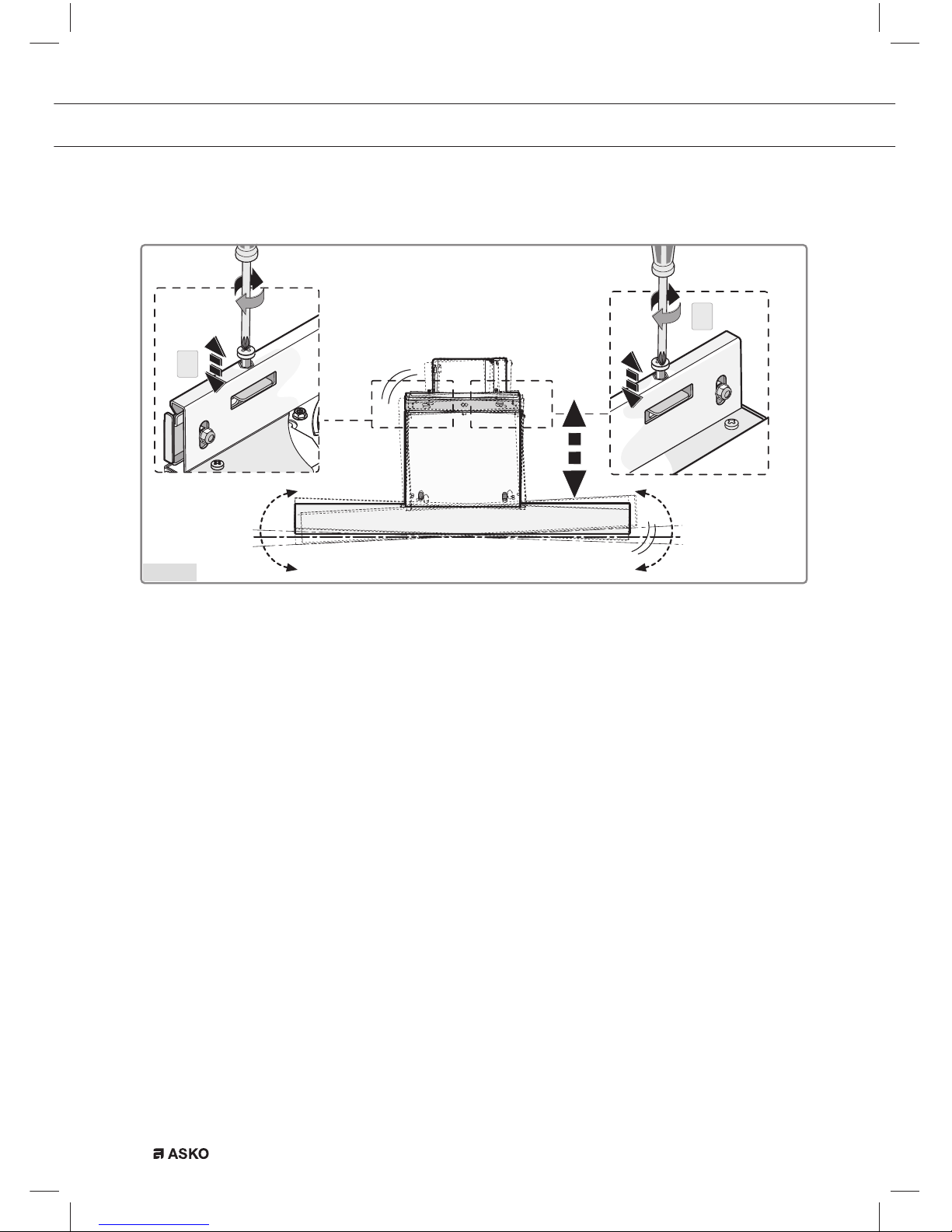

1
1
- Align the cooker hood horizontally using the two levelling screws (Figure 7 step 1).
Fig.7

EN 19
INSTALLATION

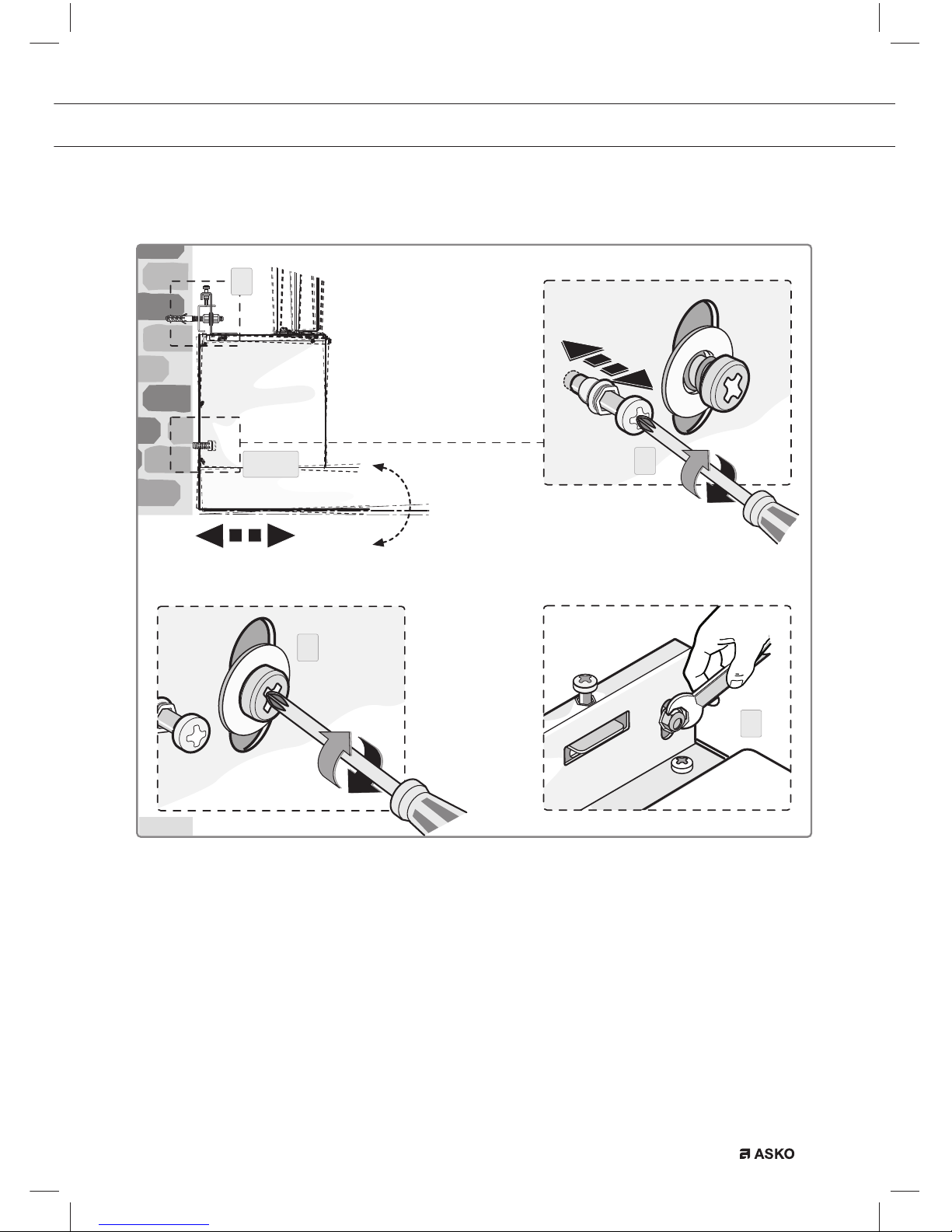

4
3 - 5 3
4
5
- Align the cooker hood vertically using the two set screws in the motor housing (Fig. 8 step 3).
- After levelling the hood, you should secure the screws completely as indicated in Figure 8 step
4, and do the same with the safety screws (Fig. 8 step 5).
Fig.8

EN 20
INSTALLATION
2 2
- Secure the cooker hood definitively with the two supplied screws and rings (Figure 9 step 2).
Warning: Failure to install the screws or fixing device in accordance with these instructions
may result in electrical hazards.
Fig.9
