Operating Instructions
Dishwasher Machine
Save these instructions for future reference

2
Customer Care Center
1-800-898-1879
www.askousa.com
Contents
Before doing your rst wash 3
Important safety instructions 4
Child safety 5
Parts of the dishwasher 6
Technical data 6
Baskets 7
Control panel 8
Detergent Dispenser 8
Basic Course 9
Programs 12
Program Description 13
Options 14
Eco-dishwashing 15
Fragile dishes 16
Cleaning 17
Rinse aid 20
Fault indications 21
Troubleshooting 22
Performance information 25
Service and guarantee 26
Quick Guide 28

3
Customer Care Center
1-800-898-1879
www.askousa.com
Before doing your rst wash
Read through the directions for use
Read through the directions for use before
starting to use your machine, especially the
Safety, Child Safety, and Basic Course sec-
tions.
Take care with certain materials
Read the Fragile Dishes section before
washing china with unglazed decoration
or other household goods made of plastic,
wood, or crystal requiring careful treatment.
Check the water’s hardness
Call your local water utility company to
check the water hardness in your area. This
is important when dispensing dishwasher
detergent and rinse aid.
Note!
Do you need this Use&Care Guide in spanish? Log onto www.askousa.com/customer-care
to download.
¿ Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askousa.com/
customer-care y descárguesela.

4
Customer Care Center
1-800-898-1879
www.askousa.com
Important safety instructions
WARNING
This manual does not cover all possible
conditions and situations that may occur.
Common sense and caution should always
be used when installing, operating, and
maintaining any appliance.
•Readallinstructionsbeforeusingthedish-
washer.
•Dishwashersmustbeelectricallyground-
ed. Read the Installation Instructions for
details.
•Usethedishwasheronlyforitsintended
purpose.
•Donotrunthedishwasherwhileyouare
out of the home.
•Useonlyautomaticdishwasherdetergents
and rinse agents.
•Toreducetheriskofinjury,keepdeter-
gents and rinse aids out of the reach of
children.
•Donotloadsharpitemsnearthedoor;you
could damage the door seal.
•Placesharpknivesinthesilverwarebasket
with the sharp ends down to avoid the risk
ofcut-typeinjuries.
•Donotwashplasticitemsunlesstheyare
marked “dishwasher safe” or the equiva-
lent. For items not marked, check the
manufacturer’s recommendations. Items
not dishwasher safe could become de-
formedormeltandcreateapotentialre
hazard.
•Donottouchtheheatingelementduringor
imediately after use.
•Donotoperatethedishwasherunlessall
enclosure panels are properly in place
(i.e., guard plate, access panel, toe kick,
etc.)
•Donottamperwithcontrolsbyremovingor
changing.
•Donotabuse,siton,orstandonthedish-
washer door or baskets.
•Toreducetheriskofinjury,donotallow
children to play in or on a dishwasher.
•Undercertainconditions,hydrogengas
may be produced in a hot water system
that has not been used for two weeks or
more.HYDROGENGASISEXPLOSIVE.
If the hot water system has not been used
for two weeks, before using the dishwasher
turn on all hot water faucets and let the
waterowfromeachforseveralminutes.
This will release any accumulated hydro-
gengas.Asthegasisammable,donot
smokeoruseanopenameduringthis
time.
•Whenremovinganolddishwasherfrom
service or discarding it, remove the door to
the washing compartment.
•Donotstoreorusecombustiblematerials,
gasoline,orotherammablevaporsand
liquids in the vicinity of this or any other ap-
pliance.
•Disconnecttheelectricalpowertothe
dishwasher before servicing.
•Repairsshouldbedonebyaqualied
technician.
•Readthegroundinginstructionsinthe
installation instructions.

5
Customer Care Center
1-800-898-1879
www.askousa.com
Child safety
Closed
Open
Child safety tips
Dishwasher detergents and rinse aids are
corrosive, so always keep them out of reach
of children.
•Shouldachildswallowdishwasherdeter-
gent or rinse aid, give plenty to drink im-
mediately, i.e., one or two glasses of milk or
water. Do not try to induce vomiting. Seek
medical advice immediately: Call the Nation-
alCapitalPoisonCenterat1-800-222-1222
•Alwaysclosethedoorandstartthedish-
washer as soon as you put in the detergent.
•Alwayskeepsmallchildrenawayfrom
the machine when it is open. There may
be some detergent residue left inside the
machine.
•Ifdishwasherdetergentgetsinsomeone’s
eyes, rinse them with plenty of water for at
least 15 minutes.
•Donotallowchildrentouseorplayinor
on the dishwasher.
•Loadalllongandsharpitemsintheknife/
utensil basket. If this is not possible, load
sharpobjectswiththepointedendfacing
the back of the dishwasher. Sharp items
loaded in the silverware basket should be
loaded with pointed ends down.
•Engagethechildsafetylock.

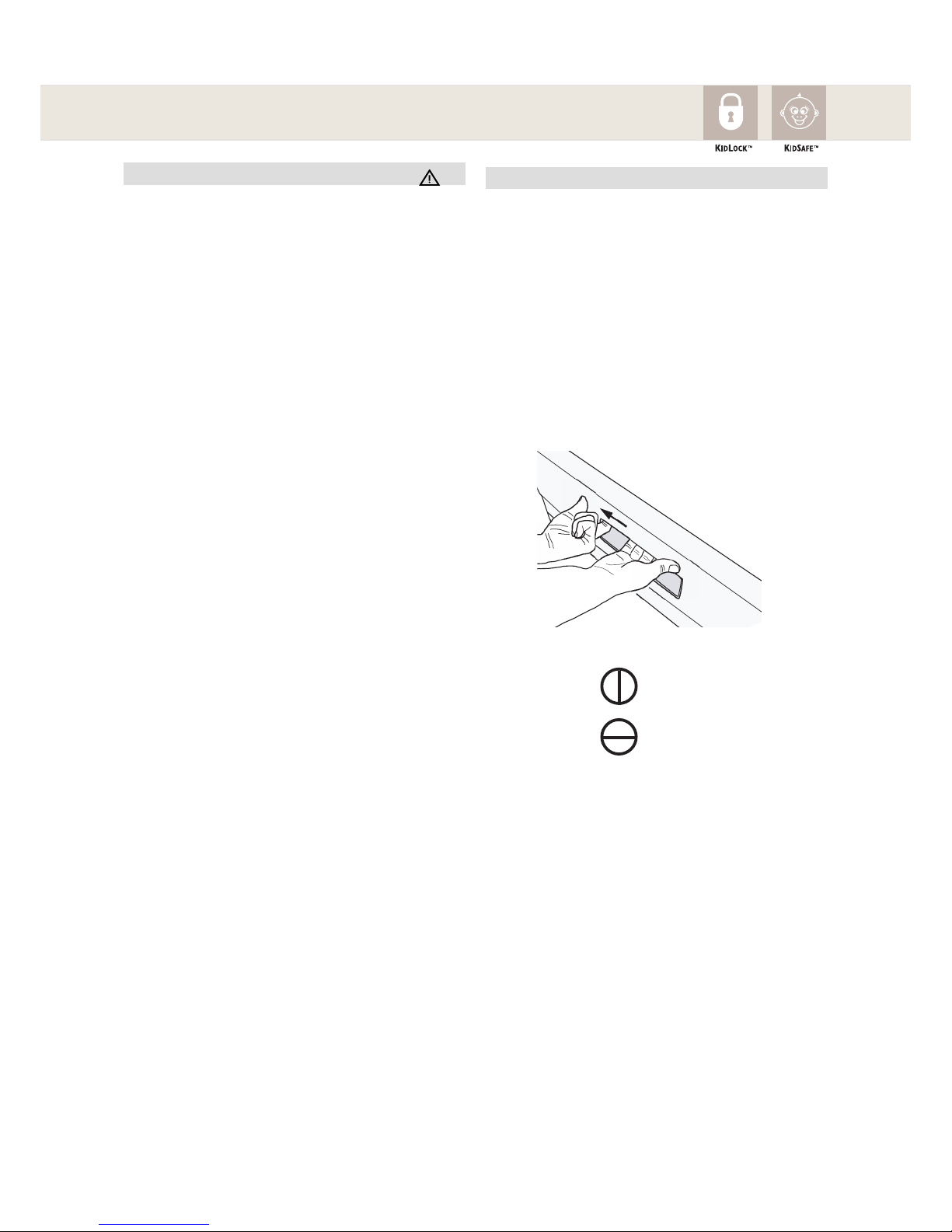

Engaging the Child Safety Lock
This model has a child safety lock on the left of
the door handle.To activate the lock, press in
the door handle and use a screwdriver to turn
the screw slot to a vertical position. Reset it by
turning the slot to its horizontal position.
To open the door when the safety lock is
engaged, press the white plastic tab located
to the left of the door handle toward the left
and hold it as you lift the door handle. (See
illustration at below.)

6
Customer Care Center
1-800-898-1879
www.askousa.com

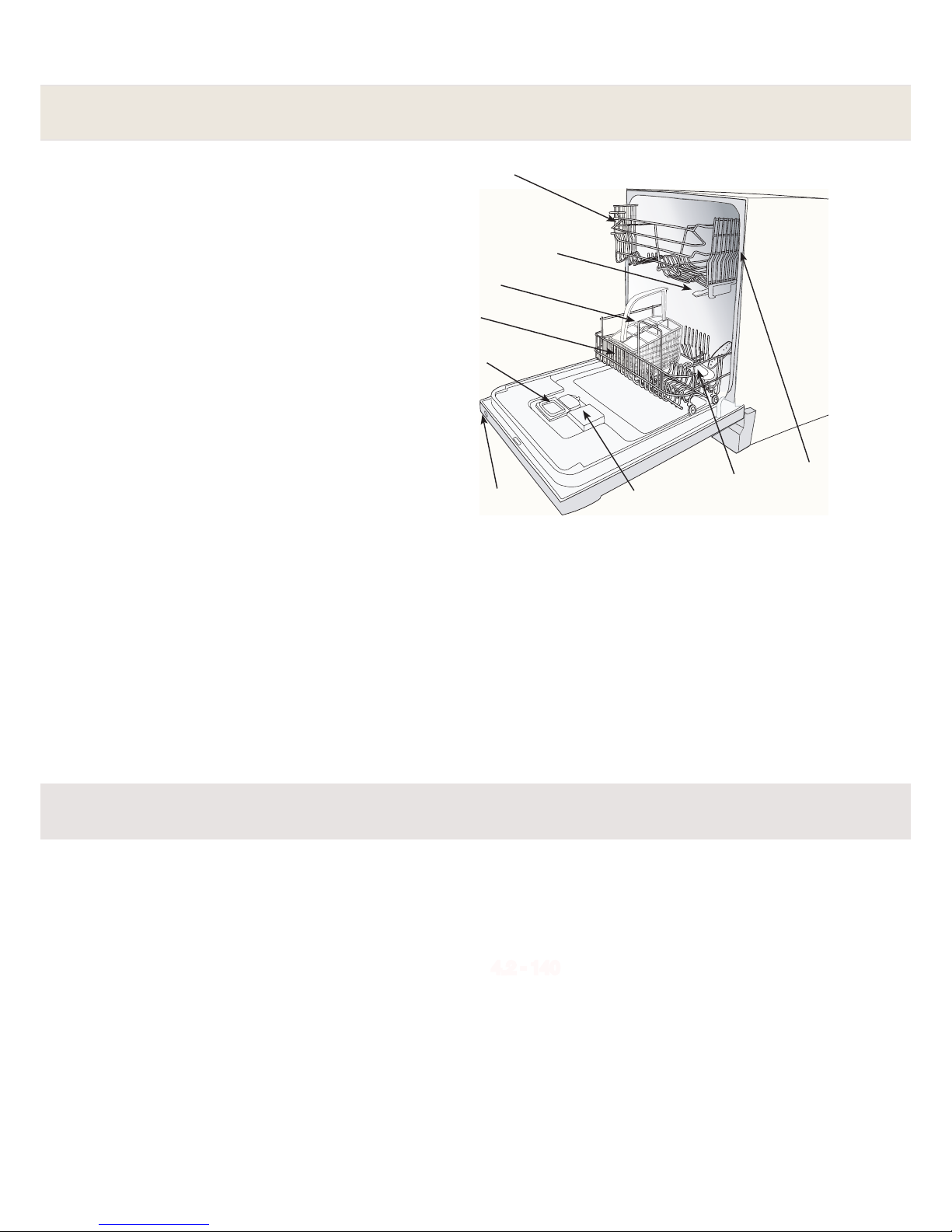

Parts of the dishwasher*
Technical data
Height 34-3/8”-36-1/2”870-920mm
Width       24”(610)mm
Depth      24”(610mm)
Weight      105.8lbs(48kg)
Waterpressure     4.2-140 psi
        0.03-1.0MPa
0.3-10 Bar
Connection      Singlephase,120V,60Hz,10A
Maxoutput      1300W
1. Upper basket
2.Sprayarms
3. Cutlery basket
4. Lower basket
5. Dishwasher detergent compartment
6. Main power switch
7. Rinse Aid Compartment
8. Filter
9. Serial tag and rating plate
*Detailsmaydierdependingonthemodel
and market!
1
3
2
4
5
6
8
9
7
3

7
Customer Care Center
1-800-898-1879
www.askousa.com

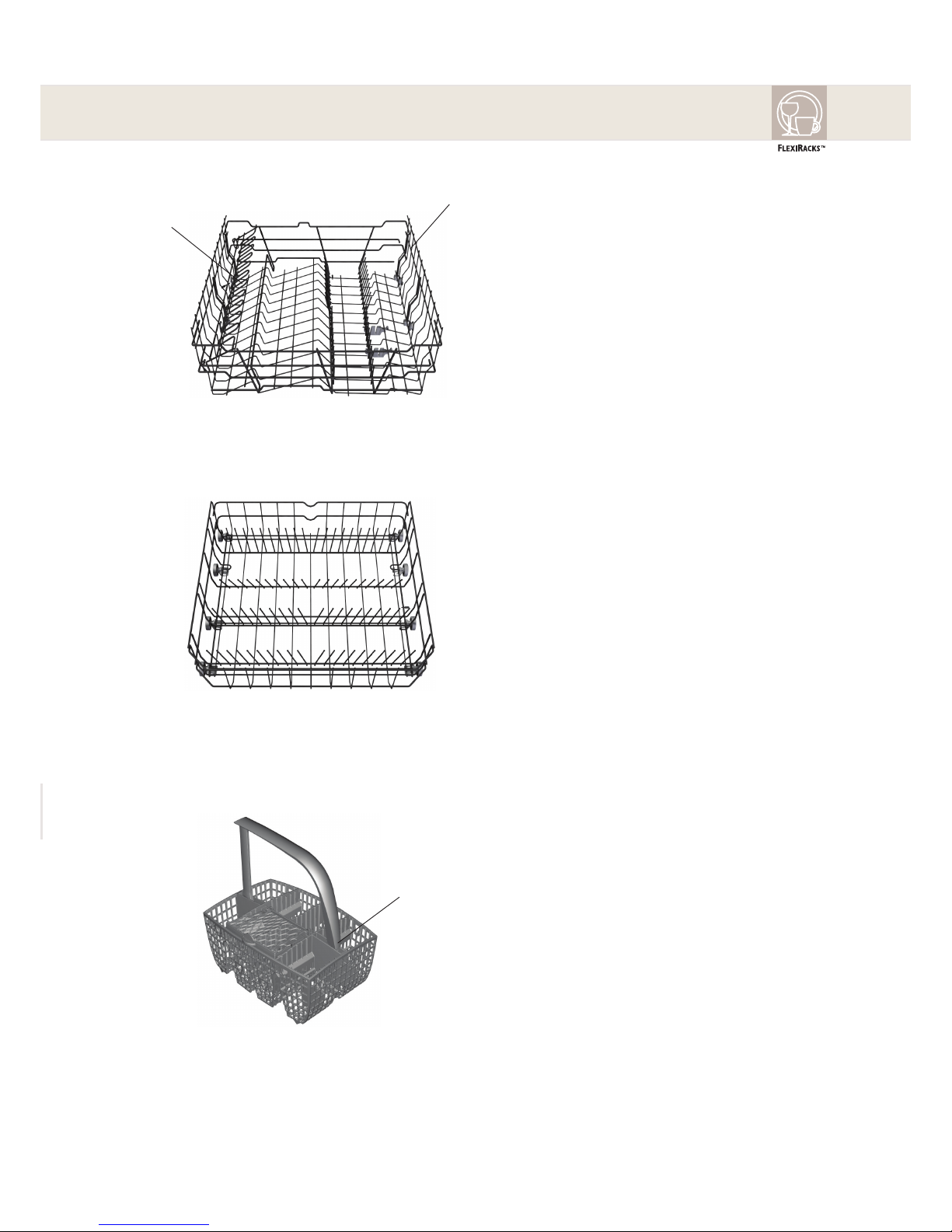

Baskets*
*Details may dier depending on the
model and market!
Cutlery basket
Upper basket
Lower basket
1.Wineglassshelf
2.Cuprack
3. Cutlery basket with door and folding
handle
1
2
3

8
Customer Care Center
1-800-898-1879
www.askousa.com
Control panel
Detergent Dispenser
1 3
4
5
2
1. Compartment for main wash dishwasher
detergent
2.Compartmentforpre-washdetergent
3.Rellindicatorrinse aid
4. Rinse aid cover
5. Detergent compartment cover
S T A R TS T A R T
STOPSTOP
Byttill denna för att
skapa ASKO D320
(lager "Övriga detaljer").
PROGRAMPROGRAM
1.Programselector
2.Heavywash
3. Normal wash
4. Quick wash
5. Rinse & Hold
6. Temperature
7. Start/stop
7
1
3
5
2
4
6

9
Customer Care Center
1-800-898-1879
www.askousa.com
Basic Course
Below are step-by-step instructions to help you
achieve the best possible dishwashing results.
Load the baskets correctly!
Thanks to Self Cleaning System, you
do not need to rinse the dishes under
running water. Simply remove large food
particles and debris. Convenient and environ-
mentally-friendly!
Placeglasses,cups,bowls,sideplates,and
saucers in the upper basket.Wineglasses
should be hung from or leaned against the
wine glass shelf and knives placed in the knife
stand if present.
Note!
Ensure that all soiled surfaces face inwards
or downwards!
Placedinnerplates,sideplates,serving
dishes, saucepans, and cutlery (in the cut-
lery basket) in the lower basket. The remov-
able plate insert, which comes with certain
models, can be easily removed to provide
room for large plates, saucepans, pots, or
placed in three alternative positions.
Stand the cutlery with handles downward
and as spread out as possible. Ensure that
spoons are not resting inside each other.
CAUTION!
Knives and other utensils with sharp points
must be loaded in the basket with their
points down or placed in a horizontal posi-
tion.
Donotputcutlerymadeofdierentmateri-
als - such as silver and stainless steel - in
the same compartment (risk of stains).
Thecutlerybaskethasafoldingapinthe
middle for small items or narrow shafts,
such as electric whisks.
Placelongcutleryandcarvingknivesinthe
special knife box (if present) or in the upper
basket.
Check that the spray arms are able to
move freely.
See the section entitled Fragile Dishes if you
wanttowashobjectsthatmaybefragile.
Dishwashing detergent
Werecommendthatyouuse
only unscented, granular automatic dish-
washing detergent. Using the wrong deter-
gentcouldcauseoodingand/ordamage
your dishwasher. Do not use detergent that
has been wet and is clumped. Also, check
the expiration date on the container.
The amount of detergent needed can vary
duetodierencesinwaterhardness.To
determine the water hardness in your area,
contact your local water utility or area water
softening company. The harder the water,
the more detergent you may need. Refer to
the chart below for the recommended de-
tergent amounts based on water hardness.
Remember,youshouldadjusttheamount
of detergent you use by small amounts
untilyoundthecorrectamount.

10
Customer Care Center
1-800-898-1879
www.askousa.com
3-in-1/ Multi-purpose detergent
Note!
Read the directions for use for such products
carefully. If anything is unclear, contact the
detergent manufacturer.
Switch on the main switch
Select program
For select program see Part Programs.
Select Option
If you wish to use additional options,
continue to the “Options” section.
Otherwise you can now start the
machine, see point 6.
Twelve grains and higher is extremely hard
water and detergent alone may not be
enough.You may need to use a water soft-
ener to maximize the performance of your
dishwasher. Also, in areas with hard water
(9+) you may need to wash at lower temper-
atures to prevent hard water deposits from
forming in tank and wash system.
In hard water areas, both the dishes and
the machine can develop a white or gray
lmafterawhile.Thiscanberemovedby
replacing the prewash detergent with two
tablespoons of citric acid. If the water is very
hard, use a rinse aid that contains citric acid.
Note:
Werecommendthatyoudonotaddpre-
wash detergent for the Quick wash pro-
grams.
Note:
If you use a dishwashing detergent with
arinseaidadditive,youshouldnotllthe
rinseaiddispenser.Thiscouldcausealm
on your dishes.
Dishwasher tablets
Cutthetabletinhalfifitisdiculttoclose
the dispenser cover. There is a risk that the
dishwasher detergent will not break down
properly to give the correct dosage if the
cover is tight and cannot be opened cor-
rectly.
Water hardness Detergent amounts
Soft
(0-3 grains per gallon)
Prewash1teaspoon
Mainwash1to1-1/2tablespoons
Medium
(4-8 grains per gallon)
Prewash1teaspoon
Mainwash1to2tablespoons
hard
(9+ grains*)
Prewash1teaspoon
Mainwash2to3tablespoons
*12grainsandhigherisextremelyhardwater.
Recommended detergent amounts based on water hardness
Basic Course

11
Customer Care Center
1-800-898-1879
www.askousa.com
Press start
The dishwasher will now start. It man-
ages the entire wash automatically. Ensure
that the door is properly closed or the ma-
chine will not start.
Changing program
If you wish to change the program after
having started the machine, press the Start/
Stop button for three seconds.Then select a
new program and press the Start/Stop but-
ton again.
Do you want to load more dishes?
Carefullyopenthedoor;themachinewill
stops automatically, put in the dishes, close
the door and the dishwasher will continue
fromwhereitlefto.
If the machine is switched o at the
main switch
(or in the event of a loss of power cut) before
the washing program has been completed,
the interrupted program will continue when
the power comes back on.
Note:
Ifthepowerisswitchedo,orifthedoor
is open during drying, the program is inter-
rupted.
Standby mode
Once the program is complete, the machine
will only draw a very small amount of power.
Ifyouwantyoucanturnthepoweroatthe
mainpowerswitch.Turnothewatersupply
to the machine if it is not to be used for an
extended period, e.g. during holidays.
The indicators around the Start/Stop but-
toneldgraduallylightupastheprogram
progresses.
Whentheprogramnishes,alltheindica-
tors around the Start/Stop button will be
lit. These lights will remain on for up to two
hours or until you open the door. The lights
for the programs and options will always be
lit as long as the main power switch for the
machine is turn on.
7
Basic Course

12
Customer Care Center
1-800-898-1879
www.askousa.com
Programs
Select a program by pressing the program
selector one or more times until the required
programsymbollightsup.SeetheProgram
guide below.
Heavy wash
TheHeavyWashprogramshouldbeused
for heavily soiled dishes, e.g. saucepans,
pots and gratin dishes. If there is still space
in the machine after loading such items, you
can add plates etc.
Normal wash
Used for washing normally soiled dishes
such as plates, serving dishes, cups and
glasses, etc.
Quick wash
SelectQuickWashifthedishesarevery
lightly soiled. This program is used for very
lightlysoiledglassandchina,e.g.coee
cups.
Rinse & Hold
For rinsing the dishes while waiting for the
machinetobelled.

13
Customer Care Center
1-800-898-1879
www.askousa.com
Program Description
Programview
Programs Heavy Normal Normal Quick Rinse &
Hold
Program
info
For heavily
soiled loads,
such as pots,
pans, casse-
roles, etc.
For nor-
mally soiled
loads such
as plates,
glasses,
bowls, and
lightly soiled
pans.
For nor-
mally soiled
loads such
as plates,
glasses,
bowls, and
lightly soiled
pans.
For lightly
soiled loads
that are
washed
immedi-
ately after
use. This
program
can also
be used
for delicate
items.
To rinse
dishes that
you plan to
wash later
that day.
Options -- --
Prewashes
with SCS*
2 2 1 -- --
Mainwash *** 160°F 150°F 130°F 140°F --
Number of
rinses
3, last
rinse 160°F
3, last
rinse 150°F
3, last
rinse120°F
2,last
rinse no
heating
1 rinse
Consumption values
1.Washtime
hot water /
min. **
3:10 2:00 1:55 0:45 0:04
Energy ap-
prox.kWh
1.2 0.9 0.7 0.5 0.01
2.Washtime
cold water /
min.**
3:50 2:35 2:25 0:50 0:04
Energy ap-
prox.
kWh
1.6 1.6 1.2 0.7 0.01
Watercon-
sumption
(gallon)
5.2 5.8 3.9 2.7 0.8
* SCS = Self Cleaning System.
**Allquotedtimesareapproximate.Cycletimeuctuationsmayoccurduetowatertem-
perature, water pressure, variations in voltage etc.
1.Hotwaterconnectionapprox.120°F(50°C).
2.Coldwaterconnectionapprox.50°F(10°C).
*** The listed temperatures are set as the default from the factory. You can alter the pro-
gram temperature by choosing the temperature options in the chart on page 14.

14
Customer Care Center
1-800-898-1879
www.askousa.com
Options
Select options
To select an option, press one of the option
buttons.
Temperature selection *
Withthetemperatureoptionbut-
ton you can select the wash temperature
yourself.You can vary the temperatures as
follows:
Normal High
Heavy: 130°F (55°C) 160°F (70°C)
Normal: 130°F (55°C) 150°F (65°C)
Quick: 85°F (30°C) 140°F (60°C)
Theeldnexttothebuttonlightsupifyou
have selected the normal temperature.The
selection remains until a change is made.

15
Customer Care Center
1-800-898-1879
www.askousa.com
Eco-dishwashing
Only wash full loads
Waitingtorunthewashuntilthemachineis
full saves energy.
Wash at a lower temperature
If the dishes are only lightly soiled you can
run a Quick wash program and reduce the
temperature to 86°F (30°C).
Select a program with Normal dry
To save energy, select Normal dry.You will
get a better drying result if you leave the door
slightly open after the end of the program.
Do not rinse before dishwashing
Thanks to the dishwasher’s Self Cleaning
System you do not need to rinse the dishes
under running water before loading them
into the machine.
Choose environmentally-friendly
dishwasher detergent
Read environmental declarations on the
package!

16
Customer Care Center
1-800-898-1879
www.askousa.com
Fragile dishes
A number of household goods are not suit-
able for machine washing. This can be due
to a variety of reasons. Certain materials
cannotwithstandintenseheat;otherscan
be damaged by the dishwasher detergent.
Fragile decoration
China with decoration on top of the glaze
(the goods have a rough feel) should not be
machine washed.
Crystal/ glass
Placethegoodssothattheydonotknock
together during the wash. Use the lowest
possible wash temperature and the shortest
possible program. Do not heat dry! Antique
and very fragile items should not be ma-
chine washed.
Glass which is machine washed at high
temperaturescanintimedevelopagreylm
whichcannotberemoved.Washneglass
at the lowest temperature and with a low
dosage of dishwasher detergent.
Silver
Silver and stainless steel items should not
come into contact with each other as the
silver can discolor.
Cutlery with glued handles
Certain types of adhesive cannot withstand
machine washing. In such cases the han-
dles can come loose.
Wood
Woodenitemsshouldonlybemachine
washed if they are labeled as dishwasher
safe.
Aluminum
Aluminum can be dulled by machine wash-
ing. However, good quality aluminum sauce-
pans can be machine washed, although a
reduction in luster should be expected.
Plastic
Certain types of plastic cannot withstand
the high temperature generated in machine
dishwashing.
Protect plastic goods
Select a program with a low temperature.

17
Customer Care Center
1-800-898-1879
www.askousa.com
Cleaning
The dishwasher tub is made of stainless
steel and is kept clean through normal use.
However, if you have hard water, limescale
deposits may form in the machine.
If this happens, run a normal wash program
with two tablespoons of citric acid in the
dishwasher detergent compartment.

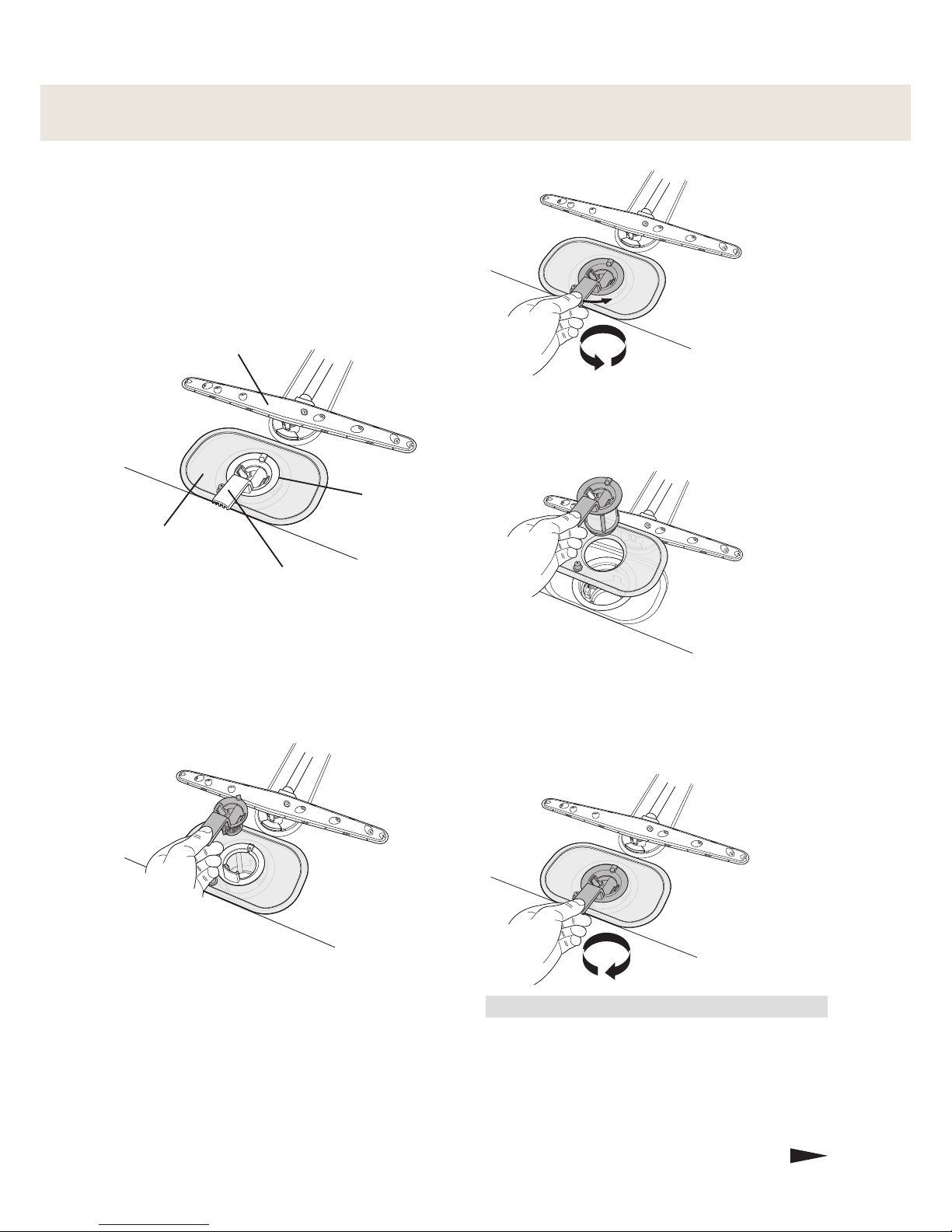

Spray arm
Coarse lter
Fine lter
Tubular
strainer
Coarse lter
Thecoarseltertrapslargerfoodparticles,
which cannot get past the drain pump.
Emptythecoarselterasnecessary.
1.Liftthecoarselterbythehandle.
2.Emptythecoarselter.Don’tforgettore-
place it!
Fine lter
Debristhatcollectsonthenelterisauto
matically rinsed away during each wash.
However,thenelteranditspipesection
should be cleaned once or twice a year.
1. Turn the handle once counter-clockwise.
2.Liftthepipesectionstraightupbythe
handle.Freethecoarseltertocleanthe
pipe section.
1x
3.Removeandcleanthenelter.
4. Replace in reverse order. Ensure that the
edges are properly sealed when replacing
thenelter.
5.Lockthelterinplacebyturningthe
handle clockwise to the stop position: the
handle should point out from the dishwas-
her.
1x
NOTE:
The dishwasher must not be used without
thelterinplace!
Animproperlyttedcoarseltermayaect
the dishwashing result!

18
Customer Care Center
1-800-898-1879
www.askousa.com

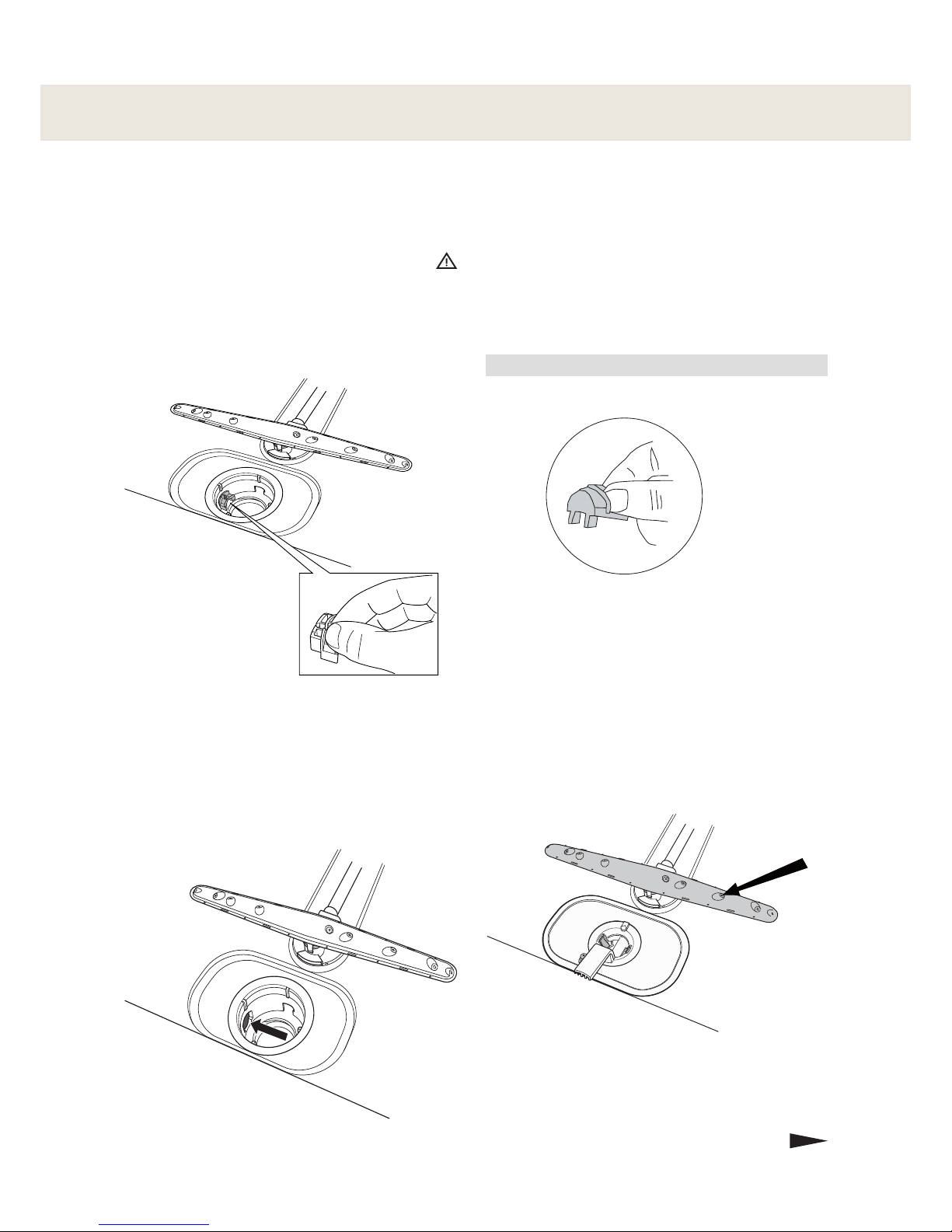

Drain pump
The pump can be accessed from inside the
machine.
1. Cut the power to the machine by unplug-
gingitorturningothecircuitbreaker.
2.Removethecoarselterandpipe
section.
3. Remove the small sump plug at the left of
the bottom drain (see the image below).
4.You can release and turn the pump blade
byinsertingyourngerintotheholeand
release anything blocking it.
5.Reinstallthettedpieceandlters.
6.Plugthemachineinorturnthecircuit
breaker back on.
If the machine still does not start and a
buzzingsoundisheard,theoverowguard
has been activated.
•Shutothewater.
•Unpluggthemachineorturnothecircuit
breaker.
•Calltheservicedivision.
Note:
Do not forget to reinstall the sump plug.
The spray arms
The spray arm holes and bearings can
sometimes become blocked.
1.Pullthelowerwasherarmstraightupto
release it.
2.Removeanydepositsusinganeedleor
similar.
The washer arms also have holes under
neath.
Cleaning

19
Customer Care Center
1-800-898-1879
www.askousa.com
To release the upper spray arm, the upper
basket must be removed.
1.Pulloutthebasketandturnthebasket
stop outwards on both rails (see picture).
The basket can now be removed.
2.Removetheuppersprayarminthesame
way as the lower arm and clean it.
Door
Whencleaningtheedgearoundthedoor,
use a slightly damp cloth and a little deter-
gent if needet. Do not use a spray bottle
or similar around the door catch. This is to
ensure that water does not penetrate into
the door catch and come into contact with
the electrical components.
CAUTION!
Do not use a spray bottle or similar around
the door catch.
Cleaning

20
Customer Care Center
1-800-898-1879
www.askousa.com
Rinse aid
Open
Closed
Rell indicator
Cover for rinse aid
Open by turning and lifting the cover!
Adding rinse aid
In some cases, drying can be made more ef-
cientbyusingrinseaid.
Tollwithrinseaid:
1.Turn and lift up the cover of the rinse aid
compartment to the right of the dispenser.
This is where you top up and set the amount
of rinse aid to be dispensed in each wash.
2.Carefullypourinrinseaiduptothedos-
age setting knob.
Alter dosage if required. Do not forget to
close the cover.
Machines with rell indicator
Thereisarellindicatorinthemiddleofthe
dispenser(seeillustration).Iftherellindi-
catoristotallyblack,thereissucientrinse
aid. However, if the indicator has a more
transparentappearance,youneedtollup
with rinse aid (see above).
Select dosage
The dispenser is usually set at 1= soft water.
However, depending on the water hardness,
you may need to change the dosage.
Opentherinseaidcover.Hereyouwillnd
thedispenser’sadjustmentdial.The settings
range from 1-6. Harder water will require a
higher dosage. Increments until glassware is
free from water stains.
Whenthewaterhardnessexceeds3grains,
you should use rinse aid with citric acid (acid
rinse aid).
Too much rinse aid can lead to the build-
up of foam. If your water is particularly soft,
you can dilute the rinse aid (1 part rinse aid,
1 part water).
Too much rinse aid can cause streaks on
the dishes, while too little can result in water
stains.
