Asko D5424 User manual

Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs for many years to come.
Scandinavian design combines clean lines, everyday functionality and high quality. These
are key characteristics of all our products and the reason they are greatly appreciated
throughout the world.
To get the most from your new dishwasher, we recommend that you read the
operating instructions before using the dishwasher. The operating instructions also
include information on how you can help protect the environment.
Operating Instructions
Dishwasher
ASKO D5424

CONTENTS
2FRONT PANEL
3SAFETY INSTRUCTIONS
4BEFORE WASHING FOR THE FIRST TIME
5LOADING THE DISHWASHER
7USING THE DISHWASHER
9SETTINGS
11CARE AND CLEANING
13TROUBLESHOOTING
16TECHNICAL INFORMATION
18INSTALLATION
23SERVICE
24PROGRAM CHART
25YOUR NOTES

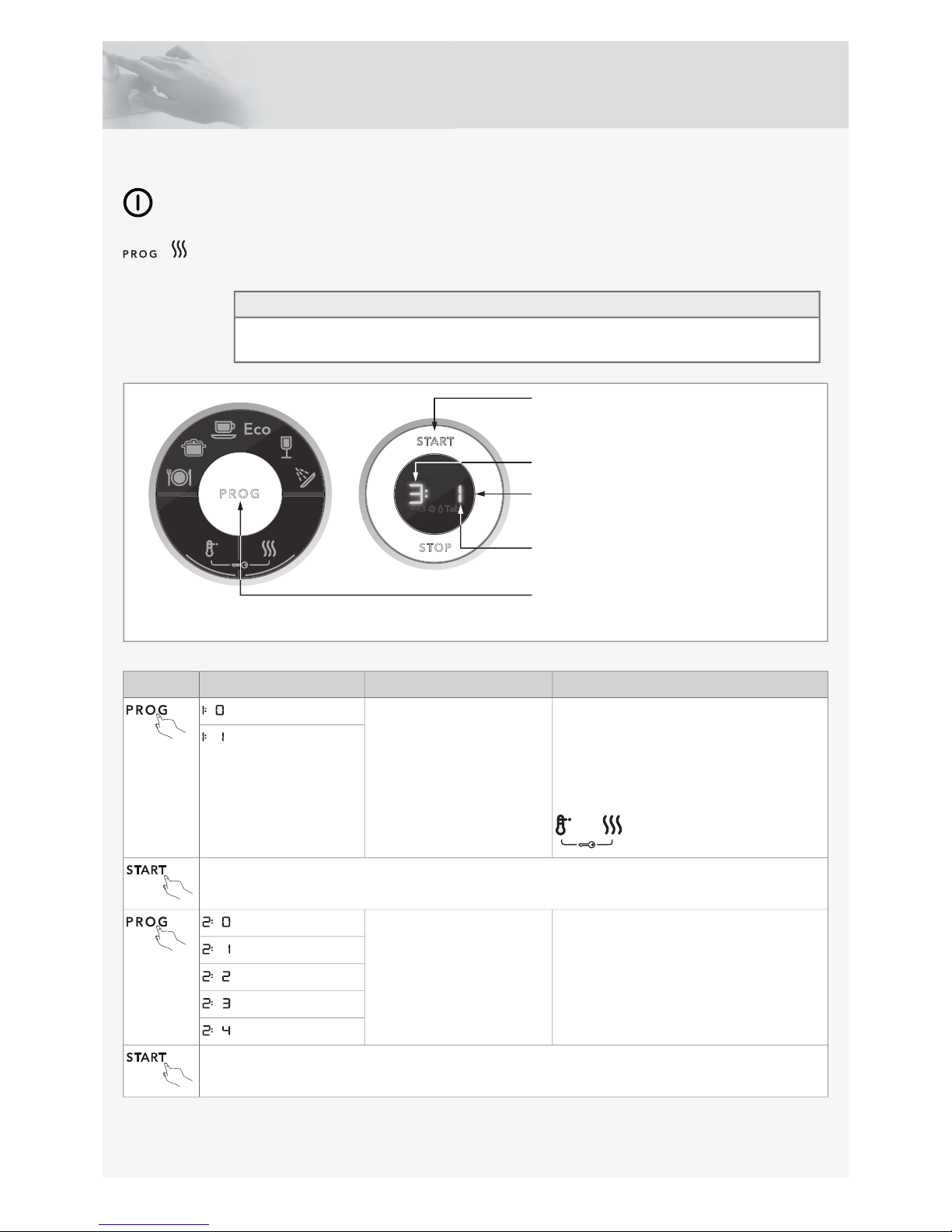

FRONT PANEL
The panel is fitted with touch buttons with audible feedback (see the chapter Settings).
PROG
START
STOP
2
1
89
3
45
6
10
12
11
13
14
7
1 Program selector
2 Daily wash
3 Heavy wash
4 Normal program
5 Eco wash
6 Quick wash
7 Rinse & Hold
8 High temperature
9 Long dry
10 Start
11 Stop
12 Display
13 Child lock (button lock)
14 Rinse aid indicator
NOTE!
•Two minutes after the last button press, the display enters left-on mode to save energy. The display brightness is reduced. Press the
Program selector once or one of the option buttons to reactivate the display.
2

SAFETY INSTRUCTIONS
GENERAL
• Read the operating instructions and keep them in a safe place!
• Never use the dishwasher for any purpose other than that
specified in these operating instructions.
• Do not load the dishwasher door or dishwasher baskets with
anything other than dishes.
• Never leave the dishwasher door open as someone may trip
on it.
• Use only dishwasher detergent!
• Place knives and other sharp items so that they cannot harm
anyone or damage the dishwasher.
• The machine is not designed to be used by persons (even
children) that are physically or mentally handicapped or lack
experience and knowledge. Such persons must receive
instruction in how to use the machine from the person
responsible for their safety.
• Damaged mains cables must only be replaced by a qualified
electrician.
• This dishwasher is for household or similar use, such as:
- staff kitchens in shops, offices and other workplaces.
- farms.
- for guests at hotels, motels and other types of
accommodation.
- bed & breakfast hotels.
• Never place dishes with solvent residues in the dishwasher due
to the risk of explosion. Nor may dishes that contain ash, wax
or lubricants be washed in the dishwasher.
• Young children should be supervised to ensure that they do
not play with the appliance.
• The appliance is not intended for use by young children or
infirm persons without supervision.
INSTALLATION
See the section Installation.
CHILD SAFETY
• Use the knife stand for all long/sharp items.
• Always close the door and start the program immediately after
you have added the detergent.
• Keep children away from the dishwasher when the door is
open. Some detergent may remain inside!
• Do not allow children to use or play with the dishwasher. Be
especially vigilant when the door is open.
WARNING!
Children must be supervised – dishwasher detergent is corrosive!
Store detergent and rinse aid out of the reach of children! If
anyone swallows dishwasher detergent, they should immediately
drink one or two glasses of milk or water. Do not attempt to
induce vomiting. Contact a doctor! If anyone gets dishwasher
detergent in their eyes, rinse (for at least 15 minutes) with plenty
of water.
WARNING!
Dishwasher detergents are strongly alkaline. They can be
extremely dangerous if swallowed. Avoid contact with skin and
eyes and keep children away from the dishwasher when the
door is open.
Check that the detergent compartment is empty after
completion of the wash cycle.
Activate the child safety lock (Kid Lock™)
(only certain models)
A child safety lock is fitted to prevent children from opening the
dishwasher door. To activate the child safety lock, press in the
door latch and use a screwdriver to turn the screw slot (top
left-hand corner) to a vertical position. To open the door, you
must press the white plastic catch (illustrated below) to the left
while pressing the door latch up. Reset by turning the screw slot
back to a horizontal position.
/RFNHG
2SHQ
Activate child lock (Kid Safe™)
You can activate the child lock (button lock) to prevent children
from starting the dishwasher (see the section Settings).
WINTER STORAGE/TRANSPORT
• Store the dishwasher where the temperature remains above
freezing.
• Avoid long transport distances in very cold weather.
• Transport the dishwasher upright or laying on its back.
OVERFLOW GUARD FUNCTION
The overflow protection starts pumping out the machine and turns
off the water supply if the water level in the dishwasher exceeds
the normal level. If the overflow protection is triggered, turn off
the water supply and call the service division.
CLEANING
When cleaning the edge around the door, use only a slightly damp
cloth. Do not spray water around the edge! Moisture can make
its way into the lock, which contains electrical components.
PACKING MATERIAL
Sort waste materials in accordance with local guidelines.
3

DISPOSAL
• When the dishwasher has reached the end of its service life
and is to be disposed of, it should immediately be made
unusable. Pull out the power cable and cut it as short as possible.
• The dishwasher is manufactured and labelled for recycling.
• Contact your local authority for information about where and
how your dishwasher should be correctly recycled.
BEFORE WASHING FOR THE FIRST
TIME
CHECKING WATER HARDNESS
Contact the local water utility to check the water hardness in your
area. This is important with regard to how much detergent and
rinse aid to use.
TOP UP WITH RINSE AID
Drying is faster if you use rinse aid.
1 Open the rinse aid compartment lid.
2 Carefully top up with rinse aid. Only add rinse aid to the level
marked max.
3 Wipe up any splashes of rinse aid around the compartment.
4 Close the lid firmly.
SELECTING THE RINSE AID DOSAGE
The rinse aid dispenser can be adjusted between (Off) and
(High dosage).
Increase the rinse aid dosage:
• If the dishes have water marks.
Reduce the rinse aid dosage:
• If the dishes have a sticky white/blue film.
• If the dishes are streaked.
• Build-up of foam. If you have very soft water, the rinse aid can
be diluted 50:50 with water.
For water with a hardness greater than 10–12 °dH, you ought to
use rinse aid with citric acid (known as acid rinse aid).
SETTING THE RINSE AID DOSAGE
The section Settings describes how to set the rinse aid dosage.
REFILL RINSE AID INDICATOR
When the rinse aid needs topping up, the above symbol lights on
the display.
NOTE!
After topping up, it may take a while before the symbol goes
out.
4

LOADING THE DISHWASHER
ECONOMIC DISHWASHING
Run programs only with a full load
Wait to run a program until the dishwasher is full. This way you
save energy. Use the Rinse & Hold program to rinse the dishes if
there are any unpleasant odours while you wait for the dishwasher
to become fully loaded.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a lower
temperature with certain programs. See also the section Selecting
Options in the chapter Using the dishwasher.
Select a program with Short dry
To save energy, use Short dry. The drying result will be better if,
once the program is finished, you leave the door slightly open.
Do not rinse under running water
Simply scrape off large food particles before loading the
dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Connect to cold water...
If you use oil or electricity to heat your home.
Connect to hot water (max. 70 °C)...
If you use district heating, solar power or geothermal power to
heat your home. Choosing a hot water connection cuts program
times and reduces the dishwasher's electricity consumption.
FRAGILE DISHES
Some cookware is not dishwasher safe. This can be for several
reasons. Some materials cannot withstand strong heat, others can
be damaged by dishwashing detergent.
Fragile decoration
Porcelain with decoration on top of the glazing (the items feel
rough) should not be washed in a dishwasher.
Crystal/Glass
Position items so that they do not touch each other during the
wash. Use the lowest possible wash temperature and the shortest
possible program. Select Short dry. Antique and very fragile items
should not be washed in a dishwasher.
Glass washed in a dishwasher at high temperatures can gradually
develop a grey film that cannot be removed. Wash fragile glasses
at a low temperature and with a small amount of detergent.
Silver
Silver and stainless steel items should not come into contact, as
the silver can become discoloured.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such cases, the
handles may loosen.
Wood
Wooden items should only be washed in a dishwasher if marked
dishwasher safe.
Aluminium
Aluminium can lose its shine if washed in a dishwasher. However,
good quality aluminium pans can be washed in a dishwasher, even
if some of the shine will be lost.
Plastic items
Avoid washing plastic items that cannot withstand high
temperatures.
UPPER BASKET
Place glasses, cups, bowls, side plates and saucers in the upper
basket. Wine glasses are placed on the wine glass shelf and knives
are placed in the knife stand on the right (if fitted).
NOTE!
All dirty surfaces should face inwards and downwards!
LOWER BASKET
Place plates, side plates, serving dishes, pots and cutlery (in the
cutlery basket) in the lower basket.
Place pots and pans in the rear left of the lower basket to best
utilise dishwashing performance from the rear spray nozzle (Power
Zone™ Pot & Pans), which is intended for these types of dishes.
5

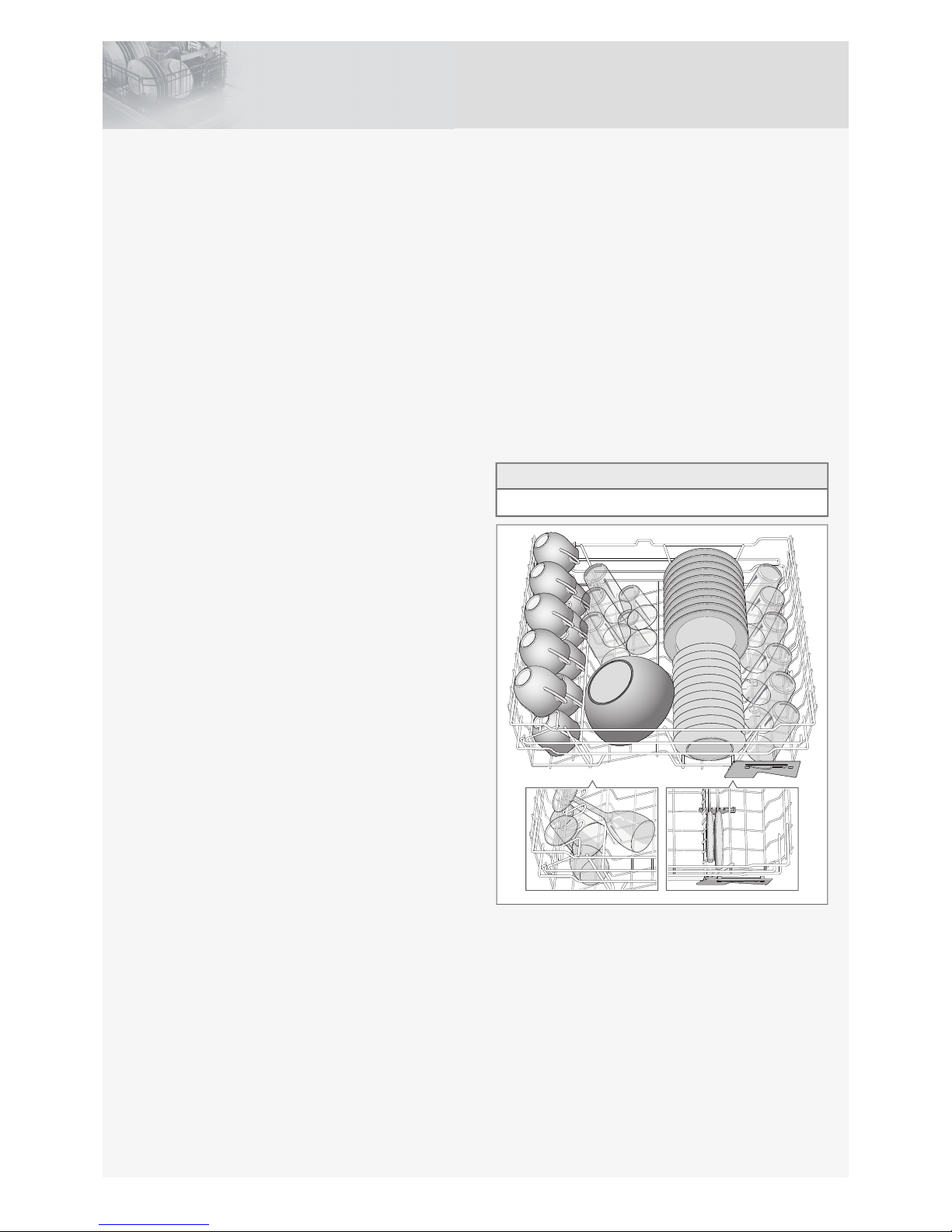

CUTLERY BASKET
Place cutlery with the handles facing down, except for knives, and
spread them out as much as possible. Ensure that spoons do not
stack inside each other.
The cutlery basket is best placed in the middle at the front of the
lower basket to best utilise dishwashing performance from the
unique spray nozzle (Power Zone™ Cutlery), which is intended
for the cutlery basket.
NOTE!
Do not place cutlery made of different materials, such as silver
and stainless steel, in the same place (risk of discolouration).
WARNING!
Knives and other pointed items must be placed with the points
down in the cutlery basket or horizontally in other baskets.
Fold-down section for small items
The cutlery basket has a fold-down section in the middle for small
items, or small shafts, such as electric whisk attachments.
ac
b
Cutlery basket with lid
ac
b
Positioning of cutlery basket lid (in upper basket)
The cutlery basket lid can be removed and used, for example, as
an extra cutlery basket in the upper basket (see below).
ab
6

USING THE DISHWASHER
ADD DETERGENT
1 Prewash detergent compartment
2 Main wash detergent compartment
Detergent is added according to water hardness.
Follow the instructions on the detergent packaging.
Too much detergent can result in less effective dishwashing and
also entails greater environmental impact.
Add the detergent to the detergent compartment. There is one
compartment for the prewash and one for the main wash. If tablets
are not used, add a small amount of the detergent to the prewash
compartment. Contact the detergent manufacturer if you have
any questions about the detergent.
WARNING!
Children must be supervised – dishwasher detergent is corrosive!
NOTE!
Use only dishwasher detergent! Washing up liquid must not be
used as the foam that forms prevents the dishwasher from
operating effectively.
Dishwasher tablets
Halve the tablet if it is difficult to close the dispenser lid. There is
a risk that the detergent will not be released properly if the lid is
tight and will not open correctly.
NOTE!
Dishwasher tablets are not recommended for short programs
(less than 75 minutes). Use powder or liquid dishwasher
detergent instead.
3–in–1/All-in-one detergent
Read through the directions for these products carefully. If anything
is unclear, contact the detergent manufacturer.
PROGRAM SELECTION
Press the Program selector one or more times until the desired
program symbol lights.
Daily wash
A program suitable for day-to-day dishwashing. This program can
also clean dried leftovers, but is not intended for burnt food, such
as on oven dishes.
Heavy wash
Program for very dirty dishes, such as pans, casserole dishes and
oven dishes. If these dishes do not completely fill the dishwasher,
you can add plates and the like.
Normal program
Use to wash normally dirty dishes, such as plates, serving dishes,
cups, glasses and so on.
For washing normally soiled mixed loads, with the best energy and
water performance, use the Normal program; low temperature,
short drying (no options).
If you want to improve the dishwashing and drying result activate
the options high temperature and long drying . This causes a
slight increase in energy consumption.
Eco wash
Use when you want to save water. For normally dirty dishes.
Quick wash
This program is used for glasses and porcelain that is slightly dirty,
such as coffee cups.
Rinse & Hold
Used to rinse dishes while you wait for the dishwasher to become
fully loaded.
SELECTING OPTIONS
To select an option, press one of the option buttons. The field
next to the button lights when the option is activated. The available
options depend on the selected program. Once you have started
the program, the options you selected are saved for the next time
you use the same program.
High temperature
Activate this option for improved dishwashing results. The machine
then uses a higher temperature for the main wash.
If you want to use the lower temperature, press until the field
next to the button turns off.
7

You can vary the temperature as shown below:
55°C/70°CHeavy wash:
50°C/65°CNormal program:
60°C/65°CDaily wash:
30°C/60°CQuick wash:
55°C/60°CEco wash:
Long dry
A higher temperature in the final rinse and a longer drying phase
improves the drying result if you activate the Long dry option. This
causes a slight increase in energy consumption.
If you want a program with Short dry, press so that the field next
to the button turns off.
START THE DISHWASHER
Press and hold Start until the display flashes three times with the
remaining time. This indicates that the program has started. Close
the door properly, otherwise the dishwasher will not start. The
display indicates if the door is open.
NOTE!
If the machine does not start within 2 minutes of the last button
press, the display returns to showing the last program run.
TIME REMAINING
Once you have selected a program and options, the display
indicates how long the program took the last time it was used.
Once you have started the dishwasher, the display indicates how
much program time remains. The remaining time is updated after
the water for the final rinse has been heated.
This may differ somewhat from time to time depending on the
temperature of the water supply, the amount of dishes, the
ambient temperature and other factors.
The time counts down while the program is running and the
remainder of the program is displayed. The remaining time is
displayed e.g. 1:15, meaning that 1 minute 15 seconds of the
program remains.
NOTE!
During the first run of each program, the remaining time
displayed can be slightly misleading, as the dishwasher is estimating
the time. When you run the program a second time, the
dishwasher will calculate the remaining time based on the
previous duration of the program.
STOPPING OR CHANGING A PROGRAM
In order not to accidently press a button and cancel the current
program, you must press and hold Stop for five seconds if you
want to change programs after starting the dishwasher. Add more
detergent if the lid of the detergent dispenser has opened. Then
choose a new program and press Start.
DO YOU WANT TO ADD MORE DISHES?
Open the door. The dishwasher stops automatically. Add the
dishes, close the door and the dishwasher continues the program.
IF THE DISHWASHER IS TURNED OFF USING
THE MAIN POWER SWITCH OR DUE TO A
POWER FAILURE
If the dishwashing program was not finished, the interrupted
program continues when power is restored.
NOTE!
During drying, the program is interrupted if the power is cut or
the door is open for more than 2 minutes.
ONCE THE PROGRAM HAS FINISHED
Once the program has finished, “End” appears on the display.
A buzzer also sounds at the end of the program. See the section
Settings, which describes how to change this function.
Once the dishwasher has finished, it uses only standby power. Turn
off the dishwasher using the main power switch if you want to
completely cut the power. Turn off the water supply valve after
each use.
Drying
For additional drying the door should be opened 35 mm upon
completion of the drying cycle. For more information, see page
16 in the chapter Technical information.
8

SETTINGS
DO AS FOLLOWS TO OPEN THE SETTINGS MENU:
Turn off the dishwasher using the main power switch. Wait about five seconds.1.
Then press the main power switch again. Wait until the numbers appear in the right-hand display before continuing
to the next step.
2.
Within five seconds, press and hold the Program selector (wait for the audible signal confirming the button press)
and then immediately press the Long dry button without releasing the Program selector.
3.
+
Keep the buttons pressed until the symbols for the Daily wash and Rinse & Hold programs start to flash.4.
TIP!
Be sure to press right on the symbols, so as not to inadvertently activate any other button. Try again if you fail to
open the settings menu the first time.
PROG
START
STOP
START
3UHVV WR VDYH WKH VHW YDOXH DQG FRQWLQXH WR
WKH QH[W VHWWLQJ
&XUUHQW VHWWLQJ
&XUUHQW VHWWLQJ YDOXH
3UHVV WR EURZVH EHWZHHQ VHWWLQJ YDOXHV
'LVSOD\
YOU CAN NOW ADJUST THE FOLLOWING SETTINGS:
DescriptionSettingsOptionsButton press
You can activate the child lock (button lock) option
to prevent children from starting the dishwasher.
Child lock
(Kid Safe™)
(Off)
(On) Press the High temperature and Long dry buttons si-
multaneously to temporarily deactivate the button
lock when you want to start the dishwasher. The
button lock is automatically reactivated after 2 minutes.
Press Start to save the setting value and continue to the next setting.
If you do not want to change any other settings, keep pressing Start to step through the entire settings menu.
The dishwasher uses a buzzer to indicate when a
program is finished or when a fault has occurred.
Buzzer volume
(Off)
(Low)
(High)
Press Start to save the setting value and continue to the next setting.
9

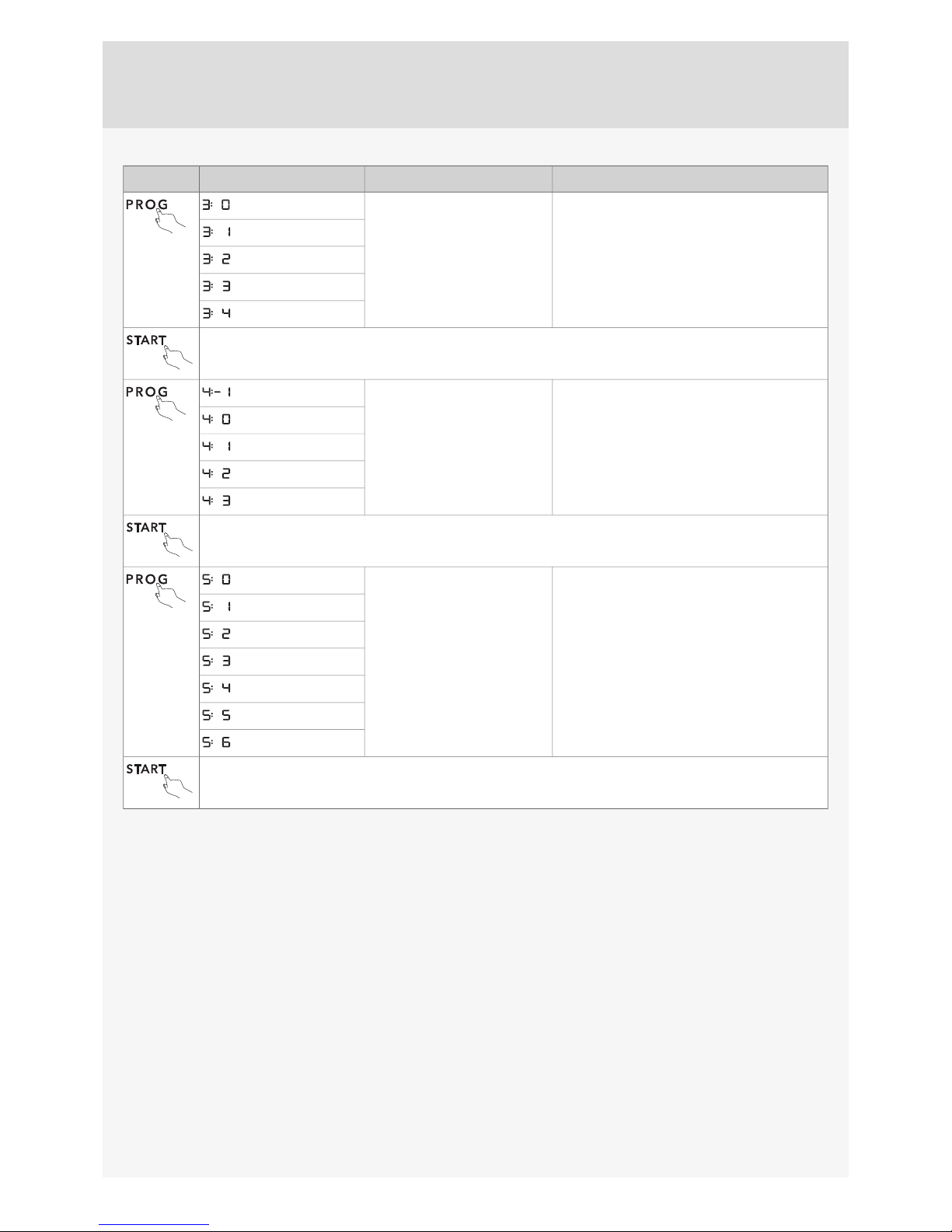

DescriptionSettingsOptionsButton press
This sound is used to confirm each button press.Operation volume
(Off)
(Low)
(High)
Press Start to save the setting value and continue to the next setting.
For adjusting the contrast of the display.LCD contrast
(Low)
(High)
Press Start to save the setting value and continue to the next setting.
Rinse aid dosage setting.Rinse aid
(Off)
(Low dosage)
(High dosage)
Press Start to exit the settings menu.
10

CARE AND CLEANING
COARSE FILTER
The coarse filter traps larger food particles, which cannot get past
the drainage pump. Empty the coarse filter as necessary.
1 Lift the coarse filter by the handle.
2 Empty the coarse filter. Remember to replace it!
&RDUVH ILOWHU
FINE FILTER
Debris that collects on the fine filter is automatically rinsed away
during each wash. However, the fine filter and its pipe section
should be cleaned a couple of times a year.
1 Turn the handle anticlockwise once.
1x
)LQH ILOWHU
2 Lift the pipe section straight up by the handle. Free the coarse
filter to clean the pipe section.
3 Remove and clean the fine filter.
4 Replace in reverse order. Check that the edges seal properly
when replacing the fine filter.
3LSH VHFWLRQ
5 Lock the filter in place by turning the handle clockwise to the
stop position. The handle should point straight out from the
dishwasher.
1x
NOTE!
The dishwasher must not be used without the filter in place!
Diswashing efficiency can be affected if the course filter is
incorrectly fitted. After cleaning ensure that filter handle is fully
locked with the handle pointing out of the dishwasher.
DRAINAGE PUMP
The pump can be accessed from inside the dishwasher.
1 Cut the power to the dishwasher by pulling out the plug from
the wall socket!
2 Remove the coarse filter and pipe section.
3 Remove the small yellow fitted piece at the left of the bottom
drain (see illustration below).
4 By inserting your finger into the hole you can turn the pump
blade to release anything blocking it.
5 Reinstall the fitted piece and filters.
6 Plug the machine in again.
If the dishwasher still does not start and a whirring sound is
heard, the overflow protection has been activated.
• Shut off the water.
• Remove the plug from the wall socket.
• Call the service division.
NOTE!
Do not forget to reinstall the fitted piece.
LOWER SPRAY ARM
Holes and bearings can sometimes become blocked.
11

1 Pull the lower spray arm straight up to release it.
2 Remove any debris using a needle or the like. The spray arms
also have holes underneath.
UPPER SPRAY ARM
The upper basket must be removed before the upper spray arm
can be released.
1 Pull out the upper basket and turn the basket catch on each
runner outwards (see illustration). The basket can now be
removed.
2 Loosen the upper spray arm in the same manner as the lower
spray arm and clean it.
DOOR
When cleaning the edge around the door, use only a slightly damp
cloth (with a little cleaner if necessary).
WARNING!
Do not use a spray bottle or the like around the door lock. This
is to ensure that water does not penetrate the door catch and
come into contact with the electrical components.
LIMESCALE DEPOSITS
The dishwasher tub is made of stainless steel and is kept clean
through normal use. However, if you have hard water, limescale
deposits may form in the dishwasher. If this happens, run the
Normal program program with high temperature and two
tablespoons of citric acid in the detergent compartment (with no
dishes in the machine).
FRONT PANEL
Keep the touch buttons clean and free from grease. Wipe them
clean with a dry or slightly damp cloth. Never use cleaners – they
can scratch the surface. Use the main power switch to turn off
the dishwasher before cleaning the touch buttons to avoid
activating any buttons unintentionally.
12

TROUBLESHOOTING
ActionType of faultDisplay
Call the service division.Overfilling
See "Water remains in the dishwasher" in the table
below.
Water outlet fault
Check that the water tap is on.Water inlet fault
Check whether dishwasher inlet hose is connected to
a pressure limiting valve (some pressure limiting valves
may restrict the supply of water to the dishwasher).
Turn off the water tap and call the service division.Inlet valve leakage
Turn off the machine with the main power switch and then turn it on again to clear the error message from the display.
ActionPossible causesProblem
Remove the arms and clean them.The spray arms do not rotate.The dishes are not clean.
Check that the dishes are not blocking the
spray arms.
Avoid large packages.Old detergent. Detergent is a perishable
product.
Dose according to water hardness. Far too
much or far too little detergent results in
poorer dishwashing results.
Incorrect detergent dosage.
Select a higher temperature or a more pow-
erful program.
Dishwashing program too weak.
Do not cover porcelain with large bowls or
the like. Avoid placing very tall glasses in the
corners of the baskets.
Dishes loaded incorrectly.
Place dishes to sit steady.Glasses and cups have toppled over during
the program.
Screw the filter firmly into place. See the sec-
tion Care and cleaning.
The filter is not correctly fitted.
See the sections Before washing for the first
time and Settings.
Incorrect rinse aid dosage setting.Spots or films on the dishes.
Wash crystal at a low temperature and with
a conservative amount of detergent. Contact
the detergent manufacturer.
Too high temperature and/or too much deter-
gent can cause etching on crystal. Unfortunate-
ly, this cannot be repaired, only prevented.
Reduce the amount. See the sections Before
washing for the first time and Settings. If you
have very soft water, you may want to dilute
the rinse aid 50:50 with water.
Rinse aid dosage setting too high.The dishes have a sticky white/blue film.
Rinse off these types of foodstuffs if not
starting the dishwasher immediately. Why not
use the Rinse & Hold program.
Some foodstuffs, such as mustard, mayonnaise,
lemon, vinegar, salt and dressings, can mark
stainless steel if left for too long.
Spots on stainless steel or silver.
Silver and stainless steel items should not
come into contact during dishwashing.
All stainless steel can cause spots on silver if
they come into contact during dishwashing.
Aluminium can also cause spots on dishes.
Use a detergent with a bleaching agent.Lipstick and tea can be difficult to wash off.Spots left after washing.
13

ActionPossible causesProblem
Check that the dishes are placed securely. Spin
the spray arms to make sure they can rotate.
The dishes are not correctly placed or the
spray arms are not rotating.
Rattling sound when dishwashing.
Press and hold Start until the display flashes
three times with the remaining time.
The Start start button has not been pressed
for long enough.
The dishwasher does not start.
Check.The door is not properly closed.
Check.A fuse/circuit breaker has been tripped.
Check.The plug is not plugged into the wall socket.
Check.The water tap is turned off.
Check.Overflow/leaks
Turn off the water tap. Pull out the plug and
call the service division.
A whirring sound (the drainage pump) is
heard from the dishwasher and does not stop
when the main power switch is turned off.
None, next time the program is run the cor-
rected time will be displayed.
The program is taking longer than estimated.1 minute appears in the display.
Loosen the drainage hose where it connects
to the sink unit's water trap. Check that no
debris has fastened. Is the cone-shaped part
of the pipe cut to an inner diameter of at least
14 mm?
Blocked drainage hose.Water remains in the dishwasher.
Check that the hose is free from kinks and
sharp bends.
Kink in drainage hose.
Clean the coarse and fine filters.The filters are blocked.
Ensure filter is completely locked with handle
pointing towards the door.
The filter is not locked in completely.
Clean the drainage pump. See the section
Care and cleaning.
Debris in the drainage pump.
Clean with washing-up brush and low foaming
cleaner.
Dirt around the seals and in corners.Bad odour in dishwasher.
Run a program with a higher temperature
about once a month.
Low temperature programs have been select-
ed for a prolonged period.
Activate the Long dry option.Drying power too low.The dishes are not dry enough.
Fully load the dishwasher.The dishwasher is not fully loaded.
Top up with rinse aid or increase the rinse aid
dosage. See the sections Before washing for
the first time and Settings.
Rinse aid needs topping up or dosage is set
too low.
Open the door a little once the program has
finished.
Check that the baskets are correctly posi-
tioned horizontally.
The baskets are not correctly positioned.Cannot close door.
Check that the dishes are not blocking the
baskets from sliding properly into place.
14

ActionPossible causesProblem
Wait a moment then try again.You have pressed the touch buttons too soon
after opening the door.
The touch buttons do not react when pressed.
Clean with a dry or slightly damp cloth.Dirt on the touch buttons.
See the section Settings.Child lock (button lock) activated.
15

TECHNICAL INFORMATION
INFORMATION FOR TEST INSTITUTE
Energy labelling
AS/NZS 2007Australian standard:
14Number of place settings:
Normal program; Low temperature, Short dry (no options)Dishwashing programs:
The door should be opened upon completion of the drying cycle a distance of 35 mm at V.
V
2:00 hours:minutesProgram time:
Cold water 20 °CConnection:
IEC 60704-2-3Test method for noise measurement:
Dosages during testing
In accordance with AS/NZS 2007Detergent:
7.5 gramPrewash:
25 gramMain wash:
In accordance with AS/NZS 2007Rinse aid:
5Rinse aid dosage:

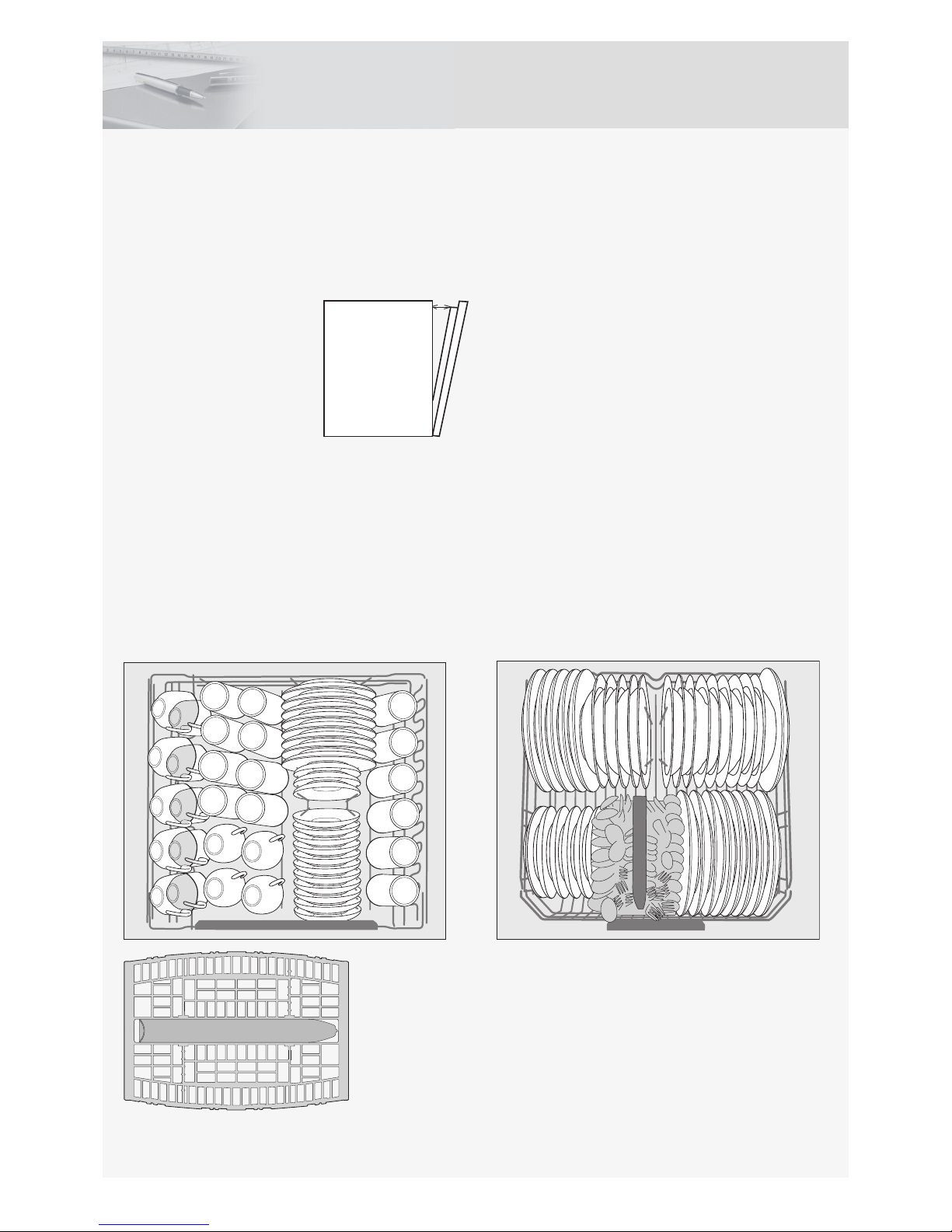

Loading the dishwasher
1 Teaspoons
2 Dessertspoons
3 Soupspoons
4 Forks
5 Knives
2
4
4
2
2
34
4
55
333333333333
5
3
4
4
555
11 1 1
5
11
11 1 1 1 1
2
22
22
22
22 2
555 4
4
4
5
4
55
44
5
4
2
1
1
4
16

TECHNICAL DATA
817-872 mmHeight:
596 mmWidth:
550 mmDepth:
49 kg1)
Weight:
14 place settings2)
Capacity:
300 - 1000 kPaWater pressure:
0.3–10 kp/cm2
3–100 N/cm2
See type plate.Electrical connection:
See type plate.Rated power:
1) Weight can vary due to different specifications.
2) In accordance with standard, AS/NZS 2007.
17

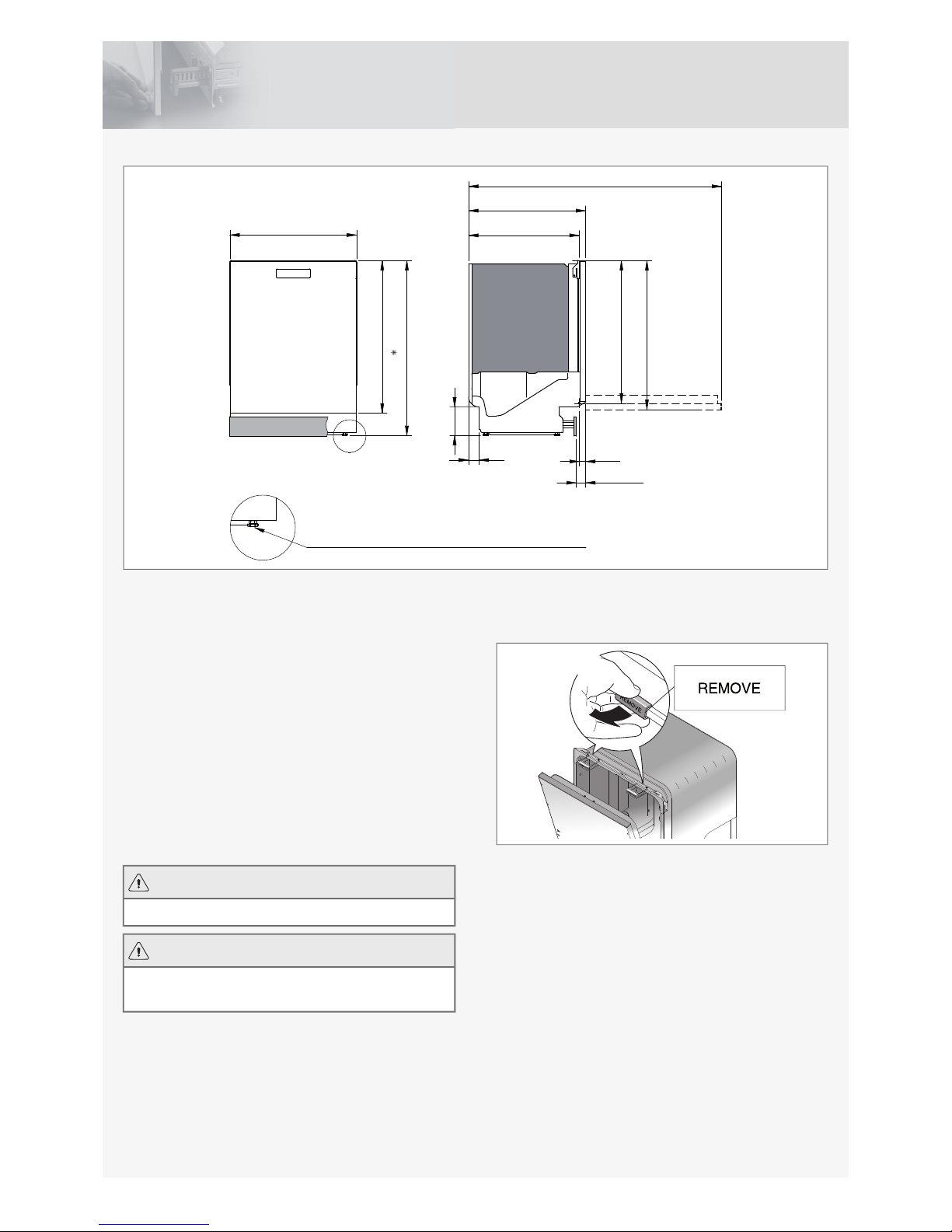

INSTALLATION
519
1189
550
30-94
596
30
670
49
700
717
821 -872
133-183
>PP@
5HPRYH ORFNLQJ QXWV IRU DQ LQVWDOOHG KHLJKW RI
 PP
SAFETY INSTRUCTIONS
• Connections to electricity, water and drainage must be
performed by a qualified professional.
• Always follow applicable regulations for water, drainage and
electricity.
• An incorrect or flawed installation can result in higher
consumption of energy, water and detergent, which can result
in increased costs and poor dishwashing results. In order to
minimise noise it is important that you follow the instructions.
• Take care during installation! Wear protective gloves! There
must always be two people!
• Before screwing the dishwasher into place, test the dishwasher
by running the Rinse & Hold program. Check that the
dishwasher fills with water and drains. Check also that none of
the connections leak.
WARNING!
Turn off the water supply when installing the dishwasher!
WARNING!
The plug must be disconnected or power to the socket turned
off while the work is carried out!
TRANSPORT PROTECTION FOR THE DOOR
Do not forget to remove the transport protection for the door
when unpacking the dishwasher.
2x
18

SUGGESTED MACHINE INSTALLATIONS

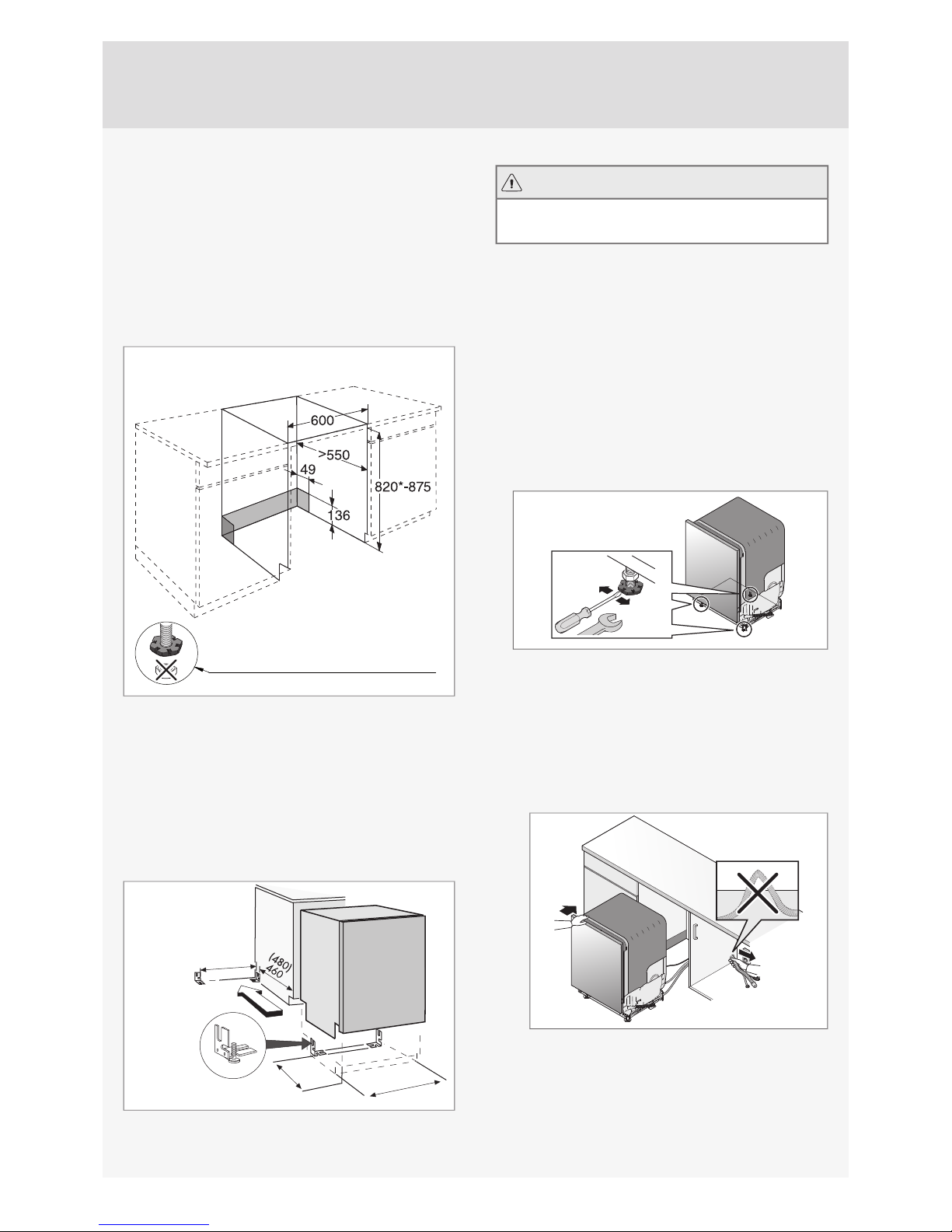

The dishwasher can be installed built-in, completely freestanding
or partially built-in.
A. Built-in
The dishwasher is intended for installation under a worktop. The
recess dimensions are illustrated. Holes for wires/cables need not
be larger than 38 mm in diameter. Make sure the edges of such
holes are even to prevent damage to the drainage and inlet hoses
and the power cable.
5HPRYH ORFNLQJ QXWV IRU DQ LQVWDOOHG KHLJKW
RI  PP
>PP@
B. Freestanding
A freestanding dishwasher must be fitted with anti-tip brackets.
This comprises two brackets, which are screwed into place as
illustrated.
The dishwasher is then pushed in so that the brackets engage the
rear feet. Now the dishwasher will not topple if pressure is put
on the open door. If the dishwasher is installed completely on its
own, side panels and a worktop must both be fitted. Accessories
can be purchased where you bought the dishwasher.
455-475
600
413
WARNING!
A completely freestanding dishwasher must be fitted with anti-tip
brackets.
C. Partially built-in
If the dishwasher is located so that one of its sides is visible, a side
panel must be fitted. Accessories can be purchased where you
bought the dishwasher.
ADJUST THE HEIGHT AND SLIDE THE
DISHWASHER INTO PLACE
1 Start by measuring the height from the floor to the bottom
edge of the worktop.
2 Measure the height from the floor to the top edge of the
dishwasher.
3 Adjust all feet by turning them clockwise to raise or
anticlockwise to lower the dishwasher.
 PP
4 Check that there is an air gap of at least 3 mm between the
underside of the worktop and the top edge of the dishwasher.
5 Tighten the lock nuts (lock nut) on the rear feet.
6 Slide the dishwasher into place.
• Pull through the drainage and supply hoses when the
machine is slid into place.
• Check that the hoses have no kinks or sharp bends, and
check that there is nothing that can damage the hoses.
7 Make any final adjustments to the front feet (the dishwasher
may lean no more than 5 mm) and tighten the lock nuts.
If you want to install your dishwasher freestanding, skip steps 1, 2
and 4 above.
19

DRAINAGE CONNECTION
When the drainage hose is routed to a connection nipple on the
sink unit's water trap (see illustration 1), please note that the hose
must be attached at the same height as the underside of the sink
unit, otherwise dishwater from the sink may flow back into the
dishwasher. The drainage hose is threaded onto the cone-shaped
connection pipe on the sink unit's water trap. The cone-shaped
pipe must be cut to an internal diameter of at least 14 mm. For
other connection alternatives, see illustrations 2 and 3.
The drainage hose may be extended by a maximum of 3 m (the
total length of the drainage hose must not exceed 4.5 m). Any
joins and connecting pipes must have an internal diameter of at
least 14 mm. However, the drainage hose should ideally be
replaced with a new hose without joins.
No part of the drainage hose may be more than 950 mm above
the bottom of the dishwasher. The hose must not be routed
directly to a floor drain or the like. In such cases, the hose can act
as a siphon and empty the dishwasher.
The hose must always discharge at least 350 mm above the bottom
of the machine.
Ensure that the drainage hose has no kinks.
NOTE!
The hose must be attached at the same height as the underside
of the sink.
0D[  PP
0LQ  PP
0LQ  PP
)LJXUH 
0D[  PP
0LQ  PP
0D[  P
)LJXUH 
0D[  PP
0LQ  PP
)LJXUH 
CONNECTION TO WATER SUPPLY
Use only the supply hose provided with the dishwasher. Do not
re-use old hoses or other spare supply hoses.
The supply pipe must be fitted with a stopcock. The stopcock must
be easily accessible, so that the water can be shut off if the
dishwasher has to be moved.
Once the installation is complete, the stopcock should be opened
to allow the pressure to settle for a while and to check that all
connections are tight.
Connect to cold water...
If you use oil or electricity to heat your home.
Connect to hot water (max. 70 °C)...
If you use district heating, solar power or geothermal power to
heat your home. Choosing a hot water connection cuts program
times and reduces the dishwasher's electricity consumption.
NOTE!
Connecting a dishwasher to the water supply via certain types
of pressure limiting valves may restrict the water supply!
This may cause F:12 error code/ Water inlet fault to be displayed.
ELECTRICAL CONNECTION
Information about the electrical connection can be found on the
serial number plate This specification must match the electricity
supply.
Dishwashers fitted with a plug must be connected to an earthed
socket.
The electric wall socket must be placed outside of the installation
area to be easily accessible after installing the dishwasher. Do not
use an extension cord!
NOTE!
Repairs and maintenance must be carried out by a qualified
professional.
20
