ASKO D5654XXLHS
Operating Instructions
Operating Instructions
Dishwasher

3Before washing for the first time
3
Read the operating instructions
3
Be careful with certain materials
3
Checking water hardness
3
Program key
4Important safety instructions
4
Winter storage/Transport
4
Overflow guard function
4
Care and maintenance
instructions
4
Packing material
4
Disposal
5Child safety
5
Activate child lock (button lock)
6Dishwasher components
7Dishwasher baskets
9Front panel
10Detergent/Rinse Aid Dispenser
11Economic dishwashing
12Fragile dishes
13Dishwashing
13
Load the baskets correctly
14
Add detergent
16
Select the program
19
Select options
20
After dishwashing
21Settings
23Time remaining
24
Care and maintenance
instructions
27Rinse aid
28Error messages
29Troubleshooting
32Technical information
32
Information for test institute
32
Technical data
33Service
34
Warranty
34
How to contact ASKO Appliances
Inc.
36Quick guide
Customer Care Center2
1-800-898-1879
www.askousa.com
Contents

Do you need this Use&Care Guide in Spanish? Log
on to www.askousa.com/customer-care to download.
¿Necesita esta Instrucciones de uso y cuidado en
español? Entre en www.askousa.com/customer-care
y descárguesela.
Read the operating instructions
Read through the operating instructions before using
the dishwasher, especially the sections Important
safety instructions, Child safety, and Dishwashing.
Be careful with certain materials
Read the section Fragile dishes before dishwashing
porcelain with unglazed decoration or other utensils
made from plastic, wood, or crystal that you value.
Checking water hardness
Contact the local water utility to check the water
hardness in your area. This is important to determine
how much detergent and rinse aid to use.

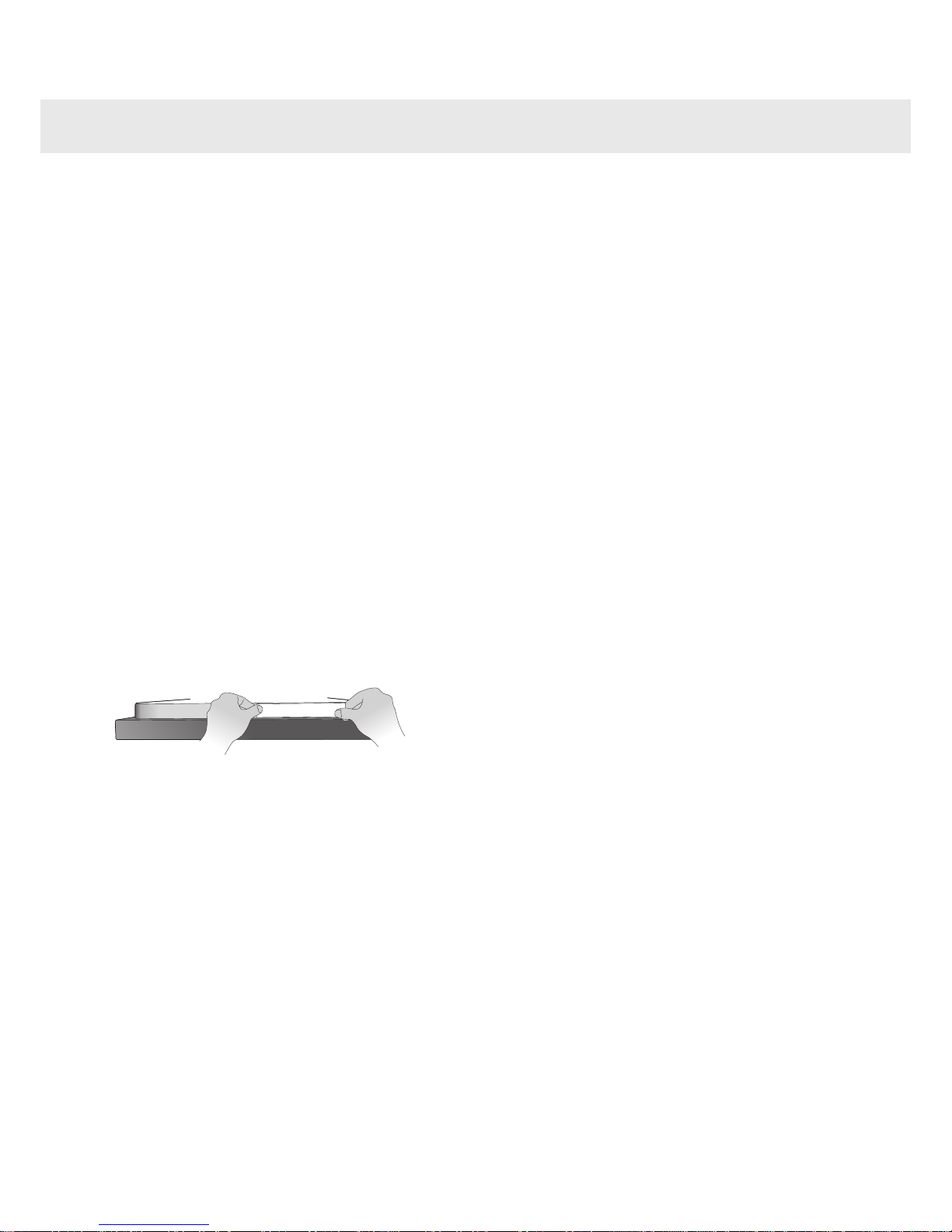

Program key
Some dishwashers include program keys in different
languages. Attach the program key in the appropriate
language to the top of the door.
3Customer Care Center
1-800-898-1879
www.askousa.com
Before washing for the first time

SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
WARNING!
This manual does not cover all possible conditions
and situations that may occur. Common sense and
caution should always be used when installing,
operating, and maintaining any appliance.
• Read all instructions before using the dishwasher.
• Dishwashers must be electrically grounded. Read
the Installation Instructions for details.
• Use the dishwasher only for its intended purpose.
• Do not run the dishwasher while you are out of the
home.
• Use only automatic dishwasher detergents and
rinse agents.
• To reduce the risk of injury, keep detergents and
rinse aids out of the reach of children.
• Do not load sharp items near the door; you could
damage the door seal.
• Place sharp knives in the cutlery basket with the
sharp ends down to avoid the risk of cut-type
injuries.
• Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent. For items not
marked, check the manufacturer’s
recommendations. Items not dishwasher safe
could become deformed or melt and create a
potential fire hazard.
•Do not operate the dishwasher unless all enclosure
panels are properly in place (i.e., guard plate,
access panel, toe kick, etc.).
• Do not tamper with controls by removing or
changing.
• Do not abuse, sit on, or stand on the dishwasher
door or baskets.
• To reduce the risk of injury, do not allow children
to play in or on a dishwasher.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for two weeks, before using the
dishwasher turn on all hot water faucets and let
the water flow from each for several minutes. This
will release any accumulated hydrogen gas. As
the gas is flammable, do not smoke or use an open
flame during this time.
• When removing an old dishwasher from service
or discarding it, remove the door to the washing
compartment.
• Do not store or use combustible materials,
gasoline, or other flammable vapors and liquids
in the vicinity of this or any other appliance.
• Disconnect electrical power to dishwasher before
servicing.
• Repairs should be done by a qualified technician.
• Read the grounding instructions in the installation
instructions.
Winter storage/Transport
• Store the dishwasher where the temperature
remains above freezing.
• Avoid long transport distances in very cold
weather.
• Transport the dishwasher upright or laying on its
back.
Overflow guard function
The overflow protection starts pumping out the
machine and turns off the water supply if the water
level in the dishwasher exceeds the normal level. If
the overflow protection is triggered, turn off the water
supply and call the Customer Care Center.
Care and maintenance instructions
When cleaning the edge around the door, use only a
slightly damp cloth. Do not spray water around the
edge! Moisture can make its way into the lock, which
contains electrical components.
Packing material
Please sort waste materials in accordance with local
guidelines.
Disposal
• When the machine has reached the end of its
service life and is to be disposed of, it should
immediately be made unusable. Pull out the power
cable and cut it as short as possible.
• The dishwasher is manufactured and labeled for
recycling.
• Contact your municipality for information about
where and how your dishwasher can be recycled
correctly.
Customer Care Center4
1-800-898-1879
www.askousa.com
Important safety instructions

TIP!
Dishwasher detergents and rinse aids are corrosive,
so always keep them out of reach of children.
• Should a child swallow dishwasher detergent or
rinse aid, give plenty to drink immediately, i.e., one
or two glasses of milk or water. Do not try to induce
vomiting. Seek medical advice immediately: Call
the National Capital Poison Center at
1-800-222-1222.
• Always close the door and start the dishwasher
as soon as you put in the detergent.
•Always keep small children away from the machine
when it is open. There may be some detergent
residue left inside the machine.
• If dishwasher detergent gets in someone’s eyes,
rinse them with plenty of water for at least 15
minutes.
• Do not allow children to use or play in or on the
dishwasher.
• Load all long and sharp items in the utensil basket
in the middle rack. If this is not possible, load sharp
objects with the pointed end facing the back of the
dishwasher. Sharp items loaded in the cutlery
basket should be loaded with pointed ends down.
Activate child lock (button lock)
You can activate the child lock (button lock) to prevent
children from starting the dishwasher (see the section
Settings).
5Customer Care Center
1-800-898-1879
www.askousa.com
Child safety

6
7
8
7
9
10
11
1
2
3
4
5

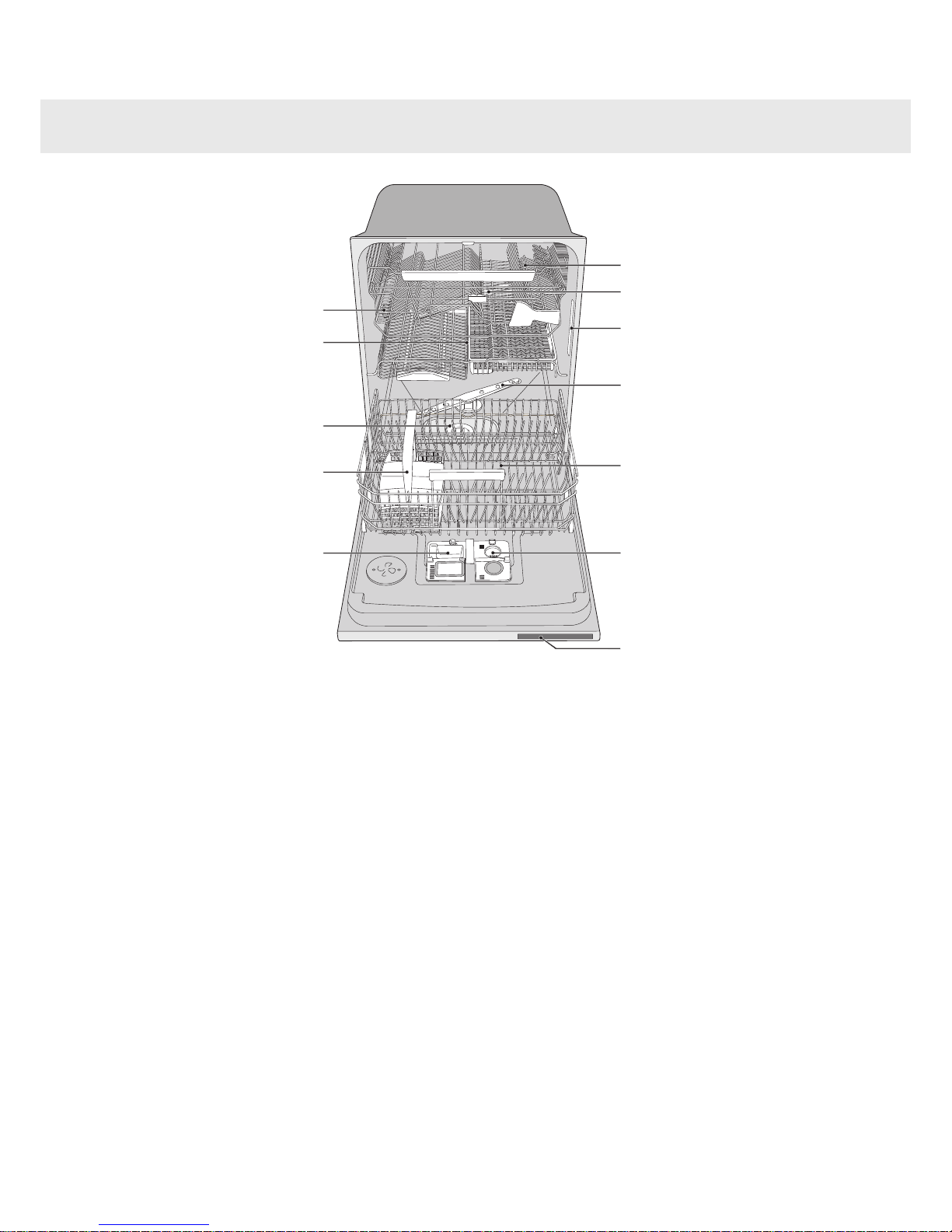

Spray arms7.Interior light1.
Serial number plate8.Middle basket2.
Lower basket9.Filters3.
Rinse aid compartment10.Cutlery basket4.
Panel11.Detergent compartment5.
Upper basket6.
*Specifications may differ depending on the model and market.
Customer Care Center6
1-800-898-1879
www.askousa.com
Dishwasher components*

Upper basket
1. Wine glass shelf
2. Handle
3. Knife guard
4. Spray arm
5. Locking handle for upper basket
Raising the upper basket
1. Pull out the upper basket.
2. Grab the sides of the upper basket with both hands
and lift it up.
Lowering the upper basket
1. Pull out the upper basket.
2. While holding the basket, pull out the two locking
handles (5) on either side to lower the upper basket.
1
4
2
5
1
3
Middle basket
12
3
4
Protective cap
1. Wire basket for cups, small glasses, or bowls
2. Utensil basket for ladles, whisks, food turners, serv-
ing cutlery, and similar items
3. Spray pipes
4. Handle
The two baskets in the middle basket can be removed,
or the entire middle basket can be removed, to create
more space between the upper and lower baskets if
larger items are being washed.
NOTE!
Fit the supplied protective cap if the wire basket with
spray pipes or the entire middle basket is removed.
Don't forget to remove the protective cap when the
wire basket with spray pipes or the entire middle basket
is reinstalled.
*Specifications may differ depending on the model and market.
7Customer Care Center
1-800-898-1879
www.askousa.com
Dishwasher baskets*

Lower basket
1
1
2
2
34
1. Fold-down bowl support left
2. Fold-down plate support right
3. Forward mount for plate support (used for plates
with a diameter greater than 9 3/4" (25 cm))
4. Handle

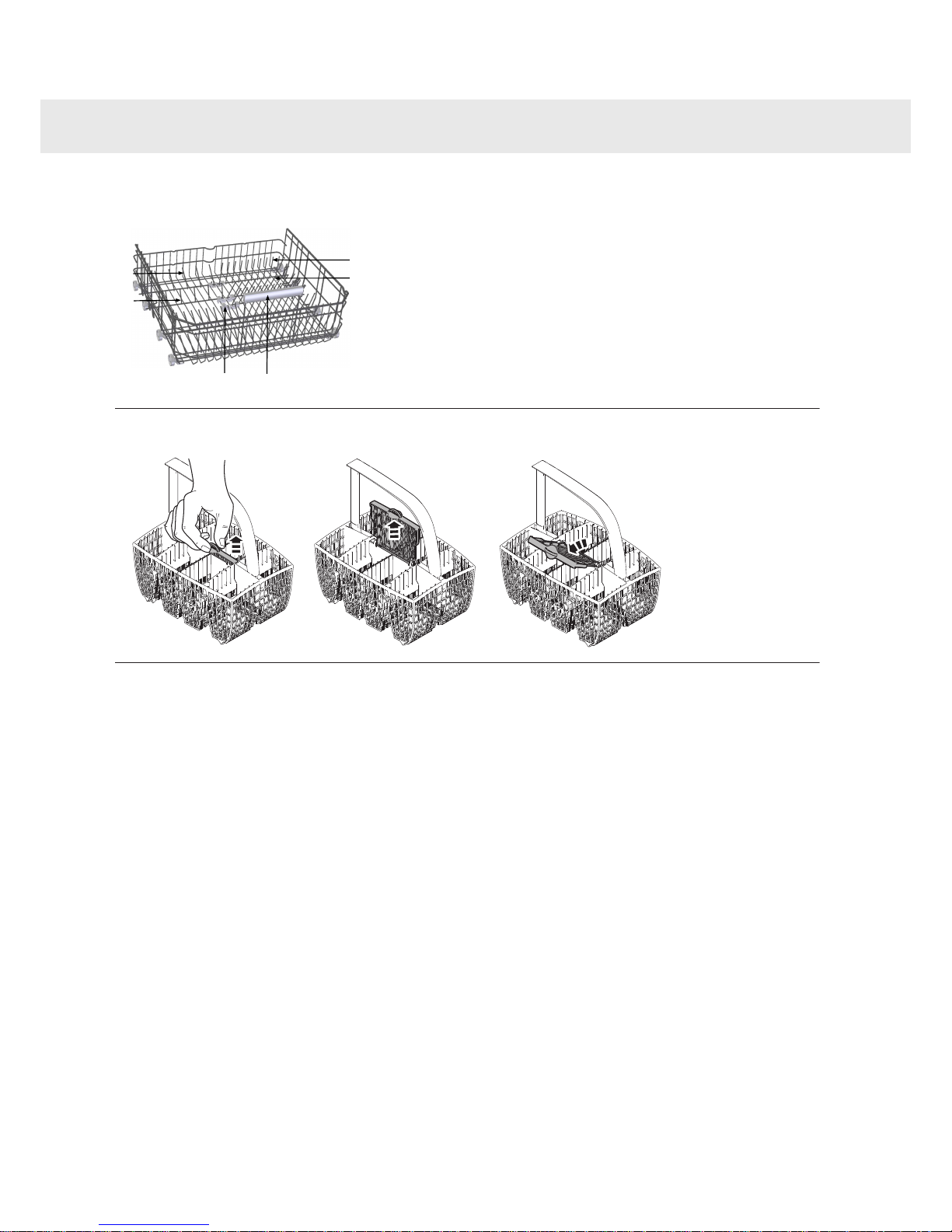

Cutlery basket
ac
b
*Specifications may differ depending on the model and market.
Customer Care Center8
1-800-898-1879
www.askousa.com
Dishwasher baskets*

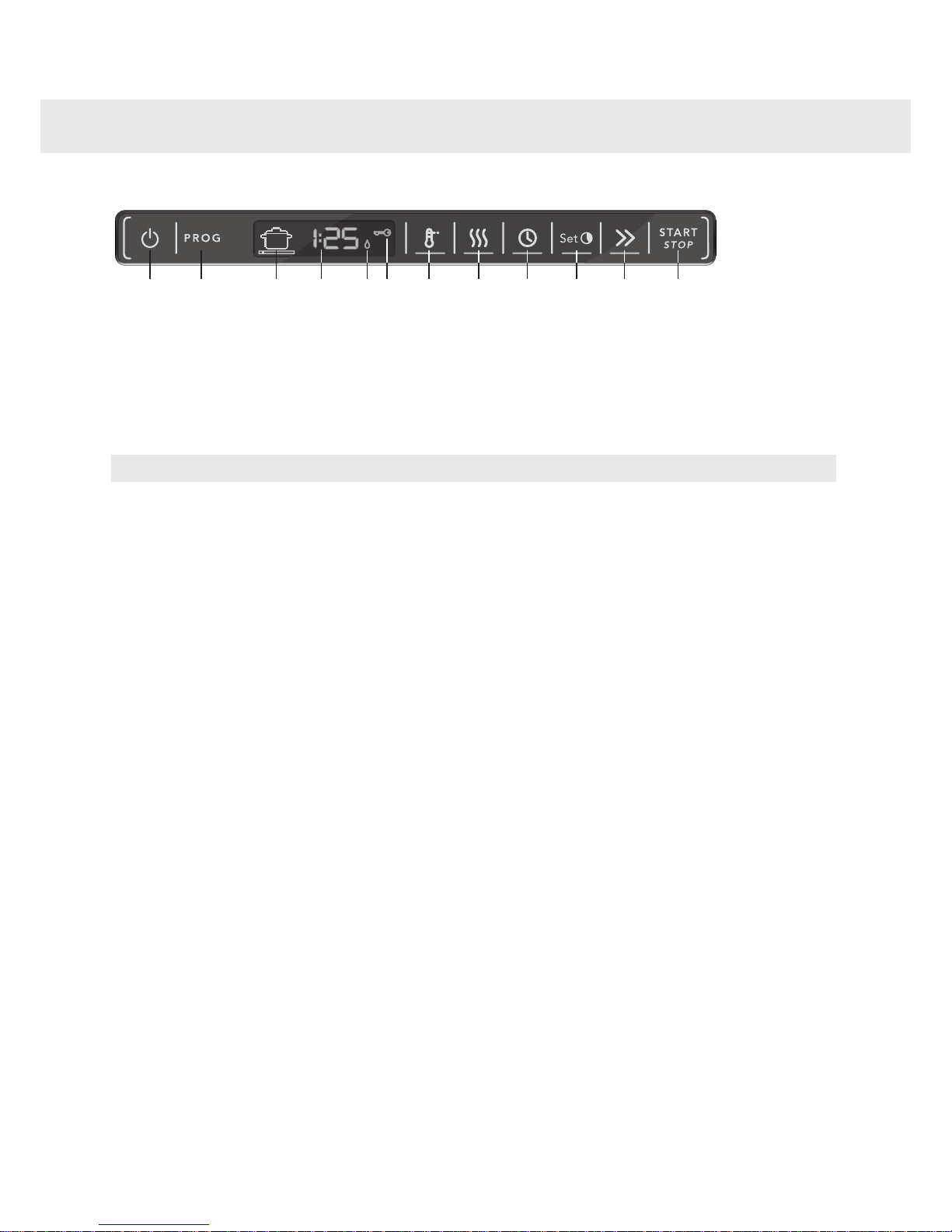

The panel is fitted with touch buttons with audible feedback (see the chapter Settings).
1 32 5 7 8 9 10 11 12
46
High temperature7.Main power switch1.
Long dry8.Program selector2.
Delayed start9.Program symbol3.
Set time (for the Time program)10.Display4.
Time saver11.Rinse aid indicator5.
Start/Stop12.Child lock (button lock)6.
NOTE!
• The touch buttons only react to use when the door is open. Wait a moment before pressing the touch buttons
after opening the door.
• Two minutes after the last button press, the panel backlight enters energy saving mode. Close and reopen
the door, or press the main power switch, to reactivate the panel.
• Keep the touch buttons clean and free from grease. Wipe them clean with a dry or slightly damp cloth. Never
use cleaners – they can scratch the surface. Use the main power switch to turn off the dishwasher before
cleaning the touch buttons to avoid activating any buttons unintentionally.
9Customer Care Center
1-800-898-1879
www.askousa.com
Front panel

1. Prewash detergent compartment
2. Main wash detergent compartment
3. Rinse aid compartment
4. Detergent compartment lid
5. Rinse aid compartment lid
12
45
3
Customer Care Center10
1-800-898-1879
www.askousa.com
Detergent/Rinse Aid Dispenser

Run programs only with a full load
Wait until the dishwasher is fully loaded before running
a program, this way you save energy. Use the Rinse
& Hold program to rinse the dishes if there are any
unpleasant odors while you wait for the dishwasher
to become fully loaded.
Run programs at a lower
temperature
If the dishes are only lightly soiled, you can select a
lower temperature with certain programs. See also
the section Select options in the chapter Dishwashing.
Select a program with Short dry
To save energy, use Short dry. The drying result will
be better if, once the program is finished, you leave
the door slightly open.
Do not rinse under running water
Simply scrape off large food particles before loading
the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Connect to cold water...
If you use oil or electricity to heat your home.
Connect to hot water (max. 160 °F
(70 °C))...
If you use district heating, solar power, or geothermal
power to heat your home. Choosing a hot water
connection cuts program times and reduces the
dishwasher's electricity consumption.
11Customer Care Center
1-800-898-1879
www.askousa.com
Economic dishwashing

Some cookware is not dishwasher safe. This can be
for several reasons. Some materials cannot withstand
high temperatures, others can be damaged by
dishwasher detergent.
Fragile decoration
Porcelain with decoration on top of the glazing (the
items feel rough) should not be washed in a
dishwasher.
Crystal / Glass
Position items so that they do not touch each other
during the wash. Use the lowest possible wash
temperature and the shortest possible program.
Select Short dry. Antique and very fragile items should
not be washed in a dishwasher.
Glass washed in a dishwasher at high temperatures
can gradually develop a gray film that cannot be
removed. Wash fragile glasses at a low temperature
and with a small amount of detergent.
Silver
Silver and stainless steel items should not come into
contact, as the silver can become discolored.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such
cases, the handles may loosen.
Wood
Wooden items should only be washed in a dishwasher
if marked dishwasher safe.
Aluminum
Aluminum can lose its shine if washed in a
dishwasher. However, good quality aluminum pans
can be washed in a dishwasher, even if some of the
shine will be lost.
Plastic items
Avoid washing plastic items that cannot withstand
high temperatures.
Customer Care Center12
1-800-898-1879
www.askousa.com
Fragile dishes

Below are step-by-step instructions to help you
achieve the best possible dishwashing results.
1Load the baskets correctly
Do not rinse dishes under running water before
loading them in the dishwasher. Simply scrape
off large food particles before loading the dishwasher.
See the section Fragile dishes if you want to wash
items that may be considered fragile.

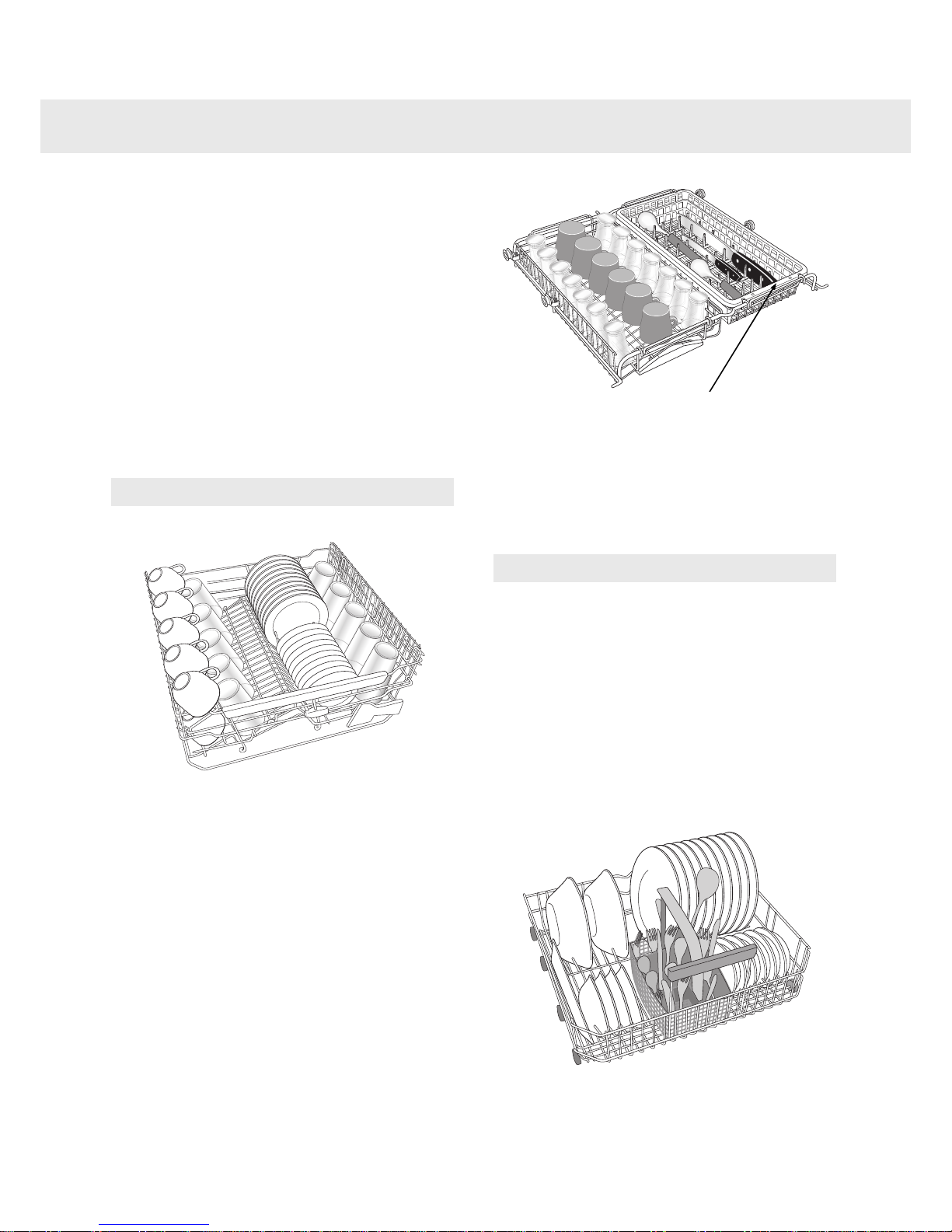

Upper basket
Place glasses, cups, bowls, side plates, and saucers
in the upper basket. Wine glasses are placed on the
wine glass shelf and knives are placed in the knife
stand on the right (if equipped).
NOTE!
All dirty surfaces should face in and down!
Middle basket
The middle basket's wire basket with spray pipes is
suitable for short objects, such as cups, small glasses,
and bowls. The middle basket's utensil basket has
space for ladles, whisks, serving cutlery, and similar
items.
Do not place bowls or cups in the
utensil basket!
The two baskets in the middle basket can be
removed, or the entire middle basket can be removed,
to create more space between the upper and lower
baskets if larger items are being washed.
NOTE!
Fit the supplied protective cap if the wire basket with
spray pipes or the entire middle basket is removed.
Don't forget to remove the protective cap when the
wire basket with spray pipes or the entire middle
basket is reinstalled. See the section Dishwasher
baskets.
Lower basket
Place plates, side plates, serving dishes, pots, and
cutlery (in the cutlery basket) in the lower basket.
Lower the fold-down plate supports when washing
pots.
Cutlery basket
Place cutlery with the handles facing down, except
for knives, and spread them out as much as possible.
13Customer Care Center
1-800-898-1879
www.askousa.com
Dishwashing

Ensure that spoons do not stack inside each other.
The cutlery basket is placed in the lower basket.
WARNING!
Knives and other pointed items must be placed with
the points down in the cutlery basket or horizontally
in other baskets.
Do not place cutlery made of different materials, such
as silver and stainless steel, in the same place (risk
of discoloration).
The cutlery basket has a fold-down section in the
middle for small items, or small shafts, such as electric
whisk attachments.
2Check that the spray arms can
rotate freely
3Add detergent
We recommend that you use only unscented,
granular automatic dishwashing detergent.
Using the wrong detergent could cause flooding
and/or damage your dishwasher. Do not use
detergent that has been wet and is clumped. Also,
check the expiration date on the container.
The amount of detergent needed can vary due to
differences in water hardness. To determine the water
hardness in your area, contact your local water utility
or area water softening company. The harder the
water, the more detergent you may need. Refer to the
chart below for the recommended detergent amounts
based on water hardness. Remember, you should
adjust the amount of detergent you use by small
amounts until you find the correct amount. Twelve
grains and higher is extremely hard water and
detergent alone may not be enough. You may need
to use a water softener to maximize the performance
of your dishwasher. Also, in areas with hard water
(9+) you may need to wash at lower temperatures to
prevent hard water deposits from forming in tank and
wash system. In hard water areas, both the dishes
and the machine can develop a white or gray film after
a while. If this happens, run the Heavy wash program
with high temperature and two tablespoons of citric
acid or commercially available dishwasher cleaner in
the detergent compartment (with no dishes in the
machine).
NOTE!
We recommend that you do not add prewash
detergent for the programs Quick wash or Super
Quick.
NOTE!
If you use a dishwashing detergent with a rinse aid
additive, you should not fill the rinse aid dispenser.
This could cause a film on your dishes.
WARNING!
Children must be supervised – dishwasher detergent
is corrosive!
NOTE!
Use only dishwasher detergent! Liquid hand-washing
detergent must not be used as the foam that forms
prevents the dishwasher from operating effectively.
Dishwasher tablets
Halve the tablet if it is difficult to close the dispenser
lid. There is a risk that the detergent will not be
released properly if the lid is tight and cannot open
correctly.
NOTE!
Dishwasher tablets are not recommended for short
programs (less than 75 minutes). Use powder or
liquid dishwasher detergent instead.
3-in-1/ All-in-one detergent
Read through the directions for these products
carefully. If anything is unclear, contact the detergent
manufacturer.
Customer Care Center14
1-800-898-1879
www.askousa.com
Dishwashing

Recommended detergent amounts based on water hardness
Detergent amountsWater hardness
Prewash 1 teaspoon
Main wash 1 to 1-1/2 tablespoons
Soft
(0-3 grains per gallon)
Prewash 1 teaspoon
Main wash 1 to 2 tablespoons
Medium
(4-8 grains per gallon)
Prewash 1 teaspoon
Main wash 2 to 3 tablespoons
Hard
(9+ grains*)
*12 grains and higher is extremely hard water.
15Customer Care Center
1-800-898-1879
www.askousa.com
Dishwashing

4Press the main power switch
until the display lights up

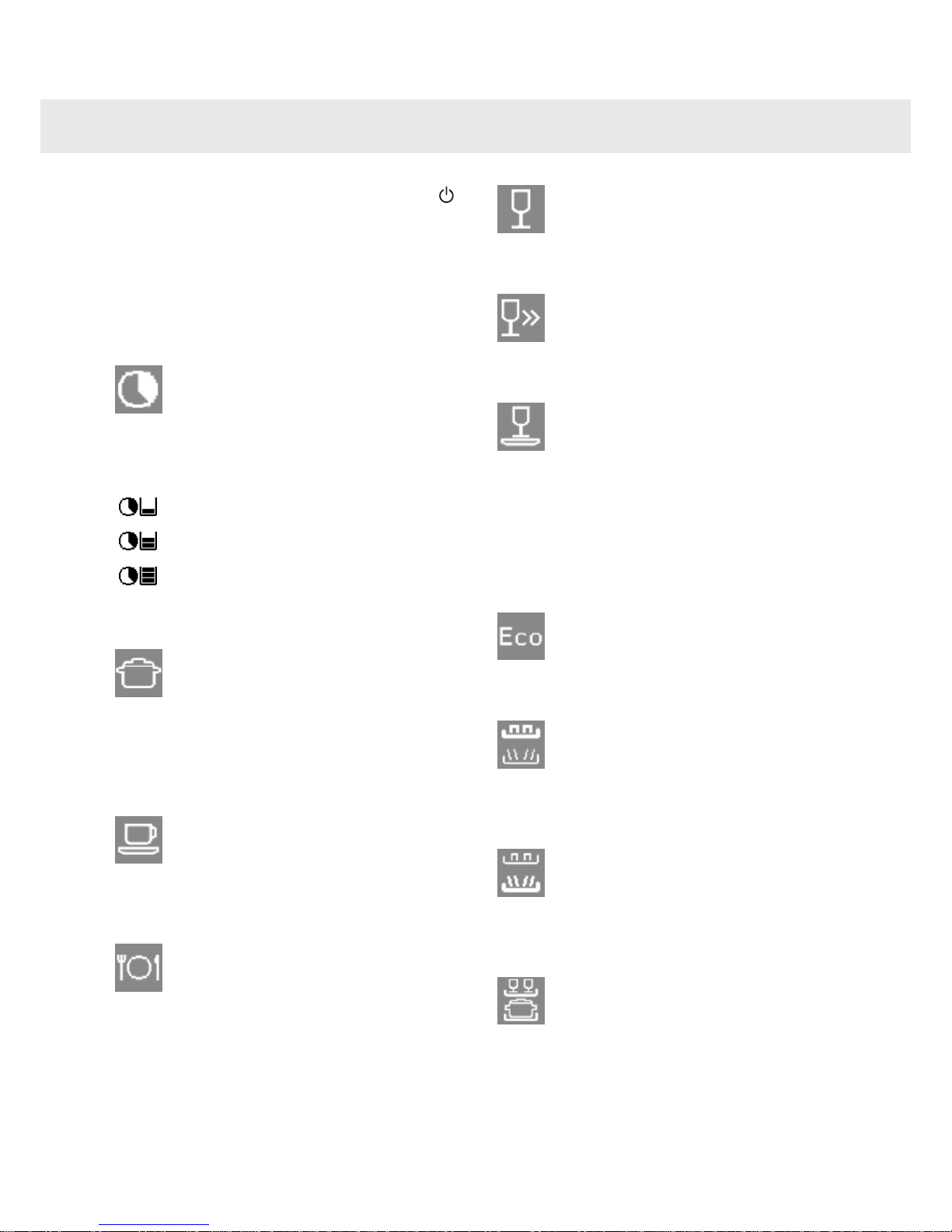

5Select the program
Press the Program selector one or more times
until the desired program symbol appears on
the display.
Time program
The program adapts to the specified running time or
finish time. With this program, it is important to choose
a time suited to how dirty the dishes are.
Lightly soiled dishes0:30-1:15
Normally soiled dishes1:30-2:00
Heavily soiled dishes2:15-3:00
To set the program time, see the section Select
options.
Heavy wash
Program for very dirty dishes, such as pans, casserole
dishes, and oven dishes. If these dishes do not
completely fill the dishwasher, you can add plates
and other dishes that can withstand a Heavy wash to
fill out the load.
Normal wash
Use to wash normally soiled dishes, and even dishes
with dried leftovers, such as plates, serving dishes,
cups, glasses, and so on.
Daily wash
A program suitable for day-to-day dishwashing. This
program can also clean dried leftovers, but is not
intended for burnt food, such as on oven dishes.
Quick wash
This program is used for glasses and porcelain that
is lightly soiled, such as coffee cups.
Super Quick
Short program lasting about 15 minutes with
acceptable results for very lightly soiled dishes.
Delicate wash
If the dishes are only lightly soiled, you can select
Delicate wash. This program is intended for glasses
and porcelain that have just been used and as such
do not require such a powerful program.
This program can be used for fragile dishes. Select
Short dry if you want to be especially cautious. See
also the section Fragile dishes.
Eco wash
Use when you want to save energy. For normally
soiled dishes.
Upper half
You can use this program if you only have cups and
glasses that need washing in the upper basket. Lightly
soiled dishes can also be placed in the lower basket.
Lower half
You can use this program when you only want to wash
plates and cutlery in the lower basket. Lightly soiled
dishes can also be placed in the upper basket.
Mixed wash
This dishwashing program is used when you have
lightly soiled dishes in the upper basket and heavily
soiled dishes in the lower basket. This program adds
a prewash and has a longer program time than Lower
half.
Customer Care Center16
1-800-898-1879
www.askousa.com
Dishwashing

Rinse & Dry
This program consists of a rinse with heating and
drying. This is a suitable program if, for example, you
plan to make jam and want to rinse and heat clean
glass jars.
Rinse & Hold
Use to rinse dishes while you wait for the dishwasher
to become fully loaded.
17Customer Care Center
1-800-898-1879
www.askousa.com
Dishwashing

Program chart
Consumption values1)
Final rinse temper- ature (°F)
Number of rins- es
Main wash (°F)
Pre- washes
Op- tions
Program
Hot water3)
Cold water2)
Water con- sumption (gal- lon)
Energy (approx. kWh)
Wash time (approx. hours:minutes)
Energy (approx. kWh)
Wash time (approx. hours:minutes)
3.0-5.10.4-1.20:30-3:000.6-1.60:30-3:00max. 1502-3max. 1500-2-Time program 4.90.73:101.53:5014031302-Heavy wash 4.20.52:001.02:3012031151-
Normal wash4)
4.80.92:051.52:3015031502Normal wash 3.60.81:401.42:0015021401-Daily wash 2.60.10:200.20:20-2850-Quick wash 2.60.10:150.20:15-2850-Super Quick 3.60.31:350.71:5512021051-Delicate wash 3.50.52:200.92:3012021201-Eco wash 3.60.72:101.52:3514021301-Upper half 3.60.72:101.52:3514021301-Lower half 4.10.72:401.32:5514021302-Mixed wash 0.90.30:400.50:501201-0Rinse & Dry 0.90.010:060.010:06-1-0-Rinse & Hold
1) Consumption values vary depending on the water supply temperature, the ambient temperature, the size of the load, the selected options, and more. 2) Connection to cold water, approx. 50 °F (10 °C). 3) Connection to hot water, approx. 120 °F (50 °C). 4) The energy label performance figures are based on this program.
Customer Care Center18
1-800-898-1879
www.askousa.com
Dishwashing

6Select options
To select an option, press one of the option
buttons. The field under the button lights when
the option is activated. The available options depend
on the selected program. Once you have started the
program, the options you selected are saved for the
next time you use the same program. An exception
is the Delayed start option.
High temperature
Activate this option for improved dishwashing results.
The machine then uses a higher temperature for the
main wash. This option cannot be activated if the Time
saver option is selected.
If you want to use the lower temperature, press again
so that the field under the button turns off.
You can vary the temperature as shown below:
130 °F (55 °C)/ 160 °F (70 °C)Heavy wash:
115 °F (45 °C)/ 150 °F (65 °C)Normal wash:
140 °F (60 °C)/ 150 °F (65 °C)Daily wash:
85 °F (30 °C)/ 140 °F (60 °C)Quick wash:
85 °F (30 °C)/ 140 °F (60 °C)Super Quick:
105 °F (40 °C)/ 120 °F (50 °C)Delicate wash:
120 °F (50 °C)/ 140 °F (60 °C)Eco wash:
130 °F (55 °C)/ 150 °F (65 °C)Upper half:
130 °F (55 °C)/ 150 °F (65 °C)Lower half:
130 °F (55 °C)/ 150 °F (65 °C)Mixed wash:
Long dry
A higher temperature in the final rinse and a longer
drying phase improves the drying result if you activate
the Long dry option. This causes a slight increase in
energy consumption. This option can be used with
all programs except Time program, Rinse & Dry, and
Rinse & Hold. This option cannot be activated if the
Time saver option is selected.
If you want a program with Short dry, press again so
that the field under the button turns off.
Delayed start
When you select Delayed start, the dishwasher will
start 1-24 hours after you press the Start/Stop button.
1. Press the button once to activate Delayed start.
Press the button several times – or hold it in – to
set the desired number of hours.
2. Press Start/Stop and the dishwasher counts down
1 hour at a time and starts after the selected delay.
Press and hold Start/Stop for three seconds if you
want to cancel the Delayed start option.
NOTE!
Remember to press the Start/Stop button to start
the program.
Set time
Press the option button several times – or hold it in –
to set the desired program time for Time program.
You can choose a program time between 30 minutes
and 3 hours.
Time saver
This option shortens the program time, but uses more
energy and water. This option can be selected with
the Heavy wash, Normal wash, Daily wash, Upper
half, Lower half, and Mixed wash programs.
7Press Start/Stop and close the
door
The display flashes three times with the
remaining time to indicate that the program has
started. Close the door properly, otherwise the
dishwasher will not start. The display indicates
if the door is open.
NOTE!
If the machine does not start within 2 minutes of the
last button press, the display returns to showing the
last program run.
19Customer Care Center
1-800-898-1879
www.askousa.com
Dishwashing

Stopping or changing a program
If you want to change programs after starting the
dishwasher, open the door then press and hold
Start/Stop for three seconds. Add more detergent if
the lid of the detergent dispenser has opened. Then
choose a new program, press Start/Stop, and close
the door.
Do you want to add more dishes?
Open the door. The dishwasher stops automatically.
Add the dishes, close the door, and the dishwasher
resumes the program.
If the dishwasher is turned off using the
main power switch or due to a power
failure
If the program was not finished, the interrupted
program resumes when power is restored.
NOTE!
During drying, the program is interrupted if the power
is cut or the door is open for more than 2 minutes.
8After dishwashing
Once the program has finished, "End" appears
on the display.
A buzzer also sounds at the end of the program. See
the section Settings, which describes how to change
this function.
Once the dishwasher has finished, it uses only
standby power. Turn off the dishwasher using the
main power switch if you want to completely cut the
power. Turn off the water supply valve after each use.
Customer Care Center20
1-800-898-1879
www.askousa.com
Dishwashing
