Welcome to our growing ASKO family!
We are proud of our appliances. We hope that this appliance will be an appreciated and dependable
device for many years to come.
Please read the operating instructions before use. They include general tips, information about the
settings and adjustments you can make, and the best way to take care of your appliance.
Add salt
Display Start/Stop
Select program mode
Select program
Automatic door opening
Delayed start
On/Off
WiFi
Connected to cloud
Auto dose
Add auto dose
(Flashes when connecting)
Symbols on the display:
Add rinse aid
Text on the display:
Clean the filters
Run Self-cleaning
See the chapter Care and
maintenance instructions.
Remote control active
Install the dishwasher; see the chapter Installation instructions. Then open the door and press .
"Welcome to your new ASKO dishwasher. This is a first time setup." is shown on the display the
first time the dishwasher is switched on. It is important that you choose the right settings to ensure
good dishwashing results. See page 7.
You can remote control this dishwasher with your smartphone/tablet. Connect the dishwasher to
your wireless network and pair with your smartphone/tablet to be able to remote control and start
the dishwasher using the Connect Life app. The app can be used to find information, change settings,
and monitor the dishwasher. (The dishwasher can always be used without the app.)
3
Your dishwasher

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING!
When using your dishwasher, follow basic precautions, including the following:
•Read all instructions before using the dishwasher.
•Use the dishwasher only for its intended purpose.
•Use only detergents or rinse agents recommended for use in a dishwasher and keep them
out of the reach of children.
•When loading items to be washed:
–position sharp items so that they are not likely to damage the door seal, and
–load sharp knives with the handles up to reduce the risk of cut-type injuries.
•Do not wash plastic items unless they are marked “dishwasher safe”or the equivalent. For
plastic items not so marked, check the manufacturer’s recommendations.
•Do not operate the dishwasher unless all enclosure panels are properly in place.
•Do not tamper with controls.
•Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
•To reduce the risk of injury, do not allow children to play in or on a dishwasher.
•Under certain conditions, hydrogen gas may be produced in a hot water system that has not
been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system
has not been used for two weeks, before using the dishwasher turn on all hot water faucets
and let the water flow from each for several minutes. This will release any accumulated
hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
•Remove the door of the dishwasher when removing the dishwasher from service or discarding
it (so that children cannot become trapped inside).
•Read the grounding instructions in the installation instructions.
FCC declaration of conformity
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this
device does not cause harmful interference.
FCC radiation exposure statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 8“(20 cm) between
the radiator and your body.
WARNING!
•The dishwasher is equipped with a UVC light source.
•A damaged or defective UVC light source may only be replaced by the manufacturer's
Customer Care Center or someone similarly professionally qualified.
4
Important safety instructions

General
•Do not run the dishwasher while you are out of the home.
•Do not store or use combustible materials, gasoline, or other flammable vapors and liquids in
the vicinity of this or any other appliance.
•Disconnect electrical power to dishwasher before servicing.
•Repairs should be done by a qualified technician.
WARNING!
PROPOSITION 65 FOR CALIFORNIA RESIDENTS
Cancer and Reproductive Harm –www.P65Warnings.ca.gov
Child safety
•Always keep small children away from the machine when it is open. There may be some detergent
residue left inside the machine.
•Always close the door and start the dishwasher as soon as you put in the detergent.
•If dishwasher detergent gets in someone’s eyes, rinse them with plenty of water for at least 15
minutes.
•Should a child swallow dishwasher detergent or rinse aid, give plenty to drink immediately, i.e.,
one or two glasses of milk or water. Do not try to induce vomiting. Seek medical advice
immediately: Call the National Poison Control Center at 1-800-222-1222.
WARNING!
Dishwasher detergents and rinse aids are corrosive, so always keep them out of reach of children.
Child lock
You can activate the Automatic child lock setting to prevent children from starting the dishwasher.
See the chapter Settings. You can also temporarily activate and deactivate the Child lock function.
Press and hold and for three seconds.
Installation
See the chapter Installation instructions.
Overflow guard function
The overflow guard starts pumping out the machine and turns off the water supply if the water level
in the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling water)
appears on the display. Turn off the water supply valve and contact your nearest Customer Care
Center. (To avoid water leakage outside the dishwasher, do not remove the plug from the power
outlet until the water supply valve has been turned off!)
5
Important safety instructions

Winter storage/Transport
Store the dishwasher above freezing and avoid long transport distances in very cold weather.
Transport the dishwasher upright or laying on its back.
Before transporting a used dishwasher, or before prolonged storage, water must first be drained
from the machine.
Packing material
The outer packaging protects the product during transport. The packaging material is recyclable.
Separate the different packaging materials to help reduce raw material use and waste. Your dealer
can take the packaging for recycling or direct you to the nearest recycling center. The packaging
is comprised of:
•Corrugated cardboard made from up to 100% recycled material.
•Expanded polystyrene (EPS) with no added chlorine or fluorine.
•Supports made from untreated wood.
•Protective plastic made from polyethylene (PE).
Disposal
The dishwasher is manufactured and labeled for recycling. When the machine has reached the end
of its service life and is to be disposed of, it should immediately be made unusable. Pull out the
power cord and cut it as short as possible.
Contact your municipality for information about where and how your dishwasher can be recycled
correctly.
Symbols
Explanation of symbols appearing on the appliance.
Read the user manual.
6
Important safety instructions

Water hardness
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral
content). Hard water leaves a white coating on dishes and the dishwasher.
Checking water hardness
Water hardness is specified using German degrees of water hardness (°dH), French degrees of
water hardness (°fH), English degrees of water hardness (°eH), millimoles per liter (mmol/l), or grains
per gallon (gr/gal).
A water supply with a water hardness in excess of 5°dH (9°fH / 6°eH / 0.9 mmol/l / 5.9 gr/gal) must
be softened. This is done automatically with the aid of the built-in water softener. In order for the
water softener to function properly, its settings must be adjusted to the hardness of the water supply.
Once you have adjusted the water softener settings, add detergent and rinse aid in doses suitable
for soft water.
Contact the local water utility to check the water hardness in your area.
Make a note of the water hardness:____________
Recommended settinggr/galmmol/l°eH°fH°dH
00.0-5.90.0-0.90-60-90-5
16.0-8.91.0-1.47-1010-146-8
29.0-11.91.5-2.011-1415-209-11
312.0-15.92.1-2.515-1821-2512-14
416.0-20.92.6-3.419-2426-3415-19
521.0-25.93.5-4.325-3035-4320-24
626.0-31.94.4-5.231-3644-5225-29
732.0-41.95.3-7.037-4953-7030-39
842.0-51.97.1-8.850-6171-8840-49
952.08.9628950
If the water hardness exceeds 50°dH (89°fH / 62°eH / 8.9 mmol/l / 52.0 gr/gal), we recommend
connecting an external water softener.
WARNING!
Hard water leaves a white coating on dishes and inside the dishwasher. It is therefore important
that you select the right setting for the water softener. See Water hardness.
Never run the dishwasher with an empty salt compartment if the water supply has a water hardness
in excess of 5°dH (9°fH / 6°eH / 0.9 mmol/l / 5.9 gr/gal).
Basic settings
Open the door. Press .
7
Before washing for the first time

"Welcome to your new ASKO dishwasher. This is a first time setup." is shown on the display. It
is important that you choose the right settings to ensure good dishwashing results.
Select setting with or . Confirm selected setting with .
Settings
Select the language to be shown on the display.Language1.
Use rinse aid to improve wash and dry times. Also use rinse
aid to achieve clear and spotless results.
Rinse aid 0/1/2/3/4/5
Default: 4
2.
The rinse aid dispenser can be adjusted between 0 (Off)
and 5 (High dosage).
Adjusting the water softener. Select a setting depending on
the hardness of the water supply. It is important that this
setting is correct.
Water hardness
0/1/2/3/4/5/6/7/8/9
Default: 0
3.
For a water supply with a hardness below 6°dH (10°fH /
7°eH / 1.0 mmol/l / 6.0 gr/gal), select 0. The water softener
is deactivated and no salt needs to be added.
Activate this setting when using an all-in-one detergent that
contains rinse aid.
TAB On/Off
Default: Off
4.
This setting reduces the rinse aid dosage and affects how
often the dishwasher's built-in softener is regenerated.
Activate this setting if you want to use automatic detergent
dosing.
Auto dose 0 tsp - 3-8 tsp
Default: 0 tsp (Off)
5.
The exact dosage depends on which program is running.
For the Auto program, the dosage also depends on how
dirty the dishes are.
To change the chosen setting, see the chapter Settings.
8
Before washing for the first time

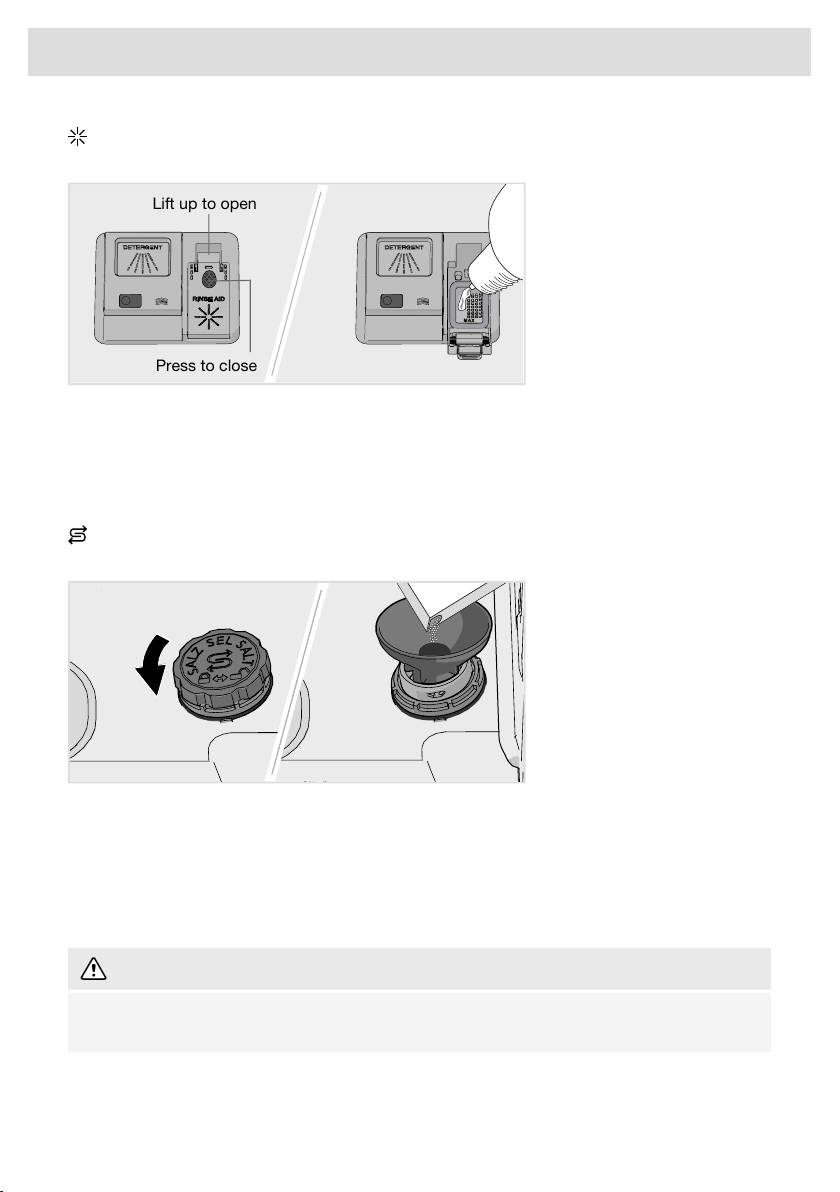

Add rinse aid
Fill up the rinse aid compartment with rinse aid if you have selected Rinse aid 1 - 5.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully fill up with rinse aid to the level marked MAX.
3. Wipe up any spilled rinse aid around the compartment.
4. Close the lid firmly.
Add salt
Add salt to the salt compartment if you have selected Water hardness 1 - 9.
1. Remove the salt compartment lid by turning it counterclockwise.
2. Insert the funnel supplied with the dishwasher in the salt compartment top-up hole. First, pour
in about 0.3 gal (1 l) of water.
3. Add enough salt to fill the salt compartment (max. 750 gram (26 oz)). Use special dishwasher
salt.
4. Wipe up any excess salt so that the lid can be screwed on firmly.
WARNING!
In order to avoid rust stains, a dishwashing program must be started immediately after adding
salt.
9
Before washing for the first time

Add auto dose
Fill the automatic dosing compartment with dishwasher detergent gel if you have activated the Auto
dose setting.
Lift up to open
1. Open the lid of the automatic dosing compartment for dishwasher detergent gel.
2. Carefully add dishwasher detergent gel to the level marked MAX.
3. Clean up any excess dishwasher detergent gel outside the compartment.
4. Close the lid firmly.
NOTE!
Use only dishwasher detergent gel in the automatic dosing compartment! Do not use dishwasher
detergent powder. Liquid hand-washing detergent must not be used as the foam that forms
prevents the dishwasher from operating effectively.
Some thick dishwasher detergent gels are not suitable for the automatic dosing compartment.
Add very thick dishwasher detergent gel to the manual detergent compartment. See the detergent
manufacturer's recommendations.
Dishwasher detergent gel dispensing
Dishwasher detergent gel is dispensed during the main wash for all programs except Self-cleaning.
A little extra dishwasher detergent gel is also dispensed during the prewash in the following programs:
Normal
Auto
Light
Intensive
Time 2:00, 2:30
10
Before washing for the first time

Save energy and water
When using a dishwasher in a residential setting, less energy and water are generally used compared
to washing the dishes by hand.
Do not rinse under running water
Do not rinse the dishes under running water as this will lead to increased energy and water
consumption. Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Too much detergent, rinse aid and salt can result in less effective dishwashing and lead to a greater
environmental impact.
Run a fully loaded dishwasher
Save energy and water by waiting until the dishwasher is full before running a program. Use the
Rinse and hold program to rinse the dishes if there are any unpleasant odors.
You can also use the Anti-odor program to prevent bad odors from dirty dishes left in the dishwasher.
Run programs at a lower temperature
If the dishes are only lightly soiled, you can select a program with a lower temperature.
Select dishwashing program –Eco
This program is the most effective in terms of energy consumption.
Select program mode –Green
The dishwasher has different program modes. To save energy and water, use Green. (Available
with: Normal )
Select option –Automatic door opening
Better drying results are achieved if you use the Automatic door opening option, which automatically
opens the dishwasher door. Wait until the dishwasher indicates that the program has ended and the
dishes have cooled before unloading the dishwasher.
Connect to cold water
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity, or
gas.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 140 °F (60 °C)) if the building is heated using
an energy-efficient means such as district heating, solar power, or geothermal power. Choosing a
hot water connection reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high temperatures. See Fragile dishes in the chapter Loading the dishwasher.
11
Greener dishwashing

Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot
withstand high temperatures, others can be damaged by dishwasher detergent.
Use caution with, for example, handmade items, China, crystal/glassware, silver, copper, tin,
aluminum, wood, and plastic. Look for the "Dishwasher safe" marking.
China
Porcelain with decoration on top of the glazing (the items feel rough) should not be washed in a
dishwasher.
Crystal/Glass
Wash fragile items made of crystal/glass using the gentle dishwashing program Crystal . Remember
to use a small amount of detergent and to place items so that they do not touch each other during
the wash.
Use rinse aid to improve wash and dry times. Also use rinse aid to achieve clear and spotless results.
Hand-painted glassware, as well as antique and very fragile items, should not be washed in a
dishwasher.
Silver
Silver and stainless steel items should not come into contact, as the silver can become discolored.
In order to avoid marks and tarnishing, separate dishes made from different metals, such as silver,
stainless steel, and aluminum.
Aluminum
Aluminum can lose its shine if washed in a dishwasher. However, good quality aluminum pans can
be washed in a dishwasher, even if some of the shine will be lost.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such cases, the handles may loosen.
Loading affects the results
Load the dishes carefully to ensure the best washing and drying results with the lowest possible
energy and water consumption. Give your dishwasher the best chance to reach and clean all surfaces,
as well as to dry the dishes as thoroughly as possible.
•All dirty surfaces should face in and down.
•Dishes should not be placed in or on each other.
•Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
•Place the upper basket in its highest position when dishwashing very large plates.
•Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery
tray.
NOTE!
Check that the spray arms can rotate freely.
12
Loading the dishwasher

The dishwasher's baskets
The dishwasher includes a top cutlery tray, an upper basket, a middle basket, and a lower basket
with a cutlery basket.
The basket appearance may differ depending on the configuration.
Top cutlery tray

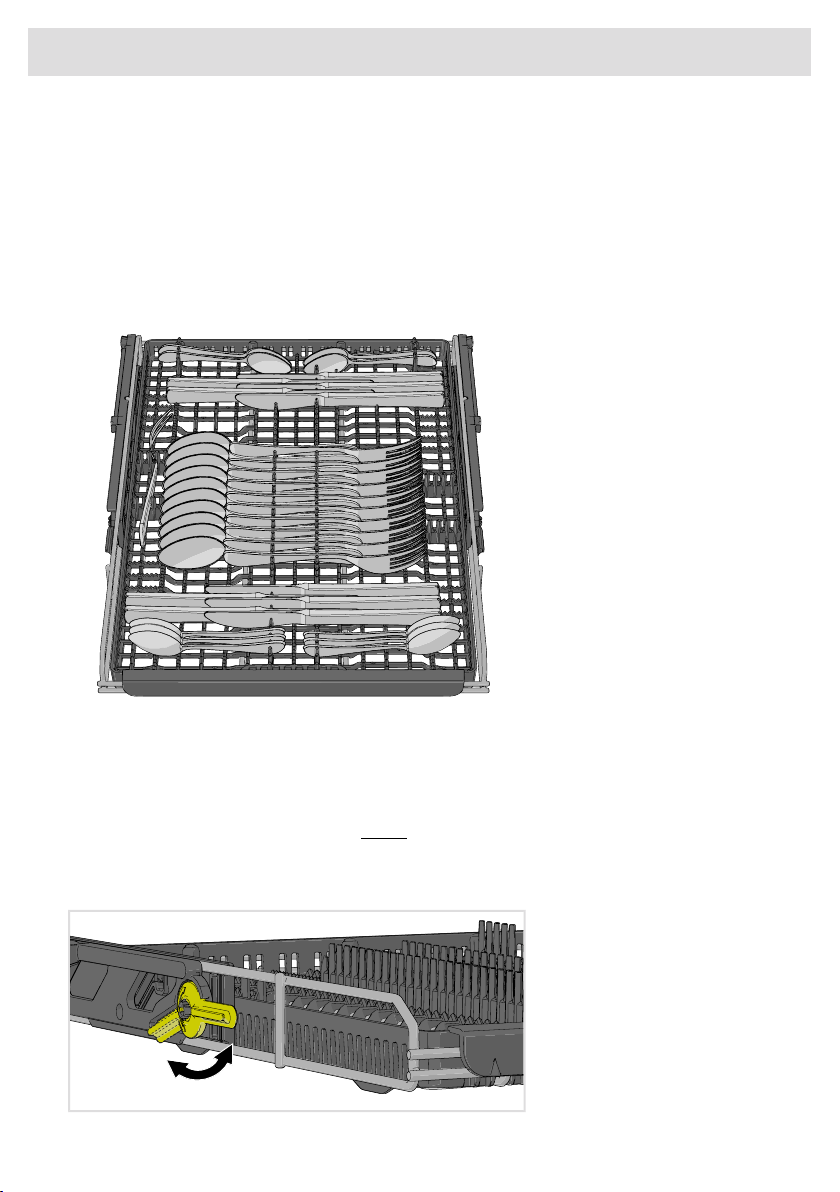

The top cutlery tray accommodates cutlery, ladles, whisks, and other utensils.
Avoid placing tall objects in the top cutlery tray. They can block the top spray arm.
Raising the top cutlery tray
1. Pull out the top cutlery tray.
2. Pull the two locking handles forward on each side to raise the top cutlery tray.
Lowering the top cutlery tray
1. Make sure the upper basket is in the lowest position.
2. Pull out the top cutlery tray.
3. Slide the two locking handles down and back to lower the top cutlery tray.
13
Loading the dishwasher

Upper basket
Place glasses, cups, bowls, side plates, and saucers in the upper basket. Place all soiled surfaces
face down. Place wine glasses on the wine glass shelf. Place knives in the knife stand on the right.
Knife stand
Extra supports for wine glasses
can be fitted. (Inside the enclosed
plastic bag.)
Adjustable plate supports
The adjustable plate supports can be pushed together to suit the dishes.
14
Loading the dishwasher

Raising the upper basket
1. Pull out the upper basket.
2. Grab the sides of the upper basket with both hands and lift it up.
Lowering the upper basket
1. Pull out the upper basket.
2. Grab the sides of the upper basket with both hands and push in the two locking handles to lower
the upper basket.
15
Loading the dishwasher

Middle basket

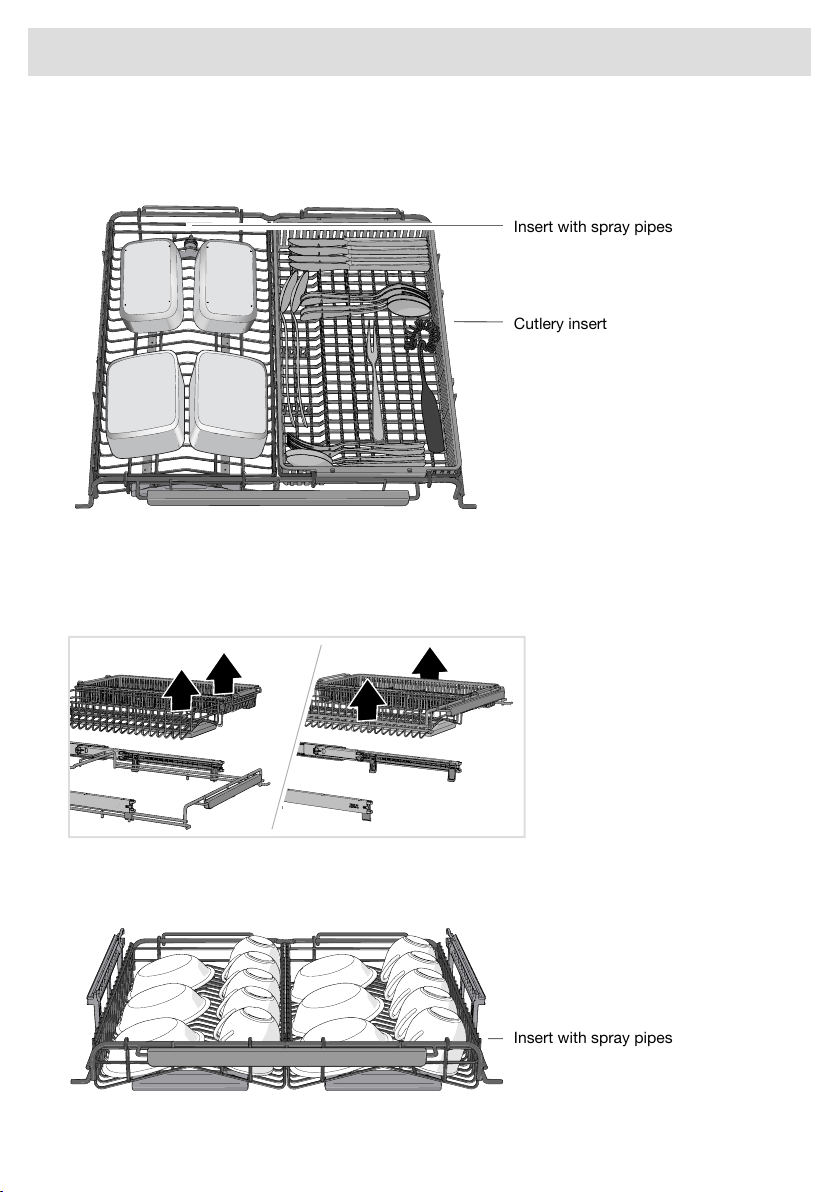

The middle basket comes with two different basket inserts. The insert with spray pipes is suitable
for low items. The cutlery insert has space for ladles, whisks, serving cutlery, and similar items.
Insert with spray pipes
Cutlery insert
Washing larger items
If large items are to be washed in the lower basket, either the middle basket's two inserts can be
removed or the entire middle basket can be lifted out. To remove the entire middle basket, grab the
sides of the middle basket with both hands and lift both sides at the same time. To refit, simply
reverse the procedure.
Accessory
Buy an extra insert with spray pipes for your middle basket, then you can wash more low items, such
as glasses, cups, and bowls. This accessory is available where you bought the dishwasher.
Insert with spray pipes
16
Loading the dishwasher

Lower basket
Place plates, side plates, serving dishes, pots, and cutlery (in the cutlery basket) in the lower basket.
Adjustable plate supports
The adjustable plate supports can be adjusted to suit the dishes. Release the plate supports by
pushing them inward before repositioning them. The plate supports can also be folded down to
make it easier to load pots and bowls.
At the back of the right side of the lower basket, the plate supports can be pushed together to provide
more space for, say, stoneware or a large pan.
17
Loading the dishwasher

Vase and bottle holder
Adaptable power zones
The dishwasher's two adaptable power zones can be opened in two different positions or turned
off.
For vases and bottles
For pots and pans
For higher spray pressure in the
lower spray arm
Default: Off
Leave the power zones open if you want an increased water flow where, for example, you have
placed pots and pans or vases and bottles. Turn the dishwasher's power zones off if you want greater
spray pressure in the lower spray arm.
Washing large plates
You can adjust the lower basket for plates with a diameter of 9 3/4-11 2/5" (25-29 cm) by moving the
adjustable plate supports and their fixtures to increase the distance between the tine rows.
Accessory
Buy a wine glass shelf with space for six tall 1) wine glasses. The wine glass shelf is designed to
ensure optimal washing and drying results with tall wine glasses. The wine glass shelf is placed in
the rear section of the lower basket. This accessory is available where you bought the dishwasher.
1) Height: max. 9 7/8" (25 cm), Diameter: max. 2 15/16" (7.5 cm)
18
Loading the dishwasher

Cutlery basket
Place cutlery with the handles facing down, except for knives, and spread them out as much as
possible. Ensure that spoons do not stack inside each other.
The cutlery basket is best placed in the middle at the front of the lower basket to best utilize
dishwashing performance from the unique spray zone intended for the cutlery basket.
WARNING!
Knives and other pointed items must be placed horizontally in the dishwasher's special cutlery
baskets.
Fold-down section for small items
The cutlery basket has a fold-down section in the middle for small items or small shafts (such as
electric whisk attachments).
19
Loading the dishwasher

Typical load
Recommended for daily, regular, or typical use.
Upper basket
NOTE!
Ensure the upper basket is set to its lowest position.
Lower basket
20
Loading the dishwasher
