Asko DC7794HP User manual

Drying cabinet DC7794HP,
DC7784HP
OPERATING INSTRUCTIONS
Read the instructions before using the machine.

Dear ASKO customer,
Congratulations on making an excellent choice, and welcome to the ASKO family, a
global family with its roots in Sweden.
We at ASKO thank you for your trust and hope that you will enjoy using your new drying
cabinet.
A good drying cabinet should be well designed, dry clothes well, have a low environmental
impact, be user-friendly, save time and energy, have a long service life and be reliable.
ASKO oers you all these features.
When you buy an ASKO product, you can be sure that the inside is just as good as the
outside and that the ethics and morality that go into building this product are just as high
as the quality and function you are getting. at’s what Swedish quality is all about.
Before using the product for the rst time, please read the user instructions and the advice
on caring for the product. is will help you get the best possible results from your product
and all its functions.
If you have any questions, do not hesitate to call us or to contact us through our website.
Best wishes from Sweden and the ASKO team.

4
CONTENTS
THIS USER MANUAL 5
SAFE OPERATION 6
Use 6
Technical safety 6
FOR A GOOD ENVIRONMENT 8
Packaging material 8
Dealing with an old drying cabinet 8
DESCRIPTION OF THE DRYING
CABINET 9
AIR FLOW IN THE CABINET 10
CONTROL PANEL 11
Display 11
Language setting 12
POSITIONING THE DRYING
CABINET 13
CONDENSATION WATER 14
Detachable water tank 14
Connection to oor drain 15
Reconnection to water tank 15
INSTALLATION 16
Unpacking 16
Assembly kit 16
Placement/attachment 17
Electrical connections 18
START-UP 19
OPERATION 20
User tips 21
Drying programme 22
Selecting a drying programme 22
Starting the drying programme 23
Stopping the drying programme 24
The door is opened 24
SETTING THE DRYING
PROGRAMME 25
Introduction 25
Procedure 26
Resetting to factory setting 26
CARE 27
Cleaning 27
Replacement parts 27
Service 28
TROUBLESHOOTING 29
FAULT CODE LIST 34
TECHNICAL DATA 35
SERVICE APPENDIX 37
Electrical diagram 37
Removing the dehumidier unit 38

5
THIS USER MANUAL
The contents of this user manual
describe the drying cabinet’s functions
and how it should be used. It also
includes instructions for installation,
reversing the door and maintenance.
It also contains a service appendix.

6
SAFE OPERATION
This advice and the warnings on safe operation have been compiled so that you
can avoid incorrect use and unnecessary risks of accidents, and should be read
before the drying cabinet is installed and used.
This drying cabinet fulls the relevant
safety requirements. However,
incorrect use can lead to personal
injury or material damage.
WARNING!
WARNING - This appliance is
intended only for drying textiles
washed in water.
Use
■This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
■Children shall not play with the appliance. Keep an eye on children
when they are in close surroundings of the appliance.
■Cleaning and user maintenance shall not be made by children
without supervision.
Technical safety
■Check that the drying cabinet has not suered any visible damage
before installing it. A damaged drying cabinet must not be used as
it may constitute a danger.
■The drying cabinet may only be connected to an earthed
socket that has been installed in accordance with current safety
regulations. After installation, the wall socket must be accessible
so that the power to the drying cabinet can be turned o at any
time.

7
■Check that the information on the drying cabinet rating plate (fuse,
voltage and frequency) is consistent with the mains electricity
supply.
■Do not use an extension lead to set up the electrical connection
for the drying cabinet, because the necessary safety cannot be
guaranteed (risk of overheating).
■If the power cord is damaged, it must be replaced immediately
and then only by the manufacturer, its service agent or similarly
qualied persons in order to avoid danger.
SAFE OPERATION

8
FOR A GOOD ENVIRONMENT
Packaging material
The packaging material that protects
the drying cabinet against transport
damage has been selected with
consideration of the environment and
is, therefore, recyclable. Packaging
material that is returned to the eco-cycle
involves less raw material consumption
and reduced waste.
Dealing with an old drying
cabinet
Once the drying cabinet reaches the
end of its life, it must be disposed of for
recycling.
Many parts can be reused, but the
cabinet also contains material that
needs to be handled correctly.
Therefore, never leave the drying
cabinet or parts of it with household
waste, as this may lead to health risks
and damage to the environment.
Instead take the old drying cabinet to a
recycling station. If necessary, speak to
your retailer.
All the plastic parts in the drying cabinet
are marked with international standard
symbols.
That means that these parts can be
environmentally recycled if they are
sorted correctly.

9
DESCRIPTION OF THE DRYING CABINET
The ASKO DC7794HP, DC7784HP
drying cabinet works according to
the same principle as a heat pump,
with a dehumidier unit instead of a
conventional hot-air unit. As a result,
the washing is dried at lower heat
and with substantially lower energy
consumption.
The cabinet is a fully enclosed system.
No exhaust air connection is required.
The moisture condenses during the
process, and the water that is formed is
conveyed to a detachable water tank, or
via a hose to the drain.
In addition, the fan is so powerful that
it causes the garments to utter, which
makes the drying process even more
ecient.
Wall attachment
Extendable hanging
sections (x3)
Door hangers
Detachable shoe rack
Tank for
condensation water
Dehumidier unit
Adjustable feet (x4)

10
AIR FLOW IN THE CABINET
Air inow in 6 rows of
holes
Cleaning lter beneath
the shoe rack
Return air after dehumidication.
Goes into a duct on the back of the drying cabinet.
Dehumidier unit
NB!
Make sure that shoes and similar
items placed in the cabinet do not
block the air ow!

11
CONTROL PANEL
The drying cabinet is equipped with two drying programmes for dierent types
of garments. These programmes are set through programming menus using four
buttons on the menu panel. Several languages can be used.
Display
The display has two rows with 6 symbols on each row. The display shows the
current parameter and the value of this parameter during setting and adjustment of
the drying process.
Instruction text is shown during the drying process.
ARROW UP, increases the value or steps in
one direction through the programmes.
ON/OFF
Display
ARROW DOWN, reduces the value or steps
in one direction through the programmes.
START/STOP, starts and
stops the programme. OK,
conrms selection and
moves on to next menu level.

12
CONTROL PANEL
Language setting
The following languages can be used: English, Swedish, Norwegian, Danish and
Finnish.
1Make sure that the drying
cabinet’s main ON/OFF switch is
o. The display is not lit.
2Hold in the ARROW UP and
ARROW DOWN buttons and
press the main ON/OFF switch
to the “ON” position. The
display lights up and ”P 105” the
parameter for language setting,
ashes on the top row. If any
other value is shown, use the
ARROW UP or DOWN buttons
to step through to the correct
parameter.
3Press START/STOP to conrm.
The row for the current language
now ashes. The languages have
a numbering system as shown in
the list below.
4Step through to the desired
language using the ARROW UP
and DOWN buttons.
5To save the set value, press
START/ STOP.
6To return to operating value,
press ARROW DOWN and
START/STOP.
Language symbol Display language
0 English
1 Swedish
2 Norwegian
3 Danish
4 Finnish
5English
6 French
7 German

13
POSITIONING THE DRYING CABINET
■An earthed electrical socket must
be within a distance of 2 m from
the bottom of the drying cabinet.
The drying cabinet has a 2 m long
earthed cable with plug attached
at the bottom. The electrical
socket must be located so that no
extension lead needs to be used.
■The electrical socket should be
easily accessible once the cabinet
is installed. Please bear this in mind
if the drying cabinet has been built
into a wooden cabinet.
■The oor where the cabinet is to be
placed must be able to hold a weight
of around 95 kg.
■The oor must be level, with a drop
of no more than 2.5 cm under the
cabinet.
■The drying cabinet is only for use
indoors at a temperature above 0°C.
■The drying cabinet should not be
installed in a location where high
pressure water is used for cleaning.

14
CONDENSATION WATER
Condensation water can be discharged in two ways, either by being collected in a
detachable water tank or by being conveyed through a hose to the oor drain.

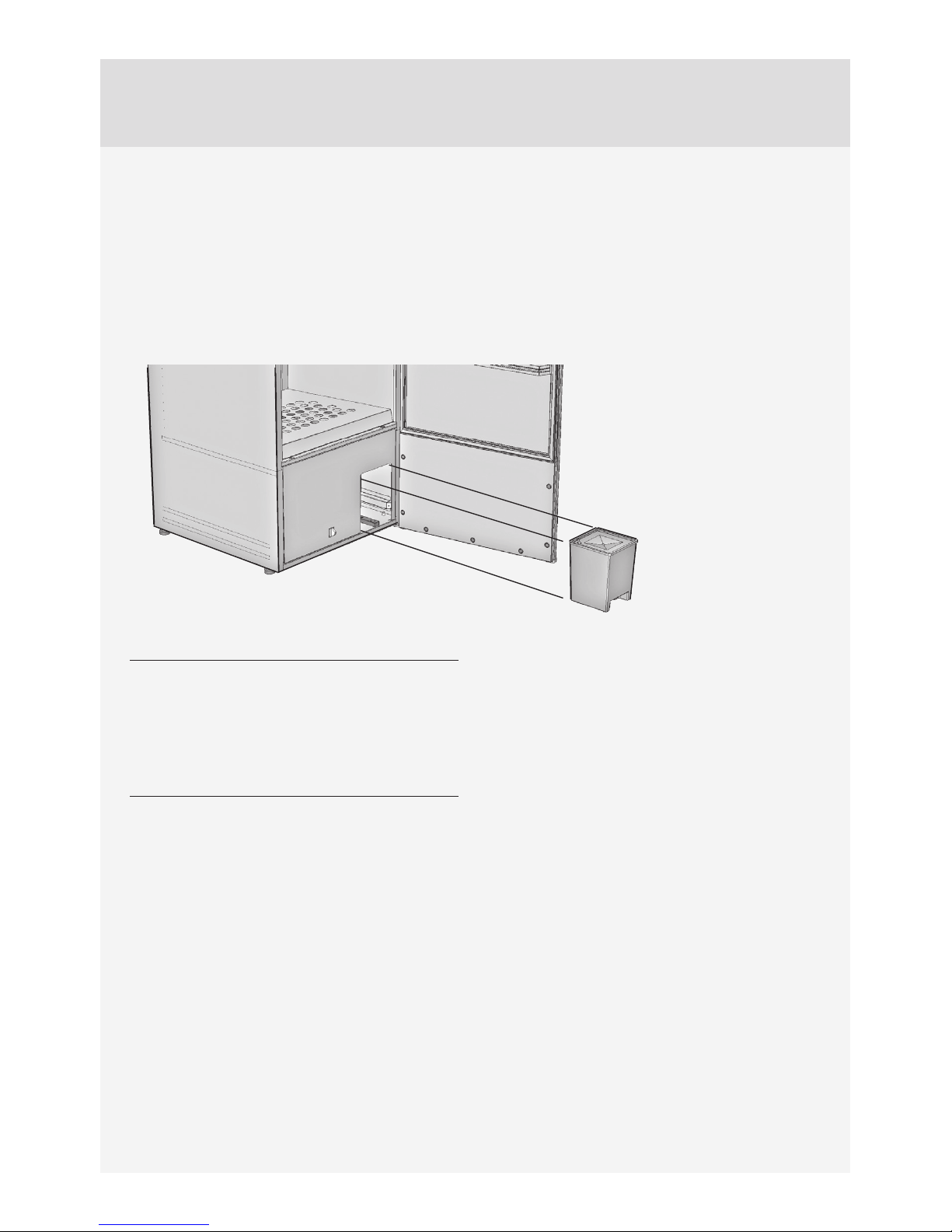

Detachable water tank
The water tank is dimensioned to be
easily adequate for a complete wash.
A good rule is always to empty the
water tank before each drying of a
load of washing.

15
CONDENSATION WATER

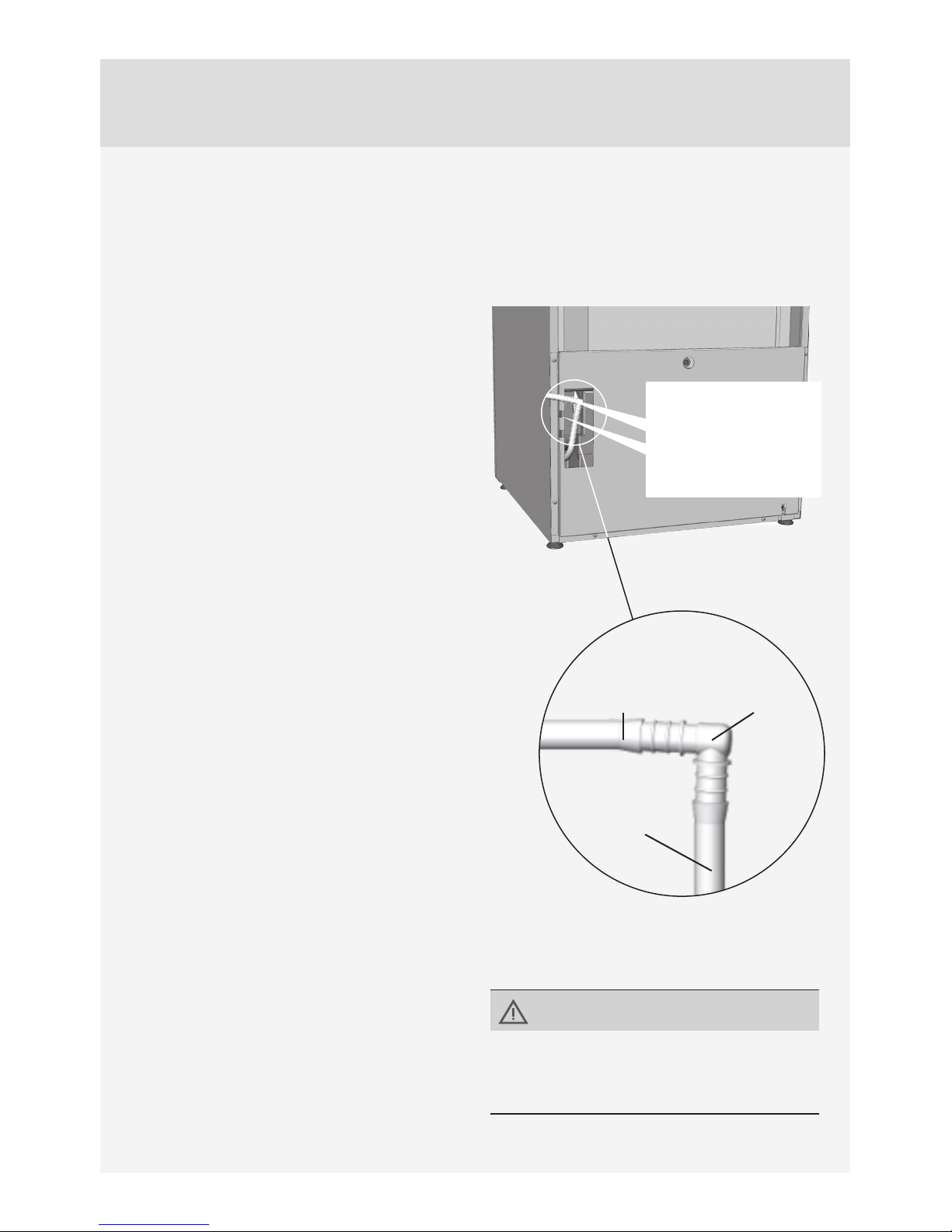

Connectiontooordrain
The drying cabinet is supplied from the factory with a hose to the detachable water
tank. To change to discharging condensation water to a oor drain, proceed as
follows:
1Carefully pull the upper part of
the hose out around 2-3 cm.
2 Cut o the hose in the middle of
the opening.
3Assemble the new drain hose
with the nipple provided in the
assembly kit, as illustrated. Pull
the hose on without hose clips.
4Place the drain hose in one of the
recesses in the panel so there is
no risk of it being crushed.
5Run the drain hose to the drain.
6If the drain is higher than the
outlet of the cabinet, make sure
that the hose runs in an arc down
to the oor and forms a water
trap. There is otherwise a risk of
the condensation water owing
back to the tray when the pump
is not working. This can cause
the tray to ll with water and the
cabinet to stop working.
Reconnection to water tank
If you wish to reconnect the
condensation water to the water tank,
all you need to do is connect the two
hoses together again with the nipple.
Place the drain hose
in one of the recesses
in the panel
Rear review of the
cabinet with hose
tted to oor drain
New hose to drain
Trimmed hose from
condensation water pump
Nipple
NB!
Do not under any circumstances
bend the hose so that water ow is
obstructed.

16
INSTALLATION
Unpacking
Check that the product has not been
damaged in transit. Any damage in
transit must be reported to the retailer
within 7 days.
After unpacking, check that the
product is free of faults. Damage,
defects and any missing parts must
be immediately reported to the
retailer.
A COMPLETE DELIVERY WILL
INCLUDE:
■Cabinet with dehumidier unit
■Assembly kit
■Installation and User Manual
Check that all transportation securing
devices have been removed before
connecting the drying cabinet.
Packaging materials such as plastic
and styrofoam should be kept out of
the reach of children.
Assembly kit
2 screws TRX
5x45 fzk for wall
mounting
4 screws MRT
5x20 for xing
bracket
2 nylon wall plugs 2 brackets for wall
attachment
1.5 m plastic hose
10 x 13
1 nipple for water
hose
Hand brush for
lter

17
INSTALLATION
Placement/attachment
The drying cabinet is only designed
for operation indoors in a dry
environment.
The drying cabinet should not be
installed in a location where high
pressure water is used for cleaning.
LEVELLING
The drying cabinet should stand level
on a at surface, resting on all four feet.
Correct the position of all four
adjustable feet from the outside.
ATTACHMENT TO WALL
The cabinet must be attached to a wall
to prevent tipping over.

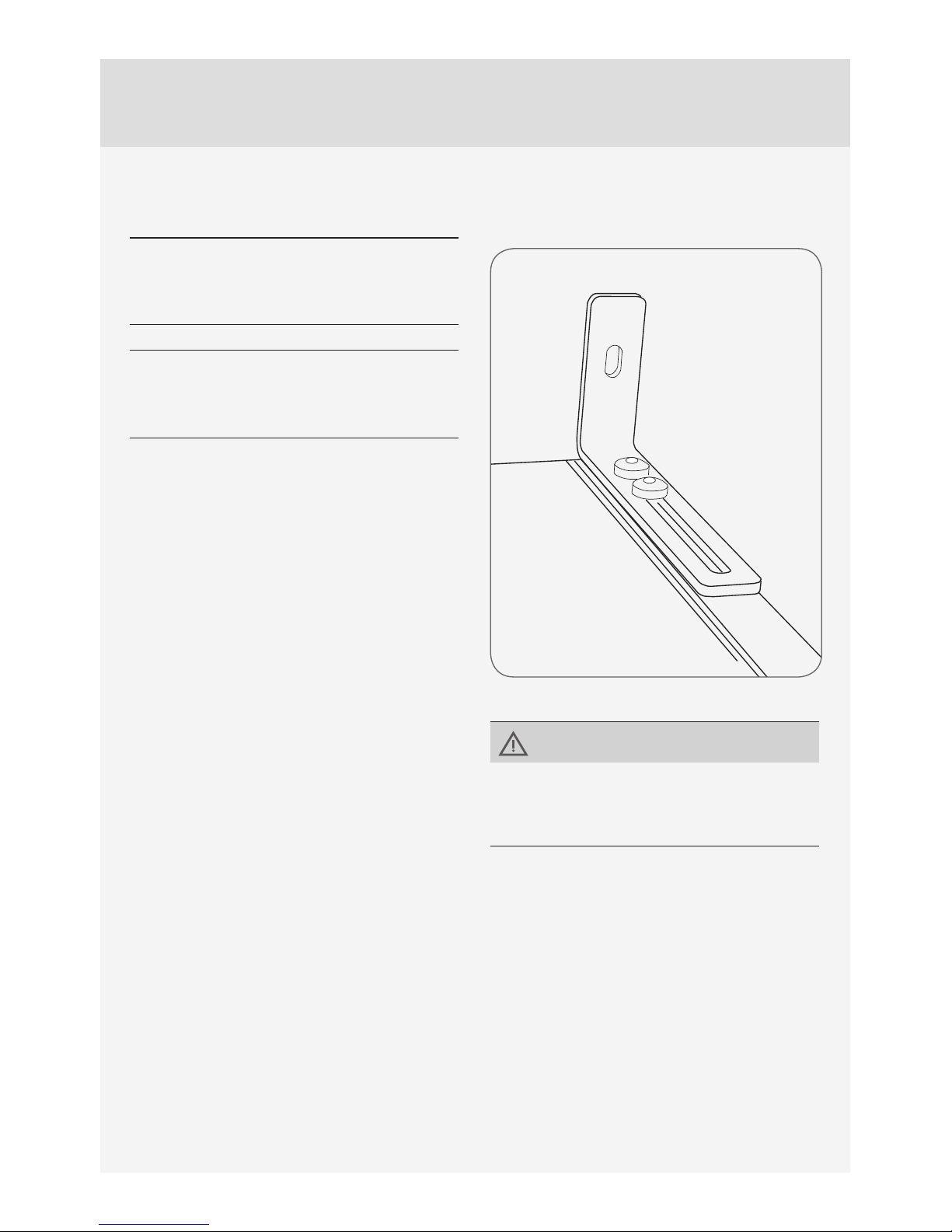

The assembly kit contains two angle
brackets mounted on the top of the
drying cabinet as illustrated. Use the
screws provided. The brackets have
slots for adaptation to the wall.
Secure the cabinet to the wall. Screws
for xing, washers and plastic plugs are
provided in the assembly kit.
WARNING!
The drying cabinet should not be
used without being screwed to a wall
due to the risk of tipping forwards.
Attachment bracket
Top of the drying
cabinet

18
INSTALLATION
Electrical connections
The drying cabinet should be
connected to a 230V single-phase 50 -
60 Hz earthed socket.
The drying cabinet is supplied ready for
connection with a cable with an earthed
plug.
The drying cabinet should be
connected using the cable supplied
to an earthed wall socket, and must
not be permanently connected!
The socket should be located where
the plug can be easily disconnected
when required.
Check that the supply current
matches that stated on the rating
plate and that the mains lead is
earthed correctly according to current
standards. We recommend that the
mains lead be tted with a residual
current device (RCD).
The appliance must be connected to
a dedicated circuit.
The manufacturer cannot be held
liable if the electrical connections are
not carried out as prescribed in this
manual.

19
START- U P
Read this user manual
before using the drying
cabinet for the rst time.
1 Check that the cabinet is rmly
attached to the wall.
See page 19.
2Check that no packaging material
has been left behind.
3Use a mild detergent with hot
water and wash the inside and
outside of the drying cabinet.
Dry carefully. See also the ‘Care’
section later in the manual.
WARNING!
Read the safety instructions on page
5 before using the drying cabinet.

20
OPERATION
The cabinet contains three sections with hangers. Each section has a number of
bars on which to hang the washing.
■Hang the articles in the drying cabinet according to how much space they
require, not according to their weight.
■Turn up the two bottom hanger sections if long garments are to be dried.
■Hang gloves, caps, scarves and similar items on the hanger strips on the inside
of the door.
■Draw the hanger hooks in the upper hanger section forward so that the washing
can be hung more easily. Push them back when not in use.
■Do not overload the drying cabinet. If you do, the washing will become creased
and dry unevenly. Instead, leave a space between the garments if possible.
■If there is a risk of the colour running in certain laundry, you should leave a
space around this.
■Do not place shoes or similar items on the shoe rack in such a way that they
obstruct the air ow.
■Avoid drying heavy items of clothing together with lighter items as they have
very dierent drying times.
■Make sure not to hang knitted items. These will stretch unnecessarily as they
are heavy when wet.
■Avoid hanging textiles that are dripping or soaking wet in the drying cabinet, as
the drying cabinet is not intended to collect large volumes of water. This also
leads to abnormally long drying times.
