Asko T744C User manual

Dear Customer,
Thank you for choosing this quality product from ASKO. We hope it will meet your
expectations and fulll your needs for many years to come. Scandinavian design
combines clean lines, everyday functionality, and high quality. These are key
characteristics of all our products and the reason they are greatly appreciated
throughout the world.
To ensure that you get the most out of your new machine, we recommend that
you read the operating instructions before using the machine. The operating
instructions also contain information on how to avoid damaging the environment.
Operating Instructions
Tumble dryer
ASKO T744C W
WARNING: Read the instructions before using the machine.

Before using your machine for
the rst time 3
Important safety instructions 4
Grounding instructions 5
Packing material 5
Disposal 5
Child safety 6
General 6
Description of the tumble dryer 7
Advice and tips before you tumble dry 8
Materials that can be tumble dried 8
Materials that should not be
tumble dried 8
Static electricity 8
Operating instructions 9
Sort your fabrics 9
Press the main power switch until
the display lights. 9
Open the door, load the items, and
then close the door 9
Select the program 10
Selecting Options 12
Press the Start button 12
Drying program nished 12
Care and maintenance instructions 13
Cleaning the lint lter 13
Cleaning the outside of the machine 13
Cleaning the condenser 14
Troubleshooting 15
The machine will not start 15
The machine loses all power during a
program 15
Drying takes too long 15
Error messages 15
Technical information 16
Technical data 16
Service and guarantee 17
Limited Warranty – Residential
Appliances 17
Installation instructions 20
Positioning the tumble dryer 20
Built-in 22
Condensed water 23
Electrical installation 24
Reversing the door 27
Follow these instructions: 28
Quick guide 32
2Customer Care Center
1-800-898-1879
www.askona.com
Contents

3
Customer Care Center
1-800-898-1879
www.askona.com
Before using your machine for the rst time
Laundry labels
Certain materials are not suitable for tumble
drying. Always check and follow the instructions
on each item's laundry label. You can nd more
information in the Advice and tips before you
tumble dry chapter.
NOTE!
When starting the tumble dryer for the rst time
or after a long period without use, you may hear
a slight thumping noise. This noise is completely
normal and will disappear after a few loads.
Do you need this Use&Care Guide in Spanish? Log on to www.askona.com/customer-care to
download. ¿Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askona.com/
customer-care y descárguesela.

4Customer Care Center
1-800-898-1879
www.askona.com
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
WARNING!
WARNING - To reduce the risk of re, electric
shock, or injury to persons when using your
appliance, follow basic precautions, including
the following:
• Read all instructions before using the
appliance.
• Do not wash or dry articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, cooking oils, other ammable or
explosive substances as they give o vapors
that could ignite or explode.
• Do not allow children to play on or in the
appliance. Children should be closely
supervised when near the appliance.
• Before the appliance is removed from
service or discarded, remove the door to the
drying compartment.
• Do not reach into the appliance if the drum is
moving.
• Do not install or store this appliance where it
will be exposed to the weather.
• Do not tamper with controls.
• Do not attempt to repair or replace any part
of the appliance or perform any servicing
unless specically recommended in this
guide.
• Do not use fabric softeners or dryer sheets
unless the manufacturer gives written
assurance that the product will not damage a
tumble dryer.
• Do not heat dry items containing vinyl,
plastic, foam rubber or similarly textured
rubberlike materials, berglass, or wool
unless the label species “washable”.
• Clean the lint lter before or after each load.
• Keep the area around the exhaust opening
and adjacent surrounding areas free from the
accumulation of lint, dust and dirt.
• The interior of the machine should be
cleaned periodically by an authorized ASKO
service agent.
• Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking
oils may contribute to a chemical reaction
that could cause a load to catch re.
• Electrical installation, if required, must be
done by a licensed electrician.
• Do not operate appliance while away from
the home.
• Do not heat dry items that have been dry-
cleaned.
• The dryer is made and marked to facilitate
recycling. When it is no longer useful, contact
your local refuse collection service for advice
on how to properly dispose of the dryer for
purposes of recycling.
• Damaged power cables should only be
replaced by a certied professional.
• Provide sucient ventilation, otherwise
smoke from open res or fumes from
equipment burning other fuels can be drawn
into the room.
CAUTION!
During the program, the back of the dryer will
get very hot. Let the machine cool completely
before touching the back.
WARNING!
This appliance must be properly grounded.
Important safety instructions

5
Customer Care Center
1-800-898-1879
www.askona.com
Important safety instructions
Grounding instructions
A) Grounding instructions for a grounded,
cord-connected appliance
In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock
by providing a path of least resistance for
electric current. This appliance (Canadian
market only) is equipped with a cord having
an equipment-grounding conductor and a
grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
WARNING!
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualied electrician
or service representative or personnel if you are
in doubt as to whether the appliance is properly
grounded. Do not modify the plug provided with
the appliance (Canadian market only). If it will
not t the outlet, have a proper outlet installed
by a qualied electrician.
To reduce the risk of re, this appliance must
be exhausted outdoors or the equivalent. Do
not exhaust into a chimney, wall, ceiling or
concealed space in a building.
B) Grounding instructions for a
permanently connected appliance:
This appliance must be connected to a
grounded metal, permanent wiring system, or
an equipment-grounding conductor must be run
with the circuit conductors and connected to the
equipment-grounding terminal or lead on the
appliance.
NOTE!
This manual does not cover every possible
condition and situation that may occur. Use
common sense and caution when installing,
operating, and maintaining any appliance.
Installation
See the section Installation instructions.
Packing material
Please sort waste materials in accordance with
local guidelines.
Disposal
This machine is manufactured and labeled for
recycling. In order to prevent personal injury,
the machine must be made inoperable after
deciding to take it out of service. Contact your
municipality for information about where and
how your machine can be recycled correctly.

6Customer Care Center
1-800-898-1879
www.askona.com
General
WARNING!
Do not allow children to play with the
tumble dryer.
• If the door is opened when a program is
running, the garments may be very hot, with
a risk of burn injuries.
• The tumble dryer does not start automatically
when the door is closed (if a child pulls the
door shut from the inside, for example).
Child safety

7
Customer Care Center
1-800-898-1879
www.askona.com
Description of the tumble dryer
1. Main power switch
2. Panel
3. Serial number tag and rating plate
4. Lint lter
5. Outer door
6. Condenser
4 521
6
3

8Customer Care Center
1-800-898-1879
www.askona.com
Advice and tips before you tumble dry
Here are some tips that may help you before
you begin tumble drying.
Have the clothes been spun?
Items to be tumble dried should be spun at 1000
rpm or faster. Higher spin speeds save energy
and reduce drying time.
Materials that can be tumble dried
This symbol means that the material is
suitable for tumble drying. Fabrics best suited
to tumble drying are cotton fabrics, terry cloth,
and synthetic bers. Garments will be softer and
lighter when tumbled than when hung out to dry.
NOTE!
The tumble dryer does not cause any signicant
wear on fabrics. The lint trapped in the lint lter
consists of dust and ber residues formed when
the items are used.
Materials that should not be tumble
dried
This symbol means that the material is not
suitable for tumble drying. Certain materials
may melt or become a re hazard if exposed to
heat and others can lose their shape or shrink.
And do not tumble dry
• materials labeled "Do not dry near heat".
• garments that have been dry-cleaned at
home.
• plastic foam.
• berglass material.
• wool must not be tumble dried due to the risk
of piling.
Static electricity
To reduce the risk of static electricity in the
laundry after tumble drying, you can:
• Use fabric softener when washing.
• Wait ve minutes after the drying program
ends before opening the door and removing
the laundry from the dryer.
NOTE!
You can stop the tumble dryer by pressing the
Stop button for three seconds or by opening the
door. In both cases the program is stopped and
starts from the beginning if restarted.
If you do not want to restart the program,
immediately remove all laundry and spread it
out to allow the heat to dissipate.

9
Customer Care Center
1-800-898-1879
www.askona.com
WARNING!
To reduce the risk of electric shock or injury
to persons, read the "Important Safety
Instructions" section before operating this
appliance.
Below are step-by-step instructions to help you
achieve the best possible tumble drying results.
1Sort your fabrics
You will achieve the most uniform drying
results if the items are made of the same
type of material. Close zippers and fasten
buttons or belts; sort the items and adjust load
and temperature.
2Press the main power switch
until the display lights.
NOTE!
Power on
Press the on/o button for min. 1 sec and max.
5 sec.
Power o
Press the on/o button for min. 5 sec.
If the ON/OFF command is not correctly
accepted by the machine, wait min. 8 sec before
any further press.
3Open the door, load the items,
and then close the door
Operating instructions

10 Customer Care Center
1-800-898-1879
www.askona.com
4Select the program
Operating instructions
Guidelines as to what specic
programs can be used for:
Auto Heavy
Program with the maximum temperature. This
program is for items that are particularly dicult
to dry, such as jeans with very thick seams.
NOTE!
Knitted fabrics in particular are prone to
shrinkage. Use the Auto Normal, Auto Delicate,
or Auto Iron Dry programs for these items.
Stretch clothes back into shape immediately
after drying.
Auto Normal and Auto Delicate
These programs end automatically when the
load is dry. The Auto Normal program leaves
the laundry slightly more dry than Auto Delicate.
Auto Iron Dry
This program shuts o the heat once the load is
just damp enough for ironing or pressing.
Select a program by turning the program selector. An LED lights next to the selected program. Use the
option buttons to select any options.
Program selector Options buttons
Main power switch Start Stop

11
Customer Care Center
1-800-898-1879
www.askona.com
Operating instructions
Program chart
Here we present the energy and time consumption of a few dierent programs. The table shows the
eect of using dierent spin speeds when washing the load. Consumption can vary depending on
room temperature, humidity, load, variations in the power supply, and selected options.
For the consumption values given below, the requirements are as follows:
Temperature of intake air: 73 °F (23 °C)
Moisture content of intake air: 55 %
Drying temperature: Normal
Heater output: 2500W
Program Material Load Spin speed (rpm) Energy consumption,
approx. (kWh)
Program time,
approx. (min)
Auto Heavy Cotton, linen 1/1 800 rpm 4.5 2:00
1000 rpm 4.2 1:50
1400 rpm 3.7 1:40
1600 rpm 3.5 1:35
Auto Normal Cotton, linen 1/1 800 rpm 4.3 1:50
1000 rpm 3.9 1:45
1400 rpm 3.4 1:30
1600 rpm 3.2 1:25
Wrinkle-resistant, polyester/
cotton
1/2 1000 rpm 2.0 1:00
Auto Delicate Cotton, linen 1/1 800 rpm 4.2 1:50
1000 rpm 3.92 1:40
1400 rpm 3.3 1:25
1600 rpm 2.8 1:15
Wrinkle-resistant, polyester/
cotton
1/2 1000 rpm 1.41 0:40
Auto Iron Dry Cotton, linen 1/1 800 rpm 4.1 2:05
1000 rpm 3.50 1:45
1400 rpm 2.8 1:30
1600 rpm 2.2 1:10

12 Customer Care Center
1-800-898-1879
www.askona.com
Operating instructions
5Selecting Options
By selecting options, you can
tailor a drying program to suit your
requirements. The available options depend on
the selected program. Once you have started
the program, the options you selected are saved
for the next time you use the same program.
Temperature Low
• Select Temperature Low by pressing the
button next to the symbol.
• The lamp next to the button lights when
Temperature Low is selected.
Anti Wrinkle
This option means that the drum will rotate for
three seconds per minute for two hours after the
drying program has nished. If you are unable
to remove the items immediately after the
program has nished, this option prevents the
garments from remaining in the same position
and becoming wrinkled. Cannot be selected
with the Air Flu program.
• Select Anti Wrinkle by pressing the button
next to the symbol.
• The lamp next to the button lights when Anti
Wrinkle is selected.
6Press the Start button
You can stop the tumble dryer by
pressing the Stop button or by opening
the door. In both cases the program is stopped
and starts from the beginning if restarted.
NOTE!
The program will not be aected if you change
the program selector after the program has
started.
7Drying program nished
Once the program has nished, all six
LEDs around Start and Stop light up for
2 minutes. The machine then turns o.
NOTE!
• Clean the lint lter in the outer door after
each load. See the Care and maintenance
instructions chapter.
To install the automatic drain hose, please see
the section titled Installation
WARNING!
If the lint lter becomes clogged, the machine’s
automatic overheating cut-out may be triggered.
Clean the lter, wait until the machine has
cooled, then try starting it. If it still does not start:
Call the Customer Care Center.
Once drying has nished
Remove the clothes and close the door to
prevent small children from climbing into the
machine.

13
Customer Care Center
1-800-898-1879
www.askona.com
Care and maintenance instructions
Cleaning the lint lter
The lint lter must be cleaned after each load.
1. Lift the lter from the holder in the door.
2. Open the lint lter. Use your thumb to press
on the edge as illustrated and pull it out.
3. Use your hand or a soft cloth to remove the
lint from all sides of the lter. If necessary,
use a damp sponge and a small amount of
washing-up liquid dish soap to remove any
deposits. Dry the lter thoroughly with a
towel.
4. Close the lint lter and put it back in the door.
Close the lint lter before closing the door.
Cleaning the outside of the machine
Clean the outside of the machine and the
program panel with a mild cleaner. Do not use
solvents, as these can damage the machine. Do
not hose down or spray the machine with water.
NOTE!
Do not allow dust to accumulate around the
machine. Keep the area around the tumble
dryer clean and cool; dust, heat, and moisture
prolong drying times.

14 Customer Care Center
1-800-898-1879
www.askona.com
Cleaning the condenser
The condenser should be cleaned at least three
times a year. If you have pets, the condenser
must be cleaned more frequently.
1. Turn o the tumble dryer with the main power
switch and open the outer door.
2. Remove the Toe kick.
3. Open the condenser panel by turning the two
knobs.
4. Remove the condenser and rinse the ribs
clean with a sink spray nozzle or a garden
hose with attached spray nozzle. Do not
poke around in the rib gaps as you may
damage the condenser. Do not use pointed
metal objects when cleaning.
NOTE!
Do not clean the condenser in a dishwasher.
5. Wipe any lint from the channel in front of
the condenser and inside the condenser
compartment. Use a cotton rag to remove
any lint from the drain hole at the front edge
of the compartment.
NOTE!
It is quite normal for water to collect in the
channel in front of the condenser.
6. Replace the condenser with the handle
facing down as illustrated.
7. Reattach the toe kick.
Care and maintenance instructions

15
Customer Care Center
1-800-898-1879
www.askona.com
Troubleshooting
The machine will not start
Check:
• that the door is properly closed.
• that the main power switch is on.
• that any plug is connected.
• that the house fuses or circuit breaker have
not been tripped.
• that the overheating cut-out has not been
triggered.
The machine loses all power during a
program
The overheating cut-o shuts o the tumble
dryer if the temperature is too high, caused by
lint clogging the lint lter, for instance.
• Clean the lint lter.
• Check that the condenser is clean. Clean it
if necessary. See the Care and maintenance
instructions chapter.
• Wait until the machine has cooled, then try
starting it. If it still does not start: Call the
Customer Care Center.
Drying takes too long
• Check that the lint lter is not blocked. See
the Care and maintenance instructions
chapter.
• Check that the condenser is not blocked.
See the Care and maintenance instructions
chapter.
• Prolonged drying times may also be due to
the tumble dryer being located in a conned
area or in a room that is too small, causing
the air to become too hot.
• Make sure that the tumble dryer has access
to more cold air, open doors and/or windows,
for example.
Error messages
L1 ashes
The maximum program time has been reached.
Read Drying takes too long in this chapter to
nd out what to do.
Start
L1
L3
L2 Stop

16 Customer Care Center
1-800-898-1879
www.askona.com
Technical data
Height: 33 1/2'' (850 mm)
Width: 23 1/2'' (597 mm)
Depth: 23 7/8" (606 mm)
Weight (net): 97 lb (44 kg)
Cylinder volume: 29,6 gal (112 l)
Max. drying capacity: 15 lb (7 kg)
Speed: 50-55 rpm
Rated power: See serial number tag and rating plate.
Drum material: Stainless steel
Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel.
Setup Stacking or freestanding
Technical information

17
Customer Care Center
1-800-898-1879
www.askona.com
Service and guarantee
Limited Warranty – Residential
Appliances
ASKO Distribution North America, LLC.
(“ASKO”) warrants to the original purchaser
(the “ASKO Customer”) of the ASKO product
(the “ASKO Product”), who purchased the
ASKO Product from a distributor, dealer,
manufacturer’s representative or other seller
who has been authorized by ASKO, that this
ASKO Product is free of defects in materials
and/or workmanship, subject to the terms
and conditions set forth herein. This Limited
Warranty covers parts and labor, except as set
forth in this Limited Warranty. Service must
be provided by an authorized ASKO service
company. YOUR SOLE AND EXCLUSIVE
REMEDY UNDER THIS LIMITED WARRANTY
SHALL BE PRODUCT REPAIR AS PROVIDED
HEREIN. This Limited Warranty is valid only
when the ASKO Product is used in the country
in which it was purchased. Proof of original
purchase date is required to obtain service
under this Limited Warranty.
Residential ASKO Products Used
Exclusively for Household/Personal
Purposes:
Two (2) Years limited Warranty – Any warranty
service claims for residential ASKO Products
must be led with ASKO within two (2) years
from date of purchase. Service will be provided
during normal business hours.
Residential ASKO Products Not Used
Exclusively for Household/Personal
Purposes or used Commercially or
used in Marine, Mobile or Aeronautical
Applications:
One (1) Year limited Warranty – Any warranty
service claims for ASKO Products not used
exclusively for household and personal use, or
used commercially or used in marine, mobile,
or aeronautical applications must be led with
ASKO within one (1) year from date of purchase.
Service will be provided during normal business
hours.
ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1. Replacement parts or repair labor if the
ASKO Product is used in a manner that is
inconsistent with published user or operator
instructions and/or installation instructions.
2. Service calls to correct the installation of the
ASKO Product, to instruct you on how to use
the ASKO Product, to replace or repair house
fuses, or to correct house wiring or plumbing.
3. Consumable items and parts, such as lters.
4. Damage resulting from accident, alteration,
misuse, abuse, negligence, re, ood, acts
of God, improper use, improper installation,
installation not in accordance with electrical
or plumbing codes, or use of products not
approved by ASKO, as well as any attempted
repair by other than authorized ASKO service
companies.
5. Cosmetic damage, including scratches,
dents, chips or other damage to the
nish of the ASKO Product, unless such
damage results from defects in materials or
workmanship and is reported to ASKO within
5 days from date of purchase.
6. Pickup and delivery. The ASKO Product is
intended to be repaired in your home.
7. Repairs to parts or systems resulting from
unauthorized modications made to the
ASKO Product.
8. Expenses for travel and transportation for
product service if the ASKO Product is
located in a remote area where service by
an authorized ASKO service company is not
available.
9. The removal and reinstallation of the ASKO
Product if it is installed in an inaccessible
location or is not installed in accordance with
ASKO’s published installation instructions.
10.Replacement parts or repair labor on ASKO
Products with original model/serial numbers
that have been removed, altered or cannot
be easily determined.

18 Customer Care Center
1-800-898-1879
www.askona.com
Service and guarantee
DISCLAIMER
YOUR SOLE AND EXCLUSIVE REMEDY
UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN.
EXPRESSLY DISCLAIMED ARE ALL OTHER
EXPRESS AND IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Some jurisdictions
do not allow exclusion or limitations regarding
warranty rights. This Limited Warranty gives
you specic legal rights and you may have other
rights that vary from jurisdiction to jurisdiction.
Attempted repair by any person other than an
authorized ASKO service company will void this
Limited Warranty.
LIMITATION OF LIABILITY
IN NO EVENT SHALL ASKO OR THE
MANUFACTURER AND THEIR RESPECTIVE
PARENTS, SUBSIDIARIES AND AFFILIATES
BE LIABLE FOR CONSEQUENTIAL,
INCIDENTAL, EXEMPLARY, PUNITIVE OR
SPECIAL DAMAGES. IN NO EVENT SHALL
ASKO OR THE MANUFACTURER AND THEIR
RESPECTIVE PARENTS, SUBSIDIARIES
AND AFFILIATES BE LIABLE FOR DAMAGES
OTHER THAN ACTUAL DAMAGES AND IN
NO EVENT FOR DAMAGES IN EXCESS OF
THE PRICE PAID FOR THE ASKO PRODUCT
AS TO WHICH A CLAIM IS MADE. Some
jurisdictions do not allow the exclusion or
limitation of incidental, consequential or other
damages, so these limitations and exclusions
may not apply to you. This Limited Warranty
gives you specic legal rights. You also may
have other rights that vary from jurisdiction to
jurisdiction.
1
TROUBLESHOOTING & ASKO CUSTOMER
CARE
If you think you need repair service, rst see
the “Troubleshooting” section of the Use &
Care Guide. If you are unable to resolve the
problem after checking “Troubleshooting,” then
additional help can be obtained by calling ASKO
Customer Care at 1-800-898-1879. Read the
“Troubleshooting” chapter before contacting the
Customer Care Center. Make a note of the (1)
service number, (2) item number and (3) serial
number.
12
3

19
Customer Care Center
1-800-898-1879
www.askona.com
NOTE!
Repair or any warranty claim resulting from
incorrect connection or use of the dryer shall not
be covered by the warranty. In such cases, the
costs of repair shall be charged to the user.
SERVICE AFTER EXPIRATION OF LIMITED
WARRANTY
For information about obtaining parts and
labor after expiration of this Limited Warranty
or arising outside the scope of this Limited
Warranty, please contact ASKO Customer Care
at 1-800-898-1879. After your purchase and
prior to rst use of the ASKO Product, register
your ASKO Product with ASKO by utilizing the
address information below. Should you need
further assistance as well, contact us at the
address information below:
ASKO Distribution North America, LLC
Customer Care Center
PO Box 44848
MADISON WI 53744
1-800- 898-1879
www.askona.com
Service and guarantee

20 Customer Care Center
1-800-898-1879
www.askona.com
Installation instructions
WARNING!
WARNING - Risk of re.
Install the clothes dryer according to the
manufacturer's instructions and local codes.
To reduce the risk of of severe injury or death,
follow all installation instructions.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE.

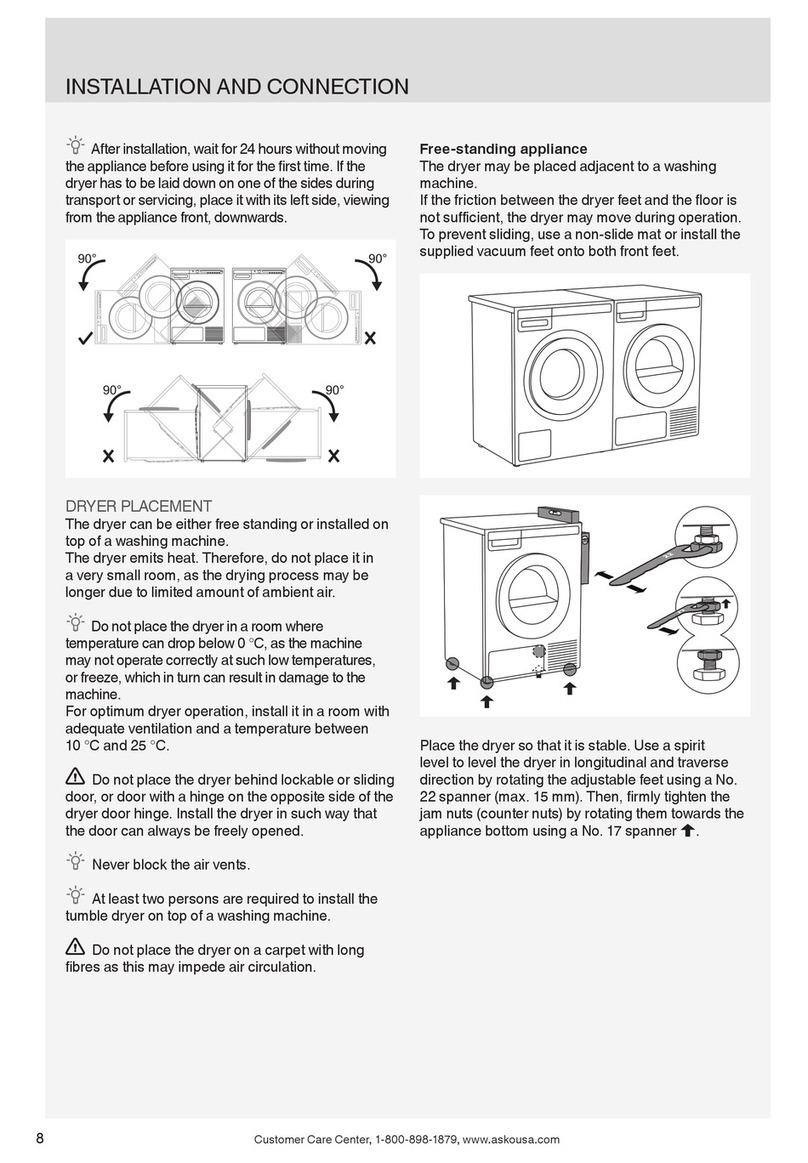

Positioning the tumble dryer
The tumble dryer can be freestanding or
stacked. Remember that the tumble dryer
produces heat and should therefore not be
located in a room that is too small. If the room
is very small, drying will take longer due to the
limited quantity of air.
NOTE!
Do not install the machine in a room where
there is a risk of frost occurring. At temperatures
around freezing point the machine may not be
able to operate properly.
The room in which the appliance is installed
should be adequately ventilated, with
temperature between 15°C and 25°C.
WARNING!
• Clothes dryer installation must be performed
by a qualied installer.
• For proper ventilation, the machine should
not be installed behind a door.
• The tumble dryer's toe kick ventilation must
not be blocked by a rug or the like.
NOTE!
If the unit must be installed behind a door, the
door should be louvered. (please see door
ventilation requirements in the Built-in chapter).
To improve ventilation, the door where the
tumble dryer is located should be left open
when the dryer is in use.
Freestanding
The tumble dryer can be positioned beside the
washing machine.
Stacking
The tumble dryer can be placed on top of an
ASKO washing machine. Use the two foot cups
found in the document bag included with the
machine and the two tip guards attached to the
bottom of the back of the machine.
How to assemble the stacking kit:
1. Remove the two tip guards from the back of
the tumble dryer. Replace the screws that
held the tip guards in place.
2. Remove the two screws indicated on the
back of the washing machine.
