Asko T793 User manual

Dear Asko Customer,
Thank you for choosing this quality product from Scandinavia,
which was made in Sweden.
We want you to feel assured that the inside of your new ma-
chine is just as good as the outside and that the ethics and
standards that went into the production of this machine are
just as high as the quality and performance that you will re-
ceive from it. We hope that this product will give you many
years of pleasure.
To ensure that you get the most out of your new machine, we
recommend that you read the operating instructions before
using the machine. The operating instructions also contain
information on how to avoid damaging the environment.
Operating Instructions
Tumble dryer
Save these instructions for future reference
Asko T793

3
Before using your machine for
the first time
3Do not tumble dry
4Important safety instructions
5Grounding instructions
5Interrupting a program
5Packing material
5Disposal
6Child safety
6General
6Activating Child-safe Start
6
To deactivate Child-safe Start
temporarily:
7Description of the tumble dryer
8Front panel
9
Advice and tips before you
tumble dry
9Have the clothes been spun?
9Materials that can be tumble dried
9
Materials that should not be
tumble dried
10Operating instructions
10Sort your fabrics
10Turn on the main power switch.
10
Open the door, load the items, and
then close the door
10Select the program
12Selecting Options
13Press the Start button
14Drying program finished
14Once drying has finished
15Settings
15
You can alter the following
settings:
15How to choose the settings:
15Clock
15Buzzer Volume
16Language
16Child-safe Start
17
Care and maintenance
instructions
17Cleaning the lint filter
17
Cleaning the outside of the
machine
18Troubleshooting
18The machine will not start
18Overheating cut-off
18Drying takes too long
18
The laundry does not dry, or is too
dry
18Error messages
19Technical information
19Technical data
20Service and guarantee
21Warranty
21
How to contact the AM Appliance
Group
22Installation instructions
22Positioning the tumble dryer
24Adjusting the feet
24Air exhaust
26Electrical installation
29Reversing the door
30Follow these instructions:
31
Built-in machine with cover door
fitted
32Fitting the wooden door
36Quick guide
36Fabrics
36Turn on the main power switch
36Load the laundry
36Select a program and any options
36Press the
36Drying program finished
36Once tumble drying has finished
Customer Care Center2
1-800-898-1879
www.askousa.com
Contents

Do not tumble dry
Certain materials are not suitable for tumble
drying. Always check and follow the instruc-
tions on each item's laundry label. You can
find more information in the "Advice and tips
before you tumble dry" chapter.
Note!
When starting the tumble dryer for the first
time or after a long period without use, you
may hear a slight thumping noise. This noise
is completely normal and will disappear after
a few loads.
See the Quick guide on the last page.
3Customer Care Center
1-800-898-1879
www.askousa.com
Before using your machine for the first time

Warning!
To reduce the risk of fire, electric shock, or
injury to persons when using your appliance,
follow basic precautions, including the follow-
ing:
•Read all instructions before using the appli-
ance.
• Do not wash or dry articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, cooking oils, other flammable or
explosive substances as they give off va-
pors that could ignite or explode.
• Do not allow children to play on or in the
appliance. Children should be closely su-
pervised when near the appliance.
• Before the appliance is removed from ser-
vice or discarded, remove the door to the
drying compartment.
• Do not reach into the appliance if the drum
is moving.
• Do not install or store this appliance where
it will be exposed to the weather.
• Do not tamper with controls.
•Do not attempt to repair or replace any part
of the appliance or perform any servicing
unless specifically recommended in this
guide.
• Do not use fabric softeners or dryer sheets
unless the manufacturer gives written as-
surance that the product will not damage
a tumble dryer.
• Do not heat-dry items containing: vinyl,
plastic, foam rubber or similarly textured
rubberlike materials, fiberglass, or wool
unless wool unless the label specifies
“washable”.
• Clean the lint filter before or after each
load.
•Keep the area around the exhaust opening
and adjacent surrounding areas free from
the accumulation of lint, dust and dirt.
• The interior of the machine should be
cleaned periodically by an authorized
ASKO service agent.
•Do not place items exposed to cooking oils
in your dryer. Items contaminated with
cooking oils may contribute to a chemical
reaction that could cause a load to catch
fire.
• Electrical installation, if required, must be
done by a licensed electrician.
• Do not operate appliance while away from
the home.
• Do not heat dry items that have been dry-
cleaned.
• The dryer is made and marked to facilitate
recycling. When it is no longer useful,
contact your local refuse collection service
for advice on how to properly dispose of
the dryer for purposes of recycling.
• Damaged power cables should only be
replaced by a certified professional.
• Provide sufficient ventilation, otherwise
smoke from open fires or fumes from
equipment burning other fuels can be
drawn into the room.
Caution!
During the program, the back of the dryer will
get very hot. Let the machine cool completely
before touching the back.
Warning!
This appliance must be properly grounded.
Customer Care Center4
1-800-898-1879
www.askousa.com
Important safety instructions

Grounding instructions
A) Grounding instructions for a grounded,
cord-connected appliance
In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock
by providing a path of least resistance for
electric current. This appliance (Canadian
market only) is equipped with a cord having
an equipment-grounding conductor and a
grounding plug. The plug must be plugged
into an appropriate outlet that is properly in-
stalled and grounded in accordance with all
local codes and ordinances.
To reduce the risk of fire, this appliance must
be exhausted outdoors or the equivalent. Do
not exhaust into a chimney, wall, ceiling or
concealed space in a building.
Warning!
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified electri-
cian or service representative or personnel if
you are in doubt as to whether the appliance
is properly grounded. Do not modify the plug
provided with the appliance (Canadian market
only). If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
B) Grounding instructions for a
permanently connected appliance:
This appliance must be connected to a
grounded metal, permanent wiring system,
or an equipment-grounding terminal or lead
on the appliance.
Note
This manual does not cover every possible
condition and situation that may occur. Use
common sense and caution when installing,
operating, and maintaining any appliance.
Interrupting a program
You can stop a drying program by:
• Opening the door. The drum will then stop
automatically.
• Pressing the main power switch.
• Press the Stopp button for three seconds.
When you want to resume tumble drying,
simply close the door and press the Start
button.
Packing material
Please sort waste materials in accordance
with local guidelines.
Disposal
This machine is manufactured and labeled
for recycling. In order to prevent injuries, the
machine must be made unusable once the
decision has been taken to dispose of it.
Contact your local authority for information
about where and how your machine can be
recycled correctly.
5Customer Care Center
1-800-898-1879
www.askousa.com
Important safety instructions

General
Do not allow children to play with the
tumble dryer.
The tumble dryer does not start automatically
when the door closes (for example, if a child
closes the door from inside the dryer). In order
to prevent children from starting a program
or changing one that has already started, you
can activate the Child-safe Start option. To
activate the Child-safe Start option, see the
"Settings" chapter.
Activating Child-safe Start
You can activate Child-safe Start to prevent
children from starting the machine.
1. Press the program selector (the big arrow)
until Child-safe Start is highlighted.
2. Press the up or down arrow button until Off
or On is displayed.
3. Press the program selector (the big arrow)
to activate.
4. Press the button in the middle to save your
setting.
To deactivate Child-safe Start
temporarily:
Pressing the program selector (the big arrow)
and the Stop button at the same time for three
seconds will temporarily disable the safety
catch for three minutes.
Customer Care Center6
1-800-898-1879
www.askousa.com
Child safety

5
4 3 162

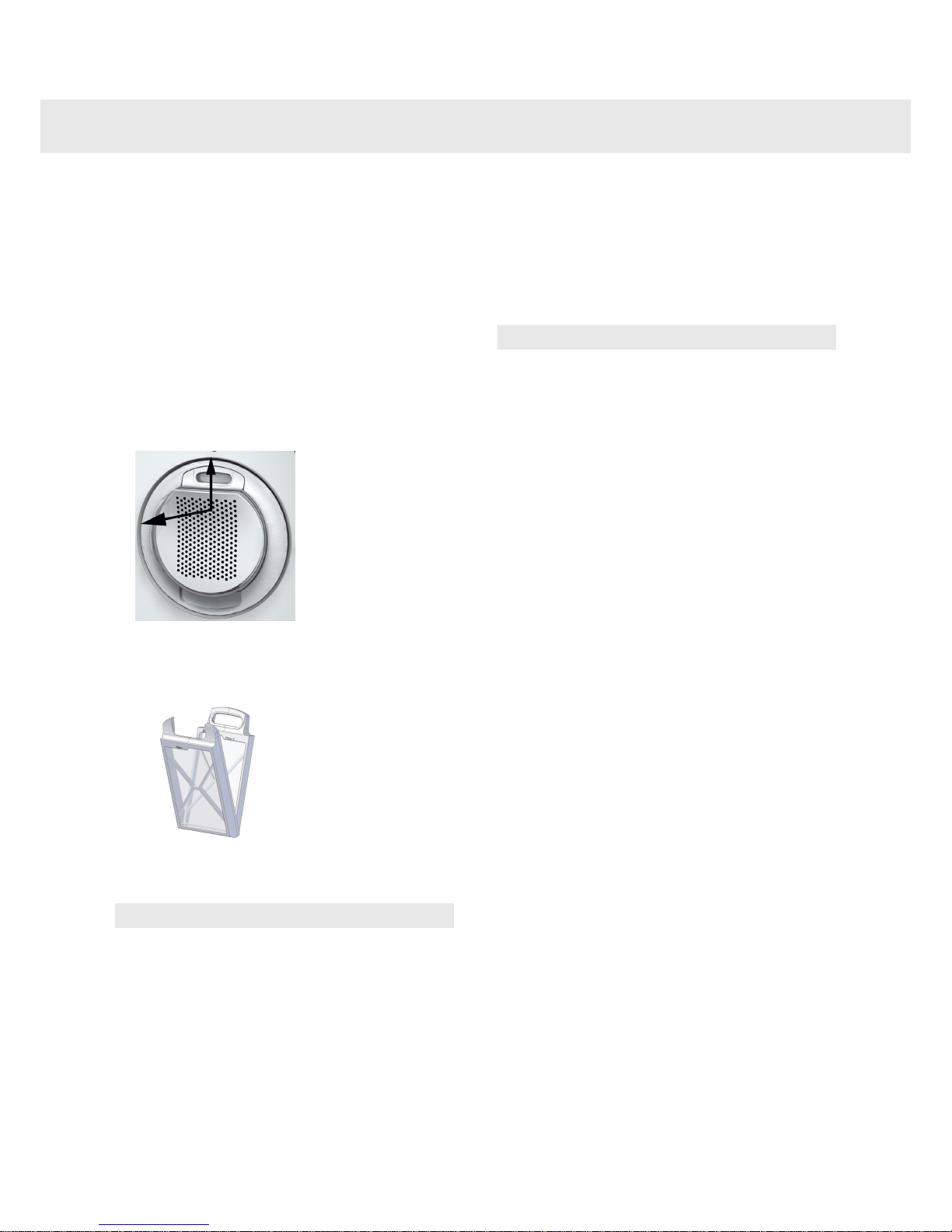

Fan (behind hatch)5.Main power switch1.
Serial number tag and rating plate6.Panel2.
Lint filter7.Lint filter holder3.
Outer door4.
7
7Customer Care Center
1-800-898-1879
www.askousa.com
Description of the tumble dryer

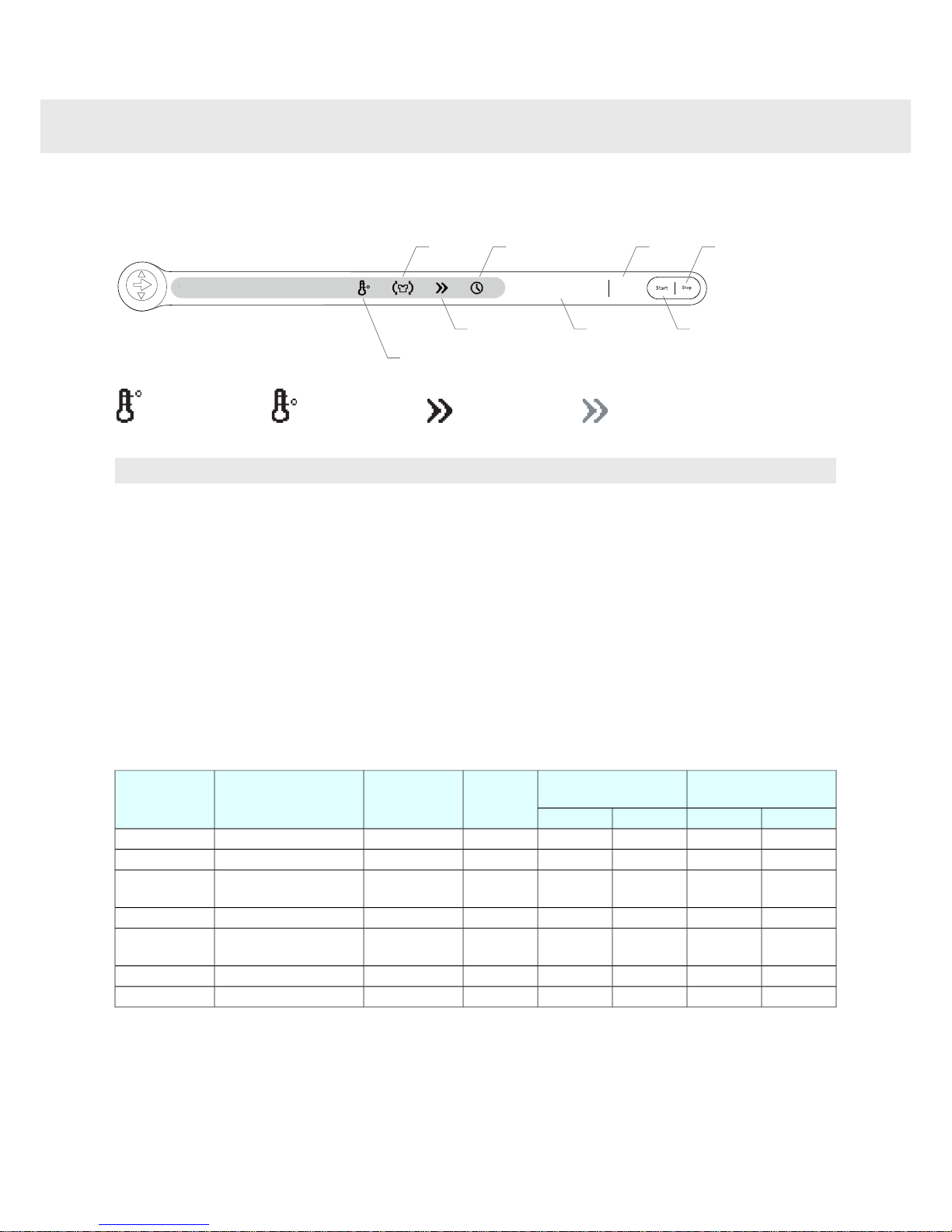

15 4
32
Start4Main power switch1
Stop5Program selector2
Display window3
Customer Care Center8
1-800-898-1879
www.askousa.com
Front panel

Here are some tips that may help you before
you begin tumble drying.
Have the clothes been spun?
Items to be tumble dried should be spun at
1000 rpm or faster. Higher spin speeds save
both energy and drying time.
Materials that can be tumble dried
This symbol means that the material is
suitable for tumble drying. Fabrics best suited
to tumble drying are cotton fabrics, terry cloth,
and synthetic fibers. Garments will be softer
and lighter when tumbled than when hung out
to dry.
Note!
The tumble dryer does not cause any signifi-
cant wear to fabrics. The lint trapped in the
lint filter consists of dust and fiber residues
which gather when the items are used.
Materials that should not be tumble
dried
This symbol means that the material is not
suitable for tumble drying. Certain materials
may melt or become a fire hazard if exposed
to heat and others can lose their shape or
shrink.
And do not tumble dry
• materials labeled "Do not dry near heat".
• garments that have been dry-cleaned at
home.
• plastic foam.
• fiberglass material.
• wool must not be tumble dried due to the
risk of piling.
Note!
If the door is opened during the program, the
program will be interrupted and will return to
the start. The clothes may be too damp or too
dry as a result.
9Customer Care Center
1-800-898-1879
www.askousa.com
Advice and tips before you tumble dry

Warning!
To reduce the risk of electric shock or injury
to persons, read the "Important Safety Instruc-
tions" section before operating this appliance.
Below are step-by-step instructions to help
you achieve the best possible tumble drying
results.
1Sort your fabrics
You will achieve the most uniform drying
results if the items are made of the same
type of material. Close zippers and fasten
buttons or belts; sort the items and adjust load
and temperature.
2Turn on the main power switch.
3Open the door, load the items,
and then close the door
4Select the program
You can select a program by cycling
through the programs with the program
selector. (the big arrow) until the desired
name is highlighted and the program end time
appears on the display. Start the program by
pressing the Start button, or press the pro-
gram selector to select Options.
Guidelines as to what specific programs
can be used for.
Heavy
This program is for items that are particularly
difficult to dry, such as jeans with very thick
seams.
Note!
Knitted fabrics in particular are prone to
shrinkage. Use the Normal, Delicate, or Iron
Dry programs for these items. Stretch clothes
back into shape immediately after drying.
Normal and Delicate
These programs shut off the heat once the
load is dry but before it is "bone-dry". The
Normal program shuts off the heat slightly
later than Delicate. Use trial and error to find
out what works best. Use these programs
when you want items to be completely dry.
Iron Dry
This program shuts off the heat once the load
is just damp enough for ironing or pressing.
Timed Dry
The program length you choose depends on
what you intend to do with the items after
drying them. Use trial and error to find out
what works best. When you use Timed Dry
to tumble dry a load of mixed fabrics, some
of the garments may remain damp. Tumble
dry any damp garments for a further 30 min-
utes or so using the Timed Dry program.
Note!
When using the Timed Dry program, gar-
ments can become "over-dry" if you have se-
lected too long a drying time. This can cause
the items to shrink or wrinkle and become
rough. Synthetic materials can also become
charged with static electricity.
Setting the time for the Air Fluff or Timed
Dry program
For the Air Fluff and Timed Dry programs, you
set the number of minutes incrementally. The
selected time is shown on the display. You
can try out different drying times.
Air Fluff
Use the Air Fluff program when you just want
to refresh, air out,, or soften up items.
Customer Care Center10
1-800-898-1879
www.askousa.com
Operating instructions

Menu overview
1.
2.
3.
4.
6.
7.
5. 10.20 09.20
5.
Heavy
Normal
Delicate
Iron Dry
Timed Dry
Air Fluff
Settings
Anti Wrinkle function Delayed Start
End
Clock Stop
Temperature
Quick Cool-down
Cool-down
End time Start
Temperature Normal Temperature Low Quick Cooling Normal Cooling
Note!
The illustration shows an example of a program.
Programme chart
For the consumption values given below, the requirements
are as follows:
68°F (20°C)Temperature of intake air:
65 %Moisture content of intake air:
Normal or LowDrying temperature:
3000WHeater output:
Before tumble drying, cotton fabrics should be spun at 800 and 1600 rpm (long spin).
Before tumble drying, other fabrics (wrinkle-resistant and acrylic) should be spun at 800 rpm (short spin).
Programme chart
Program time (approx.
min)
Energy consumption
(approx. kWh)
Max. load
(lb)
TemperatureMaterialProgram
1600 rpm800 rpm1600 rpm800 rpm
1131423.54.515NormalCotton, linenHeavy
1011333.34.315NormalCotton, linenNormal
-67-2.08NormalWrinkle-resistant,
polyester/cotton
Normal
861172.83.815NormalCotton, linenDelicate
-55-1.78NormalWrinkle-resistant,
polyester/cotton
Delicate
-77-2.08LowAcrylic, rayon, acetateDelicate
68943.34.315NormalCotton, linenIron Dry
11Customer Care Center
1-800-898-1879
www.askousa.com
Operating instructions

5Selecting Options
By selecting options, you can tailor dry-
ing programs to suit your own laundry
requirements. The machine remembers the
selected option and uses it the next time you
select the same program. You can, of course,
change this if you want.
Temperature
1. Select the temperature by pressing the
program selector (the big arrow) until
Temperature is highlighted.
2. Press the up or down arrow button until
Normal or Low Temperature is displayed.
3. Press the Start button to start the program
or press the program selector to choose
more options.
Cooling
If you choose Normal Cooling, the machine
cools the load for 15 minutes. If you choose
Quick Cool-down, the load cools in 3 minutes.
Cooling cannot be selected for the Air Fluff
program.
1. Choose Cool-down by pressing the pro-
gram selector (the big arrow) until Cool-
down is highlighted.
2. Press the up or down arrow button until
Quick Cool-down or Cool-down is dis-
played.
3. Press the Start button to start the program
or press the program selector to choose
more options.
Anti Wrinkle function
This is a useful feature if you cannot take the
laundry out as soon as the tumble dryer has
finished. The function prevents the clothes
from remaining in the same position and be-
coming wrinkled. The drum will rotate for three
seconds per minute for two hours once the
drying program has finished
1. Select Anti Wrinkle by pressing the pro-
gram selector (the big arrow) until Anti
Wrinkle is highlighted.
2. Press the up or down arrow button until Off
or On is displayed.
3. Press the Start button to start the program
or press the program selector to choose
more options.
Delayed Start
Choose the number of hours by which you
want to delay the start.
1. This option cannot be used with the Air
Fluff and Timed Dry programs.
2. Select Delayed Start by pressing the pro-
gram selector (the big arrow) until Delayed
Start is displayed.
3. Press the up or down arrow button to set
the number of hours you want to delay the
start.
4. Press the Start button to start the program
or press the program selector to choose
more options.
Note!
Remember to press the Start button.
Customer Care Center12
1-800-898-1879
www.askousa.com
Operating instructions

Setting the time for the Timed Dry and Air
Fluff programs
You can set the time so that it appears on the
display as Start, End, or the number of min-
utes. This will depend on how you have cho-
sen to display times.
1. Press the program selector (the big arrow)
until "Time settings" is highlighted.
2. Press the up or down arrow button to select
time in 15 minute intervals.
3. Press the Start button to start the program
or press the program selector to choose
more options.
6Press the Start button
Remaining drying time
An estimate of the remaining drying time
will be shown on the display within 2 minutes
of the drying program starting. For example,
1:35 means it will take approximately 1 hour
and 35 minutes for the load to dry. If the Anti
Wrinkle option has been selected, the drum
will rotate every minute for 2 hours after
cooling.
Stopping or changing a program
Press and hold the Stop button for three sec-
onds.
Note!
The program will not be affected if you change
the program selector after the program has
started.
Loading or removing laundry
If you want to load or remove laundry once
you have started the machine, open the door
and the program will stop. Load more laundry
or take out the items you want, close the door,
and press the Start button. A new estimate of
the remaining program time will be displayed
after about 2 minutes.
13Customer Care Center
1-800-898-1879
www.askousa.com
Operating instructions

7Drying program finished
The text "END" appears on the display
when the program has finished. If the
Anti Wrinkle option has been selected, the
drum will rotate every minute for 2 hours after
cooling.
Important!
• Clean the lint filter after each load.
Caution!
If the lint filter becomes clogged, the ma-
chine’s automatic overheating cut-off may be
triggered. In order to be able to restart the
machine, you must clean the filter and allow
the machine to cool down for around 30 min-
utes.
Cleaning the lint filter
1. Grasp the filter handle and pull it toward
you.
2. Pull the filter out of its holder.
3. Open the filter and remove the lint by hand.
4. Fold the filter up and insert it into its holder.
The filter may need to be cleaned if it has
limescale deposits. See the "Care and
cleaning" chapter.
Automatic drain
To install the automatic drain hose, please
see the section titled Installation
8Once drying has finished
Turn off the main power switch. Remove
the clothes and close the door to pre-
vent small children from climbing into the
machine.
Customer Care Center14
1-800-898-1879
www.askousa.com
Operating instructions

You can alter the following settings:
• Clock
• Buzzer Volume
• Language
• Child-safe Start
• Back
How to choose the settings:
1. Press the program selector (the big arrow) until the program selection menu on the left is
highlighted.
2. Then press the up or down arrow button until Settings is highlighted.
3. Press the program selector (the big arrow).
Clock
Set the clock to 12 hour, 24 hour, or remaining program time display.
1. Press the up or down arrow button until Clock appears in the middle of the display.
2. Press the program selector again (the big arrow) to access the options menu on the right of
the display.
3. Press the up or down arrow button to choose 12 hour clock, 24 hour clock, or remaining pro-
gram time display.
4. Press the program selector (the big arrow) to save your setting.
5. If you selected 12 or 24 hour clock, you will now come automatically to the clock setting menu.
Setting the clock
6. Press the up arrow button until the correct hour is shown.
7. Press the program selector (the big arrow) to save your setting.
8. Press the up arrow button until the correct minutes are shown.
9. Press the program selector (the big arrow) to save your setting.
10. If you do not want to select any more settings, press the arrow button down until you reach
the program you want.
Buzzer Volume
You can choose to have the machine notify you when a program has finished or when a fault
has occurred.
1. Select Buzzer Volume by pressing the up or down arrow button until Buzzer Volume is high-
lighted.
2. Press the program selector again (the big arrow) to access the options menu on the right of
the display.
3. Select the setting for the Buzzer Volume by pressing the up or down arrow button: Off, Low,
Normal, High.
4. Press the program selector (the big arrow) to save your setting.
15Customer Care Center
1-800-898-1879
www.askousa.com
Settings

Language
You can choose the language you prefer.
1. Select Language by pressing the up or down arrow button until Language is highlighted.
2. Press the program selector again (the big arrow) to access the options menu on the right of
the display.
3. Press the up and down arrow button to choose from: AU english, US english, svenska, dansk,
norsk,
suomea, Francais, Deutsch, Italiano, espanol, Русский, nederlands.
4. Press the program selector (the big arrow) to save your setting.
Child-safe Start
You can activate the Child-safe Start option to prevent children from starting the machine.
Pressing the program selector (the big arrow) and the Stop button at the same time for three
seconds will temporarily disable the Child-safe Start option for three minutes.
1. Select Child-safe Start by pressing the up or down arrow button until Child-safe Start is high-
lighted.
2. Press the program selector again (the big arrow) to access the options menu on the right of
the display.
3. Press the up or down arrow button until Off or On is displayed.
4. Press the program selector (the big arrow) to activate
Customer Care Center16
1-800-898-1879
www.askousa.com
Settings

Cleaning the lint filter
The lint filter must be cleaned after each load.
If you have very hard water, this can cause
limescale deposits in the lint filter. Check for
any limescale deposits when cleaning the lint
filter and, if necessary, wash the filter by hand.
Additionally, the filter should be cleaned with
hot water, detergent, and a soft brush quarter-
ly.
1. Grasp the filter handle and pull it toward
you.
2. Pull the filter out of its holder.
3. Open the filter and remove the lint from all
sides of it by hand. Use a soft, dry cloth to
remove any deposits.
4. Replace the filter in its holder.
Note!
If you have hard water, the filter should be
washed with water to remove any limescale
deposits. Use a sponge and a little dishwash-
ing detergent if necessary. Dry the filter care-
fully with a towel. If you cannot remove the
limescale, you can buy a new filter from the
retailer where you bought the tumble dryer.
Cleaning the outside of the machine
Clean the outside of the machine and the
program panel with a mild cleaner. Do not use
solvents, as these can damage the machine.
Do not hose down or spray the machine with
water.
Note!
Do not allow dust to accumulate around the
machine. Keep the area around the tumble
dryer clean and cool; dust, heat, and moisture
prolong drying times.
17Customer Care Center
1-800-898-1879
www.askousa.com
Care and maintenance instructions

The machine will not start
Check
• that the door is properly closed.
• that the main power switch is on.
• that the Delayed Start option has not been
selected. To cancel Delayed Start, press
the Stop button for 3 seconds.
• that the machine is not programmed to
start at a specific time (e.g., 13.30)
• that any plug is connected.
• that the fuses (circuit breakers) in your
house are intact. Flip the dryer breaker off
and then back on to make sure. You can
not always tell from the outside if the circuit
breaker has tripped.
• that the overheating cut-off has not been
triggered (see below).
Overheating cut-off
The overheating cut-off shuts off the tumble
dryer if the temperature is too high, caused
by lint clogging the lint filter, for instance.
• Clean the filter.
• The overheating cut-off will reset automat-
ically once the machine has cooled down.
Drying takes too long
• Check that the lint filter is not clogged (see
the "Care and maintenance" chapter).
The laundry does not dry, or is too
dry
• The door has been opened while the pro-
gram is running, which disrupts the mois-
ture monitoring function.
Error messages
• If "Max Program Time" appears on the
display, the maximum program time has
been reached. Read "Drying takes too
long" in the "Troubleshooting" chapter to
find out what to do.
• If "Clean lint filter" appears on the display,
clean the lint filter.
• If "Clean condenser" appears on the dis-
play. See the "Cleaning the condenser"
section of the "Care and cleaning" chapter
for remedy
• Press the Stop button to close error mes-
sages.
Customer Care Center18
1-800-898-1879
www.askousa.com
Troubleshooting

Technical data
33 1/2'' (850mm)Height:
23 7/16'' (595mm)Width:
23" (585 mm)Depth:
104lb (47kg)Weight:
29.3gal (111l)Cylinder volume:
15lb (7kg)Max. drying capacity:
52 rpmSpeed:
See serial number tag and rating plate.Rated power:
Stainless steelDrum material:
Powder-coated and hot-galvanized sheet steel
or stainless steel.
Outer casing material:
Stacking or freestandingSetup
19Customer Care Center
1-800-898-1879
www.askousa.com
Technical information

It is important to register your product warranty by logging onto www.askousa.com/customer-
care/registration and filling out all required fields within 90 days from the date of purchase. After
doing so, you will be e-mailed a certificate that will extend the original warranty for one additional
year. If you do not have access to the internet, complete the warranty card included with the
product and mail it to the address on the warranty card within 90 days of the date of purchase.
Cosmetic damage must be reported to your dealer within five days from the date of purchase.
After unpacking the washer, thoroughly check the unit for cosmetic damage.
AM Appliance Group will pay for:For residential installations only
ASKO replacement parts and/or repair labor to
correct defect in materials or workmanship.
Service must be provided by an authorized
ASKO service agent.
Length of warranty Two-Year Full
From date of purchase.
ASKO replacement parts and/or repair labor to
correct defect in materials or workmanship.
Service must be performed by an authorized
ASKO service agent.
Third Year Full
Complete your product warranty registration
online at www.askousa.com/customercare/reg-
istration within 90 days from the date of pur-
chase to extend the original warranty one addi-
tional year. If you do not have access to the in-
ternet, complete the warranty card included with
the product and mail it to the address on the
warranty card within 90 days of the date of pur-
chase.
ASKO replacement parts (labor cost not includ-
ed) for the stainless steel tank if it exhibits a
manufacturing defect such as cracking or rusting
through. Service must be provided by an autho-
rized ASKO service agent.
Lifetime
ASKO replacement parts and/or repair labor to
correct defect in materials or workmanship.
Service must be provided by an authorized
ASKO service agent.
For non-residential installations One-year Full
Warranty
From date of purchase.
Customer Care Center20
1-800-898-1879
www.askousa.com
Service and guarantee
