Asko DC7784V User manual

Drying cabinet
DC7784V.W.U
USER MANUAL
Read the user manual before using the machine.
879787ae.indd 1879787ae.indd 1 7. 02. 2023 14:53:507. 02. 2023 14:53:50

Dear ASKO customer,
Congratulations on the choice you have made, and welcome to the
ASKO family, a global family with its roots in Sweden.
We at ASKO thank you for your trust and hope that you will enjoy
using your new drying cabinet.
A good drying cabinet should be well designed, dry clothes well,
have a low enironmental impact, be user-iendly, save time and
energy, have a long service life and be reliable. ASKO meets all these
requirements.
When you buy an ASKO product you can be sure that the inside is
just as good as the outside and that the ethics and morality that go
into manufacturing this product are just as high as the quality and
function you are getting. at's what Swedish quality is all about.
Before using the product for the rst time, please read the user
instructions and the advice on caring for the product. is will
help you get the best possible results om your product and all its
functions.
If you have any questions, do not hesitate to call us or to contact us
through our website.
Best wishes om Sweden and the ASKO team.
879787ae.indd 2879787ae.indd 2 7. 02. 2023 14:54:037. 02. 2023 14:54:03

3
CONTENTS
IMPORTANT SAFETY
INFORMATION 5
Important safety instructions 6
Installation and connection 9
FOR A GOOD ENVIRONMENT 10
Packaging materials 10
Management of end-of-life drying
cabinet 10
COMPONENTS 11
Control panel 12
Language 13
Unpacking 14
DOOR REVERSING 15
INSTALLATION 20
Location requirements 20
Installation instruction –
Laundry care concept 21
Mounting into custom cabinetry 22
Ventilation connection 25
Ventilation requirements 26
Evacuation / air supply 27
Connection to evacuation 27
Electrical connection 29
BEFORE USING THE DRYING
CABINET 30
OPERATION 31
Arranging laundry for drying 31
Cabinet equipped with coat
hanger rack and shoe rack 31
User advice 31
Air flow 32
Drying programs 33
Child lock 34
Start automatic program 35
Starting a manual program 35
User advice 36
SETTING DRYING PROGRAMS 37
Programming mode 37
Parameter list 38
Adjustment 40
Procedure 41
Restoring to factory setting 41
CARE 42
Cleaning 42
Replacement part 42
OVERHEAT CUT-OUT 43
TROUBLESHOOTING 44
SERVICE AND WARRANTY 45
Service 47
TECHNICAL DATA 48
Energy consumption and drying
times 48
879787ae.indd 3879787ae.indd 3 7. 02. 2023 14:54:037. 02. 2023 14:54:03

4
THIS USER MANUAL
The contents of this user manual describe the function and operation of the drying cabinet,
as well as instructions for installation and maintenance.
The following symbols are used throughout the manual and they have the following
meanings:
Information, advice, tip, or
recommendation Warning – danger of hot surface
Warning – general danger Warning – danger of fire
Warning – danger of electric shock
879787ae.indd 4879787ae.indd 4 7. 02. 2023 14:54:037. 02. 2023 14:54:03

5
This drying cabinet meets applicable safety requirements. Incorrect
use may, however, lead to injuries and damage to objects.
The advice and caution notices in this manual have been written
to enable you to avoid incorrect use and unnecessary risks of
accidents, and should be read before installing and using the drying
cabinet.
IMPORTANT SAFETY INFORMATION
CAUTION: This equipment is intended only to be used to dry
fabrics washed in water.

The appliance is not intended for use by persons (including
children) with various disabilities or inadequate experience
and knowledge.
They may use the appliance only under supervision or
if they have received instructions on how to use the
appliance form a person who is responsible for their
safety.
Children must be supervised to ensure that they do not
play with the appliance.
 The drying cabinet must be installed and kept indoors.
If the power cord is damaged, it must be immediately re-
placed, and this must be done only by the manufacturer,
the manufacturer's service agent or similarly qualified
persons in order to prevent danger.
Follow ASKO instructions in repair and replacement of
parts.
879787ae.indd 5879787ae.indd 5 7. 02. 2023 14:54:057. 02. 2023 14:54:05

6
IMPORTANT SAFETY INSTRUCTIONS
WARNING – To reduce the risk of fire, electric shock, or injury
to persons when using your appliance, follow basic precautions,
including the following:
1 Read all instructions before using the appliance.
2 Do not dry articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable or explosive
substances, as they give offvapors that could ignite or
explode.
3 Risk of suffocation and injury from entrapment: Do
not allow children to play on or in the appliance. Close
supervision of children is necessary when the appliance is
used near children.
4 Before the appliance is removed from service or discarded,
remove the door to the drying compartment.
5 Do not install or store this appliance where it will be exposed
to the weather.
6 Do not tamper with controls.
7 Do not repair or replace any part of the appliance or attempt
any servicing unless specifically recommended in the
user-maintenance instructions or in published user-repair
instructions that you understand and have the skills to carry
out.
879787ae.indd 6879787ae.indd 6 7. 02. 2023 14:54:057. 02. 2023 14:54:05

7
8 Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
9 Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust,
and dirt.
10 The interior of the appliance and exhaust duct should be
cleaned periodically.
11 Do not place items exposed to cooking oils in your drying
cabinet. Items contaminated with cooking oils may contribute
to a chemical reaction that could cause a load to catch fire.
To reduce the risk of fire due to contaminated loads, the final
part of a drying cabinet cycle occurs without heat (cool down
period). Avoid stopping a drying cabinet before the end of the
drying cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
12 Do not use replacement parts that have not been
recommended by the manufacturer (e.g. parts made at home
using a 3D printer).
879787ae.indd 7879787ae.indd 7 7. 02. 2023 14:54:057. 02. 2023 14:54:05

8
For a grounded, cord-connected appliance:
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This appliance is equipped with a cord having an equipment-
grounding conductor and a grounding plug.The plug must be
plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
WARNING– Improper connection of the equipment-
grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service representative or personnel
if you are in doubt as to whether the appliance is properly
grounded.
Do not modify the plug provided with the appliance: if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
879787ae.indd 8879787ae.indd 8 7. 02. 2023 14:54:057. 02. 2023 14:54:05

9
WARNING!
Install the drying cabinet according to the
manufacturer’s instructions and local codes.
WARNING!
Drying cabinet installation must be performed by
a qualified installer.
WARNING!
To reduce the risk of severe injury or death,
follow all installation instructions.
WARNING!
Save these instructions.
WARNING!
Do not install a drying cabinet with flexible
plastic venting materials. If flexible metal (foil
type) duct is installed, it must be of a specific
type identified by the appliance manufacturer
as suitable for use with drying cabinets. Flexible
venting materials are known to collapse, be
easily crushed, and trap lint. These conditions
will obstruct drying cabinet airflow and increase
the risk of fire.
WARNING!
• The appliance shall not be exhausted into
a chimney, a wall, a ceiling, an attic, a crawl
space, or a concealed space of a building;
• Only rigid or flexible metal duct shall be used
for exhausting;
• Maximum duct length shall be 8 feet (2.4 m)
and maximum number of bends shall be 4;
• The total length of flexible metal duct shall not
exceed 8 feet (2.4 m);
• The duct shall not be assembled with screws
or other fastening means that extend into the
duct and catch lint.
WARNING!
Do not install a booster fan in the exhaust duct.
INSTALLATION AND CONNECTION
879787ae.indd 9879787ae.indd 9 7. 02. 2023 14:54:067. 02. 2023 14:54:06

10
PACKAGING MATERIALS
The packaging that protects the drying
cabinet against damage in transit has been
chosen with concern for the environment in
mind and is therefore recyclable.
Packaging that is returned to the material
cycle means reduced consumption of raw
materials and a smaller volume of waste.
FOR A GOOD ENVIRONMENT
MANAGEMENT OF END-OF-LIFE
DRYING CABINET
When the drying cabinet has reached the
end of its useful life, it must be taken to a
recycling center for disposal.
Many parts of the drying cabinet can be re-
used, but it also contains other material that
must be handled correctly.
You should therefore never leave the drying
cabinet or parts of the cabinet for collection
with household waste, as this may lead to
risks to health and cause damage to the
environment.
The end-of-life drying cabinet should
instead be taken to a recycling center.
Check with your dealer if necessary.
All the plastic parts of the drying
cabinet are marked with internationally
standardised symbols.
The parts of the drying cabinet can
therefore be recycled in an environmentally
sound manner by waste separation.
879787ae.indd 10879787ae.indd 10 7. 02. 2023 14:54:067. 02. 2023 14:54:06

11
COMPONENTS
Power Cord
Air inlet
Moist air outlet
Heating and fan components are
combined in the top of the cabinet
in a Fan Unit.
Clothes hanger rack
Door hangers
Three extendible hanging
sections
(The illustration shows extended
sections)
Glove hangers
Door "handle", right or left-hand
version
Shoe rack
Adjustable feet (x4)
Control panel
879787ae.indd 11879787ae.indd 11 7. 02. 2023 14:54:067. 02. 2023 14:54:06

12
CONTROL PANEL
The drying cabinet is equipped with four automatic and four manual drying programs suited to different
types of clothing.The programs are set using the buttons on the menu panel. Four languages can be
chosen.
BUTTONS
ON/OFF
START Starts and
STOP Stops the drying program
OK Confirms the selection of programs, functions and settings
UP ARROW, increase values or browse between programs.
DOWN ARROW, reduce values or browse between programs.
DISPLAY
The display has two rows with 6 characters on each row. During the drying process the selected drying
program and a rolling bar indicating that the process is in progress are shown.
879787ae.indd 12879787ae.indd 12 7. 02. 2023 14:54:197. 02. 2023 14:54:19

13
Language symbol Display language
0 English
1 Swedish
2 Norwegian
3 Danish
4 Finnish
5 Italian
6 French
7 German
8 Spanish
9 Portuguese
10 Dutch
SETTING
1Make sure that the ON/OFF switch on the
drying cabinet is off. The display is unlit.
2Hold down the UP ARROW and DOWN
ARROW buttons and press the ON/OFF
switch to the “ON” position.The display
lights up and on the top row shows “P105”
flashing, which is the parameter for
language setting. If a different value is
shown, use the UP ARROW or DOWN
ARROW buttons to browse to the correct
parameter.
3Press START/STOP to confirm.
The row for current language now flashes.
The languages have a numerical symbol as
shown in the list below.
4Browse to the desired language with the UP
ARROW or DOWN ARROW buttons.
5To save the set value, press START/ STOP.
6To return to operating mode, press DOWN
ARROW and START/STOP.
LANGUAGE
The following languages can be chosen: English, Swedish, Norwegian, Danish, Finnish, Italian,
French, German, Spanish, Portuguese and Dutch.
879787ae.indd 13879787ae.indd 13 7. 02. 2023 14:54:207. 02. 2023 14:54:20

14
UNPACKING
CAUTION!
The drying cabinet must be handled carefully if it
is standing unsupported on its pallet.
RISK OF TIPPING OVER
Make sure that the product has not been damaged
in transit Any damage incurred in transit must be
reported to the dealer within 7 days.
After unpacking, check that the product is in-
tact. Damage, defects and any missing parts
must be reported to the dealer immediately.
Check that all transport securing devices have
been removed before connecting the drying
cabinet.
Packaging materials such as plastic and
styrofoam should be kept out of the reach of
children.
Complete delivery must include:
Cabinet with installed fan unit
Assembly kit
User Manual
ASSEMBLY KIT
- for cabinet - for attachment to wall
Spigot (1)
Mounting screw for spigot (2)
Cover plug, white (4) for
adjustable feet
Allen key (1)
Screw TRX 5x70
zinc-plated (2)
Anchor plug (2)
Cover plug, white (2)
Washer NB (2)
- not supplied with a drying cabinet
Draft stabilizer (1)
Hose (1)
879787ae.indd 14879787ae.indd 14 7. 02. 2023 14:54:207. 02. 2023 14:54:20

D
D
D
D
D
15
DOOR REVERSING
The pictures below illustrate reversing the door from right to left hinge.
Door Reversing kit (Product code: 721529)
For reversing, a door reversing kit must be ordered from the supplier of the cabinet. The kit consists of
a new upper hinge, as the left and right hinges are not interchangeable.The kit also includes a control
cable for fitting in the door with associated hinge bushing.

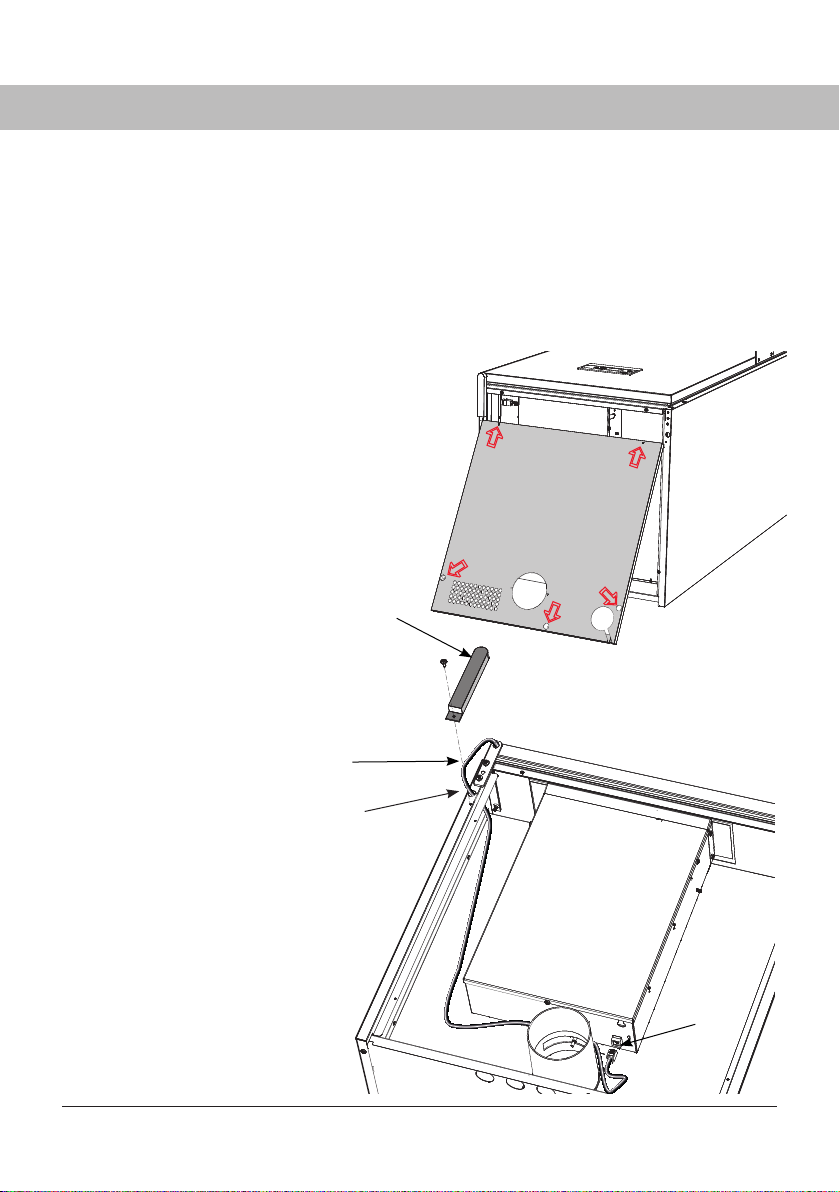

1Remove the cover in the top
of the drying cabinet. This is
attached with five screws at
the marking arrows.
2Remove the protective cover
(1) of the upper hinge and
release the control cable (2).
3Separate the control cable
from the fan unit with the quick
connector (3) and pull the
cable through the hole (4).
Lay the cabinet down carefully on its
back.
2
1
3
4
Fan unit
879787ae.indd 15879787ae.indd 15 7. 02. 2023 14:54:267. 02. 2023 14:54:26

6
5
16
Upper hinge joint with the door pulled down so that
the hinge pin is freed
4Unscrew the lower hinge pin (5).
Raise the door slightly from the
bottom edge and detach it from the
upper hinge, to the extent that the
hinge pin is visible.The pin has a
recess for the control cable.
5Carefully pull the control
cable (6) out of the recess
in the hinge pin.
6The door, together with the control
cable, is now free and can be set
aside.
879787ae.indd 16879787ae.indd 16 7. 02. 2023 14:54:297. 02. 2023 14:54:29

7
8
17

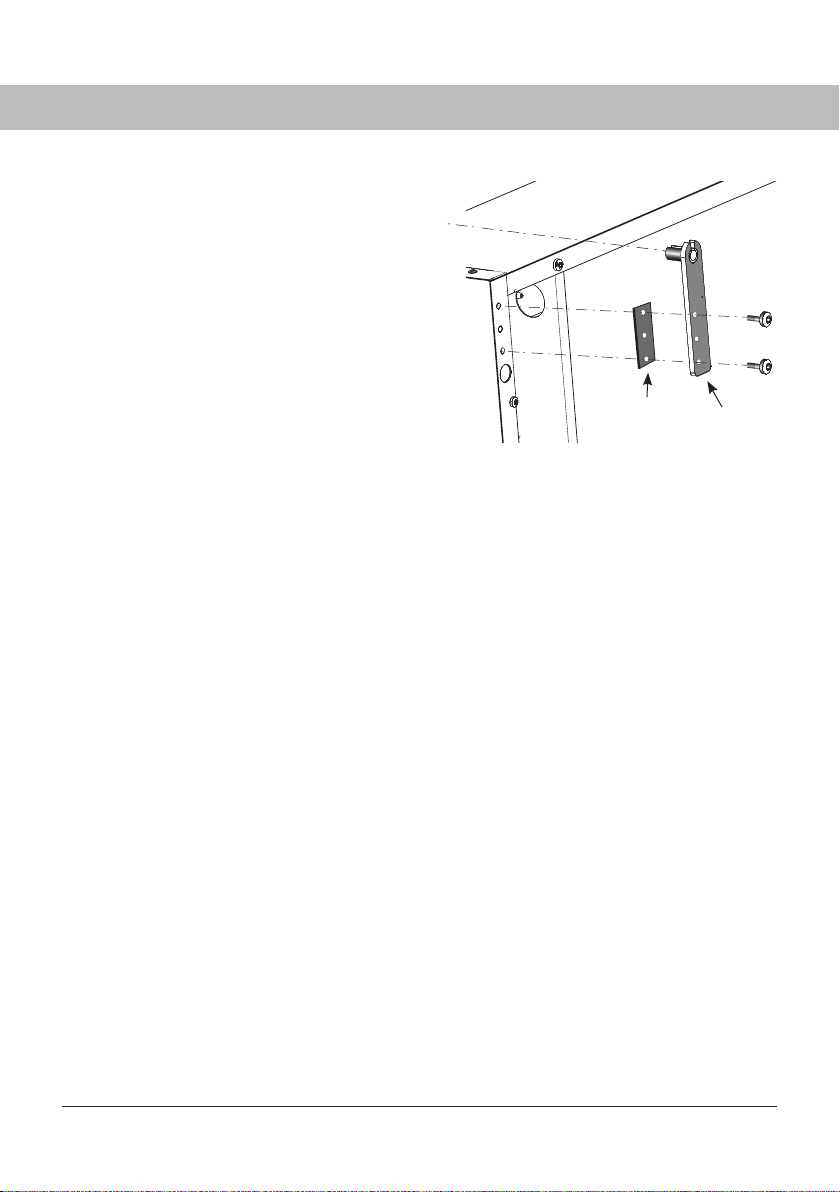

7Detach the upper hinge (7) with hinge
washer (8). Discard the hinge.
8Install the new replacement hinge on the
opposite side and move the hinge washer
across.
The hinge forms part of the door
reversing kit, which can be ordered from
the dealer of the drying cabinet.
879787ae.indd 17879787ae.indd 17 7. 02. 2023 14:54:317. 02. 2023 14:54:31

12
10
9
11
18
9Lay the door down with the inside
facing up on a non-damaging
surface.
10 Detach the inner plate (9) with
magnetic strip, door hangers and
glove hangers. Screws are beneath
the magnetic strips.
Remove the insulation (10).
11 Detach and transfer the
reinforcement panel and lower
hinge bushing (11) in the door to
the opposite side.
12 Detach existing control cable from
control panel and pull cable out with
hinge bushing (12). Discard the
cable as there is a new complete
cable in the door reversing kit.
Fit the new cable on the opposite
side - press the bushing firmly into
the hole and connect the cable to the
control panel outlet.
13 Move back the insulation and inner
plate with magnetic strips and, if
applicable, hangers.
Re-attachment in the door
879787ae.indd 18879787ae.indd 18 7. 02. 2023 14:54:317. 02. 2023 14:54:31

13
14
19
14 Introduce the operating cable
through the recess in the new up-
per hinge and slide the door up on
the hinge pin.
15 Install the lower hinge pin.
Make sure that the hinge pin is
tightened firmly.
16 Connect the control panel (13) to
the connector in the upper part of
the drying cabinet.
17 Refit the drying cabinet cover
which was removed under 1.
Lay the door in position
New hinge
Fan unit
The control cable
must be pulled
through the hole.
Raise the cabinet
19 Raise the cabinet and place it in position and
secure the cabinet to the wall.
Transfer the door handle
18 Transfer the handle (14) to the other side.
Fit the cover plugs for the old holes by
hand. Cover plugs are supplied in the
assembly kit.
879787ae.indd 19879787ae.indd 19 7. 02. 2023 14:54:337. 02. 2023 14:54:33

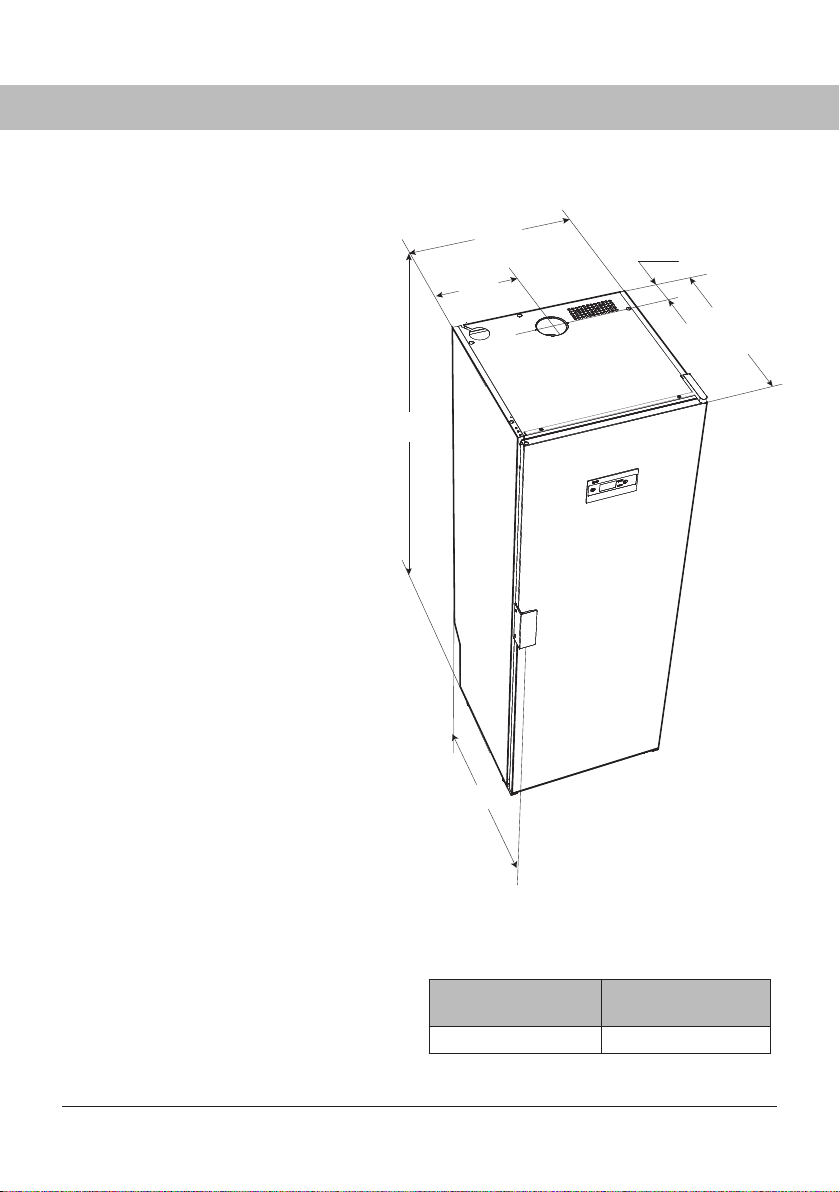

A
23 7/16"
(595 mm)
11 3/4"
(298 mm)
3 15/16"
(100 mm)
23 15/16"
(608 mm)
25"
(635 mm)
20
If the drying cabinet is to be installed
connected to air exhaust ventilation, this
must be available in the room.
There must be an grounded outlet
socket within a distance of 78¾" (2 m)
from the upper part of the drying cabinet.
The drying cabinet has a 78¾" (2 m)
long grounded outlet lead with a plug
connected.
The power cord should be located such
that there is no need for an extension
cable.
It must be possible to reach the outlet
easily after the drying cabinet has been
installed.
This must also be kept in mind if the
drying cabinet is built into woodwork
or similar. See also the section on
‘Electrical connection’.
The floor where the cabinet is located
must withstand a weight of around
132.28 lbs (60 kg).
The floor must be level with a max drop
of 63/64" (2.5 cm) under the cabinet.
The drying cabinet is intended only for
installation indoors with a temperature
above 32°F (0°C).
The drying cabinet must not be placed in
an environment in which high-pressure
water is used for cleaning.
Cabinet designation A inch
(mm)
DC7784V 727⁄16" (1840 mm)
Dimensions in inches,
mm in brackets ( )
LOCATION REQUIREMENTS
INSTALLATION
879787ae.indd 20879787ae.indd 20 7. 02. 2023 14:54:357. 02. 2023 14:54:35
