OWNER’S MANUAL
Model WCAM 1812
Combination Washer/Dryer
Contents
Technical Data............................................. 2
Installation Requirements............................. 3
Installation Instructions................................. 4
Important Safety Information......................... 6
About Your Washer/Dryer ............................. 7
Understanding the Control Panel................... 8

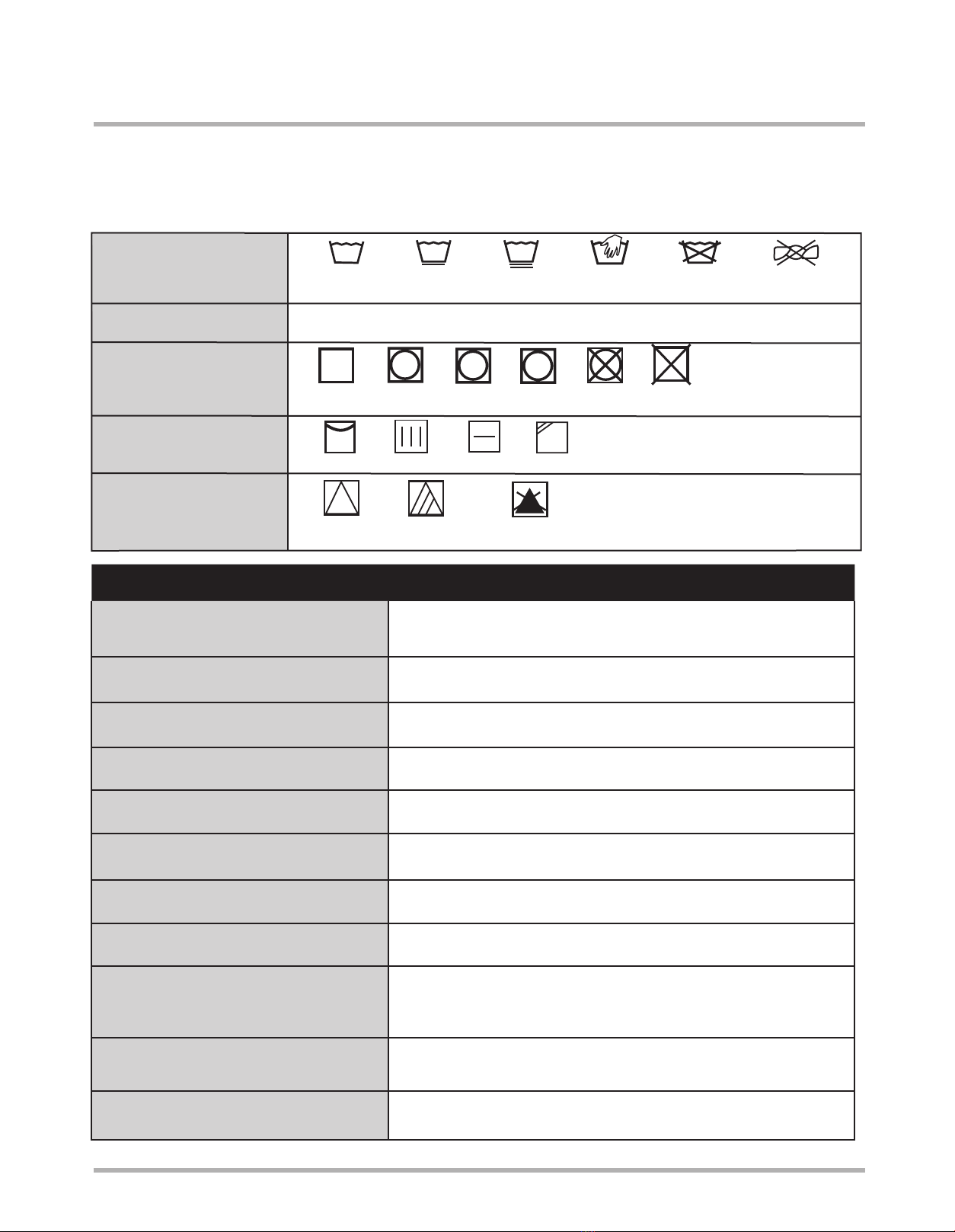

Fabric Care Labels..................................... 10
Stain Removal Chart.................................. 10
Guide to Wash & Dry Programs....................11
Guide to Wash Only Programs..................... 12
Operating Instructions................................. 13
Preparing Your Laundry............................... 13
Choosing Load Size.....................................13
Using the Laundry Aid Dispenser..................14
Using Your Washer/Dryer............................. 14
Troubleshooting.......................................... 14
Taking Care of Your Washer/Dryer................ 15
Common Laundry Problems........................ 17
Product Warranty........................................ 18
Service Contacts........................................ 18
Important! To get the best performance
from your washer/dryer, read all operating
instructions before using for the first time.
CUSTOMER CARE CENTER
800.898.1879
www.askousa.com

CUSTOMER CARE CENTER 800.898.1879 www.askousa.com

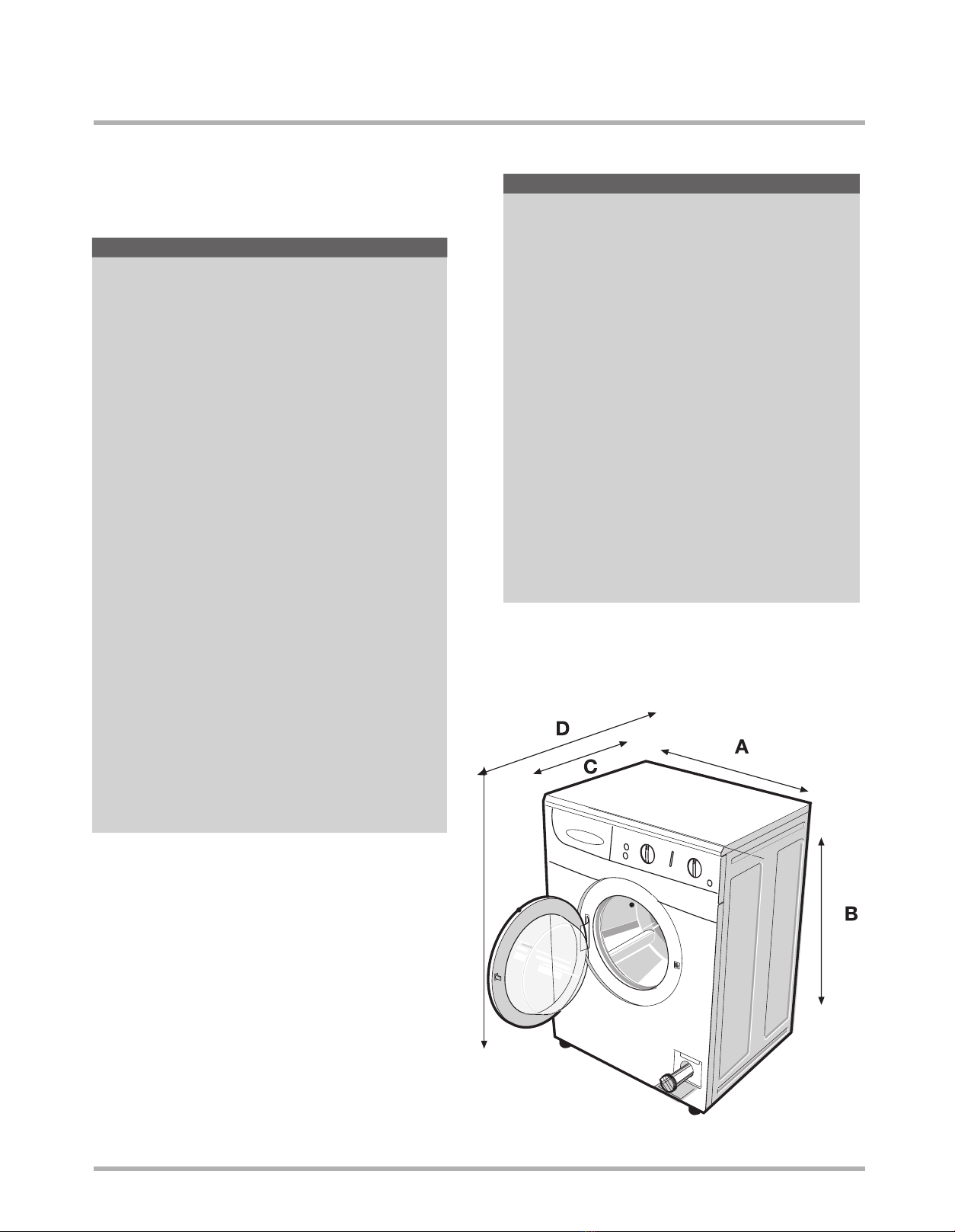

Dimensions
A. Width: 23 ½” (597 mm)
B. Height: 33 ¼”- 34“ (845 - 864 mm)
C. Depth: 23 5/8” (600 mm)
D. Depth w/door open: 39” (991 mm)
Capacity
Large
Electrical Conn.
Voltage: 120 Volts, 15 Amp, 60Hz
Water Conn.
Inlet supply hose: Two 6’ (1.5 m) fill hoses, hot & cold
Supply pressure: 15 – 142 PSI
Outlet hose” 6.5’ (1.7 m) polypropylene hose, ¾” ID
Note: The manufacturer reserves the right to improve appliance
specifications without prior notice. For more information, see
the type plate on inner door facing of machine.
2
TECHNICAL DATA
The ASKO combination washer and dryer product is a
“unique laundry solution” for households that can not
accommodate traditional laundry products. The large
capacity tub provides an impressive 15 lb (Full Load)
wash capacity or 7.5 lb (Half Load) drying capacity.
This laundry solution provides the customer with the
convenience of a 120V in-house laundry product that is
designed to wash and dry smaller loads of laundry on a
regular basis.
Our washer and dryer combination product utilizes a
condenser dryer technology (vent-less) allowing for
seamless wash to dry performance without the need
for special electrical requirements or an external vent.
These features make this product convenient for
multiple applications where traditional laundry solutions
(separate washer and dryer requiring 220V electrical)
will not operate. This product features a large 2.5
cubic foot drum (largest in its class) which features
more capacity for wash AND dry performance. Keep in
mind it uses a standard household current which limits
the wattage available for the dry performance, which
results in longer total cycle times (3-4 hours). The 1200
RPM spin provides the maximum moisture removal
to reduce the drying times along with the Heavy Stain
cycles that provides a 140 degree temperature boost
for improved stain removal.
WHAT IS A COMBINATION
WASHER AND DRYER PRODUCT?

CUSTOMER CARE CENTER 800.898.1879 www.askousa.com
INSTALLATION REQUIREMENTS
Grounding Instructions
This appliance must be properly grounded. In the
event of breakdown or malfunction, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current. The
cord for this appliance has an equipment-grounding
conductor and a grounding plug. The plug must
be plugged into an outlet that is properly installed
and grounded in accordance with all local codes
and ordinances. Do not modify the electrical plug
provided with the appliance – if it does not fit the
electrical outlet, have a qualified electrician install
a proper outlet. Make sure the power supply and
electrical outlet support a 110/120V, 15 amp
single-phase circuit.
Warning!
Improper connection of the equipment-grounding conductor may
result in electric shock. If you are in doubt as to whether the
appliance is properly grounded, check with a qualified electrician or
service representative.
Important!
To prevent accidents, injury and fire, read instructions carefully before
you install the machine.
A qualified installer familiar with all local codes and ordinances for
plumbing and electricity should do the installation and grounding.
Incorrect installation may cause damage or injury.
Install washer/dryer on a strong, level floor in a protected, dry and
well-ventilated area with room for electrical cords and hoses behind
the machine. Temperature should be not less than 38° F (3° C)
Make sure power supply and outlet support a 110/120 V, 15 amp
single-phase circuit.
Do not use an extension cord.
If integrity of the machine is in doubt, do not use it. Call Customer
Care Center at 800-898-1879.
Electrical
Machine Voltage/Amperage – 120V, 60Hz, 15 Amp
Connection – 3-prong plug (must be grounded)
Circuit/Protector – single phase, 15 AMP, 120V, 60Hz
3
Location
The washer/dryer can be installed as a freestanding unit
or in a recessed area, under a counter or in a closet with
appropriate clearance. See page 4.
FILL/DRAIN HOSES
Fill Hoses – Two hoses are supplied with the machine. The hot
water hose has a red stripe running the length of the hose.
Drain Hose – Drain outlet should be between 23” (60 cm) and
35” (90 cm) above the floor. To prevent siphoning, do not seal
the drain hose connection into the drain outlet. If machine
is not connected to a drain outlet, position drain hose and
bracket over the edge of sink or wash basin and secure in
place before draining. See page 5 for complete installation
instructions for the fill and drain hoses.
ASKO denies all liability if installation use and care instructions
are not followed completely.
Tools
1. Adjustable Wrenches
(if you use adjustable
fittings)
2 Open-ended Wrench
[10mm]
3. Tape Measure
4. Spirit Level
5. Channel Lock
6. 20 Torx screwdriver

CUSTOMER CARE CENTER 800.898.1879 www.askousa.com
IMPORTANT: Retain all shipping bolts, spacers and
grommets Reinstall to prevent damage if you transport
machine in the future.
* Do not plug in power supply until
shipping bolts are removed.
3. Connect Water Inlet
If connecting to new or unused water pipes, run water until clear
before connecting to machine to remove any debris that could clog
the water valve screens. NOTE: Make sure water supply shut-off
valves are easily accessible.
IMPORTANT: Water pressure MUST be within the range of
values indicated in Specifications.
Two inlet hoses are provided with the machine. Hot water hose has
red stripe running the length of the hose. Insert washer/filter (Fig. 5A)
before connecting water inlet hose to valve. Check that other end of the
hose is tight
Connect to faucet (Fig. 5A). Connect to machine
(Fig. 5B).
NOTE: connect fill hoses, plastic end to machine AND metal end to
water faucet.
IMPORTANT: Do not over-tighten.
Excessive force can damage the
couplings. Tighten by hand; use a
tool only in case of a leak.
Turn on water supply (Fig 5C).
Flush out water lines before connecting the hoses to machine.
Installation/Removal
1. Unpack Washer/Dryer
Move the machine to its installation position. Remove the packing materials
carefully to avoid damage to the machine’s pre installed drain hose and
power cord. Make sure the machine is intact and report any damage to the
retail location you purchased your product from immediately.
WARNING: Destroy the carton and plastic bags after unpacking
washer-dryer. Plastic bags and other packing material are not
children’s toys and can be dangerous.
Built-In Installation
The ASKO WCAM 1812 can be installed beneath a cabinet or worktop
with a height of 34-1/2“ ( 876
mm). There must be a gap of
about 1/2“ (12 mm) all around
the machine, including between
the rear edge of the machine
top panel and the back wall.
The opening width must be
at least 24-1/2“ (622 mm).
Space must also be available
for the inlet and drain hoses.
See the diagram above for
measurements and positions.

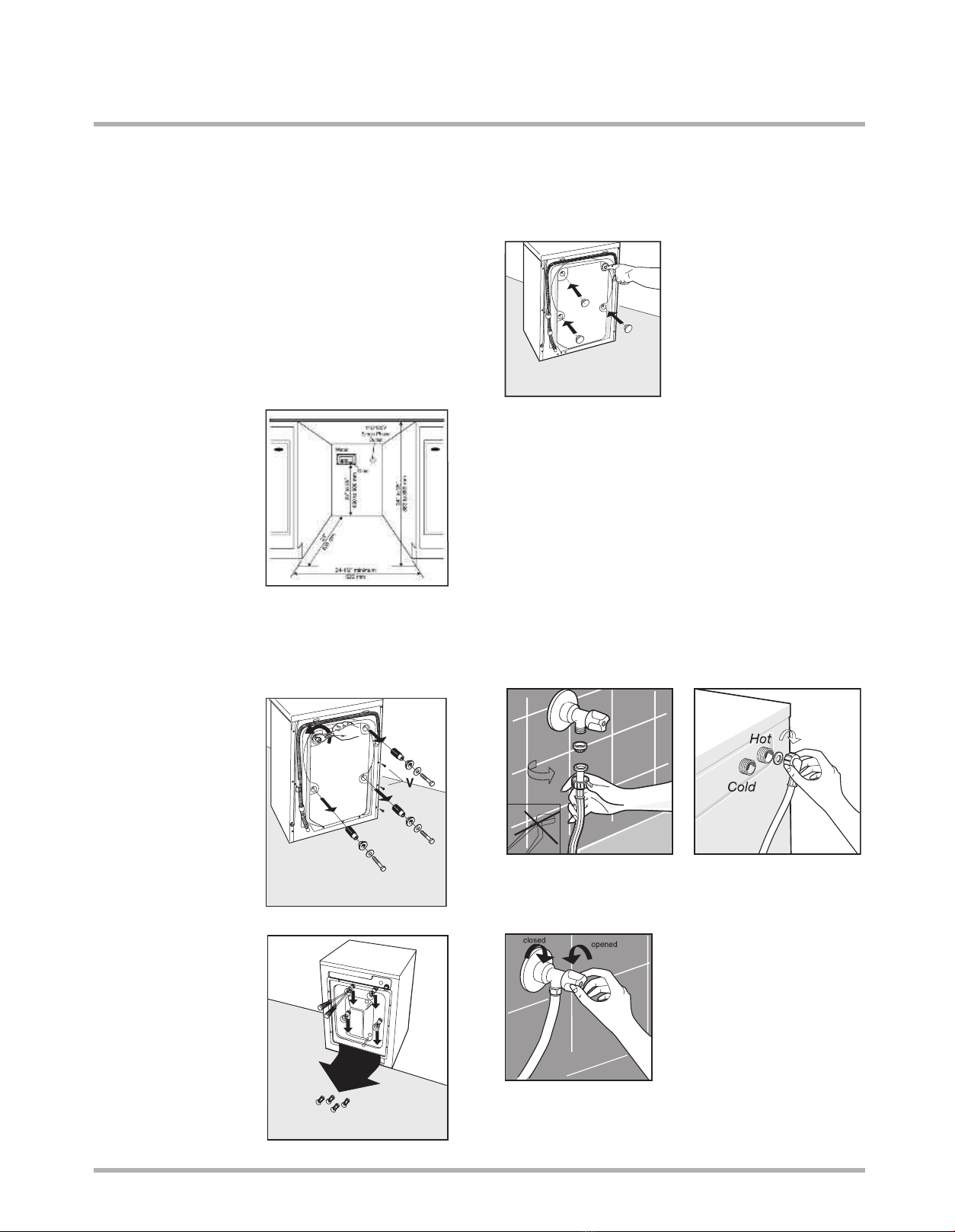

2. Remove Shipping Bolts/Spacers/Grommets
The machines shipping security consists of shipping bolts (4), spacers
and grommets on the back panel to secure the wash / dry drum during
shipping and delivery.
IMPORTANT: Remove all
shipping bolts/spacers/
grommets before using
the washer/dryer to allow
proper operation and
prevent damage to the
appliance.
Once the machine is in its
installation location, remove
the four locking 10mm bolts
and plastic spacers (Fig.1A).
If plastic spacers cannot be
removed, open rear panel (20
torx) screwdriver as shown in Fig
1B, remove spacers and replace
the panel.
Keep bolts, shipping bolts,
spacers and grommets for future
use.
Plug holes with four plastic plugs
enclosed packed with manual
(Fig. 2)
Remove power cord restraints
before plugging in machine.
4
INSTALLATION INSTRUCTIONS
Fig. 1A
Fig. 1B
Fig. 2

CUSTOMER CARE CENTER 800.898.1879 www.askousa.com
INSTALLATION INSTRUCTIONS
7. Turn on water supply.
Check for leaks at water faucet and
machine before proceeding. Be sure
the water taps are on before starting.
8. Prepare Washer/
Dryer for Use
Before using washer/dryer,
read owner’s manual
thoroughly. Save all instructions
for future reference.
Wipe inside and outside of washer/dryer with a damp
cloth before running to remove any dust or debris.
Run your empty washer/dryer through a complete wash
cycle before washing clothes. Check for water leaks and
proper operation during this
test run.
ASKO denies all liability if instructions are not followed
correctly.
4. Water Drainage
Water may be drained into a sink, drainpipe or standpipe. To prevent
siphoning, do not seal drain hose into drain outlet.
Wall or Floor Standpipe Drain System - The top of the standpipe
must be between 23” (60 cm) - 35” (90 cm) from the bottom of the
washer.
You should securely attach drain hose to keep water pressure from
allowing hose to come loose and leak on the floor.
5. Level Washer/Dryer
The front and rear legs may be screwed /unscrewed to level the
machine. To access legs, tilt machine backwards until it rests against
wall or other stable structure. Adjust legs up or down until washer is
stable and does not rock front-to-back or side-to-side when upright.
Once machine is level, tighten locknuts.
IMPORTANT:
For best
performance,
washer/dryer
must rest solidly
on a sturdy floor
or platform, with
minimum vibration.
6. Connect to electric power
Plug power cord into grounded outlet only (see Grounding Instructions
on page 3 for complete details). Be sure power is OFF at fuse box/
circuit breaker before plugging in machine for the first time. Plug cord
into outlet and turn power on at circuit breaker.
NOTE: Remove four
(4) shipping bolts
prior to plugging
machine into
electrical outlet.
Do not cut power
supply cord!
5
MIN.60 CM
MAX.90 CM
A
