ULTRACARE LAUNDRY SOLUTIONS

SOLUTIONS FOR YOU.
In Sweden, where we design and build our ASKO appliances,
we’re problem solvers. We work hard to find solutions to
life’s everyday challenges – and our laundry systems prove it.
Every feature, every design element, every aspect of their
performance has been refined with the single-minded purpose
of making life simpler. From their sleek, purposeful styling
and energy-efficient performance to their legendary durability
and world-class warranty, ASKO laundry systems make life
easier for you, for your family and for the Earth.
In Sweden, that’s simply the way we do things –
we solve problems.

UltraCare HiddenHelpers™

UltraCare Drying Systems
Drying Cabinets, Vented & Ventless Dryer
UltraCare XXL
Laundry System

UltraCare Fully Integrated
Laundry System
UltraCare Family
Laundry System

UltraCare
Laundry Solutions
No matter what life throws at you, ASKO has the perfect
UltraCare system to make short work of your laundry.
From the high-efficiency, high-performance UltraCare
Family to the supersized UltraCare XXL workhorse,
ASKO has the right-sized laundry system for any family,
large or small.
Perhaps you want a truly functional, truly beautiful
laundry room with your appliances built into your
cabinetry and complete with countertops? UltraCare
washers and dryers are available with plenty of
features to configure your perfect laundry room.
Maybe you want to conceal your appliances? The
UltraCare Integrated system with custom cabinet
fronts blends right into your cabinetry. You can
choose from wood, white or black, or you can opt
for our TouchProof™stainless steel panels that will
complement virtually any room.
If you have a large home, you may want to install
multiple laundry centers. You’ll love the flexible
installation options of ASKO UltraCare Laundry
Solutions.
If that weren’t enough, the UltraCare Drying Cabinet
and HiddenHelpers all make life easier by solving
some of the most nagging laundry issues.
Got laundry problems? Simple. Solve them with an
ASKO UltraCare Laundry Solution.

UltraCare Family
Laundry System
Our solutions extend beyond the laundry room,
providing tremendous environmental benefits as well as
fresh, clean clothes. ENERGY STAR qualified UltraCare
Family washers are some of the world’s most efficient,
getting your clothes clean and fresh with less detergent,
less water and less electricity. With a spin speed of up
to 2000 rpm, they extract more moisture than other
washers, which makes the drying process more
energy-efficient.
With the simple and sophisticated EasyControl™
technology, you manage the high performance of your
UltraCare Family washer and dryer by simply
pressing a few buttons.
The ASKO UltraCare Family Laundry System makes
life better by simply working better.
For starters, UltraCare Family washers treat your clothes
with TLC – even items labeled for hand-washing.
However, don’t let this gentle action fool you. UltraCare
Family washers provide superior cleaning performance
and a complete range of temperature settings from cold
to 205º to get your family’s clothes ultra-clean and
looking new longer – and without one drop of harsh
chlorine bleach. When it comes to the rinse cycle, many
washers fail to remove all detergent residues. Not
so with UltraCare Family washers – with a unique
seven-rinse process, they remove all traces of detergent,
making them a welcome addition for family members
with allergies or sensitive skin.

With less hand-washing, less ironing, less wear on your
clothes, less impact on the environment, less complicated
programming – and more performance – the ASKO
UltraCare Family Laundry System is, in the simplest
terms, the laundry solution for simpler living.
Thanks to its Butterfly Drying System™, the ASKO
UltraCare Family dryer tumbles clothes in a figure-eight
instead of just round and round in a circle. This keeps
clothes from bundling and creasing and reduces your
need for ironing. Precisely tuned temperature and
moisture sensors work together to end the drying
cycle at just the right time. This prevents overdrying,
which can wrinkle, shrink and even damage your
family’s clothing.
No matter where you choose to install your UltraCare
Family Laundry System, it’s going to look great –
with a variety of finishes, white, black, titanium and
TouchProof™stainless, to match any room in your home.

UltraCare
Fully Integrated
Laundry System

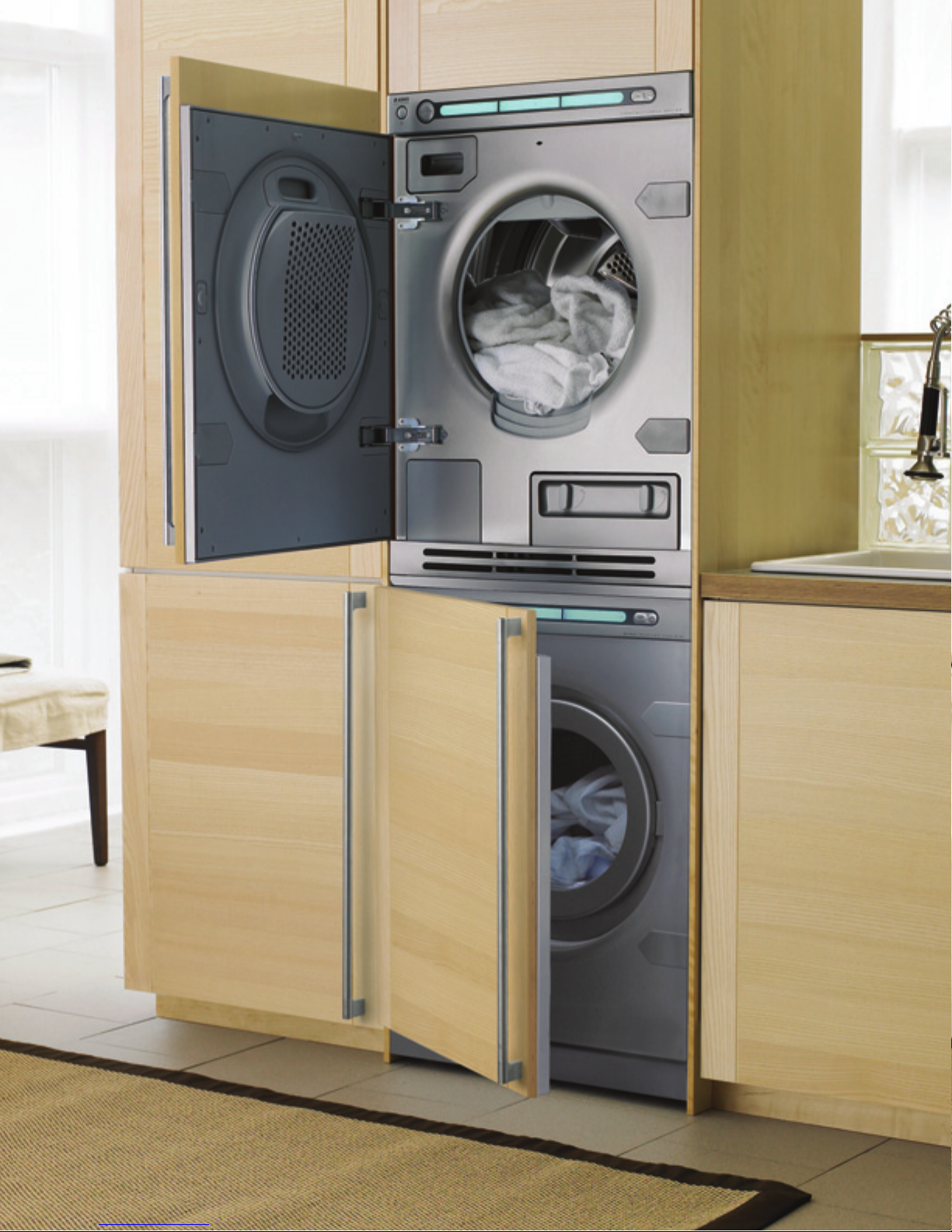

Now, ASKO gives you a wonderful way to simplify
the look of your laundry room or to install laundry
appliances in a different room altogether – thanks to the
world’s only fully integrated laundry system. With the
UltraCare Fully Integrated Laundry System, the fronts of
your UltraCare washer and dryer come prepared for your
cabinetmaker to easily install wooden panels that match
your other cabinetry. Or if you choose a finish other than
wood, your UltraCare Integrated Laundry System is
available with white, black or TouchProof™stainless steel
panels. Custom-matched to your room, the Fully
Integrated Laundry System can be concealed virtually
anywhere in your home – the bathroom, bedroom,
mudroom or kitchen. Because of the optional ventless
dryer design, you can install your UltraCare Fully
Integrated System wherever it makes your life easiest.
Speaking of making life easy, the UltraCare Fully
Integrated Laundry System is not just another pretty
face. It’s packed with the same advanced features and
hard-working performance as the UltraCare Family
Laundry System, so it makes doing the laundry a snap.
All this performance is under your command with the
sophisticated, easy-to-use LineConcept™control system
with left-to-right logic and intuitive LCD displays that
seem to program your washer and dryer for you.
Did you ever imagine that laundry could be so
beautiful, so simple, so simply beautiful?
At ASKO, we wouldn’t have it any other way.
Problem solved.

UltraCare XXL
Laundry System
Do you suffer from Big Laundry? You know – load after
load after load – the kind of laundry that never ends?
Finally, Big Laundry has met its match. The ultra-high
capacity of the ASKO UltraCare XXL Laundry System
will help you do fewer loads every week. Built to gently
clean the most delicate items and still tackle the toughest
stains, the UltraCare XXL Washer has 5 temperature
settings – from cold to extra-hot – and 5 soil level
settings. Likewise, the UltraCare XXL Dryer features
5 dryness levels and 5 temperature settings in addition
to anti-crease capability, delay start and more.
In spite of all the features packed into the UltraCare XXL
Laundry System, both the washer and the dryer are
incredibly easy to use. With EasyControl™LineConcept
programming and a clear LED display, operation is a
snap. For the perfect laundry performance for each load,
you simply choose from among 10 different programs
on each unit.
Full of additional solutions and beautiful colors to
compliment any setting, the ASKO UltraCare XXL
Laundry System features a reversible washer door, an
optional pedestal with built-in drawer and your choice of
electric or gas dryers. It’s the simple way to finally put an
end to Big Laundry.

UltraCare
Drying Systems
ASKO offers a complete range of drying solutions
from traditional vented dryers to condenser-equipped,
ventless dryers to an incredible appliance, the
UltraCare Drying Cabinet.
UltraCare vented dryers use traditional exhaust venting
systems but are otherwise anything but traditional. With
state-of-the-art technology, easy-to-operate controls,
precise moisture sensors, wrinkle-reducing features
and more, UltraCare vented dryers are some of the
world’s most advanced.
Thanks to a unique, built-in condenser, ASKO
UltraCare ventless dryers require no external exhaust
or ductwork. This non-venting, ductless design means
easier, less expensive installation virtually anywhere in
your home. In fact, rooms that were never able to
accommodate a dryer before can have an UltraCare
ventless dryer. With no external exhaust or ductwork,
your home will be more airtight for more efficient
heating and cooling.
An ingenious solution for almost any home, the
UltraCare Drying Cabinet gently dries items that
shouldn’t go into a traditional tumble dryer – knit
sweaters, fine shirts, delicates, even umbrellas.
Consider all the rainy and snowy days when you
need to dry your kids’ clothes. What about special
care instructions such as “dry flat” or “hang to dry?”
The UltraCare Drying Cabinet solves all of these
problems. Tucked away in this energy-efficient
cabinet, wet gloves, hats, shoes, boots, sweaters,
silks and other delicates will be dry in no time –
and your home will stay nice and neat.

UltraCare
HiddenHelpers™

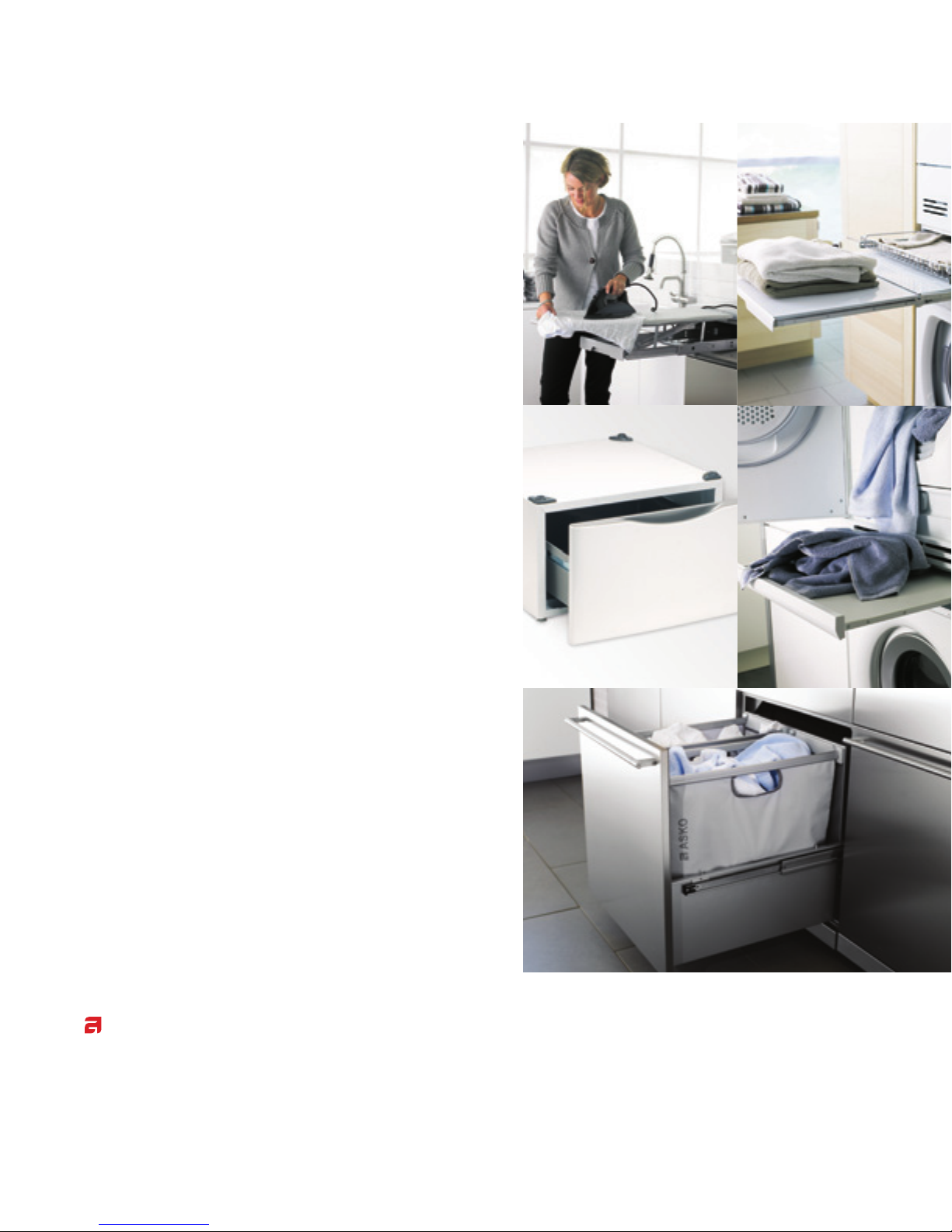

Neatly out of sight but ready to assist with storage,
folding and ironing, you’ll find optional, time-saving
tools called HiddenHelpers, little conveniences that
make life so easy you’ll never want to do without
them. Designed to make doing your laundry as fast,
simple and organized as possible, ASKO UltraCare
HiddenHelpers include space-saving features such
as a concealed, removable basket, a handy ironing
board, pull-out shelves for sorting and folding clothes,
a sorting unit with two removable laundry bags, and
platforms for easy loading and unloading. There is
also an attachable arm extension for the ironing board
that allows space for ironing shirt sleeves easily.
The sorting unit can eliminate the need for bulky
laundry baskets while providing the convenience of
sorting laundry at the washing machine.
Available for the UltraCare XXL System, the platform
includes a storage drawer. Located under the washer,
it’s the ideal hiding spot for detergents, fabric softeners,
coat hangers and other clutter. Elevating the washer,
this pedestal/drawer combination simplifies loading
and unloading your clothes.
Outfitted with practical features like these HiddenHelpers,
your UltraCare Laundry System takes much of the work
out of laundering your family’s clothes.

*Requires optional, one-piece door panel (see FI Door Panels on following page)
ASKO retains the right to vary the model specifications at any time. All facts were accurate at time of printing.
Features & Specifications
Washers W6222 W6903 W6903FI* WL6511XXL
Minimum Water Consumption (Gallons) 6.6 7.9 7.9 13
Automatic Load Balancing System ••••
Spin Speeds 800/1200 400-2000 400-2000 550-1150
Sensor Level Control™System ••••
Internal Water Heater ••••
Wash Temperature Options Cold, 85-205 Cold, 85-205 Cold, 85-205 Cold, 155
Maximum Number of Rinses 7774
Six-Way, Aqua Block Water Containment System • •
Stainless Steel Inner and Outer Tank • • • Inner Only
Solid Rubber SmartSeal™Door Gasket • • •
Quattro™ Suspension • • • QuattroPlus™
Electronic Door Latch ••••
Finger Guard Between Inner and Outer Cases • • •
Drop-Down Outer Door •
Side Swing Door • • Reversible
No-Spin Option ••••
EasyControl™/ SmoothDial Controls •
EasyControl™/ Line Concept Controls • • •
Adjustable Programs 10 13 13 10
Program Interrupt, Add An Item ••••
Delay Start 1-24 Hours 1-24 Hours 1-12 Hours
Quick Wash™Program ••••
Anti-Crease Program • •
Easy-To-Reach, Out-Front Controls ••••
Complies With ADA Height Accessibility Guidelines • • •
220 V, 20 Amp Cord and Plug Included • • • 120V
Every Unit Factory Tested ••••
Colors: White, Black, Titanium or TouchProof™Stainless Steel W, B, T W, SS RR, PP, BB, W
WL6511XXL: Ragin’ Red, Pure Platinum, Blazin’ Black, White •
Height 331/2" to 341/2" 331/2" to 341/2" 331/2" to 341/2" 401/2" to 411/4"
Width 231/2" 231/2" 231/2" 27"
Depth with Door Open 421/2" 461/8" 477/8" 511/4"
Depth with Door Closed 241/2" 237/8" 231/8" 31"
Weight 167 lbs W-171 lbs, SS-173 lbs 164 lbs 227 lbs
Dryers
Butterfly Drying™System
Internal Moisture Condenser/Collector (Ventless)
Three-Way Venting
Reversible Door
Cool Down
Drying Temperatures (Air, Low and Normal)
SensiDry™
Anti-Crease Program
Four-Way Water Containment System
Stainless Steel Drum
Double Lint Filter
Cleanable Fan
Stacking Kit Included
End-Of-Cycle Tone
EasyControl™/ SmoothDial Controls
EasyControl™/ Line Concept Controls
Number Of Programs
Timed Dry Program (Minutes)
Air (Fluff) Drying Program
Delay Start
Includes 220 V, 20 Amp Receptacle For ASKO Washer
Available in Gas
Every Unit Factory Tested
Colors: White, Black, Titanium or TouchProof™Stainless Steel
TL751XXL: Ragin’ Red, Pure Platinum, Blazin’ Black, White
Height
Width
Depth with Door Open
Depth with Door Closed
Weight
T712
•
•
•
•
•
•
•
•
•
•
•
•
6
60
•
5 Hrs
•
•
W, B, T
331/2"
to 341/2"
231/2"
461/4"
247/8"
86 lbs
T712C
•
•
•
•
•
•
•
•
•
•
•
•
•
6
60
•
5 Hrs
•
•
W, T
331/2"
to 341/2"
231/2"
461/4"
247/8"
104 lbs
T793
•
•
•
•
•
•
•
•
•
•
•
•
•
6
5-180
•
1-24 Hrs
•
•
W, SS
•
331/2"
to 341/2"
231/2"
461/8"
237/8"
W- 86 lbs
SS- 92 lbs
T793C
•
•
•
•
•
•
•
•
•
•
•
•
•
•
6
5-180
•
1-24 Hrs
•
•
W
331/2"
to 341/2"
231/2"
461/8"
237/8"
118 lbs
T793FI*
•
•
•
•
•
•
•
•
•
•
•
•
•
6
5-180
•
1-24 Hrs
•
•
331/2"
to 341/2"
231/2"
47 7/8"
231/8"
92 lbs
T793CFI*
•
•
•
•
•
•
•
•
•
•
•
•
•
•
6
5-180
•
1-24 Hrs
•
•
331/2"
to 341/2"
231/2"
47 7/8"
231/8"
100 lbs
TL75IXXL
•
•
•
5
•
•
•
•
•
10
10-110
•
1-12 Hrs
•
•
RR, PP, BB, W
401/4"
to 411/4"
27"
521/2"
311/2"
123 lbs
Gas-134 lbs

Drying Cabinet DC7171 DC7181
Clothes Line Equivalent 521/2' 521/2'
Drying Time, Normal 150 min 150 min
Programs Normal, Low, Normal, Low,
Air Fluff Air Fluff
Timer Up to 4 hrs Up to 4 hrs
Element 1200 W 1200 W
CFM 26 26
Voltage 120V/60 Hz 120V/60 Hz
Bar for Hangers • •
Door Hanger • •
Glove Hanger • •
Colors White, Titanium White, Titanium
Shoe Rack (Accessory) Optional Optional
Height 67" to 69" 713/8" to 733/8"
Width 231/2" 231/2"
Depth 251/4" 251/4"
Depth with Door Open 461/4" 461/4"
Weight 132 lbs 143 lbs
FI Door Panels
Standard Panel
8080695-0=White, - 86 = Black, - 91 = TouchProof™
Stainless Steel
Door Panel with T-Bar Handle (4” Toe Kick)
Height 301/8"
Width 231/2"
Thickness 5/8"*
Weight 19 lbs
8080696-0=White, - 86 = Black, - 91 = TouchProof™
Stainless Steel
Door Panel with A-Bar Handle (4” Toe Kick)
Height 301/8"
Width 231/2"
Thickness 5/8"*
Weight 19 lbs
Full Panel
8081936-0=White, - 86 = Black, - 91 = TouchProof™
Stainless Steel
Door Panel with T-Bar Handle (Full Door)
Height 329/16"
Width 231/2"
Thickness 5/8"*
Weight 18 lbs
*Custom panel should be a minimum of 3/4” thick
Ironing Board
8080704-0=White (W6903)
8080705-0=White, - 81 = Titanium (W6903FI, W6222)
Height 6"
Width 231/2"
Depth 231/4"
Depth at Max. Reach 591/2"
Ironing Board Dimensions 361/2" long X 125/8" wide
Arm Insert Width (Optional) 163/4" added to
width when installed
Weight 53 lbs
Arm Insert Weight 3 lbs
Double Shelf
8080443-0=White, - 81 = Titanium (W6903)
8080407 - 0 = White, - 81 = Titanium (W6903FI, W6222)
Height 6"
Width 241/2"
Depth 231/4"
Depth at Max. Reach 473/4"
Shelf Working Surface 251/2" long X 21" wide
Basket Work Area 14" long X
191/4" wide
Weight 58 lbs
Single Shelf
8079977-0=White, - 81 = Titanium (W6903, W6903FI)
8061907-0=White, - 26 = Black, - 81 = Titanium (W6222)
Height 2"
Width 231/2"
Depth 221/4"
Depth at Max. Reach 375/8"
Shelf Working Surface 143/4" long X 213/8" wide
Weight 25 lbs
Before purchasing any appliance, read energy cost and efficiency information at your retailer.
For complete product specifications please refer to the ASKO Product & Design Guide or visit www.askousa.com.
HiddenHelpers™
Laundry Basket
8081560-0=White, - 81 = Titanium (Line Series)
8081558-0=White, - 81 = Titanium, - 91 = Stainless Steel
(Circle, FI Series)
Height 6"
Width 231/2"
Depth 231/4"
Depth at Max. Reach 371/4"
Basket Working Surface 171/2"Lx
19" W
Weight 40 lbs
Sorting Unit
8081299 - 81 = Titanium (FI)
8082751 - 91 Sorting Unit Door Stainless Steel
8082753 - 91 XXL Sorting Unit Door Stainless Steel
Height 27"- 28”
Width 235/8"
Depth* 235/8"
Depth at Max. Reach 45
Weight 90 lbs
XXL Steel Laundry Platform
8082771-0=White, - BB = Blazin’ Black, - PP = Pure Platinum,
- RR = Ragin’ Red
Height 16"- 17"
Width 27"
Depth 281/2"
Depth w/Drawer Open 44"
Weight 63 lbs
*Add 2” for Towel Bar Handle

P.O. Box 940609 • Plano, Texas 75094-0609
800-898-1879 • www.askousa.com
Part # 071030180109
