USE AND CARE GUIDE
MODEL WCAM 1812
COMBINATION WASHER/DRYER
IMPORTANT!
To get the best performance from your
appliance,readalloperatinginstructions
before using it for the first time.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

2
CONTENTS
IMPORTANTSAFETY INSTRUCTIONS ...................................................... 3
DESCRIPTION OFTHE MACHINE ............................................................. 4
INSTALLATIONINSTRUCTIONS ................................................................. 5
RECOMMENDED LOAD SIZES.................................................................. 7
CARELABELINSTRUCTIONS................................................................... 7

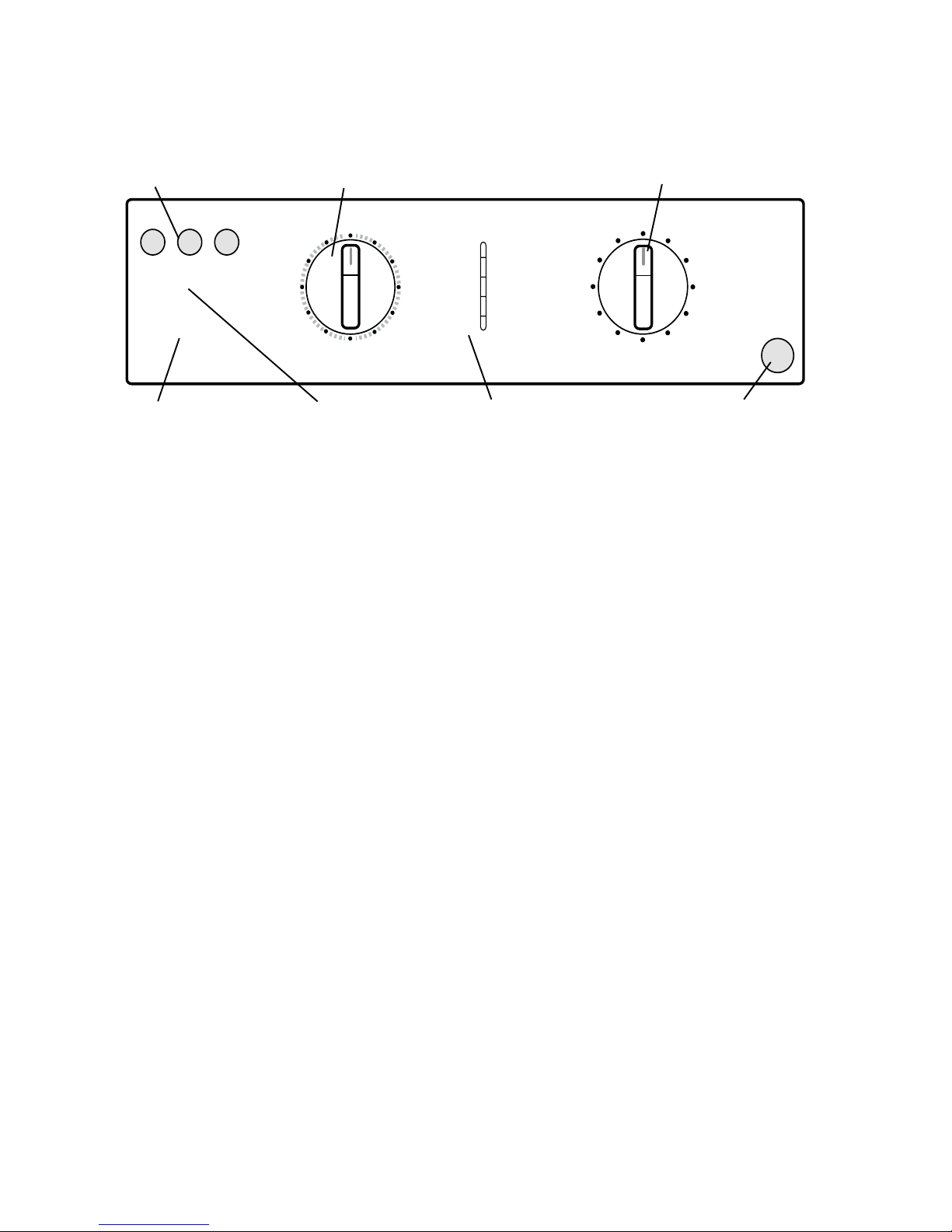

THE CONTROL PANEL .............................................................................. 8
WASH PROGRAMS.................................................................................... 9
INSTRUCTIONS FOR USING THE WASHER/DRYER............................. 10
CAREAND MAINTENANCE .......................................................................11
COMMONLAUNDRY PROBLEMS ........................................................... 12
TROUBLESHOOTING .............................................................................. 14
WARRANTY .............................................................................................. 15
QUICK START REFERENCE ................................................................... 16

3
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
To reducetherisk offire, electric shock,or injury
to persons when using your appliance, follow
basicprecautions, includingthe following:
♦Read all instructions before using the
appliance.
♦Do not run appliance while you are out of the
home.
♦Do not wash or dry articles that have been
previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents,
cooking oils, or other flammable or explosive
substances because they give off vapors that
could ignite or explode.
♦Do not allow children to play on or in the
appliance. Close supervision of children is
necessary when the appliance is used near
children.
♦Before the appliance is removed from service or
discarded, remove the door to the washing
compartment.
♦Do not reach into the appliance if the drum is
moving.
♦Do not install or store this appliance where it
will be exposed to the weather.
♦Do not tamper with controls.
♦Donot repairor replaceany partof theappliance
or attempt any servicing unless specifically
recommended in the user-repair instructions
or in published user-repair instructions that you
understand and have the skills to carry out.
♦Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors
that could ignite or explode.
♦Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
♦Do not use fabric softeners or dryer sheets
unless the manufacturer gives written
assurance that the product will not damage a
tumble dryer.
♦Do not heat-dry items containing:
•vinyl, plastic, foam rubber or similarly
textured rubberlike materials
•fiberglass
•wool unless the label specifies “washable”
♦Do not place items exposed to cooking oils in
yourdryer. Itemscontaminatedwith cookingoils
maycontributeto achemicalreaction that could
cause a load to catch fire.
♦Do not heat dry items that have been dry-
cleaned.
♦Under certain conditions, hydrogen gas may be
produced in a hot water system that has not
been used for 2 weeks or more. HYDROGEN
GASISEXPLOSIVE.Ifthehotwater systemhas
not been used for such a period, before using
a washing machine or combination washer-
dryer, turn on all water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. As the
gas is flammable, do not smoke or use an open
flame during this time.
GROUNDINGINSTRUCTIONS
WARNING!
This appliance must be properly grounded.
Grounding instructions for a grounded, cord-
connected appliance
In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by
providing a path of least resistance for electric
current. This appliance is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
WARNING!
Improperconnectionoftheequipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service
representative or personnel if you are in doubt
astowhetherthe applianceisproperlygrounded.
Donotmodify theplugprovided with theappliance.
Ifit willnotfittheoutlet,haveaproperoutletinstalled
by a qualified electrician.
NOTE: This manual does not cover every possible
conditionandsituation that mayoccur. Use
common sense and caution when
installing, operating, and maintaining any
appliance.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

4
B
A
C
1. Door
2. Stainless steel drum and barrell
3. Stove-enamelled power-coat paint
4. Four adjustable rubber-covered feet
5. Emergency drain and lint filter
DESCRIPTION OF THE MACHINE
This combination washer and dryer is a domestic appliance capable of washing any type of fabric.
♦The machine is constructed in sheet steel panels with a treated and painted finish that ensures its
aesthetic quality remains unaltered over time.
♦The motor and all moving parts have been designed and produced in a manner that guarantees
minimum noise levels.
♦The stainless steel drum is large and well mounted to ensure a better quality wash and a longer life of
clothing.
♦The control panel lets you use all the wash and dry programs with ease.
♦The access door has a wide opening to facilitate easy loading and unloading of the washing.
SPECIFICATIONS:
Supplyvoltage: Single-phase 115 V, 60 Hz, 15 Amp
Inlet supply hose: Two 5-ft (1.5 m) fill hoses (hot and cold)
Supply pressure: 15-142 PSI
Outlet hose: 5.5 ft (1.7 m) polypropylene hose, 3/4”ID
CAPACITY: Extra Large
DIMENSIONS:
A.Width 23-3/8”59.37 cm
B. Depth* 23-1/8”58.74 cm
C. Height 33-1/4”84.45 cm
* Depth w/door open: 38-3/4”(98.43 cm)
For additional information, see the type plate on the inner door facing.
1
23
4
5

5
ENGLISH
INSTALLATION INSTRUCTIONS
Read these instructions carefully and completely before you install the machine. The installation should be
carried out by a qualified person who is familiar with all local codes and ordinances for electrical and
plumbing connections. Incorrect installation may cause damage and/or injury. If the integrity of the machine
is in doubt, do not use it. Call your dealer for qualified assistance.
The machine can be installed anywhere provided that the temperature is not less than 38°F (3°C) and the
electrical cords and hoses behind the machine are not cramped.

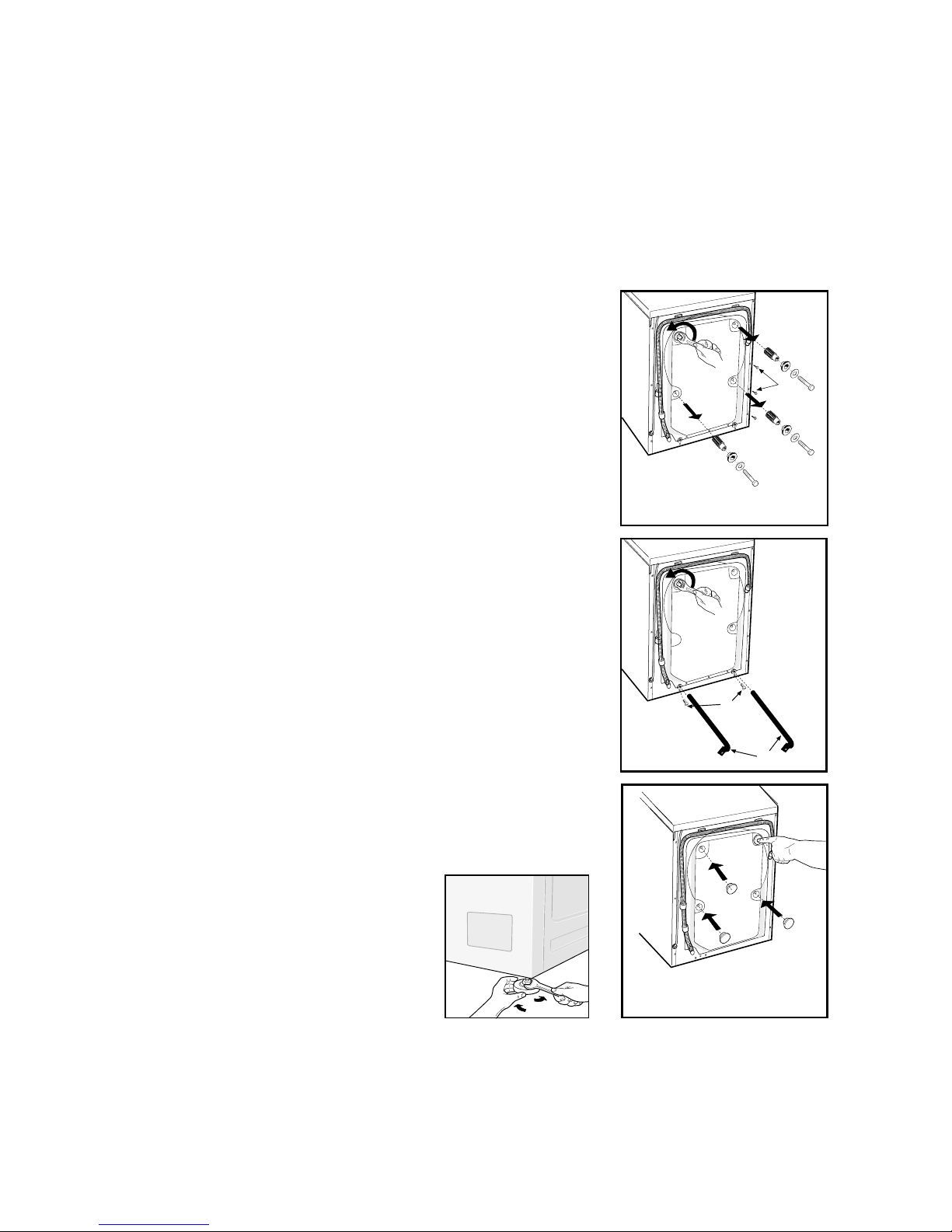

To install the machine, follow the steps below:
1. Move the machine to its installation position and remove the outer
wrapping and the polystyrene base.
2. For transport reasons, the drum is locked in position. Loosen the
four locking bolts and remove them along with the plastic spacers
(Fig.1).
NOTE: If the plastic spacers cannot be removed from the machine,
open the side panel by loosening the screws indicated as “V”in
Fig. 1. Remove the spacers and replace the panel.
3. Next, loosen the two locking screws (Z) and remove the two pins
(U), as illustrated in Fig. 2. Keep the bolts, screws and pins for
future use.
4. Plug the holes with the six plastic plugs packed inside the drum
with the documentation (Fig. 3).
5. Level the machine by adjusting the feet by screwing or unscrewing
as needed. Once the machine is level, tighten the locknuts (Fig. 4).
V
FIG. 1
FIG. 2
Z
U
FIG. 3
FIG. 4

6
ELECTRICALCONNECTION
Check to make sure the main power supply and the outlet are appropriate to support a 110/120 V, 15 amp
single-phase circuit. The power supply voltage is indicated on the filter door on the bottom right of the
machine.
GroundingInstructions
This appliance must be grounded. In the case of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING!
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properlygrounded.
Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
If the power supply cord is damaged in any way please contact the dealer.
Position the appliance so that the plug can be accessed and disconnected easily in case of
emergencies.
WATER SUPPLY CONNECTION
Before making the water supply connection, allow a quantity of water to flow from
the tap. The water should be clean and free from impurities, especially where the
system is new or has been left unused for a length of time.
There are two hoses provided with the machine. The hot water hose is indicated
with a red stripe running the length of the hose.
Insert the filter (washer) supplied (Fig. 5) before connecting the water inlet hose
to the valve. Check that the other end of the hose is tight (Fig. 5A). Turn the supply
valveon(Fig. 5B).
The drain outlet should be positioned at a height of between 23”(60 cm) and 35”
(90 cm) above the floor (Fig. 6).
NOTE: To prevent siphoning, do not seal the drain hose connection into the drain
outlet.
If the machine is not connected to a drain outlet, place the drain hose and bracket
supplied over the edge of a sink or wash basin and anchor it in place.
FIG. 5
FIG. 5A
Cold
Hot
close open
FIG. 5B
FIG.6
23.5" (60 mm) minimum
35" (90 mm) maximum

7
ENGLISH
Normal wash cycle
Permanent Press or Wrinkle
Resistant setting
WASH CYCLE
Gentle/Delicate setting
Han wash only
Do not wash
Do not wring. Hang ry,
rip ry, or ry flat
WASH WATER TEMPERATURE
Maximum water temp
200 F/95 C
Maximum water temp
160 F/70 C
Maximum water temp
140 F/60 C
Maximum water temp
120 F/50 C
Maximum water temp
85 F/30 C
Maximum water temp
105 F/40 C
BLEACH INSTRUCTIONS
Any bleach when nee e
Only non-chlorine bleach
Do not bleach
DRY CLEAN SYMBOL
Dry clean only
TUMBLE DRY CYCLE
TUMBLE DRY HEAT SETTING
Machine ry
Normal setting
Gentle or Delicate setting
Do not tumble ry
Any heat
High heat
Me ium heat
Low heat
No heat/Air fluff
SPECIAL DRYING INSTRUCTIONS
IRONING INSTRUCTIONS
Line ry or hang to ry
Drip ry ( o not spin or wring)
Dry flat
Dry in sha e
Ironing is necessary
High temperature setting
Me ium temperature setting
Low temperature setting
Do not iron or press with heat
Permanent Press or Wrinkle
resistant setting
Iron without steam
RECOMMENDED LOAD SIZES
To reduce wrinkling, you should determine the load size based on the type(s) of fabrics being washed.
Cotton and Linen Fabrics—These items should be washed in full loads because the tumble action of the
tub along with the gentle rubbing, lifting and falling movement of the clothes gives the best cleaning result.
Permanent Press Fabrics—These items need more room to move freely during washing for the most
wrinkle-free results. Therefore, fill the machine only half full for permanent press items.
Delicate Fabrics—These fabrics, such as machine washable wool and silk, should only be washed in
one-third size loads for the best results.
CARE LABEL INSTRUCTIONS
Most clothes and other washable items have permanent care labels. Read these labels carefully! Care label
instructions and warnings should be followed for the best cleaning results. The table below defines the
typical symbols used on fabric care labels. (Note: Some manufacturers may use slightly different symbols.)

8
140'
0'
130'
110'
100'
90'
80'
70'
40'
20'
START PRE WASH EXTRA RINSE
ON
OFF
120'
60'
COLOR
COLOR
FAST
WOOL /
HAND WASH
QUICK
WASH
DRY STOP
WHITES
SPIN
COLOR COLOR
FAST
HEAVY
STAIN
HEAVY
STAIN
DELICATES REGULAR
SYNTHETICS
PREWASH/WASH
RINSE
SPIN
DRY
STOP
THE CONTROL PANEL
The control panel is simple to understand and easy to operate. The illustration below defines the knobs
and buttons and the following paragraphs define the purpose of each.
ON/OFF BUTTON
This button switches the power to the machine on and off. The button will glow to indicate the power is on
and the Start button will flash.
PROGRAM KNOB
Turn this knob to the desired program. The table on page 9 defines each program in detail, so you can
determine which program is best for each type of load.
StopPosition
Leave the Program Knob on Stop if you wish to use the drying function only. To stop the machine after you
have started a program, turn the Program Knob to the Stop position.
If you turn the Program to Stop to interrupt a program to add an item or to cancel a program, there will be a
two-minute delay before the door lock will release and you can open the door. To restart the machine, you
will have to reposition the Program Knob and press the Start Button.
NOTE: Before the program will start, the machine will drain any water already in the machine. Before you
press Start, it is a good idea to make sure you do not need to add more detergent.
CYCLE INDICATOR LIGHTS
As the program progresses, the light for the cycle in progress will glow. The Stop indicator light glows when
the program is complete. At this point, there will be a two-minute delay before the door lock will release and
you can open the door.
DRYING TIME KNOB
The Drying Time Knob lets you select the number of minutes you wish to dry the load. It is a good idea to
start with a shorter time then add time if the load isn’t yet dry. This will prevent you from overdrying the load
and possibly damaging some garments.
You can also use the drying function only. Simply leave the Program Knob in the Stop position and set the
Drying Time Knob to the desired number of minutes, and press Start.
PREWASH BUTTON
Press this button to select a prewash. This is recommended only for heavily soiled items. The button will
glow when this option is on. If you use a prewash, be sure to put detergent in the prewash compartment of
the detergent drawer.
NOTE: The prewash cannot be selected for the Delicate programs.
Continued on next page.
StartButton
CycleIndicator Lights
DryingTimeKnob
On/OffButton
ProgramKnob
Prewash ButtonExtraRinse Button

9
ENGLISH
NOTES:
(1) For an explanation of the recommended load sizes, see page 6.
(2) When you select the Heavy Stain program, the unit heats the water to 140°F for the main wash.
(3) The Wool/Hand Wash program has an 800 rpm spin speed to eliminate stress on delicate fabrics.
WASH PROGRAMS
The table below defines each wash program in detail to help you determine which program is best for each
type of load.
Pre
Wash Extra Rins e
Heavy Stain
(2) Hot Heavy Cottons, Linens Full Long main wash, 3 rinses, drain & spin 1200 Yes 2
Whites Hot Heavy Cottons, Linens,
Blends, Synthetics Full Main wash, 3 rinses, drain & spin 1200 Yes 2
Color Fast Warm Heavy Cottons, Linens,
Blends, Synthetics Full Main wash, 3 rinses, drain & spin 1200 Yes 2
Color Cold Light Cottons, Linens,
Blends, Synthetics Full Main wash, 3 rinses, drain & spin 1200 Yes 2
Heavy Stain
(2) Hot Heavy Cottons, Linens, Blends, Synthetics Half Long main wash, 3 rinses, drain & spin 1200 Yes 1
Color Fast Warm Light Cottons, Linens,
Blends, Synthetics Half Main wash, 3 rinses, drain & spin 1200 Yes 1
Color Cold Light Cottons, Linens,
Blends, Synthetics Half Main wash, 3 rinses, drain & spin 1200 Yes 1
Wool/Hand
Wash (3) Warm Light Machine-washable wool and silk, nylon One-third High-water level wash, 3 rinses, drain, gentle
spin
800 n/a 1
Quick Wash Cold Light Machine-washable
wool and silk, nylon Full High-water level wash, 2 rinses, drain, gentle
spin
1200 n/a n/a
Spin n/a n/a Cottons, Linens,
Blends, Synthetics Full Drain & intensive spin 1200 n/a n/a
Dry n/a n/a Full Dry only n/a n/a n/a
Fabrics
Options Available
REGULAR
PERMAPRESS
DELICATE
Load
Size (1) Program Description Spin SpeedProgram Temp Soil Level
EXTRA RINSE BUTTON
This button sets the program to add one or two rinse cycles. The button will glow when this option is on.
SeetheWashPrograms tablebelowfor anexplanationof the numberof rinse cyclesaddedto eachprogram.
Threerinses areusuallysufficient,but iffyoulivein anarea withverysoft wateror youareallergictodetergent,
you may want to use this option. This option is only available with the Heavy Stain, Normal and Rinse
programs.
START BUTTON
After you have set the program, a drying time, and prewash or extra rinse option, press this button to start
the program.

10
INSTRUCTIONSFORUSINGTHEWASHER/DRYER
WARNING!
Toreducetheriskoffire,electricshock,orinjurytopersons,readtheIMPORTANTSAFETYINSTRUCTIONS
before operating this appliance.
Below are instructions for using the machine. Refer to pages 8 and 9 for explanations of the control panel
functions and programs.
1. Before placing the items in the machine, sort the laundry by type of fabric and
care label instructions (see page 7).
2. Make sure nothing is in the garment pockets to avoid damage to clothes, the
machine or the filter.
3. Close zippers and hooks to prevent snagging.
4. Open the door (Fig. 8).
5. Load the laundry and close the door securely.
6. Pour detergent and fabric softener into the appropriate compartments in the
detergent drawer (Fig. 9).
NOTE: Use only low sudsing detergent made for front-loading washers and
follow label instructions. The amount of detergent varies among the different
brands, but for most detergents, you need only one or two tablespoons. Too
much detergent could leave a residue on your clothes and possibly damage
the appliance.
Do not add detergent to the prewash compartment unless you are using a
wash program that has a prewash cycle; otherwise, the machine could
oversuds and spill onto the floor. Also, do not use liquid detergent for a
prewash program because the detergent will be washed out the back of the
drawer.
NOTE: It is not recommended that you use bleach in your ASKO combination washer/dryer. If you need
extra whitening, we recommend that you use a low-sudsing powder detergent with bleach additive.
NOTE: Excessive use of fabric softener can damage garments.
7. Close the detergent drawer securely.
Caution! To avoid water spillage, do not open the detergent drawer while the machine is operating.
8. Press the On/Off button. (The indicator light should come on.)
9. Turn the Program Knob to the desired program.
10. Turn the Drying Time Knob to the desired number of minutes.
11. Press the desired option buttons (Prewash or Extra Rinse).
12. Press the Start button. The machine will start
NOTE: For safety reasons, there is a two-minute delay at the end of a program before you can open the
door.
FIG. 8
FIG. 9
Prewash Main Wash
Fabric
Softener
