ASL INTERCOM Enchorus ENC 1201 User manual

Operating Instructions
ENCHORUS ENC 1201
Version 1.0
»»Preliminary

© 2017 by ASL. All rights reserved.
No part of this publication may be reproduced in any form without the written permission of ASL Intercom BV.
The contents of this document are the intellectual property of ASL Intercom BV and protected by copyright.
All rights reserved for the product, the word mark and the design mark. ASL Intercom BV reserves the right to take
legal action in the event of infringements.
The contents of this document, the illustrations and the technical specications are subject to change without prior
notice.
Any product or service names mentioned in this document are trademarks of the respective manufacturers and are
hereby acknowledged.
ASL Intercom BV
Zonnebaan 42 • 3542 EG Utrecht • Netherlands
Tel.: [phone] • Fax: [phone]
E-Mail: [e-mail] • hp://www.asl-inter.com

ENC 1201 Version 1.0 Page 3
Table of Contents
Table of Contents
1 Introduction ....................................................................................................................... 5
1.1 General Considerations .................................................................................................... 5
1.1.1 ENC 1201 Features .................................................................................................. 5
1.2 About this Manual ............................................................................................................. 6
1.3 Warranty and Copyright ................................................................................................... 6
2 Safety Precautions............................................................................................................. 7
2.1 General Warnings .............................................................................................................. 7
2.2 Electric Hazards ................................................................................................................. 7
2.3 Notes Regarding the Device’s Location ........................................................................... 8
3 Setting Up ........................................................................................................................... 9
3.1 ENC 1201 Panels ................................................................................................................ 9
3.2 Connecting and Setting Up .............................................................................................10
3.2.1 General Considerations ........................................................................................10
3.2.2 Connections ...........................................................................................................10
3.3 The ENC1201’s address ..................................................................................................11
3.3.1 Dante Controller ....................................................................................................12

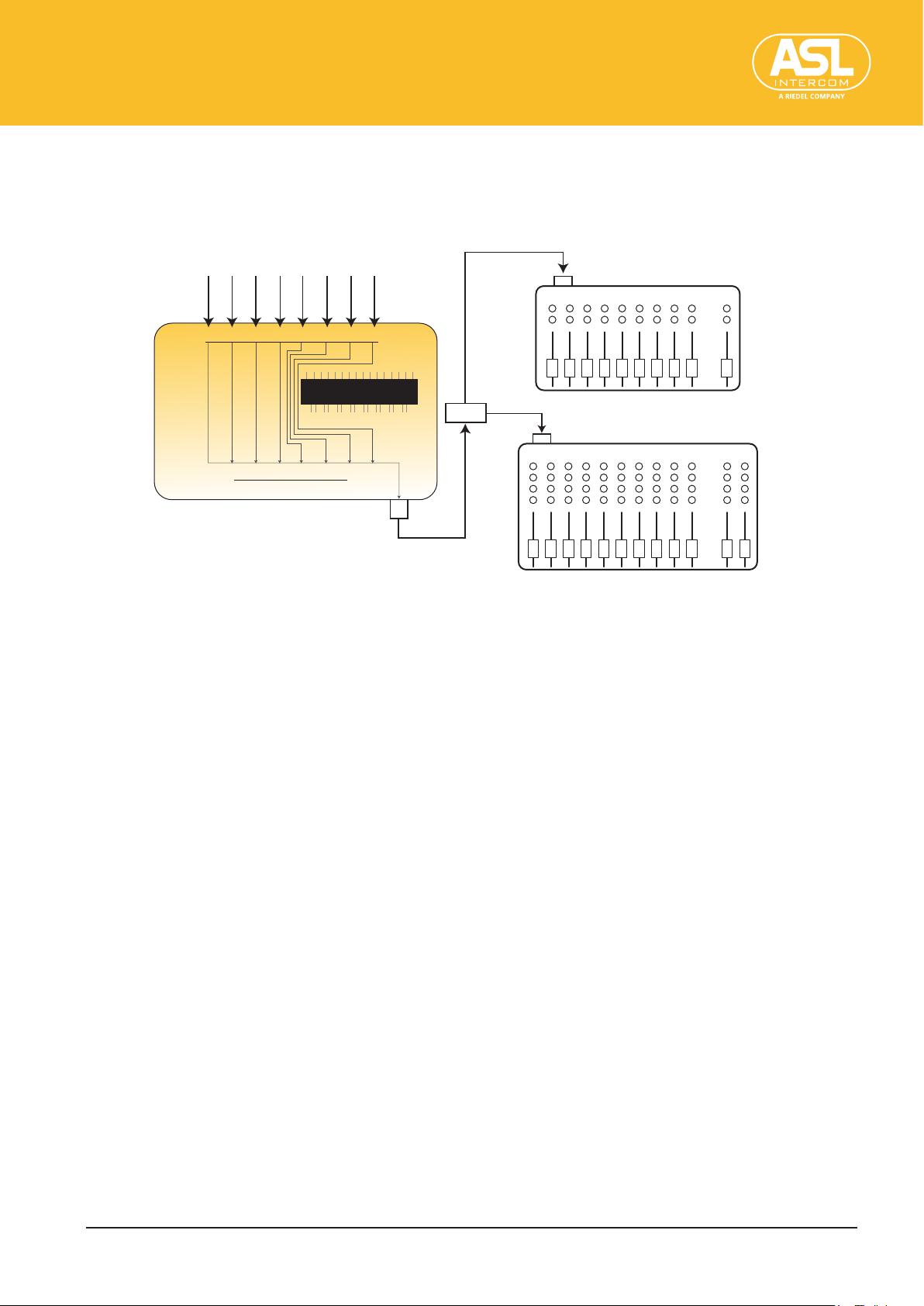

3.4 Application Examples ......................................................................................................13
4 ConguringtheUnitviaitsWebInterface ................................................................... 16

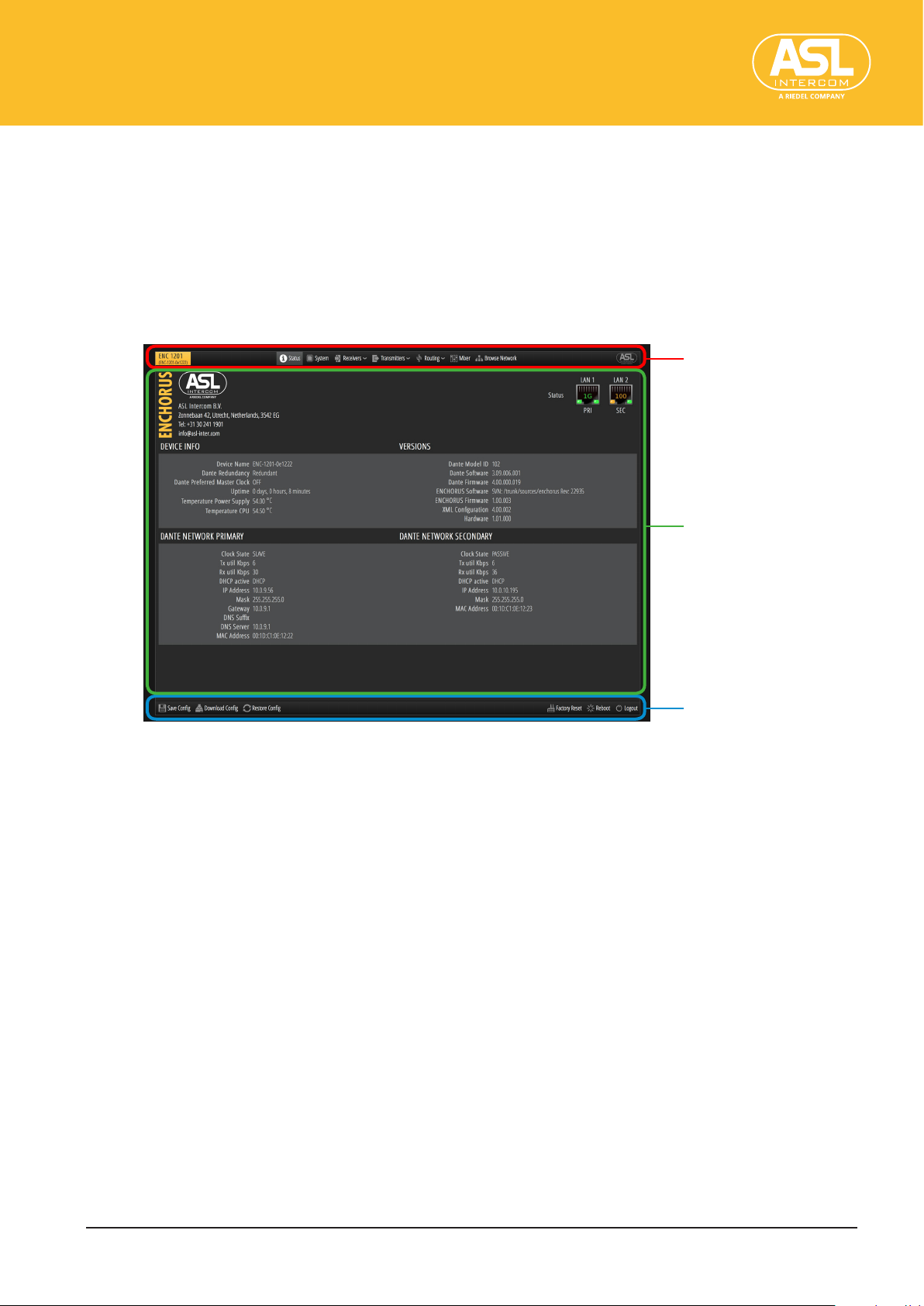

4.1 Operation Basics ..............................................................................................................16
4.2 Function Bar .....................................................................................................................17
4.2.1 Left Part of the Function Bar ................................................................................17
4.2.2 Right Part of the Function Bar .............................................................................18

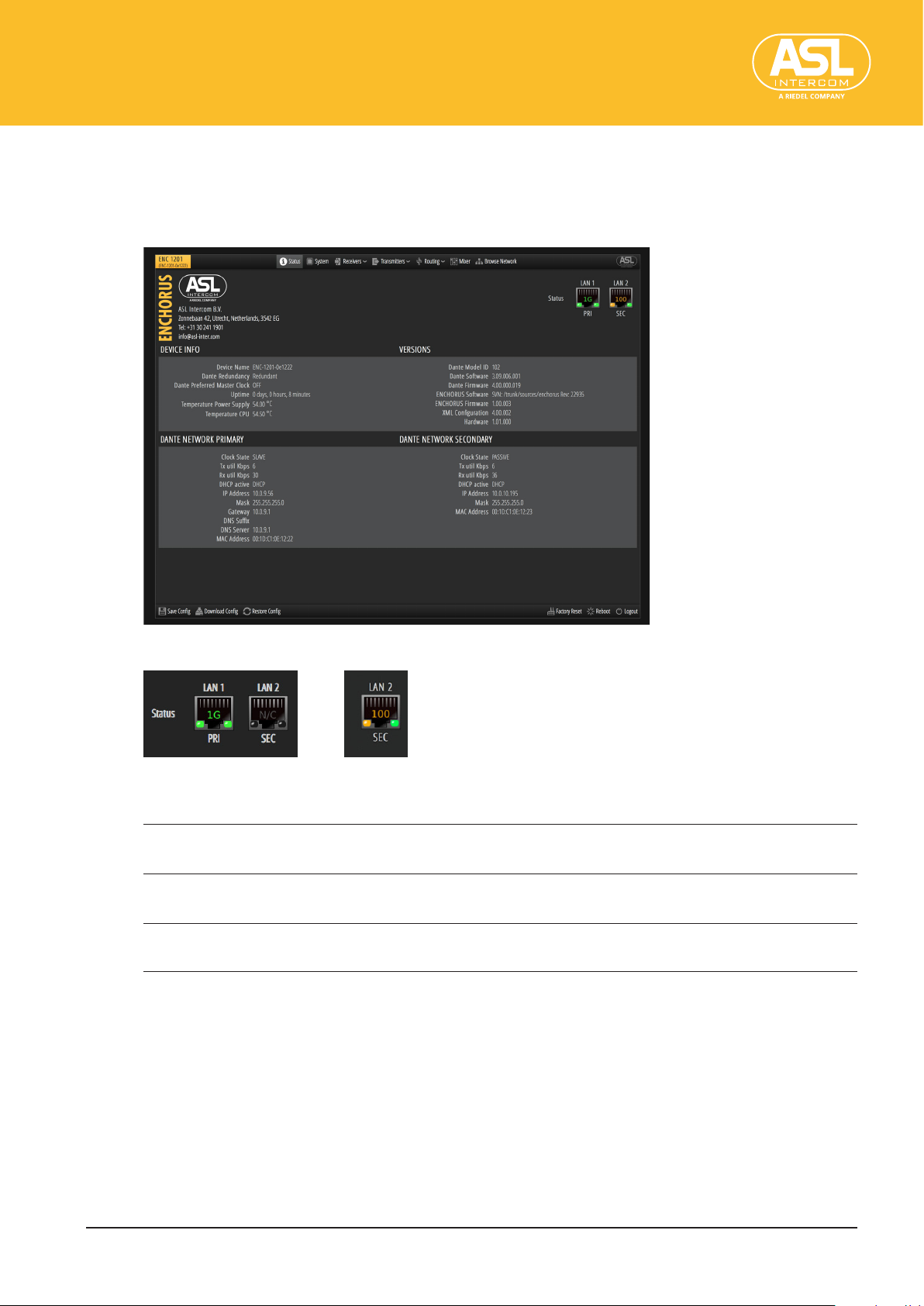

4.3 Status ................................................................................................................................20
4.4 System ...............................................................................................................................23
4.4.1 System > General ..................................................................................................23
4.4.2 System > Dante Network ......................................................................................27
4.4.3 System > Update ...................................................................................................29
4.5 Receivers (Inputs) ............................................................................................................30
4.5.1 Receivers (Inputs) > General ................................................................................30
4.5.2 Receivers (Inputs) > Metering ..............................................................................35
4.5.3 Receivers (Inputs) > Labels ...................................................................................36
4.6 Transmitters (Outputs) ...................................................................................................37
4.6.1 Transmitters (Outputs) > General .......................................................................37
4.6.2 Transmitters (Outputs) > Metering .....................................................................38
4.6.3 Transmitters (Outputs) > Labels ..........................................................................39
4.7 Routing ..............................................................................................................................40
4.7.1 Routing > Dante .....................................................................................................40
4.7.2 Routing > I/O ..........................................................................................................43
4.8 Mixer .................................................................................................................................44
4.9 Browse Network ..............................................................................................................45
4.10 Error Messages ................................................................................................................46
5 Appendix........................................................................................................................... 47
5.1 Optional 19” Rackmount Kit for One DeENC 1201ice (RM 47) ...................................47
5.2 Optional 19” Rackmount Kit for Two ENCHORUS Devices (RM ENC DUAL) .............48
5.3 EU Declaration of Conformity ??? ..................................................................................51

ENC 1201 Version 1.0 Page 4
Table of Contents
6 EnchorusENC1201Specications ................................................................................. 52
6.1 Block Diagram ..................................................................................................................53
6.2 Pin Wiring .........................................................................................................................54
7 Index.................................................................................................................................. 55

Introduction
General Considerations
ENC 1201 Version 1.0 Page 5
1 Introduction
1.1 General Considerations
Thank you for choosing an Enchorus ENC 1201 audio interface.
The devices of the Enchorus series allow you to create a professional and exibly scalable
Dante™ network for live applications, recording studios, installations and more.
These versatile audio devices meet the most demanding audio requirements. They can be
positioned close to the sources and destinations and make separate DI boxes obsolete.
They come in handy for frequent and time-critical setup applications and are highly
intuitive to congure.
1.1.1 ENC 1201 Features
The ENC 1201 provides the following features:
• 8x XLR microphone inputs, with individually switchable +48V phantom power
• 32-bit microphone pre-ampliers
• 4-way splitter for each microphone input, with individual gain settings, 4-band EQ and
phase reverse
• 4x line outputs (1x RJ45)
• Conguration via a built-in web interface
• 32x Dante™ inputs and outputs
• 2x Dante™ LAN ports (switched or redundant mode)
• Redundant power supply
• 8x built-in 16-in-2 mixers
• Built-in audio matrix
• Equalizers on all physical inputs and outputs:
Low-cut (12, 18, 24, 36dB/octave) with adjustable frequency
3 parametric EQ bands (low-pass, high/low shelf, peaking)
• Chassis: half-rack 19”/1U with rubber bumpers, stackable (depth: 225mm)
• Sample rates: 44.1/48/88.2/96/176,4/192kHz
• Word length: 16, 24, 32 bits (transparent)
• Rock-solid synchronization across several switches
• Supports 100Mbps and 1Gbps, requires no proprietary network infrastructure
• Easy and exible handling (plug & play)

Introduction
About this Manual
ENC 1201 Version 1.0 Page 6
1.2 AboutthisManual
This manual is intended to get you up and running with the ENC 1201’s comprehensive
feature set. It also contains important instructions for a safe use of your ENC 1201.
For questions that are not answered in this document, feel free to contact your local ASL
distributor or ASL directly.
Be sure to store this document in a safe location, close to the ENC 1201.
If you intend to share this device with other users, remember to also hand them this
document.
1.3 WarrantyandCopyright
Warranty or legal claims need to be communicated in writing within two working days.
In no event shall ASL be liable for damages to the device itself or consequential damage
caused by this device due to inappropriate handling.
More specically, the manufacturer shall not be liable for failures or errors caused by
modications by the user or a third party.
In the event of a defect for which ASL can be held accountable, the manufacturer has the
right to repair or replace the unit at his own discretion.
Claims regarding material or legal defects shall be null and void if they can be attributed
to the fact that the user failed to heed the instructions set out in this document,
applicable laws and/or other instructions issued by ASL.
This product is supplied as is. In no event shall users be entitled to demand a previous
version or the possibility to update their product to a newer feature set.
The device described in this document contains software applications developed by ASL
and functionalities referred to as “software”.
ASL owns the copyright to this software. Where those rights belong to a third party, ASL
has obtained the applicable rights of use.
The software contains business secrets and protected content.
In no event shall the manufacturer be liable for defects caused by modied, expanded
or damaged software, unless it can be established that such a modication could not
possibly have caused the defect.
Any other warranty obligations are hereby expressly excluded.

Safety Precautions
General Warnings
ENC 1201 Version 1.0 Page 7
2 Safety Precautions
2.1 GeneralWarnings
Be sure to only use this unit in places that meet the environmental conditions. See
“Ambient Conditions” on page 52.
Never allow children to operate this device unsupervised. Children are not aware of
the dangers inherent to operating electrical appliances.
Never drop this device. Protect it from strong impact.
NEVER stand on the device.
2.2 Electric Hazards
CAUTION
Electricshockduetolivewiresandparts.
Only use the supplied power cord. A second power cord is
available as an option from ASL.
Hazardous voltage may occur within this unit.
NEVER open/remove the unit’s enclosure.
Do not allow any objects to penetrate the unit through the air
vents.
Immediately turn the power o and remove the power cord
if the device produces smoke or an unusual smell. Always
grasp only the plug on the power cord when plugging into or
unplugging from an outlet or this unit.
ONLY use this unit in a dry environment (swiftly wipe away
any liquid that spills on the unit). Never allow liquids to get
inside the unit.
Never put liquid or drink containers on this device.
Always connect the power cord to a suitable mains outlet that
is properly insulated.
Do not excessively twist or bend cords and cables. Doing so
can damage the cables or cords, producing severed elements
and possibly short circuits.
Never operate this unit if the device itself or the cables and
cords have been damaged, or after dropping the device.

Safety Precautions
Notes Regarding the Device’s Location
ENC 1201 Version 1.0 Page 8
2.3 NotesRegardingtheDevice’sLocation
WARNING
Materialdamageduetoimproperhandling.
Do not expose the unit to temperature extremes.
Avoid placing it in direct sunlight or near devices that radiate
heat.
Be sure to leave enough space on the sides to allow the air to
circulate freely.
Never cover the device or its air vents.
Heat build-up inside the unit needs to be avoided at all cost!
The heat may damage the device and cause a re.
Never place this unit in the vicinity of ammable material
(ammable liquids, etc.).
Never place this unit on the oor without its rubber bumpers.
Whenever possible, place the unit on a heat-resistant surface.
Wooden or laminated surfaces may be damaged by the heat
radiating from the unit.
Always place this device on a level surface.

Setting Up
ENC 1201 Panels
ENC 1201 Version 1.0 Page 9
3 Setting Up
3.1 ENC 1201 Panels
Front Panel
[1]
1 8 female XLR connectors—Microphone inputs (MIC IN 1~8)
Rear Panel
[2] [3] [4] [6][5] [7] [8]
2 PRIMARY Dante port
3 SECONDARY Dante port
4 RJ45 port (Line Out 1~4)
5 Cooling fan. Never obstruct this area.
6 POWER 1 connector
7 POWER 2 connector
8 Grounding screw

Setting Up
Connecting and Setting Up
ENC 1201 Version 1.0 Page 10
3.2 Connecting and Setting Up
3.2.1 General Considerations
The ENC 1201 can be used as a desktop device, or installed in a 19” rack using one of the
optional rackmount kits (see p.47).
3.2.2 Connections
Proceed as follows to connect the ENC 1201:
1. Place the ENC 1201 in the desired location.
For practical reasons, we advise placing it close to the relevant signal sources or desti-
nations.
2. Use the supplied power cord to connect the ENC 1201’s POWER1 socket to a wall
outlet.
For critical projects where downtimes are not an option, we recommend adding a
second (optional) power cord. Connect it to the ENC 1201’s POWER2 socket and to a
separate power circuit. Doing so allows the second power supply to take over if the
POWER1 socket stops working.
3. Use a CAT-5 or higher cable to connect the ENC 1201’s PRIMARY Dante port to the IP
network or directly to your computer.
You have the option of creating a redundant Dante network for the available devices:
• Connect the ENC 1201’s PRIMARY port to a router/switch of the rst audio network.
• Connect the ENC 1201’s SECONDARY port to a router/switch of the second audio net-
work.
Be sure to connect the PRIMARY and SECONDARY Dante ports to two separate net-
works that are completely isolated from each other. Only then will Dante be able to
automatically switch to the SECONDARY port, if an error occurs on the rst (primary)
network.
Caution:
• Dante redundancy requires that both the PRIMARY and SECONDARY interfaces are connected
using the samelinkspeed. For example, if the PRIMARY interface is connected to a 1Gbps
switch port, the SECONDARY interface must also be connected to a 1Gbps switch port.
Notes:
• NEVER change the routing settings of the secondary network. These are congured automati-
cally by Dante. Be sure to ONLY change the conguration of the primary network.
• Wherever possible, use a gigabit network topology with a minimum number of hops (e.g.
switches) among Dante devices.
• The SECONDARY port can also be used for daisy-chaining scenarios by setting “Dante Redun-
dancy after Reboot” (p.25) to “Switched”.
4. Connect the required devices to the ENC 1201’s inputs and outputs.
See also “3.1 ENC 1201 Panels” on page9.

Setting Up
The ENC1201’s address
ENC 1201 Version 1.0 Page 11
Caution:
• It is recommended to switch phantom power of an input o BEFORE connecting the XLR plug to
the desired input. See “PHANTOM POWER” on page30. When using condenser microphones
that require phantom power, be sure to activate that setting for the relevant inputs AFTER con-
necting the XLR plug.
5. If necessary, set the ENC 1201’s audio and network parameters.
This requires the use of a computer whose Ethernet port is connected to the primary
Dante network (or temporarily to the ENC 1201’s PRIMARY port). This conguration
routine may only be necessary once, because the settings can be stored.
The ENC 1201 contains a web interface that can be accessed like a standard inter-
net page, like many commercially available IP routers. That is where the available
parameters are located. See “3.3 The ENC1201’s address” below for how to access the
ENC 1201’s parameters.
Notes:
• See “4 Conguring the Unit via its Web Interface” on page16 for the available parameters and
what they do.
• WiFi is only supported for conguration activities using the Dante Controller software (see
below). Audio data cannot be transmitted or received via WiFi.
3.3 TheENC1201’saddress
This device can be congured using one of the following internet browsers: Chrome,
Firefox, Internet Explorer (6.0 or newer) or Safari.
By default, the ENC 1201 is congured to automatically request IP addresses for both
Dante ports via DHCP.
If you already know the IP address, enter it into the browser’s address bar and press the
ENTER key on the computer keyboard (the following is only an example):
169.254.195.191
As an alternative, you can enter the ENC 1201’s host name into your browser’s address
bar. The host name looks something like this:
ENC-1201-XXXXXX.local
“XXXXXX” represents the last six alphanumeric characters (without the colons) of the
PRIMARY Dante port’s MAC address. You can nd this MAC address on the ENC 1201’s
rear or bottom panel. The host name may look something like this:
ENC-1201-0e10de.local
(In this case, “0e:10:de” would be the last six alphanumeric characters of the MAC
address.)
If other ENCHORUS devices are connected to the network, you can select them using the
“4.9 Browse Network” (p.45) tab.

Setting Up
The ENC1201’s address
ENC 1201 Version 1.0 Page 12
3.3.1 DanteController
Another way to check the IP addresses of the remaining devices on the Dante network is
by using the “Device Info” item of the DanteController software. Dante Controller is free
software that can be downloaded from Audinate’s website (www.audinate.com). Dante
Controller detects and displays all Dante devices connected to the network and allows
you to both view information about them and to edit a number of settings.
Note:
• After logging in, you can open the web interface of other connected ENCHORUS-series’ devices
by clicking an entry in the “NAME” column on the ENC 1201’s “Browse Network” tab (see p.45).
WhatiftheENC1201’sIPAddressisnotdisplayed?
If Dante Controller fails to display the IP address of a connected ENC-series device, pro-
ceed as follows:
1. Leave Dante Controller running.
2. Disconnect the ENC 1201 from the wall outlets (to switch it o).
3. Reconnect the ENC 1201 to a wall outlet.
4. Click Dante Controller’s [Device Info] tab and wait ±15 seconds.
The ENC 1201’s IP address is displayed in Dante Controller’s list.
5. Assign a static IP address of the ENC 1201’s subnet to the connected computer.
The ENC 1201 is once again reachable.

Setting Up
Application Examples
ENC 1201 Version 1.0 Page 13
3.4 Application Examples
Stand-aloneMixerforPresentations
Among other things, the ENC 1201 can be used as stagebox and mixer for presentations:
connect the speaker’s microphone (or wireless receiver) to the MIC IN 1 socket and an
audio source (or the audio output of the speaker’s laptop) to MIC IN 3 and 4, using a suit-
able break-out cable (stereo mini-jack into 2 male XLR plugs).
Use one of the ENC 1201’s internal mixers (see p.44) to balance the voice with the
music/video soundtrack. Each microphone input provides an EQ and a phase inversion
setting that can be used to ne-tune the sound without any external gear. The resulting
mix is transmitted to the ENC 1201’s line outputs assigned to the LINE OUT 1~4 socket
(RJ45).
L
MIC IN 1~8
LINE OUT 1~4 (RJ45)
R
L R
1 2 3 4 5 6 7 8
ENC 1201
1 2 3 4
PA
Monitors
Speaker’s Mic
Audio source
Mixer
Note:
• Note that no Dante network is required for this setup.
• The above routing setup works, because all mixers share the same input assignments (routings).

Setting Up
Application Examples
ENC 1201 Version 1.0 Page 14
UsingtheENC1201asStageboxandSplitterforLiveEvents
In the following example, the ENC 1201 is used as stagebox and splitter for a live perfor-
mance. It transmits the 8 microphone signals both to the FOH console and to the monitor
mixer:
MIC IN 1~8
1 2 3 4 5 6 7 8
ENC 1201
1 2 3 4
Drum Microphones, etc.
FOH Console
Monitor Mixer
Switch
Dante RX
Dante RX
Dante TX

Setting Up
Application Examples
ENC 1201 Version 1.0 Page 15
Studio
If the DAW you are using supports Dante, the Enchorus-series devices are an ecient and
exible solution for studio wiring. Since the system is modular, its topology and scale can
be quickly adapted to the session.
Consider positioning an Enchorus ENC1201 (8x MIC IN, 4x LINE OUT) close to the instru-
ments or voices you wish to record to keep cable runs to a minimum. Adding an Ethernet
switch will make patch bays obsolete.
An ENC 1102 allows you to take advantage of your outboard gear’s digital AES/EBU inputs
and outputs. Guitar processors, synthesizers, etc., with digital outputs can also be con-
nected to the ENC 1102 (i.e. in the digital domain).
MIC IN 1~8
1 2 3 4 5 6 7 8
ENC 1201
1 2 3 4
MIC IN 1~8
1 2 3 4 5 6 7 8
ENC 1201
1 2 3 4
AES IN 1~6
AES OUT 1~6
ENC 1102
1 2 3 4 5 6
1 2 3 4 5 6
Dante
Dante
Dante Dante
Drums
Guitar & Bass
BD, SD top, SD bottom, HH, Tom1…
Digital Audio Workstation
Eects Returns
Eects Sends
GTR Mic1
GTR Mic2
Bass direct
Bass Mic
Switch
Monitor 1
Monitor 2

Conguring the Unit via its Web Interface
Operation Basics
ENC 1201 Version 1.0 Page 16
4 ConguringtheUnitviaitsWebInterface
The ENC 1201 can be congured using one of the following internet browsers: Chrome,
Firefox, Internet Explorer (6.0 or newer) or Safari.
4.1 Operation Basics
See “The ENC1201’s address” (p.11) for how to access the web interface.
The ENC 1201’s web interface has three sections:
[1]
[3]
[2]
[1]Navigationbar
The navigation bar shows the model and device names.
The main menu is located at the center of the navigation bar. To select a menu item or a
submenu, move the mouse towards the desired entry.
Clicking the desired menu item opens the related menu or function.
[2]Workarea
The work area displays detailed information about the selected menu item.
In many instances, the work area is divided into several tabs. Click one of those tabs to
jump to the related parameters.
Warnings and notes are also displayed here (bottom left corner).
[3] Function bar
The function bar contains entries like “Save Cong”, “Download Cong”, “Restore Cong”,
“Factory Reset”, “Reboot”, and—if you are logged in—also “Logout”.

Conguring the Unit via its Web Interface
Function Bar
ENC 1201 Version 1.0 Page 17
4.2 Function Bar
4.2.1 LeftPartoftheFunctionBar
SaveCong
Any changes you make to the parameters need to be saved if you want the ENC 1201 to
recall them whenever it is (re)booted. All available settings of the ENC 1201 are called a
“conguration”. Click [Save Cong] to save the current conguration inside the unit.
A warning is displayed each time you change a setting without immediately saving your
conguration:
DownloadCong
A saved conguration (see above) can be downloaded to your computer as an xml le.
This allows you to keep a backup copy on your computer. In addition, the conguration
stored in that xml le can be uploaded to another ENC 1201 unit (see “Restore Cong”).
1. Click the [Download Cong] button.
A dialog is displayed, allowing you to specify where the conguration le should be
stored.
2. Select “Save le” and click [Ok].
3. Specify where you want to save the le (if the location isn’t selected by default).
The xml le of your conguration is downloaded.
RestoreCong
To transmit an xml conguration le to the original (or another) ENC 1201, proceed as fol-
lows.
WARNING:
• This will overwrite the conguration settings stored inside the unit.
1. Click the [Restore Cong] button at the bottom of the screen.
A dialog is displayed.
2. Click [Select XML Cong File].
A window is displayed where you can select the le that contains the settings you want
to upload to the unit.
3. Select the desired conguration le.
The conguration le needs to have the same format and structure as xml les you
downloaded using [Download Cong].
4. Click [Ok].

Conguring the Unit via its Web Interface
Function Bar
ENC 1201 Version 1.0 Page 18
4.2.2 RightPartoftheFunctionBar
Factory Reset
This function allows you to restore the ENC 1201’s factory settings (also called “initializ-
ing”).
Careful:
• Restoring the factory settings overwrites the conguration stored inside the unit. It is recom-
mended to back up the ENC 1201’s current conguration settings to your computer (see “Down-
load Cong”, p.17) before initializing it.
1. Click [Factory Reset] to open the following window:
2. Click [OK] to conrm this command (or [Cancel] if you don’t want to proceed).
If you conrm, the ENC 1201 reboots and restores the factory settings.
Reboot
If, for some reason, the ENC 1201 needs to be restarted, click [Reboot]. If you do, the fol-
lowing conrmation dialog is displayed:
Click [OK] to conrm this command (or [Cancel] if you don’t want to proceed).

Conguring the Unit via its Web Interface
Function Bar
ENC 1201 Version 1.0 Page 19
Login/Logout
[Login] or [Logout] (depending on the current status) allows you to log into, or out of, the
ENC 1201. To log in, you will be asked to enter the password:
By default, the password is “password”. Enter it and click [Ok].
Note:
• Feel free to change the password to something else using the “Password” (p.24) parameter. If
you think a password is unnecessary for your application, you can erase the current one.
If you do, [Login] and [Logout] are no longer displayed. To protect the ENC 1201 from tampering
(and restore the [Login] and [Logout] buttons), simply specify a password again.

Conguring the Unit via its Web Interface
Status
ENC 1201 Version 1.0 Page 20
4.3 Status
Click [Status] on the navigation bar to display the following page. It lists basic information
about the ENC 1201. Note that none of the settings displayed here can be changed (the
associated parameters are located in dierent panes).
LAN1/LAN2Status
In the top right corner, you can check the status of the two Dante ports. The following
color coding system is used to display the status of these two RJ45 ports.
1G Both LEDs and the label are displayed in green:
The port runs at 1 gigabit, in full-duplex mode.
100 The left LED and the text are displayed in orange, the right LED lights green:
The port runs at 100 megabits, in full-duplex mode.
NC Both LEDs and the label are displayed in gray:
This port is unable to detect a device.
