aslotel 5516C.STA2 User manual

Page | 1
aslotel
relationship • experience • choice
ety information!

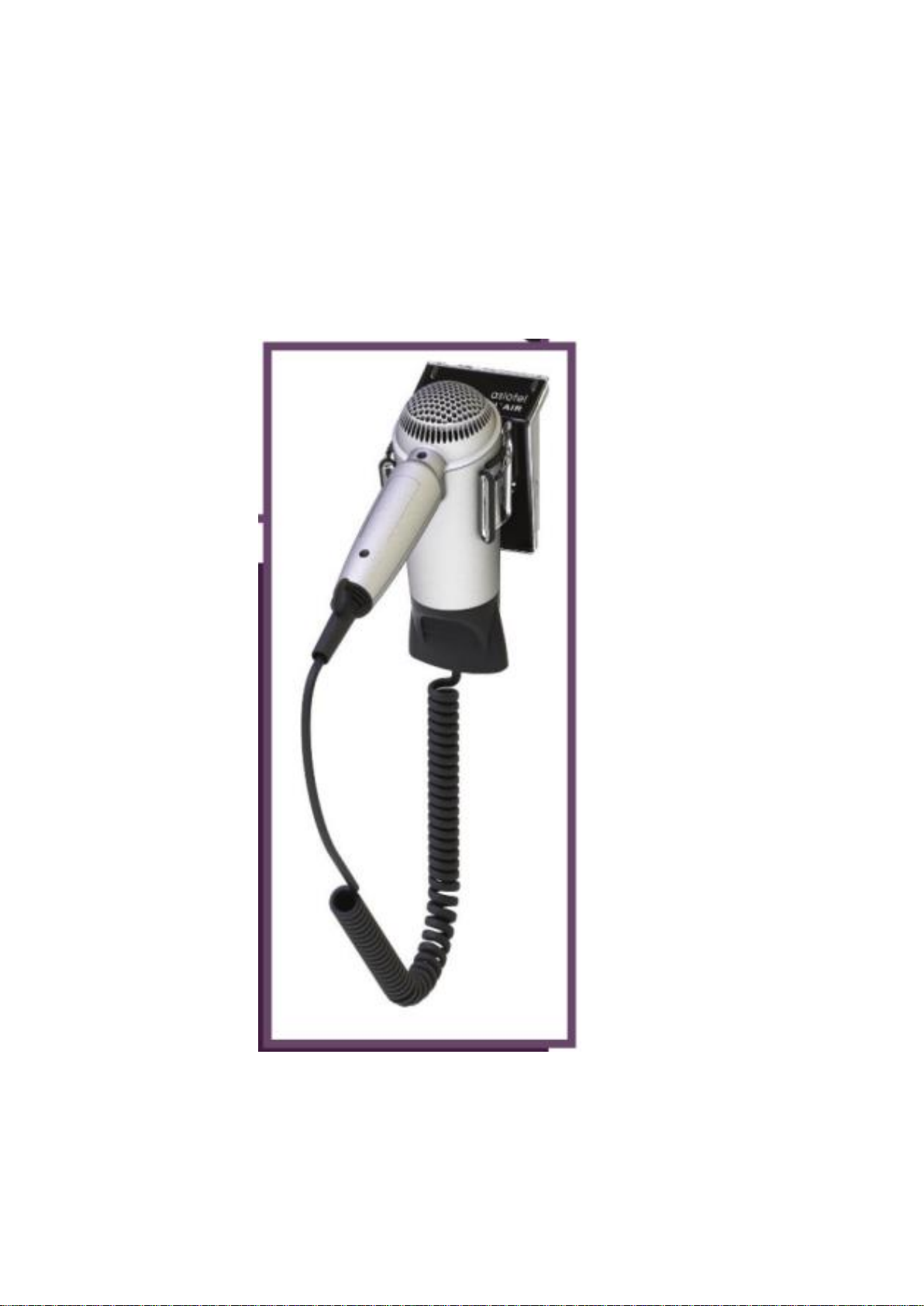

stationair wall mounted 1600w hairdryer
product codes : E005400 (UK) / E005402 (euro)
model no : 5516C.STA2 220-240V AC / 50-60Hz / class II Ver.02/Dec 2015

Page | 2

Page | 3
For your safety
These operating
instructions contain
important safety
information together with
instructions on the proper
use of this appliance.
Read these instructions
carefully and in full, keep
them in a safe place and
pass them on to any
subsequent owner.
These safety instructions
are intended for your
safety.
This electrical appliance
complies with all relevant
EU safety regulations.
Always use the appliance
for the appropriate purpose
for which it was designed.
This appliance can be
used by children from the
age of 8 up as well as by
persons with reduced
physical, sensory or
mental abilities or lacking
experience and / or
knowledge, only if these
persons are supervised
or have been instructed
how to use the appliance
safely and have
understood the hazards
which could arise from
using it. Children must
not play with this
appliance. Cleaning and
user maintenance must
not be carried out by
children unless they are
supervised.
Keep packaging material,
e.g. plastic bags, out of the
reach of children.
The appliance must be
installed so that the hand-
held parts, when fully
extended, are out of reach
of a person taking a bath or
shower. (In the UK
installation of a portable
appliance in a bathroom
is strictly prohibited).
The use of a residual
current device (RCD) rated

Page | 4
at 30mA or less will provide
extra protection against the
possibility of electric shock.
A qualified electrician will
be able to advise you.
Always isolate the mains
supply and allow to cool
down :-
- if the appliance does not
function properly
- before cleaning or
maintenance
- after every use
Safety instructions when
connecting the appliance
to the mains supply
DANGER
Risk of electric shock
To avoid the risk of electric
shock through contact with
live parts the following safety
instructions must be
observed:
If the electric supply cord is
damaged it should only be
replaced by a service
engineer appointed by the
manufacturer or distributor.
The appliance should only
be installed by a suitably
qualified electrician.
The appliance must be
installed out of reach of a
person taking a bath or
shower. (In the UK
installation of a portable
appliance in a bathroom
is strictly prohibited).
The voltage of the power
source must be the same
as that specified on the
rating plate.
Before use check that the
appliance functions
properly. The appliance
should not be used if:
- the electric supply cord
is damaged
- it shows signs of
noticeable damage
- it has been dropped

Page | 5
CAUTION
To avoid the risk of personal
injury or damage to the
appliance always follow the
instructions for installation,
use and maintenance.
If you give the appliance to
another person then you
should also supply them
with the operating
instructions.
Connect the appliance only
to an AC supply. Do not pull
the supply cord over sharp
edges, clamp it in place or
allow the appliance to hang
by its supply cord. Keep the
supply cord away from hot
or damp areas
Never wind the spiral
supply cord around the
appliance.
Only insert the mains plug
when the appliance is
switched off.
Safety instructions when
operating the appliance
WARNING
Do not use the
appliance near bath
tubs, showers,
basins or other
vessels containing
water.
DANGER
Risk of electric shock
Never use the appliance
with wet hands, in or near
the bath or shower or over
a filled washbasin. If the
appliance falls into water,
remove the mains plug
immediately or disconnect
the fuse. Under no
circumstances reach into
the water when the
appliance is still connected
to the power supply.
When the appliance is
used in a bathroom, switch
it off after use and replace
it into the wall holder, as
there is always a hazard

Page | 6
near water sources, even
when the appliance is
switched off.
CAUTION
To avoid the risk of personal
injury or damage to the
appliance through improper
use always follow the
instructions for installation,
use and maintenance.
Let the appliance cool
down after use.
Protect the appliance from
direct sunlight or damp.
The appliance is not
approved or suitable for
use outdoors.
Never put the appliance on
soft cushions or blankets
during operation.
Do not hold the air outlet
too close to your eyes or
skin.
To avoid damaging your
hair do not hold the air
outlet too close.
Do not cover the air intake
or air outlet during use.
Do not place the appliance
or its supply cord on hot
surfaces, e.g. cooker, or
near naked flames.
The appliance is fitted with
an overload protection
device which switches off
in the case of an overload
(e.g. air outlet or intake is
blocked).
If the appliance switches
off during use, please slide
the power control fto “0”
and then wait for approx. 5
minutes before switching
on again.
Do not use the appliance
for heating the room.
Safety instructions for
cleaning and
maintenance
DANGER
Risk of electric shock

Page | 7
There is a risk of electric
shock if the appliance comes
into contact with water.
Please observe the following
safety instructions:
Protect the appliance from
damp.
Never immerse the
appliance in water and
never put it into the
dishwasher.
Never remove the plug
from the wall socket with
wet hands or by pulling on
the supply cord.
Appliance
specifications
Name: Stationair wall mounted
hairdryer
Model no: E005400 –UK plug
E005402 –Euro plug
Mains cord : max. 1.8 m
Power supply: 220-240V ~ / 50/60 Hz
Rated output: max. 1600 Watt
Noise level Lp: 77,8 dB (A)
Spiral cord: max. 2.65 m
Weight: approx. 230 g without
wall bracket and cable
Protection
category: class II
CE compliance: The appliance
complies with EU Directives EMC
2004/108/EC and Low Voltage
2006/95/EC.
R
ts of

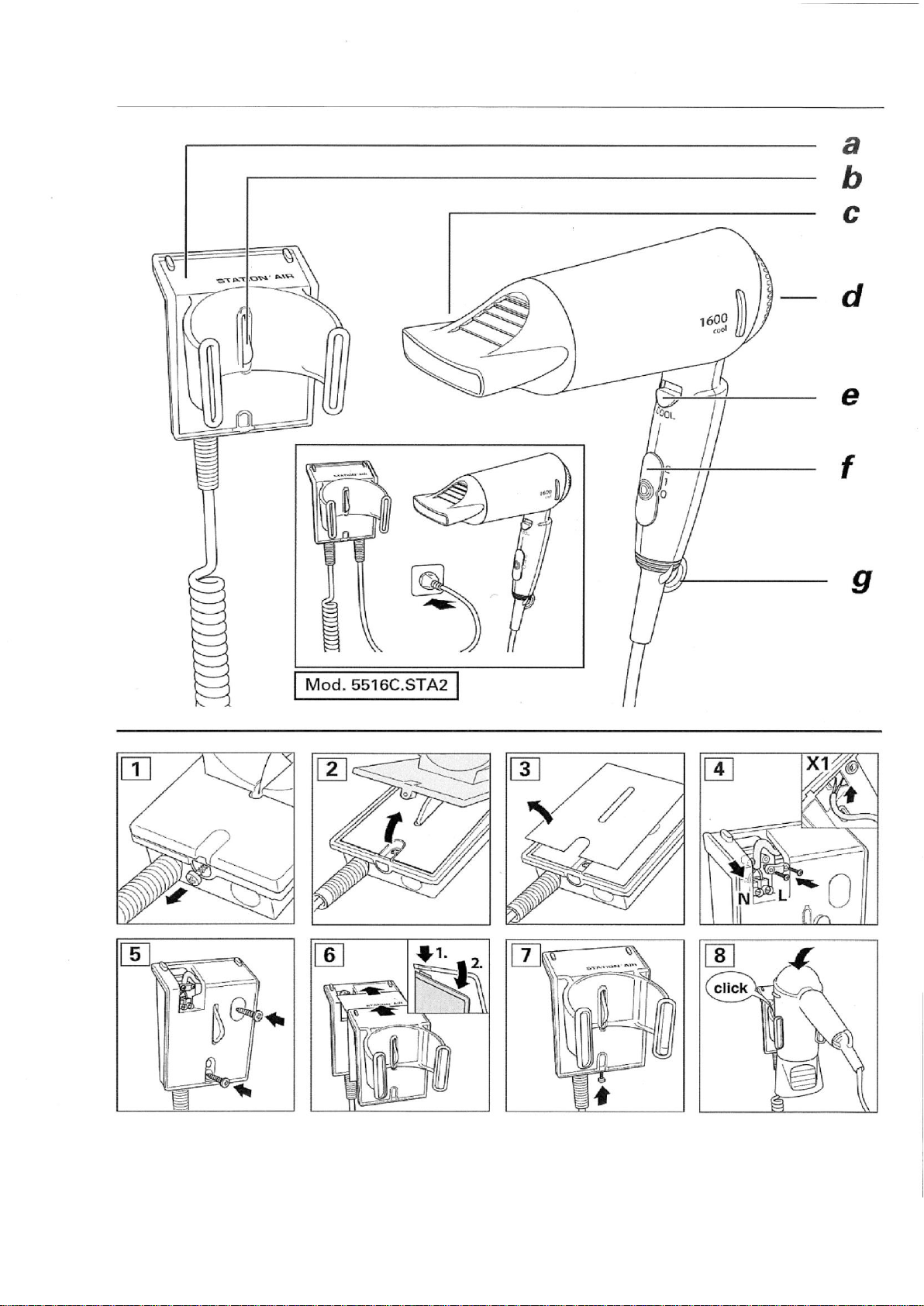

Parts
1. Wall holder
a.Hairdryer holder
b.Micro switch for
automatic switch-off
2. Hairdryer
c.Styling nozzle 360°
rotatable, not detachable
d.Air inlet grille
e.Cool shot button
f. Power control - 2-step
temperature & fan speed
control
g.Hang-up loop
Intended use
The hairdryer is only
intended for drying
and styling human hair.
No liability is accepted for
any damage resulting from

Page | 8
use for any other purpose.
Warranty is void for damage
or failure caused by
negligence or misuse.
The hairdryer is not
intended for professional
use or use in public areas
such as spas, gyms,
swimming pools, etc.
Assembly (by qualified
electrician only)
Connecting the wall holder
to the mains supply
DANGER
Risk of electric shock.
There is danger to life in case
of contact with live parts.
Please observe the following
safety instructions:
The wall holder should
only be connected by a
qualified electrician.
The mains supply must be
isolated prior to connection.
The voltage of the power
source must be the same
as that specified on the
rating plate.
Connecting the mains
supply cord
Fig. 4
Dismantle the wall holder
as described in the
following section
“Assembly” (below).
Disconnect the fuse and
connect conductors N and
L according to the markings
on the terminal block of the
wall holder (see Fig. 4).
Assembly
DANGER
Risk of electric shock.
There is the risk of electric
shock if the appliance comes
into contact with water.
Please observe the following
safety instructions:
The wall holder must not be
mounted above a

Page | 9
washbasin, a bath tub or
inside a shower cubicle.
Removing the cover
Fig. 1 –3
Loosen and remove the
screw on the underside of
the wall holder (see Fig. 1).
Swing the transparent
cover upwards and remove
it (see Fig. 2).
Remove the rating plate
(see Fig. 3).
Assembling the wall holder
DANGER
Risk of electric shock
There is the risk of electric
shock if the wall holder or the
appliance comes into contact
with water. Please observe
the following safety
instruction:

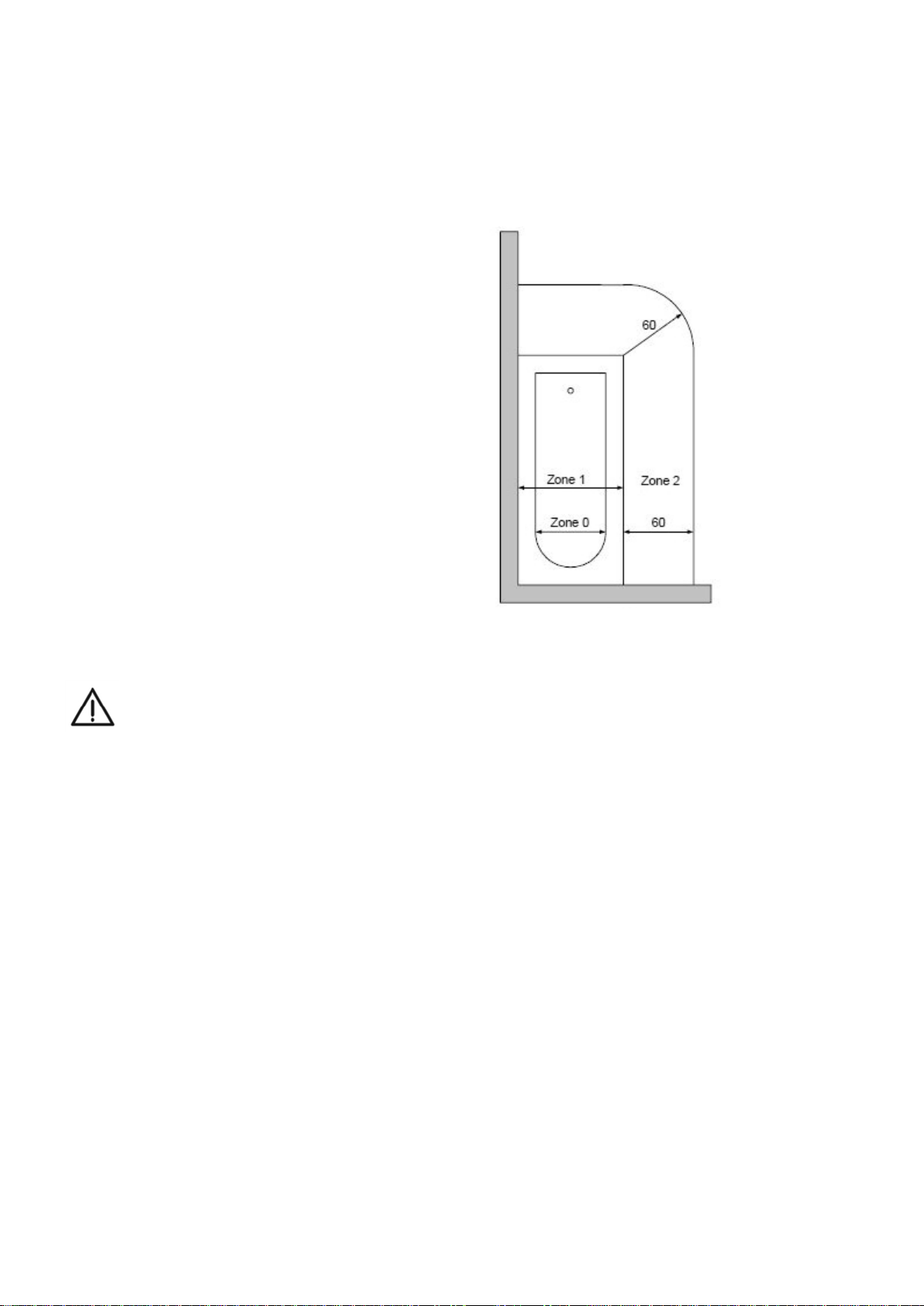

In rooms containing a bath
tub or a shower (zone 0,
zone 1), the wall holder
may only be mounted
outside zone 2, acc. to DIN
VDE 0100-701. In the UK
the appliance may not be
installed in the bathroom.
Figs. 4 - 8
To mark the position of the
drill holes hold the wall
holder against the wall.
(see Fig. 5)
Fix the wall holder to the
wall using the screws
supplied. (see Fig. 5)
Note
For hard wiring directly to
the mains supply guide the
mains supply cord through

Page | 10
opening “X1“ prior to
assembly (see Fig. 4) and
connect it to a fused spur.
For further instructions
please refer to the earlier
section “Connecting the
mains supply cord”.
Note
If not hardwired the mains
plug must be connected to
an earthed socket.
Put the rating plate in
position and fit the
transparent cover. Then
swing the cover downwards
(see Fig. 6).
Secure the transparent
cover with the screw
provided (see Fig. 7).
Insert the appliance as
shown in the illustration
(see Fig. 8).
HA
IRER
Initial use & operation
Initial Use and Operation
Preparing the hair
Wash your hair and dry it
thoroughly with a towel.
Comb your hair thoroughly.
Do not use hairspray or
other flammable hair care
products.
Drying hair
Remove the hairdryer from
the wall holder.
The hairdryer is fitted with a
2-step temperature and fan
speed control f and COOL
SHOT button e. The styling
nozzle ccan be rotated as
required.
CAUTION
Protection of the appliance.
Improper handling can
damage the hairdryer.
Temperature & fan
speed settings
RDRYER
Switch on the appliance and
select the desired
temperature and fan speed
setting using sliding switch f.
Use the COOL SHOT button

Page | 11
to reduce the temperature
according to the table below.
Switch settings
0= Off
1= Slow fan speed, 800 watts
1 + COOL = Slow fan speed, 230 watts
2= Fast fan speed, 1600 watts
2+ COOL = Fast fan speed, 460 watts
2
2
Cool Shot
OOL SHOT push button
With the COOL SHOT button
e you can lower the air
temperature to cool hair that
has already been dried in
order to set your hair to the
desired style. The COOL
SHOT button can be locked
in position.
WARNING
Risk of burning hair if
selected temperature is too
high
Cleaning and care
DANGER
Risk of electric shock
To avoid the risk of electric
shock from live parts please
follow these safety
instructions.
Before cleaning,
disconnect the appliance
from the mains.
Never immerse the
appliance in water.
WARNING
Danger of burns from hot
components
Parts of the appliance can be
very hot and may cause
burns even after it has been
switched off. Allow the
appliance to cool down fully
before cleaning.
CAUTION
Please observe the following
safety instructions :
Protect the appliance from
dust, dirt and fluff.
Do not use sharp or
abrasive cleaning agents.

Page | 12
Clean the appliance with a
slightly damp cloth and dry
with a soft dry cloth.
Environmental protection
The appliance and its
packaging materials are
made of materials that can be
recycled.
Correct separation and
disposal of waste materials
helps reduce the impact on
the environment.
Disposal
This symbol on the
appliance, operating
instructions or packaging
indicates that this appliance,
at the end of its useful life,
may not be disposed of as
normal household waste. It
must be disposed of at a
collection point specifically
designated for the recycling
of electric and electronic
appliances. Materials must
be recycled according to their
classification. Through the
correct disposal of the
appliance and packaging
materials you are making a
valuable contribution towards
the protection of the
environment.
Please ask your local
authority for a list of
appropriate recycling points.
Aslotel producer registration
number:
WEE/EJ0060TU
Guarantee
In addition to your statutory
rights, Aslotel guarantee the
appliance to be free from
manufacturing and
component defects for a
period of 12 months from
date of purchase. The
guarantee does not cover
faults due to misuse or
damage caused by
negligence or failure to follow
these instructions.

Page | 13
Service
Should the appliance fail to
operate check that the supply
fuse is not blown and that the
mains supply is switched on.
If the appliance still does not
work please contact our
technical helpline on the
number below. Please note
that the appliance contains
no consumer serviceable
components so please do not
attempt to repair it yourself.
Technical Helpline : +44
(0)1372 362533
Monday –Friday 9am to
5.30pm
E-mail : [email protected]
aslotel
relationship • experience • choice
aslotel (2000) limited, pebble close, tadworth,
surrey KT20 7PA
tel [phone] fax [phone]
e-mail a[email protected] www.aslotel.co.uk

Page | 14
