Aslotus KJ320 User manual

Thank you for purchasing our products.
Please read the instruction manual carefully
before using this product.
Air Purifier
User Manual

Table of Contents
Table of Contents .................................................. 01
Product Name and Specifications ............................ 02
Important Safety Tips ............................................. 03
Operating Instructions............................................ 05
Filter Reset Guideline ............................................ 07
Common Trouble Shooting ..................................... 08
01

Air purifier unit
Power adapter
HEPA filter
Base
Model
AC Voltage
Working Voltage
Rated Power
CADR
Suggestion Area
Noise
Dimensions
N.W.
02
KJ320
AC 100V-240V
DC24V 1.5A
30W
320m³/h
58dB
22m²~38m²
Φ260*529mm
4.2kg
Product Name and Specifications

Please read this instruction manual carefully before use and keep it for future reference.
When we use electrical appliances, we should have the most basic safety knowledge to avoid
fire, electric shock and other injuries. Therefore, please follow the instructions below
When the replacement filter
indicator lights up, replace the
consumables to ensure the
cleanliness of the air purifier.
Do not use the air cleaner in places
that are exposed to moisture or
water splash,such as bathroom,
kitchen,beside the sink or
basement that is serious damp.
If the power cord is damaged,it
must be replaced or repaired by
the manufacturer or its authorized
service network and maintenance
personnel in order to avoid danger.
Do not use an air purifier in the
presence of flammable gases or
vapors.
Electrical appliances should
be safe,Avoid the risk of fire,
electric shock and injury.
This air purifier must
be used upright.
Do not use outdoors or when the
doors and windows are open.
Do not use the adapter or
product when it is damaged.
Do not use the machine without
the filter installed.
Do not sit, stand or place items
on top of the air purifier.
Do not place the adapter under
the carpet or near a heat source.
Do not let items fall into the
machine from the air outlet,
as this will damage the air purifier.
03
Important Satety Tips

Preparation before use
Remove the air purifier from the box and place it on a flat floor. The body is surrounded by
walls or other furniture at least 50 cm to facilitate air circulation.
Note: Before using the machine, be sure to remove all packaging materials
(especially those on the filter net) to avoid blocking the air inlet.
Important Satety Tips
Move
1. When moving, be sure to stop the host and pull out the power plug.
2. Hold the clamp on the side of the main engine to avoid excessive vibration or falling.
Install
1. Do not start the host in case of danger.
2. The distance between the center of the main machine and the wall and other occlusions should be
more than 50cm.
Power Supply Precautions
1. Do not over pinch, bend or twist the power cord of the power adapter, or the core may be exposed
or broken.
2. Do not pull the power cord of the power adapter when disconnect the power cord.
3. Do not use improper ac socket.
4. Do not use the supplied power adapter on any other device.
AC power cord
1. Use the power adapter and socket as indicated below to avoid fire,shock or damage.
2. Please use only the supplied power adapter and do not use any other brand of power adapter.
3. Disconnect the adapter's power cord from the ac socket before performing maintenance or moving
the air purifier.
04

Plug-in operation
Power on/off
Air quality display
After power-on, the LED air quality indicator will change according to the PM2.5 value (green light
/ blue light / red light difference). The PM2.5 value is displayed on the screen.
Press ( ), the air purifier will sound “B”, the machine will run in automatic gear, the wind speed
will be adjusted according to the air quality; press ( ) again, the machine will stop running and
return to the standby state.
Make sure the machine is level on a level surface so that the bottom microswitch is pressurized.
When the power is plugged in, the air purifier will sound "B", all the indicators will light off after 0.5
seconds, and the air purifier will enter the standby state.
This product is not recommended for users with physical, sensory, mental abilities,
experience or lack of knowledge.Use (including children), except under the
supervision or direction of the person responsible for its safety.
ATTENTION
Children should be supervised to ensure that children do not play with electrical
appliances.
If the product needs to be shut down during use, please press the "Power" button
on the control screen to shut down normally and then pull out the Power. Abnormal
Power failure may cause product failure.
Operating Instructions
05

When the machine runs for a certain period of time, the Filter will flash in red. At this time, you
should replace it with a new filter. Press and hold for 3 seconds ( ) to clear the accumulated
time and the Filter stops flashing.
Special reminder: if the filter is replaced before the indicator light of the filter is on, the filter timer
will not be reset, and continue to calculate the life of the last filter. As a result, the filter replacement
light may soon be bright red.
Touch ( ) to adjust the wind speed of the machine. The higher the speed, the higher the wind
speed.
Timing setting
Wind speed
Filter reset
Press ( ), the machine enters the timing setting, and displays 1H, 2H, 3H 12H to set the machine
off time.At 12H, press ( ) again to cancel the timing.If the child lock function is started in the
regular state, the machine can be started only after it is unlocked after being closed.
the wind speed runs in the first gear. When the sleep button is touched again, it returns to the last
running state. In the sleep state, other buttons are invalid.
Automatic Mode
When the machine is running in automatic mode, the machine will adjust the wind speed, the color
of the LED light according to the air quality.
A. Green: Good air quality, 0≤PM2.5≤70.
B. Blue: The air quality is normal, 70<PM2.5≤150.
C. Red: The air quality is poor, 150<PM2.5≤500.
When 0 ≤ PM2.5 ≤ 50, the fan motor operates in one gear.
When 50 < PM2.5 ≤ 100, the fan motor operates in the second gear.
When 100 < PM2.5 ≤ 150, the fan motor operates in third gear.
When 150 < PM2.5 ≤ 200, the fan motor operates in the fourth gear.
When 200 < PM2.5 ≤ 500, the fan motor operates in five gears.
Sleep Mode
Press ( ), the machine goes to sleep, except the light is on, the other lights are off. In this mode,
function is activated, touching other buttons is invalid.
Child lock
Press and hold for 3 seconds ( ) to turn the child lock function on or off. When the child lock
Operating Instructions
06

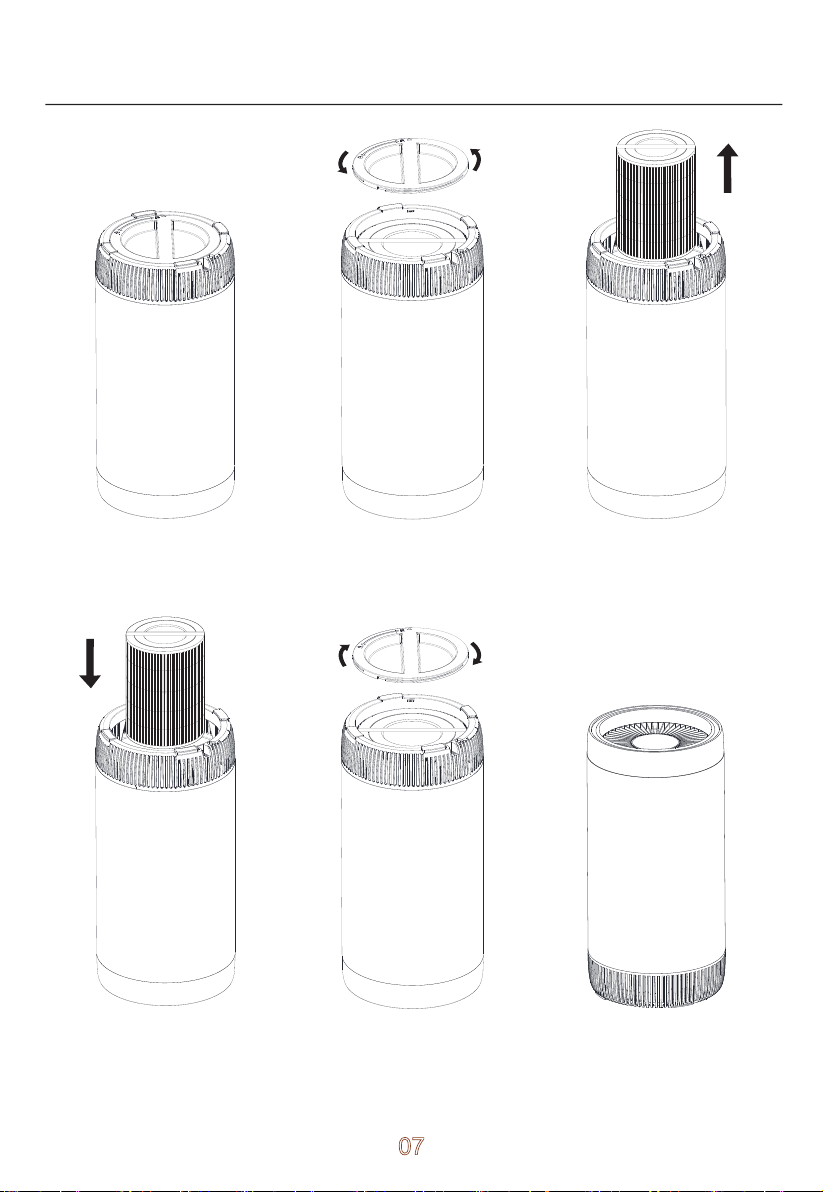

1. Disconnect the power
and turn the machine
upside down.
4. After removing the new
filter from the bag,loaded
inside the machine.
2. Rotate the bottom cover
counter clockwise, loosen
the bottom cover and
remove it.
5. Install the bottom cover
and lock it clockwise.Turn
the machine around.
3. Take out the filter.
6.Turn the machine around.
Filter Reset Guideline
07

Confirmation matters before fault declaration.
Re-operate after inserting
the power plug.
Is the machine not flat, causing the
bottom micro switch not closed?
Are all packages of the filters
removed?
The product has
no air flow out If any object blocks the air
outlet, move the object out
of the air outlet.
Ensure that all packages
have been removed.
Re-operate after confirming
the machine flat.
Press the reset button（ ）
for more than 3s to reset after
filter replacement.
Ensure that all packages
have been removed.
Move the machine to a clean
room, if the red light is still
always on, the sensor line
may be abnormal.
Please contact the customer
service center.
Is there unfound dust or peculiar
smell inducing substance indoors?
"Filter" light
flashing red
Excessive product
sound
The air quality
indication is always
red.
Is it in auto mode status?
Set to auto mode.The air
volume will not be changed
automatically in manual wind
speed mode.
The product cannot
be started
Confirm the following matters before the product is entrusted to the customer
service center for repair due to exception.
Does the power plug fall off?
Confirmation matter
Status
Is there anything blocking the air
outlet above the purifier?
Measure
Are all packages of the filters
removed?
08
Common Trouble Shooting
indicator light is always
The air quality
red/blue/green, but
the air volume is still
unchanged.
