asmodus LUSTRO 200W User manual

ASMODUS
LUSTRO 200W

www.asmodus.com
ASMODUS
13
20
27
34
48
55
62
41
07
LUSTRO 200W

Technical Parameters:
Safety Protections:
01

1. Turn on
Place batteries in the device, and quickly press the
" FIRE " button 5 times to turn on the device.The screen will
display
" ASMODUS " , and enter into working mode.
2.Mode selection
In the unlocking state, sliding left and right mode display position or gesture swipe left and right to cycle select
the operating mode (POWER, TEMP, CURVE, TCR, TFR).

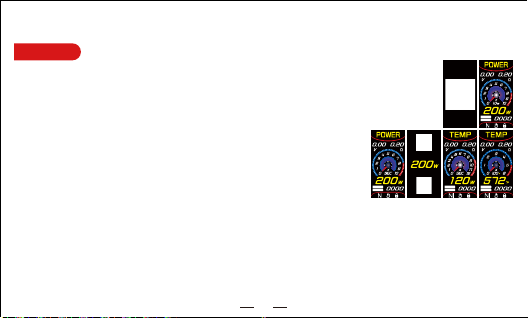

3.Working parameter setting
POWER mode:
Power settings: In the screen unlocking state, in the power setting interface, press the "^"
and "v" icon to set the power value, press the "Fire" key to confirm and exit.
Taste setting: In the screen unlocking state, sliding up and down the touch screen or gesture
to swipe up and down to select the taste (soft (S), standard (N), violent (H)).
POWER mode dial display type: In the screen unlocking state, click the dial position to
switch the number of seconds and the power.
TEMP mode:
Coil material selection: In the screen unlocking state, long press the "TEMP" mode to enter the coil material selection interface press
"^" and "v" to select the coil material and press "Fire" to confirm and exit.
Temperature control power, temperature display switch: Click the power display position, can switch to the temperature display,
click the temperature display position, can switch to the power display.
Temperature control power setting: In the screen unlocking state, long press power display position to enter the setting interface,
press the "^" and "v" icons to set the power value directly in the power setting interface, press the "Fire" key to confirm and exit.
Temperature setting: In the screen unlocking state, long press the temperature display position, enter the temperature setting
interface, in the temperature setting interface directly press "^", "v" icon set temperature value, press "Fire" key to confirm and exit.
TEMP mode dial display type: In the screen unlocking state, click the dial position to switch the temperature and power.
CURVE mode:
View power points: In the screen unlocking state, sliding up and down screen or gesture up and down sliding cycle can be seen
P1 ~ P5 power value or time value.
Power value, time display switching: Click the power display position to switch to the time display, click the time display position,
can switch to the power display.
Power value setting: In the screen unlocking state, long press the power/time display position to enter the parameter settings
interface, in the parameter settings interface directly click on the left to modify the parameters, Press "^","v" icon to set the power
value, press the "Fire" Key to confirm and exit.
Using Your Device:
02

Time value setting: In the screen unlocking state, long press the power display position to
enter the parameter settings interface, in the parameter settings interface directly click on the
right to modify the parameters, Press "^", "v" icon to set the power value, press the "Fire "Key
to confirm and exit.
TCR mode:
TCR selection: In the screen unlocking state, sliding up and down screen or gesture up and
down sliding cycle can choose M1 ~ M5.
Temperature control power setting, temperature setting reference "TEMP" mode.
TCR value setting: In the screen unlocking state, long press "TCR" display position to enter the "TCR" setting
interface, sliding left and right to select editing number, Press the "^", "v" icon to set the value, press the "Fire" Key
to confirm and exit."TCR" mode dial display type setting reference "TEMP" mode.
TFR mode:
TFR selection: In the screen unlocking state, sliding up and down screen or gesture up and down sliding cycle can
choose M1 ~ M5.
Temperature control power setting, temperature setting reference "TEMP" mode.
TFR value setting: In the screen unlocking state, long press "TFR" display position to enter the "TFR" setting
interface, sliding up and down to select editing temperature point, sliding left and right to select editing number, Press the "^", "v" icon
to set the value, press the "Fire"Key to confirm and exit.
"TFR" mode dial display type setting reference "TEMP" mode.
4.System settings
In the work mode quickly press the “Fire” button 5 times to enter the system settings interface. In the system settings interface, left and
right sliding screen or gesture left and right slide can be selected to set the settings (shutdown, the number of mouth settings, the
number of clear, dial pointer style settings, upgrade, view version, cigarette light speed settings, vape switch settings, vaping light
color settings, touch screen lock mode settings, resistance detection).
Shutdown: Select the “shutdown” item, long press the icon location to shutdown.
Number of mouth settings: Select the "number of mouth settings" item, click on the icon position into
the mouth number settings interface, click "^", "v" icon can set the number of mouth limit; Press "Fire" to
confirm and return to the parent interface.
Number of ports clearing: Select the "Number of ports clearing" item, click the icon position to enter
the number of mouth clear interface, click the clear icon to clear the number of ports. Press the “Fire”
key to exit and return to the parent interface.

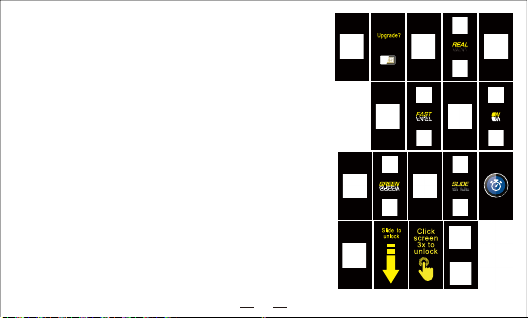

Upgrade: Select the “Upgrade” item, click the icon position to enter the upgrade confirmation interface, click the "YES" icon in the
upgrade confirmation interface,
03

04
press and hold the "Fire" button until the screen displays "Download Mode".
Dial pointer style setting: Select the "pointer" item, click the icon position to enter
the pointer style settings interface, click "^", "v" icon to set the pointer rotation style
(REAL, FUN); Press “Fire” to confirm and return to the parent interface.
View version: Select the "version" item, click the icon location to view the system
version; Press the "Fire" button again to return to the parent interface.
Vaping light speed setting: Select "vape speed", click the icon position to enter
the speed setting interface, click "^", "v" icon can choose "fast", "medium", "slow"
three kinds of speed; Press “Fire” to confirm and return to the parent interface.
Vaping light switch settings: Select the "vape light switch" item, click on the icon
position to enter the cigarette lighter switch settings interface, click "^", "v" icon to set the
vaping light "open", "off "; Press "Fire" to confirm and return to the parent interface.
Vaping light color settings: Select the "vape light color", click the icon position to enter
the vaping light color settings interface, click "^", "v" icon to set the color of the vaping light,
"red", "green", "blue" three colors; Press “Fire” to confirm and return to the parent interface.
Touch screen lock mode settings: Select the "lock icon" item, click the icon position to enter
the touch screen lock mode settings interface, click "^", "v" iconcan choose "Slide",
"Click"; Press "Fire" to confirm and return to the parent interface.
Off display time setting: Select "Off display time setting" item, click the icon and
enter into the off display setting interface, click “^”、“v” to set the time; click the “Fire”
key to confirm it and return to the former interface.
Resistance detection: In the booting state, quickly press the “Fire” button 5 times to
enter the settings interface, left and right sliding screen to select the resistance test
interface, click on the icon that test resistance value (Note: In the temperature control
mode, please confirm the resistance value is cold resistance, which is the premise of
the normal work of the equipment!), Click “ADJ” to modify the resistance value. Press “FIRE” to confirm
the resistance and exit.
5.Lock and unlock
Touch screen unlock: In the touch screen locking state, sliding in the direction of the arrow on the touch
screen to unlock.
Touch screen lock: In the working state, press the "Fire" key to lock.
System lock: In the working mode, fast press the "Fire" button 3 times to lock.
System Unlock: In the system locking state, fast press the “Fire” button 3 times to unlock.

05
Tips:
6.flashlight
In the locking screen state, on the touch screen in the direction of the arrow (from bottom to top) slide into the
settings interface, click the flashlight icon into the flashlight function.
7.Gesture switch
In the locking screen state, on the touch screen in the direction of the arrow (from bottom to top) slide into the
settings interface, press the "^" and "v" icon to set the gesture "on" "off ". Press "Fire" to confirm and return to the
main interface.
8.Anti-ignition function
The local ignition requires the human body finger to fully touch the ignition key to ignite the cigarette, to
prevent the user from forgetting to shut down or lock the system and accidentally ignite (such as putting in the
bag with the false trigger, put in the suitcase with the false trigger, etc.).
9.System Upgrade
1.The device enters the upgrade mode "Download Mode".
2.Connect the device to a computer via a USB cable.
3.Open the computer side of the upgrade software, click the “Connect” button, the left side of the button
turns gray to green, indicating that the device and upgrade software connection is successful.
4.Click the "File" button, select the firmware to be upgraded (such as: xxx.firmware).
5.Click the "Upgrade" button to upgrade.
6.After the upgrade is successful, the device prompts "Upgrade Ok".
7.Power off and rebooting.
☆ 10. Battery handling method ☆
1. The negative pole of the battery is against the
negative pole of the machine。
2. Push the battery to the negative direction, and
then remove the battery.
1. Warning when atomizer resistance is too high: " HIGH ATOMIZER "
2. Warning when atomizer resistance is too low: " LOW ATOMIZER "
3. Warning when atomizer resistance is removed: " ATOMIZER REMOVE "
4. Warning when no atomizer is connected: " CHECK ATOMIZER "
5. Warning when atomizer gets short circuit: " ATOMIZER SHORT "
6. Warning when battery voltage is too high: " HIGH BATTERY "
7. Warning when battery voltage is too low: " LOW BATTERY "
8. Warning when fire working time exceeds 10S: " WORK OVERTIME "
9. Display when device turns on: " ASMODUS "
10. Display when device turns off: " SYSTEM OFF "

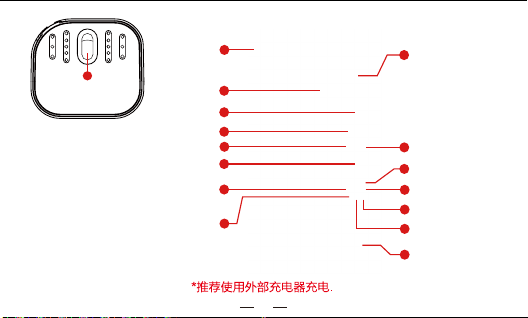

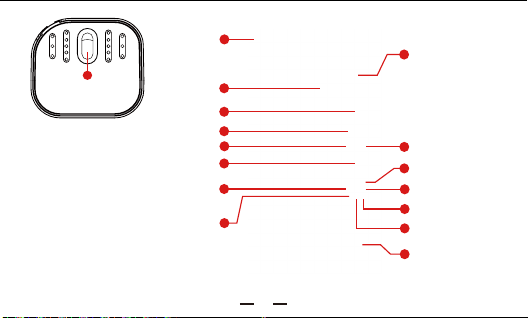

TYPE-C
Charging port
Fire Button
Output Wattage
Status Indication
LED
Gesture Switch
Status
Lock
Puff Limit
Battery
Door
Decorative
Strips
Gesture
Induction
Battery Level
Mode
Output Voltage
Dash Board
Atomizer
Resisitance
06
Machine
bottom
* Always recommended to use external charger if available.

Asmodus LUSTRO 200W TC is an ELECTRONIC NICOTINE DELIVERY SYSTEM
(ENDS). It is not suitable for persons under legal vaping age, pregnant or nursing women,
persons at risk of heart disease, persons with hypertension and/or diabetes, or persons taking
medication for depression and/or asthma.
LEGAL DISCLAIMER: Underage sale of this product is prohibited. Depending on your
country/region, legal vaping age is 21+ and 18+ elsewhere.Keep out of reach of children.
Keep the contents of this package out of reach of children,non vapor and animals
This product contains nicotine which is a highly addictive substance.
CAUTION:This product is for adult use only.Store in a cool dry place.Only for use in electronic
cigarettes.Do not ingest or apply to skin.If nicotine poisoning occurs seek immediate medical
attention.
www.asmodus.com

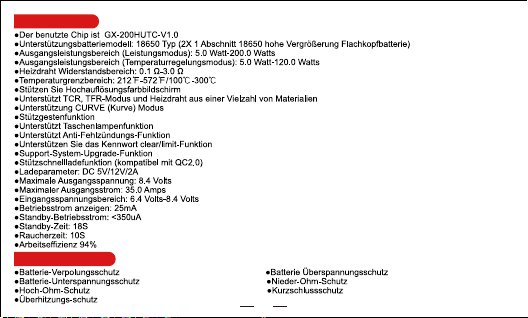

参数特点：
● 芯片采用GX-200HUTC-V1.0
● 支持电池型号：18650型（2节18650高倍率平头电池）
● 输出功率范围 (功率模式)：5.0 Watts-200.0 Watts
● 输出功率范围（温控模式）：5.0 Watts-120.0 Watts
● 发热丝阻值范围：0.1 Ω-3.0 Ω
● 温度限制范围：212℉-572℉/100℃-300℃
● 支持高清晰度彩色显示屏幕
● 支持TCR、TFR模式以及多种材质发热丝
● 支持CURVE(曲线)模式
● 支持手势功能
● 支持手电筒功能
● 支持防误点火功能
● 支持口数清零/限制功能
● 支持系统升级功能
● 支持快充功能(兼容QC 2.0)
● 充电参数：DC 5V/12V/2A
● 最高输出电压：8.4 Volts
● 最高输出电流：35.0 Amps
● 输入电压范围：6.4 Volts-8.4 Volts
● 显示屏工作电流：25mA
● 待机工作电流：<350uA
● 待机时间：18S
● 吸烟时间：10S
● 工作效率94%
安全功能设计：
● 电池反向保护 ● 电池过压保护
07

一、开机
处于关机状态下，快速连按5下“Fire”按键进行开机。开机屏显示“ASMODUS”标志，进入工作界面。
二、模式选择
在触屏解锁状态下，左右滑动模式显示位置或手势左右滑动可循环选择工作模式（POWER、TEMP、CURVE、
TCR、TFR）。
三、工作参数设置
POWER模式：
功率设置：在触屏解锁状态下，点击功率显示位置，进入功率设置界面，在功率设置界
面下直接按“^”、“v”图标设置功率值，按“Fire”键确认并退出。
口感设置：在触屏解锁状态下，上下滑动触屏或手势上下滑动可循环选择口感(柔和(S)、
标准(N)、暴力(H))。
POWER模式下表盘显示类型：在触屏解锁状态下，点击表盘位置可从秒数、功率相互
切换。
TEMP模式：
线圈材料选择：在触屏解锁状态下，长按“TEMP”模式显示位置，进入线圈材料选择界面，按“^”、“v”图标选择线圈材
料，按“Fire”键确认并退出。
温控功率、温度显示切换： 单击功率显示位置，可切换到温度显示，单击温度显示位置，可切换到功率显示。
温控功率设置：在触屏解锁状态下，长按功率显示位置，进入功率设置界面，在功率设置界面下直接按“^”、“v”图标设
置功率值，按“Fire”键确认并退出。
温度设置：在触屏解锁状态下，长按温度显示位置，进入温度设置界面，在温度设置界面下直接按“^”、“v”图标设置温
度值，按“Fire”键确认并退出。
TEMP模式下表盘显示类型：在触屏解锁状态下，点击表盘位置可从温度、功率相互切换。
CURVE模式：
查看功率点：在触屏解锁状态下，上下滑屏或手势上下滑动可循环查看P1~P5点功率值或时间值。
功能介绍：
● 电池欠压保护 ● 低阻保护
● 高阻保护 ● 短路保护
● 过热保护（芯片过温保护）
08

功率值、时间显示切换： 单击功率显示位置，可切换到时间显示，单击时间显示位置，
可切换到功率显示。
功率值设置：在触屏解锁状态下，长按功率/时间显示位置，进入参数设置界面，在参
数设置界面下直接点击左边要修改的参数，进入编辑界面按“^”、“v”图标设置功率
值，按“Fire”键确认并退出。
时间值设置：在触屏解锁状态下，长按功率显示位置，进入参数设置界面，在参数设置
界面下直接点击右边要修改的参数，进入编辑界面按“^”、“v”图标设置功率值，
按“Fire”键确认并退出。
TCR模式：
TCR选择：在触屏解锁状态下，上下滑屏或手势上下滑动可循环选择M1~M5。温控功率设置、温度设置
参考“TEMP”模式。
TCR值设置：在触屏解锁状态下，长按“TCR”模式显示位置，进入TCR值设置界面，左右滑屏选择待编
辑数字位，按“^”、“v”图标设置值，按“Fire”键确认并退出。TCR模式下表盘显示类型设置参考
TEMP模式。
TFR模式：
TFR选择：在触屏解锁状态下，上下滑屏或手势上下滑动可循环选择M1~M5。温控功率设置、温度设置参考“TEMP”模式。
TFR值设置：在触屏解锁状态下，长按“TFR”模式显示位置，进入TFR值设置界面，上下滑屏选择待编辑温度点，左右滑屏
选择待编辑数字位，按“^”、“v”图标设置值，按“Fire”键确认并退出。TFR模式下表盘显示类型设置参考TEMP模式。
四、系统设置
在工作模式下快速连按5下“Fire”按键进入系统设置界面。在系统设置界面左右滑屏或手势左右滑动可循环选择设置项
（关机、口数设置、口数清零、表盘指针风格设置，升级，查看版本，吸烟灯速度设置、吸烟灯开关设置、吸烟灯颜色设
置、触屏开锁方式设置、电阻检测）。
关机：选中“关机”项，长按图标位置系统关机。
口数限制设置：选中“口数设置”项，点击图标位置进入口数设置界面，点击“^”、“v”图
标可设置口数限制值；按“Fire”键确认并返回上级界面。
口数清零：选中“口数清零” 项，点击图标位置进入口数清零界面，点击清除图标清除口数。
按“Fire”键退出并返回上级界面。
升级：选中“升级”项，点击图标位置进入升级确认界面，在升级确认界面点击“YES”图标，
根据提示按住“Fire”键直到屏幕显示“Download Mode”。
09

表盘指针风格设置：选中“指针”项，点击图标位置进入指针风格设置界面，
点击“^”、“v”图标可设置指针转动风格（REAL、FUN）；按“Fire”键确
认并返回上级界面。
查看版本：选中“版本”项，点击图标位置可查看系统版本；再次按“Fire”
键返回上级界面。
吸烟灯速度设置：选中“吸烟灯速度”项，点击图标位置进入速度设置界面，
点击“^”、“v”图标可选择“快”、“中”、“慢”三种速度；按“Fire”
键确认并返回上级界面。
吸烟灯开关设置：选中“吸烟灯开关”项，点击图标位置进入吸烟灯开关设置界面，
点击“^”、“v”图标可设置吸烟灯的“开”、“关”；按“Fire”键确认并返回上级
界面。
吸烟灯颜色设置：选中“吸烟灯颜色”项，点击图标位置进入吸烟灯颜色设置界面，
点击“^”、“v”图标可设置吸烟灯的颜色，有“红”、“绿”、“蓝”三种颜色可
选择；按“Fire”键确认并返回上级界面。
触屏开锁方式设置：选中“锁图标”项，点击图标位置进入触屏开锁方式设置
界面，点击“^”、“v”图标可选择“Slide”、“Click”方式；按“Fire”键
确认并返回上级界面。
息屏时间设置：
选中“息屏时间设置”项，点击图标位置进入息屏时间设置界面，点击“^”、
“v”图标可设置息屏时间；按“Fire”键确认并返回上级界面。
电阻检测：在开机状态下，快速连按5下“Fire”按键进入设置界面，左右滑屏
选择电阻测试界面，点击图标即测试电阻值（注意：在温控模式下，请确认
所检测的电阻值为冷态阻值，这是设备正常工作的前提！），点击“ADJ”可
对电阻值进行修改。按“FIRE”键确认阻值并退出。
五、锁定与解锁
触屏解锁：在触屏锁定状态下，在触屏上按箭头方向滑动解锁。
触屏锁定：在工作状态下，按“Fire”键锁定。
系统锁定：在工作模式下快速连按3下“Fire”按键锁定。
系统解锁：在系统锁定状态下，快速连按3下“Fire”按键解锁。
10

六、手电筒
在锁屏状态下，在触屏上按箭头反方向（从下往上）滑动进入设置界面，点击手电筒图标进入手电筒功能。
七、手势开关
在锁屏状态下，在触屏上按箭头反方向（从下往上）滑动进入设置界面，点击手势图标进入手势开关设置界面，点击“^”、
“v”图标可设置手势的“开”、“关”；按“Fire”键确认并返回主界面。
八、防误点火功能
本机点火需要人体手指全面接触到点火键才能点火吸烟，最大限度防止用户因忘记关机或锁定系统而意外点火（如放包包
中误触发、放行李箱中误触发等）。
九、系统升级
1、设备进入升级模式“Download Mode”。
2、将设备通过USB线缆连接到电脑。
3、打开电脑端的升级软件，点击“Connect”按钮，按钮左边灰色方块变成绿色，表示设备与升级软件连接成功。
4、点击“File”按钮，选择待升级的固件（如：xxx.firmware）。
5、点击“Upgrade”按钮进行升级。
6、升级成功后，设备提示“Upgrade Ok”。
7、断电重启。
1、雾化器阻值过高提示：“HIGH ATOMIZER”
2、雾化器阻值过低提示：“LOW ATOMIZER”
3、雾化器移除提示：“ATOMIZER REMOVE”
4、无雾化器提示：“CHECK ATOMIZER”
5、雾化器短路提示：“ATOMIZER SHORT”
6、电池电压过高提示：“HIGH BATTERY”
7、电池电压过低提示：“LOW BATTERY”
8、吸烟超时提示：“WORK OVERTIME”
9、开机提示：“ASMODUS”
10、关机提示：“SYSTEM OFF”
提示说明：
☆ 十：电池装卸方式 ☆
1、电池负极顶住机器负极，载入电池。
2、电池负极往机器负极施压，然后取出电池。
11

机器底部
TYPE-C
充电口
电源按钮
输出功率
状态指示
LED
手势开关状态
锁
吸烟口数
电池门
装饰条
手势感应
电池电量
工作模式
输出电压
仪表盘
雾化器阻值
12

www.asmodus.com
将本包装所包含的物品放在儿童，非吸烟者和动物无法接触的地方
该产品含有高度成瘾物质的尼古丁。
使用前请仔细阅读使用说明书
Asmodus LUSTRO 200W TC是电子尼古丁传送系统（ENDS）。不适合年龄未到
法定吸烟年龄的人，不适合怀孕或哺乳期的妇女，心脏病患者，高血压和糖尿
病患者，或服用药物者用于抑郁症和哮喘。
法律声明：本产品未经授权销售，禁止使用。 取决于你的国家/地区，合法吸
烟年龄在其他地方21+和18+以上。儿童接触不到。
注意：本产品仅供成人使用。 储存在阴凉，干燥的地方。 仅用于电子烟。 不
要摄入或应用于皮肤。 如果尼古丁中毒发生，立即就医。
请将本品放在儿童不能接触的地方。

Technische Daten：
Funktionale Sicherheit:
13

Beschreibung der function:
14

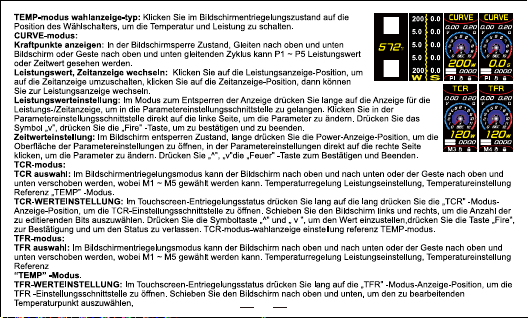

15

16
