Asoni CAM629 User manual

20M-IR H.264 CCD Network Camera
CAM629 / CAM629-PoE
User’s Manual
Date: 7/20/2012
Firmware Version: V1.0.32

1
Content
Content .......................................................................................................................................1
1. Preface.................................................................................................................................3
2. Product Specifications.......................................................................................................3
3. Product Installation ............................................................................................................6
A. Hardware Installation......................................................................................................6
Cable Connections................................................................................................................6
I/O Connections....................................................................................................................7
B. Monitor Setting................................................................................................................9
C. IP Assignment................................................................................................................10
4. Live Video..........................................................................................................................12
5. Configuration ....................................................................................................................16
A. System ...........................................................................................................................16
System Information.............................................................................................................16
User Management ..............................................................................................................20
System Upgrade.................................................................................................................22
System Logs.......................................................................................................................23
B. Video/Audio Setting ......................................................................................................24
Video Format ......................................................................................................................24
Image Setting......................................................................................................................27
Audio Setting ......................................................................................................................30
C. Network Setting.............................................................................................................31
Network Setting ..................................................................................................................31
Mail / FTP / Samba Setting.................................................................................................35
PPPoE Setting....................................................................................................................38
DDNS Setting .....................................................................................................................39
D. Event Handling..............................................................................................................41
Event Setting ......................................................................................................................41
I/O Setting...........................................................................................................................46
Schedule.............................................................................................................................48
6. Network Configuration.....................................................................................................50
A. Intranet Only..................................................................................................................50

2
Connects to PC Directly......................................................................................................50
Connects to an Exist LAN...................................................................................................51
B. Internet Only..................................................................................................................52
Connects to ADSL with Fixed Public IPAddress.................................................................52
Connects to ADSL with Floating Public IPAddress (PPPoE)..............................................53
C. Intranet + Internet..........................................................................................................55
Connects to Internet with Fixed Public IPAddress..............................................................55
Connects to Internet with Floating Public IPAddress..........................................................57

3
1. Preface
This camera is a professional CCD network camera which builds in web server. User
views real-time video via IE browser. It supports H.264, JPEG and MPEG4 (3GPP Only)
video compression which provides smooth and high quality video.
This camera combines the features of a network camera with an infrared illuminator to
provide good image quality, even in darkness.
The PoE model built-in support for Power over Ethernet allows the camera to receive both
data and power over a single Ethernet cable.
This camera is an easy-to-use IP camera which is designed for security application.
2. Product Specifications
H.264 / MJPEG / MPEG4 (3GPP Only) compression formats. Supports resolution up
to 30/25 fps @ Full D1 (720x480 / 720x576)
H.264 / MJPEG / MPEG4 (3GPP Only) triple streaming.
Self-Contained HTTP Web Server providing Internet capability for remote access
Day & Night functionality for 24-hours surveillance, auto activate IR illuminator in low
illumination
Infrared radiant distance up to 20 meters
Outdoor housing with IP66 waterproof standard
Built-in PoE splitter, support for Power over Ethernet (PoE model)
2-way audio
Online firmware upgrade
Hardware
CPU / RAM / ROM ARM 9, 32 bit RISC / 256MB / 16MB
Image Sensor 1/3” CCD, 520 TV lines
Lens 1/3”, Adjustable Vari-focal 3.7~12 mm, F1.6
IR Distance 20 Meters
IR LED Built-in 35 IR LEDs
Illumination IR On: 0 lux
Day / Night Mechanism IR Cut Filter
Video Out 1 Analog video out (BNC connector)

4
Audio In 1 Microphone in (3.5mm phone jack for connecting external passive-type of
microphone)
Audio Out 1 Line out (3.5mm phone jack for connecting external amplified speaker)
Digital I/O 1 Digital in / 1 Relay out
Power Supply Normal model: DC 12V, 1A
PoE model (built-in PoE Splitter):
Use PoE: PoE Injector (IEEE 802.3af)
Or, use Power Adaptor: DC 12V, 1A
Power Consumption Max. 9 Watt
Dimensions W83 x H79.5 x L180 mm
Network
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/IP, RTP/RTSP, 3GPP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP
System
Video Resolution NTSC: 720x480, 704x480, 352x240, 176x120
PAL: 720x576, 704x576, 352x288, 176x144
Compression Format H.264 / MJPEG / MPEG-4 (3GPP only)
Frame Rate Up to 30 FPS
Triple Streaming Yes (2 for live view, 1 for 3GPP)
3GPP Yes, Live view with 3G mobile phone
Video Bitrate Adjustment CBR, VBR
Video Adjustment Brightness, Contrast, Hue, Saturation, Sharpness, Auto/Manual electronic
shutter, BLC, Day/Night mode, 3D DNR, WDR, Video orientation
Image Snapshot Yes
Privacy Mask Yes, 3 different areas
Motion Detection Yes, 3 different areas
Event Trigger Motion Detection, Digital In
Triggered Action Send Email, Send to FTP, Relay Out
Pre/ Post Alarm Yes, configurable
Security Password protection
Firmware Upgrade HTTP mode, can be upgraded remotely
Connection Up to 10 clients simultaneously
Audio Yes, 2-way
Web browsing requirement
OS Windows 2000, XP, Vista, Windows 7
Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera
V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above

5
Suggested Hardware Intel Core 2 Duo 1.66GHz, RAM: 1GB
Graphic card: 128MB onboard RAM
* Specifications are subject to change without notice

6
3. Product Installation
A. Hardware Installation
Cable Connections
Power Jack:
To connect the DC 12V power adapter.
Digital I/O:
Digital In and Relay Out.
Video Output: The BNC connector allows connect to the analog display to
output analog video for locally monitoring.

Microphone Input (Red): The 3.5mm phone jack allows connect to a passive-type of
microphone, the audio will be heard at the remote site.

Audio Output (Green): The 3.5mm phone jack allows connect to an amplified
speaker, you can hear the voice of the remote site from the
speaker.
Network Connector:
The RJ-45 connector allows connect the Ethernet cable.
Zoom Adjustment:
This screw is for zooming in and zooming out.
Focus Adjustment:
This screw is for adjusting the focus.
1. Connect the cable of Digital I/O, Video output,Audio output and Microphone input if
you want to use these functionalities.
2. Connect Ethernet cable for network connection.
3. Connect power adapter to turn on the camera.






Power Jack (DC 12V
)
Digital I/O
Analog Video Output
(
Red) Microphone Input
(
Green) Audio Output
Network Connector


Zoom
Focus

7

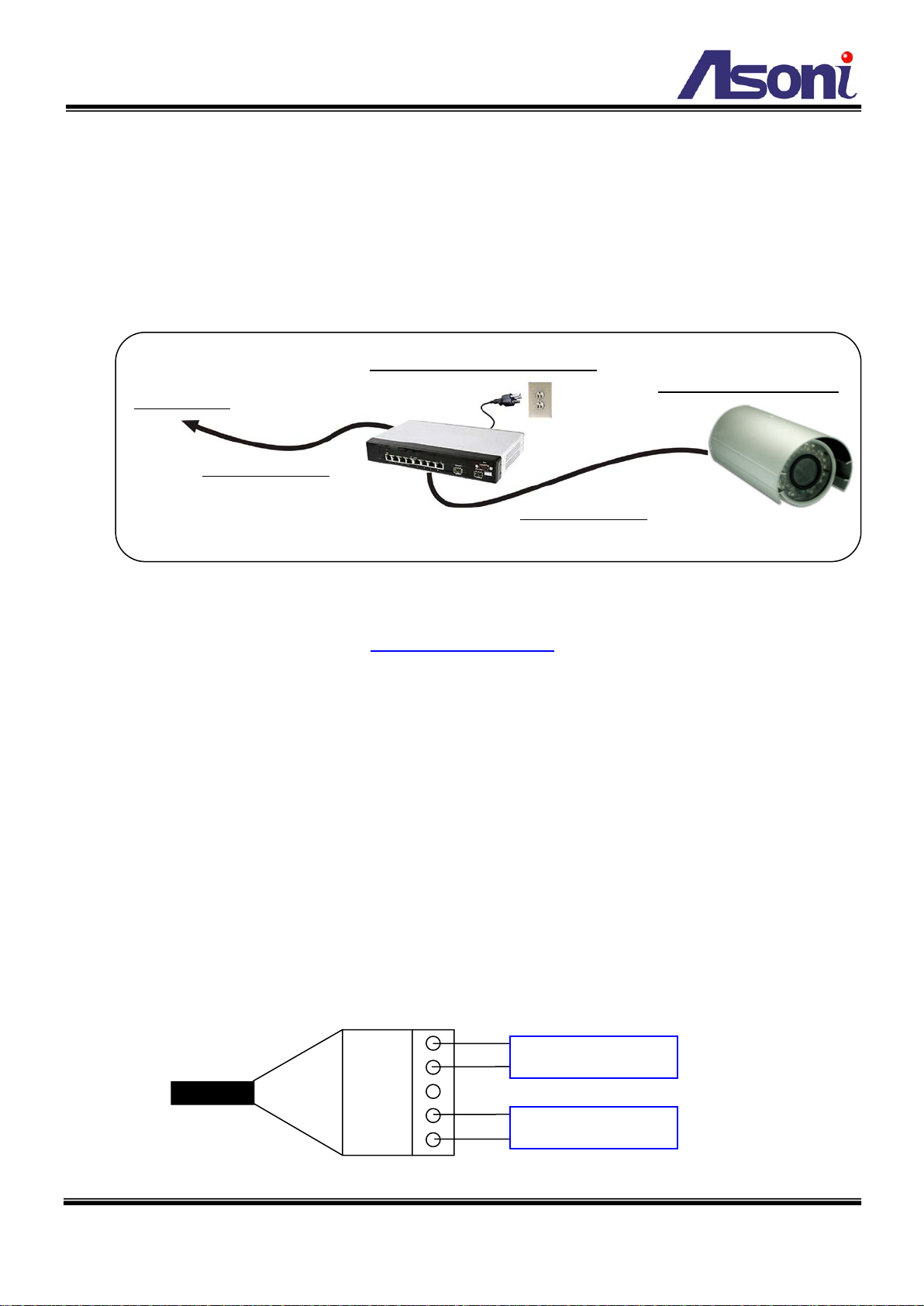

4. If the camera is PoE model, the power adapter is not necessary. The camera will get
the power from the PoE injector or PoE switch.
PoE (Power over Ethernet) is a technology that integrates power into a standard LAN
infrastructure. It enables power to be provided to the network device, such as an IP
phone or a network camera, using the same cable as that used for network connection.
It eliminates the need for power outlets at the camera locations. Please follow the
below figure for the connection.
5. Set up the network configurations according to the network environment. For further
explanation, please refer to Network Configuration chapter.
I/O Connections
I/O connector – used in application, for e.g., motion detection, event triggering, alarm
notifications. It provides the interface to:
1 set of Digital Input (Alarm + GND) – The digital inputs for connecting devices
that can toggle between an open and closed circuit, such as PIRs, door/window
contacts, glass break detectors, etc. When a signal is received the status changes
and the input becomes active.
1 set of Relay Output (N.O. + COM or N.C + COM) – The output to Relay switch of
the alarm device such as LEDs, Sirens, etc.
GND
ALARM
N.C.
COM
N.O.
Digital In
Relay Out
PoE Switch or PoE Injector
Ethernet Cable
Data only
Ethernet Cable
Mixed data and power
PoE Network Camera
To Network

8
Digital Input (Alarm Input)
GND (Ground): Initial status is LOW.
Alarm: Max. 50mA, 12VDC.
Relay Output
COM: Common pin.
N.O. (Normally Open): Max. 1A/ 24VDC or 0.5A / 125VAC.
N.C. (Normally Close): Max. 1A/ 24VDC or 0.5A/ 125VAC.
GND
ALARM
N.C.
COM
N.O.
Door/Window
Contacts
GND
ALARM
N.C.
COM
N.O.

9
B. Monitor Setting
1. Right-Click on the desktop. Select “Properties”
2. Change color quality to “Highest (32bit)”.
