Asoni CAM663F User manual

1080P Full-HD
H.264 CMOS Network Camera
CAM663F / CAM663F-W / CAM663F-PoE
User’s Manual
Date: 7/20/2012
Firmware Version: VB1.0.26

1
Content
Content .......................................................................................................................................1
1. Preface.................................................................................................................................3
2. Product Specifications.......................................................................................................3
3. Product Installation ............................................................................................................6
A. Hardware Installation......................................................................................................6
Cable Connections................................................................................................................6
I/O Connections....................................................................................................................7
B. Monitor Setting................................................................................................................9
C. IP Assignment.................................................................................錯誤! 尚未定義書籤。
4. Live Video..........................................................................................................................12
5. Configuration ....................................................................................................................17
A. System ...........................................................................................................................17
System Information.............................................................................................................17
User Management..............................................................................................................21
System Upgrade.................................................................................................................23
System Logs.......................................................................................................................24
B. Video/Audio Setting ......................................................................................................25
Video Format ......................................................................................................................25
Image Setting......................................................................................................................30
Audio Setting ......................................................................................................................33
C. Network Setting.............................................................................................................35
Network Setting ..................................................................................................................35
Wireless Setting..................................................................................................................39
Mail / FTP / Samba Setting.................................................................................................42
PPPoE / DDNS Setting.......................................................................................................46
D. Network (Advance) Setting...........................................................................................49
HTTPS Setting....................................................................................................................49
SNMP Setting .....................................................................................................................51
IP Filter Setting ...................................................................................................................53
QoS/ DSCP Setting.............................................................................................................55
IEEE 802.1x Setting............................................................................................................56

2
E. Event Handling..............................................................................................................57
Event Setting ......................................................................................................................57
I/O Setting...........................................................................................................................63
Schedule.............................................................................................................................65
SD Card..............................................................................................................................67
6. Network Configuration.....................................................................................................69
A. Intranet Only..................................................................................................................69
Connects to PC Directly......................................................................................................69
Connects to an Exist LAN...................................................................................................70
B. Internet Only..................................................................................................................71
Connects toADSL with Fixed Public IPAddress.................................................................71
Connects toADSL with Floating Public IPAddress (PPPoE)..............................................72
C. Intranet + Internet..........................................................................................................74
Connects to Internet with Fixed Public IPAddress..............................................................74
Connects to Internet with Floating Public IPAddress..........................................................76
7. Factory Default..................................................................................................................77
Compatible List of SD Card.....................................................................................................78

3
1. Preface
This camera is a 1080P Full-HD 2 Mega-Pixel CMOS network camera which builds in web
server. User views real-time video via IE browser. It supports H.264, MJPEG and MPEG4
video compression which provides smooth and high quality video. The event video can be
stored in the SD card, and can be playback remotely.
The PoE model built-in support for Power over Ethernet allows the camera to receive both
data and power over a single Ethernet cable.
This camera is an easy-to-use IP camera which is designed for security application.
2. Product Specifications
2 Mega-Pixel CMOS Sensor
H.264 / MJPEG / MPEG4 compression formats and triple streaming
Supports resolution up to 1920x1080, 1080P@30FPS real time
Self-Contained HTTP Web Server providing Internet capability for remote access
Digital Wide Dynamic Range
Shutter Speed adjustment
Sense Up adjustment
Day&Night Switch time control manually
Wireless network connection (Wireless model)
Built-in PoE splitter, support for Power over Ethernet (PoE model)
Supports SD card for local event recording
2-way audio
Online firmware upgrade
Recorded files compatible with Microsoft Windows Media Player
Hardware
CPU / RAM / ROM ARM 9, 32 bit RISC / 256MB / 16MB
Image Sensor 1/2.7” CMOS, 2 Mega-Pixel
Lens Fixed 4.2 mm, Mega-Pixel Lens, F1.6
Illumination 0.1 lux
Day / Night Built-in Mechanism IR Cut Filter (ICR)

4
Lens Changeable Yes, CS Mount
Support DC IRIS Yes
Shutter Time 1/5 ~ 1/10000 sec
Audio In Built-in microphone
3.5mm phone jack to connect an external passive-type of microphone
(Auto switch to the external microphone when it is connected)
Audio Out 1 Line out (3.5mm phone jack for connecting external amplified speaker)
Digital I/O 1 Digital in / 1 Relay out
Power Supply Normal & Wireless model: DC 12V, 1A, or AC 24V
PoE model (built-in PoE Splitter):
Use PoE: PoE Injector (IEEE 802.3af)
Or, use Power Adaptor: DC 12V, 1A
Power Consumption Max. 6 Watt
Dimensions W58 x H65 x D131.5 mm
Network
Ethernet 10/ 100 Base-T
Wireless (Wireless model) 802.11b/g/n, supports WPA-PSK, WPA2-PSK, WEP 64/ 128 bit
Network Protocol HTTP, HTTPS, TCP/IP, RTP/RTSP, UDP, 3GPP, SMTP, FTP, Samba, PPPoE,
DHCP, DDNS, NTP, UPnP, SNMP, QoS/DSCP, IP Filter, IEEE 802.1x
System
Video Resolution 1920x1080, 1280x720, 640x480, 320x240, 176x144
Compression Format H.264 / MJPEG / MPEG4
Frame Rate Up to 30FPS
Triple Streaming Yes (2 for live view, 1 for 3GPP)
3GPP Yes, Live view with 3G mobile phone
Video Bitrate Adjustment CBR, VBR
Video Adjustment Brightness, Contrast, Hue, Saturation, Sharpness, Gain control, Shutter time,
Sense Up, Digital WDR, Gamma, Exposure, Digital Noise Reduction,
Day/Night color mode, Video orientation
Image Snapshot Yes
Privacy Mask Yes, 3 different areas
Motion Detection Yes, 3 different areas
Event Trigger Motion Detection, Digital In
Triggered Action Send Email, Send to FTP, Save to SD Card, Save to Samba HDD, Relay Out
Pre/ Post Alarm Yes, configurable
Security Password protection, IP address filtering, HTTPS encrypted data
transmission, IEEE 802.1x port-based authentication, QoS/DSCP

5
Firmware Upgrade HTTP mode, can be upgraded remotely
Connection Up to 10 clients simultaneously
Audio Yes, 2-way
SD card management
Recording Trigger Motion Detection, Digital In, IP Check, Network Disconnect
Schedule Snapshot with schedule
Video Format Video (AVI), Snapshot (JPEG)
Video Playback Yes
Web browsing requirement
OS Windows 2000, XP, Vista, Windows 7
Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera
V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above
Suggested Hardware Intel Core 2 Duo 2.53GHz, RAM: 1GB
Graphic card: 128MB onboard RAM
* Specifications are subject to change without notice

6
3. Product Installation
A. Hardware Installation

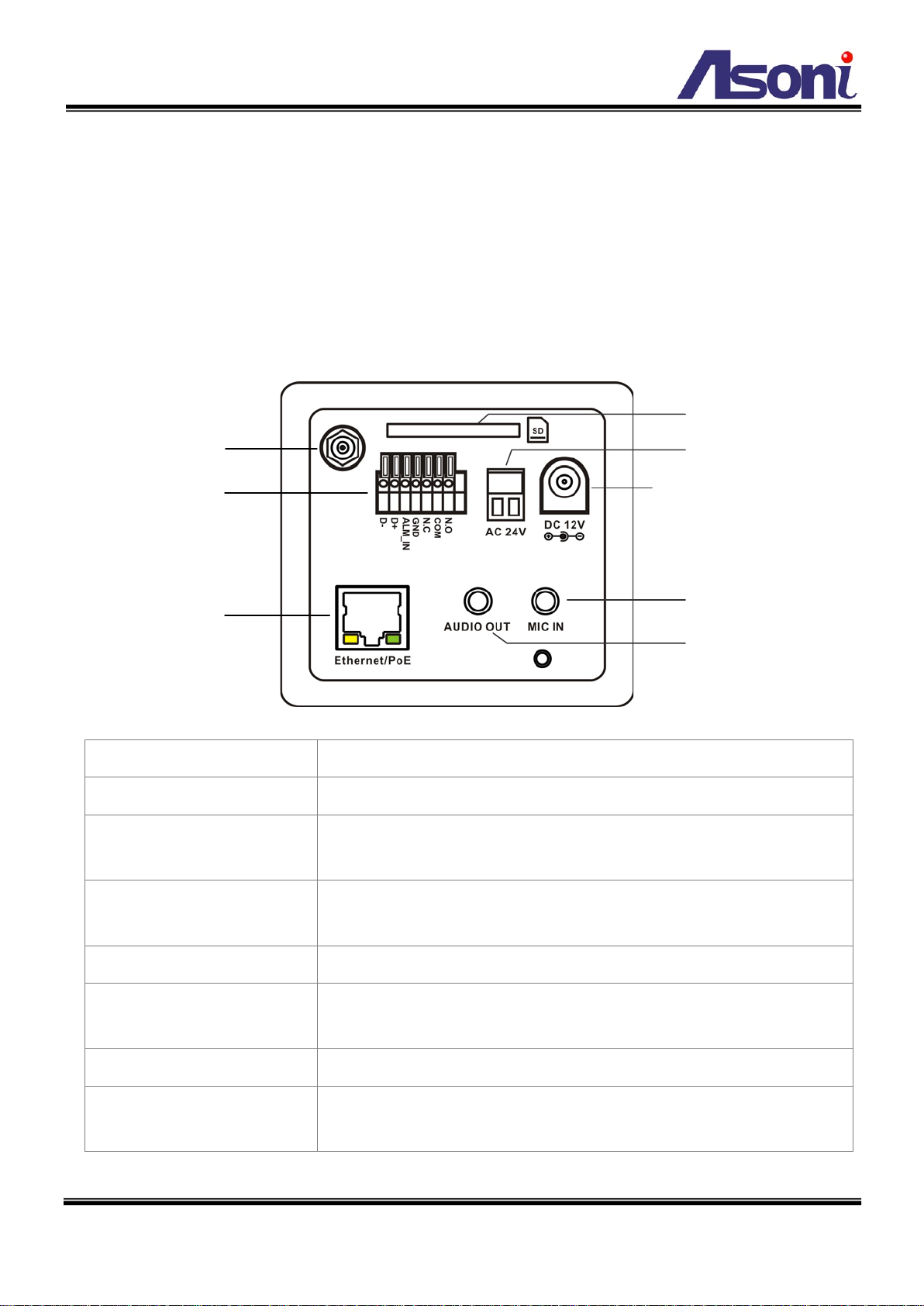

Cable Connections
Network Connector:
The RJ-45 connector allows connect the Ethernet cable.
Power Jack:
To connect the DC 12V power adapter.
Audio Output: The 3.5mm phone jack
allows connect to an amplified speaker,
you can hear the voice of the remote site from the speaker.

Mic Input: The 3.5mm phone jack allows connect to a passive-type of
microphone, the audio will be heard at the remote site.
Digital I/O:
Digital In and Relay Out.

SD Card Slot: Insert a SD card if you want to do the event recording (video
only) in the camera.
AC 24V Connector:
To connect the AC 24V power.
Antenna Connector: Available for Wireless model. To connect the included wireless
antenna.









7
1. Connect the cable of Digital I/O,Audio Output, and Mic Input if you want to use these
functionalities.
2. Connect the wireless antenna for the Wireless camera.
3. Connect Ethernet cable for network connection.
4. Connect power adapter to turn on the camera.
5. If the camera is PoE model, the power adapter is not necessary. The camera will get
the power from the PoE injector or PoE switch.
PoE (Power over Ethernet) is a technology that integrates power into a standard LAN
infrastructure. It enables power to be provided to the network device, such as an IP
phone or a network camera, using the same cable as that used for network connection.
It eliminates the need for power outlets at the camera locations. Please follow the
below figure for the connection.
6. Set up the network configurations according to the network environment. For further
explanation, please refer to Network Configuration chapter.
7. After finish the configuration for the very first time, if you want to use wireless network,
plug out the Ethernet cable.
I/O Connections
I/O terminal connector – used in application, for e.g., motion detection, event triggering,
alarm notifications. It provides the interface to:
1 set of Digital Input (Alarm In + GND) – The digital inputs for connecting devices
that can toggle between an open and closed circuit, such as PIRs, door/window
contacts, glass break detectors, etc. When a signal is received the status changes
and the input becomes active.
1 sets of Relay Output (N.O. + COM or N.C. + COM) –The output to Relay switch
of the alarm device such as LEDs, Sirens, etc.
PoE Switch or PoE Injector
Ethernet Cable
Data only
Ethernet Cable
Mixed data and power
PoE Network Camera
To Network

8
Digital Input (Alarm Input)
GND (Ground): Initial status is LOW.
Alarm: Max. 50mA, 12VDC.
Relay output
COM: Common pin.
N.O. (Normally Open): Max. 1A/ 24VDC or 0.5A / 125VAC.
N.C. (Normally Close): Max. 1A / 24VDC or 0.5A / 125VAC.
Alarm In Relay Out
Door/Window
Contacts

9
B. Monitor Setting
1. Right-Click on the desktop. Select “Properties”
2. Change color quality to “Highest (32bit)”.
