Aspen CO2ZB1 User manual

CO2ZB1ZigbeeCO2Sensor 
InstallationInstructionsandUserManual

1. Specifications
Frequency:   2.4GHz(IEEE802.15.4)
OperatingTemperature: 14°‐122°F(‐10°‐50°C)
OperatingHumidity: 10%‐90%non‐condensing
CO2SensingRange:  400ppm–5000ppm
CO2SensingAccuracy: ±75ppm+5%MV
Battery:   4xAAAlkalineBattery
BatteryLife:  2Years(withdefaultsetting)
Compatibility:   Zigbee,
WWAH(WorkswithAllHubs)


2. PackageContents
1xSensor
2xScrews&WallAnchor
4xAAAlkalineBattery(uninstalled)
2xBackMounting2‐SidedAdhesiveTape
1xManual



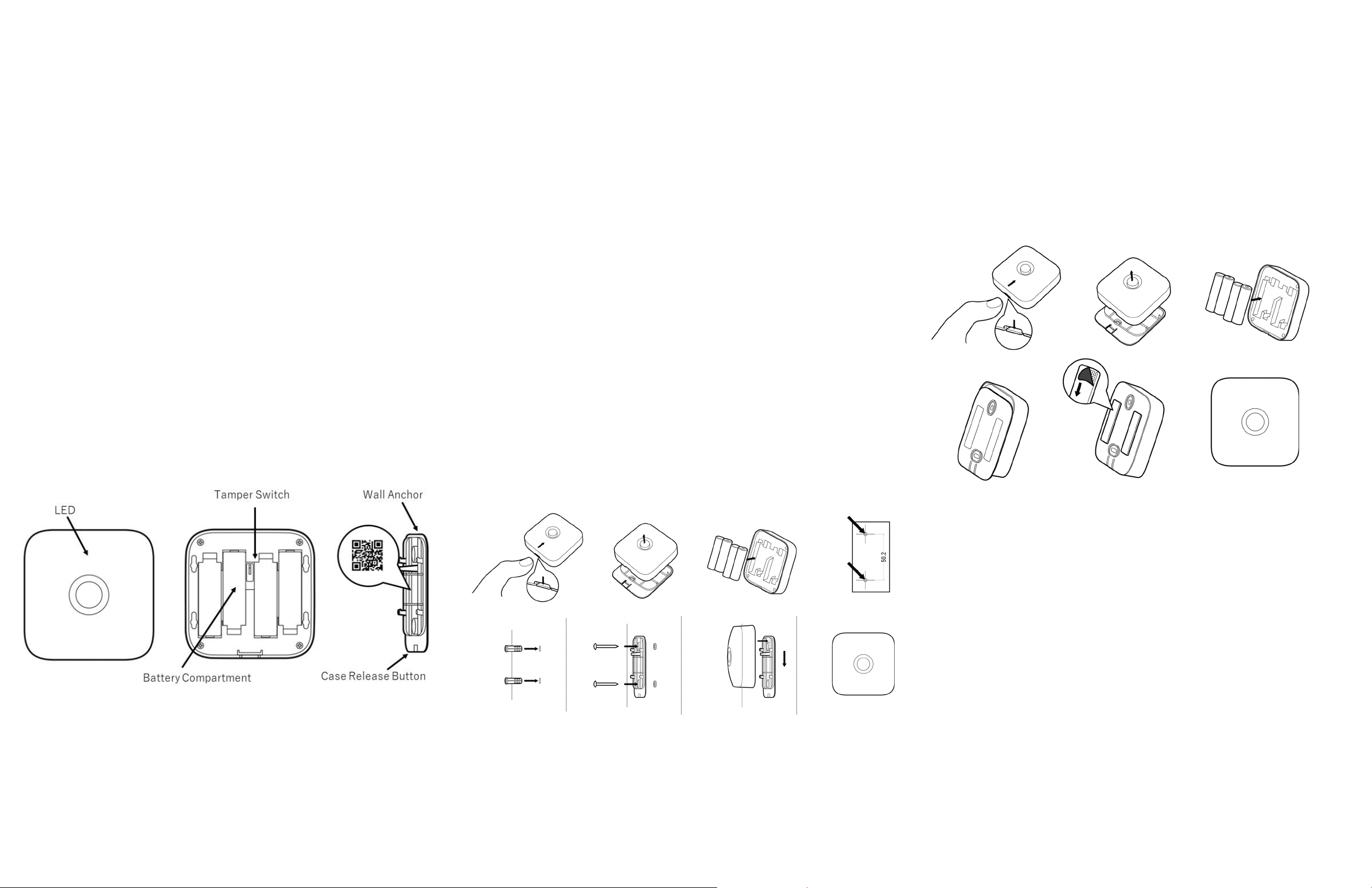

3. ComponentIdentification



4. ZigbeeEnrollment:
ThisCO2Sensorneedstobepairedbeforeinstallation.
1. Insert4batteriestothebatterycompartment
2. TheLEDwillblinkthreetimesinambercolorevery2‐3secondswhile
scanningthenetwork.
3. Ifnetworksuccessfullyjoined,theLEDwillbelitfor1secondinambercolor
followedbyashortblinkingreencolor.
4. Ifnetworkisnotfoundafter1minute,thesensorwillgointosleepmode,
theLEDwillblinkinambercolorevery1minute.Youneedtoresetthe
sensortotriggerapairingprocess,andthensensorwillrepeatstepsfrom2
to4.

Toresetthesensor:
1. Removethebatteryfor10seconds
2. Pressandholddownthetamperswitchwhilere‐insertthebattery
3. Releasethetemperswitchwithin3secondsafterinsertthebattery

Note:MACaddressoftheSensorcanbefoundontheQRcodebyscanningit
withyourmobilephone.


5. Mounting 
MountingbyScrew
Pressthecasereleasebuttontoseparatethefrontandwallanchorcase.
Thebackcasegivesaccesstoboththeflushmountandcornermount
screwknockouts.Drillthroughtheappropriateknockoutsandusethe
includedscrewstomountinthedesiredmountinglocation.
Itisrecommendedtoensurethereisatightsealaroundtheknockoutsto
preventbugsfromenteringthesensorandcausingfalsealarms.
Replacethefrontsensorcovertosnapshutandscrewinthesensorcase
screwsonthetopandbottomofthewallanchorcase.








MountingbyAdhesiveTap
Pressthecasereleasebuttontoseparatethefrontsensorcaseandwall
anchor.
Insertthebatteryintothebatterycompartment.
Putbackthewallanchorcasewithfrontsensorcase.
Placeonesideadhesivetapeoverthewallanchorcase,thesidethatwill
facethewall.
Peelofftheothersideofadhesivetape.
Placethesensoronthewall.





6. Operation 

TheCO2sensorrequires45secondstowarmupforsignalstabilizingwhen
performingstartuporreset.Duringthewarmupperiod,theLEDwillblinkslowly
inamber.Duringnormaloperation,theLEDwillblinkevery5minutesingreen
colortoindicatethesensorisworkingproperly.However,therearenoLED
indicationswhenmotionisdetected.Thisisdonetomaximizebatterylife.
Furthermore,whenmotionisdetectedandasignalistransmittedtothepanel,
thesensorwillnottransmitagainforaperiodofthreeminutes.












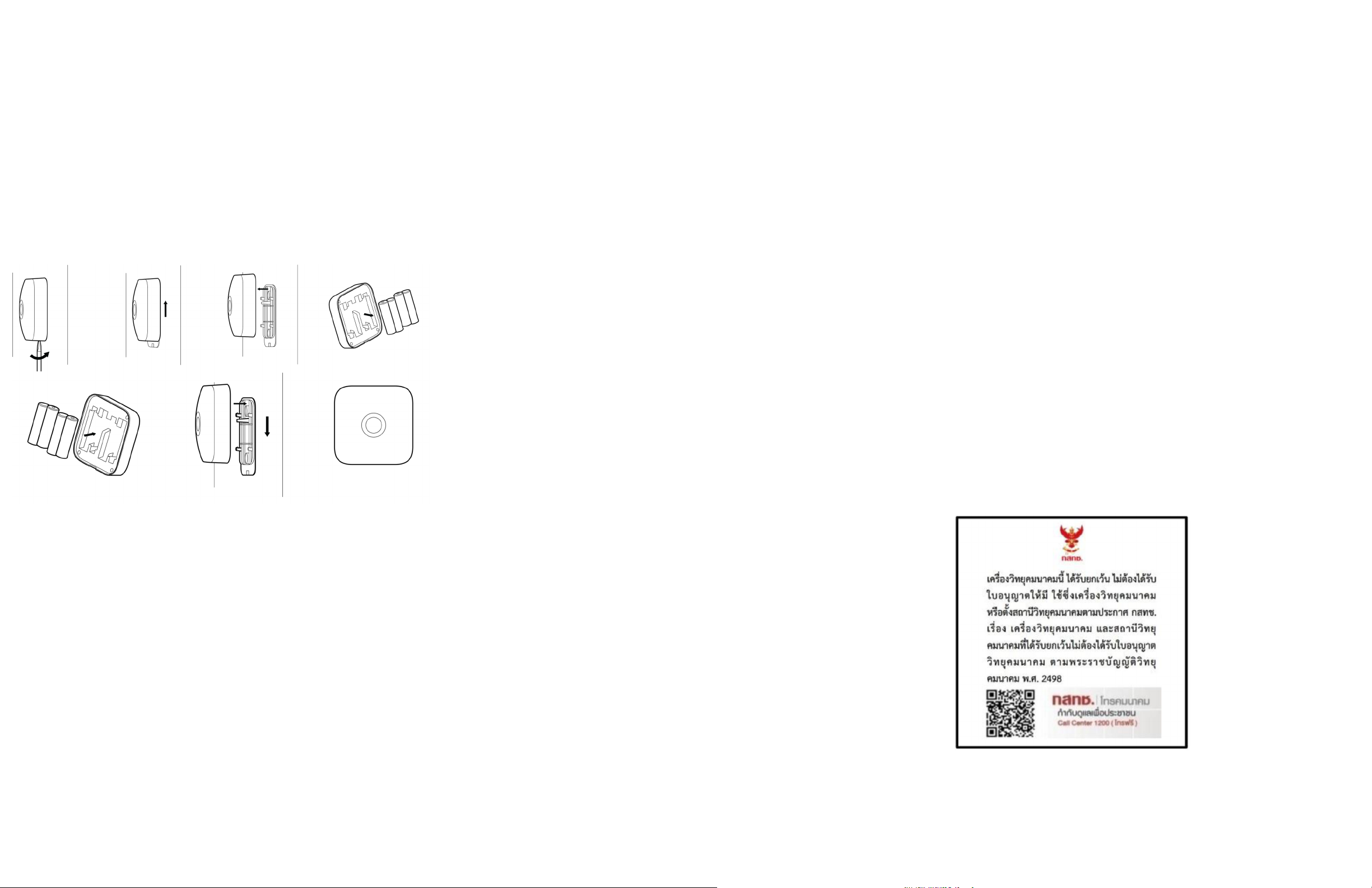

7. Maintenance‐ReplacingtheBattery
Whenthebatteryislow,asignalwillbesenttothecontrolpanel.TheLEDwill
blinkevery2minutesinred.
Toinsertorreplacethebattery:
Removethesensorfromthewallanchorbyusingabottom‐to‐toplifting
motion.
RemovetheAAAlkalineBatteryandinstallnewAAbattery
Alwaysmatchtheplus(+)signonthebatterywiththeflatsideofthe
compartmentandtheminus(‐)signonthebatterywiththespringside.
Reinstallsensorbacktothewallanchorcase.





WARNING:Failuretofollowthesewarningsandinstructionscanleadtoheat
generation,rupture,leakage,explosion,fire,orotherinjury,ordamage.Donot
insertthebatteryintothecompartmentinthewrongdirection.Alwaysreplace
thebatterywiththesameorequivalenttype(seeSpecificationsonpage1).
Neverrechargeordisassemblethebattery.Neverplacethebatteryinfireor
water.Alwayskeepbatteriesawayfromsmallchildren.Ifbatteriesare
swallowed,promptlyseeadoctor.

Alwaysdisposeand/orrecycleusedbatteriesinaccordancewiththehazardous
wasterecoveryandrecyclingregulationsforyourlocation.Yourcity,state,or
countrymayalsorequireyoutocomplywithadditionalhandling,recycling,and
disposalrequirements.












8. EnvironmentalandOtherUsefulInformation

PleaseinstallCO2Sensorwithgoodairflowformoreaccuratesensingresult.
CO2Sensorisalsosensitivetoheatandvibration,pleaseavoidplacingthe
sensorclosetoexternalheatsourceordirectlyfromsunlight,aswellasfrom
vibratingdevicesuchasdevicewithmotor.
Avoidcontactwithwaterorotherfluids(watermaydamagethesensor,
thereforeminimizeexposurewhilewashing,orusingwaterforanypurpose.
CO2Sensorshouldnotbeusedinexcessivedustyordirtyareas.Thismay
damagetheCO2sensingability.
Donotthrow,knockorshakethedevice.Pleasehandledevicedelicatelyto
avoiddamagetosensor.


FCCComplianceStatement
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe
followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,
and(2)thisdevicemustacceptanyinterferencereceived,includinginterference
thatmaycauseundesiredoperation.
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforClassB
digitaldevices,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidential
installation.Thisequipmentgeneratesusesandcanradiateradiofrequency
energyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,
maycauseharmfulinterferencetoradiocommunications.However,thereisno
guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis
equipmentdoescauseharmfulinterferencetoradioortelevisionreception,
whichcanbedeterminedbyturningtheequipmentoffandon,theuseris
encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing
measures:
•Re‐orientorrelocatethereceivingantenna
•Increasetheseparationbetweentheequipmentandreceiver
•Connecttheequipmenttoanoutletonadifferentcircuitfromthereceiver
•Consultthedealeroranexperiencedradio/TVcontractorforhelp.

Theuseriscautionedthatchangesandmodificationsmadetotheequipment
withouttheapprovalof
manufacturercouldvoidtheuser'sauthoritytooperatethisequipment.

FCCRadiationExposureStatement
ThisequipmentcomplieswithFCCRFradiationexposurelimitssentforthforan
uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperated
withaminimumdistanceof20centimetersbetweentheradiatorandyourbody.
Theantennasusedforthistransmittermustbeinstalledtoprovideaseparation
distanceofatleast20cmfromallpersonsandmustnotbeco‐locatedor
operationinconjunctionwithanyotherantennaortransmitter.
IndustryCanadarequirements
ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).
Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynot
causeinterferenceand(2)thisdevicemustacceptanyinterference,including
interferencethatmaycauseundesiredoperationofthedevice
LepresentappareilestconformeauxCNRd'IndustrieCanadaapplicablesaux
appareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeux
conditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)
l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,
mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement”

CanadaRFexposurecompliance
TocomplywithRSS‐102requirements,aseparationdistanceof20cmmustbe
keptbetweenthedeviceandtheuseratalltimes.
PourseconformerauxexigencesRSS‐102,unedistancedeséparationde20cm
doitêtremaintenueentrel'appareiletl'utilisateuràtoutmoment.



.




UniversalElectronicsInc. 
PN:47007‐0014190
REV&REVDate:A0210/21/2022

