Aspen 70-0200 User manual

GLD Products Aspen Table Tennis
Item 70-0200
Item 70-0200
September 2013 UPC Code 7-19265-51830-3
ASPEN OUTDOOR
TABLE TENNIS
Replacement Parts
Order direct at www.gldproducts.com
or call our Customer Service department at
[phone]
8 am to 4:30 pm Central Standard Time

GLD Products Aspen Table Tennis
Item 70-0200
Staple your receipt here.
Important: A copy of your receipt will be needed to activate your warranty (see page 18)

GLD Products Aspen Table Tennis
Item 70-0200
3 1-800-225-7593
www.gldproducts.com
Congratulations and THANK YOU for purchasing the
Aspen Outdoor Table Tennis. You have chosen a
product that should provide years of entertainment.
To assist you with customer service and warranty
claims, staple your receipt to the inside cover, then
keep this manual in a safe place for future reference.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
This manual may have been updated. For the latest manual visit the GLD products website.
Place your package near the location where it will be used. Carefully unpack
all components and verify you have all the correct pieces.
If you notice missing or defective parts, please call us at:
1-800-225-7593 ext 113.
Please read and understand all instructions before beginning assembly.
This assembly will require 2 adults.
This product is not for use by children without adult supervision.

GLD Products Aspen Table Tennis
Parts Identifier Item 70-0200
1-800-225-7593 4
www.gldproducts.com
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
1
Qty.
2
Table Top
2
Qty.
4
Leg
Order No. 9-30
3
Qty.
4
Leg Link
Order No. 9-31
4
Qty.
4
Leg Stabilizer
Order No. 9-32
5
Qty.
2
Caster Support
Order No. 9-33
6
Qty.
1Center Bracket
Order No. 9-34
7
Qty.
4
Wheel Support
Order No. 9-35
8
Qty.
8
Wheel
Order No. 9-36
9
Qty.
2
Side Support
Order No. 9-37
10
Qty.
1
Paddle Holder
Order No. 9-38
11
Qty.
2
Net Holder
Order No. 9-39
12
Qty.
2
Net Pin
Order No. 9-40
13
Qty.
1Net
Order No. 9-41
14
Qty.
4Hex Head Bolt
M12 x 140 mm
Order No. 9-14
15
Qty.
4Phillips Head Screw
M8 x 60 mm
Order No. 9-15
16
Qty.
4Hex Head Bolt
M8 x 85 mm
Order No. 9-16
17
Qty.
4Hex Head Bolt
M8 x 60 mm
Order No. 9-17
18
Qty.
4Hex Head Bolt
M6 x 50 mm
Order No. 9-18

GLD Products Aspen Table Tennis
Item 70-0200
5 1-800-225-7593
www.gldproducts.com
19
Qty.
8
Hex Head Bolt
M6 x 40 mm
Order No. 9-1
20
Qty.
4Washer Head Nut M12
Order No. 9-19
21
Qty.
12
Locking Nut M8
Order No. 9-12
22
Qty.
16 Nut M6
Order No. 9-6
23
Qty.
6
Nut M5
Order No. 9-20
24
Qty.
4Washer 12 mm I.D.
Order No. 9-21
25
Qty.
12
Washer 8 mm I.D.
Order No. 9-11
26
Qty.
16
Spacer 6 mm I.D.
Order No. 9-22
27
Qty.
4Spacer 8 mm I.D.
Order No. 9-23
28
Qty.
6
Washer 5 mm I.D.
Order No. 9-24
29
Qty.
36
Washer 6 mm I.D.
Order No. 9-3
30
Qty.
2
Phillips Round Head Screw
M5 x 15 mm
Order No. 9-25
31
Qty.
4
Phillips Round Head Screw
M5 x 25 mm
Order No. 9-26
32
Qty.
4
Hex Head Bolt
M6 x 65 mm
Order No. 9-28
33
Qty.
2
Spacer
Order No. 9-27

GLD Products Aspen Table Tennis
Item 70-0200
6 1-800-225-7593
www.gldproducts.com
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST
Please see page 18.
GLD Products
Available 8 am to 4:30 pm Central Standard Time
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
For all claims, please have your receipt and item number when you call. The
product item number can be found on the front cover.
If you are instructed to return the product for service, you are
responsible for shipping the unit at your expense.
PRODUCT REGISTRATION
Important: The product registration form on page 19 and a copy of your
receipt must be completed and returned within 10 days of purchase to
validate your warranty.
Online registration is also available. Go to
www.gldproducts.com/index.php/registration or click on this link. Follow the
online instructions.
Preparing for Assembly
• Be sure to unpack all of the parts included in this package. Some
parts may be in obscure locations of the packaging. Check inside
any tubes or sleeves. Save all packing material until the product is
fully assembled and functional.
• Compare the parts in your package with the Parts Identifier
description on pages 4 and 5.
• After unpacking large products, some disassembly may be required
prior to beginning the assembly.

GLD Products Aspen Table Tennis
Item 70-0200
7 1-800-225-7593
www.gldproducts.com
Tools Required
• Hex Open End Wrenches:
8 mm, 10 mm, 13 mm, and 18 mm (not included)
• Phillips screwdriver (not included)
• Electric screwdriver may be helpful. CAUTION: You must set at
LOW TORQUE and use extreme caution because you could
overtighten the hardware, strip the screws, or damage the table.
• Rubber mallet or hammer (not included)
Precautions to Prevent Personal Injury and Damage
• Indoor only tables will not withstand outdoor conditions. If using the
table outdoors, move it indoors as soon as possible.
• Be alert for surface changes when moving the table. Cracks and
changes in the slope may cause the table to tip over.
• The table is not designed for supporting heavy loads. Do not place
heavy items on the table. Collapse of the support structure is
possible. Do not sit or stand on the top of the table.
• When using the table all the support legs and wheels must be in
contact with the floor. Failure to properly support the table may
damage the frame and table top.
• Opening or closing the table presents a risk for pinching. Keep all
children away and alert adults when moving the table top up or
down.
• Liquids left on the playing surface for extended peroids will damage
the table top. Wipe up any spills immediately.
For Outdoor Tables
• Strong winds may move or tip the table over. Take precautions as
needed to prevent damage or injury.
• Do not leave balls or paddles outside. They will likely be damaged
by outdoor conditions.

GLD Products Aspen Table Tennis
Item 70-0200
8 1-800-225-7593
www.gldproducts.com
Assembly Tips
Make sure you understand the following before you begin to assemble your table tennis.
1. READ THIS MANUAL all the way through before beginning assembly.
2. When installing parts that have more than one bolt, start ALL bolts in that part by hand
before tightening anything.
3. Some drawings or images in this manual may not look exactly like your product.
4. You will need a second adult to assist with this assembly.
Note: Save all packing materials until the parts have been inspected and the table is
assembled.
Unpack the Pieces
• Lay the box on a flat surface (floor). You may want this near your
area of assembly.
• Unpack the boxes and part bags. Inspect and count the parts. The
Parts Identifier page can be used to record your results.
• If any parts are damaged or missing contact GLD customer service.
• Missing fasteners may be purchased at a hardware store using the
descriptions on the Parts Identifier page(s).
• Paddles and balls not included.

GLD Products Aspen Table Tennis
Item 70-0200
9 1-800-225-7593
www.gldproducts.com

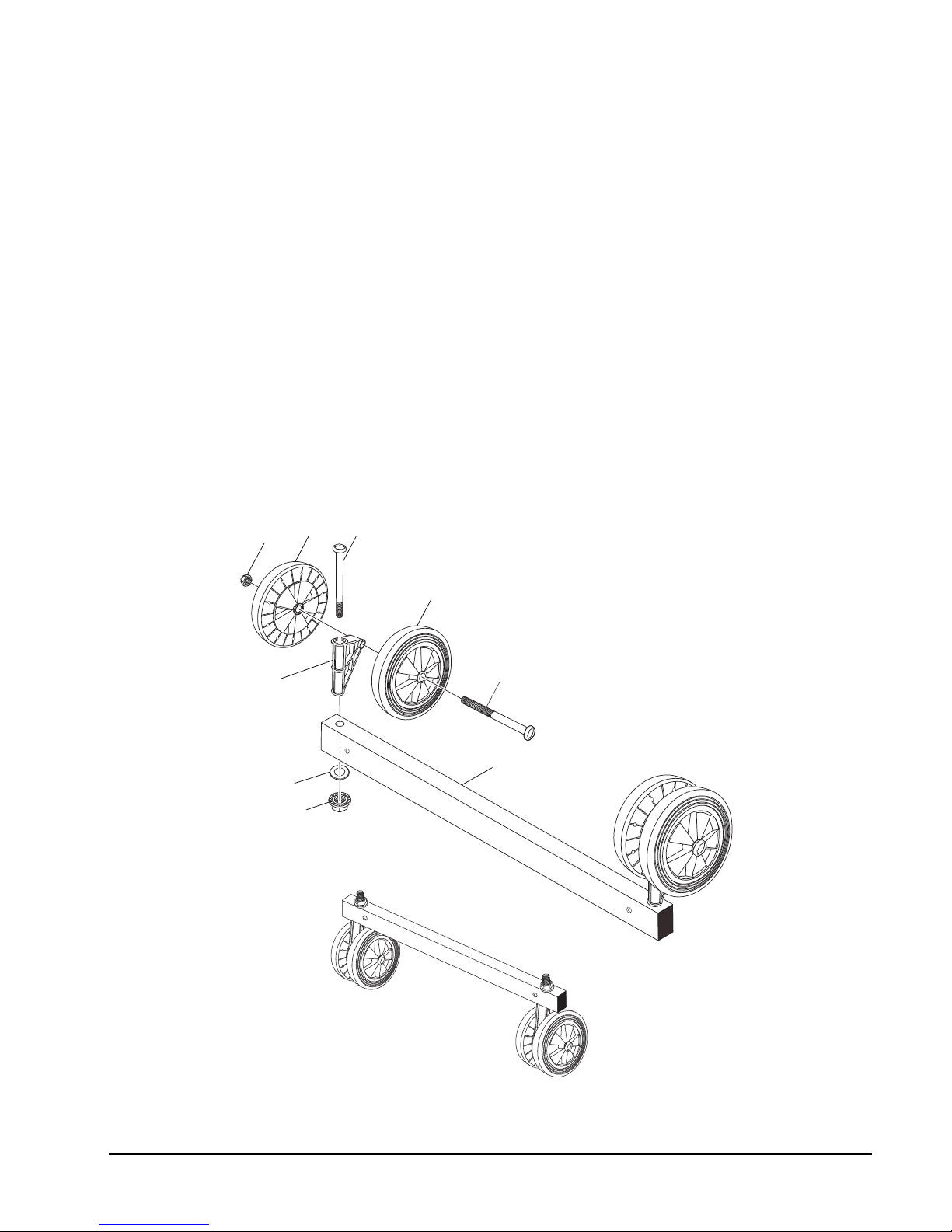

STEP 1 - ASSEMBLE CASTER SUPPORTS
1. Locate the two caster supports (#5).
2. Position a wheel support (#7) and insert a bolt (#14) thru the support and then thru the
caster support.
3. Place a washer (#24) onto the bolt and secure the assembly with a washer head nut
(#20). The caster support must rotate smoothly.
4. Locate two wheels (#8) and insert a bolt (#16) thru a wheel, the caster support and the
second wheel.
5. Use a locking nut (#21) to secure the wheels. Tighten the locking nut and be certain the
wheels roll smoothly.
6. Repeat numbers 2 thru 5 on the second wheel assembly.
7. Locate the parts for the second wheel and support assembly. Follow numbers 1 thru 6.
8
21 14
5
8
16
20
24
7

GLD Products Aspen Table Tennis
Item 70-0200
10 1-800-225-7593
www.gldproducts.com
STEP 2 - ASSEMBLE SIDE SUPPORTS AND CENTER BRACKET
1. Locate the two side supports (#9), the center bracket (#6) and the paddle holder (#10).
2. Position one of the side supports (#9) so the smooth side will face away from the wheel
assembly.
3. Insert two screws (#15) thru the side support and into the caster support.
4. Hold the screws in position and place one end of the center bracket (#6) over the screws.
5. Use a washer (#25) and a locking nut (#21) to secure the three pieces.
6. Repeat numbers 2 thru 5 on the other end of the center bracket.
7. On one end of the assembly, position the paddle holder (#10). Insert two screws (#30)
thru a washer (#28) and the holder. Hold the screws in place thru the holes in the side
support (see detail A).
8. Tighten two nuts (#23) onto the screws.
10
23
28 30
28 30
A
625
21
15
9
25
21

GLD Products Aspen Table Tennis
Item 70-0200
11 1-800-225-7593
www.gldproducts.com
STEP 3 - ATTACH LEGS TO TABLE TOP
The two table tops (#1) are the same. Lay the first one down on a flat surface with the
underside facing up.
1. Locate two of the leg stabilizers (#4).
2. From the outside of the table, insert a bolt (#19) with a washer (#29) thru the support rail
(see detail B).
3. Place a spacer (#26) onto the bolt.
4. Position the leg stabilizer (#4) over the bolt.
5. Use a washer (#29) and a nut (#22) to hold the stabilizer. When the nut has been
tightened, the stabilizer should be able to rotate on the bolt.
6. Repeat numbers 2 thru 5 on a second leg stabilizer (#4).
7. Insert a bolt (#32) with a washer (#29) thru the holes at the end of one of the legs (#2)
(see detail C). The legs (#2) have a rubber bumper pre-installed on the leg. The bumper
must face to the center of the table. This will keep the legs in position so the table opens
smoothly.
8. Place a spacer (#26) over the bolt. Insert the bolt thru the inside support from the outside
edge inward.
9. Use a washer (#29) and a nut (#22) to secure the leg. The leg should be able to rotate on
the bolt.
B
4
22
26
29
19
29
C
29
29
26 32
2
22
Bumper must
face to center.

GLD Products Aspen Table Tennis
Item 70-0200
12 1-800-225-7593
www.gldproducts.com

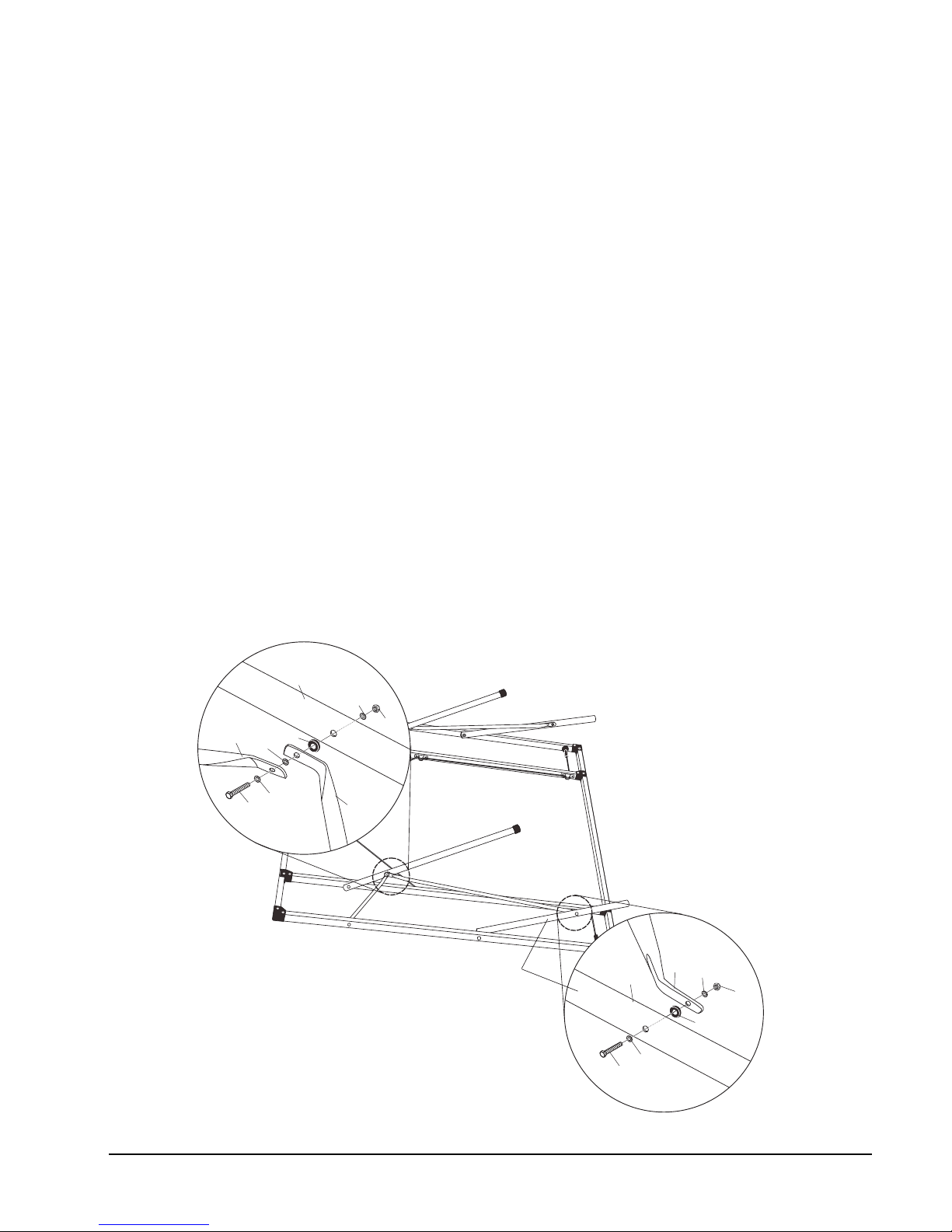

10.Attach one end of the leg link (#3) to one of the inside legs (#2) (see detail D).
11.Use a bolt (#18) and washer (#29) and insert it thru the leg stabilizer (#4).
12.Add a washer (#29) and push the bolt thru the hole in the end of the leg link (#3).
13.Place a spacer on the bolt so it is between the leg link and the leg.
14.Secure with a washer (#29) and a nut (#22).
CAUTION: The preassembled legs must be installed with the shorter distance, “Y”,
between the center hole and the free end of the leg. The distance “X”, between
the center hole and the other end of the leg, is longer. If the leg is not installed
correctly, remove the leg from the table top. Move the plastic end piece to the
other end, and re-attach the correct leg end to the table top.
15.To attach the preassembled leg to the leg link, use a bolt (#19) and washer (#29)
inserted thru the leg. Place a spacer (#26) over the bolt (see detail E).
16.Place the end of the leg link over the bolt. Secure it with a washer (#29) and a nut (#22).
17.Repeat numbers 10 thru 16 for the other side of the table.
NOTE: The legs should move smoothly. Adjust the tightness of the nuts and bolts as
needed.
One table top is now completely assembled. Position the second table top and follow
numbers 1 thru 17.
D
2
426
3
22
29
29
29
18
E
129
29
26
22
3
19
This leg is
preassembled
to table top.
X
Y

GLD Products Aspen Table Tennis
Item 70-0200
13 1-800-225-7593
www.gldproducts.com
STEP 4 - PLACE TABLE TOPS INTO THE FRAME

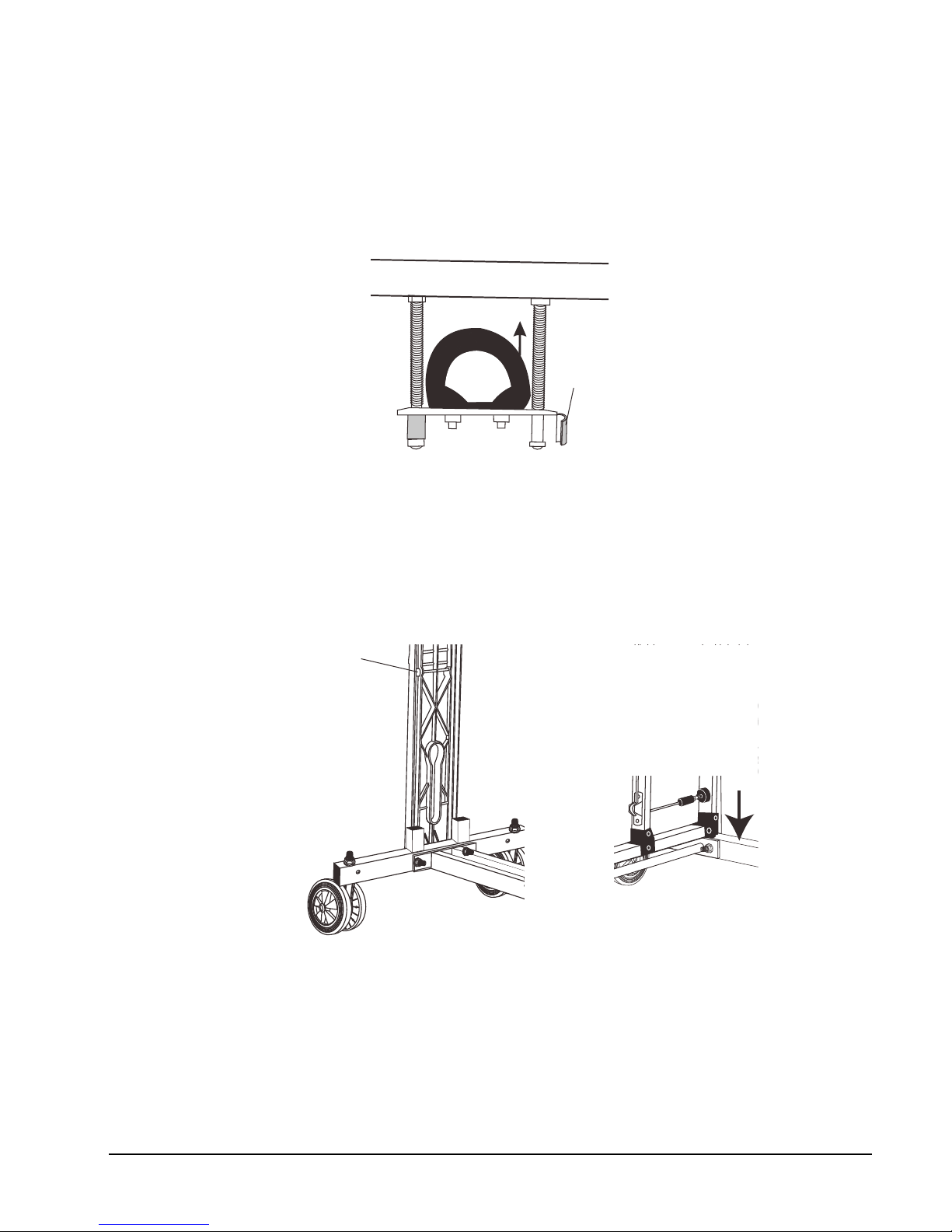

Each table top has a spring loaded handle. Pull on the handle and place two spacers (#33)
onto the rods below the plate. The spacers will prevent the handles from returning to the
start position.
1. Use two adults to lift one table top above the side supports.
2. The rubber guides at the corners of the table top are inserted into the half round
openings in the track on the side supports. Once the guides are in the tracks, the table
top will move down to the bottom.
CAUTION: One adult must hold the table top upright. Failure to hold the table up will allow
it to fall possibly causing injury.
3. Pull up on the handle and remove the two spacers (#33). When the handle is released a
post will move into a slot in the side support on both sides.
4. An adult should continue to steady the table top. Attach the preassembled legs to the
caster supports.
33
Start guide here

GLD Products Aspen Table Tennis
Item 70-0200
14 1-800-225-7593
www.gldproducts.com
5. Use a bolt (#17) and washer (#25) and insert it thru the caster support. Place a spacer
(#27) on the bolt (see detail F).
6. Place the leg over the bolt and secure with a washer (#25) and nut (#21).
7. Repeat numbers 4 thru 6 on the second side.
CAUTION: Do not lower the table top at this time. The assembly is not balanced and may
tip over.
8. Attach the second table top by following numbers 1 thru 7.
F
521
27
17
25
25

GLD Products Aspen Table Tennis
Item 70-0200
15 1-800-225-7593
www.gldproducts.com
STEP 5 - OPENING AND CLOSING THE TABLE
CAUTION: Use two adults to open or close the table.
To Open the Table
1. Hold the top edge and lift and hold the table lock handle.
2. Bring the top edge towards you. The two lock pins will release. The legs will open as the
table swings down.
3. When the legs are fully open, release the handle. Lift up on both sides of the table near
the net to snap the table locks into position.
4. Repeat numbers 1 thru 3 on the second half of the table.
Pins release
Pins snap into
lock position.

GLD Products Aspen Table Tennis
Item 70-0200
16 1-800-225-7593
www.gldproducts.com
To Close the Table
1. Remove the net.
2. Pull back and hold the table lock handle. The pins will release.
3. Lift up on the end of the table.
4. As the table goes up, the legs will fold in. The inside edge of the table will move down.
5. When the table is fully up, release the handle. The table locks will snap into position.
CAUTION: Be certain the table is locked when in the raised position. If not properly locked,
the table can swing down causing damage or personal injury.
6. Repeat numbers 2 thru 5 on the second half of the table.
Pins release
Pins snap into
lock position.

GLD Products Aspen Table Tennis
Item 70-0200
17 1-800-225-7593
www.gldproducts.com

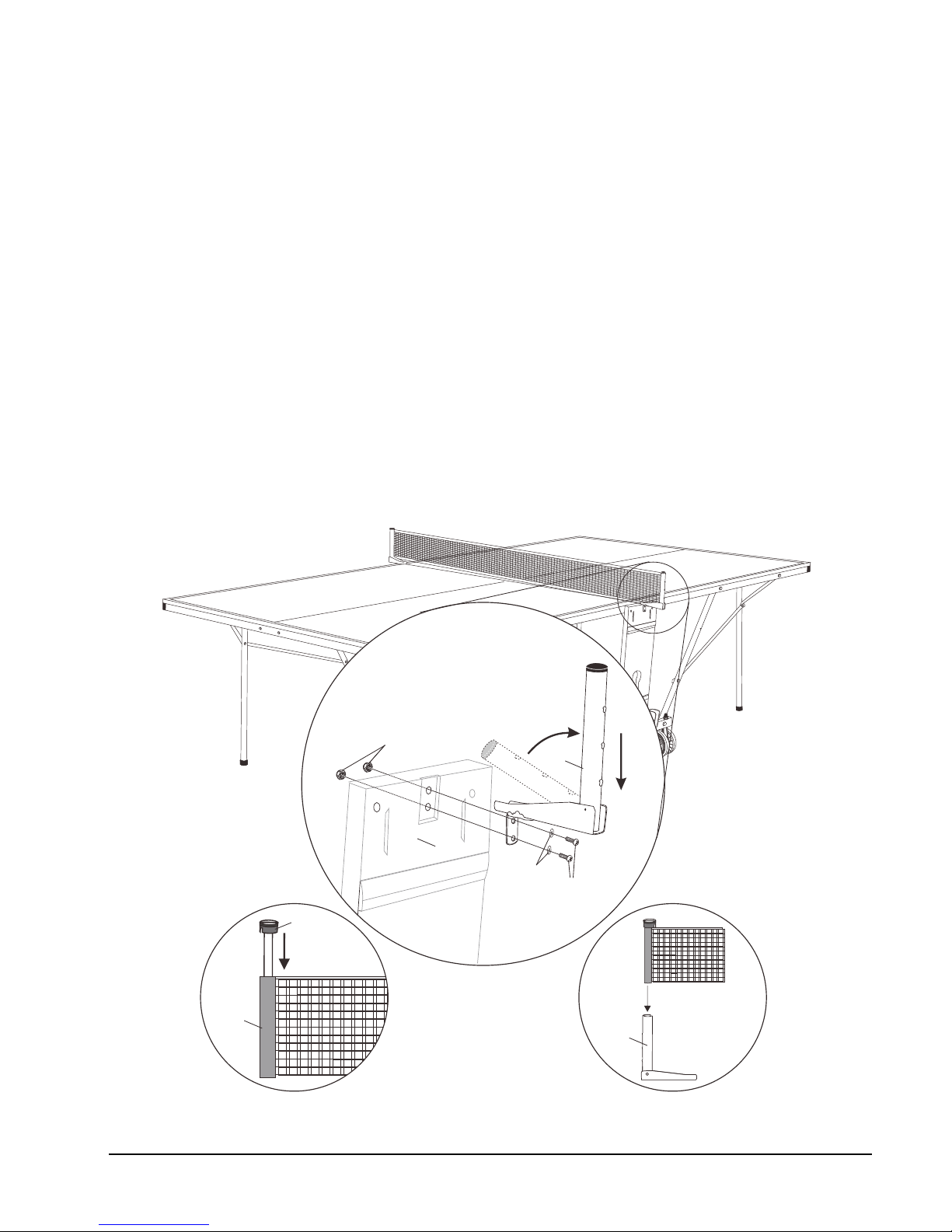

STEP 6 - ATTACH THE NET
Use two adults when opening or closing the table. When both sides are open, attach the net.
Open the table by pulling outward on the top edge. The legs should open into position as the
top moves down.
1. Position one of the net holders (#11) at the top center of the side support (#9)
(see detail G).
2. Use two screws (#31) with washers (#28) to position the net holder.
3. Use a nut (#23) on each screw to secure.
4. Insert a net pin (#12) into the end of the net (#13) (see detail H).
5. Pivot the net holder up into position, and then down to lock (see detail G). Push the net
with a pin into the post (see detail I). If the top of the net has a string, pull the string over
the top of the post. Hook the string on one of the openings in the post.
6. Repeat numbers 1 thru 5 on the other side of the table.
G
23
28
9
31
11
12
13
HI
11

GLD Products Aspen Table Tennis
Item 70-0200
18 1-800-225-7593
www.gldproducts.com
90-DAY LIMITED WARRANTY
The Manufacturer warrants to the original retail purchaser that this product is free from
defects in material and workmanship under normal use and conditions for a period of ninety
(90) days from the date of original purchase. The Manufacturer’s liability is limited to the
repair or replacement, at its option, of any defective product and shall not include any liability
for indirect, incidental or consequential damages of any kind.
Should this product become defective due to material or workmanship within the warranty
period, contact our Customer Service Department. This warranty is not transferable and
does not cover normal wear and tear or damage caused by improper usage, negligence,
misuse, abuse, transportation damage, acts of nature, or accident (including failure to follow
the instructions in this manual). It does not cover expendable items such as batteries, light
bulbs, fuses, accessories, cosmetic parts and other items that wear out due to normal
usage. This warranty is also void if the product is disassembled and reassembled, dam-
aged, modified from its original state, or used for other than indoor personal residential use
(no commercial or rental applications).
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST (8 - 4:30 CST)
Please have your receipt and item number (found on the front cover) when you call.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
If you are instructed to return the product for service, you are responsible for ship-
ping the unit at your expense to the above address in packaging that will protect
against further damage. All warranty or repair requests require a Return Authoriza-
tion Number prior to returning the item.
PRODUCT REGISTRATION
Important: The product registration form on page 19 must be completed and returned
along with a copy of your receipt within 10 days of purchase to validate your warranty.
Online registration is also available. Go to www.gldproducts.com/index.php/registration or
click on this link. Follow the online instructions.

REGISTER YOUR PRODUCT Place postage here
Complete this form, include a copy of your receipt, fold, tape (do
not staple) and return within 10 days of purchase. This protects
your warranty and will help us develop new products!
GLD Products
Warranty Department
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
Remember to attach a copy of your receipt.
Name Date of Purchase
Address Phone-Day
City Phone-Evening
State Zip Email
Purchase Price:
Item: 70-0200 Aspen Outdoor Table Tennis
Store Name:
www.gldproducts.com
GAME TABLES HOME CASINO
GAMES AND ACCESSORIES BILLIARD CUES
BILLIARD ACCESSORIES DARTBOARDS
SOFT-TIP DARTS STEEL-TIP DARTS
FLIGHTS AND SHAFTS DART CASES AND ACCESSORIES
Fold here second.
Fold here first.
Cut here.

This page left intentionally blank.
