1. GENERAL
1.1 INTRODUCTION
This manual was prepared with the aim of making the installation and management of your system as simple as
possible.
By reading and applying the suggestions of this manual, you can achieve the best performance of the purchased
product.
We would like to thank you for choosing to purchase one of our products.
Read this file carefully before performing any operation on the unit.
The unit must not be installed, nor must any operation be performed on it, without firstly reading and understanding
the entirety of this manual. In particular it is necessary to adopt all of the precautions listed in the manual.
The documentation provided with the unit must be delivered to the system manager for safe keeping (at least 10
years) for future assistance, maintenance and repairs.
Unit installation must take into account the strictly technical needs for good operation, as well as any local
legislation in force and specific requirements.
Make sure that when the unit is delivered there are no evident signs of damage caused by transport. If there is,
state this on the delivery note.
This manual reflects the state of the technical standards at the time of sale and cannot be considered inadequate
if updated at a later date based on new experiences. The Manufacturer reserves the right to update production and
the manuals without being required to update previous ones, except in exceptional cases.
Contact the Manufacturer’s Sales Office to receive further information or updates on/to the technical documentation
and for any suggestions for improvement to this manual. All suggestions shall be strictly vetted.
1.2 FUNDAMENTAL SAFETY RULES
Remember that the use of products that use electrical energy and water requires certain fundamental
safety rules to be followed:
• Unable and unassisted persons are forbidden from using the device
• It is forbidden to touch the device in bare feet and with wet or damp parts of the body
• Any cleaning activity is forbidden without firstly disconnecting the device from the electrical power mains by
placing the system’s main switch on ‘off’
• It is forbidden to modify the safety or regulation devices without the authorisation and indications of the
device manufacturer

3
ENGLISH
ASPIRCOMFORT PRO dH
• It is forbidden to pull, detach, twist the electrical cables coming out of the device, even if it is disconnected
from the electrical power mains.
• It is forbidden to insert objects and substances through the air intake and supply grids.
• It is forbidden to open the access doors to the inside of the device, without firstly placing the system’s main
switch on ‘off’.
• It is forbidden to release and leave packaging material within the reach of children as it is a potential source
of danger.
• Comply with the safety distances between the machine and other devices or structures to guarantee enough
access space to the unit for maintenance and assistance operations as stated herein.
• The unit’s Power supply must be provided with electrical cables duly sized for the power of the unit. The
voltage and frequency values must match those stated for the respective machines; all machines must be
earthed according to the regulations in force in the various countries.
1.3 SYMBOLS
The symbols used in the following file quickly provide information necessary for the correct use of the unit.
Safety symbols
ATTENTION
Authorised personnel only. This means that the stated operations are important to safe machine
operation
DANGER
Risk of electric shock. This means that failure to comply with the warnings poses the risk of
electric shock.
DANGER
This means that failure to comply with the warnings poses the risk of injury to the exposed
persons.
WARNING
This means that failure to comply with the warnings poses the risk of damage to the unit or
system.
DANGER
This means that there are moving parts and poses the risk of harm to exposed persons

4
ENGLISH
ASPIRCOMFORT PRO dH
1.4 WARNINGS
The unit must be installed by qualified and authorised personnel according to the rules in force in the
various countries.
If installation is not carried out, this could lead to a situation of danger
Avoid installing the unit in very damp rooms or where there are large sources of heat.
On the electric side, to prevent any risk of electrocution, it is essential to disconnect the main switch before
setting up the electrical connections and performing any maintenance operation.
If there are any water leaks from inside the unit, place the system’s main switch on ‘Off’, close the water
valves and contact the technical service
Always use a dedicated power supply circuit; never use a power supply shared with other devices.
Always install an earth leakage circuit-breaker; failure to install this device could cause electric shock.
For the connection, use a sufficiently long cable to cover the entire distance without any connection; do not
use extensions and do not apply other loads on the power supply, rather, always use a dedicated power
supply circuit.
When the electrical cables are connected, make sure that the cables are arranged so that they do not press
excessively on covers or electrical panels; any incomplete connection of the covers may cause overheating
of the terminals.
Make sure that the earthing connection is set up; do not earth the device on distribution pipes.
Momentary high intensity overcurrents may damage the unit
Installations made outside of the warnings set forth herein or use outside of the operating limits will
instantly void the warranty.
Make sure that commissioning is carried out by personnel authorised by the company (see commissioning
request form)

5
ENGLISH
ASPIRCOMFORT PRO dH
1.5 CONFORMITY
The CE marking (applied on each machine) certifies compliance with the following Community standards:
• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility Directive 2014/30/EC
• Ecodesign 2009/125/EC
1.6 RANGE
Code Total Flow Rate/renewal air flow
rate
Type of installation
AP20060 300/150 Horizontal
AP20062 500/250 Horizontal
1.7 IDENTIFICATION
-The unit can be identified by the rating plate attached to the front bottom panel.
-On the packaging there is another identification rating plate with the unit model and the shipping
references.
The rating plate on the packaging is not valid for tracking the product over the years after sale.
The removal, deterioration and illegibility of the rating plate attached to the unit makes machine identification and
ordering spare parts very difficult, and therefore all future maintenance.
1.8 CONSTRUCTION FEATURES
RECOVERY SECTION
High efficiency counter current polypropylene exchanger >90%. Summer and winter mode.
VENTILATION
Brushless plug-fans with electronic motor and modulating control.
Very high efficiency and low noise levels. Compliant with directive ErP1018.

6
ENGLISH
ASPIRCOMFORT PRO dH
AIR HANDLING SECTION
The unit can be equipped with a cooling circuit for dehumidification or integration of cooling and heating. In the
various configurations, it will be possible to select the type of desired air handling from dehumidification only or
dehumidification with heating and cooling of the primary air.
FILTRATION
PM1 80% filters, easily removable on the outdoor air intake on the exhaust air.
Easily removable coarse filters with low head loss on the recirculation air.
STRUCTURE
Double sandwich panelling, unit with external coating and internal galvanised finish.
Galvanised sheet metal self-supporting perimeter structure. Panel insulation is built with high performance 20
mm-thick insulation and adhesive polyethylene 6 mm-thick insulation.
COOLING CIRCUIT
Built with braze welded copper, complete with: High efficiency compressor, Filter dryer, finned coils, water
exchanger, solenoid valves, lamination device, liquid receiver, high and low pressure switches and pipe thermal
insulation.
ADJUSTMENT
Electric panel on-board the unit with microprocessor and dedicated regulation. Fan control, display of the
temperature probes inside the machine, timed dirty filter control, recirculation and renewal air control. Possibility
of unit control with MODBUS RTU RS 485 communication

7
ENGLISH
ASPIRCOMFORT PRO dH

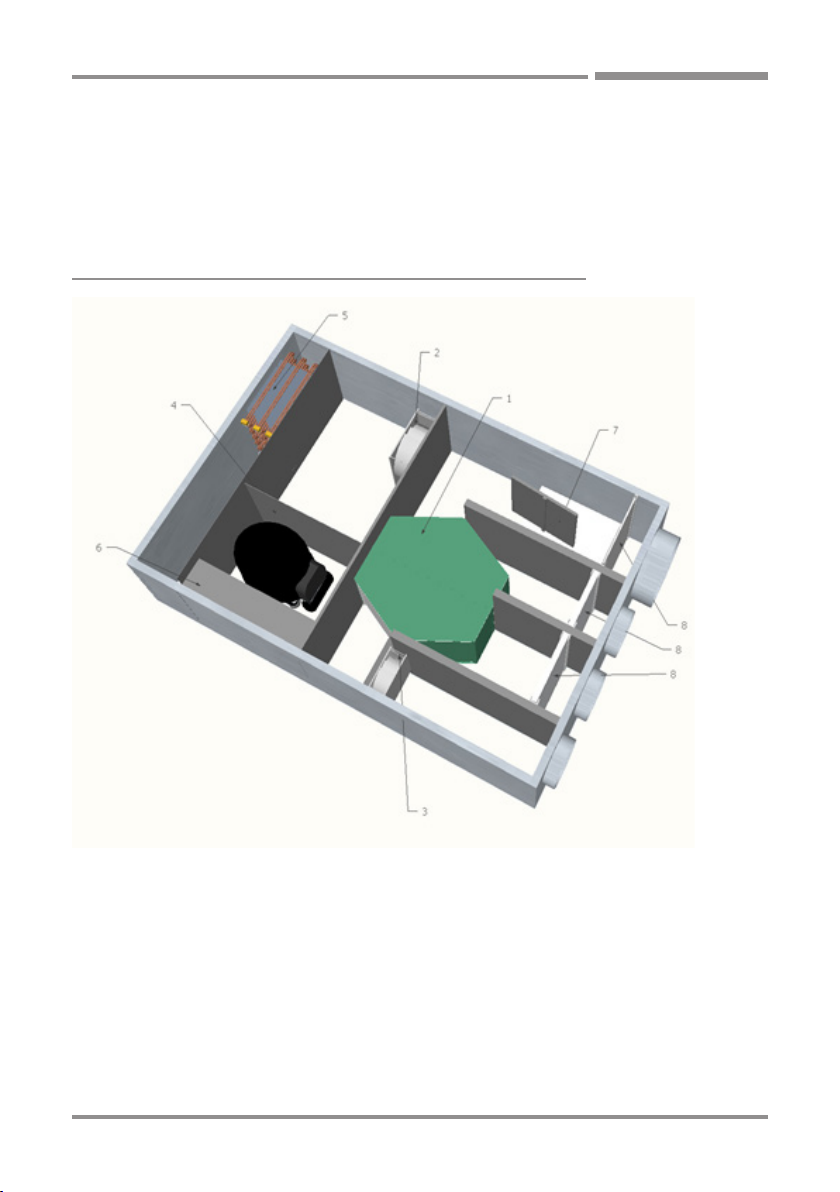

1.9 MAIN COMPONENTS OF THE UNIT
1. Heat recovery unit 2. Supply fan
3. Exhaust fan 4. Compressor and cooling circuit compartment
5. Finned coils 6. Electrical panel
7. Recirculation air damper 8. Air filters

8
ENGLISH
ASPIRCOMFORT PRO dH
1.10 PACKAGING AND TRANSPORT
The units are prepared for transport secured to a wooden pallet and placed inside cardboard boxes. To facilitate
relocation, the units have a wooden pallet and hooks on the base so it can be lifted and positioned in the place of
installation
1.11 RECEIVING, CHECKING AND HANDLING
The unit is shipped fully loaded with refrigerant gas in the circuits and non-freezing oil in the compressors. In
no case can there be water in the hydraulic circuits, since the unit is carefully emptied after final testing. Upon
arrival the customer is required to inspect the unit, including the inside, to ensure that no damage occurred during
transport; the unit left the factory in perfect conditions. If damage is found the customer must immediately report
this to the courier by providing details on the extent of the damage on the delivery note, providing photographic
evidence of the alleged damage and notifying the shipping company of any alleged damage by registered mail with
return receipt. The manufacturer will not be held liable for damage caused by transport even if he himself did the
shipping. It is necessary to be very careful when handling the unit during unloading and positioning on site so as
to avoid damage to the enclosure and the more delicate inside parts such as compressors, exchangers, etc. in any
case keep the unit upright without tilting it. All of the indications on what precautions to take to prevent damage
to the unit and the indications of its weight, are provided on the packaging. The packaging can be composed of
various materials such as wood, cardboard or polyethylene (plastic). It is good practice to send them for disposal
or recycling through specialised companies to reduce the impact on the environment.
1.12 DISASSEMBLY AND DISPOSAL
Do not take down or dispose of the product on your own. The product must be
disassembled, demolished, disposed of by authorised personnel in compliance with
local regulations.

9
ENGLISH
ASPIRCOMFORT PRO dH
2. INSTALLATION
2.1 INSTALLATION CONDITIONS
The unit must be installed based on national and local regulations governing the use of electrical devices
and based on the following indications:
• install the unit inside residential buildings with room temperature between 0°C and 45°C;
• avoid areas near sources of heat, steam, inflammable and/or explosive gases and particularly dusty areas;
• install the unit in a place that is not subject to frost (the condensation water must be discharged not frozen, at
a certain slope, using a trap);
• do not install the unit in zones with a high relative humidity rate (such as bathroom or toilet) to avoid
condensation on the external surface;
• choose a place of installation where there is enough room around the unit for the connections of the air ducts
and to perform maintenance activities;
• the consistency of the ceiling/wall/floor where the unit will be installed must be suitable for the weight of the
unit and not cause vibrations.
The room chosen for installation must have:
- air duct connections;
- 230V single-phase electrical connection
- connection for the condensation discharge
- hydraulic connection

10
ENGLISH
ASPIRCOMFORT PRO dH
2.2 UNIT POSITIONING
CEILING-MOUNTING

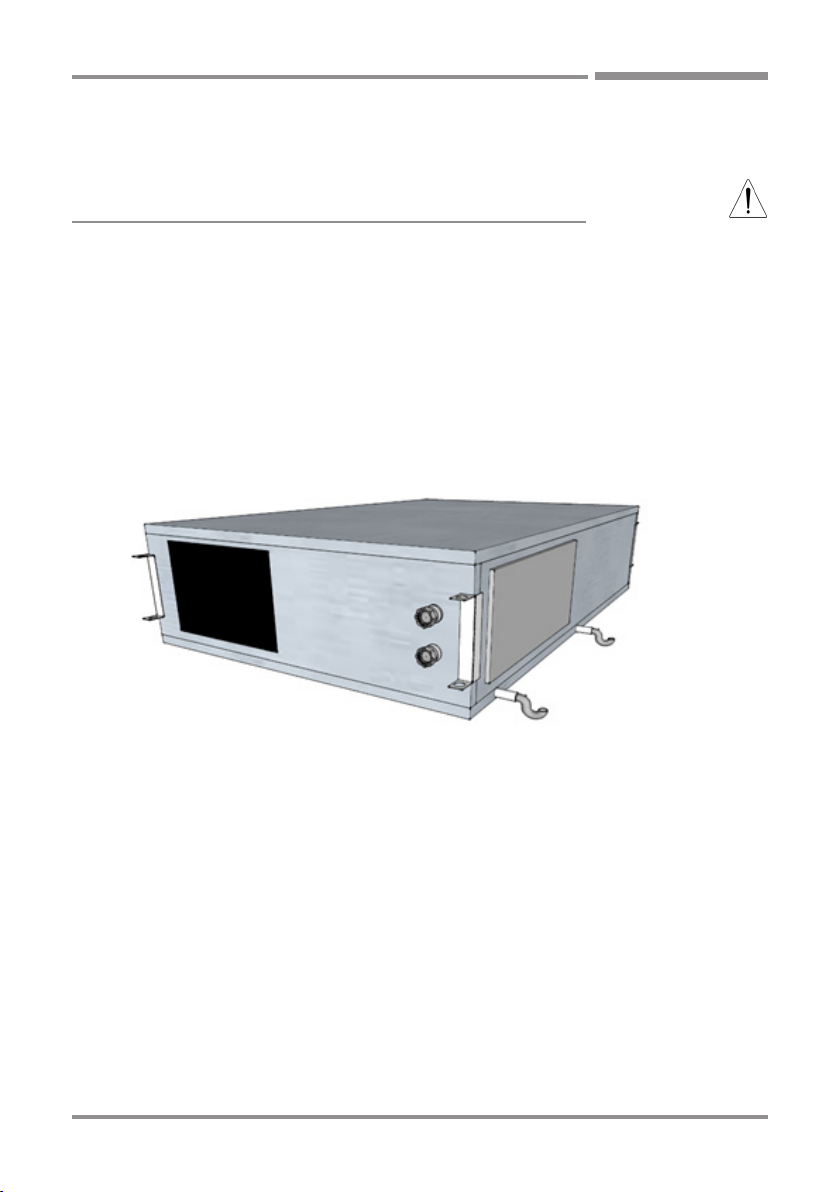

To mount the unit on the ceiling, it is necessary to:
• Place 4 threaded bars inside the brackets set up on the 4 corners of the unit;
• Secure the unit to the ceiling, by the brackets, using suitable anchoring systems (plugs, chains...) and use
a level to make sure it is level.
• Provide enough space to perform maintenance activities: it must be possible to open the cover of the unit
(from below).
Do not install the unit with the sides directly touching the walls to avoid possible noise from contact, insert rubber
or neoprene strips in that case.
FLOOR-MOUNTING
To mount the unit on the floor, it is necessary to:
• Floor-mounting Place 4 threaded bars inside the brackets set up on the 4 corners of the unit;
• Secure the unit to the floor, by the brackets, using suitable anchoring systems (plugs, chains...) and use a
level to make sure it is level.
• Provide enough space to perform maintenance activities: it must be possible to open the cover of the unit
(from below).
Do not install the unit with the sides directly touching the walls to avoid possible noise from contact, insert rubber
or neoprene strips in that case.

11
ENGLISH
ASPIRCOMFORT PRO dH

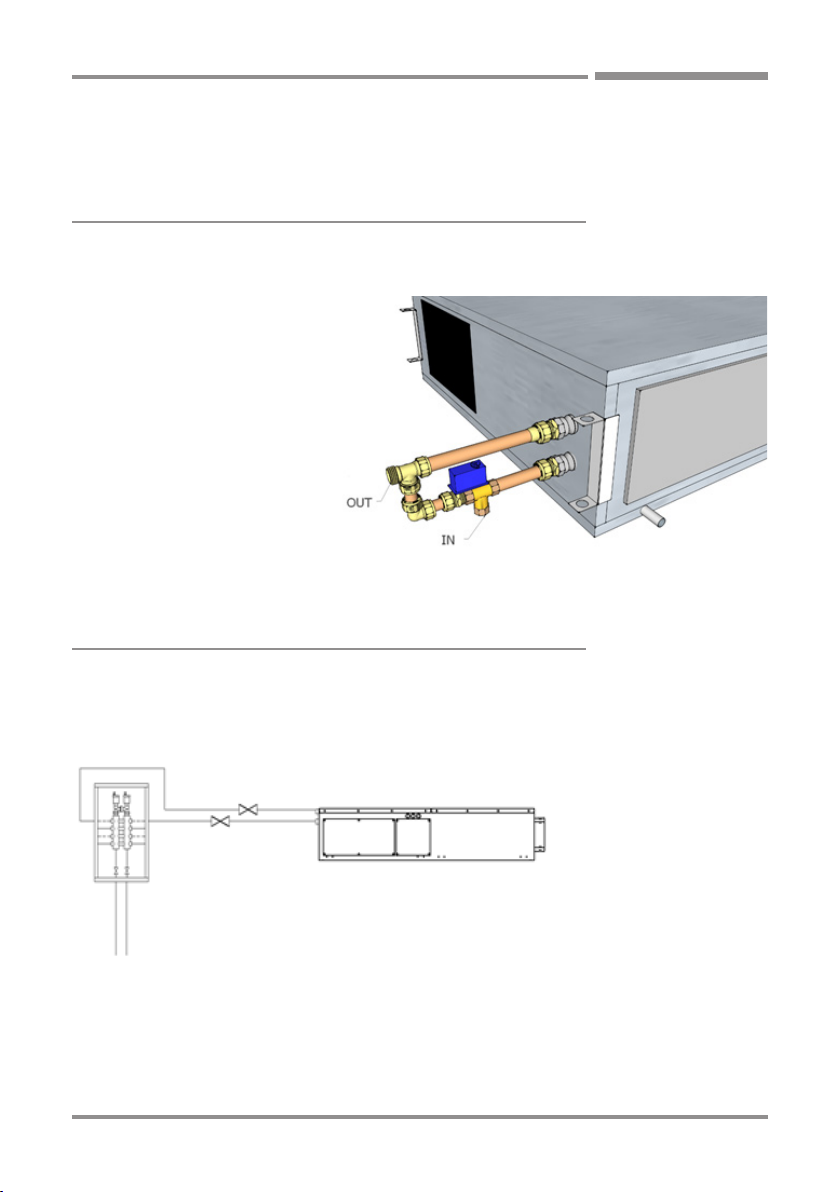

2.3 CONDENSATE DISCHARGE CONNECTION
Because of the heat recovery system (the exhaust air is cooled by the air supplied into the heat exchanger) and the
dehumidification coils, the humidity contained in the internal air condenses inside the unit.
For correct operation of the heat recovery unit, it is necessary to connect two condensation discharges to the
home hydraulic system (discharge). Also, in order for the condensation water to correctly flow out and avoid air
from being sucked in, the condensation discharges must always feature special traps supplied and installed by
the installer;
For installation of the condensation discharge, follow these rules:
• set up a slope of at least 2% to the discharge pipe;
• allow the possibility of disconnecting the discharge pipe for any maintenance (especially with ceiling
installation);
• make sure that the discharge end of the pipe is at least below the level of the trap water;
• make sure that the trap is always full of water.

12
ENGLISH
ASPIRCOMFORT PRO dH
3 AERAULIC CONNECTIONS
3.1 AERAULIC ORIENTATIONS
The unit has 4 male circular rear fittings of different Ø and one rectangular front opening based on the size;
To correctly connect the air ducts, refer to the following diagram and stickers on the unit.
Table of unit aeraulic connection diameters
Codes AP20060 AP20062
Ø Recirculation mm 160 200
Ø Stale air mm
125 160Ø Outdoor air mm
Ø Exhaust mm
Supply cross section mm 350x180 490x255
It is advisable to install at least 500mm of hose to avoid transmitting vibration and bothersome noises caused by
the installation.
Depending on what system the unit will be installed in, it will be possible to duly direct the four aeraulic connections.
Below are the possible configurations:
REAR CONNECTIONS FRONT CONNECTIONS
EXHAUST
EXTRACTION
RECIRCULATION SUPPLY
OUTDOOR AIR

13
ENGLISH
ASPIRCOMFORT PRO dH
4 ELECTRICAL CONNECTIONS
4.1 GENERAL
- The units are equipped with hydronic coils with water air exchange;
The connections on the units, also in the various applications and versions, are always common to all units.
- Be sure to comply with the flow stated on the rating plates: inlet (water entering towards the unit), outlet (water
coming out the unit)
- Arrange it so that the weight of the pipes does not bear on the set-up connections
- Set up shut-off valves on the system’s supply and return pipes
- All of the chilled water pipes must be insulated to limit undesirable heat exchanges and the formation of
condensation to a minimum.
- Before filling the pipes, make sure they do not contain foreign materials: such as sand, stones, flakes of rust,
welding drops, slags, etc. Otherwise wash the hydraulic circuit by-passing the unit.
- Strictly avoid cavitation of the pump and the subsequent presence of air in the hydraulic circuit.
CHEMICAL PHYSICAL FEATURES OF THE WATER
Non-compatible chemical physical features could jeopardise the integrity of the unit’s hydraulic parts.
Check the characteristics of the water;
DESCRIPTION Limit value
Hardness < 10°F
PH value 7.5 / 9
Oxygen < 2 mg / l
Conductivity < 500 uS / cm
Iron < 2 mg/l
Manganese < 1 mg/l
Nitrate < 70 mg/l
Sulphate < 70 mg/l
Chlorine compounds < 300 mg/l
Carbon dioxide free radical < 10 mg/l
Ammonium < 20 mg/l

14
ENGLISH
ASPIRCOMFORT PRO dH
4.2 POSITIONING AND PROCEDURES OF THE CONNECTIONS
The hydraulic connections are positioned on the side of the unit;
The connections have male threading;
Observe IN as the water inlet into the unit and OUT as the water outlet from the unit
Connect the pipes with female threaded fitting and tighten with dedicated tools;
Be careful not to turn or twist the pipes coming from inside the unit;
Letting the pipes turn during the connection could damage the connections inside the unit and cause water leaks
during operation;

15
ENGLISH
ASPIRCOMFORT PRO dH
4.3 2-3 WAY VALVE CONNECTION
The connections of the optional 2 / 3
valves must be set up as stated;
Be sure to comply with the directions on the valve:
4.4 DIAGRAMS RECOMMENDED FOR THE CONNECTION
CONNECTION TO THE RADIANT SYSTEM MANIFOLD:
The unit is powered by a circuit of the radiant system manifold. Make sure the circuit has the necessary flow rate.
N.B: With this type of installation it is necessary to guarantee the machine with the rated flow rate described in
the technical data sheet;

16
ENGLISH
ASPIRCOMFORT PRO dH
RECOMMENDED INSTALLATION-CONNECTION BEFORE THE RADIANT SYSTEM MANIFOLD:
The unit is powered in parallel with the radiant system manifold, thereby having guaranteed the necessary water
flow rate for correct operation.
N.B: In both cases, the failure to provide the unit with the rated flow rate will place it a functional block.
4.5 COOLING DIAGRAMS
CO Compressor
PH High pressure switch
PS Service socket
CN1 Air condenser
EV Evaporator
BA Water coil
FI Filter dryer
LM Lamination part
CD2 Water condenser
LM Lamination part
VC Solenoid valve

17
ENGLISH
ASPIRCOMFORT PRO dH
5 ELECTRICAL CONNECTIONS
5.1 GENERAL
- Before starting any operation to perform the electrical connection make sure that the unit is not electrically
powered
- Perform the necessary electrical connections referring exclusively to the wiring diagram attached to this
manual.
- Install a suitable cut-off and breaker device exclusively serving the unit.
- It is essential for the unit to be earthed.
- Check that the electrical components chosen for installation (main switch, breakers, cable size and terminals)
are suitable for the electrical power of the installed unit and that they take into account the start-up currents of
the compressor in addition to the maximum achievable load. The relative data is stated on the attached wiring
diagram and on the unit’s rating plate
- It is forbidden to enter the unit with electrical cables except where specified in this file.
- Use duly-sized electrical cables and conductors that comply with the regulations in force in the various
countries.
- Strictly avoid feeding through the electrical cables so that they are directly touching pipes or parts inside the
unit
- After the first moments of operation, check the tightness of the power supply terminal screws
Table for power supply line sizing
Codes AP20060 AP20062
Power supply V/Ph/Hz 230/1/50
Max absorbed current A 3.5 5.9

18
ENGLISH
ASPIRCOMFORT PRO dH
5.2 POSITIONING AND PROCEDURES OF THE CONNECTIONS
The inlet of the electrical cables is positioned on the side of the unit;
There are two dn20mm openings;
CABLE INPUT
X2 TERMINAL BOARD - CLIENT-
ELECTRICAL PANEL
INSPECTION

19
ENGLISH
ASPIRCOMFORT PRO dH
5.3 UNIT WIRING DIAGRAMS

20
ENGLISH
ASPIRCOMFORT PRO dH
CONNECTIONS SET UP BY THE CUSTOMER
L – PE - N Unit power supply 230 / 1 / 50
12 - GND - RS+ RS- Remote display connection
(optional)
12-0 Power supply A+ B-
Communication
5.4 POSSIBLE MODES AND OPERATING CONFIGURATIONS FOR THE UNIT
OPERATION WITH MODBUS RS485 RTU
The unit is designed to be controlled through modbus RS485, which is installed on it;
Through communication from an external Master CH193VMC device it will be possible to activate and modify all
of the unit’s functions;
