INSTALLATION, USE AND MAINTENANCE MANUAL ASPIRCOMFORT PRO X 380V

2
ENGLISH
ASPIRCOMFORT PRO X 380V
1. GENERAL
1.1 INTRODUCTION
This manual was prepared with the aim of making the installation and management of your system as simple as
possible.
By reading and applying the suggestions of this manual, you can achieve the best performance of the purchased
product.
We would like to thank you for choosing to purchase one of our products.
Read this file carefully before performing any operation on the unit.
The unit must not be installed, nor must any operation be performed on it, without firstly reading and understanding
the entirety of this manual. In particular it is necessary to adopt all of the precautions listed in the manual.
The documentation provided with the unit must be delivered to the system manager for safe keeping (at least 10
years) for future assistance, maintenance and repairs.
Unit installation must take into account the strictly technical needs for good operation, as well as any local
legislation in force and specific requirements.
Make sure that when the unit is delivered there are no evident signs of damage caused by transport. If there is,
state this on the delivery note.
This manual reflects the state of the technical standards at the time of sale and cannot be considered inadequate
if updated at a later date based on new experiences. The Manufacturer reserves the right to update production and
the manuals without being required to update previous ones, except in exceptional cases.
Contact the Manufacturer’s Sales Office to receive further information or updates on/to the technical documentation
and for any suggestions for improvement to this manual. All suggestions shall be strictly vetted.
1.2 FUNDAMENTAL SAFETY RULES
Remember that the use of products that use electrical energy and water requires certain fundamental
safety rules to be followed:
• Unable and unassisted persons are forbidden from using the device.
• It is forbidden to touch the device in bare feet and with wet or damp parts of the body.
• Any cleaning activity is forbidden without firstly disconnecting the device from the electrical power mains by
placing the system’s main switch on ‘off’.
• It is forbidden to modify the safety or regulation devices without the authorisation and indications of the
device manufacturer.
• It is forbidden to pull, detach, twist the electrical cables coming out of the device, even if it is disconnected
from the electrical power mains.

3
ENGLISH
ASPIRCOMFORT PRO X 380V
• It is forbidden to insert objects and substances through the air intake and supply grids.
• It is forbidden to open the access doors to the inside of the device, without firstly placing the system’s main
switch on ‘off’.
• It is forbidden to release and leave packaging material within the reach of children as it is a potential source
of danger.
• Comply with the safety distances between the machine and other devices or structures to guarantee enough
access space to the unit for maintenance and assistance operations as stated herein.
• The unit’s Power supply must be provided with electrical cables duly sized for the power of the unit. The
voltage and frequency values must match those stated for the respective machines; all machines must be
earthed according to the regulations in force in the various countries.
• Do not release R410Anell into the atmosphere: R410A is a fluorinated greenhouse gas, referred to in the
Kyoto protocol, with a global warming potential (GWP) of =1975.
1.3 SYMBOLS
The symbols used in the following file quickly provide information necessary for the correct use of the unit.
Safety symbols.
ATTENTION
Authorised personnel only. This means that the stated operations are important to safe machine
operation.
DANGER
Risk of electric shock. This means that failure to comply with the warnings poses the risk of
electric shock.
DANGER
This means that failure to comply with the warnings poses the risk of injury to the exposed
persons.
WARNING
This means that failure to comply with the warnings poses the risk of damage to the unit or
system.
DANGER
This means that there are moving parts and poses the risk of harm to exposed persons.

4
ENGLISH
ASPIRCOMFORT PRO X 380V
1.4 WARNINGS
The unit must be installed by qualified and authorised personnel according to the rules in force in the
various countries.
If installation is not carried out, this could lead to a situation of danger.
Avoid installing the unit in very damp rooms or where there are large sources of heat.
On the electric side, to prevent any risk of electrocution, it is essential to disconnect the main switch before
setting up the electrical connections and performing any maintenance operation.
If there are any water leaks from inside the unit, place the system’s main switch on ‘Off’, close the water
valves and contact the technical service.
Always use a dedicated power supply circuit; never use a power supply shared with other devices.
Always install an earth leakage circuit-breaker; failure to install this device could cause electric shock.
For the connection, use a sufficiently long cable to cover the entire distance without any connection; do not
use extensions and do not apply other loads on the power supply, rather, always use a dedicated power
supply circuit.
When the electrical cables are connected, make sure that the cables are arranged so that they do not press
excessively on covers or electrical panels; any incomplete connection of the covers may cause overheating
of the terminals.
Make sure that the earthing connection is set up; do not earth the device on distribution pipes.
Momentary high intensity overcurrents may damage the unit.
Installations made outside of the warnings set forth herein or use outside of the operating limits will
instantly void the warranty.
Make sure that commissioning is carried out by personnel authorised by the company (see commissioning
request form).

5
ENGLISH
ASPIRCOMFORT PRO X 380V
1.5 CONFORMITY
The CE marking (applied on each machine) certifies compliance with the following Community standards:
• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility Directive 2014/30/EC
• RoHS2 2011/65/UE
• WEEE 2012/19/EC
1.6 RANGE
Code Total Flow Rate/renewal air flow
rate
Type of installation
AP20069 Up to 380 m3/h Vertical
1.7 IDENTIFICATION
- The unit can be identified by the rating plate attached to the front bottom panel.
- On the packaging there is another identification rating plate with the unit model and the shipping
references.
The rating plate on the packaging is not valid for tracking the product over the years after sale.
The removal, deterioration and illegibility of the rating plate attached to the unit makes machine identification and
ordering spare parts very difficult, and therefore all future maintenance.
1.8 CONSTRUCTION FEATURES
The ASPIRCOMFORT PRO X 380V units are designed for the renewal of the air in rooms.The easy installation
through two holes diam.160 mm and the high flow rate of fresh air, allows the application in situations such
as residential buildings, schools, clinics, offices and all contexts where it is necessary to change the air; The
thermodynamic recovery allows to have an integration with respect to the environmental climatic conditions,
helping the air conditioning system to meet the internal comfort; In addition, the air introduced is always
at a temperature close to or better than the environment, thus ensuring a higher perceived comfort; The unit
consists of a monoblock including all components for proper operation: fans, cooling circuit with high-efficiency
compressors, air filtration sections and high-efficiency countercurrent heat recovery unit.

6
ENGLISH
ASPIRCOMFORT PRO X 380V
ALL IN ONE
Complete unit capable of exchanging air and integrating the cooling thermal demands of the served rooms. The
unit is complete with all components for its operation and ready to use.
UVC lamp (ACCESSORY AP20384) AND VOC SENSOR
The unit is equipped with a UVC lamp (AP20384 accessory), which enables a germicidal action to be carried out
on the air introduced from outside through the effect of UVC; the lamp is activated automatically according to the
quality of the room air.
VENTILATION
Fans with directly coupled brushless motor; the fans operate in various modes controlled mainly by the air quality
sensor located inside the unit.
ACTIVE THERMODYNAMIC RECOVERY
The unit allows active recovery of energy from the exhaust air. The thermodynamic recovery allows, thanks to its
cooling circuit, to supply energy to the environment in a higher quantity than that taken away by the ventilation for
90% of the unit's operation.
FILTRATION
There are 2 ePM1 filters on the extract air and the supply air; the filter on the supply air is placed after the coil to
completely filter out any impurities in the supply air, On the outdoor air there is a Coarse pre-filter that protects
the cleanliness of the unit.
STRUCTURE
Self-supporting sheet metal frame.
Self-supporting sheet metal structure, externally painted (in the visible versions), with polyethylene and EPDM
thermal and acoustic insulation in between.
COOLING CIRCUIT
Built with braze welded copper, complete with: High efficiency BLDC compressor, filter dryer, finned coils,
electronic expansion valve, reversing valve and safety devices.
ADJUSTMENT
Electric panel on-board the unit with microprocessor and dedicated regulation. Fan management, temperature
display and setpoint, timed dirty filter management. Management of defrosting algorithm optimised for
operation at low external temperatures; Panel with graphic interface on board the machine and remote
control included in the visible versions.

7
ENGLISH
ASPIRCOMFORT PRO X 380V
1.10 PACKAGING AND TRANSPORT
The units are prepared for transport secured to a wooden pallet and placed inside cardboard boxes. To facilitate
relocation, the units have a wooden pallet and hooks on the base so it can be lifted and positioned in the place of
installation. The unit can be stored in a room protected against the weather at temperatures of no less than 0°C
up to a maximum of 40°C.
1.11 RECEIVING, CHECKING AND HANDLING
The unit is shipped fully loaded with refrigerant gas in the circuits and non-freezing oil in the compressors.
In no case can there be water in the hydraulic circuits, since the unit is carefully emptied after final
testing. Upon arrival the customer is required to inspect the unit, including the inside, to ensure that no
damage occurred during transport; the unit left the factory in perfect conditions. If damage is found the customer
must immediately report this to the courier by providing details on the extent of the damage on the delivery note,
providing photographic evidence of the alleged damage and notifying the shipping company of any alleged damage
by registered mail with return receipt.
The manufacturer will not be held liable for damage caused by transport even if he himself did the shipping. It
is necessary to be very careful when handling the unit during unloading and positioning on site so as to avoid
damage to the enclosure and the more delicate inside parts such as compressors, exchangers, etc. in any case
keep the unit upright without tilting it. All of the indications on what precautions to take to prevent damage to the
unit and the indications of its weight, are provided on the packaging. The packaging can be composed of various
materials such as wood, cardboard or polyethylene (plastic). It is good practice to send them for disposal or
recycling through specialised companies to reduce the impact on the environment.
1.12 DISASSEMBLY AND DISPOSAL
Do not take down or dispose of the product on your own. The product must
be disassembled, demolished, disposed of by authorised personnel in
compliance with local regulations.

8
ENGLISH
ASPIRCOMFORT PRO X 380V
1.9 MAIN COMPONENTS OF THE UNIT
1. Compressor
2. Intake fan
3. Exhaust fan
4. Input coil
5. Exhaust coil
6. Electrical panel
7. Display
8. Outdoor air pre-filter
9. Epm1 filters
10. UVC lamp (AP20384 accessory)

9
ENGLISH
ASPIRCOMFORT PRO X 380V
2. INSTALLATION
2.1 INSTALLATION CONDITIONS
The unit must be installed based on national and local regulations governing the use of electrical devices
and based on the following indications:
• install the unit inside residential buildings with room temperature between 0°C and 45°C;
• avoid areas near sources of heat, steam, inflammable and/or explosive gases and particularly dusty areas;
•install the unit in a place that is not subject to frost (the condensation water must be discharged not frozen, at
a certain slope, using a trap);
•do not install the unit in zones with a high relative humidity rate (such as bathroom or toilet) to avoid
condensation on the external surface;
•choose a place of installation where there is enough room around the unit for the connections of the air ducts
and to perform maintenance activities;
•the consistency of the ceiling/wall/floor where the unit will be installed must be suitable for the weight of the
unit and not cause vibrations.
The installation position of the unit, in order to obtain the best operating efficiency and to avoid faults or hazardous
conditions, must have the following requirements:
- Respect the spaces indicated in the figure.
- The wall on which the unit is to be fixed must be sturdy and suitable to support its weight.
- It must be possible to leave space around the unit for maintenance.
- There must be no obstacles to the free circulation of air in the upper intake area (curtains, plants, furniture) or
in the front air outlet area; this could cause turbulence that would inhibit the correct operation of the appliance.
- The unit can be placed on the floor or suspended.
- The appliance is rated IPX0, so it is not suitable for outdoor installation.
- Check that there are no structures or installations (beams, pillars, water pipes, electric cables, etc.) at the
points where you intend to drill the holes that would prevent the necessary holes from being drilled. Check that
there are no obstacles to the free circulation of air through the holes you are going to make (plants and their
foliage, slats, shutters, grills or grates that are too thick, etc.).
- The appliance must not be in a position where the air flow is aimed directly at people nearby.
- The appliance is not directly above an electrical appliance (television, radio, refrigerator, etc.), or above a heat
source.
The room chosen for installation must have:
- Outdoor air duct connections;
- 230V single-phase electrical connection;
- Connection for the condensate discharge.

10
ENGLISH
ASPIRCOMFORT PRO X 380V

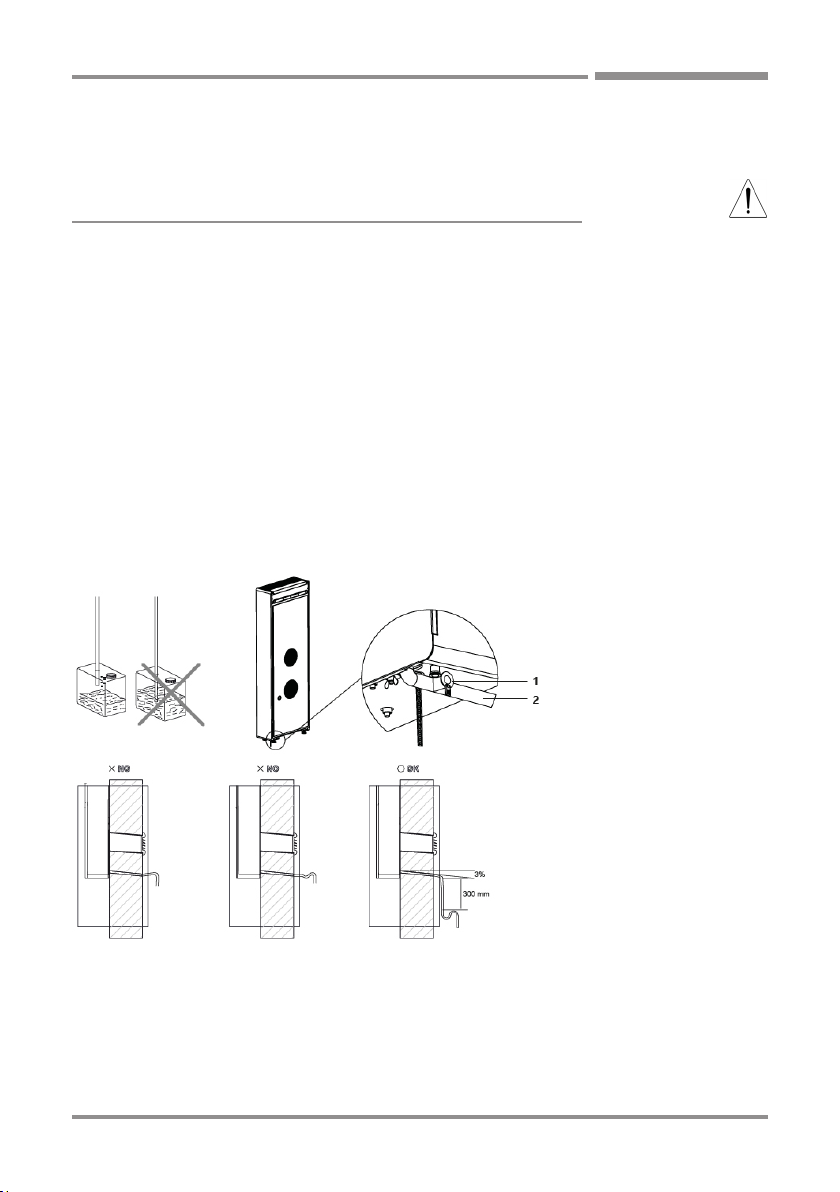

2.2 UNIT POSITIONING
TYPE OF INSTALLATION
The unit requires two Ø162 holes to be drilled as indicated on the drilling template in order to operate;
The maximum permissible hole length is 1 m and no bends may be made. It is necessary to use the grids supplied,
or grids with the same characteristics.
Drilling into the wall must be carried out using appropriate equipment that facilitates your work and avoids
excessive damage or disturbance to your customer. The best tools for drilling large diameter holes in walls are
special drills (called 'core drills') with high torque and adjustable rotation speed depending on the diameter of the
hole to be drilled and the material. To prevent the spread of large quantities of dust and debris in the environment,
core drills can be coupled to suction systems consisting essentially of a hoover to be connected to an accessory
(such as a suction cup) to be placed close to the drill bit.

11
ENGLISH
ASPIRCOMFORT PRO X 380V
Proceed as follows to perform drilling:
- Place the drilling template supplied against the wall,
observing the minimum distances: from the ceiling, floor
and side walls indicated on the template itself, which can be
held in place with adhesive tape.
- Using a small drill or an awl, carefully mark out the centre
of the various holes to be drilled before making them.
- Drill two holes for the air inlet and outlet using a drill bit.
These holes must be drilled with a slight downward slope to
prevent water from flowing back through the pipes.
Most of the material removed is ejected outwards, so care
must be taken to ensure that it does not strike people or
objects below as it falls. In order to avoid breaking the
external plaster as much as possible, the final part of the
hole should be drilled very carefully, loosening the pressure
on the core drill a little.
Drill the 6 holes for anchoring the wall mounting bracket as
indicated on the drilling template.
The greatest weight of the appliance is on the right-hand
side, so it is preferable to secure a firmer fixing on this side.
The 6 dowels supplied require a hole diameter of 8 mm.
In any case, a careful examination of the characteristics
and consistency of the wall is necessary to determine the
number of fixings to be made and the possible choice of
specific anchors for particular situations. In the case of
installation on plasterboard or walls with a low consistency,
provide a bracket on the outside, if necessary, that can
guarantee the safe support of the machine.
The manufacturer cannot be held responsible for any
underestimation of the structural consistency of the
anchorage provided by the installer. We, therefore, invite you
to pay the utmost attention to this operation. Do not install
the unit with the sides directly touching the walls to avoid
possible noise from contact, insert rubber or neoprene
strips in that case.
Provide enough space to perform maintenance activities: it must be possible to open the cover of the unit (front).

12
ENGLISH
ASPIRCOMFORT PRO X 380V
POSITIONING ON MOUNTING BRACKET
After checking that the fixing bracket is firmly fixed to the wall and that the electrical and condensate discharge
connections have been made, you can attach the air conditioner. Lift it up by gripping the sides of the lower base
until the bracket engages in the points provided on the unit. To facilitate the docking operation you can tilt the unit
slightly towards you.
Direct electrical connection (by disconnecting the power cable with plug) and fixing the condensate discharge
must be carried out with the appliance away from the wall by means of a wooden wedge or similar object.
At the end of the work, carefully check that no cracks remain behind the back of the unit, especially in the area of
the air inlet and outlet ducts.
To increase installation safety, the machine can be anchored to the wall by means of a special anti-lifting bracket
on the underside of the machine. The drilling position is shown on the installation template.
1 - Mounting bracket 2 - Anchor holes 3 - Anti-lifting bracket

13
ENGLISH
ASPIRCOMFORT PRO X 380V
2.3 CONDENSATE DISCHARGE CONNECTION
Due to the cooling system, the condensate discharge pipe (Ø16mm internal not supplied) must be connected to
the pipe at the rear of the unit. For this reason, it is essential that the discharge line has a minimum slope of at
least 3% at each point. The tube to be used can be rigid or flexible with a minimum internal diameter of 16 mm. If
the line enters a sewage system, siphoning must be carried out before the pipe enters the main discharge. This
siphon must be at least 300 mm below the inlet of the appliance.
If the drainage line flows into a container (tank or other), it must be ensured that the container is hermetically
sealed and above all that the drainage pipe does not remain immersed in water.
The hole for the condensate pipe must always have an outward slope.
The exact position of the pipe opening in relation to the machine is defined on the drilling template.
Take care in this case that the water expelled does not cause damage or inconvenience to property or persons.
During the winter period this water can cause ice sheets to form outside.
When connecting the condensate discharge, take care not to crush the rubber hose.
If necessary, the condensate tray can be emptied through a safety drain on the base of the appliance.
N.B.: for the installation of the condensation discharge pipe towards the outside, it is recommended to cover the
internal pipe supplied with the appliance with anti-condensation insulation with an internal diameter of 10 mm
(see ref. 2 in the figure).
The insulation must be inserted up to the mouth of the external condensate discharge pipe embedded in the wall.
1 - Safety drain for emptying the water tray
2 - Condensate discharge pipe

14
ENGLISH
ASPIRCOMFORT PRO X 380V
1 - Wall section 2- Insulation
3- Emergency drain 4- Condensate discharge pipe
Condensate discharge connection

15
ENGLISH
ASPIRCOMFORT PRO X 380V
3 AERAULIC CONNECTIONS
3.1 AERAULIC ORIENTATIONS
The unit has 4 male circular rear fittings of different Ø and one rectangular front opening based on the size;
To correctly connect the air ducts, refer to the following diagram and stickers on the unit.
Table of unit aeraulic connection diameters
Codes AP20069
Ø Outdoor air mm 160 mm
Ø Exhaust mm
AIRFLOW CONFIGURATIONS
Rear view
SUPPLY
OUTDOOR AIR
EXHAUST
EXTRACTION

3.2 INSTALLATION OF EXTERNAL GRILLES
Once the holes have been drilled, the plastic sheets supplied must
be inserted into them.
Roll up the sheet and insert it into the hole, paying attention to the
seam line A, which must always be positioned upwards.
Cut off any excess part of the tube using a standard cutter.
To position the external grilles, proceed as follows:
- attach the chains to the end of the springs;
- fold the external dampers back on themselves;
- insert the arm into the hole until the damper protrudes completely
outwards, holding the end of the chains with the other hand to
prevent accidental falls;
- re-open the damper on the outside of the hole;
- turn the damper so that the flap is in the vertical position C and
check that the closing mechanism works;
- pull the chains by tensioning the springs;
- use a wire cutter to cut off the excess chain links;
- fix the chain hook to the wall B.
Use only the grills supplied or grills with the same characteristics.
The dampers must be positioned with the flap vertical.
The dampers are different. A distinction must be made between the
one on the inlet and the one on the outlet, depending on the direction
of opening of the flaps.
Once the installation of the grilles is complete, check their opening
(towards the inside of the duct for the intake grill "IN" and towards
the outside of the duct for the exhaust grill "OUT"). Please note that
the grilles open when the flow of outside air is activated to allow the
cooling or heating function. For their testing, it is therefore essential
to operate the air conditioning system for cooling or heating.
ENGLISH
ASPIRCOMFORT PRO X 380V

17
ENGLISH
ASPIRCOMFORT PRO X 380V
4 ELECTRICAL CONNECTIONS
4.1 GENERAL
- Before starting any operation to perform the electrical connection make sure that the unit is not electrically
powered.
- Perform the necessary electrical connections referring exclusively to the wiring diagram attached to this
manual.
- Install a suitable cut-off and breaker device exclusively serving the unit.
- It is essential for the unit to be earthed.
- Check that the electrical components chosen for installation (main switch, breakers, cable size and terminals)
are suitable for the electrical power of the installed unit and that they take into account the start-up currents of
the compressor in addition to the maximum achievable load. The relative data is stated on the attached wiring
diagram and on the unit’s rating plate.
- It is forbidden to enter the unit with electrical cables except where specified in this file.
- Use duly-sized electrical cables and conductors that comply with the regulations in force in the various
countries.
- Strictly avoid feeding through the electrical cables so that they are directly touching pipes or parts inside the
unit.
- After the first moments of operation, check the tightness of the power supply terminal screws.
Table for power supply line sizing
Power supply V/Ph/Hz 230/1/50
Max absorbed current A 5.0

18
ENGLISH
ASPIRCOMFORT PRO X 380V
4.2 POSITIONING AND PROCEDURES OF THE CONNECTIONS
The unit is supplied with all electrical connections prepared and with a schuko plug for connection to the mains;
The electrical cable entry is located at the bottom of the unit where the cable holes are located;
The connections are inside the electrical compartment, located in the lower left-hand corner where the terminal
block with power supply and ON OFF control is clearly visible;
1 - Cable entry 2 - Terminal block

19
ENGLISH
ASPIRCOMFORT PRO X 380V
4.3 INSERTION OF REMOTE CONTROL BATTERIES
Only a CR2025 3 V dry lithium battery (included in the scope of supply) may be used for the remote control.
Spent batteries may only be disposed of at collection points set up by Local Authorities for this type of waste.
To insert the battery, open the snap-on battery door at the bottom of the remote control.
The battery must be inserted carefully observing polarity. Close the snap-on door once the battery is inserted.

20
ENGLISH
ASPIRCOMFORT PRO X 380V
4.4 WIRING DIAGRAM
