ASROCK Rack ROME2D16-2T User manual

ROME2D16-2T
ROME2D16-NL
ROME2D16-2L+
ROME2D16-2T/BCM
User Manual
Version 1.0
Published July 2022
Copyright©2022 ASRock Rack INC. All rights reserved.

Version 1.0
Published March 2023
Copyright©2023 ASRock Rack INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated
in any language, in any form or by any means, except duplication of documentation by the
purchaser for backup purpose, without written consent of ASRock Rack Inc.
Products and corporate names appearing in this documentation may or may not be
registered trademarks or copyrights of their respective companies, and are used only for
identication or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock Rack. ASRock Rack assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock Rack does not provide
warranty of any kind, either expressed or implied, including but not limited to the implied
warranties or conditions of merchantability or tness for a particular purpose.
In no event shall ASRock Rack, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for loss of
prots, loss of business, loss of data, interruption of business and the like), even if ASRock
Rack has been advised of the possibility of such damages arising from any defect or error
in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
is equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. ese limits are designed to provide
reasonable protection against harmful interference in a residential installation. is
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock
Rack Tel : [phone] ext.123 (Standard International call charges apply)
ASRock Rack INC. hereby declares that this device is in compliance with the essential
requirements and other relevant provisions of related UKCA Directives. Full text of UKCA
declaration of conformity is available at: http://www.asrockrack.com
ASRock Rack INC. hereby declares that this device is in compliance with the essential re-
quirements and other relevant provisions of related Directives. Full text of EU declaration
of conformity is available at: http://www.asrockrack.com
ASRock Rack follows the green design concept to design and manufacture our products,
and makes sure that each stage of the product life cycle of ASRock Rack product is in line
with global environmental regulations. In addition, ASRock Rack disclose the relevant
information based on regulation requirements.
Please refer to https://www.asrockrack.com/general/about.asp?cat=Responsibility for
information disclosure based on regulation requirements ASRock Rack is complied with:
DO NOT throw the motherboard in municipal waste. is product has been
designed to enable proper reuse of parts and recycling. is symbol of the
crossed out wheeled bin indicates that the product (electrical and electronic
equipment) should not be placed in municipal waste. Check local regulations
for disposal of electronic products.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Unique Features 6
1.4 Motherboard Layout 7
1.5 Onboard LED Indicators 10
1.6 I/O Panel 12
1.7 Block Diagram 15
Chapter 2 Installation 19
2.1 Screw Holes 19
2.2 Pre-installation Precautions 20
2.3 Installing the CPU and Heatsink 21
2.4 Installation of Memory Modules (DIMM) 25
2.5 Expansion Slots (PCI and PCI Express Slots) 27
2.6 Onboard Headers and Connectors 28
2.7 Dr. Debug 34
2.8 Unit Identication purpose LED/Switch 40
2.9 Dual LAN and Teaming Operation Guide
(ROME2D16-2T / ROME2D16-2L+ / ROME2D16-2T/BCM only) 41
2.10 M.2 SSD Module Installation Guide 42
Chapter 3 UEFI Setup Utility 44
3.1 Introduction 44
3.1.1 UEFI Menu Bar 44

3.1.2 Navigation Keys 45
3.2 Main Screen 46
3.3 Advanced Screen 47
3.3.1 CPU Conguration 48
3.3.2 Chipset Conguration 49
3.3.3 Storage Conguration 52
3.3.4 ACPI Conguration 53
3.3.5 USB Conguration 54
3.3.6 Super IO Conguration 55
3.3.7 Serial Port Console Redirection 56
3.3.8 H/W Monitor 59
3.3.9 PCI Subsystem Settings 60
3.3.10 AMD CBS 61
3.3.11 AMD PBS 62
3.3.12 PSP Firmware Versions 63
3.3.13 Tls Auth Conguration 64
3.3.14 Network Stack Conguration 65
3.3.15 Instant Flash 67
3.4 Server Mgmt 68
3.4.1 System Event Log 69
3.4.2 BMC Network Conguration 70
3.4.2 BMC Tools 72
3.5 Security 73
3.5.1 Key Management 74

3.6 Boot Screen 78
3.6.1 CSM Parameters 80
3.7 Event Logs 83
3.8 Exit Screen 85
Chapter 4 Software Support 86
4.1 Download and Install Operating System 86
4.2 Download and Install Software Drivers 86
4.3 Contact Information 86
Chapter 5 Troubleshooting 87
5.1 Troubleshooting Procedures 87
5.2 Technical Support Procedures 89
5.3 Returning Merchandise for Service 89
Appendix A 90
ATX V12 Power Supply Areas 90
Power Supply Mapping Table 90

ROME2D16-2T
ROME2D16-NL
ROME2D16-2L+
ROME2D16-2T/BCM
PB 1
English
Chapter 1 Introduction
ank you for purchasing ASRock Rack ROME2D16-2T / ROME2D16-NL / ROME2D16-
2L+ / ROME2D16-2T/BCM motherboard, a reliable motherboard produced under ASRock
Rack’s consistently stringent quality control. It delivers excellent performance with robust
design conforming to ASRock Rack’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-by-step
guide to the hardware installation. Chapter 3 and 4 contains the conguration guide to BIOS
setup and information of the Soware Support.
1.1 Package Contents
• ASRock Rack ROME2D16-2T / ROME2D16-NL / ROME2D16-2L+ / ROME2D16-2T/
BCM Motherboard
(SSI EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0 cm)
• Quick Installation Guide
• 1 x SATA3 Cable (60cm)
• 1 x I/O Shield
• 2 x Screws for M.2 Sockets
If any items are missing or appear damaged, contact your authorized dealer.
Because the motherboard specications and the BIOS soware might be updated, the con-
tent of this manual will be subject to change without notice. In case any modications of
this manual occur, the updated version will be available on ASRock Rack website without
further notice. You may nd the latest memory and CPU support lists on ASRock Rack
website as well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support/

2 3
English
1.2 Specications
ROME2D16-2T / ROME2D16-NL / ROME2D16-2L+ / ROME2D16-2T/BCM
MB Physical Status
Form Factor SSI EEB
Dimension 12'' x 13'' (30.5 cm x 33.0 cm)
Processor System
CPU Supports AMD EPYC™ 7003 /7002 Series Processors
Socket 2 AMD Socket SP3
ermal Design
Power
ermal 225W (240W cTDP), Power 280W
CPLD LCMXO3LF-1300C-5BG
System Memory
Capacity 16 DIMM slots
Type - Eight Channel memory technology (1DPC)
- Support DDR4 3200/2666/2400 RDIMM, LRDIMM, 3DS
and NVDIMM
DIMM Size Per
DIMM
- RDIMM: 64GB, 32GB, 16GB, 8GB
- LRDIMM: 256GB, 128GB, 64GB, 32GB
- 3DS: 32GB, 16GB, 8GB
- NV DIMM: 32GB
DIMM
Frequency
- RDIMM: 3200MHz
- LRDIMM: 3200MHz
- 3DS: 3200MHz
- NVDIMM: 2666MHz
Voltage 1.2V
Expansion Slot
PCIe 4.0 x16 Slot1: Gen4 x16 link (CPU0)
Slot3: Gen4 x16 link (CPU0)
Slot4: Gen4 x16 link (CPU1)
Slot5: Gen4 x16 link (CPU0)
Slot6: Gen3 x16 link (CPU1)
PCIe 4.0 x8 Slot2: Gen4 x8 link (CPU1) (Open-end)
Storage
SATA
Controller
EPYC 7003/7002: 4 x SATA3
M.2 2 (M2_1: M-key (PCIe4.0 x4), Type 2242/2280/22110 from
CPU0; M2_2: M-key (PCIe4.0 x4 or SATA 6Gb/s), Type
2242/2280/22110 from CPU0)
OCulink 2 (PCIe4.0 x4 or 4 SATA 6Gb/s)
SlimSAS 1 Low-Prole SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s) (CPU0)
1 Low-Prole SlimSAS (PCIe4.0 x8 or 8 SATA 6Gb/s) (CPU1)
Note Low Prole SlimSAS from CPU0 supports PCIe only while
installing 2 processors

ROME2D16-2T
ROME2D16-NL
ROME2D16-2L+
ROME2D16-2T/BCM
2 3
English
Ethernet
Interface ROME2D16-2T:
Gigabit LAN 100/1000/10000 Mb/s
ROME2D16-NL:
N/A
ROME2D16-2L+:
Gigabit LAN 10/100/1000 Mb/s
LAN ROME2D16-2T:
2 x RJ45 10GLAN by Intel®X550-AT2
1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI
ROME2D16-NL:
1 x RJ45 Dedicated IPMI LAN port
ROME2D16-2L+:
2 x RJ45 1GLAN by Intel®I350
1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI
ROME2D16-2T/BCM:
2 x RJ45 10GLAN by Broadcom 57416
1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI
Management
BMC Controller ASPEED AST2500 : IPMI (Intelligent Platform Management
Interface) 2.0 with Ikvm and vMedia support
IPMI Dedicated
GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI

4 5
English
Graphics
Controller ASPEED AST2500
VRAM DDR4 512MB
Rear Panel I/O
VGA Port 1 x D-Sub
USB 3.2 Gen1
Port
2 (USB 3.2 Gen1 at 5Gbps)
LAN Port ROME2D16-2T / ROME2D16-2L+:
- 2 + 1 (IPMI 2.0)

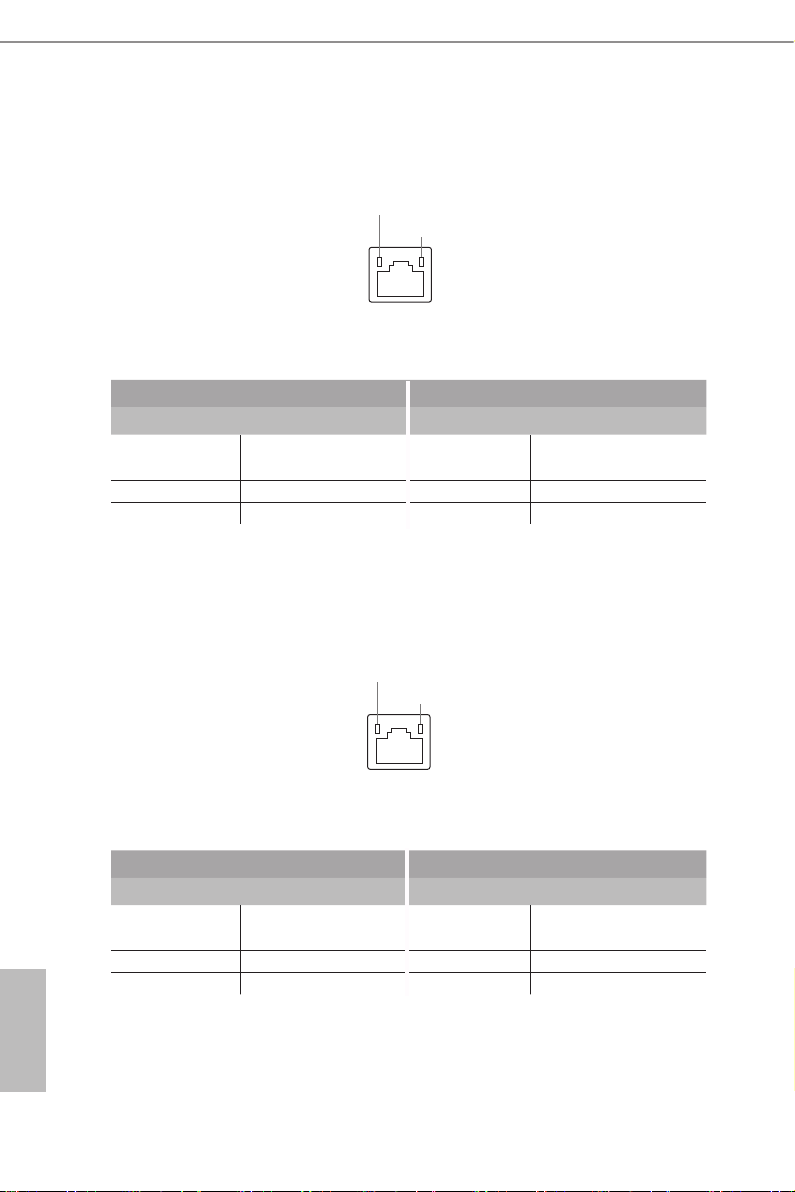

- LAN Ports with LED (ACT/LINK LED and SPEED LED)
ROME2D16-NL:
- 1 (IPMI 2.0)
- LAN Port with LED (ACT/LINK LED and SPEED LED)
UID Button/
LED
1
Internal Connector
Auxiliary Panel
Header
1 (includes chassis intrusion, location button & LED, front
LAN LED)
TPM Header 1
TPM_BIOS_
PH1
1
IPMB Header 1
Front VGA
Header
1
Fan Header 8 Fans (6-pin)
ATX Power 1 (24-pin) + 3 (8-pin)
USB 3.2 Gen1
Header
1 ( support 2 USB 3.2 Gen1 ports at 5Gbps)
Smbus from
BMC
2
NMI Header 1
SGPIO Header 4
Front Panel
Header
1
ClearCMOS 1 (short pad)
CPU_HSBP 1
OH/FanFail
LED
8 (only Fan Fail LED)
COM Header 1
System BIOS
BIOS Ty pe 32Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash

ROME2D16-2T
ROME2D16-NL
ROME2D16-2L+
ROME2D16-2T/BCM
4 5
English
Hardware Monitor
Temperature - CPU Temperature Sensing
- System Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, +1.8V,
+3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB
Support OS
OS Microso® Windows®:
- Server 2016 (64 bit)
- Server 2019 (64 bit)
- Server 2022 (64 bit)
Linux®:
- RedHat Enterprise Linux Server Server 8.2 (64 bit) / 7.9
(64 bit)
- CentOs 8.2 (64 bit) / 7.9 (64 bit)
- SUSE SLES 15.2 (64 bit) / 12.5 (64 bit)
- UBuntu 20.04.4 (64 bit) / 18.04.5 (64 bit) / 16.04.7 (64 bit)
Hypervisor:
- VMWare ESXi 7.0 U1 / 6.7 U3
*Please refer to our website for the latest OS support list.
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C
If you install Intel® LAN utility or Marvell SATA utility, this motherboard may fail Win-
dows® Hardware Quality Lab (WHQL) certication tests. If you install the drivers only, it
will pass the WHQL tests.
is motherboard supports Wake from on Board LAN. To use this function, please make
sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager
> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is
enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard
LAN can wake up S5 under OS.

6 7
English
1.3 Unique Features
ASRock Rack Instant Flash is a BIOS ash utility embedded in Flash ROM. is con-
venient BIOS update tool allows you to update system BIOS without entering operat-
ing systems rst like MS-DOS or Windows®. With this utility, you can press the <F6>
key during the POST or the <F2> key to enter into the BIOS setup menu to access
ASRock Rack Instant Flash. Just launch this tool and save the new BIOS le to your
USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a
few clicks without preparing an additional oppy diskette or other complicated ash
utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12
le system.

ROME2D16-2T
ROME2D16-NL
ROME2D16-2L+
ROME2D16-2T/BCM
6 7
English
1.4 Motherboard Layout
ROME2D16-2T / ROME2D16-NL / ROME2D16-2L+ / ROME2D16-2T/BCM
ATXPWR1
VGA1
DDR4_I1 (64 bit, 288-pin module,)Blue
DDR4_J1 (64 bit, 288-pin module, Blue)
DDR4_K1 (64 bit, 288-pin module, Blue)
DDR4_L1 (64 bit, 288-pin module,)Blue
DDR4_P1 (64 bit, 288-pin module, Blue)
DDR4_O1 (64 bit, 288-pin module,)Blue
DDR4_N1 (64 bit, 288-pin module, Blue)
DDR4_M1 (64 bit, 288-pin module,)Blue
RoHS
DDR4_E1 (64 bit, 2-pin module,)88 Blue
DDR4_F1 (64 bit, 2-pin module, Blue)88
DDR4_G1 (64 bit, 2-pin module,)88 Blue
DDR4_H1 (64 bit, 288-pin module, Blue)
DDR4_D1 (64 bit, 2-pin module, Blue)88
DDR4_C1 (64 bit, 2-pin module, Blue)88
DDR4_B1 (64 bit, 2-pin module, Blue)88
DDR4_A1 (64 bit, 288-pin module,)Blue
PCIE2
PCIE4
PCIE6
PCIE3
PCIE1
ATX12V2
1
33.0cm (13.0 in)
30.5cm (12.0 in)
BIOS
ROM
UID1
CPU0
CPU1
FAN1
M2_1
NUT2242_1 NUT2280_1 NUT22110_1
PCIE5
1
FRNT_VGA1
BMC
ROM
34 57
128
9
10
11
12
13
14
45
48
USB3_3_4
CPU1_HSBP1
IPMI_LAN
USB 3.2 Gen1
T: USB1
B: USB2
LAN1
46
49
LAN2
1
TPM_BIOS_PH1
OCU1
M2_2
NUT2242_2 NUT2280_2 NUT22110_2
ATX12V1
SLIM2SLIM1
OCU2
FAN2
SATA_0
SATA_1
SATA_2
SATA_3
ATX12V3
BATTERY1
FAN3
FAN4
FAN5
FAN6
FAN7
FAN8
HDLED RESET
PLED PWRBTN
PANEL1
1
1
AUX_PANEL1
1
SATA_SGPIO4
1
SATA_SGPIO3
1
SATA_SGPIO1
1
SATA_SGPIO2
TPM1
1
IPMB_1
BMC_SMB_1
BMC_SMB_2
Dr.
Drbug
1
NMI_BTN1
1
COM1
ROME2D16-2T
CLRMOS1
25
262728293013132333435363738
44
4041
20
21
22
23
24
16
17
18
19
6
15
39
47
42
43
ROME2D16-2L+
(ROME2D16-2T /
only)
ROME2D16-2L+ /
ROME2D16-2T /BCM
ROME2D16-NL
ROME2D16-2T/BCM

8 9
English
No. Description
1 2 x 288-pin DDR4 DIMM Slots (DDR4_F1, DDR4_H1)*
2 2 x 288-pin DDR4 DIMM Slot (DDR4_E1, DDR4_G1)*
3 Low-Prole SlimSAS Connector (SLIM1)
4 ATX 12V Power Connector (ATX12V1)
5 ATX 12V Power Connector (ATX12V2)
6 USB 3.2 Gen1 Header (USB3_3_4)
7 ATX Power Connector (ATXPWR1)
8 System Fan Connector (FAN1)
9 Low-Prole SlimSAS Connector (SLIM2)
10 2 x 288-pin DDR4 DIMM Slots (DDR4_J1, DDR4_L1)*
11 2 x 288-pin DDR4 DIMM Slot (DDR4_I1, DDR4_K1)*
12 AMD Socket SP3 (CPU1)
13 2 x 288-pin DDR4 DIMM Slots (DDR4_M1, DDR4_O1)*
14 2 x 288-pin DDR4 DIMM Slot (DDR4_N1, DDR4_P1)*
15 OCuLink x4 Connector (OCU2)
16 System Fan Connector (FAN4)
17 System Fan Connector (FAN2)
18 SATA3 Connector (SATA_0)
19 SATA3 Connector (SATA_1)
20 SATA3 Connector (SATA_2)
21 SATA3 Connector (SATA_3)
22 System Fan Connector (FAN3)
23 ATX 12V Power Connector (ATX12V3)
24 System Fan Connector (FAN5)
25 System Fan Connector (FAN7)
26 System Panel Header (PANEL1)
27 System Fan Connector (FAN6)
28 Auxiliary Panel Header (AUX_PANEL1)
29 System Fan Connector (FAN8)
30 SATA SGPIO Connector (SATA_SGPIO3)
31 SATA SGPIO Connector (SATA_SGPIO4)
32 SATA SGPIO Connector (SATA_SGPIO1)
33 SATA SGPIO Connector (SATA_SGPIO2)

ROME2D16-2T
ROME2D16-NL
ROME2D16-2L+
ROME2D16-2T/BCM
8 9
English
No. Description
34 TPM Header (TPM1)
35 Intelligent Platform Management Bus header (IPMB_1)
36 BMC SMBus Header (BMC_SMB_1)
37 BMC SMBus Header (BMC_SMB_2)
38 Non Maskable Interrupt Button (NMI_BTN1)
39 Clear CMOS Pad (CLRMOS1)
40 Serial Port Header (COM1)
41 Front VGA Header (FRNT_VGA1)
42 M.2 Socket (M2_2) (Type 2242 / 2280 / 22110)
43 M.2 Socket (M2_1) (Type 2242 / 2280 / 22110)
44 OCuLink x4 Connector (OCU1)
45 2 x 288-pin DDR4 DIMM Slots (DDR4_B1, DDR4_D1)*
46 2 x 288-pin DDR4 DIMM Slot (DDR4_A1, DDR4_C1)*
47 TPM-SPI Header (TPM_BIOS_PH1)
48 AMD Socket SP3 (CPU0)
49 Backplane PCI Express Hot-Plug Connector (CPU1_HSBP1)
*For DIMM installation and conguration instructions, please see p.25 (Installation of Memory Modules
(DIMM)) for more details.

10 11
English
1.5 Onboard LED Indicators
DDR4_I1 (64 bit, 288-pin module,)Blue
DDR4_J1 (64 bit, 288-pin module, Blue)
DDR4_K1 (64 bit, 288-pin module, Blue)
DDR4_L1 (64 bit, 288-pin module,)Blue
DDR4_E1 (64 bit, 2-pin module,)88 Blue
DDR4_F1 (64 bit, 2-pin module, Blue)88
DDR4_G1 (64 bit, 2-pin module,)88 Blue
DDR4_H1 (64 bit, 288-pin module, Blue)
DDR4_D1 (64 bit, 2-pin module, Blue)88
DDR4_C1 (64 bit, 2-pin module, Blue)88
DDR4_B1 (64 bit, 2-pin module, Blue)88
DDR4_A1 (64 bit, 288-pin module,)Blue
1
1
1
1
ROME2D16-2T
1
2
3
4
5
6
7
8910
DDR4_P1 (64 bit, 288-pin module, Blue)
DDR4_O1 (64 bit, 288-pin module,)Blue
DDR4_N1 (64 bit, 288-pin module, Blue)
DDR4_M1 (64 bit, 288-pin module,)Blue

ROME2D16-2T
ROME2D16-NL
ROME2D16-2L+
ROME2D16-2T/BCM
10 11
English
No. Item Status Description
1FAN_LED1 Amber FAN1 failed
2FAN_LED2 Amber FAN2failed
3FAN_LED4 Amber FAN4 failed
4FAN_LED3 Amber FAN3 failed
5FAN_LED5 Amber FAN5 failed
6FAN_LED7 Amber FAN7 failed
7FAN_LED8 Amber FAN8 failed
8 SB_PWR1 Green STB PWR ready
9FAN_LED6 Amber FAN6 failed
10 BMC_LED1 Green BMC heartbeat LED

12 13
English

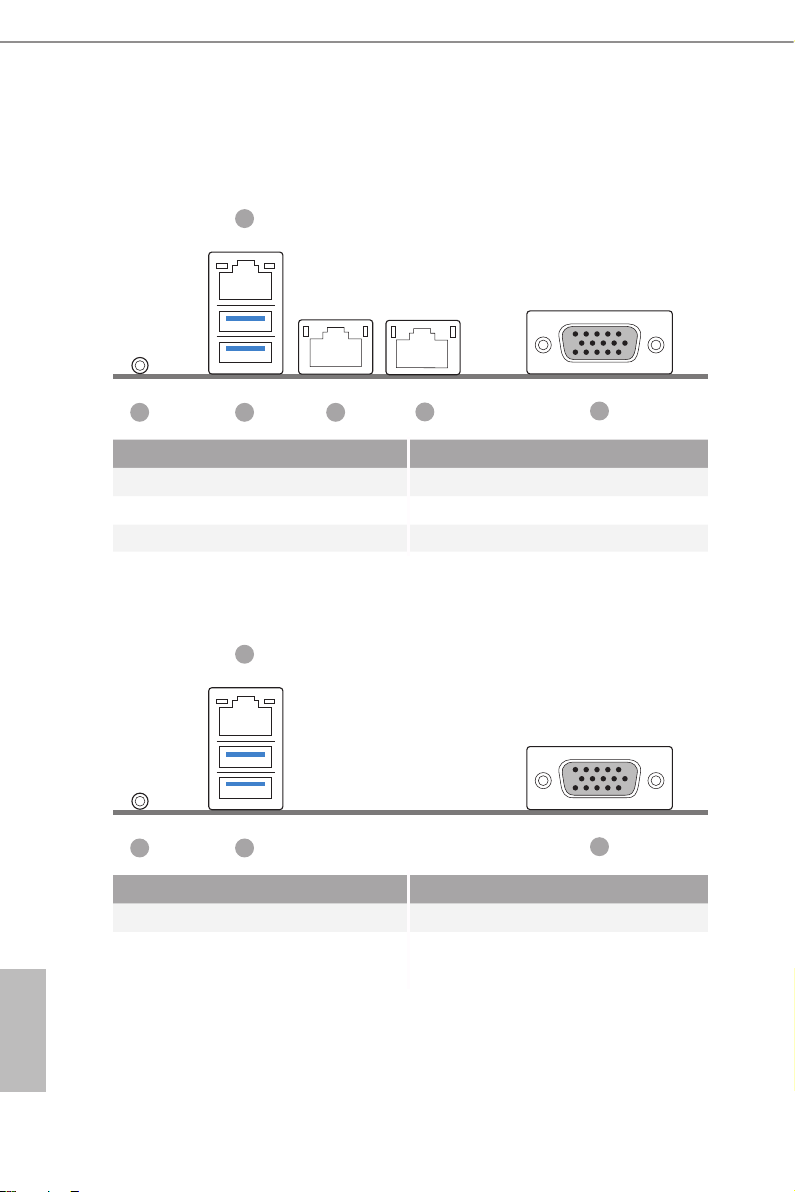

1.6 I/O Panel
ROME2D16-2T / ROME2D16-2T/BCM
2
3
16
45
No. Description No. Description
1 UID Switch (UID) 4 10G LAN RJ-45 Port (LAN1)**
2 USB 3.2 Gen1 Ports (USB3_1_2) 5 10G LAN RJ-45 Port (LAN2)**
3 LAN RJ-45 Port (IPMI_LAN)* 6 VGA Port (VGA1)
ROME2D16-NL
2
3
14
No. Description No. Description
1 UID Switch (UID) 3 LAN RJ-45 Port (IPMI_LAN)*
2 USB 3.2 Gen1 Ports (USB3_1_2) 4 VGA Port (VGA1)

ROME2D16-2T
ROME2D16-NL
ROME2D16-2L+
ROME2D16-2T/BCM
12 13
English
ROME2D16-2L+
2
3
16
45
No. Description No. Description
1 UID Switch (UID) 4 1G LAN RJ-45 Port (LAN1)***
2 USB 3.2 Gen1 Ports (USB3_1_2) 5 1G LAN RJ-45 Port (LAN2)***
3 LAN RJ-45 Port (IPMI_LAN)* 6 VGA Port (VGA1)
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
ACT/LINK LED
SPEED LED
LAN Port

14 15
English
LAN Port LED Indications (ROME2D16-2T/ROME2D16-2T/BCM only)
**ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
10G LAN Port (LAN1, LAN2) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 100Mbps connection or
no link
Blinking Orange Data Activity Orange 1Gbps connection
On Link Green 10Gbps connection
LAN Port LED Indications (ROME2D16-2L+ only)
***ere are two LED next to the LAN port. Please refer to the table below for the LAN
port LED indications.
1G LAN Port (LAN1, LAN2) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection or
no link
Blinking Orange Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LE
D
LAN Port
ACT/LINK LED
SPEED LE
D
LAN Port
