is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Rack’s Website: www.ASRockRack.com

Contact Information
If you need to contact ASRock Rack or want to know more about ASRock Rack, you’re
welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you may contact
your dealer for further information.
ASRock Rack Incorporation
6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Unique Features 5
1.4 Motherboard Layout 6
1.5 Onboard LED Indicators 9
1.6 I/O Panel 11
1.7 Block Diagram 12
Chapter 2 Installation 13
2.1 Screw Holes 13
2.2 Pre-installation Precautions 13
2.3 Installing the CPU and Heatsink 14
2.4 Installation of Memory Modules (DIMM) 18
2.5 Expansion Slots (PCI Express Slots) 21
2.6 Jumper Setup 22
2.7 Onboard Headers and Connectors 25
2.8 Dr. Debug 31
2.9 Unit Identication purpose LED/Switch 32
2.10 Driver Installation Guide 32
2.11 M.2_SSD (NGFF) Module Installation Guide 33
Chapter 3 UEFI Setup Utility 35
3.1 Introduction 35
3.1.1 UEFI Menu Bar 35

3.1.2 Navigation Keys 36
3.2 Main Screen 37
3.3 Advanced Screen 38
3.3.1 CPU Conguration 39
3.3.2 Memory Conguration 42
3.3.3 Chipset Conguration 44
3.3.4 Storage Conguration 47
3.3.5 ACPI Conguration 49
3.3.6 USB Conguration 50
3.3.7 Super IO Conguration 51
3.3.8 Serial Port Console Redirection 52
3.3.9 H/W Monitor 55
3.3.10 Runtime Error Logging 57
3.3.11 Intel SPS Conguration 59
3.3.12 Intel(R) VMD Technology 60
3.3.13 Intel(R) Virtual RAID on CPU 61
3.3.14 Instant Flash 62
3.4 Security 63
3.4.1 Key Management 64
3.5 Boot Screen 67
3.5.1 CSM Parameters 69
3.6 Event Logs 71
3.7 Server Mgmt 73
3.7.1 System Event Log 74

3.7.2 BMC Network Conguration 75
3.8 Exit Screen 77
Chapter 4 Software Support 78
4.1 Install Operating System 78
4.2 Support CD Information 78
4.2.1 Running The Support CD 78
4.2.2 Drivers Menu 78
4.2.3 Utilities Menu 78
4.2.4 Contact Information 78
Chapter 5 Troubleshooting 79
5.1 Troubleshooting Procedures 79
5.2 Technical Support Procedures 81
5.3 Returning Merchandise for Service 81

EP2C622D16NM
PB 1
English
Chapter 1 Introduction
ank you for purchasing ASRock Rack EP2C622D16NM motherboard, a reliable
motherboard produced under ASRock Rack’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock Rack’s
commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration
guide to BIOS setup and information of the Support CD.
1.1 Package Contents
• ASRock Rack EP2C622D16NM Motherboard
(SSI EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0 cm)
• 1 x SATA3 Cable (6G) (60cm)
• 1 x Mini SAS HD to 4 SAS/SATA Cable (12G)
• 1 x Screw for M.2 Socket
• Support CD
• User Manual
Note: If an IO shield is needed, please contact our sales representatives for a 3D le (IO shield made by customer)
or to place an order.
If any items are missing or appear damaged, contact your authorized dealer.
Because the motherboard specications and the BIOS soware might be updated, the con-
tent of this manual will be subject to change without notice. In case any modications of
this manual occur, the updated version will be available on ASRock Rack website without
further notice. You may nd the latest memory and CPU support lists on ASRock Rack
website as well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support/

2 3
English
1.2 Specications
EP2C622D16NM
MB Physical Status
Form Factor SSI EEB
Dimension 12'' x 13'' (30.5 cm x 33.0 cm)
Processor System
CPU Intel®Xeon®Scalable Processors
Socket Dual Socket P (3647)
Chipset Intel®C622
System Memory
Capacity 16 DIMM slots
Type - 6 Channel memory technology
- Support DDR4 2666/2400 RDIMM and LRDIMM
Voltage 1.2V
DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Expansion Slot
PCIe 3.0 x 16 2 slots
Storage
SATA Controller Intel®C622 :
12 x SATA3 + 1 x SATA DOM port + 1 x M.2 port,
support RAID 0, 1, 5, 10
OCuLink for U.2 2, x4 from CPU2
Ethernet
Mezzanine type A/B/C
Management
BMC Controller ASPEED AST2500
IPMI Dedicated
GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Features Watch Dog
NMI
Graphics
Controller ASPEED AST2500
VRAM DDR4 16MB
Rear Panel I/O
VGA Port 1 x D-Sub
Serial port 1 x COM port
USB 3.0 Port 2
LAN Port - 1x RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)

EP2C622D16NM
2 3
English
Internal Connector
Auxiliary Panel
Header
1 (includes chassis intrusion, location button & LED, front
LAN LED)
TPM Header 1
IPMB Header 1
Fan Header 2 x CPU Fans, 6 x system Fans (6-pin)
ATX Power 1 (24-pin) + 2 (8-pin)
USB 3.0 Header 1 (supports 2 USB 3.0 ports)
M.2 1 (up to 2280)
Type A USB 3.0 1
SATA DOM 1
Mezzanine 5 (type A x 2, type B (no PHY card support) x 2, type C x 1)
System BIOS
BIOS Ty pe 256Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- SystemTemperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU
Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
1.05V_PCH, +BAT, 3VSB, 5VSB

4 5
English
Support OS
OS Microso® Windows®
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)
Linux®
- CentOS 6.8 (64 bit) / 7. 2 (64 bit) (only supports AHCI mode)
- SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP1 (64 bit)
- FreeBSD 11 (64 bit)
- Fedora Core 24 (64 bit)
- Ubuntu 16.04/15.10 (64 bit)
- RedHat Enterprise Linux Server 6.8 (64 bit) / 7.2 (64 bit)
Virtual:
- VMWare ESXi 6.0
* Please refer to our website for the latest OS support list.
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C
NOTE: Please refer to our website for the latest specications.
is motherboard supports Wake from on Board LAN. To use this function, please make
sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager
> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is
enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard
LAN1&2 can wake up S5 under OS.
If you install Intel® LAN utility or Marvell SATA utility, this motherboard may fail Win-
dows® Hardware Quality Lab (WHQL) certication tests. If you install the drivers only, it
will pass the WHQL tests.

EP2C622D16NM
4 5
English
1.3 Unique Features
ASRock Rack Instant Flash is a BIOS ash utility embedded in Flash ROM. is con-
venient BIOS update tool allows you to update system BIOS without entering operat-
ing systems rst like MS-DOS or Windows®. With this utility, you can press the <F6>
key during the POST or the <F2> key to enter into the BIOS setup menu to access
ASRock Rack Instant Flash. Just launch this tool and save the new BIOS le to your
USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a
few clicks without preparing an additional oppy diskette or other complicated ash
utility. Please be noted that the USB ash drive or hard drive must use FAT32/16/12
le system.

6 7
English

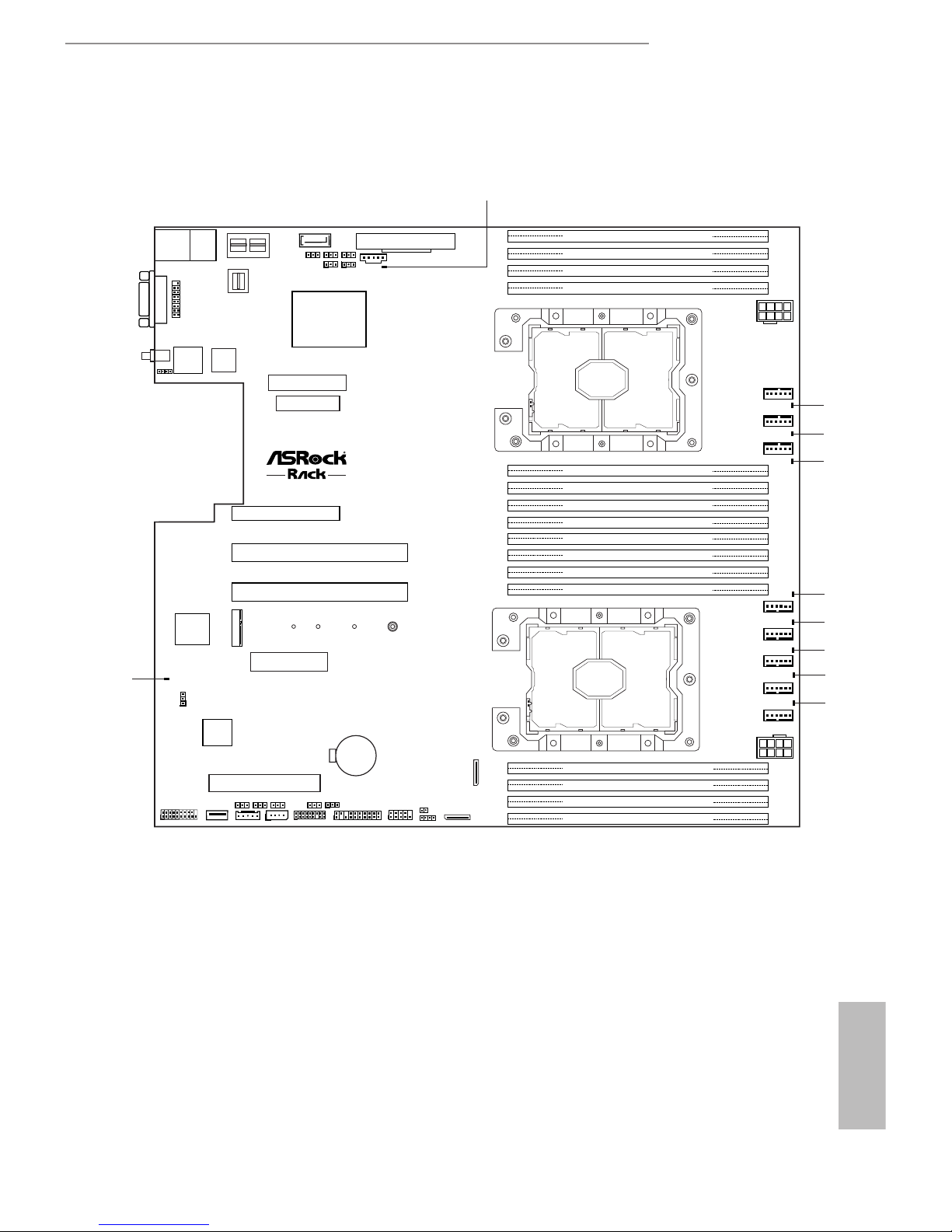

1.4 Motherboard Layout
33.02 cm (13 in)
VGA1
USB 3.0
T: USB2
B: USB1
DDR4_A2 (64 bit, 288-pin module, White)
DDR4_A1 (64 bit, 288-pin module, Blue)
DDR4_B1 (64 bit, 288-pin module, Blue)
DDR4_C1 (64 bit, 288-pin module, Blue)
Intel
C622
DDR4_F1 (64 bit, 288-pin module, Blue)
DDR4_E1 (64 bit, 288-pin module, Blue)
DDR4_D1 (64 bit, 288-pin module, Blue)
DDR4_D2 (64 bit, 288-pin module, White)
DDR4_L1 (64 bit, 288-pin module, Blue)
DDR4_K1 (64 bit, 288-pin module ), Blue
DDR4_J1 (64 bit, 288-pin module), Blue
DDR4_J2 (64 bit, 288-pin module), White
DDR4_G2 (64 bit, 288-pin module, White)
DDR4_G1 (64 bit, 288-pin module, Blue)
DDR4_H1 (64 bit, 288-pin module, Blue)
DDR4_I1 (64 bit, 288-pin module, Blue)
RoHS
IPMI_LAN
ATX12V1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
1
AUX_PANEL1
SPEAKER
BATTERY1
PCIE7
(White)
PCIE6
(Blue)
Dr.
Debug
52
1
FRNT_VGA1
M2_1
11
ATX12V2
12
18
20
21
22
29
28
REAR_FAN1
REAR_FAN2
CPU1_FAN1
FRNT_FAN1
FRNT_FAN2
FRNT_FAN3
FRNT_FAN4
CPU2_FAN1
1
USB3_3_4
USB3_5
11
1
TPM1
1
NMI_BTN1
OCU1
OCU2
MEZZ_MB_A2
1
1111
MEZZ_MB_B2
MEZZ_MB_A1
MEZZ_MB_B1
MEZZ_1_C1
BMC
Super
I/O
1
FRONT_LED_LAN34
UID1
SSATA_0_3
SATA_0_7
SSATA_4
ATXPWR1
1
PSU_SMB1
1
1
11
1
PMBUS_SEL_DAT1
PMBUS_SEL_ALT1
SATAPWR1
NCSI_SEL1
BIOS
ROM
12 3456710
BMC_SMB_1 IPMB_1
CHASSIS_ID2CHASSIS_ID1
CHASSIS_ID0
ME_RECOVERY1
T 1
R
NUT30 NUT42 NUT60 NUT80
89
13
14
15
16
17
19
23
24
25
26
27
30
313233343536373839404142
44
43
45
46
47
48
49
56
57
EP2C622D16NM
CPU2
CPU1
30.5 cm (12 in)
1
PECI1
53
PMBUS_SEL_CLK1
55
54
51
50

EP2C622D16NM
6 7
English
No. Description
1 Mini-SAS HD Connector (SSATA_0_3)**
2 Mini-SAS HD Connector (SATA_0_7)
3PMBUS Mode Jumper (PMBUS_SEL_ALT1)
4 SATA DOM Power Jumper (SATAPWR1)
5 SATA DOM Connector, Red (SSATA_4)**
6PMBUS Mode Jumper (PMBUS_SEL_CLK1)
7 NCSI Mode Jumper (NCSI_SEL1)
8 ATX Power Connector (ATXPWR1)
9PSU SMBus (PSU_SMB1)
10 PMBUS Mode Jumper (PMBUS_SEL_DAT1)
11 3 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1, DDR4_C1, Blue)*
12 1 x 288-pin DDR4 DIMM Slots (DDR4_A2, White)*
13 ATX 12V Power Connector (ATX12V1)
14 LGA 3647 CPU Socket P0 (CPU1)
15 Rear Fan Connector (REAR_FAN1)
16 Rear Fan Connector (REAR_FAN2)
17 CPU1 Fan Connector (CPU1_FAN1)
18 1 x 288-pin DDR4 DIMM Slots (DDR4_D2, White)*
19 3 x 288-pin DDR4 DIMM Slots (DDR4_D1, DDR4_E1, DDR4_F1, Blue)*
20 3 x 288-pin DDR4 DIMM Slots (DDR4_G1, DDR4_H1, DDR4_I1, Blue)*
21 1 x 288-pin DDR4 DIMM Slots (DDR4_G2, White)*
22 Front Fan Connector (FRNT_FAN1)
23 Front Fan Connector (FRNT_FAN2)
24 Front Fan Connector (FRNT_FAN3)
25 LGA 3647 CPU Socket P0 (CPU2)
26 Front Fan Connector (FRNT_FAN4)
27 CPU2 Fan Connector (CPU2_FAN1)
28 ATX 12V Power Connector (ATX12V2)
29 1 x 288-pin DDR4 DIMM Slots (DDR4_J2, White)*
30 3 x 288-pin DDR4 DIMM Slots (DDR4_J1, DDR4_K1, DDR4_L1, Blue)*
31 OCuLink x4 Connector (OCU2)
32 OCuLink x4 Connector (OCU1)
33 Non Maskable Interrupt Button (NMI_BTN1)

8 9
English
No. Description
34 Speaker Header (SPEAKER1)
35 System Panel Header (PANEL1)
36 Auxiliary Panel Header (AUX_PANEL1)
37 ermal Sensor Header (TR1)
38 TPM Header (TPM1)
39 Intelligent Platform Management Bus header (IPMB1)
40 Chassis ID1 Jumper (CHASSIS_ID1)
41 BMC SMBus Header (BMC_SMB_1)
42 Vertical Type A USB 3.0 (USB3_5)
43 BMC SMBus Header 1 (BMC_SMB1)
44 Chassis ID2 Jumper (CHASSIS_ID2)
45 Chassis ID0 Jumper (CHASSIS_ID0)
46 Mezzanine Slot (MEZZ_MB_A2)***
47 ME Recovery Jumper (ME_RECOVERY1)
48 CPU PECI Mode Jumper (PECI1)
49 Mezzanine Slot (MEZZ_MB_B2)***
50 M.2 Slot (M2_2)
51 PCI Express 3.0 Slot (PCIE6)
52 PCI Express 3.0 Slot (PCIE7)
53 Mezzanine Slot (MEZZ_MB_A1)
54 Mezzanine Slot (MEZZ_1_C1)
55 Mezzanine Slot (MEZZ_MB_B1)
56 Front LAN LED Header (FRONT_LED_LAN34)
57 Front VGA Header (FRONT_VGA1)
*For DIMM installation and conguration instructions, please see p.17 (Installation of Memory Modules (DIMM))
for more details.
** e rst “S“ of the “SSATA” means “secondary”. SATA is managed by the rst controller. SSATA is managed by
the secondary controller.
*** Only supports ASRockRack storage cards.

EP2C622D16NM
8 9
English
1.5 Onboard LED Indicators
VGA1
USB 3.0
T: USB2
B: USB1
DDR4_A2 (64 bit, 288-pin module, White)
DDR4_A1 (64 bit, 288-pin module, Blue)
DDR4_B1 (64 bit, 288-pin module, Blue)
DDR4_C1 (64 bit, 288-pin module, Blue)
Intel
C622
DDR4_F1 (64 bit, 288-pin module, Blue)
DDR4_E1 (64 bit, 288-pin module, Blue)
DDR4_D1 (64 bit, 288-pin module, Blue)
DDR4_D2 (64 bit, 288-pin module, White)
DDR4_L1 (64 bit, 288-pin module, Blue)
DDR4_K1 (64 bit, 288-pin module), Blue
DDR4_J1 (64 bit, 288-pin module ), Blue
DDR4_J2 (64 bit, 288-pin module ), White
DDR4_G2 (64 bit, 288-pin module, White)
DDR4_G1 (64 bit, 288-pin module, Blue)
DDR4_H1 (64 bit, 288-pin module, Blue)
DDR4_I1 (64 bit, 288-pin module, Blue)
RoHS
IPMI_LAN
1
1
1
BATTERY1
PCIE7
(White)
PCIE6
(Blue)
Dr.
Debug
1
M2_1
1
11
1
1
MEZZ_MB_A2
1
1111
MEZZ_MB_B2
MEZZ_MB_A1
MEZZ_MB_B1
MEZZ_1_C1
BMC
Super
I/O
1
UID1
ATXPWR1
1
1
1
11
1
BIOS
ROM
1
2
3
4
NUT30 NUT42 NUT60 NUT80
EP2C622D16NM
SB_PWR1
5
6
7
8
9
BMC_LED1
1
10
FFAN_LED1
FFAN_LED2
CPU_FAN_LED2
FFAN_LED3
FFAN_LED4
CPU_FAN_LED1
RFAN_LED3
RFAN_LED4

10 11
English
No. Item Status Description
1 SB_PWR1 Green STB PWR ready
2RFAN_LED1 Amber Rear_FAN1 failed
3RFAN_LED2 Amber Rear_FAN2 failded
4CPU_FAN_LED1 Amber CPU1_FAN failed
5FFAN_LED1 Amber FRNT_FAN1 failed
6FFAN_LED2 Amber FRNT_FAN2 failed
7FFAN_LED3 Amber FRNT_FAN3 failed
8FFAN_LED4 Amber FRNT_FAN4 failed
9CPU_FAN_LED2 Amber CPU2_FAN failed
10 BMC_LED1 Green BMC heartbeat LED

EP2C622D16NM
10 11
English
1.6 I/O Panel
34
1
2
No. Description No. Description
1 USB 3.0 Ports (USB3_1_2) 3 VGA Port (VGA1)
2 LAN RJ-45 Port (IPMI_LAN1)* 4 UID Switch (UID)
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
ACT/LINK LED
SPEED LED
LAN Port

12 13
English
1.7 Block Diagram
Joufm!Qspdfttps
Tlzmblf
MHB.4758 Q1 Tpdlfu
DQV2!316X
JOUFM
QDI
D733
EES5!32440
351103777
EES5!32440
351103777
EES5!32440
351103777
Joufm!Qspdfttps
Tlzmblf
MHB.4758 Q1 Tpdlfu
DQV3 316X
EES5!32440
351103777
EES5!32440
351103777
EES5!32440
351103777
Nf{{bojof 2
Uzqf B-C-D
QDJ.F!4!y27
N3!Tmpu
QDJ.F!4!Y27
Tmpu!8
QDJ.F!4!Y27
Tmpu!7
CND!
BTU3611
EES5!32440
351103777
EES5!32440
351103777
EES5!32440
351103777
EES5!32440
351103777
EES5!32440
351103777
EES5!32440
351103777
TTBUB!EPN
Nf{{bojof 3
Uzqf B-C
QDJ.F!4!y 27

EP2C622D16NM
12 13
English
Chapter 2 Installation
is is a SSI EEB form factor (12” x 13”, 30.5 cm x 33.0 cm) motherboard. Before you install
the motherboard, study the conguration of your chassis to ensure that the motherboard
ts into it.
EP2C622D16NM is a dual socket motherboard that supports Intel® Xeon® Scalable
Processors. Please install a primary processor (BootStrap Processor) into “CPU1” socket
and then install a non-Primary Processor (Application Processors) into “CPU2” socket.
*For a single CPU, please install it into “CPU1” socket (framed by a square).
2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the chassis.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the motherboard’s components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the compo-
nents.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in
the bag that comes with the component.
5. When placing screws into the screw holes to secure the motherboard to the chassis,
please do not over-tighten the screws! Doing so may damage the motherboard.
Make sure to unplug the power cord before installing or removing the motherboard. Failure
to do so may cause physical injuries to you and damages to motherboard components.
Do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached from the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

14 15
English

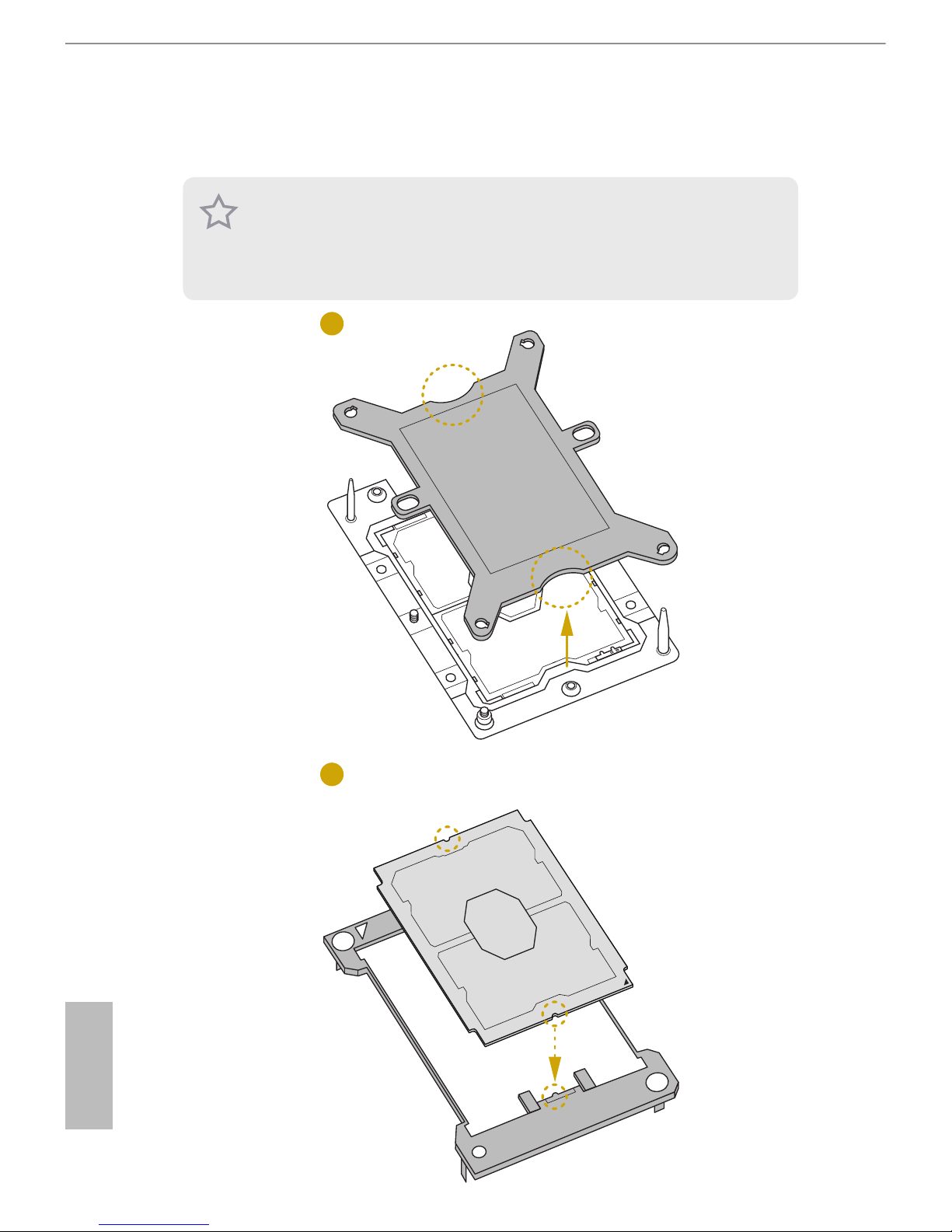

2.3 Installing the CPU and Heatsink
1. Before you insert the CPU into the socket, please check if the PnP cap is on the socket,
if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to
insert the CPU into the socket if above situation is found. Otherwise, the CPU will be
seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
