Chapter 1 Introduction
ank you for purchasing ASRock Rack ROMED8U-2T / ROMED8U-2T/BCM
motherboard, a reliable motherboard produced under ASRock Rack’s consistently stringent
quality control. It delivers excellent performance with robust design conforming to ASRock
Rack’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-by-step
guide to the hardware installation. Chapter 3 and 4 contains the conguration guide to BIOS
setup and information of the Support CD.
1.1 Package Contents
• ASRock Rack ROMED8U-2T / ROMED8U-2T/BCM Motherboard
(micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
• Quick Installation Guide
• 1 x I/O Shield
• 1 x Mini SAS HD to 4*SATA Cable (60cm)
• 1 x ATX 4P to 24P Power Cable (8cm)
• 1 x SATA 6P to 15P Power Cable (80cm)
• 1 x SATA3 Cable (60cm)
• 1 x Screw for M.2 Socket
If any items are missing or appear damaged, contact your authorized dealer.
Because the motherboard specications and the BIOS soware might be updated, the con-
tent of this manual will be subject to change without notice. In case any modications of
this manual occur, the updated version will be available on ASRock Rack website without
further notice. You may nd the latest memory and CPU support lists on ASRock Rack
website as well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support/

2 3
English
1.2 Specications
ROMED8U-2T / ROMED8U-2T/BCM
MB Physical Status
Form Factor micro ATX
Dimension 9.6'' x 9.6'' (24.4 cm x 24.4 cm)
Processor System
CPU AMD EPYC™7003 and 7002Series Processors
Socket Single Socket P+ (LGA4094)
Max. ermal
Design Power
(TDP)
280W
Chipset System on chip
System Memory
Type - Eight Channel DDR4 memory technology (1DPC)
- Supports DDR4 RDIMM/ RDIMM-3DS/ LRDIMM/
LRDIMM-3DS/NVDIMM
DIMM Size Per
DIMM
- RDIMM: 64GB, 32GB, 16GB, 8GB
- RDIMM-3DS: 256GB, 128GB, 64GB, 32GB, 16GB, 8GB
- LRDIMM: 128GB, 64GB, 32GB
- LRDIMM-3DS: 256GB, 128GB, 64GB, 32GB, 16GB, 8GB
- NVDIMM: 32GB
*Max. memory capacity and frequency are to be validated
DIMM Frequency - RDIMM: 3200MHz
- LRDIMM: 3200MHz
- NVDIMM: 2666MHz
*Max. memory capacity and frequency are to be validated
Voltage 1.2V
Expansion Slot
PCIe 4.0 x 16 PCIE4: Gen4 x16 link
PCIE5: Gen4 x16 link
PCIE6: Gen4 x16 link
Storage
SATA Controller AMD EPYC 7003/7002 series processors
11SATA 6Gb/s: 2 Mini-SAS HD, 2 SATA 7-pin, 1 M.2
M.2 Slot 1 (M2_1: 2280, PCIe4.0 x4 or SATA 6Gb/s)
SlimSAS 2 Low-Prole SlimSAS (PCIe4.0 x8)
Mini-SAS HD 2 (SATA Gen3 x8)
Ethernet
Interface ROMED8U-2T:
10000/1000/100 Mbps by Intel®X710-AT2
ROMED8U-2T/BCM:
10000/1000/100 Mbps by Broadcom 57416B

ROMED8U-2T
ROMED8U-2T/BCM
2 3
English
LAN Controller ROMED8U-2T:
- 2 x RJ45 10GbE RJ45 by Intel® X710-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
ROMED8U-2T/BCM:
- 2 x RJ45 10GbE RJ45 by BCM 57416B
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
Management
BMC Controller ASPEED AST2500
IPMI Dedicated
GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Features Watch Dog
NMI
Graphics
Controller ASPEED AST2500
Rear Panel I/O
VGA Port 1 x D-Sub
USB 3.2 Gen1 Port 2
LAN Port - 2+1 RJ45 Gigabit Ethernet LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID 1
Internal Connector
Auxiliary Panel
Header
1 (includes chassis intrusion, location button & LED, and front
LAN LED)
Panel Header 1
TPM Header 1
TPM-SPI Header 1
IPMB Header 1
Fan Header 3 Fans (6-pin) + 3 Fans (4-pin)
ATX Power 2 x (8-pin) + 1 x (4-pin)
SATA Power 1 (6-pin)
USB 3.2 Gen1
Header
1 (supports 2 USB 3.2 Gen1 ports)
SATA SGPIO 1

4 5
English
CPU_HSBP1 1
BMC SMB 1
PSU SMB 1
ermal Sensor
Header
1
Speaker 1 (4-pin)
COM Header 1
ClearCMOS 1 (short pad)
OH/FanFail LED 6 (only Fan Fail LED)
System BIOS
BIOS Ty pe 32MB AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- MB/TR1/Card side Temperature Sensing
Fan - Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU
Temperature)
- Fan Multi-Speed Control
Voltage Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V,
+BAT, 3VSB, 5VSB
Support OS
OS Microso® Windows®:
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux®:
- RedHat Enterprise Linux Server 8.3 (64 bit) / 8.4 (64 bit)
- CentOs 8.3 ( 64 bit) / 8.4 (64 bit)
- SUSE SLES 15.2 (64 bit) / 12.5 (64 bit)
- UBuntu 20.04.1 (64 bit) /18.04.5 (64 bit)
Hypervisor:
- VMWare® ESXi 6.7.0 u3 / vSphere 6.7.0 u3
- VMWare® ESXi 7.0 U1 / vSphere 7.0 U1
- VMWare® ESXi 7.0U2a / vSphere 7.0U2b
- CITRIX Hypervisor 8.2.0
* Please refer to our website for the latest OS support list.
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C
NOTE: Please refer to our website for the latest specications.

4 5
is motherboard supports Wake from on Board LAN. To use this function, please make
sure that the “Wake on Magic Packet from power o state” is enabled in Device Manager
> Intel® Ethernet Connection > Power Management. And the “PCI Devices Power On” is
enabled in UEFI SETUP UTILITY > Advanced > ACPI Conguration. Aer that, onboard
LAN1&2 can wake up S5 under OS.
If you install Intel® LAN utility or Marvell SATA utility, this motherboard may fail Win-
dows® Hardware Quality Lab (WHQL) certication tests. If you install the drivers only, it
will pass the WHQL tests.

6 7
English
1.3 Unique Features
ASRock Rack Instant Flash is a BIOS ash utility embedded in Flash ROM. is convenient
BIOS update tool allows you to update system BIOS without entering operating systems rst
like MS-DOS or Windows®. With this utility, you can press the <F6> key during the POST or
the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just
launch this tool and save the new BIOS le to your USB ash drive, oppy disk or hard drive,
then you can update your BIOS only in a few clicks without preparing an additional oppy
diskette or other complicated ash utility. Please be noted that the USB ash drive or hard
drive must use FAT32/16/12 le system.

ROMED8U-2T
ROMED8U-2T/BCM
6 7
English

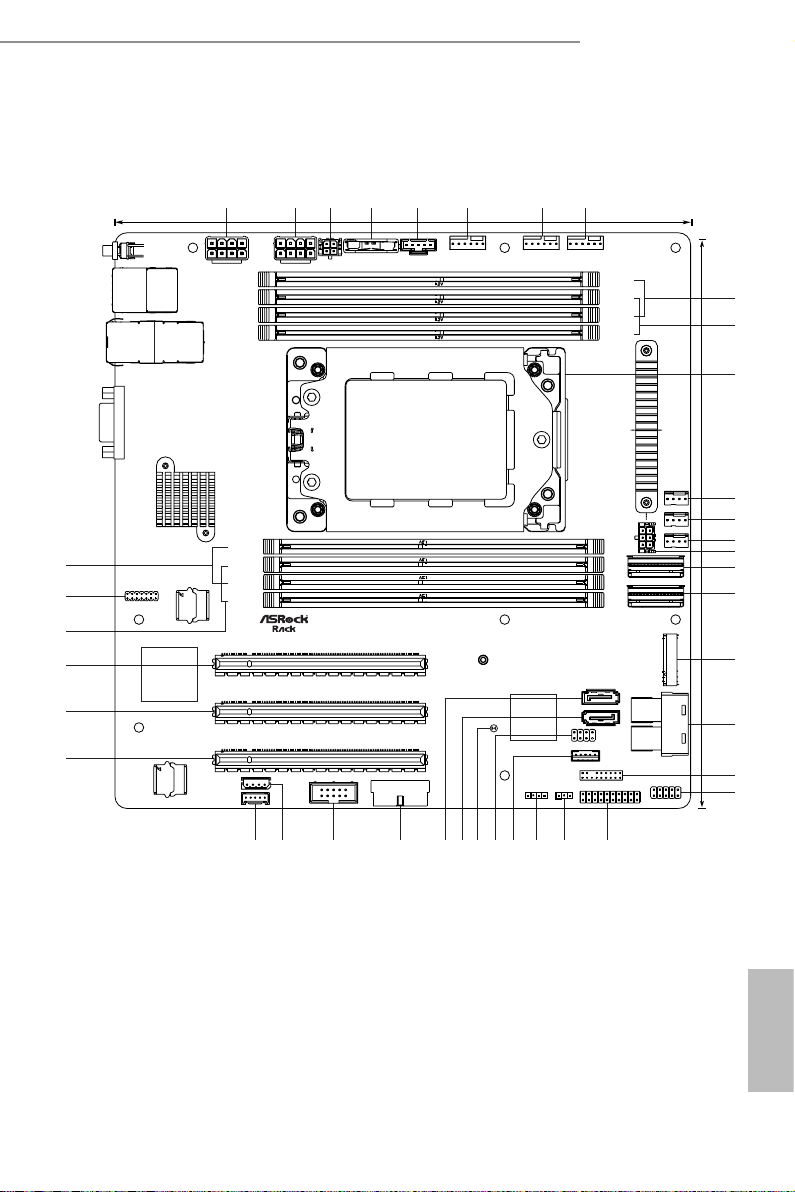

1.4 Motherboard Layout
24.4cm (9.6 in)
24.4cm (9.6 in)
23
9
10
12
1
SPEAKER1
13
14
16
17
18
19
21
222526
1
20
2324
UID1
IPMI_LAN
LAN_1
VGA1
PCIE6
PCIE5
PCIE4
CPU1
ATX12V2
ATX12V1
ATX4PIN1
BAT1 FAN1 FAN2 FAN3
DDR4_H1
DDR4_G1
DDR4_F1
DDR4_E1
FAN4
FAN5
FAN6
SATA_PWR1
DDR4_A1
DDR4_B1
DDR4_C1
DDR4_D1
SLIM2
SLIM1
TPM_BIOS_PH1
M2_1
SATA1
SATA0
SATA_SGPIO3
CPU_HSBP1
TPMS1
AUX_PANEL1
PANEL1
MSAS_HD0
USB3_3_4
COM1
IPMB_1
BMC_SMB1
BMC
ROM
BIOS
ROM
Intel
X710-AT2
LAN_2
45 678
11
15
273132 283033
37
34
38
36
35
39
PSU_SMB1
ROMED8U-2T
1
T 1
R
USB 3. 2 Ge n1
T: USB_2
B: USB_ 1
(NCSI)
Super
I/O
CLRMOS1
ASPEED
AST 2500
29
ROMED8U-2T/BCM
(ROMED8U-2T only)
BCM
57416B
(ROMED8U-2T/BCM only)

8 9
English
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 ATX 12V Power Connector (ATX12V2)
3 ATX 4-PIN Power Connector (ATX4PIN1 (ATX 24pin-to-4pin))
4 Battery (BAT1)
5 PSU SMBus Header (PSU_SMB1)
6 System Fan Connector (FAN1)
7 System Fan Connector (FAN2)
8 System Fan Connector (FAN3)
9 2 x 288-pin DDR4 DIMM Slots (DDR4_F1, DDR4_H1)*
10 2 x 288-pin DDR4 DIMM Slots (DDR4_E1, DDR4_G1)*
11 AMD Socket SP3 (LGA4094)
12 System Fan Connector (FAN4)
13 System Fan Connector (FAN5)
14 System Fan Connector (FAN6)
15 SATA Power Connector (SATA_PWR1)
16 Low-Prole Slimline SAS Connector (SLIM2)
17 Low-Prole Slimline SAS Connector (SLIM1)
18 M.2 Socket (M2_1) (Type 2280)
19 MiniSAS HD Connector (MSAS_HD0)
20 TPM Header (TPMS1)
21 System Panel Header (PANEL1)
22 Auxiliary Panel Header (AUX_PANEL1)
23 ermal Sensor Header (TR1)
24 Speaker Header (SPEAKER1)
25 Backplane PCI Express Hot-Plug Connector (CPU1_HSBP1)
26 SATA SGPIO Connector (SATA_SGPIO3)
27 Clear CMOS Pad (CLRMOS1)
28 SATA3 Connector (SATA0)
29 SATA3 Connector (SATA1)
30 USB 3.2 Gen1 Header (USB3_3_4)
31 COM Header (COM1)
32 Intelligent Platform Management Bus Header (IPMB_1)
33 BMC SMBus Header (BMC_SMB1)

ROMED8U-2T
ROMED8U-2T/BCM
8 9
English
No. Description
34 PCI Express 4.0 x16 Card Slot (PCIE4)
35 PCI Express 4.0 x16 Card Slot (PCIE5)
36 PCI Express 4.0 x16 Card Slot (PCIE6)
37 2 x 288-pin DDR4 DIMM Slots (DDR4_B1, DDR4_D1)*
38 TPM-SPI Header (TPM_BIOS_PH1)
39 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_C1)*
*For DIMM installation and conguration instructions, please see p.21 (Installation of Memory Modules
(DIMM)) for more details.

10 11
English
1.5 Onboard LED Indicators
23 1
4
5
6
7
8

ROMED8U-2T
ROMED8U-2T/BCM
10 11
English
No. Item Status Description
1 SB_PWR1 Green STB PWR ready
2FAN_LED1 Amber FAN1 failed
3FAN_LED2 Amber FAN2 failed
4FAN_LED3 Amber FAN3 failed
5FAN_LED4 Amber FAN4 failed
6FAN_LED5 Amber FAN5 failed
7FAN_LED6 Amber FAN6 failed
8BMC_LED1 Green BMC heartbeat LED

12 13
English
1.6 I/O Panel
12
3
4
5
6
No. Description No. Description
1 UID Switch (UID1) 4 10G LAN RJ-45 Port (LAN1)**
2 USB 3.2 Gen1 Ports (USB3_1_2) 5 10G LAN RJ-45 Port (LAN2)**
3 LAN RJ-45 Port (IPMI_LAN1)* 6 VGA Port (VGA1)
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
ACT/LINK LED
SPEED LED
LAN Port

ROMED8U-2T
ROMED8U-2T/BCM
12 13
English

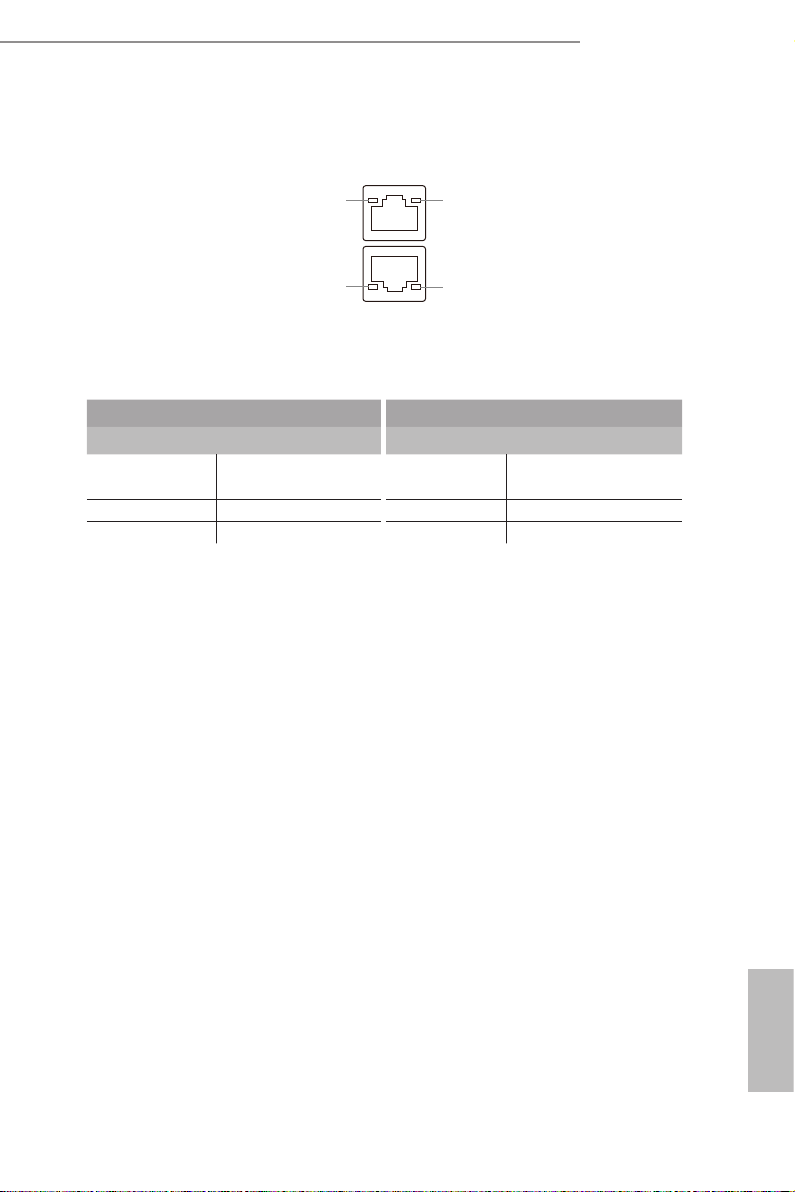

**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port (LAN1, LAN2) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 100Mbps connection or
no link
Blinking Yellow Data Activity Yellow 1Gbps connection
On Link Green 10Gbps connection
ACT/LIN K LED SPEED LED
LAN Port
ACT/LIN K LED SPEED LED

14 15
English
1.7 Block Diagram
5 5
4 4
3 3
2 2
1 1
D D C C B B A A
R/LRDIMM
8 DIMM Slots
1 x DDR4 LRDIMM/RDIMM
AMD Family 17h Processor
DDR4 DDR4DDR4
CPU
AMD EPYC 700x
PCI-E
Port G0 Port G2.6 Port G3.0~7
REALTEK RTL8211E 10/100/1G PHY
DDR4 DDR4DDR4
1 x DDR4 LRDIMM/RDIMM 1 x DDR4 LRDIMM/RDIMM 1 x DDR4 LRDIMM/RDIMM
Port P1
DDR4 DRAM (512MB)
BMC
AST2500
Ethernet
10/100/1000
Video
DAC
BMC & VR AM
PCI-Express
USB
1.1 &
2.0
LPC
MAC2
SPI
SPI FLASH (512Mb)
PCI-E Gen3
x1
LPC
PCIE Gen3 x 1
LPC
USB
USB2.0 x 2
TPM 2.0
PCI-E
G1 Port4
Port G2.0~3
x16
1 x DDR4 LRDIMM/RDIMM 1 x DDR4 LRDIMM/RDIMM
NCSI
USB 3.2 USB3.2 x 4
F_USB1
SIO NCT6779
Ethernet
10/100/1000
MAC1
SLIM2
Port G3.8~15
PCIe Ge n4 x8
Slimline Conn.
PCIE Gen4 x 16
S AT A Ge n3 x 2
PCIE Gen4 x 16
PCIE5
SATA 7Pin
PCIe Ge n4 x8
MSAS_HD0
Mini SAS HD
S AT A G E N 3 x 8
Port P2
PCI-E
x16
Port G1 0~3
PCIE Gen3 x 4
INTEL X710-AT2
10G
R/LRDIMM R/LRDIMM
R/LRDIMM R/LRDIMM R/LRDIMM
SATA SGPIO Configuration SATA0 , SATA1 use SGPIO_2 MSAS_HD0 use SGPIO_3
Port G2.4~5 Port G2.8~15
S AT A G E N 4 x 4
SLIM1
Slimline Conn.
M2_1
M.2 Socket
Support: 1. SATA 2. PCIE
Port P0
PCI-E
x16
PCIe Ge n4 x16
PCIE4 PCIE6
PCI-E
x4
R/LRDIMM R/LRDIMM
DDR4
DDR4
1 x DDR4 LRDIMM/RDIMM1 x DDR4 LRDIMM/RDIMM
Share SATA
Size
Project Name
Rev
Date: Sheet of
Title :
Engineer:
C
1129Wednesday, July 21, 2021
Asrockrack
000-BLOCK
R1.00
ROMED6U-2L2T
Eric H u
<Variant Name>
Size
Project Name
Rev
Date: Sheet of
Title :
Engineer:
C
1129Wednesday, July 21, 2021
Asrockrack
000-BLOCK
R1.00
ROMED6U-2L2T
Eric H u
<Variant Name>
Size
Project Name
Rev
Date: Sheet of
Title :
Engineer:
C
1129Wednesday, July 21, 2021
Asrockrack
000-BLOCK
R1.00
ROMED6U-2L2T
Eric H u
<Variant Name>
ROMED8U-2T:
