Chapter 1 Introduction
Thank you for purchasing ASRock P4i45GL/P4i45GV motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control. It de-
livers excellent performance with robust design conforming to ASRock’s commit-
ment to quality and endurance.
Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-
step installation guide. Chapter 3 and 4 contain basic BIOS setup and support CD
information. More information of advanced BIOS setup is offered on page 23 for
advanced users’ reference.
Because the motherboard specifications and the BIOS soft-
ware might be updated, the content of this manual will be
subject to change without notice. In case any modifications
of this manual occur, the updated version will be available
on ASRock website without further notice. You may find the
latest memory and CPU support lists on ASRock website as
well. ASRock website: http://www.asrock.com
1.1 Package Contents
ASRock P4i45GL/P4i45GV motherboard
(Micro ATX Form Factor: 9.6-in x 8.2-in, 24.4 cm x 20.8 cm)
ASRock P4i45GL/P4i45GV Quick Installation Guide
ASRock P4i45GL/P4i45GV Support CD
One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable
One Ribbon Cable for a 3.5-in Floppy Drive
One ASRock I/OTM Shield
One COM Port Bracket
One ASRock MR Card (Optional)

5
1.2 Specifications
Platform: Micro ATX Form Factor: 9.6-in x 8.2-in, 24.4 cm x 20.8 cm
CPU: Socket 478, supports Intel®Pentium® 4(Prescott, Northwood,
Willimate) / Celeron®processor
Chipsets: North Bridge (P4i45GL): Intel® 845GL chipsets,
standard FSB 400MHz (see CAUTION 1),
Max. 533 MHz at overclocking mode (see CAUTION 2);
North Bridge (P4i45GV): Intel® 845GV chipsets,
standard FSB 533 MHz,
supports Hyper-Threading Technology (see CAUTION 3);
South Bridge: Intel®ICH4
VGA: Intel® Extreme Graphics, Max. 64MB VRAM
Memory: P4i45GL:
2DDRDIMM slots:DDRDIMM1 andDDRDIMM2
supports PC2100 (DDR266), Max. 2GB;
P4i45GV:
2DDRDIMM slots, DDRDIMM1 andDDRDIMM2
supports PC2100 (DDR266) / PC2700 (DDR333), Max. 2GB
(see CAUTION 4)
IDE: IDE1: ATA 100 / Ultra DMA Mode 5
IDE2: ATA 100 / Ultra DMA Mode 5
Supports up to 4 IDE devices
Floppy Port: Supports up to 2 floppy disk drives
Audio: 5.1 channels AC’97 Audio
PCI LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN
Hardware Monitor: CPU temperature sensing, Chassis temperature sensing
CPU overheat shutdown to protect CPU life
(ASRock U-COP)(see CAUTION 5)
CPU fan tachometer, Chassis fan tachometer
Voltage monitoring: +12V, +5V, +3V, Vcore
PCI slots: 3 slots with PCI Specification 2.2 (see CAUTION 6)
AGI slot: 1 AGI [ASRock Graphics Interface] slot (see CAUTION 7)
AMR slot: 1 slot, supports ASRock MR card (Optional)
USB 2.0: 6 USB 2.0 ports:
includes 4 default USB 2.0 ports on the rear panel,
plus one header to support 2 additional USB 2.0 ports
(see CAUTION 8)
ASRock I/OTM:1 PS/2 mouse port, 1 PS/2 keyboard port,
1 parallel port: ECP/EPP support, 1 VGA port
1 RJ 45 port, 4 default USB 2.0 ports
1 Game port
Audio Jack: Line Out / Line In / Microphone In

6
BIOS: AMI legal BIOS
Supports “Plug and Play”
ACPI 1.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3.1 support
CPU frequency stepless control
(only for advanced users’ reference, see CAUTION 9)
OS: Microsoft®Windows®98SE / ME / 2000 / XP compliant
CAUTION!
1. P4i45GL motherboard may be fine tuned to support higher
CPU bus frequencies on certain condition. Please refer to
“NOTE” on page 7 in the support CD.
2. If the installed CPU runs with the FSB frequency at 533MHz
on P4i45GL motherboard, it will support PC2100(DDR266)
and PC2800(DDR350).
3 About the setting of “Hyper Threading Technology”, please
check page 25 of the User Manual in the support CD.
4. P4i45GV motherboard will support PC2700(DDR333) at FSB 533MHz.
5. While CPU overheat is detected, the system will automatically shutdown.
Please check if the CPU fan on the motherboard functions properly before
you resume the system. To improve heat dissipation, remember to spray
thermal grease between the CPU and the heatsink when you install the PC
system.
6. Because the installed AMR card will occupy the same external connecting
position with the PCI card installed in “PCI3” slot, you will not be able to
install any PCI card in “PCI3” slot if an AMR card has already been
installed in the AMR slot.
7. The AGI [ASRock Graphics Interface] slot is a special design that only
supports compatible AGP VGA cards. For the information of the compatible
AGP VGA cards, please refer to the “Supported AGP VGA Cards List” on
page 8. For the proper installation of AGP VGA card, please refer to the
installation guide on page 16.
8 Power Management for USB 2.0 works fine under Microsoft®Windows®
XP SP1/2000 SP4. It may not work properly under Microsoft®Windows®
98/ME. Please refer to Microsoft®official document at
http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx
9. Although this motherboard offers stepless control, it is not recommended
to perform over-clocking. Frequencies other than the recommended CPU
bus frequencies may cause the instability of the system or damage the
CPU.

7
NOTE
P4i45GL may be fine tuned to support higher CPU front side bus frequencies on certain
condition. Please refer to the table below for the details.
CPU FSB Configuration Note
P4i45GL 533 MHz 1. It supports DDR266 memory module
at both DDR DIMM1 and DIMM2.
2. It supports DDR350 memory module
ONLY at DDR DIMM1.
3. To support DDR350, please set DDR350
in BIOS DRAM Frequency.
4. It supports CL=2 and CL=2.5 only.
The Recommended Memory Modules list for P4i45GL motherboard.
FSB 533MHz / DDR350 Mode
DRAM SIZE TYPE CELL CELL NO. SINGLE SIDE /
VENDOR (MB) VENDOR DOUBLE SIDE
TWINMOS 256 DDR333 TWINMOS TMD7608F8E60B SINGLE SIDE
TWINMOS 256 DDR400 TWINMOS TMD7608F8E50B SINGLE SIDE
TWINMOS 512 DDR400 TWINMOS TMD7608F8E50B DOUBLE SIDE
TWINMOS 512 DDR400 M.TEC TTD7608F8E50B DOUBLE SIDE
ADATA 256 DDR400 WINBOND W942508CH-5 SINGLE SIDE
ADATA 256 DDR400 WINBOND W942508BH-5 SINGLE SIDE
ADATA 256 DDR400 ADATA ADD8608A8A-4.5B SINGLE SIDE
KINGMAX 256 DDR400 KINGMAX KDL388P4EA-50 SINGLE SIDE
KINGMAX 512 DDR400 KINGMAX KDL388P4EA-50 DOUBLE SIDE
KINGSTON 256 DDR333 MOSEL V58C2256804SAT6 SINGLE SIDE
KINGSTON 512 DDR333 INFINEON HYB25D256800BT-6 DOUBLE SIDE
MICRON 256 DDR333 MICRON 46V32M8-6TC SINGLE SIDE
MICRON 256 DDR400 MICRON 46V16M8 DOUBLE SIDE
INFINEON 128 DDR400 INFINEON HYB25D256800BT-5 SINGLE SIDE
INFINEON 256 DDR400 INFINEON HYB25D256800BT-5 SINGLE SIDE
TRANSCEND 256 DDR333 SAMSUNG K4H560838D-TCB3 SINGLE SIDE
Since the memory types are changing rapidly, please visit ASRock website
(http://www.asrock.com/support/index.htm) for the latest recommended memory support list.

8
1.3 Supported AGP VGA Cards List
(for Windows 2000/Windows XP)
I. AGP 4X
Graphics Chip Model Name
Vendor
n-VIDIA ASUS AGP-V7100
ASUS AGP-V7100PRO
ASUS AGP-V7100 MAGIC / 32M
ASUS AGP-V7700Ti
ASUS AGP-V8170DDR
ASUS AGP-V8170SE / LP
ASUS AGP-V8200 T2
ASUS AGP-V8200 T5
ASUS AGP-V8440
ASUS AGP-V8460 Ultra
GAINWARD- GF3-TI500/64M
GAINWARD- GF3-TI500/128M
Inno3D GeForce2 MX400
Leadtek WinFast A170 TH
Leadtek WinFast A170 DDR
Leadtek WinFast A250LE TD
Leadtek WinFast GeForce2 MX MX64
Leadtek WinFast GeForce2 H MX400
MSI- GF4-MX440SE
PROLINK GF4-MX440
SPARKLE GF4-MX440
ATI Gigabyte GV-AP64D
Gigabyte GV-AP64D-H
Gigabyte GV-AR64S-H
POWERCOLOR RADEON 9000
POWERCOLOR RADEON 9100
TRANSCEND TS64MVDR7
SiS SYNNEX GCM-SiS315EA32
For the latest updates of the supported AGP VGA cards list, please visit
ASRock website for details.
ASRock website: http://www.asrock.com/support/index.htm

9
II. AGP 8X
Graphics Chip Model Name
Vendor
n-VIDIA ALBATRONGF4-MX440 64M
AOPENAeolus FX5600S-DV128
AOPEN Aeolus FX5200-V128
ASUS AGP-V9180
ASUS AGP-V9280 VIEDO SUITE
ASUS AGP-V9520 MAGIC/T
ASUS V9900
ASUS V9900 ULTRA
ELSA-GLADIC 518
ELSA-GLADIC 518 P
Inno3D GeForce FX5600
LEADTEK A280 LE
LEADTEK A340TDH
MSI Ti4800SE-VTD8X
PALITGF4 MX440 8X 64MB
PROLINK GeForceFX5900
PROLINK GF4-TI4200
SPARKLEGF4-MX440-8X
ATI CLUB3D ATI R9800
Gigabyte GV R9000 PRO
Gigabyte RADEON 9500
Gigabyte RADEON 9700 PRO
POWER COLOR 9200
SAPHIRE RADEON 9200-128MB
SiS POWER COLOR XABRE600
For the latest updates of the supported AGP VGA cards list, please visit
ASRock website for details.
ASRock website: http://www.asrock.com/support/index.htm

10
1.4 Motherboard Layout(P4i45GL)
1 PS2_USB_PWR1 Jumper 15 Chassis Speaker Header (SPEAKER1)
2 ATX Power Header (ATXPWR1) 16 Infrared Module Header (IR1)
3 CPU Heatsink Retention Module 17 COM Port Header (COM1)
4 CPU Socket 18 Clear CMOS (CLRCMOS0, 2-pin jumper)
5 CPU Fan Connector (CPU_FAN1) 19 USB 2.0 Header (USB45, Blue)
6 North Bridge Controller 20 AMR Slot (AMR1)
7 184-pin DDR DIMM Slots (DDR DIMM1- 2) 21 BIOS FWH Chip
8 Secondary IDE Connector (IDE2, Black) 22 PCI Slots (PCI 1- 3)
9 Primary IDE Connector (IDE1, Blue) 23 JL1 Jumper
10 ASRock Graphics Interface Slot (AGP1) 24 JR1 Jumper
11 South Bridge Controller 25 Front Panel Audio Header (AUDIO1)
12 Chassis Fan Connector (CHA_FAN1) 26 Internal Audio Connector: AUX1 (White)
13 Floppy Connector (FLOPPY1) 27 Internal Audio Connector: CD1 (Black)
14 System Panel Header (PANEL1)
P4i45GL
AMR1
PCI 2
PCI 1
Super
I/O
2MB
BIOS
AUDIO
CODEC
PGA478
AUX1
CD1
PCI 3
20
21
5.1CH
ATXPWR1
IDE1
HDLED RESET
PLED PWRBTN
1
PANEL 1
SPEAKER1
1
CHA_FAN1
USB45
1
CLRCMOS0
FLOPPY1
IR1
1
AGP1
1
AUDIO1
JR1 JL1
1
COM1
PS2_USB_PWR1
1
CPU_FAN1
DDR1 (64/72 bit, 184-pin module)
DDR2 (64/72 bit, 184-pin module)
Intel
ICH4
Intel
845GL
Chipset
USB 2.0
T: US B 2
B: USB3
USB 2.0
T: US B 0
B: USB1
Top:
RJ-45
PARALLEL PORT
VGA1
PS2
Mouse
PS2
Keyboard
GAME PORT
Line
Out
Line
In
Mic
In
4
10
1415
19 16
IDE2
REV. 5.00
PCI
LAN
20.8cm (8.2-in)
24.4cm (9.6-in)
56
7
3
21
8
9
11
12
13
17
18
22
23
24
25
26
27
CMOS
Battery

11
Motherboard Layout(P4i45GV)
1 PS2_USB_PWR1 Jumper 15 Chassis Speaker Header (SPEAKER1)
2 ATX Power Header (ATXPWR1) 16 Infrared Module Header (IR1)
3 CPU Heatsink Retention Module 17 COM Port Header (COM1)
4 CPU Socket 18 Clear CMOS (CLRCMOS0, 2-pin jumper)
5 CPU Fan Connector (CPU_FAN1) 19 USB 2.0 Header (USB45, Blue)
6 North Bridge Controller 20 AMR Slot (AMR1)
7 184-pin DDR DIMM Slots (DDR DIMM1- 2) 21 BIOS FWH Chip
8 Secondary IDE Connector (IDE2, Black) 22 PCI Slots (PCI 1- 3)
9 Primary IDE Connector (IDE1, Blue) 23 JL1 Jumper
10 ASRock Graphics Interface Slot (AGP1) 24 JR1 Jumper
11 South Bridge Controller 25 Front Panel Audio Header (AUDIO1)
12 Chassis Fan Connector (CHA_FAN1) 26 Internal Audio Connector: AUX1 (White)
13 Floppy Connector (FLOPPY1) 27 Internal Audio Connector: CD1 (Black)
14 System Panel Header (PANEL1)
P4i45GV
AMR1
PCI 2
PCI 1
Super
I/O
2MB
BIOS
AUDIO
CODEC
PGA478
AUX1
CD1
PCI 3
20
21
5.1CH
ATXPWR1
IDE1
HDLED RESET
PLED PWRBTN
1
PANEL 1
SPEAKER1
1
CHA_FAN1
USB45
1
CLRCMOS0
FLOPPY1
IR1
1
AGP1
1
AUDIO1
JR1 JL1
1
COM1
PS2_USB_PWR1
1
CPU_FAN1
DDR1 (64/72 bit, 184-pin module)
DDR2 (64/72 bit, 184-pin module)
Intel
ICH4
Intel
845GV
Chipset
USB 2.0
T: USB2
B: USB3
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
PARALLEL PORT
VGA1
PS2
Mouse
PS2
Keyboard
GAME PORT
Line
Out
Line
In
Mic
In
4
10
1415
19 16
IDE2
REV. 5.00
PCI
LAN
20.8cm (8.2-in)
24.4cm (9.6-in)
56
7
3
21
8
9
11
12
13
17
18
22
23
24
25
26
27
CMOS
Battery

12
123
10 987654
1.5 ASRock I/OTM
1 Parallel Port 6 Line Out (Lime)
2 RJ-45 Port 7 USB 2.0 Ports
3 Game Port 8 VGA Port
4 Microphone (Pink) 9 PS/2 Keyboard Port (Purple)
5 Line In (Light Blue) 10 PS/2 Mouse Port (Green)

13
Chapter 2 Installation
P4i45GL/P4i45GV is a Micro ATX form factor (9.6-in x 8.2-in, 24.4 cm x 20.8 cm)
motherboard. Before you install the motherboard, study the configuration of your
chassis to ensure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard compo-
nents or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also re-
member to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that comes with the component.
Before you install or remove any component, ensure that the
power is switched off or the power cord is detached from the
power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

14
2.1 CPU Installation

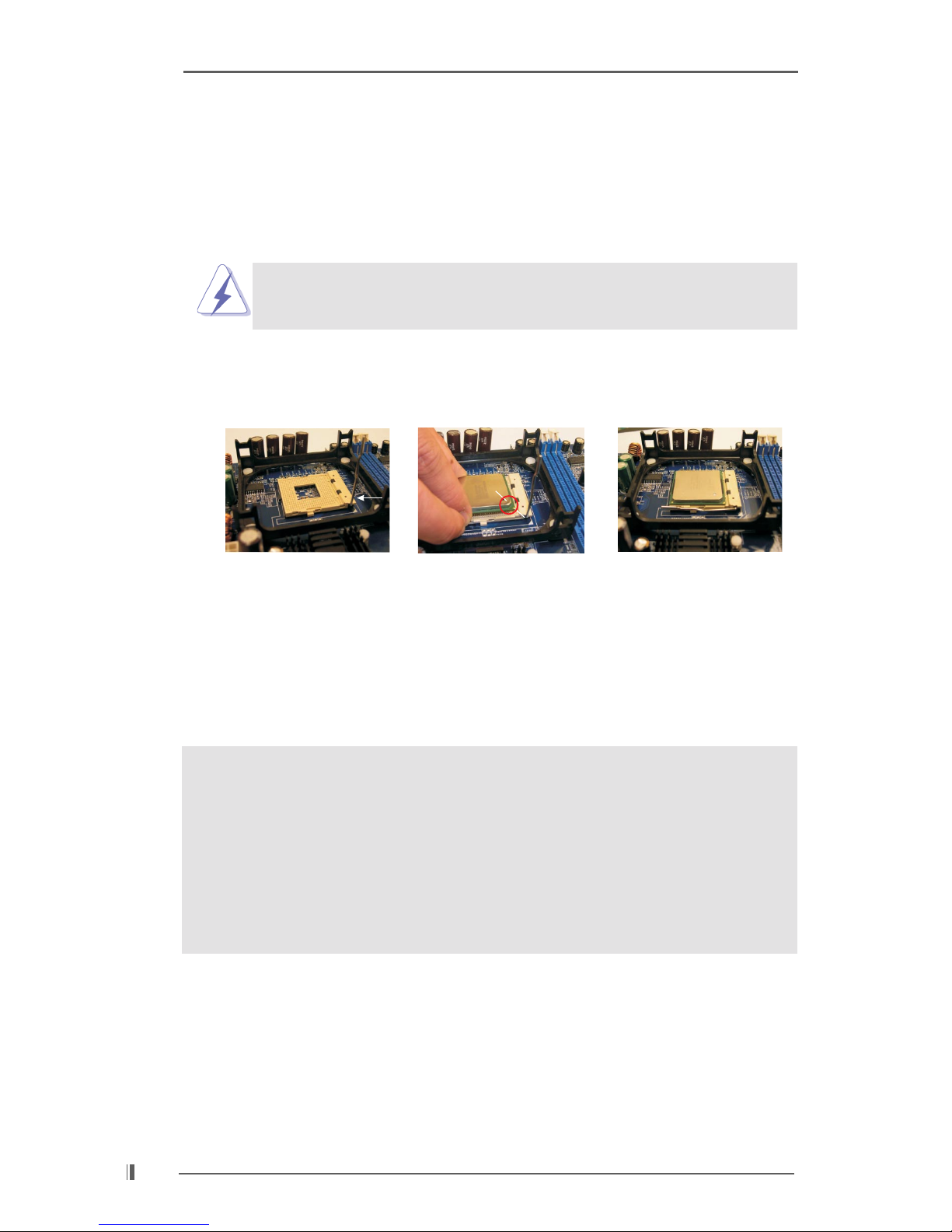

Step 1. Unlock the socket by lifting the lever up to a 90oangle.
Step 2. Position the CPU directly above the socket such that its marked corner
matches the base of the socket lever.
Step 3. Carefully insert the CPU into the socket until it fits in place.
The CPU fits only in one correct orientation. DO NOT force the
CPU into the socket to avoid bending of the pins.
Step 4. When the CPU is in place, press it firmly on the socket while you push
down the socket lever to secure the CPU. The lever clicks on the side tab
to indicate that it is locked.
2.2 Installation of CPU Fan and Heatsink
Intel®Pentium®4 CPU requires larger heatsink and cooling fan. Thermal
grease between the CPU and the heatsink is also needed to improve heat
dissipation. Make sure that the CPU and the heatsink are securely fastened
and in good contact with each other. Then connect the CPU fan to the
CPU_FAN connector (CPU_FAN1, see page 10/11, No. 5). For proper
installation, please kindly refer to the instruction manuals of the CPU fan
and heatsink vendors.
STEP 1:
Lift Up The Socket Lever
STEP 2/STEP 3:
Match The CPU Marked Corner
to The Socket Marked Corner
STEP 4:
Push Down And Lock
TheSocketLever
Lever 90° Up
CPU Marked Corner
Socket Marked Corner

15
2.3 Installation of Memory Modules (DIMM)
P4i45GL/P4i45GV motherboard provides two 184-pin DDR (Double Data Rate) DIMM
slots.
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break
on the slot.
The DIMM only fits in one correct orientation. It will cause
permanent damage to the motherboard and the DIMM if you
force the DIMM into the slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully
snap back in place and the DIMM is properly seated.
notch
break
notch
break

16
2.4 Expansion Slots (PCI, AMR, and AGI Slots)
There are 3 PCI slots, 1 AMR slot, and 1 AGI slot on this motherboard.
PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
Because the installed AMR card will occupy the same external
connecting position with the PCI card installed in “PCI3” slot, you will
no be able to install any PCI card in “PCI3” slot if an AMR card has
already been installed in the AMR slot.
AMR slot: AMR slot is used to insert an ASRock MR card (optional) with v.92
Modem functionality.
AGI slot: The AGI [ASRock Graphics Interface] slot is a special design that only
supports compatible AGP VGA cards. For the information of the compat-
ible AGP VGA cards, please refer to the “Supported AGP VGA Cards List”
on page 8.
To install the system with an add-on AGP VGA card, you must make
sure to install the driver of add-on AGP VGA card before you install
the onboard VGA driver. If the onboard VGA driver has already been
installed before you install the add-on AGP VGA card, the system will
automatically set the onboard VGA as the primary graphics adapter. In
that case, if you want to install the add-on AGP VGA card, you need
to remove the onboard VGA driver first, and then install the add-on
AGP VGA card and its driver. For the detailed instruction, please refer
to the documents in the Support CD, “AGI Slot Installation Guide (for
Windows 2000)” and “AGI Slot Installation Guide (for Windows XP)”,
which are located in the folder at the following path:
..\ Easy Dual Monitor
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed in a
chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws
for later use.
Step 4. Align the card connector with the slot and press firmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

17
2.5 Easy Dual Monitor Feature
Thanks to ASRock patented AGI8X Technology, this motherboard supports
Easy Dual Monitor upgrade. With the internal onboard VGA and the external
add-on AGP VGA card, you can easily enjoy the benefits of Dual Monitor
feature. For the detailed instruction, please refer to the document at the
following path in the Support CD: ..\ Easy Dual Monitor
2.6 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “SHORT”. If no jumper cap
is placed on pins, the jumper is “OPEN”. The
illustration shows a 3-pin jumper whose pin1
and pin2 are “SHORT” when jumper cap is
placed on these 2 pins.
Jumper Setting Description
PS2_USB_PWR1 Short pin2, pin3 to enable
(see p.10/p.11, No. 1) +5VSB (standby) for PS/2 or
USB wake up events.
Note: To select +5VSB, it requires 2 Amp and higher standby current provided by
power supply.
JR1(see p.10/p.11,No. 24)
JL1(see p.10/p.11, No. 23)
Note: If the jumpers JL1 and JR1 are short (see the figure above), both the front
panel and the rear panel audio connectors can work.
Clear CMOS
(CLRCMOS0, 2-pin Jumper)
(see p.10/p.11,No. 18)
Note: CLRCMOS0 allows you to clear the data in CMOS. The data in CMOS includes
system setup information such as system password, date, time, and system
setup parameters. To clear and reset the system parameters to default setup,
please turn off the computer and unplug the power cord, then use a jumper
cap to short the pins on CLRCMOS0 for 3 seconds. Please remember to
remove the jumper cap after clearing the CMOS. If you need to clear the CMOS
when you just finish updating the BIOS, you must boot up the system first, and
then shut it down before you do the clear-CMOS action.
+5V
1_2
+5VSB
2_3
2-pin Jumper
JR1 JL1

18
2.7 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Connector Figure Description
FDD Connector
(33-pin FLOPPY1)
(see p.10/p.11,No. 13)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE Connector (Blue) Secondary IDE Connector (Black)
(39-pin IDE1, see p.10/p.11, No. 9) (39-pin IDE2, see p.10/p.11, No. 8)
Note: If you use only one IDE device on this motherboard, please set the IDE
device as “Master”. Please refer to the instruction of your IDE device vendor
for the details. Besides, to optimize compatibility and performance, please
connect your hard disk drive to the primary IDE connector (IDE1, blue) and
CD-ROM to the secondary IDE connector (IDE2, black).
USB 2.0 Header ASRock I/OTM accommodates
(9-pin USB45) 4 default USB 2.0 ports. If
(see p.10/p.11, No. 19) those USB 2.0 ports on the
I/O panel are not sufficient,
this USB 2.0 header is
available to support 2
additional USB 2.0 ports.
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.10/p.11,No. 16) and receiving infrared module.
IDE1
PIN1
IDE2
PIN1
FLOPPY1
Pin1
connect the black end
to the IDE devices
connect the blue end
to the motherboard
the red-striped side to Pin1
80-conductor ATA 66/100 cable
USB_PWR
USB_PWR
P+5
P-5
P+4
P-4
GND
GND
DUMMY
1
DUMMY
GND
+5V
IRTX
IRRX
1

19
Internal Audio Connectors These connectors allow you
(4-pin CD1, 4-pin AUX1) to receive stereo audio input
(CD1: see p.10/p.11,No. 27) from sound sources such as
(AUX1: see p.10/p.11,No. 26) a CD-ROM, DVD/ROM, TV
tuner card, or MPEG card.
Front Panel Audio Header This is an interface for front
(9-pin AUDIO1) panel audio cable that allows
(see p.10/p.11,No. 25) convenient connection and
control of audio devices.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.10/p.11,No. 14) functions.
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.10/p.11,No. 15)
Chassis Fan Connector Please connect the chassis
(3-pin CHA_FAN1) fan cable to this connector
(see p.10/p.11,No. 12) and match the black wire to
the ground pin.
CPU Fan Connector Please connect the CPU fan
(3-pin CPU_FAN1) cable to this connector and
(see p.10/p.11, No. 5) match the black wire to the
ground pin.
ATX Power Header Please connect the ATX
(20-pinATXPWR1) power supply to this header.
(see p.10/p.11,No. 2)
COM Port Header This COM port header is used
(9-pin COM1) to support a COM port module.
(see p.10/p.11,No. 17)
+5V
DUMMY
DUMMY
SPEAKER
1
GND
DUMMY
+5VA
BACKOUT-R
BACKOUT-L
AUD-OUT-L
AUD-OUT-R
MIC-POWER
MIC
1
GND
PWRBTN#
PLED-
PLED+
DUMMY
RESET#
GND
HDLED+
HDLED-
1
AUX-R
GND
GND
AUX-L
CD-R
GND
GND
CD-L
CD1
AUX1
GND
+12V
CHA_FAN_SPEED
CCTS#1
DDSR#1
DDTR#1
RRXD1
DDCD#1
TTXD1
GND
RRTS#1
RRI#1
1
GND
+12V
CPU_FAN_SPEED

20
Chapter 3 BIOS Setup
3.1 BIOS Setup Utility
This section explains how to configure your system using the BIOS Setup Utility. The
BIOS FWH chip on the motherboard stores the BIOS Setup Utility. When you start up
the computer, there is a chance for you to run the BIOS Setup. Press <F2> during the
Power-On-Self-Test (POST) to enter the BIOS Setup Utility, otherwise, POST
continues with its test routines.
If you wish to enter the BIOS Setup after POST, restart the system by pressing
<Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis. You
can also restart by turning the system off and then back on.
The BIOS Setup Utility is designed to be user-friendly. It is a menu-driven program,
which allows you to scroll through its various sub-menus and select among the
predetermined choices.
Because the BIOS software is constantly being updated, the
following BIOS setup screens and descriptions are for reference
purpose only, and may not exactly match what you see on your
screen.
3.1.1 BIOS Menu Bar
The top of the screen has a menu bar with the following selections:
MAIN Sets up the basic system configuration
ADVANCED Sets up the advanced features
SECURITY Sets up the security features
POWER Configures Power Management features
BOOT Configures the default system device that is used
to locate and load the Operating System
EXIT Exits the current menu or the BIOS Setup
To access the menu bar items, press the right or left arrow key on the keyboard
until the desired item is highlighted.
3.1.2 Legend Bar
At the bottom of the Setup Screen is a legend bar. The following table lists the keys
in the legend bar with their corresponding functions.
