Associated TC7.2 User manual

2
:: Introduction
:: KIT Features
:: Key Features
:: Items Needed / Other Helpful Items
Associated Electrics, Inc.
26021 Commercentre Dr.
Lake Forest, CA 92630
http://www.TeamAssociated.com http://www.RC10.com https://twitter.com/Team_Associated https://www.facebook.com/TeamAssociated
Customer Service
Tel: [phone]
Fax: [phone]
Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and maintaining your new RC10TC7.2.
Please take a moment to read through this manual to help familiarize yourself with these steps. We are continually changing and improving our designs; therefore,
actual parts may appear slightly different than in the illustrations. New parts will be noted on supplementary sheets located in the appropriate parts bags.
Check each bag for these sheets before you start to build.
With the current touring car platforms reaching an even higher plateau of precision and performance, the Engineers behind the doors of Area-51 wasted no time
in ensuring the TC7.2 is up to the level. The RC10TC7.2-FT comes packed full of a host of new components and features necessary to keep you on top.
As the on-road market advances at an ever increasing rate, more is demanded from the chassis’ to accommodate the ultra-competitive racing classes. A successor
to the TC7.1, the TC7.2 maintains the proven suspension geometry, but adds the refinement to chassis balance and flex necessary for today’s racing class. The
centrally mounted IFM motor mount adds several mounting configurations to help fine tune chassis flex to the racing surface, and also has an integral mounting
position for an optional chassis pitch control system (PCS). The TC7.2 also carries an all new aluminum rear gear differential for the ultimate in precision and heat
dissipation, as well as an ultra-light front spool assembly. Along with a list of new features, the RC10TC7.2 FT gives you everything you need to keep you racing
at the highest level. All without sacrificing low part count or affordability. A well-refined racing chassis with success in its heritage, the RC10TC7.2 FT is another
“Champion by Design” from Team Associated!
o A narrow 84mm wide to minimize chassis dragging at maximum chassis
roll angles
o Chassis incorporates mounting position for 1UP DTC
(Dynamic Toe Control) rear end option
o Chassis ballast mass mounting locations to fine tune mass balance
• PCS (Pitch Control System) option to further adjust chassis flex characteristics
o Motor mount and servo mount incorporate mounting positions for pitch
control brace option
• Fox “short” shocks with genuine Kashima Coating
o “Short” shock lowers overall center of mass allowing for more stability in
high grip conditions
o Ultra-smooth Kashima Hard Coating for minimal friction and extended
wear
o Hard coated shock shafts with polished finish
o Machined piston and bushing sets for the most precise build
o Updated bladder profile for consistent performance
• DCV drive shaft assemblies included for front drive
o DCV (dual CV) drive shafts are double-cardon joints, allowing free rotation
of drive shaft at extreme angles typical of the front drive due to addition of
steering angle to suspension arm angle
o The use of DCV’s results in smooth steering through larger corners by
eliminating the “chatter” typical of standard CV axles
• Ultra-light weight carbon composite suspension components
o Carbon composite material used for the best combination of strength at
minimized mass
o Optimized suspension arm length and shock mounting positions
o Pivot ball on inner hinge pin allows free pin movement at any toe or kickup
angle
o Insert system for precise adjustment of toe and inner pin width
o Independent arm mount design to allow maximum flex through entire
chassis length, resulting in better grip on all track conditions
• Aluminum rear CV bones
o 7075-T6 aluminum with hard coating for ultimate durability and decreased
wear
o Low rotational mass
• 26 precision ball bearings
• All new ultra-precise rear gear diff for maximum performance
o Aluminum diff case for precision gear alignment and increased heat
dissipation
o Durable composite gear set for minimized mass
o Hard anodized aluminum outdrives for low wear and long life
o Outdrives supported by ball bearings eliminates binding under load
o Lightweight belt pulley with relief holes to help clear debris
• Ultra-light weight front spool with replaceable hardened steel outdrives
o Lightweight aluminum spool hub for efficient power delivery and low
rotational mass
o Hardened steel outdrives for minimum wear and increased durability
o Lightweight belt pulley with relief holes to help clear debris
• One-piece IFM (Inline Flex Mount) motor mount system
o Central mounting to allow free chassis flex in either direction
o Several mounting positions to help further adjust chassis flex characteristics
o One-piece design ensures proper spur/pinion gear alignment
• Updated bearing caps with integral camber link mount for ultra-fine link
length adjustments
o Camber link mount fastens to bearing cap allowing the use of shims to
adjust camber link length for ultra-fine tuning of camber gain
o Symmetric parts on all four corners minimizes spare part count
o Optimized shock tower mounting positions for improved flex characteristics
o Vertical ballstud orientation allows for fine adjustments of roll center height
• Updated floating servo mount
o 7075-T6 aluminum for increased durability
o Servo mounts to chassis center to allow equal chassis flex in both directions
and a tweak free assembly
o Servo mount pins to chassis to eliminate servo shifting under hard impact
o Slotted servo mount design allows fit for almost any servo size
• New battery mounting system for greater adjustability
o Battery position can be set front-back and in-out to help fine tune chassis
mass balance
o Battery tabs for tape free battery installation
o Adjustable to fit dimensional differences between battery manufacturers
• Updated narrow chassis shape with optimized flex characteristics
o 2.25mm graphite laminate with updated profile and symmetric pockets for
optimal chassis flex
Your new FT TC7.2 comes unassembled and requires the following items for completion. (refer to catalog section for suggestions):
• 1:10th scale electric motor and electronic speed control • 1:10th scale 190mm polycarbonate touring car body
• 3.7V-7.4V LiPo, 6.6V LiFe, or 4.8V-7.2V NiMh/NiCd battery • Polycarbonate specific paint for body
• Battery charger (suited for, and particular to, one of the batteries mentioned) • Body Scissors (AE Part #1737)
• 2 channel surface transmitter, 2 channel receiver, and steering servo • 1:10th scale rubber (or foam) touring car tires, wheels and inserts
• Silicone Shock Fluid (Refer to catalog for complete listings) • CA Glue (AE Part# 1597)
• Silicone Diff Fluid (Refer to catalog for complete listings) • Thread Lock (AE Part #1596)
• Shock Shaft Pliers (AE Part #1675) • FT Dual Turnbuckle Wrench (AE#1114)
• FT Hex Wrenches (AE Part #1518) • Wire Cutters/ Hobby Knife / Reamer / Hole Punch
• FT Hex/Nut Drivers Set (AE Part #1519) • Soldering Iron
• Calipers or a Precision Ruler • Needle Nose Pliers

B
3
3x2.5mm (31500)
3x3mm (25225)
3x8mm (4670)
4x8mm (25227)
2.5x4mm (31518)
2.5x6mm (4675)
2.5x10mm (31350)
3x5mm (31540)
3x6mm (31541)
3x8mm (25201)
3x10mm (25202)
2x4mm (31510)
2x5mm (31511)
2.5x4mm (4673)
2.5x5mm (31519)
2.5x6mm (31520)
2.5x8mm (31521)
3x5mm (31530)
3x6mm (31531)
3x8mm (31532)
3x10mm (25211)
3x12mm (89202)
3x14mm (25187)
3x16mm (89203)
:: Hardware - 1:1 Scale View
Cap Head (shcs)
Setscrew
Notes:
Flat Head (fhcs) Button Head (bhcs)
Ballstud Washers
(31382 1mm,
31383 2mm)
Washer (7337)
Bulkhead Shim
(31384 0.5mm,
31385 1mm,
31386 2mm)
Axle & Diff shim (31782)
Gear Diff Shims (31788)
Shims and Washers
1.6x5mm (91611)
2x5mm (31511)
Ball Bearings
4x7mm (31403)
4x8x3mm flanged (31331)
5x8mm (31400)
5x10x4mm (91560)
10x15x4mm (91563)
Ballstuds
Black 3.25mm short (31390)
Ti Nitride 3.25mm short (31374)
Black 3.25mm long (31391)
Ti Nitride 3.25mm long (31374)
Black 5mm short (31280)
Ti Nitride 5mm short (31288)
Silver 5mm long (31283)
Ti Nitride 5mm long (31291)
Black 8mm short (31281)
Ti Nitride 8mm short (31289)
Silver 8mm long (31284)
Ti Nitride 8mm long (31292)
Black 10mm short (31285)
Ti Nitride 10mm short (31290)
Silver 10mm long (31285)
Ti Nitride 10mm long (31293)
M3 locknut (31550)
M4 locknut (91148)
Nuts (lock/plain)

4
:: Table of Contents
1....................Cover
2....................Introduction
3....................1:1 Hardware “Fold Out”
4...................Table of Contents
5-6...............Shock Build
(Bag 1)
6-7...............Spool and Differential Build
(Bag 2)
8....................Front DCV/ Rear CVA Build
(Bag 3)
9...................Turnbuckles Build
(Bag 4)
9-11.............Suspension Arms Build
(Bag 5)

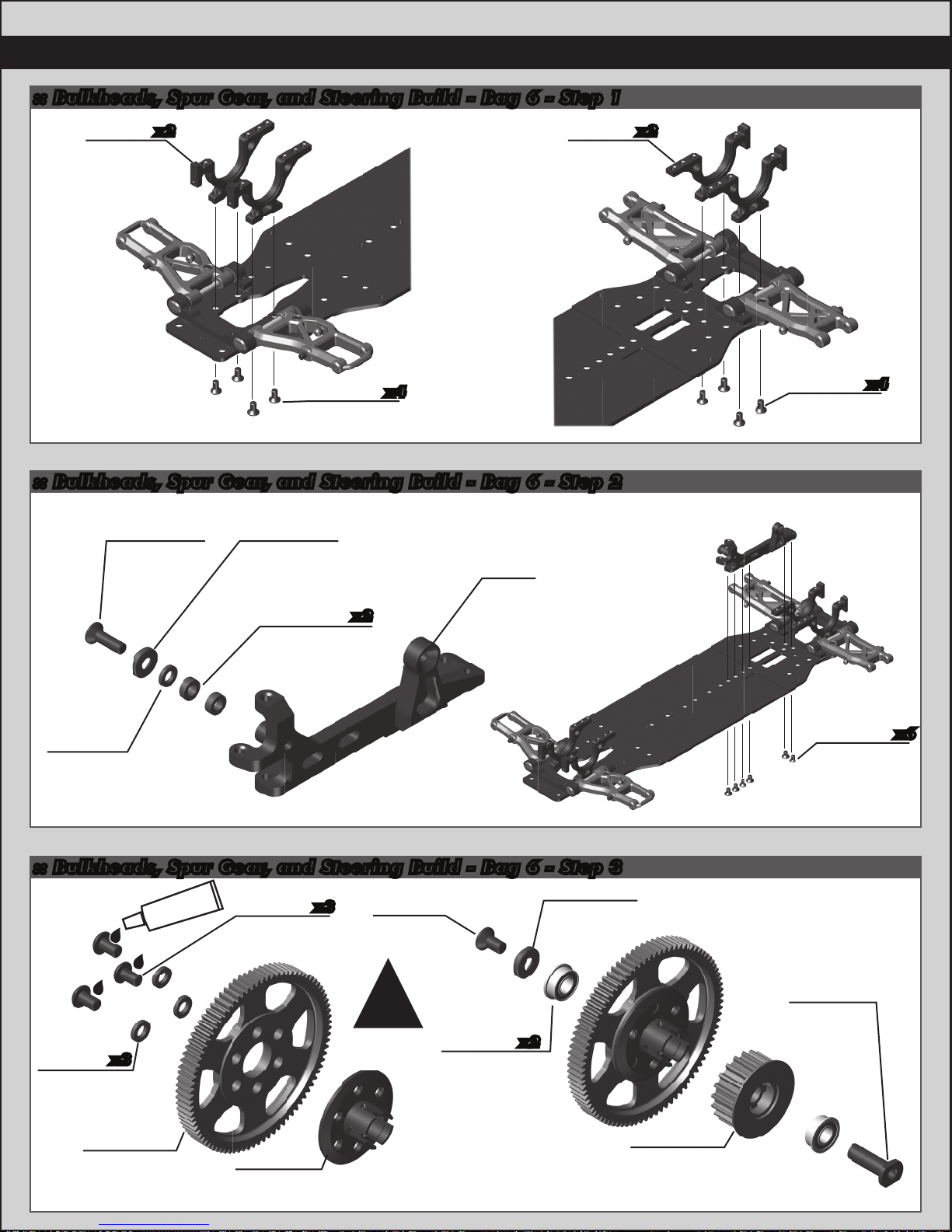

12-16.........Bulkheads, Spur Gear, and
Steering Rack Build
(Bag 6)
16-19.........Caster Blocks /Rear Hubs Build
(Bag 7)
19-23.........Bumper, Anti Roll Bar, and
Electronics Build
(Bag 8)
23-24.........Battery Stop/Final Build
(Bag 9)
24-27.........Tuning Tips / Gear Charts
28-35.........Catalog
36................Setup Sheet “Kit Setup”
37.................Setup Sheet “Blank”
38................Back Cover
Associated Electrics, Inc.
26021 Commercentre Dr.
Lake Forest, CA 92630
Customer Service
Tel: [phone]
Fax: [phone]
:: Notes
There is a 1:1 hardware foldout page in the
front of the manual. To check the size of a part,
line up your hardware with the correct drawing
until you find the exact size. Each part in the
foldout has a number assigned to it for ordering
replacement parts.
This symbol indicates a special
note or instruction in the manual.
This symbol indicates a Racers Tip.
!
http://www.TeamAssociated.com http://www.RC10.com https://twitter.com/Team_Associated https://www.facebook.com/TeamAssociated

5
:: Shock Build - Bag 1 - Step 1
:: Shock Build - Bag 1 - Step 2
:: Shock Build - Bag 1 - Step - 3
Bladder Installation
With the shaft extended 25%, place bladder on
the top of the shock body, displacing the extra oil.
While maintaining pressure on the bladder against
the shock body, carefully lift one side of the bladder
to allow any extra oil to escape. Place stock cap on
top of bladder, and secure it by threading the
aluminum cap retainer onto the shock body.
7/18
Build four
shock collars
Build four
shocks
Build four
shock shafts
Build four
31758
TC7.1 shock
collar o-ring
31758
TC7.1
shock collar
Shock Fluid
#5429
(35wt)
31756
TC7.1
shock cap
retainer
Shock fluid
#5429
(35wt)
Shock fluid
#5429
(35wt)
#1596
thread lock
Thread lock
not included!
!
31747
TC7.1
shock
piston
(4x1.1)
31757
TC7.1 shock
eyelet
31757
TC7.1
shock cap
31752
TC7.1
bladder
31752
TC7.1
shock shaft
bushing
31746
TC7.1
shock shaft
4637
FT pivot
balls
4637
FT pivot
balls
31745
TC7.1 FT
shock body
(Fox
Kashima
Coat)
89278
Steel washer
(2.6x6x0.5mm)
5407
Red
o-rings
31753
TC7.1 shock
bottom cap
31753
TC7.1 shock
bottom cap
o-ring
31510
M2x4mm
bhcs

6
:: Shock Build - Bag 1 - Step 4
:: Spool and Differential Build - Bag 2 - Step 1
:: Spool and Differential Build - Bag 2 - Step 2
Build four
shocks
31763
TC 20.5mm
Spring,
Blue
(15.8lbs)
31759
TC7.1 shock
spring cup
#1597
ca glue
CA glue
not included!
!
x231350
M2.5x10mm
fhcs
31638
Spool
outdrive,
(steel)
x2
#1596
thread lock
#1596
thread lock
Thread lock
not included!
!
31786
Diff pulley
flange
31783
Diff case,
Aluminum
31786
Diff pulley
(40T)
31788
Spool hub
31519
M2.5x5mm
bhcs
x4
#1596
thread lock
Thread lock
not included!
!
31519
M2.5x5mm
bhcs
x4
Build two!

7
:: Spool and Differential Build - Bag 2 - Step 3
:: Spool and Differential Build - Bag 2 - Step 4
:: Spool and Differential Build - Bag 2 - Step 5
31518
M2.5x4mm
fhcs
8680
M5x8x2.5mm
bhcs
8680
M5x8x2.5mm
bhcs
x4
x2
x2
31785
TC7.2 diff
outdrive
31785
TC7.2 diff
outdrive
5.5mm
31782
Diff outdrive
o-ring
31782
Diff outdrive
o-ring
31782
Diff pin
2x9mm
31782
Diff shim
31782
Diff
shim
31783
TC7.2
diff cap
31782
TC7.2 gear
diff sun
gear
31782
TC7.2 gear
diff sun
gear
31782
TC7.2 diff
gears,
washers,
and crosspin
31782
Diff pin
2x9mm
31782
Diff case
o-ring
Add 2 grams of diff fluid
or approximately 5.5mm
from the top of the cup!
Oval hole is for
X-Pin install
Oval hole is for
X-Pin install
!
!
!
Diff Fluid
#5453
(5,000cst)

8
:: Front DCV / Rear CVA Build - Bag 3 - Step 1
:: Front DCV / Rear CVA Build - Bag 3 - Step 2
:: Front DCV / Rear CVA Build - Bag 3 - Step 3
Build two
CVAs
RACERS TIP!
place a drop of CA glue
on the pin retainer gap.
#1597
CA glue
Build two DCVs
#6588
black grease
31633
DCV
Coupler
31634
DCV Stub
Axle
31635
DCV Bone
x2
31633
DCV
Crosspin
x2
31636
DCV
Coupler Tube
31633
DCV
Crosspin
x2
x2
31636
DCV
Coupler Tube
31237
Retaining
clip
31367
TC6.1 CVA
coupler
31367
CVA
cross pin
31796
TC7.2 CVA
bones,
Aluminum
31369
TC6.1 CVA
axle
#6588
black grease
Note!
Align the gap in the
pin retainer to be
opposite of the CVA pin.
!
31238
CVA blade 31500
M3x2.5mm
setscrew
#1596
thread lock
Thread lock
and CA glue
not included!
!
Build two DCVs
Note the
direction of
the crosspin
clip when
installing
Note the
direction of
the crosspin
clip when
installing
! !
Note the
direction of
the crosspin
clip when
!
Note the
direction of
the crosspin
clip when
!
Right Side
Left Side
31633
DCV
Crosspin Clip
31633
DCV
Crosspin Clip
x2
x2

9
Servo Turnbuckle
Steering Turnbuckle
Camber Turnbuckle
10.15mm
6258
3x21mm
turnbuckle
6264
3x35mm
turnbuckle
91723
3x48mm
turnbuckle
19.00mm
30.15mm
x2
20.50mm
x2 x2
31305
Turnbuckle
eyelet
Front Rear
:: Turnbuckle Build - Bag 4 - Step 1
:: Suspension Arms Build - Bag 5 - Step 1
:: Suspension Arms Build - Bag 5 - Step 2
Build two front
inner arm
mounts
31802
TC7.2 Inner
arm mount
31620
TC6.2 arm
mount insert
(Front: -3 dot)
Arm Mount Inserts
Negative to the inside of vehicle.
Positive to the outside of vehicle.
1 DOT
0 °
-2 DOT
-0.6 °
+2 DOT
+0.6 °
-1.2 °
-3 DOT +3 DOT
+1.2 °
Build two rear
inner arm
mounts
31802
TC7.2 Inner
arm mount
31620
TC6.2 arm
mount insert
(Rear: 0 dot)
x4
x4
31541
M3x6mm
fhcs
31771
TC7.2
chassis
31384
Bulkhead
washers
(0.5mm)
x4
31541
M3x6mm
fhcs
Rear of
chassis
!
Front of
chassis
!
x4
31384
Bulkhead
washers
(0.5mm)
Arm Mount Inserts
Negative to the inside of vehicle.
Positive to the outside of vehicle.
1 DOT
0 °
-2 DOT
-0.6 °
+2 DOT
+0.6 °
-1.2 °
-3 DOT +3 DOT
+1.2 °

10
:: Suspension Arms Build - Bag 5 - Step 5
Build left
and right
sides
sides
:: Suspension Arms Build - Bag 5 - Step 4
:: Suspension Arms Build - Bag 5 - Step 3
4670
M3x8mm
set screw
31677
TC7 Inner
hinge pin
31677
TC7 Inner
hinge pin
31382
Ballstud
washer, (1mm)
25227
M4x8mm
set screw
31673
TC7 Front
suspension
arm
25227
M4x8mm
set screw
31674
TC7 Rear
suspension
arm
x2
x2
x2
31647
Inner
hinge pin
ball, Steel
31647
Inner
hinge pin
ball, Steel
4670
M3x8mm
set screw
Build left
and right
sides
3mm
3mm
x2
31620
TC6.2 arm mount
insert, front
(-3 dot)
31801
TC7.2
Outer Arm
Mount
(-3 dot)
31801
TC7.2
Front of
chassis
!
Arm Mount Inserts
Negative to the inside of vehicle.
Positive to the outside of vehicle.
1 DOT
0 °
-2 DOT
-0.6 °
+2 DOT
+0.6 °
-1.2 °
-3 DOT +3 DOT
+1.2 °
31382
Ballstud
washer, (1mm)
x2

11
:: Suspension Arms Build - Bag 5 - Step 6
:: Suspension Arms Build - Bag 5 - Step 7
:: Suspension Arms Build - Bag 5 - Step 8
x2
31620
TC6.2 arm
mount insert ,
rear
(1 dot)
31801
TC7.2
Outer Arm
Mount
Rear
outer arm
mounts
Droop:
The standard settings of 6mm front and
5mm rear will work best in most cases.
Droop is measured just underneath the
outer hinge pin as shown in the photos
to the right.
On bumpy or low grip
surfaces, increase the droop (going to a
lower number on the droop gauge), this
will help increase traction and consistency.
Droop adjustments of 0.5mm to 1mm can
be very effective on the track!
Rear Droop
Setting: 5mm
1
02345678
1
02345678
Front Droop
Setting: 6mm
x2
31541
M3x6mm
fhcs
Rear of
chassis
!
x2
31384
Bulkhead
washers
(0.5mm)
x2
x2
31541
M3x6mm
fhcs
31384
Bulkhead
washers
(0.5mm)
Arm Mount Inserts
Negative to the inside of vehicle.
Positive to the outside of vehicle.
1 DOT
0 °
-2 DOT
-0.6 °
+2 DOT
+0.6 °
-1.2 °
-3 DOT +3 DOT
+1.2 °

12
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 1
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 2
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 3
31787
TC7.2 spur
pulley
(20T)
89229
Blue
countersunk
washer
x231731
FT bearing
4x8x3mm
flanged
31791
TC7.2 spur
gear shaft
31541
M3x6mm
fhcs
31541
M3x6mm
fhcs
31540
M3x5mm
fhcs
31541
M3x6mm
fhcs
31383
Ballstud
washer,
(2mm)
89229
Blue
countersunk
washer
25202
M3x10mm
fhcs 31790
TC7.2
motor
mount
x4
x6
x4
x2
x2 x2
31800
TC7.2
Bulkhead
31382
Ballstud
washer,
(1mm)
31382
Ballstud
washer,
(1mm)
31800
TC7.2
Bulkhead
31333
TC6
spur gear
(87T / 48P)
31530
M3x5mm
bhcs
31792
TC7.2 spur
gear hub
x3
x3
#1596
thread lock
Thread lock
not included!
!

13
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 4
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 5
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 6
Note!
Always use the same
cam position on both
sides of the car.
Belt Tension
Number
View from left
side of car
17 32
161
Right Side
Left Side
31615
Diff
bearing
cam
31615
Cam
holder
(mid-low)
x2
x2
Use belt tension
position 9 for
standard setup
on the front.
!
Cam Position
Mid-Low Mid-High
Low High
Front Belt
Rear Belt
31658
TC7 Front
belt
31659
TC7 Rear
belt
25202
M3x10mm
fhcs
Slide belt over
spool pulley!
!
x231782
Diff
shim
x291563
FT bearing
10x15x4mm

14
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 7
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 8
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 9
Use belt tension
position 8 for
standard setup
on the rear.
!
Note!
Always use the same
cam position on both
sides of the car.
Right Side
Left Side
31615
Diff
bearing
cam
31615
Cam
holder
(mid-low)
x2 x2
Belt Tension
Number
View from left
side of car
17 32
161
Cam Position
Mid-Low Mid-High
Low High
Slide belt over
gear diff pulley!
!
x291563
FT bearing
10x15x4mm
x231782
Diff
shim
31531
M3x6mm
bhcs
31779
TC7.2
bearing cap
31780
TC7.2
camber
link mount
31283
Ballstud,
5mm,
long
31382
Ballstud
washer,
(1mm)
31383
Ballstud
washer,
(2mm)
31532
M3x8mm
bhcs
x4
x2
x2
x2
x2
x4
x4

15
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 10
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 11
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 12
31531
M3x6mm
bhcs
x4
31779
TC7.2
bearing cap
31780
TC7.2
camber
link mount
31283
Ballstud,
5mm,
long
31382
Ballstud
washer,
(1mm) 31383
Ballstud
washer,
(2mm)
31532
M3x8mm
bhcs
x2 x2
x2
x2
x4
x4
Note!
Insert top
plate between
the front belt.
Note!
Insert 1mm washer
between top plate
and motor mount.
!!
31774
TC7.2
top plate
(2.0mm)
x931530
M3x5mm
bhcs
31532
M3x8mm
bhcs
31532
M3x8mm
bhcs
x2
x2
31775
TC7.2 front
shock tower
31776
TC7.2 rear
shock tower
31382
Ballstud
washer,
(1mm)

16
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 13
:: Bulkheads, Spur Gear, and Steering Build - Bag 6 - Step 14
:: Caster Blocks and Hubs Build - Bag 7 - Step 1
Build two Build two
Note direction
of clip for left &
right side DCV -
refer to page 10
!
31804
TC7.2
steering
bellcrank
31732
FT Bearing,
4 x 7 x 2.5mm
x2 x4
Note direction
of clip for left &
right side DCV -
refer to page 10
31734
5 x 10 x 3,
Bearing
31283
Ballstud,
5mm,
(long)
31370
TC6.1
axle crush
tube
31679
TC7
steering
blocks
31382
Ballstud
washer,
(1mm)
91560
FT bearing
5x10x4mm
Thread lock
not included!
!
31794
TC7.2 steering
rack post
25211
M3x10mm
bhcs
31732
FT Bearing,
4 x 7 x 2.5mm
31803
TC7.2 steering
rack hat
bushing
31803
TC7.2
steering
rack
x2
x2
x4
x2
31382
Ballstud
washer,
(1mm)
31283
Ballstud,
5mm,
long
x3
x2
31391
3.25mm
ballstud,
long neck
31541
M3x6mm
fhcs
31530
M3x5mm
bhcs
x2
x2
#1596
thread lock

17
:: Caster Blocks and Hubs Build - Bag 7 - Step 2
:: Caster Blocks and Hubs Build - Bag 7 - Step 3
:: Caster Blocks and Hubs Build - Bag 7 - Step 4
Use a 1.5mm hex tool tip to poke
through any left over flashing (extra
thin piece of plastic) in the hinge pin
set screw hole on the caster blocks.
!
Build two
Build two
Build two
Do not
overtighten!
!
31112
1/16” x 5/16”
dowel pins
31670
Clamping
wheel hex
(5mm)
91611
M1.6x5mm
shcs
31680
TC7 king
pin bushing
31680
TC7 king
pin bushing
25211
M3x10mm
bhcs
31285
10mm
ballstud
(long)
31678
TC7 caster
block,
(4 degree)
31382
Ballstud
washer,
(1mm)
31382
Ballstud
washer,
(1mm)
31677
TC7 hinge
pin, outer 25225
M3x3
set screw

18
:: Caster Blocks and Hubs Build - Bag 7 - Step 5
:: Caster Blocks and Hubs Build - Bag 7 - Step 6
:: Caster Blocks and Hubs Build - Bag 7 - Step 7
It is important that the turnbuckle eyelets move freely
once snapped on to the ballstud. If the fit is too tight,
the car handling will be inconsistent. To check, grab
turnbuckle eyelet with fingers and rotate the cup. If
there is resistance, lightly squeeze ball cup with needle
nose pliers as shown and test again. It is important
that the ball cup be snapped onto the ballstud before
squeezing with needle nose pliers. Be sure to check
and adjust the fit for each ball cup that is installed.
!
Build left
and right
sides
Build left
and right
sides
Use a 1.5mm hex tool tip to
poke through any left over
flashing (extra thin piece of
plastic) in the hinge pin set
screw hole on the rear hubs.
!
Build left
and right
sides
31383
Ballstud
washer,
(2mm)
31284
Ballstud
8mm,
(long)
31681
TC7 rear
hub
carrier
31370
TC6.1
axle crush
tube
x291560
FT bearing
5x10x4mm
!
Orient the notch
to the left throughout
the car. The notch
indicates which end has
the left hand threads!

19
:: Caster Blocks and Hubs Build - Bag 7 - Step 8
:: Caster Blocks and Hubs Build - Bag 7 - Step 9
:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 1
Build left
and right
sides
Build left
and right
sides
31112
1/16” x 5/16”
dowel pins
31670
Clamping
wheel hex
(5mm)
91611
M1.6x5mm
shcs
Do not
overtighten!
!
Build left
and right
sides
31383
Ballstud
washer,
aluminum
(2mm)
31382
Ballstud
washer,
aluminum
(1mm)
31532
M3x8mm
bhcs
31532
M3x8mm
bhcs
x2 x2
x2
x2
31677
TC7 hinge
pin, outer
25225
M3x3
set screw
!
Orient the notch
to the left throughout
the car. The notch
indicates which end has
the left hand threads!

20
:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 2
:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 3
:: Bumper, Anti-Roll Bar, and Electronics Build - Bag 8 - Step 4
Transponder
not included!
31623
TC6.2
bumper
4673
M2.5x4mm
bhcs
x3
!
31797
TC7.2
foam
bumper
25202
M3x10mm
fhcs
x2
x3
31623
TC6.2
bumper
brace
25201
M3x8mm
fhcs
31625
TC6.2 front
body posts
x2
25201
M3x8mm
fhcs
x2
31532
M3x8mm
bhcs
31625
TC6.2 rear
body posts
x2 x2
