Associated B64 CLUB RACER User manual

2
:: Introduction
:: KIT Features
:: Other Helpful Items
Associated Electrics, Inc.
26021 Commercentre Dr.
Lake Forest, CA 92630
http://www.TeamAssociated.com · http://www.RC10.com · http://twitter.com/Team_Associated · www.facebook.com/Team Associated
Customer Service
Tel: [phone]
Fax: [phone]
Thank you for purchasing this Team Associated product. This assembly manual contains instructions and
tips for building and maintaining your new RC10 B64 CR. Please take a moment to read through this
manual to help familiarize yourself with these steps.
We are continually changing and improving our designs; therefore, actual parts may appear slightly
different than in the illustrations. New parts will be noted on supplementary sheets located in the
appropriate parts bags. Check each bag for these sheets before you start to build.
• Lightweight, hard anodized aluminum chassis with centralized mass
• Graphite front and rear shock towers with multiple mounting positions
• 3 gear differentials with lightweight internal gears
• Rear Anti-Roll Bar Included
• Rear hubs feature large bearings and the easy-insert system to adjust camber link position and
rear axle height
• V2 12mm “Big Bore” threaded aluminum shocks with 3mm shafts and x-rings for improved smoothness
• Heavy-duty ball cups and ball studs allow for maximum suspension travel while reducing binding and
friction
• Factory Team ball bearing kit included
• Bolt on steering block arms offer increased adjustability
• J-Concepts B64 clear body and wing included
• Silicone Shock Fluid (Refer to catalog for complete listings) • Silicone Diff Fluid (Refer to catalog for complete listings)
• Body Scissors (AE Part # 1737) • Reamer / Hole Punch • Wire Cutters • Hobby Knife
• FT Hex Wrenches (AE Part # 1655) • Needle Nose Pliers • Thread Lock (AE Part #1596)
• Soldering Iron • Calipers or a Precision Ruler • Green Slime shock lube (AE Part # 1105)
:: Additional
• Tires and Inserts, Fronts and Rears
• Wheels w/12mm Hex
Front Wheels #91574, #91575, #92095, #92096
Rear Wheels #9695, #9696, #91570, #91571
Tools needed:
• FT Hex/Nut Wrenches (AE Part # 1519)
Your new B64 Club Racer Kit comes unassembled
and requires the following items for completion
(refer to catalog section for suggestions):
• R/C two channel surface frequency radio system
• AA-size batteries for transmitter (#302 alkaline)
• Battery charger (a peak detection charger, or LiPo compatible charger)
• 2 cell LiPo battery pack (#310, 317, 737, 738)
• Polycarbonate specific spray paint
• Cyanoacrylate glue (#1597)
• Thread locking compound (#1596)

3
:: Hardware - 1:1 Scale View
Notes:
2.5x8mm (31448)
3x6mm (31541)
Aluminum (8551)
Titanium (91591)
3x8mm (25201)
Aluminum (8553)
Titanium (91592)
3x10mm (25202)
Aluminum (8555)
Titanium (91593)
3x16mm (25204)
Titanium (91596)
Flat Head (fhcs)
M3 Nut (91477)
M3 Alum. Locknut, Blue (31550)
M3 Locknut, Black (25215
M3 Locknut w/Flange (25612)
FT 3mm Locknuts, Blue(25392)
M4 Locknut w/Flange (91148)
FT M4 Locknut, Blue (31551)
M4 Locknut, Serrated (91738)
Nuts (lock/plain)
2x4mm (31510)
Aluminum (8545)
2.5x8mm (31521)
3x6mm (31531)
Aluminum (8550)
Titanium (91580)
3x8mm (31532)
Aluminum (8552)
Titanium (91581)
3x10mm (25211)
Aluminum (8554)
Titanium (91582)
3x12mm (89202)
Titanium (91583)
3x14mm (25187)
Titanium (91584)
3x16mm (89203)
Titanium (91585)
3x20mm (25188)
Titanium (91587)
3x24mm (89204)
Titanium (91589)
Button Head (bhcs) Ball Bearings
3x7x3mm (91475)
5x8x2.5mm (31400)
5x10x4mm (91560)
6x13x5 (91562)
10x15x4 (91563)
3x3mm (25225)
3x20mm (91737)
Set Screws
Cap Head (shcs)
1.6 x 5mm (91611)
2x5mm (31511)
Servo Mount Washer (7337)
(.250 x .125 x .815)
FT Ballstud Washer, Aluminum
(0.5mm) (31381)
FT Ballstud Washer, Aluminum
(1mm) (31382)
FT Ballstud Washer, Aluminum
(2mm) (31383)
Shims and Washers
Ballstuds
Silver HD 4mm (91451)
FT Ti HD 4mm (91750)
Ti Nitride HD 4mm (91452)
HD 6mm (91047)
FT HD Ti 6mm (91751)
Ti Nitride HD 6mm (91118)
Silver HD 8mm (91048)
FT Ti HD 8mm (91752)
Ti Nitride HD 8mm (91119)
HD 10mm (91049)
FT Ti HD 10mm (91753)
Ti Nitride HD 10mm (91120)

4
:: Table of Contents
:: Notes
1....................Cover
2....................Introduction
3....................1:1 Hardware “Fold Out”
4....................Table of Contents
5 - 7..............Differential Build
(Bag 1.1, 1.2, 1.3)
7...................Chassis Build
(Bag 2.1, 2.2)
7....................Center Bulkhead Build
(Bag 3.1, 3.2, 3.3)
8....................Steering Rack Build
(Bag 4.1, 4.2)
8 - 10...........Front Gearbox Build
(Bag 5.1, 5.2)
10 - 11........Steering Block Build
(Bag 6.1, 6.2)
12.................Servo Build
(Bag 7.1, 7.2)
12 - 14........Rear Gearbox Build
(Bag 8.1, 8.2)
14 - 15........Rear Hub Build
(Bag 9.1, 9.2)
15 - 16........Anti Roll Bars Build
(Bag 10.1, 10.2)
16 - 17........Turnbuckle Build
(Bag 11.1)
18 - 19........Shocks Build
(Bag 12.1, 12.2, 12.3)
19 - 21........Electronics, Wheel & Tire,
Wing & Body Install
(Bag 13.1, 13.2, 13.3)
22.................Notes
22 - 31........Catalog
32.................Setup Sheet “Kit Setup”
33.................Setup Sheet “Blank”
34.................Back Cover
Associated Electrics, Inc.
26021 Commercentre Dr.
Lake Forest, CA 92630
Customer Service
Tel: [phone]
Fax: [phone]
There is a 1:1 hardware foldout page in the
front of the manual. To check the size of a part,
line up your hardare with the correct drawing
until you find the exact size. Each part in the
foldout has a number assigned to it for ordering
replacement parts.
This symbol indicates a special
note or instruction in the manual.
Scanning this QR code will take
you to Team Associated’s Tech Tips
videos. These videos will help you
with your build and setup!
This symbol indicates a Racers Tip.
!
http://www.TeamAssociated.com · http://www.RC10.com · http://twitter.com/Team_Associated · www.facebook.com/Team Associated

5
:: Front and Rear Gear Differential Build - Bag 1.1, 1.2, 1.3 - Step 1
:: Front and Rear Gear Differential Build - Bag 1.1, 1.2, 1.3 - Step 2
:: Front and Rear Gear Differential Build - Bag 1.1, 1.2, 1.3 - Step 3
3/17
92079
Shim
5x8.5x0.17
92079
Shim
5x8.5x0.17
92080
Front/Rear
Gear Diff Case
92078
Diff Outdrive
O-Ring
92078
Diff Outdrive
O-Ring
92079
Shim
2.55x6.1x.25
92077
Diff Cross
Pin
92076
Planet Gear,
Plastic
92075
B64 Ring
Gear, 42T
92077
Sun Gear
Pin
92076
Sun Gear,
Plastic
92082
Gear Diff
Outdrives
92082
Gear Diff
Outdrives
x3
x3
x4
x2
x4
#6588
black grease
#6588
black grease
Tighten the
screws evenly in a
crossing order!
!
92076
Sun Gear,
Plastic
92077
Sun Gear
Pin
31448
2.5x8mm
FHCS
92078
Diff
Gasket
x4
10k diff
fluid #5455
12
3
4

6
:: Center Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 1
:: Center Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 2
:: Center Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 3
92076
Sun Gear,
Plastic
92077
Sun Gear
Pin
92079
Shim
5x8.5x0.17
92078
Diff Outdrive
O-Ring
92083
Aluminum
Center Diff
Cap
92082
Gear Diff
Outdrives
x3
200k diff
fluid #5461
#6588
black grease
92076
Sun Gear,
Plastic
92077
Diff Cross
Pin
92076
Planet Gear,
Plastic
x4
x2
x4
92077
Sun Gear
Pin
92079
Shim
5x8.5x0.17
92078
Diff Outdrive
O-Ring
92080
Center Gear
Diff Case
92082
Gear Diff
Outdrives
x3
92079
Shim
2.55x6.1x.25
#6588
black grease

7
:: Center Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 4
:: Chassis Build - Bag 2.1, 2.2 - Step 1
:: Center Bulkhead Build - Bag 3.1, 3.2, 3.3 - Step 1
92002
B64 Side
Rails
92003
B64
Steering
Posts
92000
B64
Chassis
25202
3x10mm
FHCS
25202
3x10mm
FHCS
31541
3x6mm
FHCS
25204
3x16mm
FHCS
25215
M3
Locknut
(Black)
x3
x2
x5
92047
Battery
Post
92047
Battery
Strap
Mount
x2
#1596
thread lock
#1596
thread lock
25202
3x10mm
FHCS
92046
B64 Center
Bulkhead
92044
B64 Motor
Mount
x4
Tighten the
screws evenly in a
crossing order!
Tighten the
screws evenly in a
crossing order!
!
!
92084
B64 Spur
Gear, 78T
1
1
2
2
3
3
4
4
31448
2.5x8mm
FHCS 31531
3x6mm
BHCS
92078
Diff
Gasket
x4
x4
91563
10x15x4mm
Bearing
31532
3x8mm
BHCS
92046
B64 Center
Bulkhead
Cover
x2
x4
#1596
thread lock
Racers Tip:
You can Install two
red O-rings in each
outdrive on the
center diff to reduce
front to back center
bone play.

8
:: Steering Rack Build - Bag 4.1, 4.2 - Step 1
:: Steering Rack Build - Bag 4.1, 4.2 - Step 2
:: Front Gearbox Build - Bag 5.1, 5.2 - Step 1
NOTE:
Align the hook at the end of
the Input Shaft Retainer in
the flat section of the input
shaft.
!
91563
10x15x4mm
Bearing
92008
B64
Gearbox
92072
B64 Input
Shaft
Retainer
92071
B64 Input
Shaft, 17T
x2
#6588
black grease
NOTE:
The steering rack should
swing freely left and right
once assembled. Do not
overtighten (#25187)!
!
31400
5x8x2.5mm
Bearing
x4
31382
1mm
Shim
91048
HD 8mm
Ball Stud
25215
M3
Locknut
(Black)
92004
B64
Bellcrank
31521
2.5x8mm
BHCS
x3
31382
1mm
Shim
25187
3x14mm
BHCS
91475
3x7x3mm
Bearing
92004
B64
Bellcrank
x2
x2
x4
92005
Bellcrank
Input Arm,
18mm
91048
HD 8mm
Ball Stud
92004
B64
Steering
Rack
x2
92004
B64
Bellcrank
Input Arm,
91048
HD 8mm
Ball Stud
x2
x2

:: Front Gearbox Build - Bag 5.1, 5.2 - Step 2
9
:: Front Gearbox Build - Bag 5.1, 5.2 - Step 3
:: Front Gearbox Build - Bag 5.1, 5.2 - Step 4
25211
3x10mm
BHCS
x4
NOTE:
Add one drop of
black grease to
all screws holding
the gearbox !
!
89202
3x12mm
BHCS
92014
Arm
Mount
Inserts
92017
B64 HRC
Arm
Mount, B
x2
x2
1° Up
Arm Mount Insert,
Arm Mount B
92079
Outdrive
Diff Shims
91563
10x15x4mm
Bearing
25211
3x10mm
BHCS
92008
B64
Gearbox
x8
x2
x2
1
2
Step 1:
Add shims on
this side to
TIGHTEN
gear mesh.
Subtract shims
on this side to
LOOSEN
gear mesh.
Step 2:
Add or subtract
shims here to
finalize diff side
to side play once
gear mesh is
set from Step 1.
NOTE:
Install FWD Center
Dog Bone as shown!
!
25202
3x10mm
FHCS
92065
B64 FWD Center
Dog Bone, 82mm
25204
3x16mm
FHCS
x3
x2
#6588
black grease
1
2
25188
3x20mm
BHCS
91048
8mm HD
Ball Stud
92009
B64 Front
Shock Tower
91533
Shock
Standoff,
Short
25215
M3
Locknut
(Black)
x2
x2
x2
x2

10

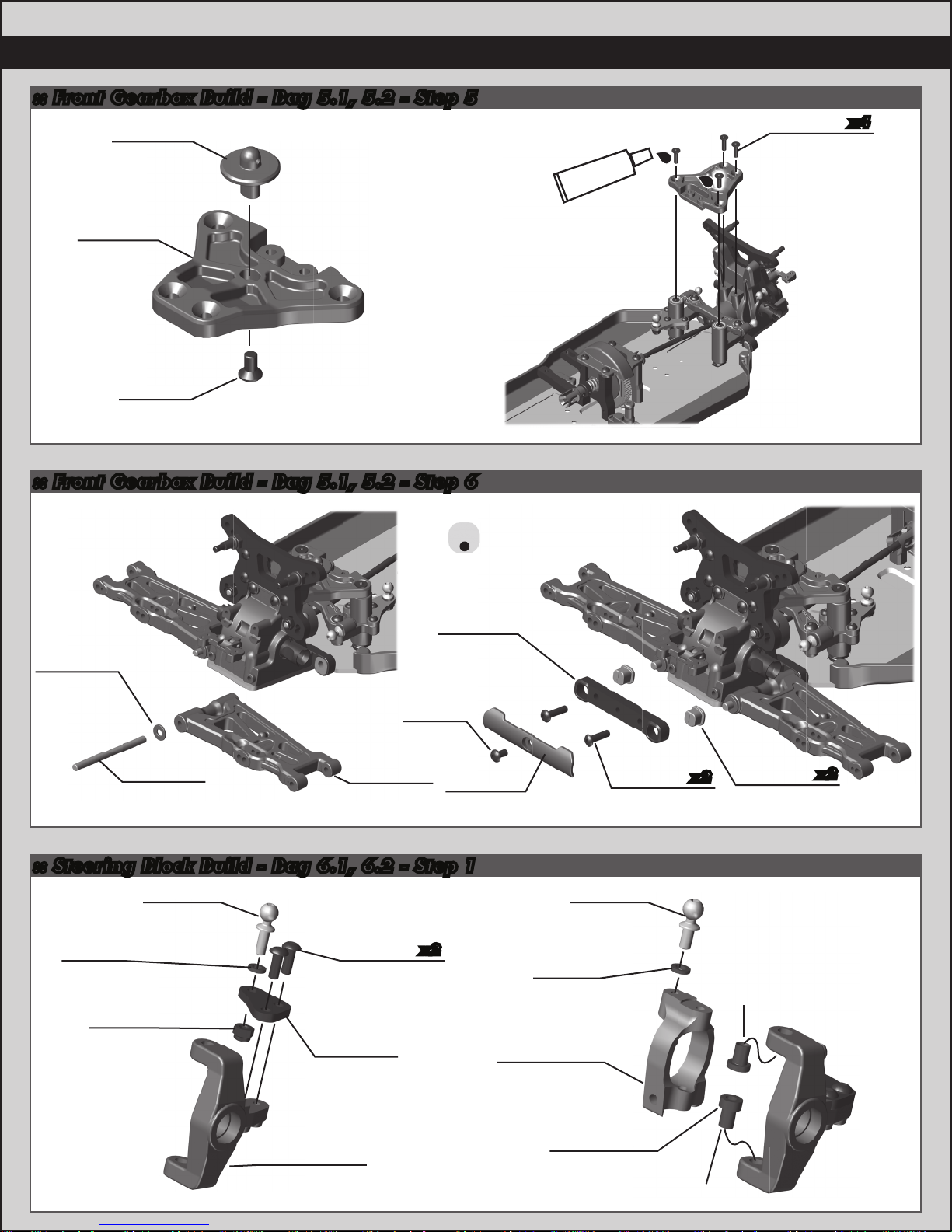

:: Front Gearbox Build - Bag 5.1, 5.2 - Step 6
:: Steering Block Build - Bag 6.1, 6.2 - Step 1
:: Front Gearbox Build - Bag 5.1, 5.2 - Step 5
31532
3x8mm
BHCS
92032
B64 Alum.
Steering
Arms
92031
B64 Steering
Blocks
92029
B64 Alum.
Caster Block,
10 Degree
91676
Caster Block
Bushings
+1
+2
x2
91048
HD 8mm
Ball Stud
91047
HD 6mm
Ball Stud
31382
1mm
Shim
25215
M3
Locknut
(Black)
31382
1mm
Shim
31541
3x6mm
FHCS
92038
B64 Front
Body Post
92038
B64 Top
Plate
89202
3x12mm
BHCS
92014
Arm Mount
Inserts
92025
B64 Front
Arms
92024
Hinge Pin
92025
B64 Front
Arm Shim,
1mm 31531
3x6mm
BHCS
92037
B64 Front
Bumper
92015
B64 HRC
Arm
Mount, A
x2 x2
1° Down
Arm Mount Insert,
Arm Mount A
25202
3x10mm
FHCS
x4
#1596
thread lock

:: Steering Block Build - Bag 6.1, 6.2 - Step 2
11
:: Steering Block Build - Bag 6.1, 6.2 - Step 3
:: Steering Block Build - Bag 6.1, 6.2 - Step 4
91438
CVA Rebuild
Kit
92058
B64 Front
CVA Bone.
76mm
92061
B64 Front
CVA Retainer
89202
3x12mm
BHCS
91438
CVA Rebuild
Kit,
92060
B64 Front
CVA Axle
x2
#1596
thread lock
#1596
thread lock
#6588
black grease
92059
B64 Front
Crush Tube
91560
5x10x4mm
Bearing
x2
92024
Hinge Pin
31510
2x4mm
BHCS
9956
Front Hex
Roll Pin
92063
Wheel Hex,
5.0mm

12
:: Servo Build - Bag 7.1, 7.2 - Step 2
:: Rear Gearbox Build - Bag 8.1, 8.2 - Step 1
:: Servo Build - Bag 7.1, 7.2 - Step 1
NOTE:
Align the hook at the end of
the Input Shaft Retainer in
the flat section of the input
shaft.
!
91563
10x15x4mm
Bearing
92008
B64
Gearbox
92072
B64 Input
Shaft
Retainer
92071
B64 Input
Shaft, 17T
x2
#6588
black grease
31532
3x8mm
BHCS
7337
Servo Mount
Washer
92040
B64 Servo
Mount
31622
FT Servo
Mount
x4 x4
9180
Servo Horn
Ring
91451
HD 4mm
Ball Stud
9180
Servo
Horn
31532
3x8mm
BHCS
Servo
Included! Included servo spacers
can be installed between
the servo mounting tabs
and servo mounts to
correctly align your servo.
!
31531
3x6mm
BHCS
92041
B64 Floating
Servo Brace
x3 31521
2.5x8mm
BHCS
92042
B64
Antenna
Mount
x2
31541
3x6mm
FHCS
25201
3x8mm
FHCS
31532
3x8mm
BHCS
92039
B64 Chassis
Brace, Front
x4
x2
x2
#1596
thread lock
92043
B64 Front
Chassis
Brace Mount

:: Rear Gearbox Build - Bag 8.1, 8.2 - Step 2
:: Rear Gearbox Build - Bag 8.1, 8.2 - Step 3
13
:: Rear Gearbox Build - Bag 8.1, 8.2 - Step 4

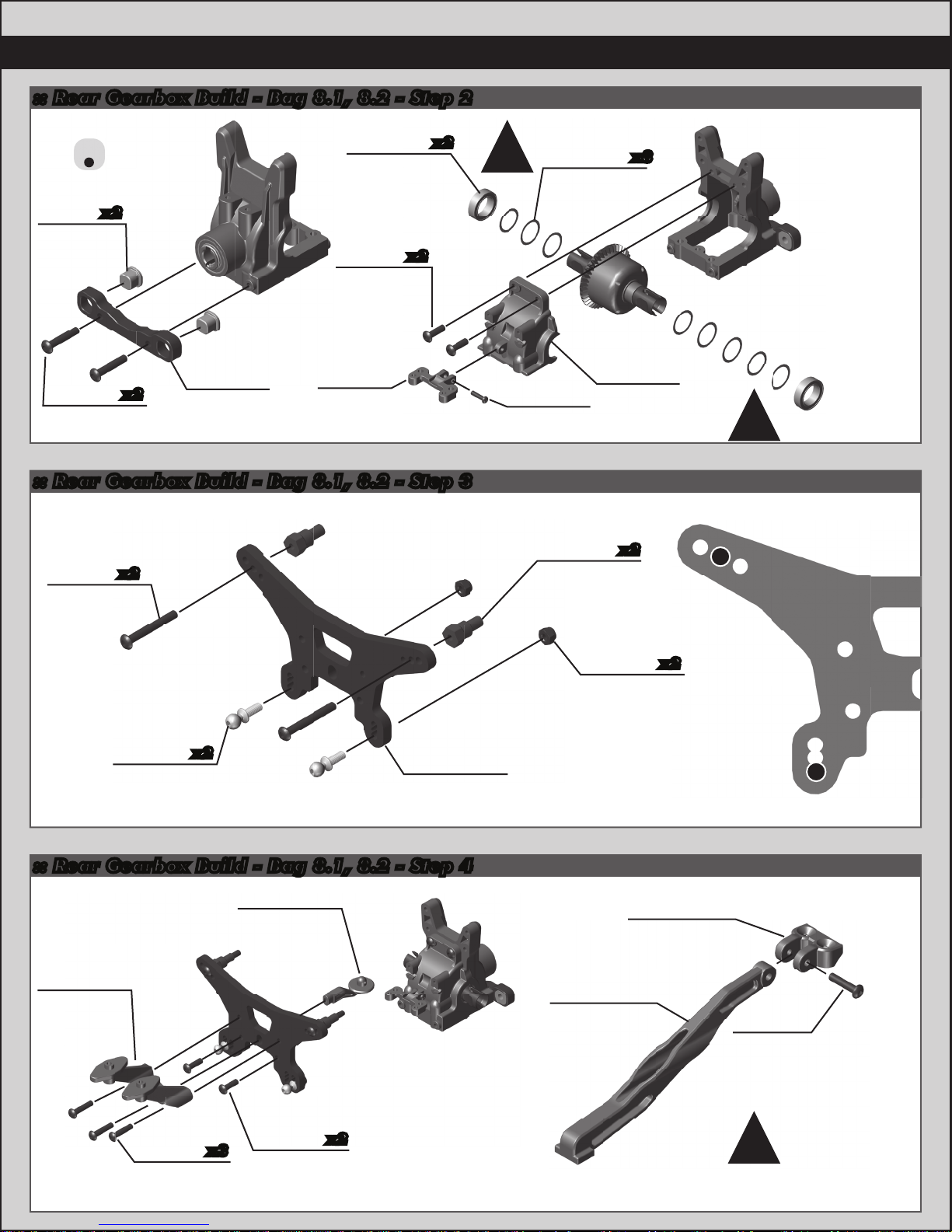

92050
B64 Wing
Mount
92038
B64 Rear
Body Mount
89202
3x12mm
BHCS
25211
3x10mm
BHCS
25187
3x14mm
BHCS
92014
Arm
Mount
Inserts
92019
B64 LRC
Arm Mount,
C
x2
x2
x3
x2
0° - Down
Arm Mount Isert,
Arm Mount C
92079
Outdrive
Diff Shims
91563
10x15x4mm
Bearing
25211
3x10mm
BHCS
92008
B64
Gearbox
Cap
31521
2.5x8mm
BHCS
x8
x2
x2
92008
B64
Gearbox
92039
B64 Rear
Chassis
Brace, Long
92039
B64 Rear
Chassis
Brace Mount
25187
3x14mm
BHCS
An optional short rear
chassis brace is included.
!
1
2
Step 1:
Add shims on
this side to
TIGHTEN
gear mesh.
Subtract shims
on this side to
LOOSEN
gear mesh.
Step 2:
Add or subtract
shims here to
finalize diff side
to side play once
gear mesh is
set from Step 1.
92012
B64 Rear
Shock Tower
89204
3x24mm
BHCS
x2
91048
8mm HD
Ball Stud
91720
Shock
Standoff,
Long
25215
M3
Locknut
(Black)
x2
x2
x2

14
:: Rear Hub Build - Bag 9.1, 9.2 - Step 1
:: Rear Gearbox Build - Bag 8.1, 8.2 - Step 6
:: Rear Gearbox Build - Bag 8.1, 8.2 - Step 5
Rear Hub Link Setting:
Up A
A
B
B
C
C
D
D
E
E
Down
Rear Hub
Insert 0/3
Tab up
0 (low) + 3mm + 1mm + 2mm
1/2
Tab up
0/3
Tab down
1/2
Tab down
Recommended
Ballstud location
for axle height
Axle Height
91049
10mm HD
Ball Stud
89218
3x8mm
Washer
92055
B64 Rear
Hub Insert,
1/2 - Tab Up
92055
B64 Rear
Hub (left)
91698
B6 Rear
Hub Link
Nut
92055
B64 Rear
Hub Link
Insert
25215
M3
Locknut
(Black)
0° - Up
Arm Mount Insert,
Arm Mount D
92048
B64 Rear
Arms
92048
B64 Rear
Arm Shim,
1mm
92024
Hinge Pin
92021
B64 LRC
Arm Mount,
D
89202
3x12mm
BHCS
x2 92014
Arm Mount
Inserts
x2
25202
3x10mm
FHCS
92065
B64 Rear Center
DogBone, 110mm
x2
NOTE:
Add one drop of
black grease to
all screws holding
the gearbox !
!
25203
3x12mm
FHCS
25204
3x16mm
FHCS
x4
x2
#6588
black grease

:: Rear Hub Build - Bag 9.1, 9.2 - Step 2
:: Rear Hub Build - Bag 9.1, 9.2 - Step 3
15
:: Anti-Roll Bar Build - Bag 10.1, 10.2 - Step 1
91438
CVA Rebuild
Kit
91563
10x15x4mm
Bearing
91562
6x13x5mm
Bearing
92057
B64 Rear
CVA Bone,
65mm
91438
CVA Rebuild
Kit,
92062
B64 Rear
Axle
#6588
black grease
Thread in the Anti Roll Bar
Ballstud until the threads
are flush with the top of the
Turnbuckle Eyelet
!
92054
Anti Roll
Bar Eyelet
92054
Anti-Roll
Bar Coupler
92054
Anti Roll Bar
Ballstud
31305
Turnbuckle
Eyelet
25225
3x3mm
Set Screw
92054
Anti-Roll
Bar Collar
92053
Rear Anti
Roll Bar,
1.4mm
(Gray)
Once the roll bar, collar, and
set screw are installed, the
collar may need to be
rotated to ensure free
movement once installed
into the gearbox.
!
91436
Wheel Hex
Pin
92070
B64 Wheel
Hex
x2
92024
Hinge Pin
92055
Rear Arm
Shims
31510
2x4mm
BHCS

16
:: Turnbuckle Build - Bag 11.1 - Step 1
:: Anti-Roll Bar Build - Bag 10.1, 10.2 - Step 3
:: Anti-Roll Bar Build - Bag 10.1, 10.2 - Step 2
x2 92027
3x42mm
Turnbuckle
91722
Ballcup
Servo Link
Build x1
15.80mm
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
!
Rear Anti Roll Bar Install
Do not overtighten
the set screws.
Install the roll bar into
the Anti Roll Bar Coupler
#92054 until it bottoms out.
!
!
25225
3x3mm
Set Screw
31511
2x5mm
SHCS
x4
x2

:: Turnbuckle Build - Bag 11.1 - Step 3
17
:: Turnbuckle Build - Bag 11.1 - Step 4
:: Turnbuckle Build - Bag 11.1 - Step 2
91723
3x48mm
Turnbuckle
x291722
Ballcup
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Rear Camber
Build x2
25.00mm
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
!
x291722
Ballcup 91723
3x48mm
Turnbuckle
x291722
Ballcup 91723
3x48mm
Turnbuckle
Steering
Build x2
Front Camber
Build x2
23.90mm
20.50mm
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
!
!

:: Shocks Build - Bag 12.1, 12.2, 12.3 - Step 3
18
:: Shocks Build - Bag 12.1, 12.2, 12.3 - Step 2
:: Shocks Build - Bag 12.1, 12.2, 12.3 - Step 1
Front Shock: 30 wt
#5422
Rear Shock: 30 wt
#5422
Shock fluid
Steps 9-10Step 8Steps 6-7Steps 4-5Steps 2-3
Shock Bleeding Steps:
1. Before assembly, install each bleed
screw 1-2 turns into the shock cap,
then remove the screw. This will
make it easier when you are bleed-
ing your shocks.
2. Pull shock shaft down.
3. Fill shock body 3/4 full with silicone
shock fluid.
4. Slowly move the shock shaft up and
down to remove air from under the
piston.
5. Wait for bubbles to come to sur-
face.
6. Fill shock body to top with silicone
shock fluid.
7. Place a drop of oil in the cap and on
cap threads.
8. Install cap (without bleed screw)
and tighten completely.
9. Slowly compress shaft all the way
to bleed excess silicone shock fluid
out the hole in the cap (use rag
around shock to catch excess fluid).
10. Install M2x4mm button head
screw until snug while shaft is fully
compressed.
Stroke
Front: 22.00mm
Rear: 28.5mm
Stroke
Stroke
Shock fluid
91492
M2 x 4mm
BHCS
91449
12mm
Shock Cap
91480
12x23mm V2
Shock Bodies
(front)
91481
12x27.5mm
V2 Shock
Bodies (rear)
91495
V2 Shock
Hat Bushing
91495
V2 Shock
Spacer
91493
X-Ring
31327
VCS3 Shock
Bottom Cap
31327
VCS3 Shock
Bottom Cap
O-Ring
91491
12mm
Shock Cap
O-Ring
x2
x2
#1105
green slime
Lightly rub shock oil
on the o-ring before
installation!
There is a short and
long shock eyelet.
Front shocks use
the long eyelet, rear
shocks use the
short eyelet.
Racers Tip:
Coating the X-rings
with green slime
(#1105) helps seal
& reduce X-ring
swell! Green slime
not included in kit!
!!
#1105
green slime
the long eyelet, rear
91721
Shock Eyelet
Front Shocks - Long
Rear Shocks - Short
91721
Shock
Pivot Ball
Short / Long
4187
Nylon Spacer,
(.030)
Front:
2 spacers
Rear:
0 spacers
91634
12mm V2
Shock Piston
(1.5 front)
(1.7 rear)
91617
V2 3x23
Shock Shaft
TiN (front)
31510
M2 x 4mm
BHCS
89278
2.5mm
Washer
91619
V2 3 x 27.5
Shock Shaft
TiN (rear)
Racers Tip:
Use a marker over the
numbers on the pistons to
make them easily visible!
Mount the shock
pistons with the
number facing up!
!
#1596
thread lock

:: Shocks Build - Bag 12.1, 12.2, 12.3 - Step 5
19

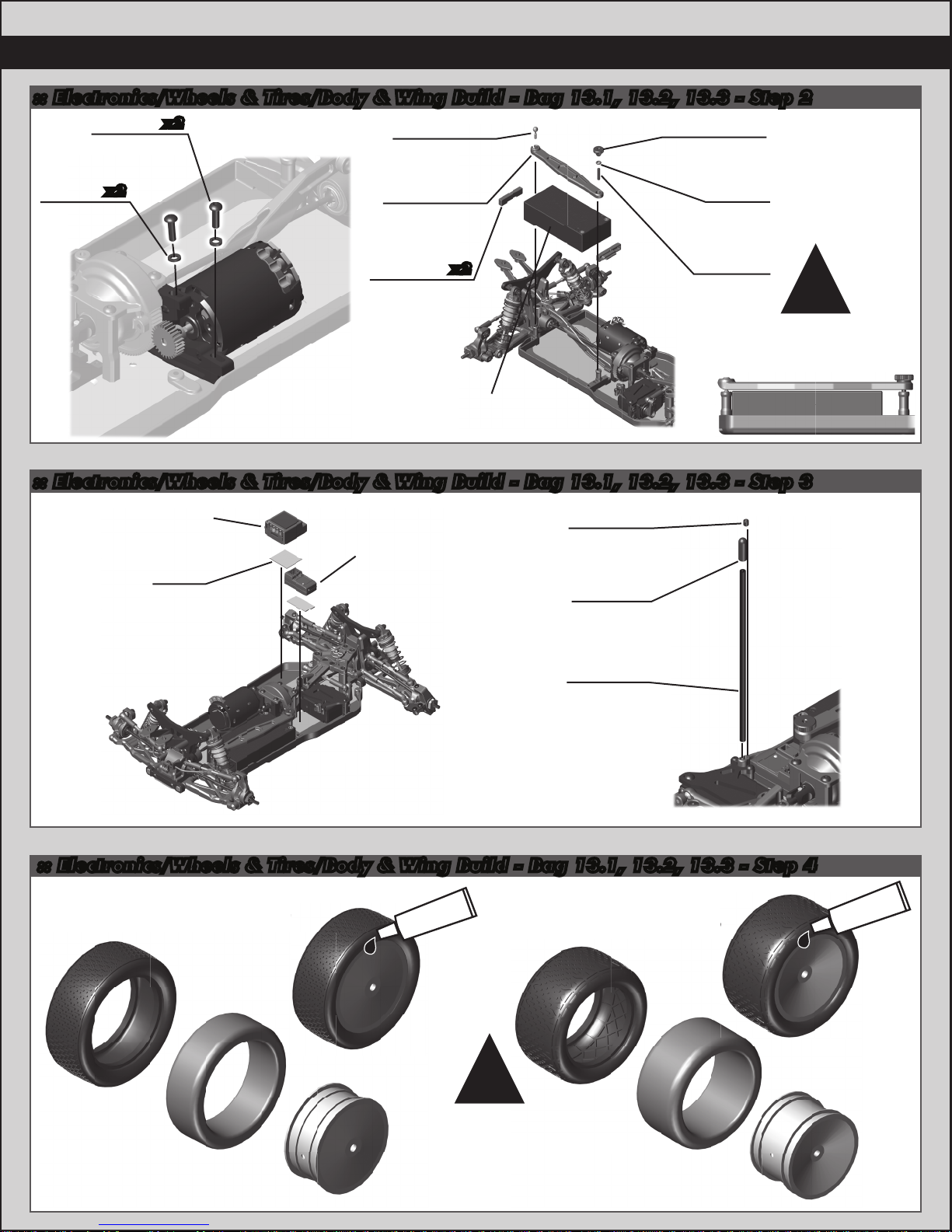

:: Electronics/Wheels & Tires/Body & Wing Build - Bag 13.1, 13.2, 13.3 - Step 1
:: Shocks Build - Bag 12.1, 12.2, 12.3 - Step 4
91304
12mm
Threaded
Collar
91491
12mm
threaded
collar
o-ring
x4
x4
collar
o-ring
91310
12mm Shock
Spring Cup
Front:
(5mm offset)
Rear:
(0mm offset)
91331
12mm Front
Spring, Yellow
(3.75lb)
91336
12mm Rear
Spring, Green
(2.00lb) Build x2 front and x2 rear shocks
Racers Tip:
Use your finger to rub
shock oil on the o-ring for
smoother adjustment!
#91310 12mm Shock Spring Cups
0mm 5mm 9mm
Front:
8.25mm
Rear:
6.00mm
B A BA
25612
M3 Locknut
w/Flange
25612
M3 Locknut
w/Flange
91447
Shock
Bushing
91447
Shock
Bushing
89203
3x16mm
BHCS 25187
3x14mm
BHCS
92045
B64 Motor
Mount Slide
25225
3x3mm
Set Screw
1346
Pinion
28T, 48P
31532
3x8mm
BHCS
x2
Motor
included!

20
:: Electronics/Wheels & Tires/Body & Wing Build - Bag 13.1, 13.2, 13.3 - Step 3
:: Electronics/Wheels & Tires/Body & Wing Build - Bag 13.1, 13.2, 13.3 - Step 4
:: Electronics/Wheels & Tires/Body & Wing Build - Bag 13.1, 13.2, 13.3 - Step 2
Wheels / Tires and
Inserts are
not included!
Wheels / Tires and
Inserts are
not included!
#1597
CA glue
Carefully apply CA glue
(tire adhesive) to the tire
bead on the side. Do one
side at a time, allowing it
to dry before gluing the
other side!
CA glue not included!
!
Build x2
#1597
CA glue
Adjust the #89090 Ball
joint according to how
tall/short, your battery is.
!
6727
Servo
Tape
25225
3x3mm
Set Screw
6338
Antenna
Cap
6338
Antenna
Tube
ESC
included!
Receiver not
included!
92047
B64 Battery
Spacer
92047
B64 Battery
Strap
89090
Swaybar Ball
Joint
91458
FT Battery
Thumbwheel
5407
Red
O-Ring
91737
3x20mm
Set Screw
x2
Battery not
included!
25211
3x10mm
BHCS
x2
31382
1mm
Shim
x2
