Astral Pool PLUVIUM 43432 User manual

SIGNATURE
Our commitment: excellence
Disclaimer
PLUVIUM
english

SIGNATURE
1
INDEX
1. Product data sheet and technical characteristics
1.1. Table of technical characteristics
1.2. Flow table
1.3. Packaging
1.3.1. Shower palletised
1.3.2. Shower tray palletised
1.4. General dimensions
2. Quality control check-list
3. Available certificates about the product, the production process and the systems implemented in the company
4. Warranty certificate
4.1. General provisions
4.2. Limits
4.3 Exclusions
5. Design standard and general characteristics
6. Diagram
7. Recommendations
7.1. Packaging
7.2. Storage
7.3. Transport
7.4. Installation manual and how to start up the product
7.5. Maintenance
8. Table of errors
9. Table “DOs AND DON’Ts”

SIGNATURE
2
Pluvium shower
New shower with an elegant and modern image thanks to its minimalistic design and the high
quality of its materials. Designed to offer the utmost in well-being and relaxation.
1. Product data sheet and technical characteristics
1.1. Table of technical characteristics
Code DESCRIPTION
43432 PLUVIUM shower
43434 PLUVIUM shower tray
43583 Combination PLUVIUM shower + PLUVIUM shower tray
Rainfall System: the water spray cre-
ates a relaxing effect.
Adjustable sprinkler: for increased user
comfort and better usage of water.
Single lever mixes hot and cold water
control for increased bather comfort.
•
•
•
Sprinkler with anti-scale system offers
greater durability.
Optional shower tray for a perfect n-
ish.
•
•
Technical characteristics
- Made of AISI-316 SATIN stainless steel.
- Ipe wood.
- Adjustable sprinkler made in chrome-plated brass with anti-scale system.
- Single lever mixer made in chrome-plated brass.
- Fixation to the oor with four screws.
- Flow limiting system.

SIGNATURE
3
1.2. Flow table
WATER CONSUMPTION:
Without ow limiting system
Flow pressure 1 bar 2 bar 3 bar 3,5 bar
Hot and cold 6,8 l/min 10 l/min 12,8 l/min 14,4 l/min
Just cold 6,4 l/min 9,6 l/min 12,4 l/min 13,2 l/min
Just hot 6,4 l/min 9,6 l/min 12,4 l/min 13,2 l/min
With ow limiting system
Flow pressure 1 bar 2 bar 3 bar 4 bar
Hot and cold 4,4 l/min 6 l/min 7,6 l/min 8,8 l/min
Just cold 4 l/min 5,6 l/min 7,2 l/min 8,4 l/min
Just hot 4 l/min 5,6 l/min 7,2 l/min 8,4 l/min
Note: We recommend the use of the water ow limiting system only when the ow pressure
is more than 3 bars. If the pressure is less it is not necessary to use the limiting system. (See
dispenser assembly on page 13).
Low water consumption and correct effect
High consumption
Low ow

SIGNATURE
4
PALLETISED DIMENSIONS (mm) VOLUME (m3) PACKAGES PER PALET
1200x1000x2450 2,94 15
1.3. Packaging
1.3.1. Shower palletised
PACKAGING DIMENSIONS (mm) VOLUME (m3)
340x220x2190 0,16
1.3.2. Shower tray palletised
PALLETISED DIMENSIONS (mm) VOLUME (m3) PACKAGES PER PALET
1200x800x1700 0,68 49
PACKAGING DIMENSIONS (mm) VOLUME (m3)
750x750x50 0,28

SIGNATURE
5

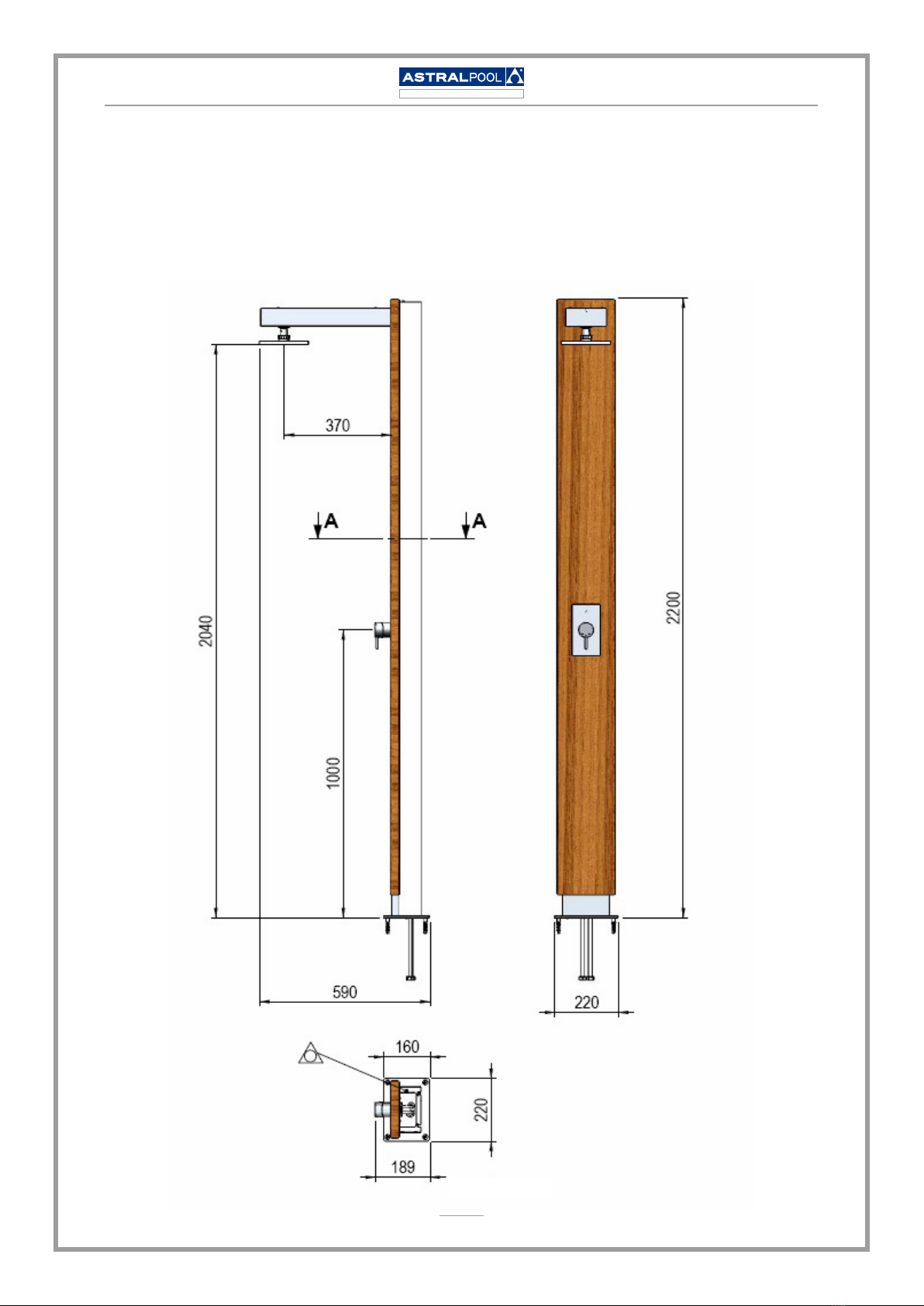

1.4. General Dimensions (mm)
Shower (Code 43432)
SECTION AA

SIGNATURE
6
Shower tray (Code 43434)
SECTION AA

SIGNATURE
7
2. Quality control check-list
Process operation
Self-control operation
Control
Stock
Components
Packaging
Assembly
Manufacture of parts
Quality certificate:
Receipt control: Panel, single lever mixer, sprinkler,
flexible connector, wood.
Receipt of materials:
Production process
RANDOM CHECK
100 %
Finish control /
watertight
Quality control/ random check
QUALITY CONTROL CHECKLIST

SIGNATURE
8
METALAST S.A.U CERTIFIES THAT:
The PLUVIUM shower, manufactured by METALAST S.A.U. has been designed
following the standards set by METALAST S.A.U..
These include:
- Control points and necessary tests to ensure the conformity of the product, in
accordance with the requirements established by regulation ISO 9001:2000 in
its points on:
- Product production.
- Product analysis and improvement.
- Every shower assembled is inspected for water tightness and a visual inspection
made of its appearance.
Quality Control Manager Metalast, S.A.U.

SIGNATURE
9
3. Available certificates about the product, the
production process and the systems implemented
in the company

SIGNATURE
10
4. Warranty certificate
4.1. GENERAL PROVISIONS
4.1.1. In accordance with these provisions, the vendor guarantees the products that it sells
against any manufacturing defect that affects its conformity or suitability for the use for which
they have been designed.
4.1.2. Warranty period: three years of warranty from the date of acquisition by the user or nal
purchaser. The warranty includes: material and workmanship; it does NOT include: delivery
costs, travel costs of repair personnel, or any other cost resulting from the actions carried out
by the claim.
4.1.3. The application of the warranty will be managed through the distributor or point of sale
authorised by it, at the time of detecting the defect.
4.1.4. In order to apply the warranty, the buyer should be able to prove the purchase and deliv-
ery dates of the product.
4.1.5. In order to apply the warranty, the user should have followed to the letter all the instruc-
tions on maintenance and installation of the product established by the manufacturer.
4.1.6. When more than 6 months have passed since the acquisition of the product by the buyer
and there is a claim of non-conformity of the product, the latter should verify the origin and exist-
ence of the defect.
4.1.7. Parts substituted or repaired by virtue of this warranty will not extend the warranty period
of the product; it will only be extended for the part in question.
4.1.8. These warranty conditions can only be modied or extended by a clause reected in the
conditions of the sales contract.
4.1.9. This warranty does not affect consumers’ statutory rights.
4.2. LIMITS
4.2.1. The present warranty will only be applied in those sales made to consumers, with the
“consumer” being understood as the person who acquires the Product for ends that do not fall
within the sphere of his or her professional activity.
4.2.2. No guarantee is granted for normal wear and tear due to use of the product.
4.2.3. The wood may experience small cracks, changes in colour and warping. See the section
on wood maintenance to prevent these symptoms.

SIGNATURE
11
4.2.4. Faults in the product caused only and exclusively by defects in materials and/or workman-
ship are covered by the warranty. The warranty does not cover cases in which the Product: (i)
has been handled incorrectly; (ii) has been installed, repaired, maintained or manipulated by
non-authorised individuals or (iii) has been repaired or maintained with non-original parts. Flaws
caused by accidental or inadequate use are out of the scope of the present warranty.
4.2.5. When the non-conformity of the Product is the consequence of incorrect installation or
start-up, the present warranty will only apply when this installation or start-up is included in the
sales contract of the Product and has been carried out by the vendor or under its responsibil-
ity.
4.3 EXCLUSIONS
Excluded from the warranty are imperfections or damage caused by:
Negligence or carelessness in installation, handling, transport and use.
Insufcient or inappropriate maintenance of environmental conditions as well as the product
or accessory.
Total or partial modications to the product without written authorisation from the manufac-
turer.
Causes of force majeure, such as re, frost, ooding, lightning or any other unforeseen ca-
tastrophe of any origin.
Causes external to or beyond the scope of the product, such as storing the product outdoors
or in enclosed places alongside chemical products where there may be adverse environ-
mental conditions.
Spillage of chemical agents or products on the product.
Anything that, although not included in these points, can be excluded for not being attribut-
able to the material or its manufacturing process.
•
•
•
•
•
•
•

SIGNATURE
12
5. Design standard and general characteristics
TECHNICAL CHARACTERISTICS:
- Made in AISI-316 SATIN stainless steel.
- Ipe wood:
- Wood for outside or wet areas
- Density: very dense 050 Kg/cm.
- Dimensional stability: very stable.
- Hardness: very hard, 8.5 (Monnin).
- Durability: very durable.
- Chrome-plated brass sprinkler:
- Adjustable.
- Anti-scale system.
- Chrome-plated single lever mixer valve.
- Fixing to the oor with four screws.
- Flow limiting system.

SIGNATURE
13
Name:
Scientic: Tabebuia spp;
English: Ipé;
Lapacho.
Origin:
Description of the wood:
Alburnum: Yellowish white.
Duramen: Dark brown with a very characteristic
greenish tone.
Fibre: straight with frequent interweaving or a
lot of interweaving
Grain: Fine to medium.
Physical properties:
Apparent density from 12% humidity
1.050 kg/m2kg/m very heavy wood
Dimensional stability
Volumetric contraction coefcient
0.41% stable wood
Hardness (Monnin)
8.5 very hard wood
Mechanical properties:
Static exion resistance
1,750 kg/cm2
Elasticity module
200,000 kg/cm2
Compression resistance
890 kg/cm2
Durability:
Very high.
Impregnability:
Alburnum: Moderate impregnability. Duramen:
Low impregnability.
•
•
•
•
•
•
•
•
•
•
•
Mechanisation:
Sawing: With no problems other than its
hardness. Rapid blunting.
Drying: Slow. Slight risk of warping and cracks.
Planing: difcult because of its hardness and
risk of repelling. It is recommended that you
plane very slowly.
Gluing: the tannins make adherence difcult.
Hammering and screwing: because of its
hardness, it is advisable that you make drill
holes rst.
Finish: the rubber sediments could inhibit the
adherence of varnish.
Uses:
Outdoor furniture and ne joinery.
Outdoor joinery, doors and windows.
Joinery to be assembled, both indoors and
outdoors.
•
•
•
•
•
•
IPE wood

SIGNATURE
14
6. Diagram
ID CODE DESCRIPTION ID CODE DESCRIPTION
1 4401043201 SINGLE LEVER MIXER 8 4401043208 WOOD EMBELLISHMENT
2 4401043202 EMBELLISHMENT 9 4401043209 ARM LID
3 4401043203 ADJUSTABLE SPRINKLER 10 4401043210 BODY FIXATION
4 4401043204 FLOW LIMITER 11 4401043211 SHOWER ARM
5 4401043205 WALL ATTACHMENT 12 43432R0200 REAR LID
6 4401043206 FLEXIBLE CONNECTOR 500 mm 13 70206R04008 SCREW DIN-85 M 4X8
7 4401043207 FLEXIBLE CONNECTOR 1100 mm

SIGNATURE
15
7. Recommendations
7.1. PACKAGING
The Pluvium shower is delivered in an adequately packed and sealed cardboard box, on
which the positioning and stacking logistics are indicated so as to ensure correct storage of the
shower.
Any failure to follow the instructions for storage could result in imperfections of the product.
7.2. STORAGE
Store the Pluvium shower in a place which is protected from bad weather and which does not
have a very high level of humidity.
Do not keep the cardboard box in humid conditions for an extended period of time because it
could cause warping at the bottom of the pallet.
7.3. TRANSPORT
Transport the Pluvium shower boxes in adequately bundled pallets.
Unpack the shower once at the nal destination. If this is not possible, the shower must be
handled with the greatest care. Any friction, knock or contact with rough surfaces could produce
imperfections on the exterior nish.

SIGNATURE
16
7.4. INSTALLATION MANUAL AND HOW TO START UP
THE PRODUCT

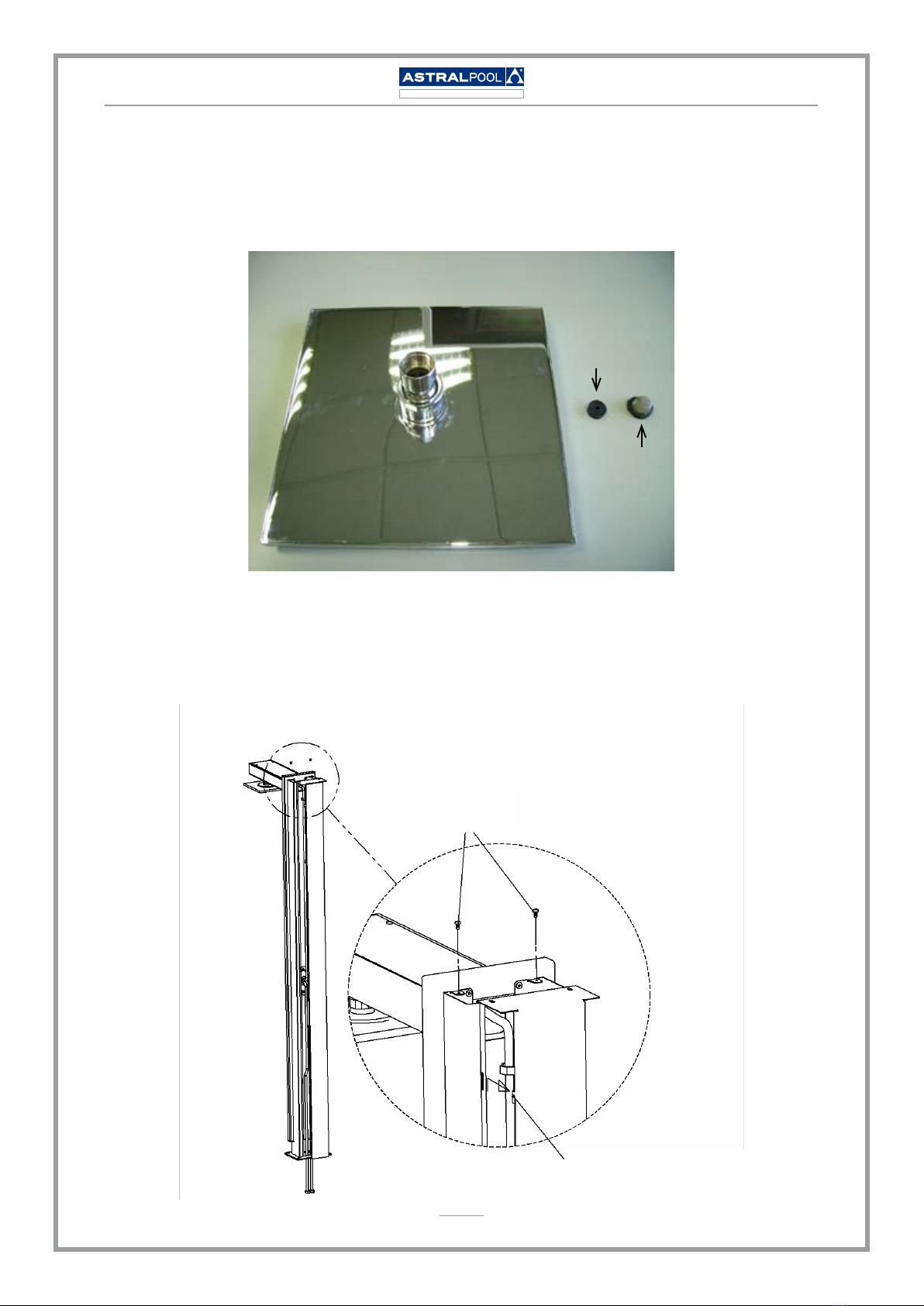

Sprinkler
1- Dismantle sprinkler from the arm.
2 - Remove sprinkler joint.
3- Add ow limiter.
4- Replace sprinkler joint.
5- Screw the sprinkler unit onto the arm.

   
  


PIÑA
REDUCTOR
JUNTA PIÑA
1- Desmontar piña del brazo.
2- Sacar junta piña.
3- Añadir limitador de caudal.
4- Volver a poner junta piña.
5- Roscar conjunto piña en brazo.


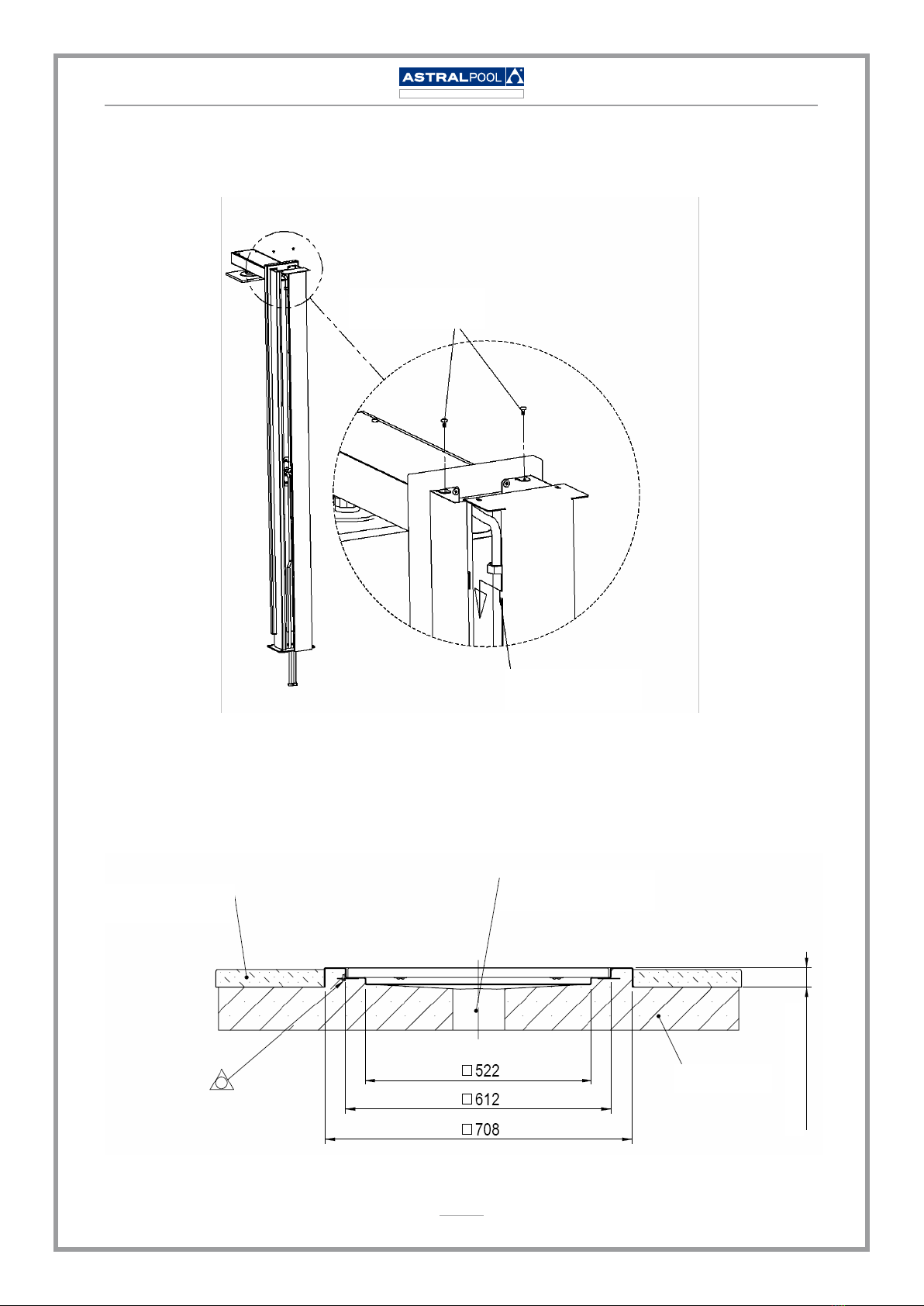

1º Remove xing
screw
2º Lift rear lid and
remove clips from
the slots
Reducer
Sprinkler
joint

SIGNATURE
17

   
  


   
  

Thread the exible
connector
Put in the washer
and thread the nut
on the thread
Insert Rawlplugs
in the hole
Make Ø10 holes
for Rawlplugs M08S

SIGNATURE
18

   
  








   
  







Put ovalhead co-
untersunk screws
Rest the shower
on the oor
Connect shower exible
connectors with threaded
oor points
Connect
equipotential
cable

SIGNATURE
19

   
  












   
  











2º Fix with screws
1º Insert clips in
slots
Tray assembly
Make a drain for
50 l/min.
Tiling
Concrete
Height Inox. 44
