astreea IGLOO L PLUS User manual

IGLOO L PLUS
Quick Installation Guide
COSTCO MODEL
ITEM NO. 2127500
We recommand tree
people for this operation
2-3 hours needed
Quick installation video
www.astreea.com
We recommend three (3)
5 Hours Needed
IGLOO MUST BE SECURED TO THE
GROUND USING THE FLOOR
CLAMPS PROVIDED IN THE KIT

1. The frame
2. The door
3. The umbrella
www.astreea.com

5 x base rails
10 x lower poles
10 x upper poles 1 x support plate
2 x clothing
racks
9 x upper panels
1 x upper door panel
9 x lower panels
1 x central
bolt assembly
1 x crown plate
2 x M4x10
screws
21 x M8x20
screws
15 x M8x50
screws
35 x M8 nuts
40 x frame rings
54 x M6x8
screws
24 x M6x12
screws
5 x fixing
clamps
10 x M8x25
screws
20 x M6x10
screws
20 x M6x12
screws
16 x M6x20
screws
1 x stop plate
1 x locking
plate
Wrench no.13
Allen key no.2.5, 3, 4, 5 and 6
8 x upper
strips
8 x lower strip
1. The frame
Components
Tools included
www.astreea.com

5 x base rails
1 x locking plate
1 x stop plate
5 x M8 nuts
Wrench no.13
Allen key no.6
Place the base rails on the floor.
Consider one base rail as
door rail .
door rail
locking plate
stop plate
1. The frame
1.1 Mounting the base rails, stop plate and locking plate
Tools needed
Components
5 x M8x50 screws
www.astreea.com

A
B
C
door rail
DETAIL A
M8x55
screw
M8 nut
stop plate
DETAIL B
M8x50
screw
locking plate
M8 nut
DETAIL C
M8x55
screw
M8 nut
1. The frame
1.1 Mounting the base rails, stop plate and locking plate
Join the base rails on the left side and on the right side of the door rail.
Place the stop plate on the left side of the door rail and fix it with the same
screw that fix the rails (detail A).
Place the locking plate on the right side of the door rail and fix it with the same
screw that fix the rails (detail B).
Join the other rails and fix them as shown in the detail C.
www.astreea.com
Tghten the screws on all 60° angle bolts of the base frame.

Allen key no.5
Insert 1pcs. of frame ring on the upper pole and 3pcs. on the lower pole.
Join the upper pole with the lower pole and fix it using the M8x25 screw.
Proceed in the same way for all 10 poles.
D
frame
aluminium rings
10 x lower poles 10 x upper poles
40 x frame rings
DETAIL D
M8 x 25 screw
lower pole
upper pole
frame ring
1. The frame
1.2 Mounting the lateral poles
Tools needed
Components
10 x M8x25 screws
www.astreea.com
*If there is a gap between the poles, unscrew the
connecting bolt and move poles closer until gap
disappears. The same applies to base connections.

2 x M8 nuts
Wrench no.13
Allen key no.5
Attach the support plate on the lateral pole and fix it with 2 x M8x20 screws
and 2 x M8 nuts
lateral pole
support plate
M8 x 20 screws
M8 nuts
2 x M8x20 screws
1 x support plate
1. The frame
1.3 Mounting the support plate on the lateral pole
Tools needed
Components
www.astreea.com
Installing

1 x M8 nuts
Wrench no.13
Allen key no.6
Mount the lateral pole, with the support plate attached, on the base rail and fix it with
M8x50 screw and M8 nut.
E
door rail
DETAIL E
base rails
M8x50
screw
M8 nut
lateral pole with
the support plate
attached
1. The frame

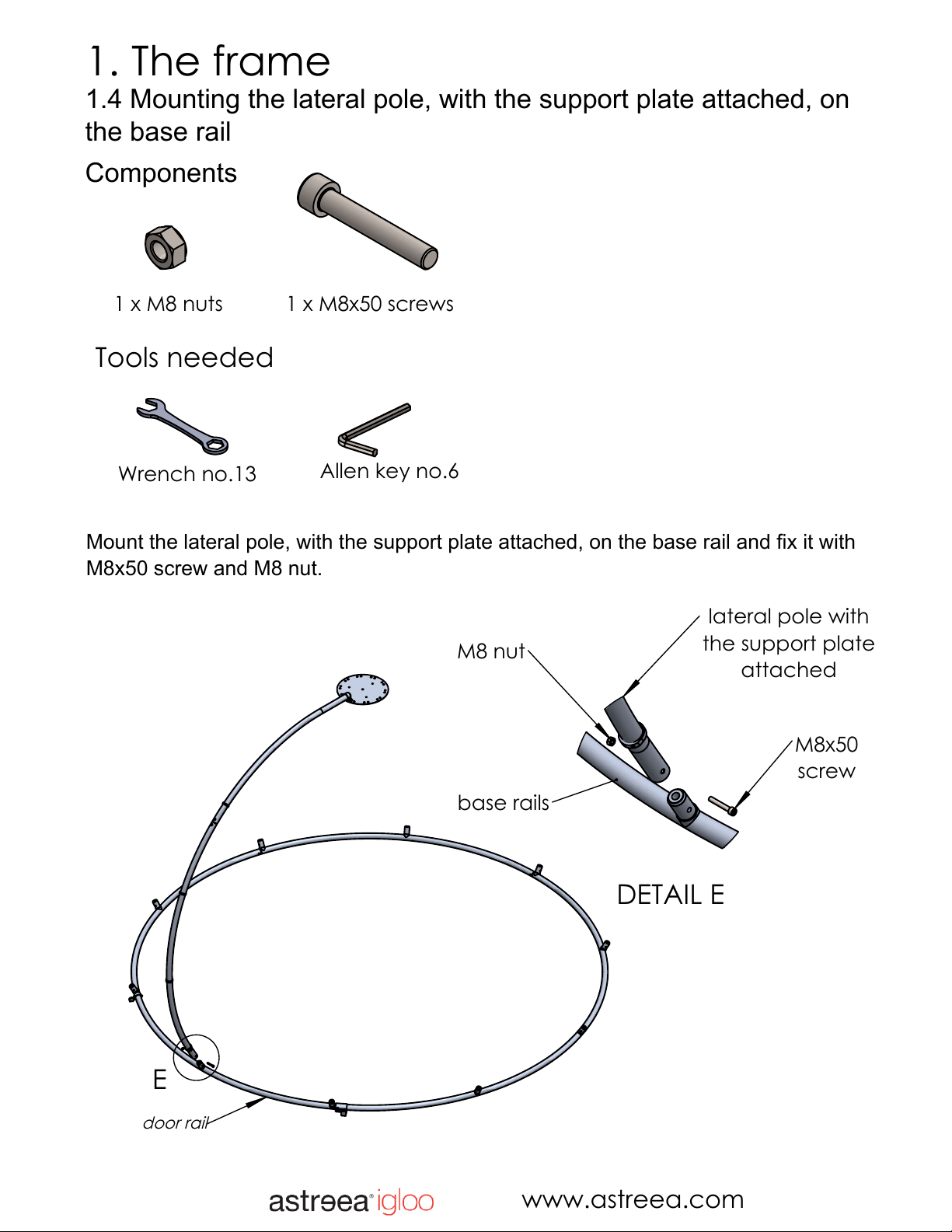

1.4 Mounting the lateral pole, with the support plate attached, on
the base rail
Tools needed
Components
1 x M8x50 screws
www.astreea.com

3 x M8 nuts
Wrench no.13
Allen key no.6
Mount the second lateral pole in the opposite of the first one and fix it in the upper
part and the lower part as shown.
F
G
2 x M8x20 screws
Allen key no.5
DETAIL F
M8 nuts
M8x20
screws
DETAIL G
M8x50 screw
M8 nut
1. The frame

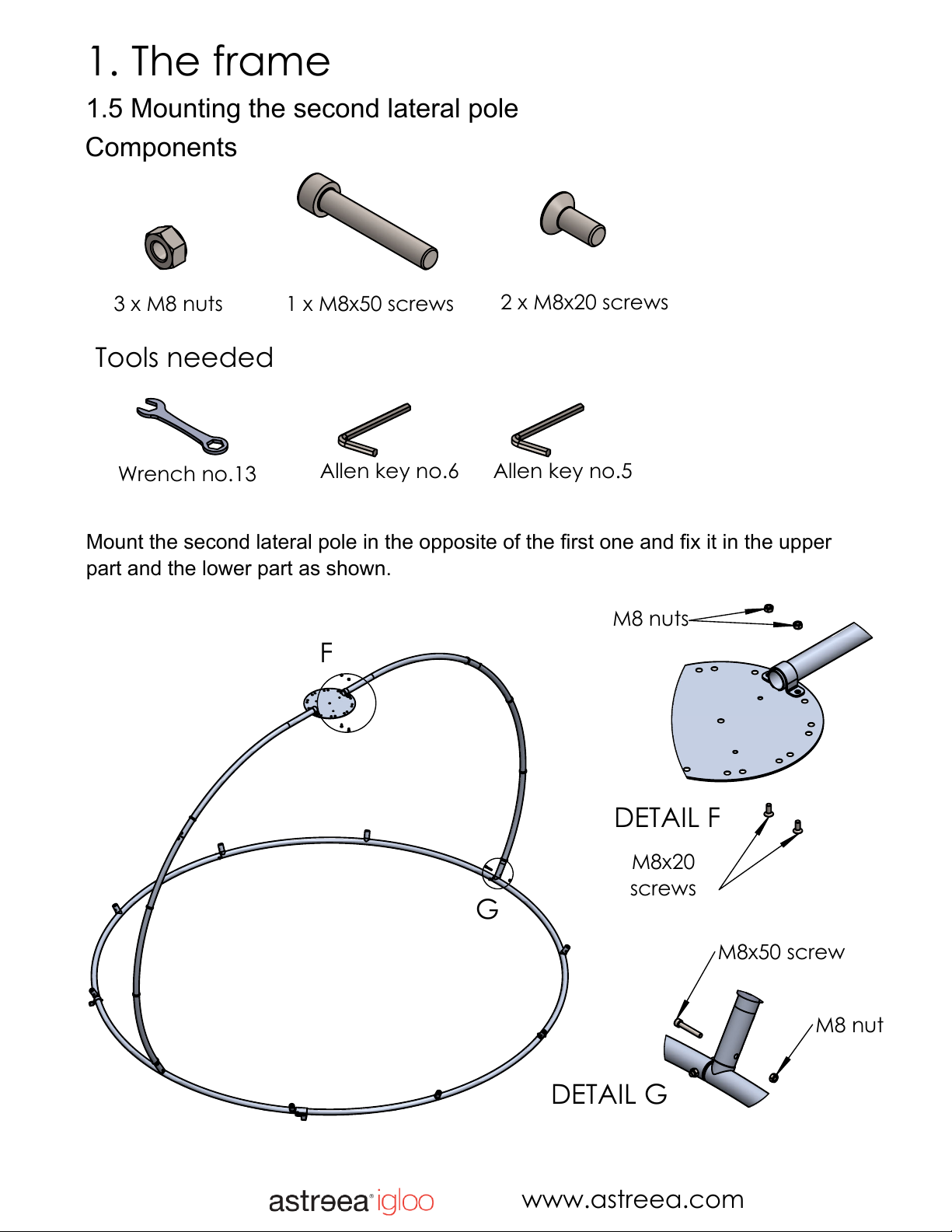

1.5 Mounting the second lateral pole
Tools needed
Components
1 x M8x50 screws
www.astreea.com

24 x M8 nuts
Wrench no.13
Allen key no.6
Mount the second lateral pole in the opposite of the first one and fix it in the upper
part and the lower part as shown.
H
16 x M8x20 screws
Allen key no.5
DETAIL H
M8 nut
M8x20 screw
crown plate
1. The frame

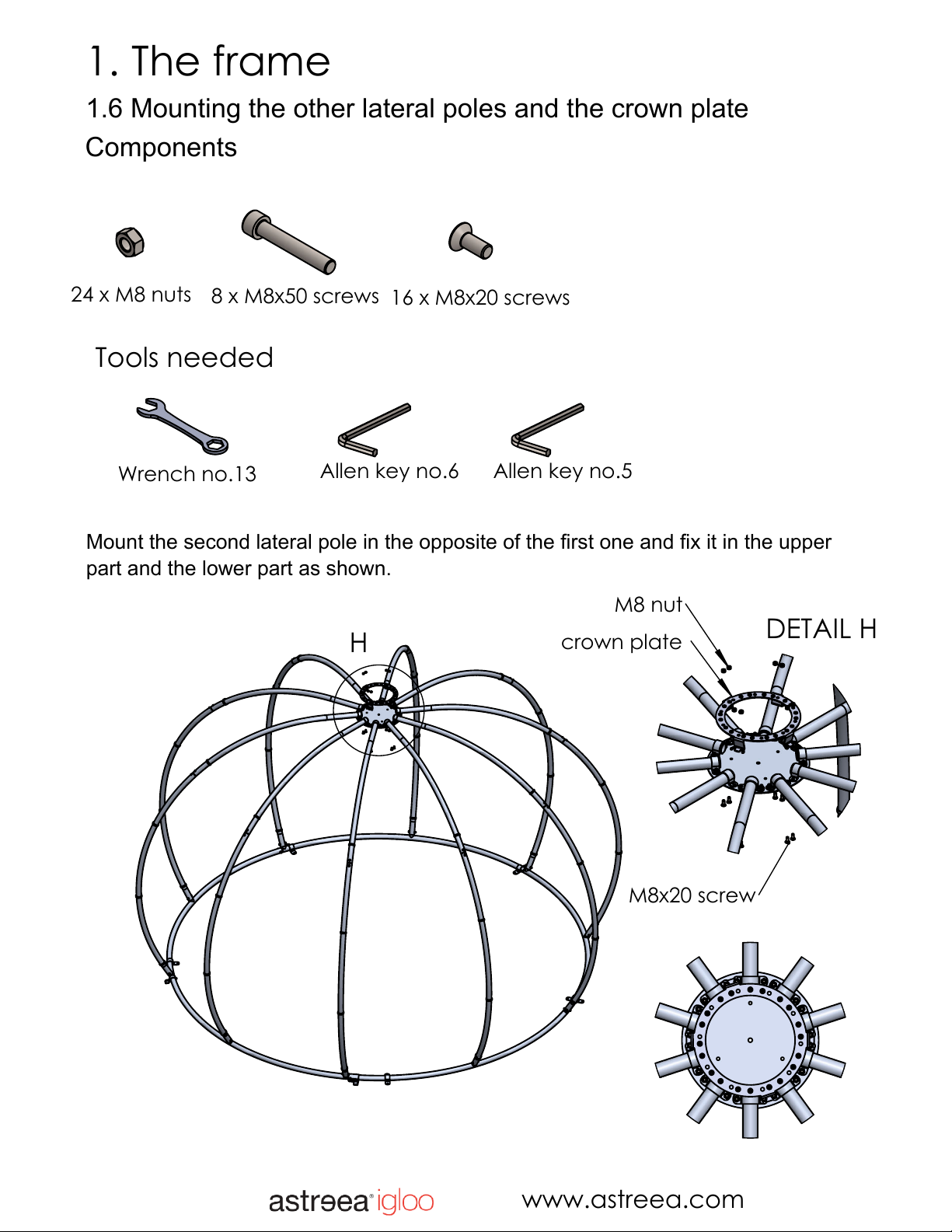

1.6 Mounting the other lateral poles and the crown plate
Tools needed
Components
8 x M8x50 screws
www.astreea.com

door rail
Place the aluminium clamps on the base rails.
Do not mount them on the door rail.
aluminium
clamps
aluminium clamps
5 x aluminium clamps
10 x M8 anchors
(not included)
1. The frame

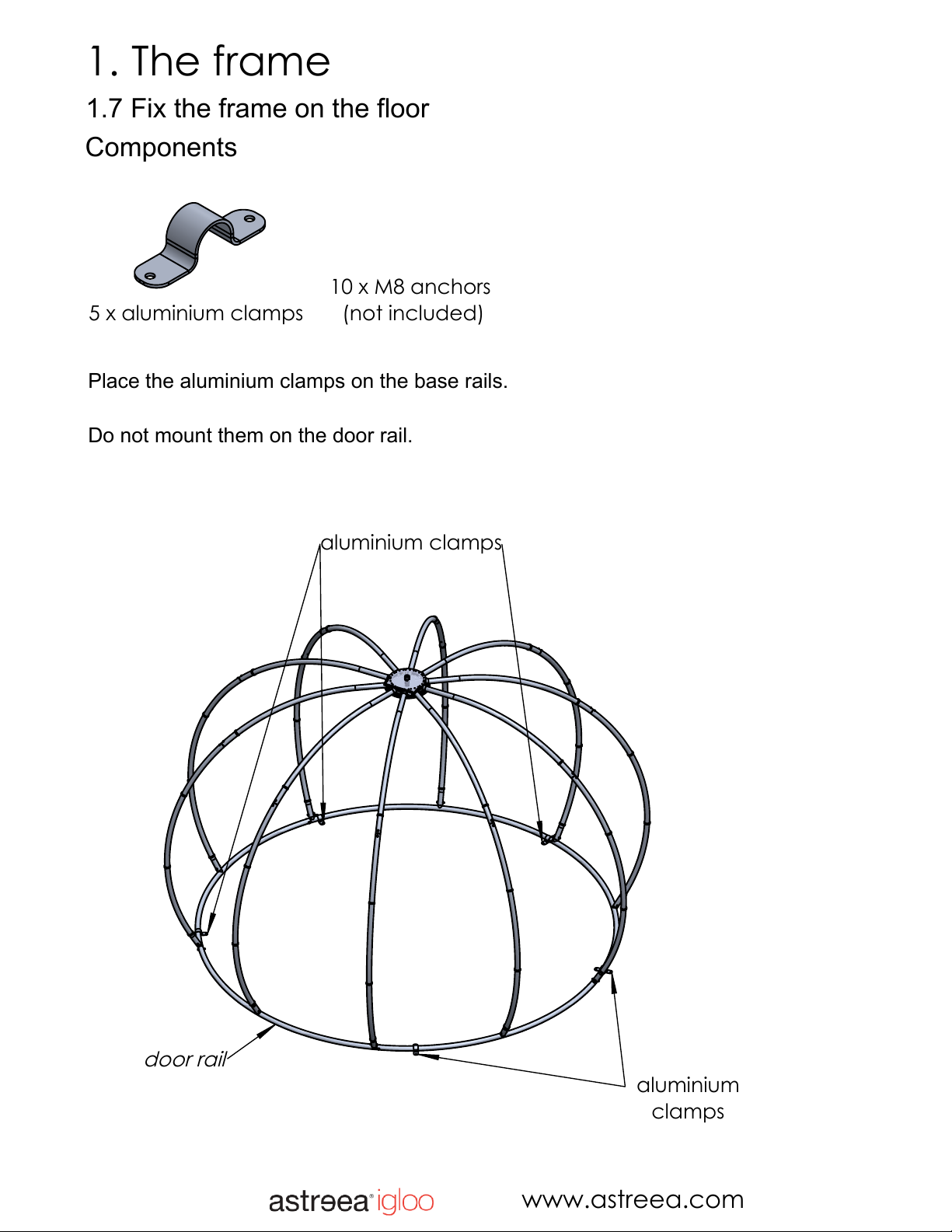

1.7 Fix the frame on the floor
Components
www.astreea.com

I
door rail
DETAIL I
central bolt
assembly
upper panel
M6x12 screws
1 x upper panel
1 x central
bolt assembly
2 x M6x12
screw
Allen key no.4
door
1. The frame
1.8 Mounting the left door upper panel and the central bolt assy.
Components
Place the central bolt assembly on the crown plate and position it with the
bended part to the door rail.
Mount the first upper panel on the left side of the door rail and fix it toghether
with the central bolt assembly on the crown plate using 2pcs. of M6x12 screws.
Do not tight the screws until the end.
Tools needed
www.astreea.com
Installing
Install
Do not tighten the screws until the end.

J
2 x M6x10
screw
Allen key no.4
lower panel
DETAIL J
upper aluminium ring
M6x10 screw
lower panel
upper panel
frame ring
lateral pole
allign it with the
lateral pole
1. The frame

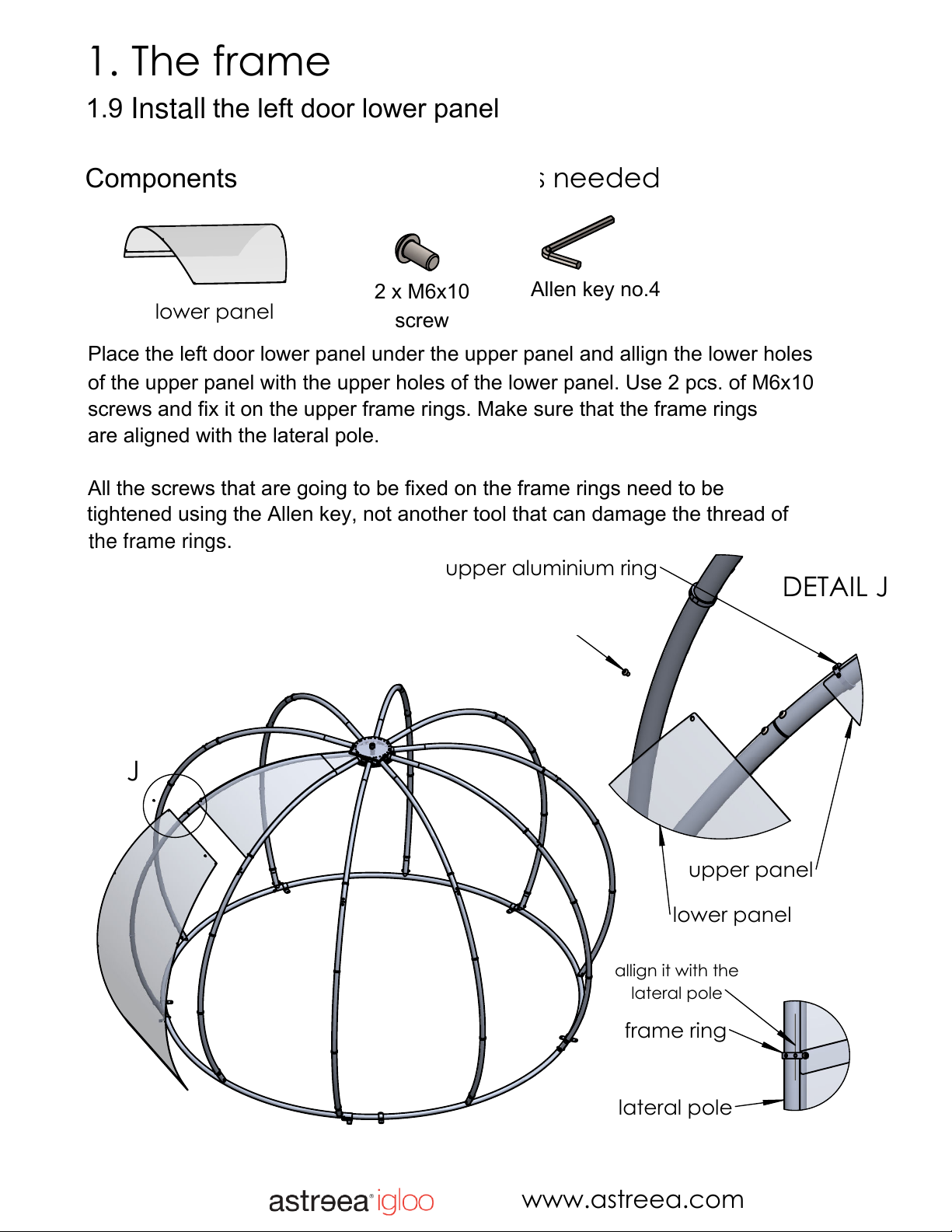

1.9 Mount the left door lower panel
Components
Place the left door lower panel under the upper panel and allign the lower holes
of the upper panel with the upper holes of the lower panel. Use 2 pcs. of M6x10
screws and fix it on the upper frame rings. Make sure that the frame rings
are aligned with the lateral pole.
All the screws that are going to be fixed on the frame rings need to be
tighten using the Allen key not another tool that can damege the thread of the
rings.
Tools needed
www.astreea.com
Install
tightened using the Allen key, not another tool that can damage the thread of
the frame rings.

K
DETAIL K
M6x8 screw
lower aluminium ring
lower panel
1. The frame
1.10 Mount the left door lower panel
Fix the panele on the lower frame rings using 6pcs. of M6x8 screws.
www.astreea.com
Install
on the lower frame rings using 6pcs. of M6x8 screws.
Install

M6x12 screw
second upper
panel
polycarbonate
panel
Components
1 x upper panel
2 x M6x12
screw
Allen key no.4
1. The frame
1.11 Mount the second upper panel
Mount the second upper panel by insert the upper part of it under the
policarbonate disc of the central bolt assembly. Use 2 pcs. of M6x12 screws to fix
toghether the upper panel and the policarbonate disc on the crown plate.
Do not tight the screws until the end.
Tools needed
www.astreea.com
Install
Install
Do not tighten the screws until the end.

L
DETAIL L
1. The frame
1.12 Mount the other upper and lower panels
Mount the other upper and lower panels in the same way as the previous ones
were mounted.
Do not tight the M6 x 12 screws that fix the upper part of the upper panels until
the upper door panel will be mount.
www.astreea.com
Install
Install
Do not tighten the M6 x 12 screws that fix the upper part of the upper panels until
installed.

M
door poles
Allen key no.4
DETAIL M
M6x20
screw
upper strip
crown plate
8 x upper strips
8 x M6x20
screws
1. The frame
1.13 Mount the upper strips
Components
Mount the upper strips on the lateral poles by fixing its on the crown plate using
M6x20 screws. Proceed in the same way for all the 8 strips.
Do not mount the upper strips on to the lateral poles of the door.
Tools needed
www.astreea.com
Install
Install
them on the crown plate using
install

M6x20 screw
M6x12 screw
M6x12 screw
M6x12 screw
Allen key no.4
8 x M6x20
screws
8 x lower strips
24 x M6x12
screws
1. The frame
1.14 Mount the lower strips
Components
Mount the lower stips on the lateral poles (except lateral poles of the door) as
follow:
- place the upper part under the lower part of the upper strips
- use M6x20 screws to fix them together, in the upper part, on the frame rings
- use M6x12 screws to fix them on the frame rings in the lower part
Tools needed
www.astreea.com
Install
Install
follows:

N
Allen key no.4
door upper panel
DETAIL N
door
upper
panel
M6x12
screws
1. The frame
1.15 Mount the door upper panel
Components
Mout the door upper panel under the polycarbonate disc. Fix it on the crown plate
using 2pcs. of M6x12 screws.
Tools needed
2 x M6x12
www.astreea.com
Install
Install
using 2pcs. of M6x12 screws.

Allen key no.4, 5 and 6
1 x upper plate
1 x lower plate
1 x upper
central pole
1 x upper
right pole
1 x upper
left pole
6 x M8x55
screw
6 x M8
washer
9 x M8 nut
Wrench no.13
1 x door base rail
1 x right lower pole
1 x left lower pole
1 x central
lower pole
30 x M6x12
screws
3 x M8x45
screws
4 x frame ring
8 x door ring
1 x left lower panel
2 x upper panels
1 x right lower panel
1 x door
upper strip
1 x door
lower strip
LH and RH
door sealings
4 x M6x10
screw
12 x M6x8
screw
1 x M6x20
screw
1 x M6x12
screw
3 x M8x25 screw
2. The door
Components
Tools
