Astria Fireplaces Arcadia18MN User manual

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where not
prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
WARNING: This appliance is for installation only in
a solid-fuel burning masonry or UL127 factory-built
fireplace, constructed of noncombustible material
and connected to a working flue. (See page 6 for
minimum flue opening.)
WARNING: This is a gas-fired heater. It uses air (oxy-
gen) from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be
provided. Refer to the National Fual Gas Codes, ANSI
Z233.1/NFPA 54, Section 5.3 for Combustion and
Ventilation.
WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
—Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
—WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
—Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Installation and Operation Instructions
AstriaTM Vented Gas Log Decorative Appliance
P/N 126896-01 Rev.A 02/2014
PFS
®
US
Models
Arcadia18MN
Arcadia18MP
Arcadia24MN
Arcadia24MP
P126896-01

SAFETY INFORMATION
TABLE OF CONTENTS
Safety Information ............................................... 2
Local Codes......................................................... 4
Product Identication........................................... 5
Unpacking............................................................ 5
Product Features................................................. 5
Optional Remote Control Accessories................. 5
Installation ........................................................... 6
Operating Appliance .......................................... 10
Inspecting Burners ............................................ 13
Cleaning and Maintenance................................ 14
Specications .................................................... 14
Wiring Diagram.................................................. 14
Troubleshooting................................................. 15
Service Hints ..................................................... 19
Technical Service............................................... 19
Replacement Parts............................................ 19
Accessories ....................................................... 19
Illustrated Parts Breakdown and Parts List........ 20
Warranty Information ......................................... 25
WARNING: Improper in-
stallation, adjustment, al-
teration, service or main-
tenance can cause in-
jury or property damage.
Refer to this manual for
correct installation and
operational procedures.
For assistance or addi-
tional information con-
sult a qualied installer,
service agency or the gas
supplier.
This appliance may be in-
stalled in an aftermarket,*
permanently located,
manufactured (mobile)
home, where not prohib-
ited by local codes.
This appliance is only for
use with the type of gas
indicated on the rating
plate. This appliance is
not convertible for use
with other gases.
* Aftermarket: Completion of sale, not for
purpose of resale, from the manufacturer
WARNING: This appli-
ance is for installation
only in a solid-fuel burn-
ing masonry or UL127
factory-built fireplace,
constructed of noncom-
bustible material and
connected to a working
ue. (See page 6 for mini-
mum ue opening.)
WARNING: This is a gas-
red log set. It uses air
(oxygen) from the room in
which it is installed. Provi-
sions for adequate com-
bustion and ventilation air
must be provided. Refer
to the National Fual Gas
Codes, ANSI Z233.1/NFPA
54, Section 5.3 for Com-
bustion and Ventilation.
State of Massachusetts:
The installation must
be made by a licensed
plumber or gas tter in
the Commonwealth of
Massachusetts.

WARNING: This product con-
tains and/or generates chemicals
known to the State of California
to cause cancer or birth defects
or other reproductive harm.
WARNING: Keep ue open
when operating unit.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, op-
erate or service this log set.
Improper use of this appliance
can cause serious injury or
death from burns, re, explo-
sion, electrical shock and carbon
monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon
monoxide poisoning resemble the u, with head-
aches, dizziness or nausea. If you have these signs,
the log set may not be working properly. Get fresh
air at once! Have the appliance serviced. Some
people are more affected by carbon monoxide than
others. These include pregnant women, people
with heart or lung disease or anemia, those under
the inuence of alcohol and those at high altitudes.
Natural and Propane/LP Gas: Natural and propane/
LP gases are odorless. An odor-making agent is
added to these gases. The odor helps you detect
a gas leak. However, the odor added to the gas
can fade. Gas may be present even though no
odor exists.
Make certain you read and understand all warn-
ings. Keep this manual for reference. It is your
guide to safe and proper operation of this log set.
WARNING: Any change to
this log set or its controls can
be dangerous.
SAFETY INFORMATION
Continued WARNING: Do not use a
blower insert, heat exchanger
insert or other accessory not ap-
proved for use with this log set.
WARNING: Do not allow fans
to blow directly into the log set.
Avoid any drafts that alter burner
ame patterns. Ceiling fans can
create drafts that alter burner
ame patterns. Altered burner
patterns can cause sooting.
WARNING: Do not place
log scraps or lava rocks on
burner.
Due to high temperatures, the
appliance should be located out
of trafc and away from furniture
and draperies.
Do not place clothing or other
ammable material on or near
the appliance. Never place any
objects on this log set.
Logset base assembly becomes
very hot when running the appli-
ance. Keep children and adults
away from hot surface to avoid
burns or clothing ignition. The
appliance will remain hot for
a time after shutdown. Allow
surface to cool before touching.
Carefully supervise young chil-
dren when they are in the room
with the appliance. When using
the hand-held remote accessory,
keep selector switch in the OFF
position to prevent children from
turning on burners with remote.

www.Astria.US.com 126896-01A4
SAFETY INFORMATION
Continued
You must operate this log set
with a replace doors or screen
in place and fully closed. Un-
less provided by other means,
screens shall have openings for
introduction of combustion air.
Keep the appliance area clear
and free from combustible ma-
terials, gasoline and other am-
mable vapors and liquids.
1. This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases.
2. Do not place propane/LP supply tank(s) in-
side any structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use
any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call
the re department
4. Never install log set
• in a recreational vehicle
• where curtains, furniture, clothing or other
ammable objects are less than 42" from
the front, tip or sides of the log set
• in high trafc areas
• in windy or drafty areas
5. Before installing in a solid fuel burning replace,
the chimney ue and rebox must be cleaned
of soot, creosote, ashes and loose paint by a
qualied chimney cleaner. Creosote will ignite if
highly heated. Inspect chimney ue for damage.
If damaged, repair ue before operating the log
set.
6. Do not burn solid-fuel in the replace after
installing the log set. Do not use this log set
to cook food or burn paper or other objects.
7. This log set is designed to be smokeless. If logs
ever appear to smoke, turn off appliance and call
a qualied service person. Note: During initial
operation, slight smoking could occur due to log
curing and burning of manufacturing residues.
You may wish to add more ventilation by opening
a window.
8. To reduce the creation of soot, follow the
instructions in Cleaning and Maintenance,
page 14.
9. Before using furniture polish, wax, carpet
cleaner or similar products, turn the log set off.
If heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls or furniture.
10. Do not run the appliance
• where ammable liquids or vapors are used
or stored
• under dusty conditions
11. Do not use the log set if any part has been
exposed to or under water. Immediately call
a qualied service technician to inspect the
log set and to replace any part of the control
system and any gas control which has been
under water.
12. Do not operate the appliance if any log is
broken. Do not operate the log set if a log is
chipped (dime-sized or larger).
13. Turn the appliance off and let cool before
servicing or repairing. Make sure the selector
switch is in the OFF position. Only a qualied
service person should install, service or repair
log set.
14. To prevent performance problems, do not
use propane/LP fuel tank of less than 100 lb.
capacity (propane/LP units only).
15. The installation of these appliances in manu-
factured homes in the U.S. must conform
with the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part
3280, in the United States, or when such
a standard is not applicable, Manufactured
Home Installation Standard, ANSI/NCSBCS
A225.1/NFPA 501A.
16. Provide adequate clearances around air
openings.
LOCAL CODES
Install and use this appliance with care. Follow
all local codes. In the absence of local codes, use
the latest edition of The National Fuel Gas Code
ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Note: Where listed vented decorative logs are
required, thermostat operation

www.Astria.US.com
126896-01A 5
PRODUCT
IDENTIFICATION
Figure 1 - Product Identication
UNPACKING
CAUTION: Do not remove the
data plates from the grate as-
sembly. The data plates contain
important warranty and safety
information.
1. Remove log set assembly from carton.
Note: Do not pick up assembly by logs. This
could damage the log set. Always handle as-
sembly by grate.
2. Remove control cover oor media components.
3. Remove all protective packaging applied to
log set for shipment.
3. Check all items for any shipping damage. If
damaged, promptly inform dealer where you
bought the appliance.
PRODUCT FEATURES
OPERATION
This unitized gas log set is tested and approved to
ANSI Z21.60a and CSA 2.26a-2000 as a vented
decorative appliance.
SAFETY DEVICE
This log set has a pilot with an Oxygen Depletion
Sensing (ODS) safety shutoff system. The ODS/
pilot shuts off the log set if there is not enough
fresh air.
ELECTRONIC IGNITION SYSTEM
This system has an electronic ignitor. This system
requires no matches or other sources to light the log
set. Receiver requires 4 AA batteries (included),
hand-held remote control requires a 12-volt bat-
tery and a 3-volt button cell battery for the LCD
display (both included).
OPTIONAL REMOTE
CONTROL ACCESSORIES
There are two optional remote accessories available
for the PDG log set models that come standard with
the BTB log set models:
• wall switch
• hand-held ON/OFF remote
See Accessories, page 19.
Chassis
Assembly
Log Set
Assembly
Control
Knob
Selector
Switch
Flame
Adjustment
Knob
PDG Models
Electronic
Ignitor
Left
Side
Front Right
Side

www.Astria.US.com 126896-01A6
INSTALLATION
WARNING: Make sure the
selector switch is in the OFF
position before installing log set.
WARNING: Before installing in
a solid fuel burning replace, the
chimney ue and rebox must be
cleaned of soot, creosote, ashes
and loose paint by a qualied chim-
ney cleaner. Creosote will ignite
if highly heated. A dirty chimney
ue may create and distribute soot
within the house. Inspect chimney
and rebox ue for damage. If dam-
aged, repair ue and rebox before
operating the log set.
WARNING: Installation, ser-
vice and repair of this appliance
must be performed by a qualied
installer, service agency, compa-
ny or gas supplier experienced
with this type of gas appliance.
Only factory authorized compo-
nents listed in these instructions
may be used in accordance with
manufacturer’s instructions and
all codes and requirements of
the authority having jurisdiction.
Any modications to this kit,
or use of unauthorized compo-
nents or accessory items will
void manufacturer’s warranty
and may result in a hazardous
condition.
INSTALLATION AND CLEARANCES
Figure 2 shows technical information regarding
installation of your gas log set. Please make sure
all specications shown are applicable before
installation is attempted.
Flue Opening Specications
Note: This vented appliance must be installed
only in a solid-fuel burning or UL127 factory-
built replace with a working ue and constructed
of noncombustible material. The replace must
include a working ue and venting system with
minimum openings shown in Figure 3.
LOG SIZING REQUIREMENTS
Min.
Flue
Size
Minimum Firebox Size
Log
Size Height Depth
Front
Width
Rear*
Width
18" 17" 14" 24" 20" 8"
24" 17" 14" 28" 22" 8"
*Measured at 14" depth.
SPECIFICATIONS (W.C.)
FUEL INLET
PRESSURE
MANIFOLD
PRESSURE
Min. Max.
NG 7" 10.5" 3.5"
LP 11" 14" 10"
Figure 2 - Technical Information Chart
Figure 3 - Sizes and Clearances
CHECK GAS TYPE
Use the correct gas type (natural or propane/LP)
for your unit. If your gas supply is not correct, do
not install the appliance. Call dealer where you
bought the log set for proper type of appliance.
WARNING: This appliance is
equipped for (natural or propane/
LP) gas. Field conversion is not
permitted.
VENTING SPECIFICATIONS FOR
INSTALLATION
The replace chimney ue and vent must be draft-
ing properly. To check vent for proper drafting:
Light a tightly rolled newspaper on one end and
place it at the inside front edge of replace. Ob-
serve smoke and be sure vent is properly drawing
it up the chimney. If smoke spills out into the room,
extinguish ame and remove any obstruction until
proper venting is achieved.
The chimney ue damper must be xed open to
provide a minimum of 43 square inches of free
air opening during operation of this log set. A
multipurpose damper clamp is provided to x the
damper in position.

www.Astria.US.com
126896-01A 7
INSTALLATION
Continued
Damper
Clamp Damper
Damper Damper
Clamp
Masonry Fireplace Manufactured
Fireplace
Figure 4 - Attaching Damper Clamp
The minimum ue sizes shown in Figure 3, page
6, are based on a 6' chimney height using round
pipe. Your minimum ue size will vary based
on input rate and chimney height. Refer to the
National Fuel Gas Code ANSI Z223.1/NFPA 54,
Section 6.6 for details.
INSTALLING DAMPER CLAMP
Secure damper stop clamp to edge of damper as
shown in Figure 4. I for any reason this clamp
doesn't work on your replace, another suitable
clamp or permanent stop must be installed or
damper blade must be removed.
INSTALLING LOG SET ASSEMBLY
CAUTION: Do not remove
the data plates attached to the
log set base assembly. The data
plates contain important war-
ranty and safety information.
WARNING: If installing in a
sunken replace, special care
is needed. You must raise the
replace oor to allow access to
log set control panel. This will in-
sure adequate air ow and guard
against sooting and controls
being damaged. Raise replace
oor with noncombustible mate-
rial. Make sure material is secure.
CAUTION: Do not pick up the
log set assembly by the logs.
This could damage log set. Only
handle base assembly by grates.
IMPORTANT: Make sure appliance is level. If
the log set is not level, it will not work properly.
Installation Items Needed
• control cover kit (provided with log set)
• approved exible gas hose (provided) (if al-
lowed by local codes)
• sealant (resistant to propane/LP gas, not
provided)
• pipe wrench
Note: Install optional remote control accessories
(see Accessories, page 19) before installing
gas log set.
1. Apply pipe joint sealant lightly to male threads
of gas tting (not provided). Connect approved
exible gas hose to inlet side of gas control (see
Figure 5). IMPORTANT: Hold gas tting with
wrench when connecting exible gas hose.
2. Position log set assembly in replace.
3. Connect to gas supply. See Connecting to
Gas Supply.
CONNECTING TO GAS SUPPLY
WARNING: This appliance
requires a 3/8" NPT (National
Pipe Thread) inlet connection to
the pressure regulator.
WARNING: A qualied ser-
vice person must connect the
log set to gas supply. Follow all
local codes.
Gas Control
Flexible
Gas Hose
(if allowed
by local
codes)
Figure 5 - Attaching Flexible Gas Hose to
Log set Gas Regulator

www.Astria.US.com 126896-01A8
CAUTION: Never connect
propane/LP replace directly to
the propane/LP supply. This log
set requires an external regula-
tor (not supplied). Install the
external regulator between the
log set and propane/LP supply.
WARNING: Never connect
natural gas replace to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
Installation Items Needed
Before installing the log set, make sure you have
the items listed below.
• external regulator (for propane/LP units only,
supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approved exible gas line with gas connector
(if allowed by local codes) (provided)
* A CSA design-certied equipment shutoff valve
with 1/8" NPT tap is an acceptable alternative to
test gauge connection. Purchase the optional CSA
design-certied equipment shutoff valve from your
dealer. See Accessories, page 19.
For propane/LP units, the installer must supply
an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce
incoming gas pressure to between 11" and 14" of
water column. If you do not reduce incoming gas
pressure, log set regulator damage could occur.
Install external regulator with the vent pointing
down as shown in Figure 6. Pointing the vent down
protects it from freezing rain or sleet.
Figure 6 - External Regulator With Vent
Pointing Down
Propane/LP
Supply Tank External
Regulator
Vent
Pointing
Down
INSTALLATION
Continued CAUTION: Use only new, black
ironorsteelpipe.Internally-tinned
copper tubing may be used in
certain areas. Check your local
codes.Usepipeof 1/2"diameter or
greatertoallow propergas volume
to the log set. If pipe is too small,
undue loss of volume will occur.
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate NPT
tap within reach for test gauge hook up. NPT tap
must be upstream from the log set (see Figure 7).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment shutoff
valve is for turning on or shutting off the gas to
the appliance.
* Purchase the optional CSA design-certified
equipment shutoff valve from your dealer. See
Accessories, page 25.
** Minimum inlet pressure for purpose of input
adjustment.
Figure 7 - Gas Connection
3" Minimum
CSA Design-Certied
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved
Flexible Gas
Hose (if allowed
by local codes)
Cap Pipe Tee
Nipple Joint
Sediment Trap
Natural Gas
From Gas Meter
(5" W.C.** to 10.5"
W.C. Pressure)
Propane/LP Gas
From External
Regulator
(11" W.C.** to
14" W.C.
Pressure)
To Gas
Control

www.Astria.US.com
126896-01A 9
CAUTION: Make sure exter-
nal regulator has been installed
between propane/LP supply and
log set. See guidelines under
Connecting to Gas Supply,
page 7.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect appliance with its appliance main
gas valve (control valve) and equipment
shutoff valve from gas supply piping system.
Pressures in excess of 1/2 psig (3.5 kPa) will
damage the log set's regulator.
2. Cap off open end of gas pipe where equipment
shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection uid to all
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect log set and equipment shutoff
valve to gas supply. Check reconnected t-
tings for leaks.
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 8).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
INSTALLATION
Continued
Check your building codes for any special re-
quirements for locating equipment shutoff valve
to replaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could result
in clogged log set valves.
WARNING: Use pipe joint
sealant that is resistant to liquid
petroleum (LP) gas.

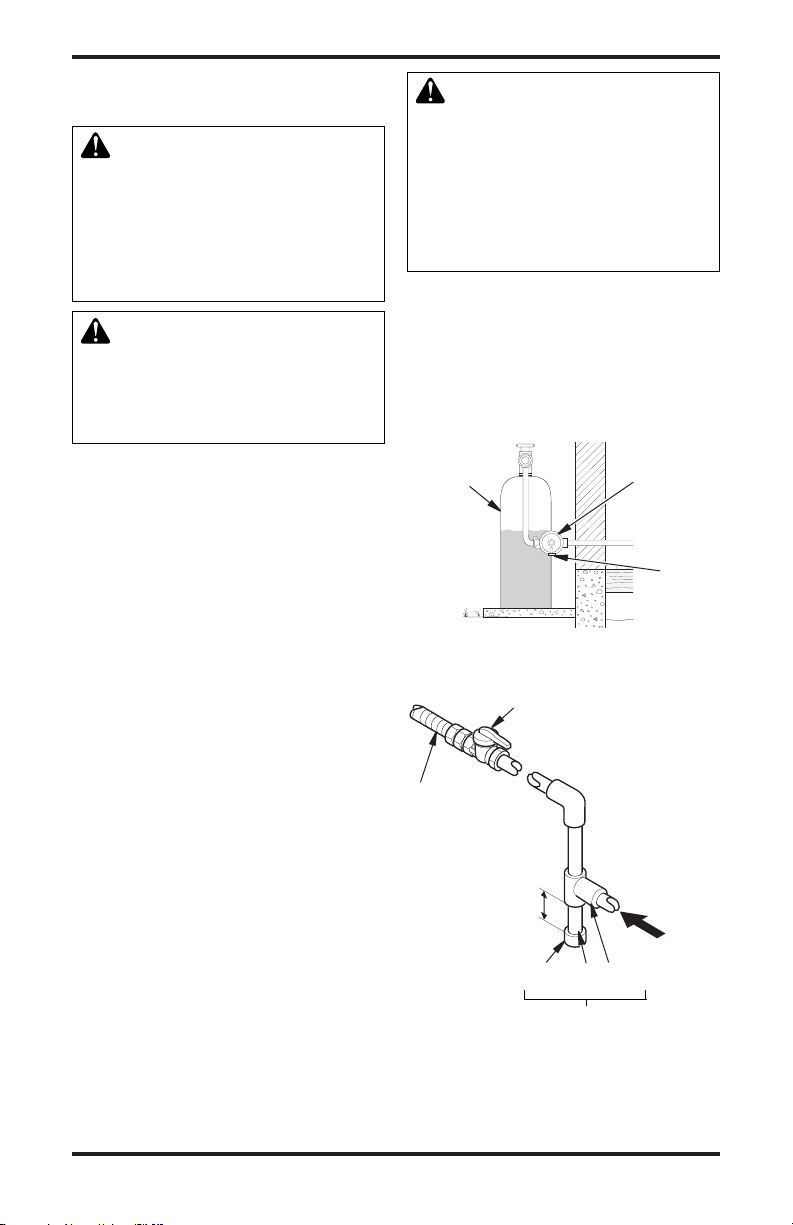

We recommend that you install a sediment trap
(not supplied with log set) in supply line as shown
in Figure 7, page 8. Locate sediment trap where
it is within reach for cleaning. Install in piping
system between fuel supply and the log set. Locate
sediment trap where trapped matter is not likely
to freeze. A sediment trap traps moisture and con-
taminants. This keeps them from going into appli-
ance controls. If sediment trap is not installed or is
installed wrong, the log set may not run properly.
CAUTION: Avoid damage to
gas control. Hold gas control
with wrench when connecting it
to gas piping and/or ttings.
CHECKING GAS CONNECTIONS
WARNING: Test all gas piping
and connections, internal and
external to unit, for leaks after
installing or servicing. Correct
all leaks at once.
WARNING: Never use an
open ame to check for a leak.
Apply a noncorrosive leak detec-
tion uid to all joints. Bubbles
forming show a leak. Correct all
leaks at once. Figure 8 - Equipment Shutoff Valve
Open
Closed
Equipment
Shutoff Valve

www.Astria.US.com 126896-01A10
INSTALLATION
Continued
Figure 10 - Checking Gas Joints for
Propane/LP Gas
Control Valve
Location
Propane/LP
Supply Tank Equipment Shutoff Valve
Figure 9 - Checking Gas Joints for
Natural Gas
Gas Meter
Equipment Shutoff Valve
Control Valve Location
OPERATING LOG SET
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: Keep ue open
when operating unit.
WARNING: If you do not fol-
low these instructions exactly,
a re or explosion may result
causing property damage, per-
sonal injury or loss of life.
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next
to the oor because some gas is heavier than
air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the
knob will not push in or turn by hand, don’t
try to repair it, call a qualied service tech-
nician or gas supplier. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has
been under water. Immediately call a
qualied service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.

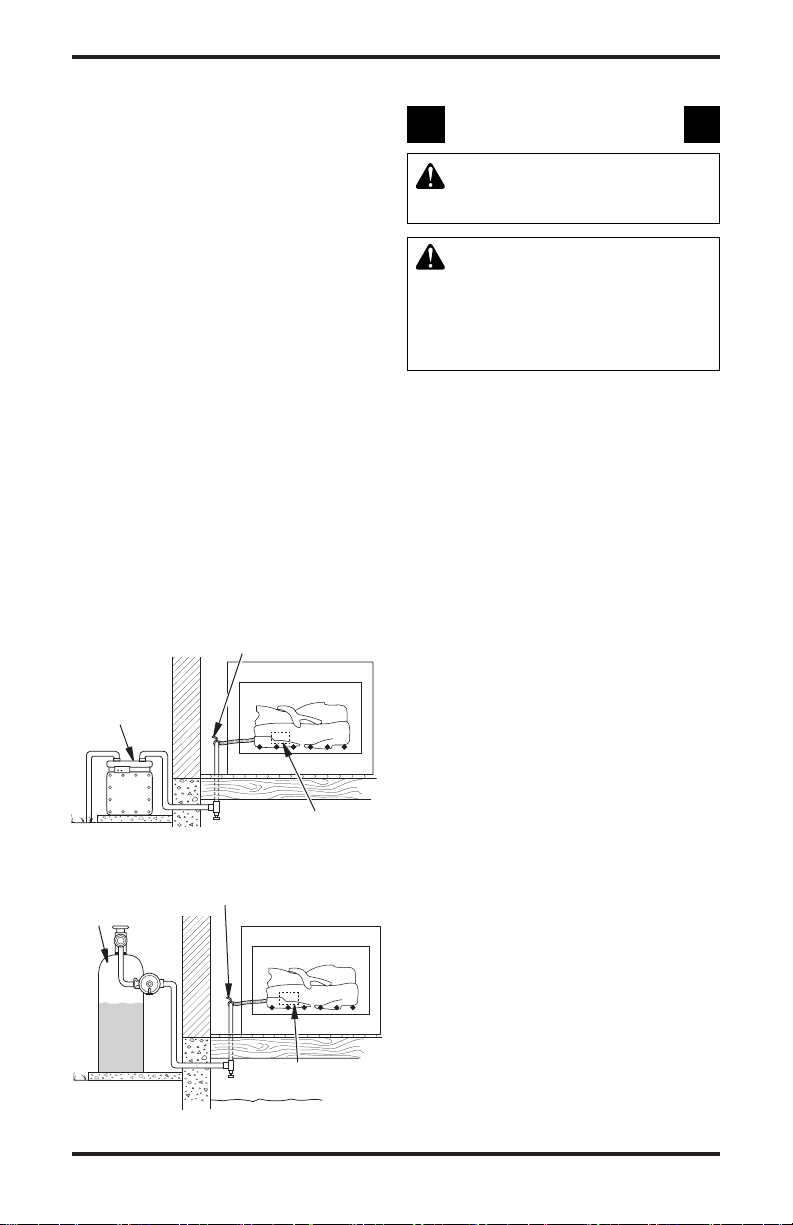

3. Check all joints from gas meter to equipment
shutoff valve for natural gas or propane/LP sup-
ply to equipment shutoff valve for propane/LP
(see Figure 9 or 10). Apply noncorrosive leak
detection uid to all joints. Bubbles forming
show a leak.
4. Correct all leaks at once.
PRESSURE TESTING APPLIANCE GAS
CONNECTIONS
1. Open equipment shutoff valve (see Figure 8,
page 9).
2. Open main gas valve located on or near gas
meter for natural gas or open propane/LP
supply tank valve.
3. Make sure control knob of the appliance is in
the OFF position.
4. Check all joints from equipment shutoff valve
to control valve (see Figure 9 or 10). Apply
noncorrosive leak detection uid to all joints.
Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light log set (see Operating Appliance).
Check all other internal joints for leaks.
7. Turn off log set (see To Turn Off Gas to Ap-
pliance, page 10).

www.Astria.US.com
126896-01A 11
OPERATING APPLIANCE
Continued
5. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the oor.
If you smell gas, STOP! Follow “B” in the
safety information, page10. If you don’t
smell gas, go to the next step.
6. Press in and turn control knob counter-
clockwise to the PILOT position.
Press in control knob for ve (5) seconds
(see Figure 11).
Note: You may be running this log set for
the rst time after hooking up to gas sup-
ply. If so, the control knob may need to be
pressed in for 30 seconds or more. This will
allow air to bleed from the gas system.
7. With control knob pressed in, press ignitor
button. This will light pilot. The pilot is at-
tached to the front burner. If needed, keep
pressing ignitor button until pilot lights.
Note: If pilot does not stay lit, contact a
qualied service person or gas supplier for
repairs. Until repairs are made, light pilot
with match. To light pilot with match, see
Manual Lighting Procedure.
8. Keep control knob pressed in for 30 seconds
after lighting pilot.After 30 seconds, release
control knob.
• If control knob does not pop out when
released, contact a qualied service person
or gas supplier for repairs.
Note: If pilot goes out, repeat steps 4
through 8.
9. Slightly push in and turn control knob coun-
terclockwise to the ON position.
10. Wait one minute and switch selector switch
to the ON position to light burners.
11. Set ame adjustment knob to any level
between HI and LO.
CAUTION: Do not try to ad-
just heating levels by using the
equipment shutoff valve.

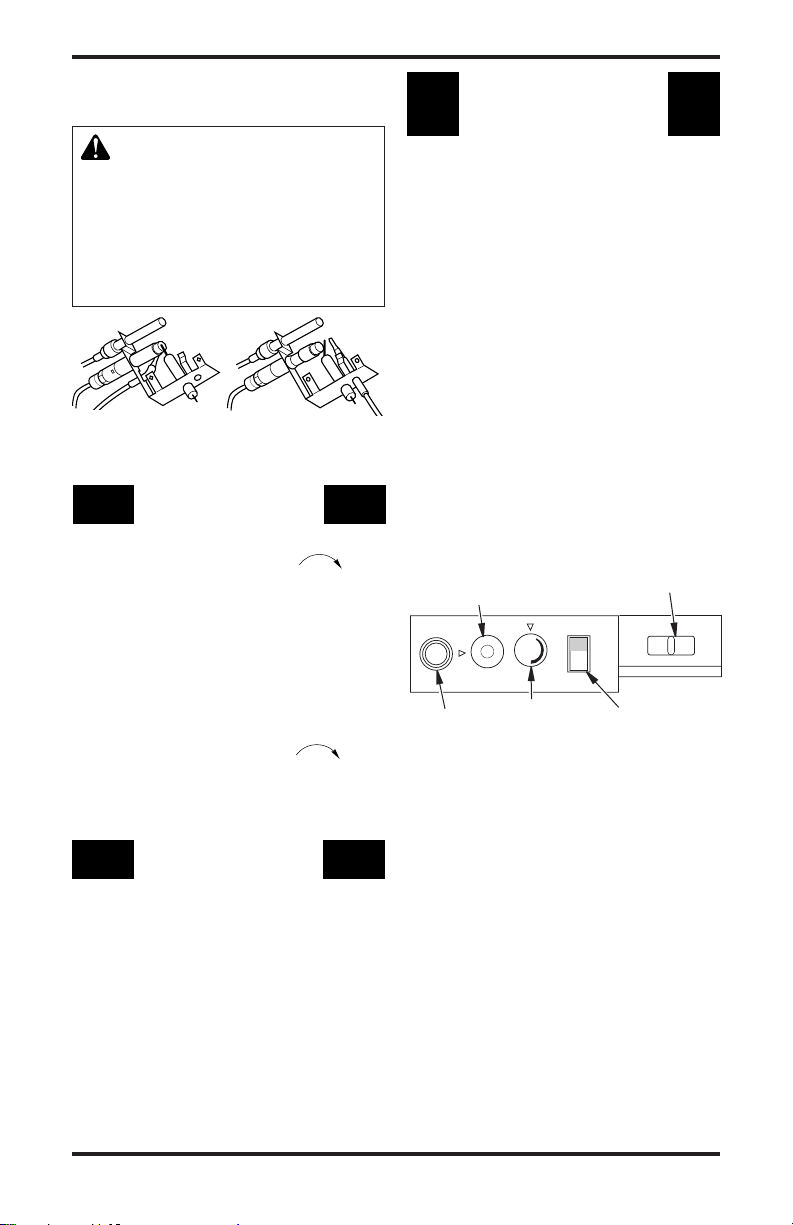

Figure 11 - Control Knob and Ignitor
Button Locations
L
O
I
H
O
F
F
P
I
L
O
T
O
N
AUTO
OFF
ON
Control Knob
Ignitor Button Flame Adjustment Knob
Selector Switch
LIGHTING
INSTRUCTIONS
NOTICE: During initial operation
of new log set, burning logs will
give off a paper-burning smell.
Orange ame will also be pres-
ent. Open damper or window to
vent smell. This will only last a
few hours.
WARNING: Damper handle
will be hot if appliance has been
running.
CAUTION: A mild gas ash
within 10 seconds is normal
during shutdown of this log set.
Remain clear of the hearth area
for the entire shutdown process
to avoid possible injury.
NOTICE: During initial opera-
tion of new the log set, metallic
components may emit an odor as
paint and assembly compounds
are heated and cure. Be sure
to provide adequate fresh air if
odors are detected.
1. STOP! Read the safety information on
page 10.
2. Make sure equipment shutoff valve is fully
open.
3. Set selector switch in the OFF position.
4. Turn motor knob clockwise to the
OFF position.
WARNING: Burners will
come on automatically within
one minute when the selector
switch is in the ON position after
the pilot is lit.

www.Astria.US.com 126896-01A12
OPERATING APPLIANCE
Continued
WARNING: Make sure selec-
tor switch is in to OFF position
when you are away from home
for long periods of time. Appli-
ance will come on automatically
with selector switch in the ON
position.
TO TURN OFF GAS
TO APPLIANCE
Shutting Off the Appliance
1. Turn control knob clockwise to the
OFF position.
2a. Set selector switch in the OFF position.
2b. If Using Optional Hand-Held Remote:
Set selector switch in the OFF position to
prevent draining battery.
Shutting Off Burner Only (pilot stays lit)
You may shut off the burners and keep the pilot
lit by doing one of the following:
1. Turn control knob clockwise to the
PILOT position.
2. Use remote control manual OFF button.
3. Set selector switch in the OFF position.
MANUAL LIGHTING
PROCEDURE
1. Follow steps 1 through 6 under Lighting
Instructions, page 16.
2. Depress control knob and light pilot with
match.
3. Keep control knob pressed in for 30 seconds
after lighting pilot.After 30 seconds, release
control knob. Now follow steps 9 through
11, Lighting Instructions, page 17.
Figure 12 - Pilot (Remote Shown)
Propane/LP Natural
OPTIONAL HAND-HELD
REMOTE CONTROL
OPERATION
1. After lighting, let pilot flame burn for
about one minute. Turn control knob to
ON position. Adjust ame adjustment knob
anywhere between HI and LO. Set toggle
selector switch to AUTO. Slide remote
selector switch to REMOTE position (see
Figure 13). Note: The burner may light if
hand-held remote was on when selector
switch was last turned off. You can now
turn the burner on and off with the hand-
held remote control unit.
IMPORTANT: Do not leave the selector
switch in the REMOTE or ON position
when the pilot is not lit. This will drain the
battery.
2. Press ON/OFF button to turn burners on
and off. When turning burners off, the pilot
will remain lit.
IMPORTANT: Be sure to press ON/OFF
buttons on hand-held remote control unit for
up to 3 seconds to assure proper operation.
Remote Control Specications
Batteries: (See instructions with remote for
removing and installing batteries)
Transmitter requires 12V (A-23) and 3V button
cell for LCD (both included)
Remote receiver requires 4 AA (1.5V) alkaline
batteries (included)
Operating Frequency: 303.875 MHz
L
O
I
H
O
F
F
P
I
L
O
T
O
N
OFF REMOTE ON
AUTO
OFF
ON
Figure 13 - Control Knob and Ignitor
Button Locations for Remote Control
Control Knob
Ignitor
Button
Remote Selector
Switch
Flame
Adjustment
Knob
Selector Switch
in AUTO Position

www.Astria.US.com
126896-01A 13
INSPECTING BURNERS

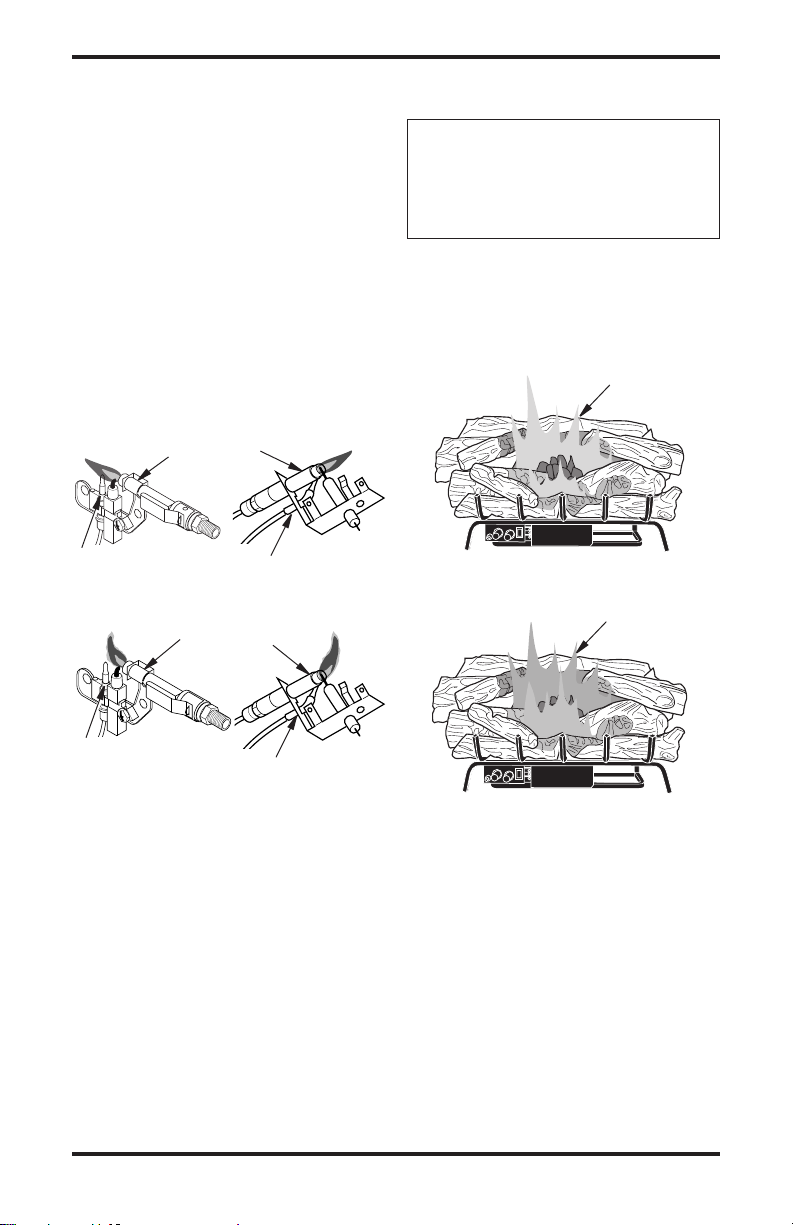

Check pilot ame pattern and burner ame pat-
terns often.
PILOT FLAME PATTERN
Figure 14 shows a correct pilot ame pattern.
Figure 15 shows an incorrect pilot ame pattern.
The incorrect pilot ame is not touching the ther-
mocouple. When the thermocouple cools, the log
set will shut down.
If pilot ame pattern is incorrect, as shown in
Figure 15
• turn log set off (see To Turn Off Gas to Appli-
ance, page 12)
• see Troubleshooting, page 15
Note: The pilot ame on natural gas units will
have a slight curve, but ame should be blue and
have no yellow or orange color.
Figure 15 - Incorrect Pilot Flame Pattern
(Your Pilot May Differ from Pilots Shown)
Figure 14 - Correct Pilot Flame Pattern
(Your Pilot May Differ from Pilots Shown)
BURNER FLAME PATTERN
Figure 16 shows correct burner ame pattern.
NOTICE: Do not mistake orange
ames with yellow tipping. Dirt
or other ne particles are burned
by log set, causing brief patches
of orange ame.
If burner ame pattern is incorrect, as shown in
Figure 17
• turn appliance off (see To Turn Off Gas to Ap-
pliance, page 12
• see Troubleshooting, page 15
Figure 16 - Correct Burner Flame Pattern
Figure 17 - Incorrect Burner Flame
Pattern
Pilot Burner
Thermocouple
Thermocouple
Pilot Burner
Thermocouple
Thermocouple
Yellow Flames
with Orange
Streaks
Dark Orange
Flames

www.Astria.US.com 126896-01A14
CLEANING AND
MAINTENANCE
WARNING: Turn off log set
and let cool before cleaning.
CAUTION: You must keep
controlareas,burnerandcirculat-
ing air passageways of replace
clean. Inspect these areas of
replace before each use. Have
replace and chimney inspected
yearly by a qualied service per-
son. Fireplace may need more
frequent cleaning due to exces-
sive lint from carpeting, bedding
material, pet hair, etc.
Only limited cleaning will be required under normal
use of this appliance. Dust front grate and top of
receiver/valve. Do not use cleaning uids to clean
logs or any other part of the appliance.
If after a period of use the ames start to exhibit
unusual shapes and behavior or burner fails to ignite
smoothly, burner holes may require cleaning. If this
happens, we recommend you contact your nearest
authorized service technician to get the appliance
serviced.
• Keep area around log set clean and clear of de-
bris.
• Periodically inspect burner for foreign matter
blocking air inlet and ame holes.
• Once every year a qualied agency or certied
chimney sweep should examine and clean venting
system of replace.
SPECIFICATIONS
Arcadia18MN
• Input Rating: 37,000/54,000 Btu/Hr
• Fuel: Natural Gas
• Ignition: Electronic
• Manifold Pressure: 3.5" W.C.
• Inlet Gas Pressure (in. of water):
Max. - 10.5", Min. - 5.0*
• Shipping Weight: 32 lbs.
Arcadia18MP
• Input Rating: 30,000/46,000 Btu/Hr
• Fuel: Propane/LP Gas
• Ignition: Electronic
• Manifold Pressure: 10" W.C.
• Inlet Gas Pressure (in. of water):
Max.- 14", Min. - 11"*
• Shipping Weight: 32 lbs.
Arcadia24MN
• Input Rating: 41,000/58,000 Btu/Hr
• Fuel: Natural Gas
• Ignition: Electronic
• Manifold Pressure: 3.5" W.C.
• Inlet Gas Pressure (in. of water):
Max. - 10.5", Min. - 5.0*
• Shipping Weight: 34 lbs.
Arcadia24MP
• Input Rating: 41,000/58,000 Btu/Hr
• Fuel: Propane/LP Gas
• Ignition: Electronic
• Manifold Pressure: 10" W.C.
• Inlet Gas Pressure (in. of water):
Max.- 14", Min. - 11"*
• Shipping Weight: 34 lbs.
* For purpose of input adjustment
WIRING DIAGRAM
AUTO
OFF
ON
Thermopile

www.Astria.US.com
126896-01A 15
TROUBLESHOOTING
WARNING: Turn off the appliance and let cool before servicing.
Only a qualied service person should service and repair log set.
CAUTION: Never use a wire, needle or similar object to clean
ODS/pilot. This can damage ODS/pilot unit.
Note: All troubleshooting items are listed in order of operation.
POSSIBLE CAUSE
1. Ignitor electrode not connected
to ignitor cable
2. Ignitor cable pinched or wet
3. Electronic ignitor battery is
weak
4. Broken ignitor cable
5. Bad electronic ignitor
6. Ignitor electrode positioned
wrong or broken
1. Gas supply turned off or equip-
ment shutoff valve closed
2. Control knob not in PILOT
position
3. Control knob not pressed in
while in PILOT position
4. Air in gas lines when in-
stalled
5. Depleted gas supply (propane/
LP only)
6. ODS/pilot is clogged
7. Gas regulator setting is not
correct
REMEDY
1. Reconnect ignitor cable
2. Free ignitor cable if pinched
by any metal or tubing. Keep
ignitor cable dry
3. Replace battery
4. Replace ignitor cable
5. Replace electronic ignitor
6. Replace pilot assembly
1. Turn on gas supply or open
equipment shutoff valve
2. Turn control knob to PILOT
position
3. Press in control knob while in
PILOT position
4. Continue holding down
control knob. Repeat ignit-
ing operation until air is
removed
5. Contact local propane/LP gas
company
6. Clean ODS/pilot (see Cleaning
and Maintenance, page 14) or
replace ODS/pilot assembly
7. Replace gas regulator
OBSERVED PROBLEM
When ignitor button is pressed,
there is no spark at ODS/pilot
When ignitor button is pressed,
there is spark at ODS/pilot but
no ignition

www.Astria.US.com 126896-01A16
TROUBLESHOOTING
Continued
OBSERVED PROBLEM
ODS/pilot lights but ame goes
out when control knob is re-
leased
Burner does not light after ODS/
pilot is lit
Delayed ignition of burner
Burner backring during com-
bustion
POSSIBLE CAUSE
1. Control knob not fully pressed in
2. Control knob not pressed in
long enough
3. Safety interlock system has
been triggered
4. Equipment shutoff valve not
fully open
5. Pilot ame not touching ther-
mocouple, which allows ther-
mocouple to cool, causing
pilot flame to go out. This
problem could be caused by
one or both of the following:
A) Low gas pressure
B) Dirty or partially clogged
ODS/pilot
6. Thermocouple connection
loose at control valve
7. Thermocouple damaged
8. Control valve damaged
1. Inlet gas pressure is too low
2. Burner orice clogged
3. Remote selector in OFF
position
4. Wire disconnected from gas
control
1. Manifold pressure is too low
2. Burner orice clogged
1. Burner orice is clogged or
damaged
2. Damaged burner
3. Gas regulator defective
REMEDY
1. Press in control knob fully
2. After ODS/pilot lights, keep
control knob pressed in 30
seconds
3. Wait one minute for safety in-
terlock system to reset. Repeat
ignition operation
4. Fully open equipment shutoff
valve
5. A) Contact local natural or
propane/LP gas company
B) Clean ODS/pilot (see
Cleaning and Maintenance,
page 14) or replace ODS/pilot
assembly
6. Hand tighten until snug, then
tighten 1/4 turn more
7. Replace pilot assembly
8. Replace control valve
1. Contact local natural or pro-
pane/LP gas company
2. Clean burner (see Cleaning
and Maintenance, page 14)
or replace burner orice
3. Put remote selector in ON
position
4. See Wiring Diagram, page 14
1. Contact local natural or pro-
pane/LP gas company
2. Clean burner (see Cleaning
and Maintenance, page 14)
or replace burner orice
1. Clean burner (see Cleaning
and Maintenance, page 14)
or replace burner orice
2. Replace damaged burner
3. Replace gas regulator

www.Astria.US.com
126896-01A 17
TROUBLESHOOTING
Continued
OBSERVED PROBLEM
Orange ame in burner during
burner combustion
Slight smoke or odor during initial
operation
Log set produces a whistling noise
when burner is lit
White powder residue forming
within burner box or on adjacent
walls or furniture
Remote does not function
Log set produces a clicking/tick-
ing noise just after burners are lit
or shut off
POSSIBLE CAUSE
1. Not enough air
2. Gas regulator defective
1. Residues from manufacturing
processes and logs curing
1. Turning control knob to HI
position when burner is cold
2. Air in gas line
3. Air passageways on log set
blocked
4. Dirty or partially clogged
burner orice
1. When heated, vapors from
furniture polish, wax, carpet
cleaners, etc. turn into white
powder residue
1. Battery is not installed. Battery
power is low
1. Metal expanding while heating
or contracting while cooling
REMEDY
1. Check burner for dirt and
debris. If found, clean burner
(see Cleaning and Mainte-
nance, page 14)
2. Replace gas regulator
1. Problem will stop after a few
hours of operation
1. Turn control knob to LO
position and let warm up for
a minute
2. Operate burner until air is
removed from line. Have gas
line checked by local natural
or propane/LP gas company
3. Observe minimum installation
clearances (see pages 6)
4. Clean burner (see Cleaning
and Maintenance, page 14)
or replace burner orice
1. Turn log set off when using
furniture polish, wax, carpet
cleaners, or similar products
1. Replace batteries in receiver
and remote control
1. This is common with most
log sets. If noise is exces-
sive, contact qualied ser-
vice person

www.Astria.US.com 126896-01A18
TROUBLESHOOTING
Continued
WARNING: If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone. Fol-
low the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
IMPORTANT: Operating log set where impurities in air exist may create odors. Cleaning supplies,
paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes.
These fumes may mix with combustion air and create odors. These odors will disappear over time.
POSSIBLE CAUSE
1. Log set burning vapors from
paint, hair spray, glues, clean-
ers, chemicals, new carpet,
etc. (See IMPORTANT state-
ment above)
2. Low fuel supply (propane/LP
only)
3. Gas leak. See Warning
statement at top of page
1. Not enough fresh air is avail-
able
2. Low line pressure
3. ODS/pilot is partially
clogged
1. Gas leak. See Warning
statement at top of page
2. Control valve or gas control
defective
1. Foreign matter between con-
trol valve and burner
2. Gas leak. See Warning
statement at top of page
REMEDY
1. Open ue to maximum. Stop
using odor causing products
while log set is running
2. Rell supply tank (propane/LP
only)
3. Locate and correct all leaks
(see Checking Gas Connec-
tions, page 9)
1. Open window and/or door for
ventilation
2. Contact local natural or pro-
pane/LP gas company
3. Clean ODS/pilot (see Cleaning
and Maintenance, page 14)
1. Locate and correct all leaks
(see Checking Gas Connec-
tions, page 9)
2. Replace control valve or gas
control
1. Take apart gas tubing and
remove foreign matter
2. Locate and correct all leaks
(see Checking Gas Connec-
tions, page 9)
OBSERVED PROBLEM
Log set produces unwanted odors
Log set shuts off in use (ODS
operates)
Gas odor even when control knob
is in OFF position
Gas odor during combustion

www.Astria.US.com
126896-01A 19
SERVICE HINTS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• log set will not produce specied heat
• propane/LP gas supply may be low
You may feel your gas pressure is too low. If
so, contact your local propane/LP or natural gas
supplier.
TECHNICAL SERVICE
You may have further questions about installation,
operation, or troubleshooting. If so, contact IN-
NOVATIVE HEARTH PRODUCTS’s Technical
Service Department at 1-800-655-2008. When
calling please have your model and serial numbers
of your appliance ready.
You can also visit our technical services web site
at www.IHP.US.com.
REPLACEMENT PARTS
Note: Use only original replacement parts. This
will protect your warranty coverage for parts
replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they
can’t supply original replacement part(s), call IN-
NOVATIVE HEARTH PRODUCTS’s Technical
Service Department at 1-800-655-2008.
When calling, have ready
• your name
• your address
• model and serial numbers of your appliance
• how appliance was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the part to the
factory.
ACCESSORIES
Purchase these log set accessories from your local
dealer. If they can not supply these accessories,
call INNOVATIVE HEARTH PRODUCTS at
1-800-655-2008 for referral information. You can
also write to the address listed on the back page
of this manual.
RECEIVER AND HAND-HELD
REMOTE CONTROL KIT - 112806-01
(Not Shown)
For PDG models. Allows the gas log to be turned
on and off by using a hand-held remote control.
This remote comes installed in BTB models.
REMOTE CONTROL RECEIVER
BRACKET - 112806-02
(Not Shown)
For PDG models only. Used for mounting remote
control receiver to unit base.
WALL-MOUNT ON/OFF SWITCH
GWMS2 (Not Shown)
For all models. Allows the gas log to be turned on
and off with a wall switch. This switch is included
with al models.
DAMPER CLAMP - GA6080
(Not Shown)
For all models. Permanently opens chimney ue
damper for vented operation. This is included
with all models.
LAVA ROCK - GA6060
(Not Shown)
For all models. Order when additional rock is
desired. (1.8 lb. bag)
FLOOR MEDIA KIT - VTA-LS5-1
(Not Shown)
For all models. Order when additional logs is
desired. (5 pieces)
FLOOR MEDIA KIT - VTA-LS5-2
(Not Shown)
For all models. Order when additional logs is
desired. (5 pieces)

www.Astria.US.com 126896-01A20
ILLUSTRATED PARTS BREAKDOWN
MODELS ARCADIA18MN AND ARCADIA18MP
19
4
3
5
64
4
7
1
20
8
20
18
9
2
10
13
10
4
11
12
15
14 17
16
Installed in BTB
Models Only
Log Set,
Ceramic Burner
and Ramp Pan
are Ordered
as an Assembly
Air Shutter Installation Note:
For Natural Gas: Fully Closed
For Propane/LP Gas: Fully Open
