Astria Fireplaces Tuscan42P2 Owner's manual

P/N 127051-01 Rev. E 05/2017
REPORT NO. 10-078
PFS
®
USC
P127051-01
Installation and Operation Instructions
Astria®Residential and Outdoor Wood-Burning
Fireplace
Models
Tuscan42P2
Tuscan42P3
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains
information that will enable you to obtain replacement parts or accessory items when needed. Keep it with your other
important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installateur : Laissez cette notice avec l’appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
This wood burning fireplace complies with
UL127 CAN/ULC-S610-M87 standard as a
FACTORY BUILT FIREPLACE.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to ANSI
Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard. An
IHP hood must be installed when using a vent-free log heater (see Accessories, page 20).
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
POUR LE CANADA: L’autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l’installation afin de déterminer la
nécessité d’obtenir un permis.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated
on the rating plate.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration
of the fireplace system, including but not limited to the fireplace, chimney components and accessories, may
void the warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous
installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.
Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 127051-02.
NOTE: DIAGRAMS AND ILLUSTRATIONS THROUGHOUT THE MANUAL ARE NOT TO SCALE.

Astria.us.com 127051-01_E
2
Safety.............................................................................................2
Specifications.................................................................................4
Fireplace Installation ......................................................................5
Venting Installation ........................................................................7
Optional Gas Line Installation ......................................................12
Operation and Maintenance .........................................................13
Replacement Parts.......................................................................14
Technical Service .........................................................................14
Important Notices - Canada ........................................................15
Parts ............................................................................................16
Accessories..................................................................................18
Draft Smoke Guidelines - Appendix A .........................................21
Warranty ......................................................................................23
Thank you for your purchase. We appreciate your
business!
Please carefully read and follow all instructions in this manual. Pay
special attention to all warnings and safety information.
Following these safety, care, and operation instructions will help
ensure many years of dependable and enjoyable service from your
fireplace.
Please read and understand these instructions before installing
or operating.
SAFETY
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury,
property damage or loss of life. Refer to this manual
for assistance or additional information. Consult a
qualified installer or local distributor.
IMPORTANT: Check local codes before installing this
fireplace.
Before beginning installation of this fireplace, read these instructions
through completely.
• This INNOVATIVE HEARTH PRODUCTS, LLC (IHP) fireplace and
its components are safe when installed according to this installa-
tion manual. Unless you use IHP components, which have been
designed and tested for the fireplace system, you may cause a fire
hazard.
• The IHP warranty will be voided by and IHP disclaims any respon-
sibility for the following actions.
a. Modification of the fireplace, components, doors, air inlet
system and damper control.
b. Use of any component part not manufactured or approved by
IHP in combination with an IHP fireplace system.
Proper installation is the most important step in ensuring safe and
continuous operation of the fireplace. Consult the local building codes
as to the particular requirements concerned with the installation of
all factory built fireplaces.
NOTICE: The firebox canopy (hood) must not be modi-
fied or replaced with a canopy that may be provided
with the unvented decorative room heater.
WARNING: Do not install a fireplace insert in this
box unless the manufacturer's instructions with the
insert specifically state this fireplace has been tested
for use with this insert.
TABLE OF CONTENTS
FOR YOUR SAFETY
• Do not store or use gasoline or any other flammable
vapors or liquids in the vicinity of this or any other
appliance.
• Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
• Do not place clothing or other flammable materials
on or near the appliance.
• Never leave children unattended when a fire is
burning in the fireplace.
WARNING: Use solid wood or processed solid
fuel fire logs only. "Do not poke or stir the logs while
they are burning. Use only firelogs that have been
evaluated for the application in fireplace and refer to
firelog warnings and caution markings on packaging
prior to use."
This fireplace is not intended to be used as a sub-
stitute for a furnace to heat an entire home. Use for
supplemental heat only.
Overfiring of a fireplace is a condition where exces-
sive temperatures are reached, beyond the design
capabilitiesoftheappliance.Thedamagethatoccurs
fromoverfiringisnotcoveredunderthemanufacturer’s
limited warranty.

Astria.us.com
127051-01_E 3
SAFETY Continued
WARNING: CONTINUED OVERFIRING CAN PER-
MANENTLY DAMAGE YOUR FIREPLACE SYSTEM.
SOME EXAMPLES OF CONDITIONS THAT COULD
CAUSE OVERFIRING ARE:
• BURNINGQUANTITIESOFSCRAPLUMBER,PINE
BRANCHES, PAPER OR CARDBOARD BOXES
WHICH EXCEED THE VOLUME OF THE NORMAL
LOG FIRE.
• BURNING TRASH, CHEMICALS OR CHEMICALLY
TREATED COMBUSTIBLES.
Disposal of Ashes
Ashes should be placed in a metal container with a
tight-fitting lid. The closed container of ashes should
be placed on a noncombustible floor or on the ground,
well away from all combustible materials, pending
final disposal. If the ashes are disposed of by burial
in soil or otherwise locally dispersed, they should be
retained in the closed container until all cinders have
thoroughly cooled.
WHEN USING THE DECORATIVE APPLIANCE, THE
FIREPLACE DAMPER MUST BE SET IN THE FULLY
OPEN POSITION.
Never use gasoline, gasoline-type lantern fuel, kero-
sene, charcoal lighter fluid, or similar liquids to start
or ’freshen up’ a fire in this fireplace. Keep all such
liquids well away from the fireplace while it is in use.
Use SOLID WOOD only for fuel. It is best to use dry
and well seasoned hardwood. Softwoods tend to burn
veryquickly.DONOTusetreatedwood,charcoal,coal,
trash,driftwoodorwoodsthathavebeendippedintar,
pitch, pine tar, creosote, etc. Wood products made
with synthetic binders, such as plywood, produce ab-
normally high temperatures and sputtering, smoking
fires. When burning artificial logs, please read and
follow the instructions provided by the manufacturer.
Never burn treated construction lumber or scraps.
These woods burn excessively hot and may contain
chemicals used to treat insects and fungus. When
burned,thesechemicalscanposeasignificanthazard.
IMPORTANT:See appendix A, page 21 foradditional
informationregardingdraft requirements, smoking
causes and troubleshooting.
WARNING: BURNING IMPROPER FUEL (I.E.
CHARCOAL) CAN RESULT IN CARBON MONOXIDE
POISONING, WHICH MAY LEAD TO DEATH!
Carbon Monoxide Poisoning – Early signs of carbon
monoxidepoisoningresemblethefluwithheadaches,
dizziness, or nausea. If you have these signs, get
fresh air at once! Have the appliance inspected by a
qualified service technician. Some people are more
affected by carbon monoxide than others. These
include pregnant women, people with heart or lung
disease or anemia, those under the influence of al-
cohol, and those at high altitudes.
Ventilation Requirements - Provide adequate air for
combustion. The fresh air requirements of this ap-
pliance must be met within the space where it will
be installed.
Smoke Detectors - Since there are always several
potential sources of fire in any home, we recommend
installing smoke detectors. If possible, install the
smoke detector in a hallway adjacent to the room (to
reduce the possibility of occasional false activation
fromtheheatproducedbytheappliance). Ifyourlocal
coderequiresasmokedetectorbeinstalledwithinthe
same room, you must follow the requirements of your
localcode. Checkwithyour localbuildingdepartment
for requirements in your area.
Creosote – Formation and Need for Removal
Whenwood is burnedslowly,itproducestar andother
organicvapors,whichcombinewithexpelledmoisture
to form creosote. The creosote vapors condense in
the relatively cool chimney flue of a slow-burning
fire. As a result, creosote residue accumulates on
the flue lining. When ignited this creosote makes an
extremely hot fire.
The chimney shall be inspected at least twice a
year during the heating season to determine when a
creosotebuilduphasoccurred.Whencreosotehasac-
cumulated (1/8" [3 mm] or more) it shall be removed
to reduce the risk of a chimney fire.

Astria.us.com 127051-01_E
4
SPECIFICATIONS
8DM
PIPE 1" (26 mm) AIRSPACE
TO COMBUSTIBLE
MATERIAL
0" (0 mm) TO TOP
SPACERS
STARTER
SECTION
0" (0 mm)
TO BOTTOM 12" (305 mm)
EACH SIDE
NO COMBUSTIBLE
MATERIALS BELOW
TOP SPACERS
NO COMBUSTIBLE
MATERIAL ON FACE
HEARTH EXTENSION
66" X 20" (1677 mm X 508 mm)
COMBUSTIBLE
WALL BOARD
NOT LESS THAN
12" (305 mm) TO
PERPENDICULAR
SIDEWALL
OUTSIDE AIR
(LEFT SIDE ONLY)
11 3/4"
(299 mm)
1 1/2" (39 mm)
46 3/4"
(1188 mm)
22 1/2"
(572 mm)
INNER DIA.
12 3/8" (315 mm)
5/8"
(16 mm)
36" (915 mm)
48" (1220 mm)
OUTER DIA.
15" (381 mm)
24"
(610 mm)
8"
(204 mm)
42" (1067 mm)
41"
(1042 mm)
48" (1067 mm)
3/4" (19 mm)
AIR SPACE
BACK AND
SIDES
GAS LINE
KNOCK OUTS
GAS LINE
KNOCK OUTS
ELECTRICAL
OUTLET
RIGHT SIDE
LEFT SIDE
AIR KIT
KNOCK OUT
6 3/4" (172 mm)
10 5/8" (270 mm)
12 5/8"
(321 mm)
10 5/8"
(270 mm)
14 1/4"
(362 mm)
16 1/4"
(413 mm)
12" (305 mm)
8 1/8"
(207 mm)
2 1/2"
(64 mm)
29 1/2"
(750 mm)
39"
(991 mm)
2 1/2"
(64 mm)
ROUND TOP TERMINATION
SQUARE CHASE-TOP TERMINATION
WARNING: DO NOT INSTALL IN SLEEPING ROOM OF
MOBILE HOMES.
CAUTION: THE STRUCTURAL INTEGRITY OF THE
MANUFACTUREDHOMEFLOOR,WALL,ANDCEILING/
ROOF MUST BE MAINTAINED.

Astria.us.com
127051-01_E 5
FIREPLACE INSTALLATION
SELECTING LOCATION
To determine safest and most efficient location for fireplace, you
must take into consideration the following guidelines:
1. Location must allow for proper clearances (see Figures 1 and 2).
2. Consider a location where fireplace will not be affected by drafts,
air conditioning ducts, windows or doors.
3. A location that avoids cutting of joists or roof rafters will make
installation easier.
4. An outside air kit is available with this fireplace (see Optional
Outside Air Kit on page 7).
MINIMUM CLEARANCE TO COMBUSTIBLES
Back and sides of fireplace 3/4" minimum*
Floor** 0" minimum
Perpendicular wall to opening 12" minimum
Top spacers 0" minimum
Mantel clearances see Mantels, page 6
Chimney outer pipe surface 1" minimum
* Not required at nailing flanges
** See step 2 of Framing
WARNING: DO NOT PACK REQUIRED AIR SPACES
WITH INSULATION OR OTHER MATERIALS.
Minimum/Maximum Chimney Height
The minimum height of the chimney, measured from the base of
the fireplace to the flue gas outlet of the termination, is 14.5 feet for
straight flue or a flue with one elbow set. The maximum distance
between elbows is 6 feet. For systems with two elbow sets, the
minimum height is 22 feet. The maximum height of any system is
50 feet. This measurement includes the fireplace, chimney sections
and the height of the termination assembly at the level of the flue
gas outlet (see Figure 18, page 11).
Minimum/Maximum Chimney Height for Outdoor Installation
The minimum height of the chimney, measured from the base of the
fireplace to the flue gas outlet of the termination, is 8 feet (minimum
of 4 feet of chimney pipe sections required for outdoor installation).
Figure 1 - Framing Dimensions
Figure 2 - Corner Installation
FRAMING
1. Frame opening for fireplace using dimensions shown in Figures
1 and 2.
Note: When the fireplace is framed, the header has to be turned
on the vertical edge to maintain proper clearance.
2. If fireplace is to be installed directly on carpeting, tile or any
combustible material other than wood flooring, fireplace must
be installed upon a metal or wood panel extending full width and
depth of fireplace.
3. Set fireplace directly in front of this opening and slide unit back
until nailing flanges touch side framing.
4. Check level of fireplace and shim with sheet metal if necessary.
5. Before securing fireplace to prepared framing, ember protector
must be placed between hearth extension (not included) and
under bottom front edge of fireplace to protect against glowing
embers falling through. If fireplace is to be installed on a raised
platform, a Z-type ember protector (not included) must be fabri-
cated to fit your required platform height. Ember protector should
extend under fireplace a minimum of 1 1/2". Ember protector
should be made of galvanized sheet metal (28 gauge minimum)
to prevent corrosion.
6. Using screws or nails, secure fireplace to framing through flanges
located on sides of fireplace.
19 1/2" (496 mm)
28"
(712 mm)
59 3/8"
(1509 mm)
83 7/8" (2131 mm)
Maintain 3/4"
Clearance at
Sides and Bac
k
of Fireplace
49 3/4"
(1264 mm)
47 1/4"
(1201 mm)
23 1/2"
(597 mm)
2 x 4 Header
Turned on
the Vertical
Edge

Astria.us.com 127051-01_E
6
FIREPLACE INSTALLATION Continued
MANTELS
A mantel may be installed if desired (see Figures 4 and 5). Woodwork
such as wood trims, mantels or any other combustible material
projecting from front face, must not be placed within 12" of fireplace
opening and within 9" of top louver opening. Combustible materials
above 12" and projecting more than 1 1/2" from fireplace must not
be placed less than 12" from top opening of fireplace (NFPA 211,
Section - Clearance from Combustible Material).
Mantels or any other combustible material may come up to side edge
of black metal face of fireplace if projection from front face falls within
limits shown in Figure 4.
Figure 4 - Mantel Clearances to Combustible Material
Non-Combustible
Materials Below
Top Spacer
DRAIN PAN (DP42)
For outdoor installations, the fireplace enclosure must allow for
adequate drainage and fresh air ventilation. It is recommended that
a sealed, corrosion resistant catch pan with provision for drainage
be installed under the fireplace within the fireplace enclosure (see
Accessories, page 19).
HEARTH EXTENSION
A hearth extension projecting a minimum of 20" in front of and a
minimum of 12" beyond each side of fireplace opening is required
to protect combustible floor construction in front of fireplace. Fab-
ricate a hearth extension using a material which meets the following
specifications: a layer of noncombustible, inorganic material having
a thermal conductivity of k = .84 BTU IN/FT2HR °F (or less) at 1"
thick. For example, if material selected has a k factor of 0.25, such
as glass fiber, the following formula would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "k" of materials can be obtained from manu-
facturer or supplier of noncombustible material. If hearth extension
is to be covered, use noncombustible material such as tile, slate,
brick, concrete, metal, glass, marble, stone, etc. Provide a means to
prevent hearth extension from shifting and seal gap between fireplace
frame and hearth extension with a non-combustible material such
as sand-cement grout (see Figure 3).
WARNING: Hearth extension is to be installed
only as shown in Figure 3.
Figure 3 - Hearth Extension
Fireplace Front
Fireplace Front Raised Hearth
Fireplace Front Elevated
Seal Gap
Seal Gap
Ember Protector
Ember Protector
Ember Protector
Hearth
Extension
Hearth Extension, Noncirculating Models
33°
Combustible
Material
Safe Zone for Projection
of Combustible
Materials
Fireplace Opening
Top
Spacer
Upper
Section of
Fireplace
12 1/4"
(312 mm)
Ref.
15"
(381 mm)
Min.
12"
(305 mm)
Min.
6"
(153 mm)
Ref.
11/2"
(38 mm)
Max.
3" (77 mm)
Nom.
FIREBOX
SAFE ZONE
Top View of Fireplace
33°
Min. 12" from
Perpendicular Side Wall
3"
(77 mm)
2" (51 mm)
Max.
8"
(204
mm)

Astria.us.com
127051-01_E 7
Figure 5- Outside Air Kit
Secure to Collars with Metal Tape, Screws or
Straps (Min. of 1/4" x 20" in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required
for Wall
Installation
Air Inlet
Eyebrow
Vented Crawl Space (Check
Local Codes Before Installing in
a Vented Crawl Space)
VENTING INSTALLATION
OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)
Installation of outside air kit should be performed during rough fram-
ing of fireplace due to the nature of it's location. Outside combustion
air is accessed through a vented crawl space (AK4F) or through a
sidewall (AK4). See Figure 22, page 14 for instruction of operating
air kit.
CAUTION: Combustion air inlet ducts shall not
terminate in attic space.
The maximum height for the air vent can not exceed
3 feet below the flue gas outlet of the termination.
CHIMNEY PIPE
WARNING: Label part number 900599-01 must
be applied by the installer to all chimney pipe
sections but is not required on sections that will
be visible after the installation is complete. Label
must wrap around the circumference of the pipe.
See accessories, page 20 for Kit F2659.
An IHP chimney system consists of 12", 18", 24", 36" and 48"
snap-lock, double-wall pipe segments, planned for maximum
adaptability to individual site requirements. Actual lengths gained
after fitting overlaps must be taken into consideration (lineal gain)
and are given in lineal gain chart (see Figure 6).
Lineal gain is actual measurable length of a part after two or more
parts are connected.
Figure 6 - Lineal Gain
Hemmed
End
8" Stainless
Inner Pipe
12 3/8"
Galvanized
Outer Pipe
WARNING: The opening in collar around chimney
at top of fireplace must not be obstructed. Never use
blown insulation to fill chimney enclosure.
LINEAL GAIN
PART NO. DESCRIPTION GAIN
42" Fireplace 45"
SS-8DM Starter Section 19''
12-8DM
12-8HT Pipe Section 10 5/8"
18-8DM
18-8HT Pipe Section 16 5/8"
24-8DM
24-8HT Pipe Section 23 5/8"
36-8DM
36-8HT Pipe Section 34 5/8"
48-8DM
48-8HT Pipe Section 46 5/8"
RT-8DM Round Termination 6 7/8"*
RTL-8DM Round Termination 7 3/4"*
RLT-8DM Round Termination 7 1/2"*
RTT-8DM Round Termination with
Slip Section
6 7/8" to
23 1/8"*
RTTL-8DM Round Termination with
Slip Section
8 1/2" to
21 1/2"*
RLTT-8DM Round Termination with
Slip Section
7 1/2" to
21 1/4"*
ET-8DM Square Chase-Top 12"*
ETO-8DM Square Chase-Top with
Mesh 12"*
ETL-8DM Square Chase-Top with
Slip Section 7" to 15"*
ETLO-8DM Square Chase-Top with
Mesh & Slip Section
12" to
25 1/2"*
* The lineal gain for the terminations is measured
to the flue gas outlet height.

Astria.us.com 127051-01_E
8

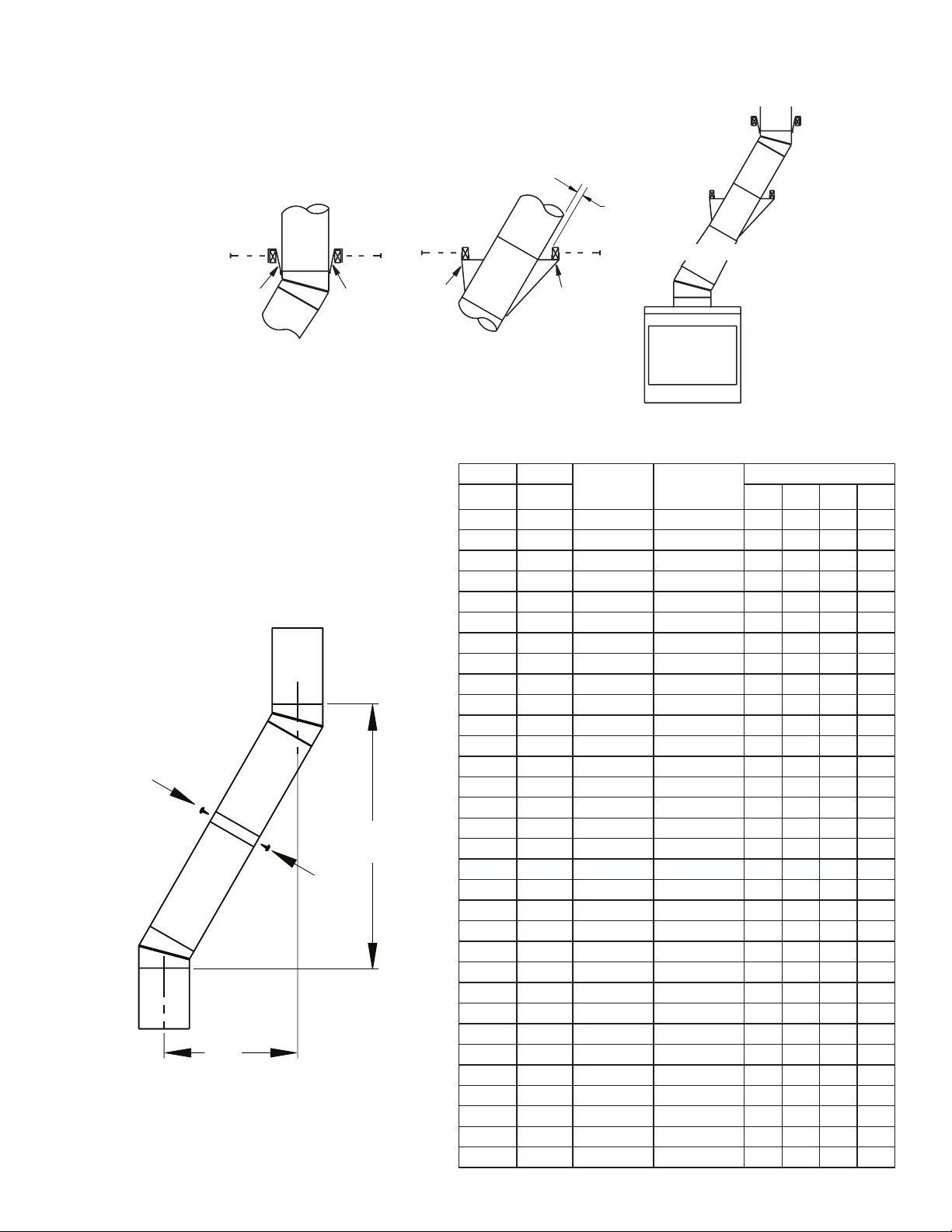

Figure 7 - Typical Offset Installation
VENTING INSTALLATION Continued
ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY
SYSTEM
Each double wall chimney section consists of a galvanized outer
pipe, a stainless steel inner flue pipe and a wire spacer. Pipe sections
must be assembled independently as chimney is installed. When
connecting chimney directly to fireplace, inner flue pipe section
must be installed first with lanced side up. Outer pipe section can
then be installed over flue pipe section with hemmed end up. Press
down on each pipe section until lances securely engage hem on
fireplace starter. Wire will assure proper spacing between inner
and outer pipe sections.
Note: For Canada, use chimney parts designated HT.
Opening in collar around chimney at top of
fireplace must not be obstructed. Never use blown
insulation to fill chimney enclosure.
Continue to assemble chimney sections as outlined, making sure
that both inner and outer pipe sections are locked together. When
installing double wall snap-lock chimney together, it is important to
assure joint between chimney sections is locked. Check by pulling
chimney upward after locking. Chimney will not come apart if properly
locked. It is not necessary to add screws to keep chimney together
(exception - see Figure 9, page 9).
The height of a vertical chimney pipe supported ONLY by the
fireplace, must not exceed 20 feet. Chimney heights above 20 feet
must be supported.
USING ELBOW OFFSET 30E-12DMO-8DMR
To clear overhead obstructions, you may offset your chimney system
using 30E-12DMO-8DMR 30° Offset/return elbow.
A section or sections of chimney may be used between offsets and
return elbow. Transition pipe must be used after elbow offset is
attached.
1. To achieve desired offset, you may install combinations of 12",
18", 24", 36" and 48" length of double wall pipe (see offset chart).
Note: For systems with 2 elbow sets, minimum height is 22 feet.
Maximum height for any system is 50 feet.
2. Chimney weight above offset rests on return elbow. Straps must
be securely nailed to rafters or joists (see Figure 8, details A and
B, page 9).
3. Maximum length of pipe between supports (return elbow or 12S-
8DM) is 6' of angle run. Maximum of two 6' angle run sections
per chimney system (see Figure 7).
4. All pipe connections between offset and return must be secured
with two screws on outer pipe only (see Figure 9, page 9). Do
not penetrate inner stainless.
30E-8DM
Return Elbow 30E-8DM
Return Elbow
30E-8DM
Offset Elbow 30E-8DM
Offset Elbow
30E-12DMO-8DMR
Offset Elbow
30E-12DMO-8DMR
Offset Elbow
30E-12DMO-
8DMR Offset
Elbow
30E-12DMO-8DMR
Return Elbow 30E-12DMO-8DMR
Return Elbow
30E-12DMO-
8DMR Return
Elbow
Starter Section Starter Section Starter Section
8 DM Pipe
8 DM Pipe
Ceiling
Support Pipe
12S-8DM
A B C
6' Max. (1.83 m)
6' Max.
(1.83 m)
6' Max. (1.83 m)
6' Max. (1.83 m)
6' Max. (1.83 m)
6' Max. (1.83 m)

Astria.us.com
127051-01_E 9
VENTING INSTALLATION Continued
Figure 9 - Elbow Offset
Figure 8 - Ceiling Support Pipe 12S-8DM
OFFSET CHART WITH TRANSITION PIPE
OFFSET RISE OFFSET/RE-
TURN ELBOW
TRANSITION
PIPE
CHIMNEY LENGTH
A B 12" 18" 36" 48"
13 3/4" 32 1/2" 1 1
19" 41" 1 1 1 1
22" 46 3/4" 1 1 1
24 1/2" 50 3/4" 1 1 2
27 1/2" 56 1 1 1 1
30 1/4" 61 1 1 2
31 62 1/2" 1 1 1
32 1/2" 65" 1 1 2 1
35 1/2" 70 1/4" 1 1 1 2
36 1/4" 71 1/2" 1 1 1 1
37 72 3/4" 1 1 1
38 1/2" 75 1/2" 1 1 3
39 1/4" 76 3/4" 1 1 1 1
41 1/2" 80 1/2" 1 1 2 1
42 1/4" 81 3/4" 1 1 1 1
44 1/2" 85 3/4" 1 1 1 1 1
45 1/4" 87" 1 1 1 1
47 1/2" 91" 1 1 2 1
48 1/4" 92 1/4" 1 1 2
49 3/4" 94 3/4" 1 1 2 1 1
52" 98 3/4" 1 1 1 4
53 1/2" 101 1/4" 1 1 1 2
54 1/4" 102 3/4" 1 1 1 1
55 3/4" 105 1/4" 1 1 3 1
56 1/2" 1061/2" 1 1 1 2
58 3/4" 110 1/2" 1 1 2 2
59 1/2" 111 3/4" 1 1 1 1 1
60 1/4" 113" 1 1 2
61 3/4" 115 3/4" 1 1 1 1 2
64 3/4" 120 3/4" 1 1 2 2
65 1/2" 122 1/4" 1 1 1 2
67" 124 3/4" 1 1 2 1 2
B
A
Screws
2" (51 mm)
Min.
Straps Straps
Straps
Straps
Detail A Return
Elbow
Detail BAngle
Firestop
See Detail A
See Detail B
Ceiling Support
Pipe 12S-8DM

Astria.us.com 127051-01_E
10
VENTING INSTALLATION Continued
Pitch Slope Opening "A"
Max.
Used Flashing
Model No.
Flat 0° 15" V6F-8DM
0-6/12 26.6° 16 1/8" V6F-8DM
6/12- 12/12 45.0° 20 3/8" V12F-8DM
Figure 12 - Roof Opening Measurements
FLASHING INSTALLATION (V6F-8DM OR V12F-8DM)
Determine flashing to be used with roof opening chart. Slide flashing
over pipe until base is flat against roof. Replace as many shingles as
needed to cover exposed area and flashing base. Secure in position
by nailing through shingles (see Figure 13). DO NOT NAIL THROUGH
FLASHING CONE.
Installing Flashing on a Metal Roof
When installing flashing on a metal roof, it is required that putty tape
be used between flashing and roof. Flashing must be secured to roof
using #8 x 3/4" screws and then sealed with roof coating to prevent
leakage through screw holes. A roof coating must also be applied
around perimeter of flashing to provide a proper seal.
Figure 13 - Flashing Installation
Nail Only Outer
Perimeter of
Flashing
Storm Collar
Underlap Shingles at
Bottom
Flashing Cone
Overlap
Shingles Top
and Sides Only
FIRESTOP SPACERS (3600FS-8DM-1)
Firestop spacers are required at each point where chimney penetrates
a floor space. Their purpose is to establish and maintain required
clearance between chimney and combustible materials. When pipe
passes through a framed opening into a living space above, firestop
must be placed onto ceiling from below as shown in Figure 10.
They also provide complete separation from one floor space to an-
other or attic space as required by most codes. When double wall
pipe passes through a framed opening into an attic space, firestop
must be placed into an attic floor as shown in Figure 11.
Figure 10 - Firestop Spacer with Living Space Above Ceiling
Figure 11 - Firestop Spacer with Attic Space Above Ceiling
IMPORTANT NOTICE
When penetrating a ceiling into an attic, a firestop thimble
(38FST or FST30) is required to avoid intrusion by insulation
and recommended to negotiate a joist (see Figure 11a).
30"
(76.2 cm)
Minimum Measurements
Opening "A"
14
3
/
8
"
(48.3 cm)
1"
(2.54
cm)
1"
(2.54
cm)
1"
(2.54 cm)
Existing
Ceiling Frame
Firestop
Spacer
Screws or Staples
(Min. of 8)
Firestop Spacer
Screws or Staples
(Min. of 8)
Existing
Ceiling
Frame
Figure 11a - Firestop Thimble
Thimble 38FST
or FST30
Firestop
PENETRATING ROOF
To maintain a 1" clearance to pipe on a roof with a pitch, a rectangular
opening must be cut.
1. Determine center point where pipe will penetrate the roof.
2. Determine center point of the roof. Pitch is the distance the roof drops
over a given span, usually 12". A 6/12 pitch means that the roof drops
6" for each 12" measure horizontally down from roof rafters.
3. Use roof opening chart (Figure 12) to determine correct opening
length and flashing required.
4. Remove shingles around opening measured. Cut out this section.
5. Add next sections of pipe until end penetrates roof line. Check to
see that proper clearances are maintained. Extend chimney by add-
ing sections of double wall pipe until pipe is minimum of 30" above
highest point of roof cutout. Termination and chimney must extend
a minimum of 36" above highest point where it passes through roof.

Astria.us.com
127051-01_E 11
VENTING INSTALLATION Continued
CHASE INSTALLATIONS
Instructions for chase installations are included with chase style ter-
mination chosen. In a multiple chase installation, be sure to provide
adequate distance between terminations to prevent smoke spillage
from one termination to another. We suggest that terminations be
separated at least 24", center to center and stacked at a vertical height
difference of 18" (see Figure 16).
Note: If a decorative shroud is to be installed, contact manufacturer
for specifications.
Figure 16 - Multiple Chase Installation
Figure 17 - 10 Foot Rule
10 FOOT RULE
All flue gas outlet chimney terminations must extend a minimum of
3 feet in height above highest point where it passes through roof and
must be at least 2 feet above highest point of the roof that is within
a horizontal distance of 10 feet (see Figure 17).
FINISHING FIREPLACE
Combustible materials, such as wallboard, sheet rock, drywall, ply-
wood, etc., may make direct contact with sides and top around fire-
place face. It is important that combustible materials do not overlap
face itself. Brick, glass, tile or other noncombustible materials may
overlap front face provided they do not obstruct essential openings
such as louvered slots. When overlapping with a noncombustible
facing material, use only noncombustible mortar or adhesive.
Storm Collar Installation (SC1)
Place storm collar over pipe and slide down until it is snug against
open edge of flashing (see Figure 14). Use SC1 for all round termina-
tions. Apply waterproof caulk around perimeter of collar to provide
a proper seal.
Figure 14 - Storm Collar
Chimney Pipe Waterproof Caulk
Storm Collar Flashing
Terminations/Spark Arrestor
Fireplace system must be terminated with listed round top or chase
terminations. In any case, refer to installation instructions supplied
with termination. Terminations approved for this fireplace are RT-
8DM and RLT-8DM that can be used for flashing or chase and ET-
8DM, ETO-8DM, ETL-8DM and ETLO-8DM for chase style termination
only. Figure 18 shows an RLT-8DM round top termination.
CAUTION: Do not seal openings on the rooftop
flashing.Followtheinstallationinstructionsprovided
with the termination being used.
Terminations with 16" slip pipe sections are available. RTT-8DM, and
RLTT-8DM are approved for flashing installations. When needed,
these adjustable terminations may be used in combination with pipe
assembly to achieve correct chimney height.
Note: In the rare instance there is a problem with side driven rain or
wind or chimney is not drafting properly, an ADS-8DM (Anti-Draft
Shield) can be used with round terminations.
Attach Bracket Tabs
to Outer Pipe (3
Places) Secure with
Screws
RLT-8DM Level of Flue
Gas Outlet
Caulk
Collar
Flashing
Underlap Shingles
Bottom Only
Figure 15 - Termination
Overlap Shingles
Top and Sides
Flue Pipe of RLT-
8DM Inside Inner
Pipe of Chimney
24" (610 mm)
18" (458 mm)
Min. Typ.
24" (610 mm)
10'
(3.05 m)
10'
(3.05 m)
2'(0.61 m) Min.
2'(0.61 m)
Min.
3'
(0.91 m)
Min
3'
(0.91 m)
Min
Level of Flue
Gas Outlet

Astria.us.com 127051-01_E
12
A gas line or gas log lighter may be installed for the purpose of
installing a vented or vent-free decorative gas appliance incorporat-
ing an automatic shutoff device and complying with the Standard
for Decorative Gas Appliances for Installation in Vented Fireplaces,
ANSI Z21.60 or American Gas Association draft requirements for
Gas Fired Log Lighters for Wood Burning Fireplaces, Draft NO. 4
dated August, 1993.
If you wish to install an unvented (vent-free) gas log set, only
unvented gas log sets which have been found to comply with the
standard for unvented room heaters, ANSI Z21.11.2 are to be installed
in this fireplace.
Gas line hook up should be done by your supplier or a qualified
service person.
Note: Before you proceed, make sure your gas supply is turned off.
Use only a 1/2" black iron pipe and appropriate fittings.
1. Remove knockout indentation on refractory or firebrick wall
located above refractory hearth floor. Knockout indentation must
be firmly tapped with any solid object, such as a 1/2" dowel, until
it is released. Remove fragmented portions of refractory (see
Figure 19, page 13).
2. Remove gas line cover plate located on either side of fireplace and
pull out insulation from gas line conduit sleeve. Save insulation
for reuse.
3. Run a 1/2" black iron gas line into fireplace through rear at
gas line conduit sleeve (if using a raised platform, add height).
Provide sufficient gas line into fireplace chamber for fitting
OPTIONAL GAS LINE INSTALLATION
Figure 18 - Typical Residential Installations
VENTING INSTALLATION Continued
connection (see Figure 20, page 13).
Note: Secure incoming gas line to wood framing to provide rigidity
for threaded end.
4. Repack insulation around gas line and into sleeve opening. Seal
any gaps between gas line and refractory knockout hole with
refractory cement or commercial furnace cement. Install gas
appliance or cap off gas line if desired.
CAUTION: All gas piping and connections must be
tested for leaks after installation is completed. After
ensuring that gas valve is on, apply soap and water
solutiontoallconnectionsandjoints.Bubblesforming
show a leak. Correct all leaks at once. DO NOT USE
AN OPEN FLAME FOR LEAK TESTING AND DO NOT
OPERATE ANY APPLIANCE IF A LEAK IS DETECTED.
LEAK TESTING SHOULD BE DONE BY A QUALIFIED
SERVICE PERSON.
Note: An IHP hood must be installed when using an unvented gas
log set (see Accessories on page 20).
WARNING: Do not operate an unvented gas log
set in this fireplace with chimney removed.
30E-12DMO-8DMR
30E-12DMO-8DMR
30E-12DMO-8DMR
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
14
1/2FT.
(4.42 M)
MINIMUM
HEIGHT
14 1/2FT.
(4.42 M)
MINIMUM
HEIGHT
MAX. HEIGHT
50 FT. (15.24 M)
ANY SYSTEM
MIN. HEIGHT OF
22 FT. (6.71 M)
WITH 2
ELBOW SETS
MAX. HEIGHT OF
50 FT. (15.24 M)
UP TO
6FT.
(1.83 M)
MAX.
UP TO
6FT.
(1.83 M)
MAX.
STARTER
SECTION
STARTER
SECTION
STARTER
SECTION

Astria.us.com
127051-01_E 13
Figure 21 - Glass Doors
Cleaning Glass
Clean glass with any commercial glass cleaner or soap and water.
Do not use any abrasive material to clean the glass. Do not clean
glass with any cool water if glass is still hot from fire and smoke.
OPERATION AND MAINTENANCE
Doors Fully Closed
Fireplace Front
Doors Fully Opened
Fireplace Front
GLASS DOORS
Glass doors are optional with this fireplace. When fireplace is in
operation, doors must be fully opened or fully closed position only
or a fire hazard may be created (see Figure 21).
A fireplace equipped with glass doors operates much differently
than a fireplace with an open front. A fireplace with glass doors
has a limited amount of air for combustion. Excessive heat within
fireplace can result if too large a fire is built or if combustion air gate
is not completely open.
The following tips should be used to assure that both fireplace and
glass door retain their beauty and function properly. Both the flue
damper and glass doors must be fully opened before starting a
fire. This will provide sufficient combustion air and maintain safe
temperatures in firebox.
IMPORTANT: The glass must be allowed to warm slowly and evenly.
Tempered glass will withstand a gradual temperature rise to 550°
F, which is more than a normal fire will generate. Such materials as
pitch/wax laden logs, very dry mill end lumber and large amounts
of paper or cardboard boxes can create an excessively hot fire and
should not be burned in this fireplace. Always keep fire back from
doors and never allow flames to contact glass.
WARNING:FIREPLACESEQUIPPEDWITHDOORS
SHOULD BE OPERATED ONLY WITH DOORS FULLY
OPEN OR DOORS FULLY CLOSED. IF DOORS ARE
LEFTPARTLYOPEN,GASANDFLAMEMAYBEDRAWN
OUT OF THE FIREPLACE OPENING, CREATING RISKS
OF BOTH FIRE AND SMOKE.
WARNING: Discontinue use of the appliance imme-
diately if doors are damaged and contact a qualified
installer for repair. Only doors certified with the
appliance shall be used.
WARNING: Do not slam or strike doors. Damage
can result in a hazardous condition.
Figure 20 - Gas Line Installation
Figure 19 - Gas Line Knockout
Side Firebrick
Finished Side
Refractory
Knockout Plug
Outside of
Fireplace
Gas Line Conduit
Insulation
Gas Conduit
Cover
1/2" Dowel
Seal Opening
with
Refractory
Cement
Outside of
Fireplace
Gas Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe Side Firebrick
Finished Side
Provide Enough
Threaded End for
Fitting Connection
If you install a decorative gas appliance (vented gas log), decorative
gas appliance must comply with the Standard for Decorative Gas
Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI
Z21.60/CSA 2.26 or Z21.84 and shall also be installed in accordance
with ANSI Z223.1/NFPA 54 National Fuel Gas Codes (USA) and CAN/
CGA-B149.1 National Gas And Propane Installation Code (Canada).
WARNING: To avoid the risk of damaging fireplace
materials and increasing the risk of spreading a fire,
do not use fireplace to cook or warm food.
WARNING: If the fireplace has been used for wood
burning,fireboxandchimneymustbecleanedofsoot,
creosote and ashes be a qualified chimney cleaner.
Creosote will ignite if heavily heated.
WARNING: When using a decorative vented gas
log, damper must be removed or permanently locked
in fully open position and glass doors must be in fully
open position.
OPTIONAL GAS LINE INSTALLATION Continued

Astria.us.com 127051-01_E
14
Figure 22 - Damper and Air Kit Handle
OPERATION AND MAINTENANCE Continued
WARNING: Risk of fire! Replace grate with IHP
cat. no. J4513 only. This grate has been designed to
keeptheoperation of your fireplacesafeandefficient.
OUTSIDE AIR AND DAMPER HANDLE OPERATION
The damper handle, which opens and closes the damper blade, is
located in upper front face of fireplace. Pushing handle into the left
of keyway slot will free damper blade to automatically open. Pushing
handle into the right will lock damper blade closed (see Figure 22).
Outside air kit handle is located at left hand side of fireplace (see
Figure 22). Pulling handle out will free outside air door to open.
Pushing handle in will lock door closed.
Figure 23 - Locating Access Cover Plate
LOCATING ACCESS COVER PLATE
Sheet metal cover plates located underneath front hearth refractory may
have shifted or moved out of place while fireplace was in transit. These
cover plates must be kept in the proper location prior to using the fireplace
(See Figure 23).
For further operating guidelines, instructions and warranty informa-
tion, please refer to your homeowner's guide or contact your dealer.
Access
Panel
OPEN CLOSE
Damper
Handle
Outside Air
Kit Handle
Keyway Slot
Handle
Retainer
REPLACEMENT PARTS
See Pages 16 to 18 for a complete replacement parts list. Use only
parts supplied from the manufacturer.
Normally, all parts should be ordered through your IHP distributor
or dealer. Parts will be shipped at prevailing prices at time of order.
When ordering repair parts, always give the following information:
1. The model number of the fireplace.
2. The serial number of the fireplace.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the fireplace.
If you encounter any problems or have any questions concerning the
installation or application of this fireplace, please contact your dealer.
IHP
1508 Elm Hill Pike, Suite 108
Nashville, TN 37210
Visit us at Astria.us.com
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting. Please contact your IHP dealer for any questions
or concerns. When contacting your dealer please have your model
and serial numbers of your fireplace ready. You can also visit our
web site at Astria.us.com

Astria.us.com
127051-01_E 15
IMPORTANT NOTICE
A manufactured shroud which
has been approved by a na-
tional testing agency for use
with this fireplace may be used
if installed in accordance with
the instructions by its manu-
facturer. A locally fabricated
shroud may be used with IHP
Shroud Leg Spacer Kit (SLK)
in accordance with instructions
provided with the shroud.
Canadian code CAN/ULC-S610-M87 and other pertinent
codes require stainless steel chimney for the installation
of this fireplace. A Cold Air Climate Kit is also required
in Canada and is recommended for cooler regions in the
United States. Below, find a list of approved stainless
steel parts.
Chimney Parts List for Canada
Catalog
No. Model No. 8" Hi-Temp Wood burning Chimney
F0881 12-8HT 12" Section Hi-Temp Double
Wall Pipe Snap Lock
F0882 18-8HT 18" Section Hi-Temp Double
Wall Pipe Snap Lock
F0883 24-8HT 24" Section Hi-Temp Double
Wall Pipe Snap Lock
F0884 36-8HT 36" Section Hi-Temp Double
Wall Pipe Snap Lock
F0885 48-8HT 48" Section Hi-Temp Double
Wall Pipe Snap Lock
F0886 30E-8HT 30 Degree Hi-Temp Offset
and Return
F0887 12S-8HT Hi-Temp Chimney Support
(For Use With Chimney
Heights In Excess of 30')
F0888 RT-8HT Hi-Temp Round Top with
Mesh Screen
F0889 RTT-8HT* Hi-Temp Round Top with
Mesh Screen and Slip Sec-
tion
F0890 RLT-8HT Hi-Temp Round Top with
Louvered Screen
F0891 RLTT-8HT* Hi-Temp Round Top with
Louvered Screen and Slip
Section
F0892 ET-8HT* Hi-Temp Pyramid Top with
Slip Section
F0893 ETL-8HT* Hi-Temp Large Pyramid Top
with Slip Section (use with all
8" systems)
F0894 AP-8HT Hi-Temp Anchor Plate/Col-
lar Assembly (for masonry
fireplaces)
F0929 CAK-8 Cold Air Collar Kit - 8"
Chimney
*When ordered alone, this part cannot ship via parcel
delivery services.
NOTICE: The firebox canopy (hood)
must not be modified or replaced with
a canopy that may be provided with
the unvented decorative room heater.
CAUTION: THE STRUCTURAL INTEG-
RITY OF THE MANUFACTURED HOME
FLOOR, WALL, AND CEILING/ROOF
MUST BE MAINTAINED.
WARNING: DO NOT INSTALL
IN SLEEPING ROOM OF MOBILE
HOMES.
IMPORTANT NOTICES - CANADA

Astria.us.com 127051-01_E
16
PARTS
WOOD BURNING FIREPLACE MODELS:
9
24
16
31 25
16
430
32
19
12
23
20
28
17
8
1
5
21
2
18
11
14
3
13
22
10 6
35
29
7
33/34
26
27
15
MODEL NO. CATALOG NO.
Tuscan42P2 F0542
Tuscan42P3 F0543

Astria.us.com
127051-01_E 17
WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved
by IHP. Use of non-approved parts can result in poor performance and safety hazards.
PARTS
WOOD BURNING FIREPLACE MODELS TUSCAN42P2 (F0542) AND TUSCAN42P3 (F0543)
This list contains replaceable parts used in your fireplace.
KEY NO.
CATALOG NO.
DESCRIPTION QTY.
1 ** Insulation Pan 1
2 ** Fireplace Top 1
3 ** Fireplace Surround 1
4 J3946 Air Rod Retainer 1
5 J3947 Damper Rod Retainer 1
6 ** Firebox Bottom 1
7 ** Firebox Surround 1
8 ** Air Separator 1
9See Page 18 Left Refractory Brick Liner 1
10 See Page 18 Right Refractory Brick Liner 1
11 See Page 18 Rear Refractory Brick Liner 1
12 See Page 18 Bottom Rear Refractory Brick Liner 1
13 See Page 18 Bottom Front Refractory Brick Liner 1
14 J3972 Firebox Support Leg 4
15 ** Damper Can Collar 1
16 J8013 Kit, Screen Assembly 1
17 ** Firebox Top Assembly 1
18 J3980 Air Kit Door Assembly 1
19 ** Face Weldment 1
20 J4471 Air Deflector 1
21 ** Fireplace Top Insulation 1
22 ** Access Panel 1
23 J4513 Grate 1
24 ** Collar Insulation 1
25 J8014 Chimney Starter Collar 1
26 J6895 Refractory Retainer 2
27 J3939 Grate Retainer 2
28 J4504 Door Stop 1
29 J4523 Pivot Clip 2
30 J6905 Spring Clip 2
31 J6918 Top Spacer 4
32 J6934 Conduit Plate Cover 4
33 J6951 Gas Conduit 2
34 J6952 Gas Conduit 2
35 F1907 SS-8DM STARTER SEC 12-8"DMC-12 1
PARTS AVAILABLE NOT SHOWN
127004-01 Home Owner’s Guide 1
J6906 Ember Protector 2
** Not a field replaceable part

Astria.us.com 127051-01_E
18
KEY
NO. CATALOG NO. DESCRIPTION Tuscan42P2 Tuscan42P3 QTY.
9 J4063 Left Refractory, Textured White Brick • 1
J4141 Left Refractory, Textured White Herringbone • 1
10 J4068 Right Refractory, Textured White Brick • 1
J4144 Right Refractory, Textured White Herringbone • 1
11 J4073 Rear Refractory, Textured White Brick • 1
J4147 Rear Refractory, Textured White Herringbone • 1
12 J4506 Bottom Rear Refractory, White Brick • • 1
13 J4508 Bottom Front Refractory, White Brick • • 1
PARTS
WOOD BURNING FIREPLACE MODELS TUSCAN42P2 AND TUSCAN42P3
Rear
Left Side
Front Bottom
Bottom
Right Side
MODEL NO. CATALOG NO.
Tuscan42P2 F0542
Tuscan42P3 F0543
ACCESSORIES
REFRACTORY STAIN KITS
Use the refractory stain kits to give white refractory panels a new look.
Kit includes foam roller handle, paint tray, and one can of stain. Available stain colors
are creamer (ivory), Rust (terra cotta), and Cappuccino (rosy taupe). CappuccinoRustCreamer
CAT NO. MODEL DESCRIPTION
H8176 BSK-CR Stain Kit (Rfry) 1 Qt. Creamer
H8177 BSK-RT Stain Kit (Rfry) 1 Qt. Rust
H8178 BSK-CP Stain Kit (Rfry) 1 Qt. Cappuccino

Astria.us.com
127051-01_E 19
BI-FOLD GLASS DOORS
CAT NO. MODEL DESCRIPTION
F0990 BDO42 42" Outdoor Bi-Fold Glass Door - Black finish
F0991 BDO42B 42" Outdoor Bi-Fold Glass Door - Brushed Brass finish
F0992 BDO42P 42" Outdoor Bi-Fold Glass Door - Platinum finish
DOUBLE WALL PIPE
F0895 12-8DM 12" Section Double Wall Pipe Snap Lock
F0896 18-8DM 18" Section Double Wall Pipe Snap Lock
F0897 24-8DM 24" Section Double Wall Pipe Snap Lock
F0898 36-8DM 36" Section Double Wall Pipe Snap Lock
F0899 48-8DM 48" Section Double Wall Pipe Snap Lock
F0881 12-8HT 12" Section Hi-Temp Double Wall Pipe Snap Lock
F0882 18-8HT 18" Section Hi-Temp Double Wall Pipe Snap Lock
F0883 24-8HT 24" Section Hi-Temp Double Wall Pipe Snap Lock
F0884 36-8HT 36" Section Hi-Temp Double Wall Pipe Snap Lock
F0885 48-8HT 48" Section Hi-Temp Double Wall Pipe Snap Lock
30° OFFSET AND RETURN
F0900 30E-8DM 30 Degree Offset and Return
F0886 30E-8HT 30 Degree Hi-Temp Offset and Return
F1908 30E-12DMO-
8DMR 30 Elbow Set 12" to 8" Craftsman 42
F2199 30E-12HTO-8HTR Elbow Set 12"" Offset 8" Return HT
OPTIONAL OUTSIDE AIR KIT FOR FLOOR INSTALLATION
F1091 AK4 Complete Outside Air Kit w/Collars Hood & 3' Flex
OPTIONAL OUTSIDE AIR KIT FOR SIDEWALL INSTALLATION
F1093 AK4F Outside Air Kit Collar, Hood & 3' Flex for Floor Venting
STORM COLLAR
F0915 SC1-1 Storm Collar
F0946 SC2-1 Storm Collar
FIRESTOP SPACER
F0904 FS-8DM 2" Clearance Firestop Spacer
ACCESSORIES Continued

Astria.us.com 127051-01_E
20
ROOF FLASHING
F0909 V6F-8DM Roof Flashing 0 to 6/12 Pitch (30" Base)
F0910 V12F-8DM Roof Flashing 6/12 to12/12 Pitch
ANTI-DRAFT SHIELD
(Round Top Termination Only)
F0927 ADS-8DM Anti-Draft Shield for Round Top Only
MESH ROUND TOP TERMINATIONS
F0916 RT-8DM Round Top with Mesh Screen
MESH ROUND TOP TERMINATIONS WITH SLIP SECTION
F0917 RTT-8DM Round Top with Slip Section & Mesh
ROUND TOP TERMINATIONS WITH LOUVERS
F0918 RLT-8DM Round Top with Louvered Screen
F0890 RLT-8HT Hi-Temp Round Top with Louvered Screen
ROUND TOP TERMINATIONS WITH LOUVERS W/SLIP SECTION
F0919 RLTT-8DM Round Top with Slip Section & Louvers
SQUARE TOP TERMINATION WITH LOUVERS
F0920 ET-8DM Square Top
F0922 ETO-8DM Square Top with Mesh
SQUARE TOP TERMINATION WITH LOUVERS AND SLIP SECTION
F0921 ETL-8DM Square Top with Slip Section
F0923 ETLO-8DM Square Top with Mesh and Slip Section
MESH SQUARE TOP TERMINATION
F0922 ETO-8DM Square Top with Mesh
MESH SQUARE TOP TERMINATION WITH SLIP SECTION
F0923 ETLO-8DM Square Top with Mesh and Slip Section
STAINLESS STEEL HOOD
Required when installing a vent-free gas log in this fireplace.
F1053 HS42 42" Stainless Steel Hood w/4" Brow
DRAIN PAN
F1090 DP42 Drain Pan
FIRESTOP THIMBLE
F0911 38FST Firestop Thimble ( Use when penetrating a joist)
F0912 FST30 Firestop Thimble ( Use when offsetting through a joist)
LABEL-UL127-50PK WARNING
HOT
• Fire Risk
• Insulation and combustibles must not touch
pipe
• Consult manual for clearance requirements
• Ensure proper connection
WARNING
HOT
• Fire Risk
• Insulation and combustibles must not touch
pipe
• Consult manual for clearance requirements
• Ensure proper connection
WARNING
HOT
• Fire Risk
• Insulation and combustibles must not touch
pipe
• Consult manual for clearance requirements
• Ensure proper connection
900599-01
F2659 LABEL-UL127-
50PK UL127 Venting Label - 50 PK
ACCESSORIES Continued
