Astria Craftsman 42P2 User manual

For more information, visit Astria.US.com
Craftsman
Wood burning Fireplaces
MODELS
INSTALLATION AND OPERATION
INSTRUCTIONS
P/N 126662-01 Rev. D 10/2014
REPORT NO. 10-078
P126662 01
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain
replacement parts or accessory items when needed.
Keep it with your other important papers.
This fireplace is approved for use as a wood burning
fireplace or for use with a vented gas log approved
to ANS Z21.60, Z21.84 standards or for use with a
vent-free gas log heater approved to ANS Z21.11.2
standard. An INNOVATIVE HEARTH PRODUCTS, LLC
hood must be installed when using a vent-free log
heater (see Accessories, page 18).
This wood burning fireplace complies with UL127-
CAN/ULC-S610-M87 standard as a FACTORY BUILT
APPLIANCE.
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before instal-
lation to determine the need to obtain a permit.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
PFS
®
USC
Craftsman 42P2
Craftsman 42P3

Astria.US.com 126662-01D
2
Safety.............................................................................................2
Specifications.................................................................................4
Fireplace Installation ......................................................................5
Venting Installation ........................................................................7
Optional Gas Line Installation ......................................................13
Operation and Maintenance .........................................................14
Replacement Parts.......................................................................15
Technical Service .........................................................................15

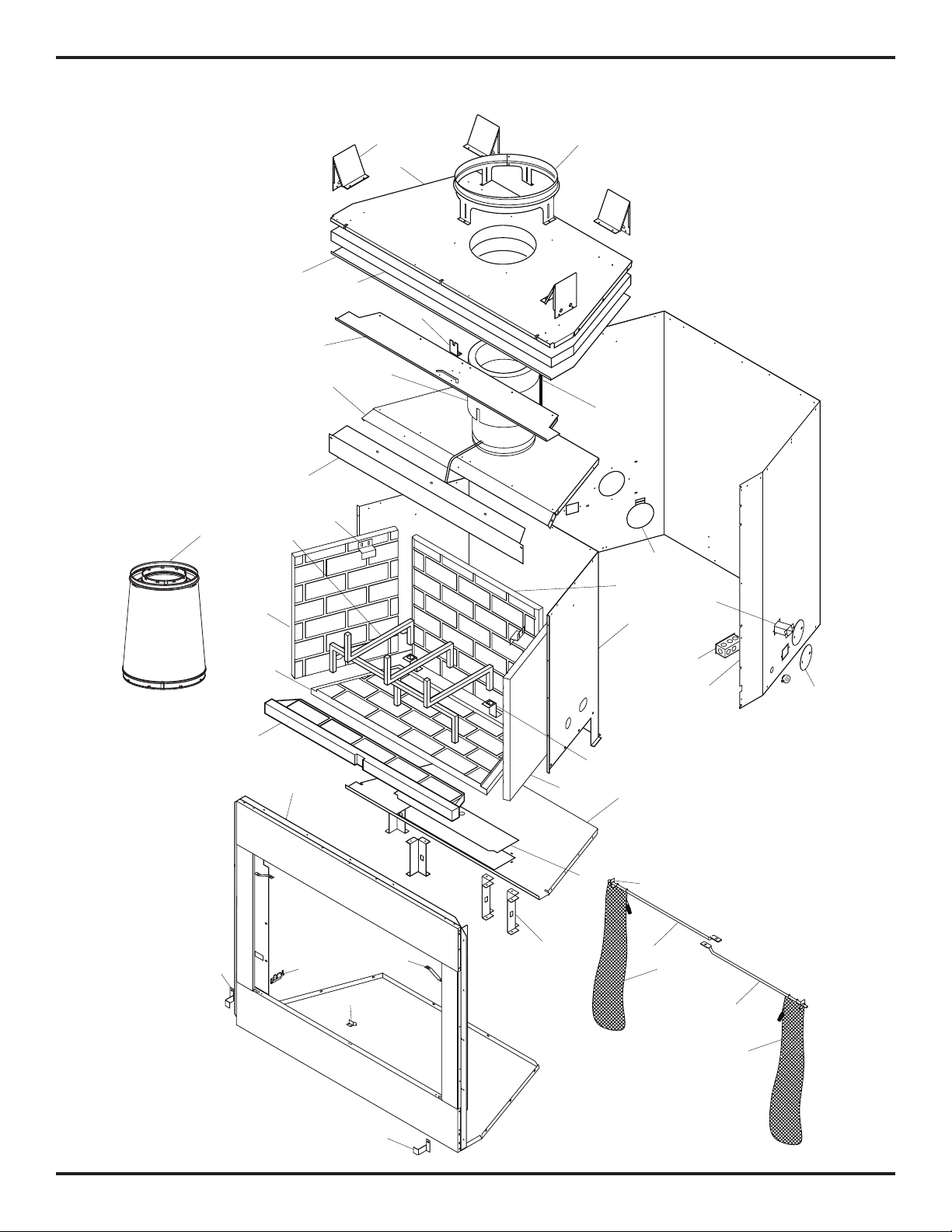

Parts ............................................................................................16

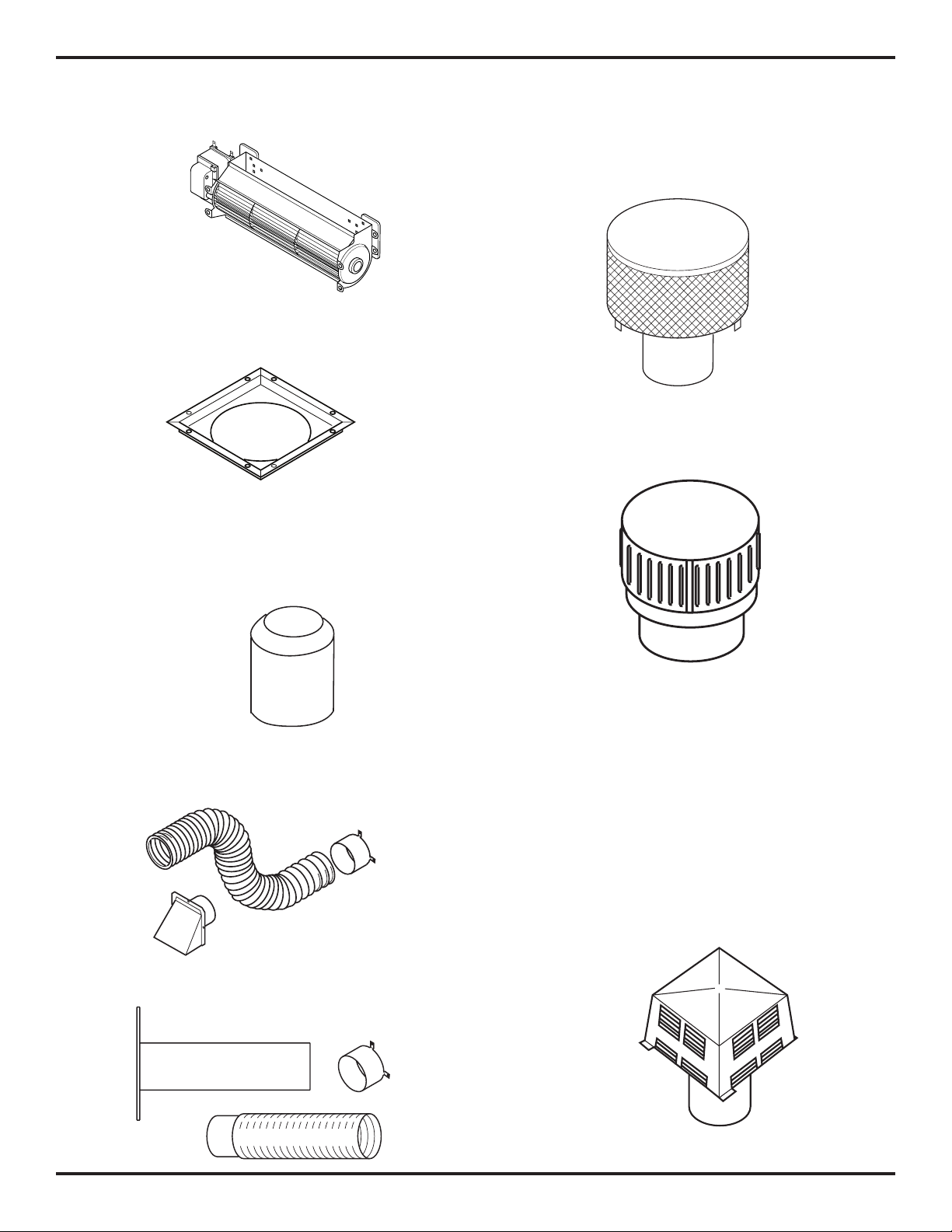

Accessories..................................................................................18
Thank you for your purchase. We appreciate your
business!
Please carefully read and follow all instructions in this manual. Pay
special attention to all warnings and safety information.
Following these safety, care, and operation instructions will help
ensure many years of dependable and enjoyable service from your
fireplace.
Register your product online today!
To help us keep you up-to-date on product information and of-
fers, please take a few moments to register your product online
at Astria.US.com (Owner Resources/Product Registration).
Please read and understand these instructions before installing
or operating.
SAFETY
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause injury,
property damage or loss of life. Refer to this manual
for assistance or additional information. Consult a
qualified installer or local distributor.
IMPORTANT: Check local codes before installing this
fireplace.
Before beginning installation of this fireplace, read these instructions
through completely.
• ThisINNOVATIVEHEARTHPRODUCTS,LLC(IHP)replaceand
its components are safe when installed according to this installa-
tionmanual.UnlessyouuseIHPcomponents,whichhavebeen
designed and tested for the fireplace system, you may cause a fire
hazard.
• TheIHPwarrantywillbevoidedbyandIHPdisclaimsanyrespon-
sibility for the following actions.
a. Modification of the fireplace, components, doors, air inlet
system and damper control.
b. Use of any component part not manufactured or approved by
IHPincombinationwithanIHPreplacesystem.
Proper installation is the most important step in ensuring safe and
continuousoperationofthereplace.Consultthelocalbuildingcodes
as to the particular requirements concerned with the installation of
all factory built fireplaces.
WARNING: Do not install a fireplace insert in this
fireplace unless the manufacturer's instructions with
the insert specifically state this fireplace has been
tested for use with this insert.
TABLE OF CONTENTS
FOR YOUR SAFETY
•Donotstoreorusegasolineoranyotherammable
vapors or liquids in the vicinity of this or any other
appliance.
•Duetohightemperatures,theapplianceshouldbe
located out of traffic and away from furniture and
draperies.
•Donotplaceclothingorotherammablematerials
on or near the appliance.
•Never leave children unattended when a re is
burning in the fireplace.
WARNING: Use solid wood or processed solid
fuel fire logs only. "Do not poke or stir the logs while
they are burning. Use only firelogs that have been
evaluated for the application in fireplace and refer to
firelog warnings and caution markings on packaging
prior to use."
This fireplace is not intended to be used as a sub-
stitute for a furnace to heat an entire home. Use for
supplemental heat only.
Ovefiring of a fireplace is a condition where exces-
sive temperatures are reached, beyond the design
capabilities of the appliance. The damage that occurs
from ovefiring is not covered under the manufacturer’s
limited warranty.

Astria.US.com
126662-01D 3
SAFETY Continued
WARNING: CONTINUED OVERFIRING CAN PER-
MANENTLY DAMAGE YOUR FIREPLACE SYSTEM.
SOME EXAMPLES OF CONDITIONS THAT COULD
CAUSE OVERFIRING ARE:
• BURNINGQUANTITIESOFSCRAPLUMBER,PINE
BRANCHES, PAPER OR CARDBOARD BOXES
WHICHEXCEEDTHEVOLUMEOFTHENORMAL
LOGFIRE.
• BURNINGTRASH,CHEMICALSORCHEMICALLY
TREATEDCOMBUSTIBLES.
"Disposal of Ashes
Ashes should be placed in a metal container with a
tight-fitting lid. The closed container of ashes should
beplacedonanoncombustibleoororontheground,
well away from all combustible materials, pending
final disposal. If the ashes are disposed of by burial
in soil or otherwise locally dispersed, they should be
retained in the closed container until all cinders have
thoroughly cooled."
"WHEN USING THE DECORATIVE APPLIANCE, THE
FIREPLACE DAMPER MUST BE SET IN THE FULLY
OPEN POSITION."
"Never use gasoline, gasoline-type lantern fuel, kero-
sene,charcoallighteruid,orsimilarliquidstostart
or ’freshen up’ a fire in this fireplace. Keep all such
liquids well away from the fireplace while it is in use."
Use SOLID WOOD only for fuel. It is best to use dry
and well seasoned hardwood. Softwoods tend to burn
very quickly. DO NOT use treated wood,charcoal, coal,
trash, driftwood or woods that have been dipped in tar,
pitch, pine tar, creosote, etc. Wood products made
with synthetic binders, such as plywood, produce ab-
normally high temperatures and sputtering, smoking
fires. When burning artificial logs, please read and
follow the instructions provided by the manufacturer.
Never burn treated construction lumber or scraps.
These woods burn excessively hot and may contain
chemicals used to treat insects and fungus. When
burned,these chemicalscan posea significanthazard.
WARNING: BURNING IMPROPER FUEL (I.E.
CHARCOAL) CAN RESULT IN CARBON MONOXIDE
POISONING, WHICH MAY LEAD TO DEATH!
Carbon Monoxide Poisoning – Early signs of carbon
monoxidepoisoningresembletheuwithheadaches,
dizziness, or nausea. If you have these signs, get
fresh air at once! Have the appliance inspected by a
qualified service technician. Some people are more
affected by carbon monoxide than others. These
include pregnant women, people with heart or lung
diseaseoranemia,thoseundertheinuenceofal-
cohol, and those at high altitudes.
Ventilation Requirements - Provide adequate air for
combustion. The fresh air requirements of this ap-
pliance must be met within the space where it will
be installed.
Smoke Detectors - Since there are always several
potential sources of fire in any home, we recommend
installing smoke detectors. If possible, install the
smoke detector in a hallway adjacent to the room (to
reduce the possibility of occasional false activation
from the heat produced by the appliance). If your local
code requires a smoke detector be installed within the
same room, you must follow the requirements of your
local code. Check with your local building department
for requirements in your area.
"Creosote – Formation and Need for Removal
When wood is burned slowly, it produces tar and other
organic vapors, whichcombine with expelled moisture
to form creosote. The creosote vapors condense in
the relatively cool chimney ue of a slow-burning
fire. As a result, creosote residue accumulates on
theuelining.Whenignitedthiscreosotemakesan
extremely hot fire.
The chimney shall be inspected at least twice a
year during the heating season to determine when a
creosote buildup has occurred. When creosote has
accumulated (1/8" [3 mm] ormore) it shall be removed
to reduce the risk of a chimney fire."

Astria.US.com 126662-01D
4
SPECIFICATIONS
0" TO
BOTTOM
(LEFT SIDE ONLY)
OUTSIDE AIR
BACK AND
SIDES
3/4" AIR
SPACE
HEARTH EXTENSION
66" X 20" MINIMUM
12"
EACH SIDE
COMBUSTIBLE
WALL BOARD
TOP SPACERS
0" TO
1" AIRSPACE
TO COMBUSTIBLE
MATERIAL
NO COMBUSTIBLE
MATERIAL ON FACE
NO COMBUSTIBLE
MATERIAL BELOW
TOP SPACERS
GAS LINE
KNOCK OUT
AIR KIT
KNOCK OUTS
GAS LINE
STARTER
SECTION
8DM
PIPE
INNER DIA.
OUTER
DIA. 15"
KNOCK OUTS
ELECTRICAL
OUTLET
LEFT SIDE
RIGHT SIDE
PERPENDICULAR
NOT LESS
THAN 12" TO
SIDEWALL
41"
48"
42"
8"
39"
12"
48"
36"
24"
81/8"
10 5/8"
12 5/8"
10 5/8"
63/4"
14 1/4"
21/2"
29 1/2"
22 1/2"
11 3/4"
46 3/4"
1
1
/
2
"
12 3/8"
5/8"
16 1/4"
81/8"
21/2"
SQUARE CHASE-TOP
TERMINATION
ROUND TOP TERMINATION

Astria.US.com
126662-01D 5
FIREPLACE INSTALLATION
SELECTING LOCATION
To determine safest and most efficient location for fireplace, you
must take into consideration the following guidelines:
1. Locationmustallowforproperclearances(seeFigures1and2).
2. Consideralocationwherereplacewillnotbeaffectedbydrafts,
air conditioning ducts, windows or doors.
3. A location that avoids cutting of joists or roof rafters will make
installation easier.
4. Anoutside air kitisavailable with thisreplace(see Optional
Outside Air Kitonpage7).
MINIMUM CLEARANCE TO COMBUSTIBLES
Back and sides of fireplace 3/4" minimum*
Floor** 0" minimum
Perpendicular wall to opening 12" minimum
Top spacers 0" minimum
Mantel clearances see Mantels, page 6
Chimneyouterpipesurface1"minimum
** See step 2 of Framing
WARNING: DO NOT PACK REQUIRED AIR SPACES
WITH INSULATION OR OTHER MATERIALS.

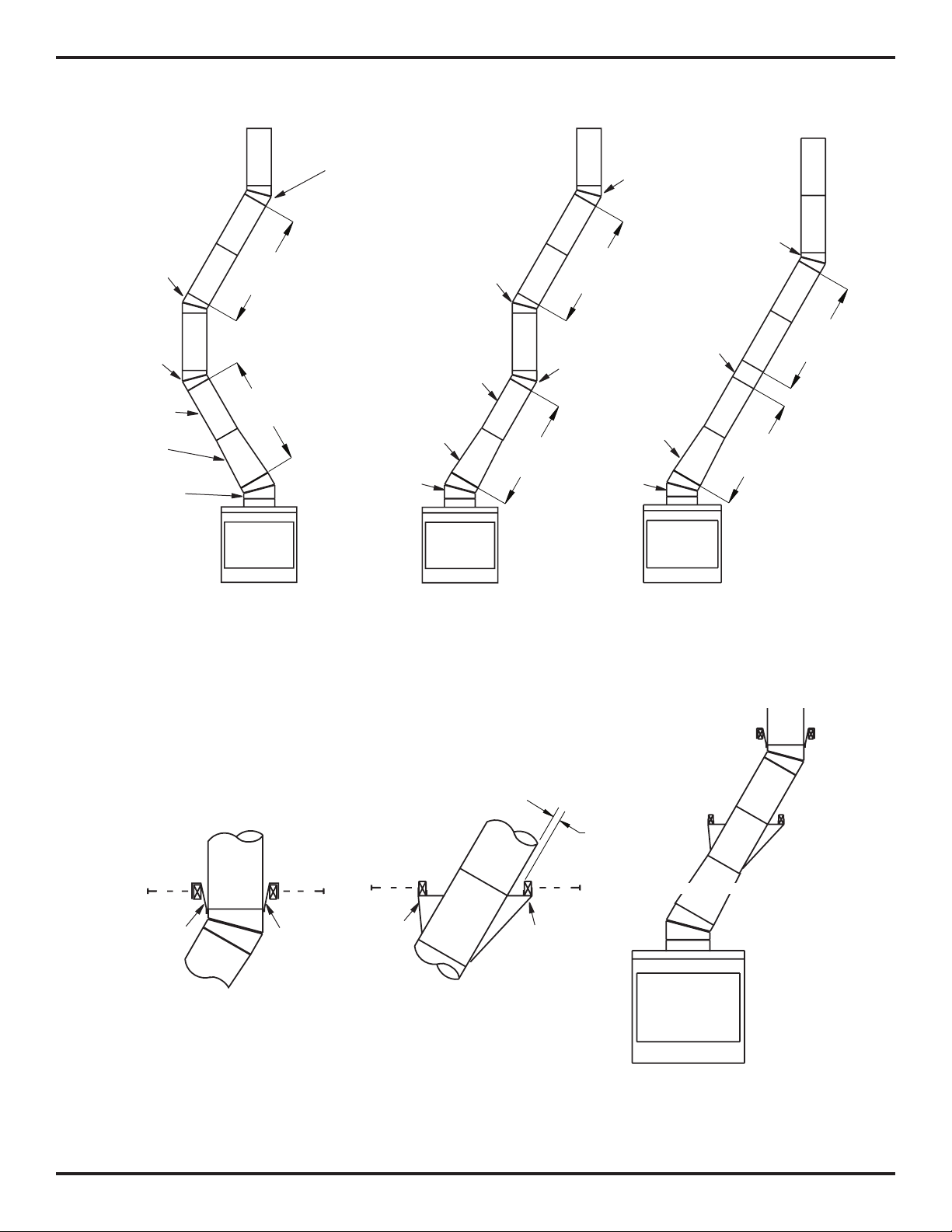

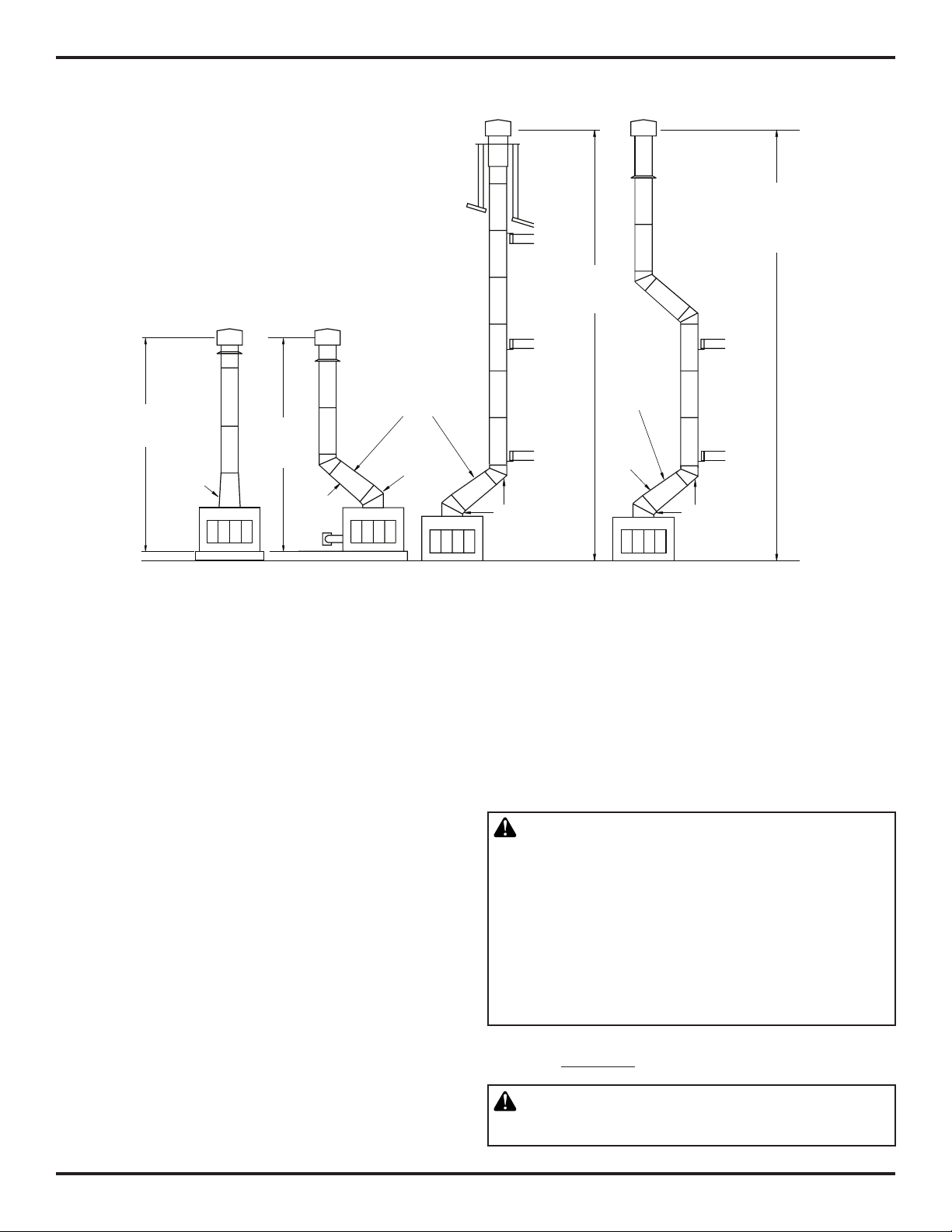

Minimum/Maximum Chimney Height
Minimum height of chimney, measured from base of fireplace to
flue gas outlet of termination, is 14.5 feet for straight flue or a flue
with one elbow set. Maximum distance between elbows is 6 feet. For
systems with two elbow sets, minimum height is 22 feet. Maximum
height of any system is 50 feet. This measurement includes fireplace,
chimney sections and height of termination assembly at level of flue
gasoutlet(seeFigure21,page13).
FRAMING
1. Frame opening for fireplace using dimensions shown in Figures
1 and 2.
Note: When the fireplace is framed, the header has to be turned
ontheattomaintainproperclearance.
2. Ifreplaceistobeinstalleddirectlyoncarpeting,tile(otherthan
ceramic)oranycombustiblematerialotherthanwoodooring,
fireplace must be installed upon a metal or wood panel extending
full width and depth of fireplace.
3. Set fireplace directly in front of this opening and slide unit back
until nailing flanges touch side framing.
4. Checklevelofreplaceandshimwithsheetmetalifnecessary.
5. Before securing fireplace to prepared framing, ember protector
must be placed between hearth extension (not included) and
under bottom front edge of fireplace to protect against glowing
embers falling through. If fireplace is to be installed on a raised
platform,aZ-typeemberprotector(notincluded)mustbefabri-
catedtotyourrequiredplatformheight.Emberprotectorshould
extend under fireplace a minimum of 1 1/2". Ember protector
shouldbemadeofgalvanizedsheetmetal(28gaugeminimum)
to prevent corrosion.
6. Using screws or nails, secure fireplace to framing through flanges
located on sides of fireplace.
Figure 1 - Framing Dimensions
Figure 2 - Corner Installation
HEARTH EXTENSION
A hearth extension projecting a minimum of 20" in front of and a
minimum of 12" beyond each side of fireplace opening is required
to protect combustible floor construction in front of fireplace. Fab-
ricate a hearth extension using a material which meets the following
specifications: a layer of noncombustible, inorganic material having
a thermal conductivity of k = .84 BTU IN/FT2HR°F(orless)at1"
thick. For example, if material selected has a k factor of 0.25, such
as glass fiber, the following formula would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "k" of materials can be obtained from manu-
facturer or supplier of noncombustible material. If hearth extension
is to be covered, use noncombustible material such as tile, slate,
brick, concrete, metal, glass, marble, stone, etc. Provide a means to
prevent hearth extension from shifting and seal gap between fireplace
frame and hearth extension with a non-combustible material such
assand-cementgrout(seeFigure3,page6).
28"
Maintain 3/4"
Clearance at
Sides and
Back of
Fireplace
59 3/8"
19 1/2"
83 7/8"
23 1/2"
49 3/4"
47 1/4"
2x4
Header
Turned
Flat

Astria.US.com 126662-01D
6
FIREPLACE INSTALLATION Continued
Figure 3 - Hearth Extension
WARNING: Hearth extension is to be installed
only as shown in Figure 3.
FIREBOX
SAFE ZONE
Figure 6 - Side Mantel Clearance
Top View of Fireplace
Min. 12" from
Perpendicular Side Wall
3"
2" Max.
33°
8"
MANTELS
Amantelmaybeinstalledifdesired(seeFigures4and5).Woodwork
such as wood trims, mantels or any other combustible material
projecting from front face, must not be placed within 12" of fireplace
openingandwithin9"oftoplouveropening.Combustiblematerials
above 12" and projecting more than 1 1/2" from fireplace must not
beplacedlessthan12"fromtopopeningofreplace(NFPA211,
Section-ClearancefromCombustibleMaterial).
Mantels or any other combustible material may come up to side edge
of black metal face of fireplace if projection from front face falls within
limits shown in Figure 6.
Figure 4 - Mantel Clearances to Combustible Material (with
Louver)
Figure 5 - Mantel Clearances to Combustible Material (without
Louver)
12 1/4" Ref.
1 1/2"
Max.
Upper Section
of Circulating
Fireplace
6"
Ref.
9"
Min.
33°
3" Nom.
*Note: Drawing Not To Scale
Safe Zone For
Projection of
Combustible
Materials
Combustible
Material
Non Combustible
Materials Below
Top Spacer
15"
Min.
12"
Min.
Fireplace Opening
Top of
Louvered
Opening
12 1/4" Ref.
6"
Ref.
15" Min.
12" Min.
11/2" Max.
3" Nom.
33°
Combustible
Material
Safe
Zone for
Projection of
Combustible
Materials
Fireplace Opening
Top
Spacer
Upper
Section of
Fireplace
Fireplace Front
Fireplace Front
Raised Hearth
Fireplace Front
Elevated
Seal Gap
Seal Gap
Seal Gap
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Elevated
Do Not Block Louver
Ember Protector
Ember Protector
Ember Protector
Ember Protector
Hearth
Extension
Hearth
Extension
HearthExtension,CirculatingModels
HearthExtension,NoncirculatingModels
NO

Astria.US.com
126662-01D 7
FAN/BLOWER KIT ASSEMBLY
Fanorblowerkitisoptionalwiththisreplace(forcirculatingmod-
elsonly).Useofblowersorfansotherthanthosemanufactured
byIHPvoidswarranty.Blowerisoperatedbyturningcontrolknob
(notshown).
Fan/blower kit electrical connections are made through electrical
cover plate on side of fireplace a shown in Figure 7.
FIREPLACE INSTALLATION Continued
Wiring Instructions
1. Remove electrical cover plate with bushing from fireplace by
removing 2 sheet metal screws as shown in Figure 7.
2. Slide power source wiring through electrical bushing opening
and electrical cover plate and make all necessary connections.
3. Slide all wiring connections in electrical housing as shown in
Figure 7.
4. Secure electrical cover plate with screws previously removed.
Note:Electrical housingandcoverplate havesharpedges. Wear
protective gloves.
Electrical
Bushing
Electrical
Cover
Plate
Figure 7 - Fan Switch-Electrical Bushing
Electrical
Housing
Wire Nut (3x)
(Not Supplied)
Outer Wrapper
of Fireplace
Electrical Cover
Plate and
Electrical Bushing
Fireplace Chassis
Ground
To Power
Source
Receptacle
(Supplied)
Power Source Wiring
(Not Supplied)
Prewired Receptacle
and Ground
Sheet
Metal
Screws
Figure 8 - Outside Air Kit
Secure to Collars with Metal Tape, Screws
or Straps (Min. of 1/4" x 20" in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required for
Wall Installation
Air Inlet
Eyebrow
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)

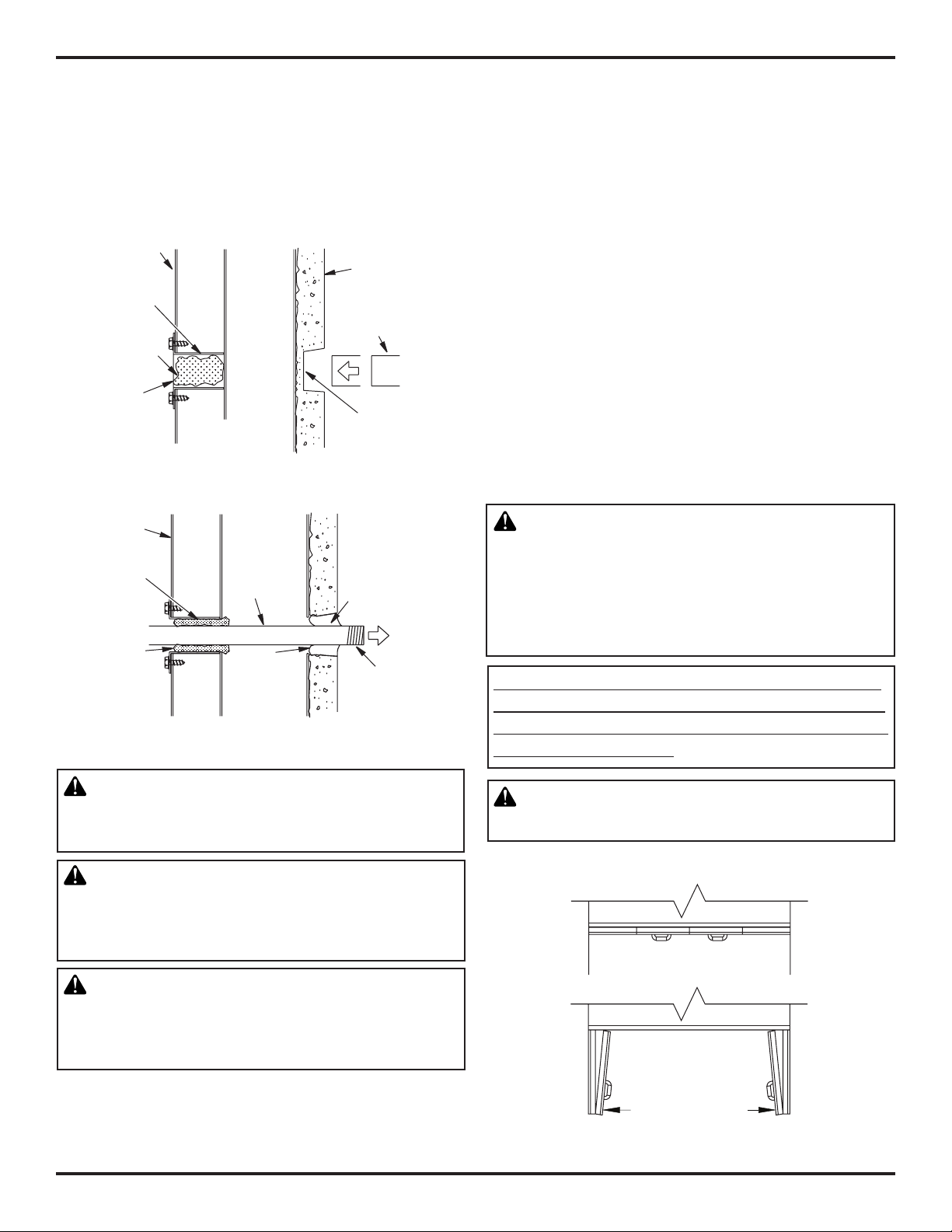

VENTING INSTALLATION
OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F)
Installation of outside air kit should be performed during rough fram-
ing of fireplace due to the nature of it's location. Outside combustion
airisaccessedthroughaventedcrawlspace(AK4F)orthrougha
sidewall(AK4).SeeFigure8forinstructionofoperatingairkit.
CAUTION: Combustion air inlet ducts shall not
terminate in attic or garage space.
The maximum height for the air vent can not exceed
3feetbelowtheuegasoutletofthetermination.
CHIMNEY PIPE
AnIHPchimneysystemconsistsof12",18",24",36"and48"snap-
lock, double-wall pipe segments, planned for maximum adaptability
to individual site requirements. Actual lengths gained after fitting
overlapsmustbetakenintoconsideration(linealgain)andaregiven
inlinealgainchart(seeFigure9,page8).
Lineal gain is actual measurable length of a part after two or more
parts are connected.

Astria.US.com 126662-01D

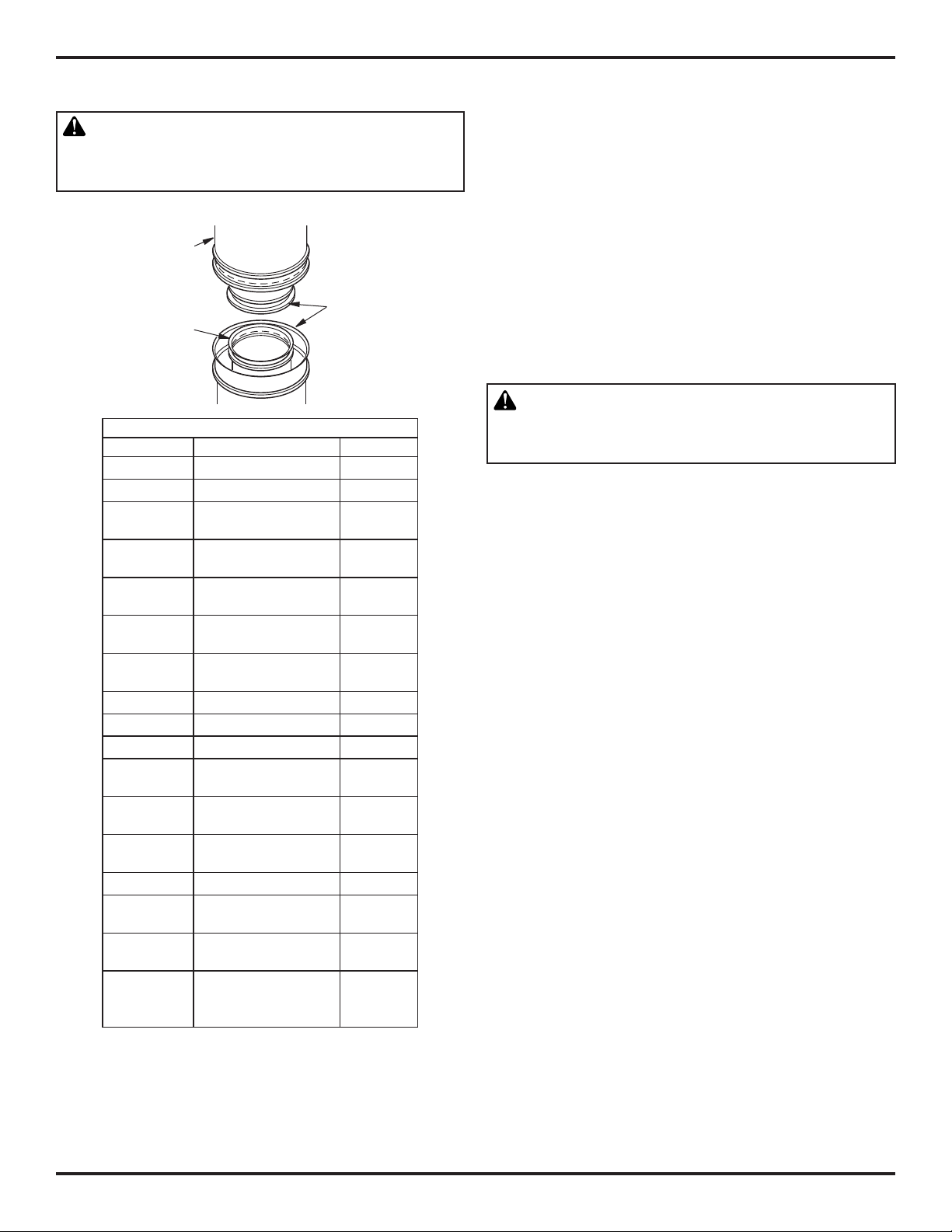

8
Figure 9 - Lineal Gain
Hemmed
End
8" Stainless
Inner Pipe
12 3/8"
Galvanized
Outer Pipe
WARNING: The opening in collar around chimney
at top of fireplace must not be obstructed. Never use
blown insulation to fill chimney enclosure.
VENTING INSTALLATION Continued
ASSEMBLY AND INSTALLATION OF DOUBLE WALL CHIMNEY
SYSTEM
SS-8DM starter section must be installed first.
Eachdoublewallchimneysectionconsistsofagalvanizedouter
pipe, a stainless steel inner flue pipe and a wire spacer. Pipe sections
mustbeassembledindependentlyaschimneyisinstalled.When
connecting chimney directly to fireplace, inner flue pipe section
must be installed first with lanced side up. Outer pipe section can
then be installed over flue pipe section with hemmed end up. Press
down on each pipe section until lances securely engage hem on
replacestarter.Wire will assure properspacingbetweeninner
and outer pipe sections.
Note:ForCanada,usechimneypartsdesignatedHT.
Opening in collar around chimney at top of
fireplace must not be obstructed. Never use blown
insulation to fill chimney enclosure.
Continuetoassemblechimneysectionsasoutlined,makingsure
thatbothinnerandouterpipesectionsarelockedtogether.When
installing double wall snap-lock chimney together, it is important to
assurejointbetweenchimneysectionsislocked.Checkbypulling
chimneyupwardafterlocking.Chimneywillnotcomeapartifproperly
locked. It is not necessary to add screws to keep chimney together
(exception-seeFigure12,page10).
USING ELBOW OFFSET 30E-12DMO-8DMR
To clear overhead obstructions, you may offset your chimney system
using 30E-12DMO-8DMR30°Offset/returnelbow.
A section or sections of chimney may be used between offsets and
return elbow. Starter section must be used after elbow offset is at-
tached.
1. To achieve desired offset, you may install combinations of 12",
18",24",36"and48"lengthofdoublewallpipe(seeoffsetchart).
Note: For systems with 2 elbow sets, minimum height is 22 feet.
Maximum height for any system is 50 feet.
2. Chimneyweightaboveoffsetrestsonreturnelbow.Strapsmust
besecurelynailedtoraftersorjoists(seeFigure11,detailsAand
B,page9).
3. Maximumlengthofpipebetweensupports(returnelbowor12S-
8DM)is6'ofanglerun.Maximumoftwo6'anglerunsections
perchimneysystem(seeFigure10,page9).
4. All pipe connections between offset and return must be secured
withtwoscrewsonouterpipeonly(seeFigure12,page10).Do
not penetrate inner stainless.
LINEALGAIN
PARTNO. DESCRIPTION GAIN
42" Fireplace 45"
SS-8DM Starter Section 19''
12-8DM
12-8HT Pipe Section 10 5/8"
18-8DM
18-8HT Pipe Section 16 5/8"
24-8DM
24-8HT Pipe Section 23 5/8"
36-8DM
36-8HT Pipe Section 34 5/8"
48-8DM
48-8HT Pipe Section 46 5/8"
RT-8DM Round Termination 6 7/8"*
RTL-8DM Round Termination 7 3/4"*
RLT-8DM Round Termination 7 1/2"*
RTT-8DM Round Termination
with Slip Section
6 7/8" to
23 1/8"*
RTTL-8DM Round Termination
with Slip Section
8 1/2" to
21 1/2"*
RLTT-8DM Round Termination
with Slip Section
7 1/2" to
21 1/4"*
ET-8DM Square Chase-Top 12"*
ETO-8DM Square Chase-Top
with Mesh 12"*
ETL-8DM Square Chase-Top
with Slip Section 7" to 15"*
ETLO-8DM
Square Chase-Top
with Mesh & Slip
Section
12" to
25 1/2"*
* The lineal gain for the terminations is
measured to the ue gas outlet height.

Astria.US.com
126662-01D 9
VENTING INSTALLATION Continued
Figure 10 - Typical Offset Installation
Figure 11 - Ceiling Support Pipe 12S-8DM
2" Min.
Straps Straps
Straps
Straps
Detail A
Return Elbow
Detail B
Angle
Firestop
See Detail A
See Detail B
Ceiling Support
Pipe 12S-8DM
30E-8DM
Return Elbow 30E-8DM
Return Elbow
30E-8DM
Offset Elbow 30E-8DM
Offset Elbow
30E-12DMO-8DMR
Offset Elbow
30E-12DMO-8DMR
Offset Elbow
30E-12DMO-8DMR
Offset Elbow
30E-12DMO-8DMR
Return Elbow
30E-12DMO-8DMR
Return Elbow
30E-12DMO-8DMR
Return Elbow
Starter
Section
Starter
Section
Starter
Section
6' Max.
8 DM Pipe
8 DM Pipe
6' Max.
6' Max.
6' Max.
6' Max.
6' Max.
Ceiling
Support Pipe
12S-8DM
ABC

Astria.US.com 126662-01D
10
VENTING INSTALLATION Continued
FIRESTOP SPACERS (3600FS-8DM-1)
Firestop spacers are required at each point where chimney penetrates
a floor space. Their purpose is to establish and maintain required
clearancebetweenchimneyandcombustiblematerials.Whenpipe
passes through a framed opening into a living space above, firestop
must be placed onto ceiling from below as shown in Figure 13.
They also provide complete separation from one floor space to an-
otheroratticspaceasrequiredbymostcodes.Whendoublewall
pipe passes through a framed opening into an attic space, firestop
must be placed into an attic floor as shown in Figure 14, page 12.
Figure 13 - Firestop Spacer with Living Space Above Ceiling
If area above is a living space, install firestop
below framed hole.
Figure 12 - Elbow Offset
OFFSETCHARTWITHTRANSITIONPIPE
OFFSET RISE OFFSET/
RETURN
ELBOW
TRANSITION
PIPE
CHIMNEYLENGTH
AB 12" 18" 36" 48"
13 3/4" 32 1/2" 1 1
19" 41" 1 1 1 1
22" 46 3/4" 1 1 1
24 1/2" 50 3/4" 1 1 2
27 1/2" 56 1 1 1 1
30 1/4" 61 1 1 2
31 62 1/2" 1 1 1
32 1/2" 65" 1 1 2 1
35 1/2" 70 1/4" 1 1 1 2
36 1/4" 71 1/2" 1 1 1 1
37 72 3/4" 1 1 1
38 1/2" 75 1/2" 1 1 3
39 1/4" 76 3/4" 1 1 1 1
41 1/2" 80 1/2" 1 1 2 1
42 1/4" 81 3/4" 1 1 1 1
44 1/2" 85 3/4" 1 1 1 1 1
45 1/4" 87" 1 1 1 1
47 1/2" 91" 1 1 2 1
48 1/4" 92 1/4" 1 1 2
49 3/4" 94 3/4" 1 1 2 1 1
52" 98 3/4" 1 1 1 4
53 1/2" 101 1/4" 1 1 1 2
54 1/4" 102 3/4" 1 1 1 1
55 3/4" 105 1/4" 1 1 3 1
56 1/2" 1061/2" 1 1 1 2
58 3/4" 110 1/2" 1 1 2 2
59 1/2"111 3/4" 1 1 1 1 1
60 1/4" 113" 1 1 2
61 3/4" 115 3/4" 1 1 1 1 2
64 3/4" 120 3/4" 1 1 2 2
65 1/2" 122 1/4" 1 1 1 2
67" 124 3/4" 1 1 2 1 2
B
A
Screws

Astria.US.com
126662-01D 11
VENTING INSTALLATION Continued
Pitch Slope Opening
"A"Max.
UsedFlashing
ModelNo.
Flat 0° 15" V6F-8DM
0-6/12 26.6° 16 1/8" V6F-8DM
6/12- 12/12 45.0° 20 3/8" V12F-8DM
Figure 15 - Roof Opening Measurements
FLASHING INSTALLATION (V6F-8DM OR V12F-8DM)
Determine flashing to be used with roof opening chart. Slide flashing
over pipe until base is flat against roof. Replace as many shingles as
needed to cover exposed area and flashing base. Secure in position
bynailingthroughshingles(seeFigure16).DONOTNAILTHROUGH
FLASHINGCONE.
Installing Flashing on a Metal Roof
Wheninstallingashingonametalroof,itisrequiredthatputtytape
be used between flashing and roof. Flashing must be secured to roof
using #8 x 3/4" screws and then sealed with roof coating to prevent
leakage through screw holes. A roof coating must also be applied
around perimeter of flashing to provide a proper seal.
Nail Only Outer
Perimeter of
Flashing
Storm Collar
Underlap Shingles
at Bottom
Figure 16 - Flashing Installation
Flashing
Cone
Overlap
Shingles Top
and Sides Only
Figure 14 - Firestop Spacer with Attic Space Above Ceiling
If area above is an attic or insulated area, install
firestop above framed hole.
IMPORTANT NOTICE
When penetrating a ceiling into an attic, a firestop
thimble (38FST or FST30) is required to avoid intru-
sion by insulation and recommended to negotiate a
joist (see Figure 14a).
30"
(76.2 cm)
Minimum Measurements
Opening "A"
14 3/8"
(48.3 cm)
1"
(2.54
cm)
1"
(2.54
cm)
1"
(2.54 cm)
Figure 14a - Firestop Thimble
Thimble
38FST or
FST30
Firestop
PENETRATING ROOF
To maintain a 1" clearance to pipe on a roof with a pitch, a rectangular
opening must be cut.
1. Determine center point where pipe will penetrate the roof.
2. Determine center point of the roof. Pitch is the distance the roof
drops over a given span, usually 12". A 6/12 pitch means that the
roof drops 6" for each 12" measure horizontally down from roof
rafters.
3. Useroofopeningchart(Figure15)todeterminecorrectopening
length and flashing required.
4. Removeshinglesaroundopeningmeasured.Cutoutthissection.
5. Addnextsectionsofpipeuntilendpenetratesroofline.Checktosee
thatproperclearancesaremaintained.Extendchimneybyadding
sections of double wall pipe until pipe is minimum of 30" above
highest point of roof cutout. Termination and chimney must extend
a minimum of 36" above highest point where it passes through
roof.

Astria.US.com 126662-01D
12
VENTING INSTALLATION Continued
CHASE INSTALLATIONS
Instructions for chase installations are included with chase style ter-
mination chosen. In a multiple chase installation, be sure to provide
adequate distance between terminations to prevent smoke spillage
fromoneterminationtoanother.Wesuggestthatterminationsbe
separated at least 24", center to center and stacked at a vertical height
differenceof18"(seeFigure19).
Note: If a decorative shroud is to be installed, contact manufacturer
for specifications.
24" Min.
24" Min.
18"
Min.
Figure 19 - Multiple Chase Installation
10'
2' Min.
10'
3' Min.
2' Min. 3' Min.
Level of
Flue Gas
Outlet
Figure 20 - 10 Foot Rule
10 FOOT RULE
All flue gas outlet chimney terminations must extend a minimum of
3 feet in height above highest point where it passes through roof and
must be at least 2 feet above highest point of the roof that is within
ahorizontaldistanceof10feet(seeFigure20).
FINISHING FIREPLACE
Combustible materials, such as wallboard, gypsum board, sheet
rock, drywall, plywood, etc., may make direct contact with sides and
top around fireplace face. It is important that combustible materials
do not overlap face itself. Brick, glass, tile or other noncombustible
materials may overlap front face provided they do not obstruct es-
sentialopeningssuchaslouveredslots.Whenoverlappingwitha
noncombustible facing material, use only noncombustible mortar
or adhesive.
Storm Collar Installation (SC1)
Place storm collar over pipe and slide down until it is snug against
openedgeofashing(seeFigure17).UseSC1forallroundtermina-
tions. Apply waterproof caulk around perimeter of collar to provide
a proper seal.
Figure 17 - Storm Collar
Chimney
Pipe Waterproof
Caulk
Storm
Collar Flashing
Terminations/Spark Arrestor
Fireplace system must be terminated with listed round top or chase
terminations. In any case, refer to installation instructions supplied
with termination. Terminations approved for this fireplace are RT-
8DM, RTL -8DM and RLT-8DM that can be used for flashing or chase
andET-8DM,ETO-8DM,ETL-8DMandETLO-8DMforchasestyleter-
mination only. Figure 18 shows an RTL-8DM round top termination.
CAUTION: Do not seal openings on the rooftop
ashing.Followtheinstallationinstructionsprovided
with the termination being used.
Terminations with 16" slip pipe sections are available. RTT-8DM,
RTTL-8DM and RLTT-8DM are approved for flashing installations.
Whenneeded,theseadjustableterminationsmaybeusedincombi-
nation with pipe assembly to achieve correct chimney height.
Note: In the rare instance there is a problem with side driven rain or
windor chimney is notdraftingproperly, an ADS-8DM(Anti-Draft
Shield)canbeusedwithroundterminations.
Attach Bracket
Tabs to
Outer Pipe
(3 Places)
Secure with
Screws
RTL-8DM Level of Flue
Gas Outlet
Caulk
Collar
Flashing
Underlap Shingles
Bottom Only
Figure 18 - Termination
Overlap
Shingles Top
and Sides
Flue Pipe of
RTL-8DM
Inside Inner
Pipe of
Chimney

Astria.US.com
126662-01D 13
A gas line or gas log lighter may be installed for the purpose of
installing a vented or vent-free decorative gas appliance incorporat-
ing an automatic shutoff device and complying with the Standard
for Decorative Gas Appliances for Installation in Vented Fireplaces,
ANSI Z21.60 or American Gas Association draft requirements for
GasFiredLogLightersforWoodBurningFireplaces,DraftNO.4
dated August, 1993.
If you wish to install an unvented (vent-free) gas log set, only
unvented gas log sets which have been found to comply with the
standard for unvented room heaters, ANSI Z21.11.2 are to be installed
in this fireplace.
Gas line hook up should be done by your supplier or a qualified
service person.
Note: Before you proceed, make sure your gas supply is turned off.
Use only a 1/2" black iron pipe and appropriate fittings.
1. Remove knockout indentation on refractory or firebrick wall
located above refractory hearth floor. Knockout indentation must
be firmly tapped with any solid object, such as a 1/2" dowel, until
itis released. Remove fragmented portions of refractory(see
Figure22,page14).
2. Remove gas line cover plate located on either side of fireplace and
pull out insulation from gas line conduit sleeve. Save insulation
for reuse.
3. Run a 1/2" black iron gas line into fireplace through rear at
gaslineconduitsleeve(ifusingaraisedplatform,addheight).
Provide sufficient gas line into fireplace chamber for fitting
OPTIONAL GAS LINE INSTALLATION
VENTING INSTALLATION Continued
connection(seeFigure23,page14).
Note: Secure incoming gas line to wood framing to provide rigidity
for threaded end.
4. Repack insulation around gas line and into sleeve opening. Seal
any gaps between gas line and refractory knockout hole with
refractory cement or commercial furnace cement. Install gas
appliance or cap off gas line if desired.
CAUTION: All gas piping and connections must be
tested for leaks after installation is completed. After
ensuring that gas valve is on, apply soap and water
solution to all connections andjoints. Bubbles forming
show a leak. Correct all leaks at once. DO NOT USE
AN OPEN FLAME FOR LEAK TESTING AND DO NOT
OPERATE ANY APPLIANCE IF A LEAK IS DETECTED.
LEAK TESTING SHOULD BE DONE BY A QUALIFIED
SERVICE PERSON.
Note: AnIHPhoodmustbeinstalledwhenusinganunventedgas
logset(seeAccessoriesonpage18).
WARNING: Do not operate an unvented gas log
set in this fireplace with chimney removed.
30E-12DMO-8DMR
30E-12DMO-8DMR
30E-12DMO-8DMR
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
EFFECTIVE HEIGHT
OF TERMINATION CAP
MINIMUM
HEIGHT
14
1/2FT.
14 1/2FT.
MINIMUM
UP TO
6FT. MAX.
UP TO
6FT. MAX.
HEIGHT
STARTER
SECTION
STARTER
SECTION
MIN. HEIGHT
OF 22 FT. (WITH
2 ELBOW SETS)
MAX. HEIGHT OF
50 FT.
MAX. HEIGHT
50 FT.
(ANY SYSTEM)
STARTER
SECTION
Figure 21 - Typical Residential Installations

Astria.US.com 126662-01D
14
Figure 24 - Glass Doors
OPERATION AND MAINTENANCE
Doors Fully Closed
Doors Fully Opened
Fireplace Front
Fireplace Front
GLASS DOORS
Glass doors are optional with this replace. When replace is in
operation, doors must be fully opened or fully closed position only
orarehazardmaybecreated(seeFigure24).
A fireplace equipped with glass doors operates much differently than
a fireplace with an open front. A fireplace with glass doors has a
limitedamountofairforcombustion.Excessiveheatwithinreplace
can result if too large a fire is built or if combustion air gate is not
completely open.
The following tips should be used to assure that both fireplace and
glass door retain their beauty and function properly. Both the flue
damper and glass doors must be fully opened before starting a
fire. This will provide sufficient combustion air and maintain safe
temperatures in firebox.
IMPORTANT: The glass must be allowed to warm slowly and evenly.
Temperedglasswillwithstandagradualtemperatureriseto550°
F, which is more than a normal fire will generate. Such materials as
pitch/wax laden logs, very dry mill end lumber and large amounts
of paper or cardboard boxes can create an excessively hot fire and
should not be burned in this fireplace. Always keep fire back from
doors and never allow flames to contact glass.
" WARNING: FIREPLACES EQUIPPED WITH DOORS
SHOULD BE OPERATED ONLY WITH DOORS FULLY
OPEN OR DOORS FULLY CLOSED. IF DOORS ARE LEFT
PARTLY OPEN, GAS AND FLAME MAY BE DRAWN OUT
OF THE FIREPLACE OPENING, CREATING RISKS OF
BOTH FIRE AND SMOKE".
WARNING: Discontinue use of the appliance imme-
diately if doors are damaged and contact a qualified
installer for repair. Only doors certified with the
appliance shall be used.
WARNING: Do not slam or strike doors. Damage
can result in a hazardous condition.
Figure 23 - Gas Line Installation
Figure 22 - Gas Line Knockout
Side
Firebrick
Finished
Side
Refractory
Knockout
Plug
Outside of Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
1/2" Dowel
Seal
Opening
with
Refractory
Cement
Outside of
Fireplace
Gas
Line
Conduit
Repack
Insulation
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
Provide Enough
Threaded End for
Fitting Connection
Ifyouinstalladecorativegasappliance(ventedgaslog),decorative
gas appliance must comply with the Standard for Decorative Gas
Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI
Z21.60/CSA2.26orZ21.84andshallalsobeinstalledinaccordance
withANSIZ223.1/NFPA54NationalFuelGasCodes(USA)andCAN/
CGA-B149.1NationalGasAndPropaneInstallationCode(Canada).
WARNING: To avoid the risk of damaging fireplace
materials and increasing the risk of spreading a fire,
do not use fireplace to cook or warm food.
WARNING: If the fireplace has been used for wood
burning, firebox and chimney must be cleaned of soot,
creosote and ashes be a qualified chimney cleaner.
Creosote will ignite if heavily heated.
WARNING: When using a decorative vented gas
log, damper must be removed or permanently locked
in fully open position and glass doors must be in fully
open position.
OPTIONAL GAS LINE INSTALLATION Continued

Astria.US.com
126662-01D 15
OPERATION AND MAINTENANCE Continued
Cleaning Glass
Cleanglasswithanycommercialglasscleanerorsoapandwater.
Do not use any abrasive material to clean the glass. Do not clean
glass with any cool water if glass is still hot from fire and smoke.
OUTSIDE AIR AND DAMPER HANDLE OPERATION
The damper handle, which opens and closes the damper blade, is
located in upper front face of fireplace. Pushing handle into the left
of keyway slot will free damper blade to automatically open. Pushing
handleintotherightwilllockdamperbladeclosed(seeFigure25).
Outsideairkithandleislocatedatlefthandsideofreplace(see
Figure 25). Pulling handle out will free outside air door to open.
Pushing handle in will lock door closed..
WARNING: Risk of fire! Replace grate with IHP
model 109911-01 only. This grate hasbeen designed to
keep the operation of your fireplace safe and efficient.
LOCATING ACCESS COVER PLATE
Sheet metal cover plates located underneath front hearth refractory may
have shifted or moved out of place while fireplace was in transit. These
cover plates must be kept in the proper location prior to using the fireplace
(SeeFigure26).
For further operating guidelines, instructions and warranty informa-
tion, please refer to your homeowner's guide or contact your dealer.
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting.PleasecontactyourIHPdealerforanyquestions
orconcernsa.Whencallingyourdealerpleasehaveyourmodeland
serial numbers of your fireplace ready. You can also visit our web
site at Astria.US.com.
REPLACEMENT PARTS
Note: Use only original replacement parts.
This will protect your warranty coverage for parts replaced under
warranty.
Contactauthorizeddealersofthisproduct.Tolocateadealerinyour
areacontactIHPat1-800-655-2008.You can also visit our web site
at Astria.US.com.
Whencallingyourdealer,haveready:
• your name
• your address
• model and serial numbers of your fireplace
• how fireplace was malfunctioning
• purchase date
Usually, we require that the part is returned to the factory.
Figure 25 - Damper and Air Kit Handle
Figure 26 - Locating Access Cover Plate
Access
Panel
OPEN CLOSE
Damper
Handle
Outside Air
Kit Handle
Keyway
Slot
Handle Retainer

Astria.US.com 126662-01D
16
PARTS
WOODBURNINGFIREPLACEMODELS:
Craftsman 42P2
Craftsman 42P3
9
12
25
20
30
17
8
1
5
21
2
34
18
11
14
3
37
13
22
10 6
31
7
38
36
35
28
29
15
27
26
16
16
27
4
32
33
19
23
24

Astria.US.com
126662-01D 17
PARTS
WOODBURNINGFIREPLACEMODELS
This list contains replaceable parts used in your fireplace.
WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved
by IHP. Use of non-approved parts can result in poor performance and safety hazards.
KEY NO. PART NO. DESCRIPTION
Craftsman 42P2
(F0711, F0712)
Craftsman 42P3
(F0713)
Craftsman 42P2
(F0714, F0715)
Craftsman 42P3
(F0716) QTY.
1 ** Insulation Pan • • 1
2 ** Fireplace Top • • 1
3 107800-01 Fireplace Surround • • 1
4 106642-01 Air Rod Retainer • • 1
5** Damper Rod Retainer • • 1
6** Firebox Bottom ••1
7 ** Firebox Surround • • 1
8 ** Air Separator • • 1
9 See Page 18 Left Refractory • • 1
10 See Page 18 Right Refractory • • 1
11 See Page 18 Rear Refractory • • 1
12 See Page 18 Bottom Rear Refractory • • 1
13 See Page 18 Bottom Front Refractory • • 1
14 ** Firebox Support Leg • • 4
15 106687-02 DamperCanCollar • • 1
16 107839-01 Screen Rod • • 2
17 ** Firebox Top Assembly • • 1
18 ** Air Kit Door Assembly • • 1
19 ** FaceWeldment • • 1
20 107823-01 Smoke Deflector • • 1
21 ** Fireplace Top Insulation • • 1
22 ** Access Panel • • 1
23 107854-01 Right Refractory Bracket • • 1
24 107854-02 Left Refractory Bracket • • 1
25 109911-01 Grate • • 1
26 11418 Push-On Nut • • 2
27 107840-01 Stainless Screen • • 2
28 ** CollarInsulation • • 1
29 23512 ChimneyStarterCollar • • 1
30 20027 Refractory Retainer • • 2
31 20046 Grate Retainer • • 2
32 20088 Door Stop • • 1
33 20090 SpringClip • • 2
34 20280 Top Standoff • • 4
35 21171 ConduitPlateCover • • 4
36 24460 GasConduit • • 2
37 110037-01 ElectricalDuctAssembly • • 1
38 F1907 SS-8DMSTARTERSEC12-8"DMC-12 • • 1
PARTS AVAILABLE NOT SHOWN
126588-02 LouverAssembly42(CirculatingModelsonly) • 2
** Not a field replaceable part

Astria.US.com 126662-01D
18
PARTS Continued
This list contains replaceable parts used in your fireplace.
ACCESSORIES
DOUBLE WALL PIPE
12-8DM 12-8HT
18-8DM 18-8-HT
24-8DM 24-8HT
36-8DM 36-8HT
48-8DM 48-8HT
ROOF FLASHING
0 TO 6/12 PITCH - V6F-8DM
6/12 TO 12/12 PITCH - V12F-8DM
ANTI-DRAFT SHIELD
(Round Top Termination Only)
ADS-8DM
ADJUSTABLE HOOD
Antique Brass Finish - GA6053
Black Painted Finish - GA6050
Required when installing a vent-free gas log in this fireplace.
STORM COLLAR
SC1-1 For RT-8DM and RTL-8DM
BI-FOLD GLASS DOOR
BD42 - Black
BD42B - Brushed Brass
BD42P - Platinum
FAN KIT - BK3
30° OFFSET AND RETURN
30E-8DM, 30E-8HT
30E-12DMO-8DMR (F1908)
30E-12HTO-8HTR (F2199)
HERRINGBONE BRICK LINER WHITE
Craftsman 42P3 (F0713, F0716)
Left - 108169-01
Right - 108170-01
Rear - 108171-01
Bottom Rear - 108172-01
Bottom Front - 108173-01
HERRINGBONE BRICK LINER RED
Craftsman 42P3 (F0713, F0716)
Left - 108169-02
Right - 108170-02
Rear - 108171-02
Bottom Rear - 108172-02
Bottom Front - 108173-02
STANDARD BRICK LINER WHITE
Craftsman 42P2
(F0711, F0712, F0714, F0715)
Left - 107812-01
Right - 107814-01
Rear - 107816-01
Bottom Rear - 107818-01
Bottom Front - 107820-01
STANDARD BRICK LINER RED
Craftsman 42P2 (F0711, F0712, f0714, f0715)
Left - 107812-02
Right - 107814-02
Rear - 107816-02
Bottom Rear - 107818-02
Front Rear - 107820-02
EMBERPROTECTOR20093

Astria.US.com
126662-01D 19
ACCESSORIES Continued
SQUARE TOP TERMINATION WITH LOUVERS
ET-8DM, ET-8HT
SQUARE TOP TERMINATION WITH LOUVERS AND SLIP
SECTION
ETL-8DM, ETL-8HT
MESH SQUARE TOP TERMINATION
ETO-8DM
MESH SQUARE TOP TERMINATION WITH SLIP SECTION
ETLO-8DM
OUTSIDE AIR KIT FOR FLOOR INSTALLATION
AK4F
MESH ROUND TOP TERMINATIONS
RT-8DM, TR-8HT, RTL-8DM AND RTL-8HT
1" FIRESTOP SPACER
3600FS-8DM-1
OUTSIDE AIR KIT FOR SIDE WALL INSTALLATION - AK4
BLOWER KIT - BK
MESH ROUND TOP TERMINATIONS WITH SLIP SECTION
RTT-8DM, RTT-8HT, RTTL-8DM AND RTTL-8HT
38FST
FIRESTOP THIMBLE 8"
FST30
FIRESTOP THIMBLE,8",30 DEGREES

InnovativeHearthProductsreservestherighttomakechangesatanytime,withoutnotice,in
design,materials,specications,pricesandalsotodiscontinuecolors,stylesandproducts.Consult
your local distributor for fireplace code information.
PrintedinU.S.A.©2013IHPLLC
P/N 126662-01 Rev. D 10/2014.
P126662 01 1508ElmHillPike,Suite108
Nashville, TN 37210
1-800-655-2008
IHP.US.com
