Asuka PTA-100 User manual

PTA-100
7-inch WiFi Multimedia Navi 2DIN
User Manual

2
Table of Contents
I. Introduction.............................................................................................................. 4
II. Quick Start Guide..................................................................................................... 5
II.1 Turning the Power On..........................................................................................................5
II.2 User Interface........................................................................................................................6
II.3 Common Screen Operation................................................................................................7
III. Bluetooth.................................................................................................................. 8
III.1 Connect to Bluetooth..........................................................................................................8
III.2 Bluetooth Dialing .................................................................................................................9
IV. Internet Access .......................................................................................................10
V. Mirroring..................................................................................................................11
V.1 Android.................................................................................................................................11
V.2 Apple iOS.............................................................................................................................11
VI. Radio........................................................................................................................12
VII. Music........................................................................................................................13
VIII. Video........................................................................................................................15
IX. Voice Control...........................................................................................................16
X. Digital Television (Optional)...................................................................................18
XI. Steering Wheel Control ..........................................................................................20
XII. Reference ................................................................................................................21
XI.1 Maintenance ......................................................................................................................21
XI.2 Troubleshooting.................................................................................................................21
XIII. Installation/ Wire Connection Guide .....................................................................22
XII.1 Precautions on installation and connection.................................................................22
XII.2 Wiring Information............................................................................................................23
XII.3 Installation procedure......................................................................................................24
XIV. GPS and WiFi/BT Antenna .....................................................................................24
XV. Customer Service ...................................................................................................27

3
PRECAUTIONS
IMPORTANT
To ensure proper use, please read through this manual before using this product. It is especially important that
you read and observe WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and
accessible place for future reference.
WARNINGS:(To prevent accidents and damage)
DO NOT install any unit or wire any cable in a location where:
•It may obstruct the steering wheel and gearshift lever operations.
•It may obstruct the operation of safety devices such as air bags.
•It may obstruct visibility.
DO NOT operate the unit while driving.
•If you need to operate the unit while driving, be sure to look around carefully.
•The driver must not watch the monitor while driving.
CAUTION
For safety
•Do not raise the volume level too much, as this will make driving dangerous by blocking outside sounds, and
may cause hearing loss.
•Stop the car before performing any complicated operations.
For a longer service life, be sure to read the following cautions:
•If you have parked the car for a longtime in hot or cold weather, wait until the temperature in the car becomes
normal before operating the unit.
•Do not disassemble or modify the set in any way. Doing so may result in damage.
•If a problem should occur, have the set inspected at your store of purchase
•Small black and shiny spots inside the liquid crystal panel are normal for LCD products.

4
I. Introduction
ASUKA PTA-100 is a revolutionary In-car entertainment product. It satisfies all users’ desire
to access the internet while in car. On-line entertainment is beyond traditional broadcasting
services & pre-recorded media contents; it brings you more entertaining and smarter than
ever before.
PTA-100 Product Overview
• ASUKA PTA-100 In-Dash Receiver 7” WiFi Multimedia Navi Double DIN
• ASUKA-style User-Defined User Interface
• Multi-touch Control (for volume adjustment and display off)
• On-line Entertainment & Pre-recorded Media Contents
• Smartphone Mirroring via Cable HDMI in and Wireless Miracast
• Built-in Bluetooth technology for hands-free talking and audio streaming

5
II. Quick Start Guide
II.1 Turning the Power On
1. Turn on the ACC or IGN of the vehicles.
2. When the head unit activated, you will see a reminder after startup screen.
3. Now you can touch any icon on the screen to activate the corresponding function.

6
II.2 User Interface
User Interface Introduction
On the left side of the screen, there are three touch keys.
Home Screen

7
II.3 Common Screen Operation
Touch
Touch the screen gently to select the item on the screen.
Touch and Hold
Touch the screen and keep your finger in place until display changes allow you to drag
the icon to the position you want it to be.
Swipe
Swipe your finger left or right on the screen to change the page.
Swipe your finger up or down on the screen to scroll the screen.
Multi-touch
Swipe left or right with two fingers to adjust the volume.
Pinch three or five fingers together to turn off the display.

8
III. Bluetooth
III.1 Connect to Bluetooth
1. Turn on the Bluetooth function of your mobile devices.
Andriod iOS Devices
2. Select “Bluetooth” under Settings.” Select the device you want to pair.
3. When the mobile device is paired with PTA-100 successfully, the indicator on the screen
will turn to orange.

9
III.2 Bluetooth Dialing
Dial out using keypads and contact list.
Option 1
Keypads
Option 2
Contact List

10
IV. Internet Access
1. Turn on the hotspot of your mobile device.
Android iOS Devices
2. Select “WiFi” under “Settings.”
3. Wi-Fi connected.

11
V. Mirroring
This function allows users to cast the mobile device to the screen of the head unit.
PTA-100 supports two ways of Mirroring: via Miracast for Android and via HDMI for iPhone.
V.1 Android
Step 1: Make sure your mobile device is Miracast-compatible.
Step 2: Select “Miracast” under “Mirroring”.
Connecting your Android device
Step 1: Select Application
Step 2: Select Setting
Step 3: Under Connect and Share tap Screen Mirroring
Step 4: Select PTA-100
Step 5: Once connected, your mobile device’s screen will now be displayed on PTA-100
V.2 Apple iOS
Connecting your iOS device
Step 1: Select mirroring application on PTA-100. Select HDMI.
Step 2: Be sure the iOS device is powered on.
Step 3: Connect the Apple Lightning Digital AV Adapter /Apple 30-pin DigitalAV Adapter, to
iOS devices.
Step 4: Connect the HDMI cable to the Apple Lightning AV adapter / Apple 30-pin Digital AV
Adapter
Step 5: You should be able to see your iOS image on PTA-100.

12
VI. Radio
1. Scan Button
2. Add to Favorite
3. Equalizer Settings
4. Mute
5. Drag to change frequency
6. AM/FM band Switch.
7. Manual tune backward
8. Display current frequency
9. Manual tune forward
10.Searches for stations
11.Preset list button
12.Favorite list button

13

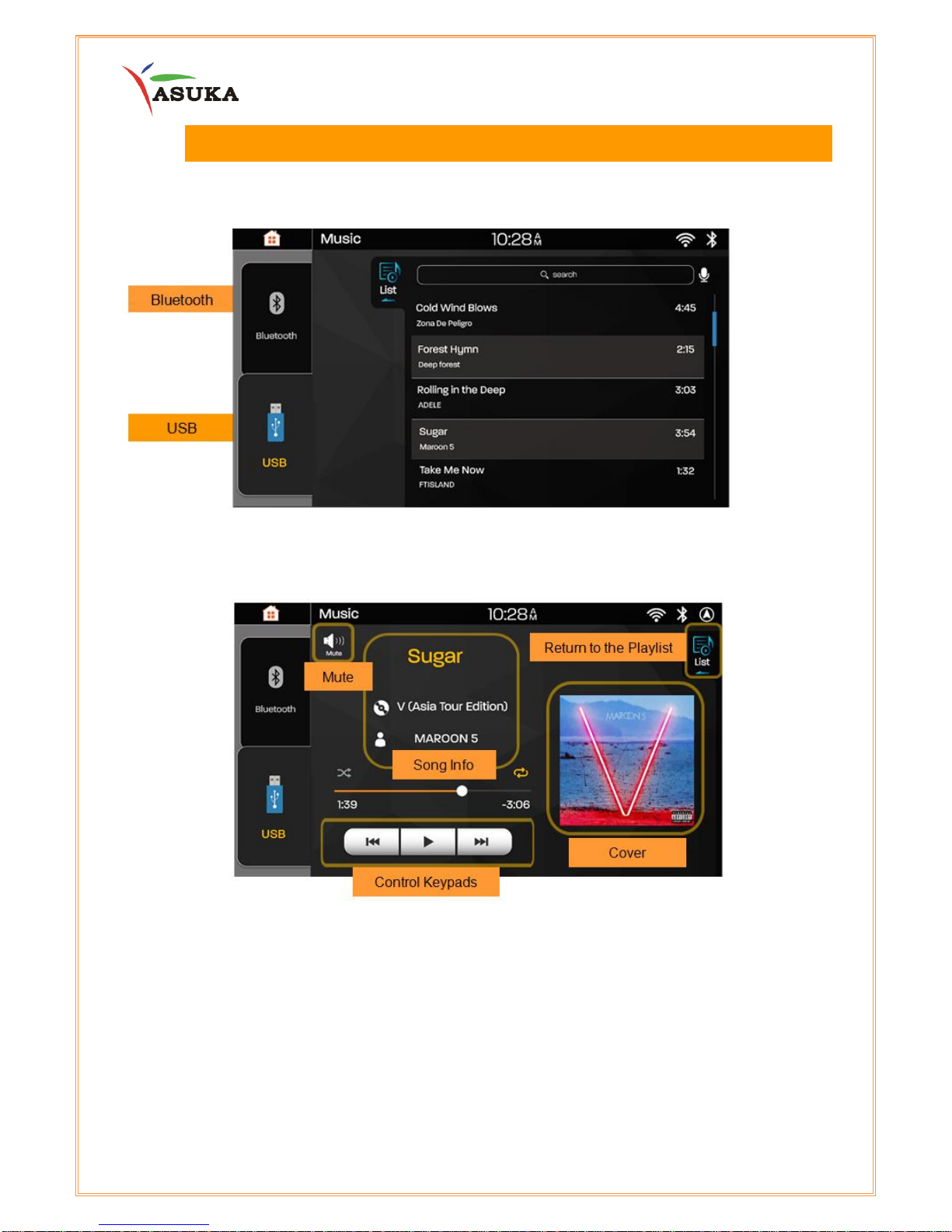

VII. Music
There are two options to choose to play music
[USB] and [Bluetooth]
Basic Music Interface

14
Listen to Music by Bluetooth
Before selecting Bluetooth, pair PTA-100 to your mobile device. [See Page8]

15
VIII. Video
Video Interface

16
IX. Voice Control
Voice control system, is helpful for the drivers not to look at the screen on the road and is more
convenient for the driver to use PTA-310 while driving.
Pairing
*After pairing the app and voice, simply “double tap”with two fingers on the screen to activate
voice control. Speak into the microphone your choice of the app will appear right away.
1. Press Voice Ctrl in settings to set up Voice Control.
2. Press “+” Sign to choose an App which you want to launch.

17
3. Click the App to start pairing.
4. Speak anything you wish the device to learn into the microphone twice
For example speak: Navigation, I’m Lost, Maps …

18

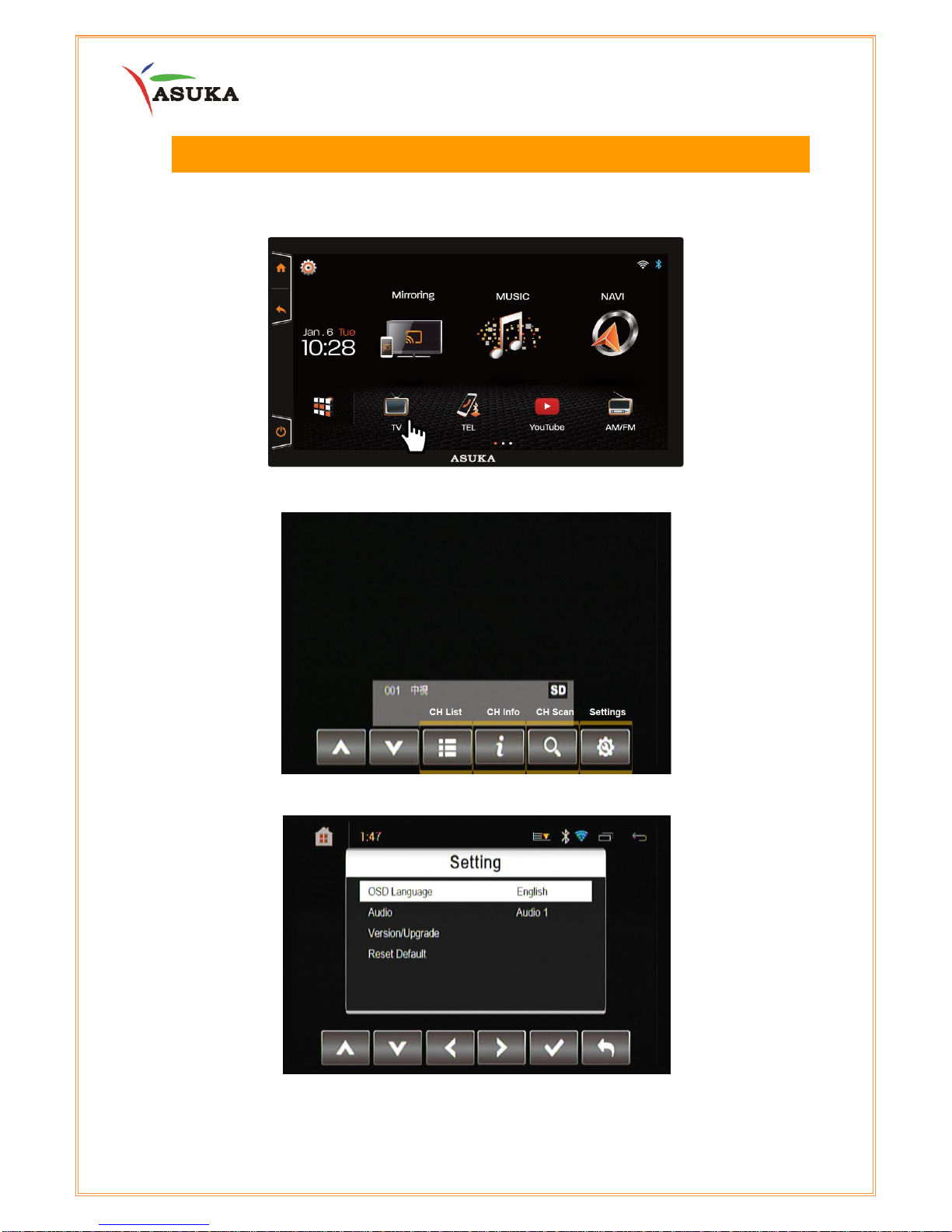

X. Digital Television (Optional)
Digital Television is an optional for countries except North America.
Select TV icon to watch DTV
DTV Interface
To change language by select [Setting]

19
Select [CH Scan] to search for the available channels automatically
Use [CH] / [CH] or Select CH List to change channels

20

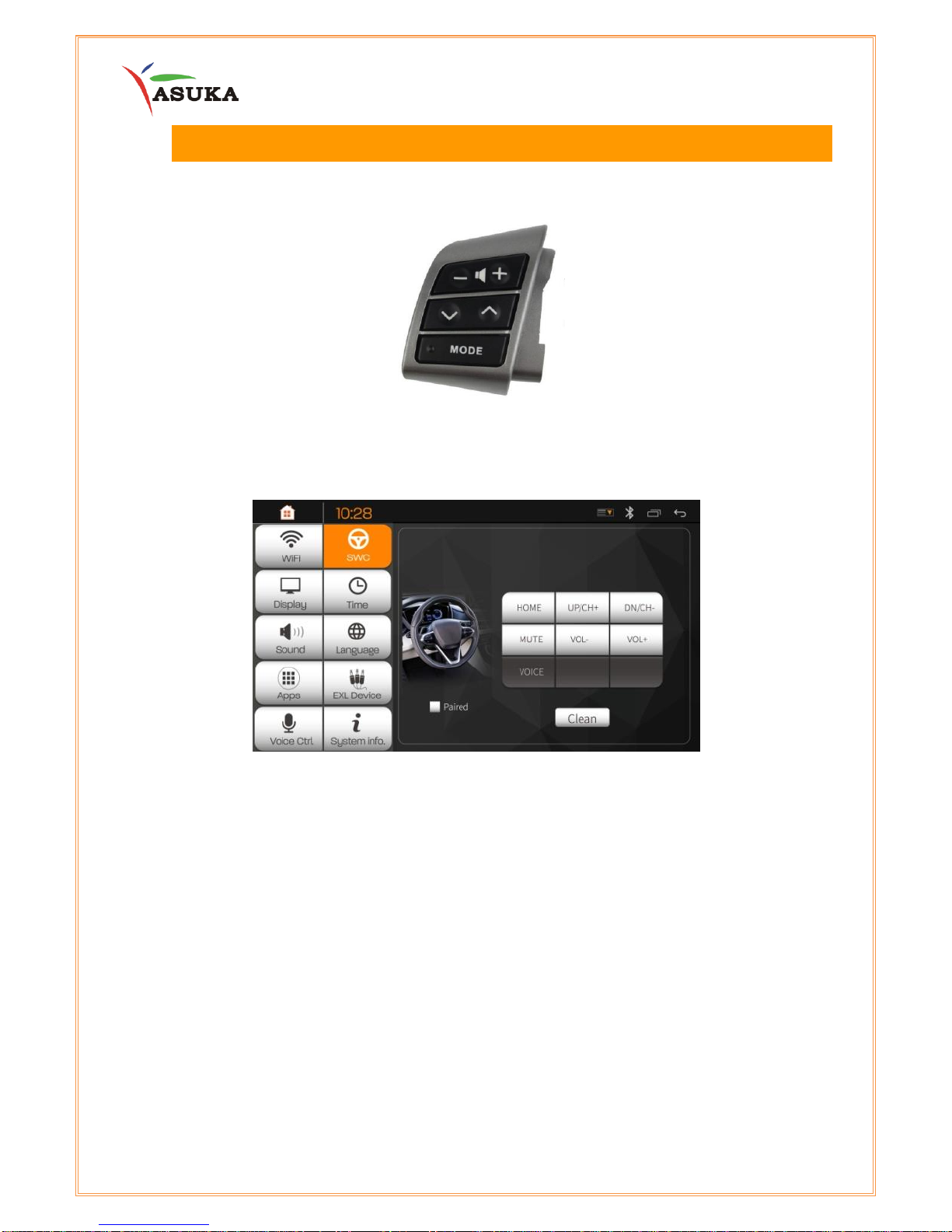

XI. Steering Wheel Control
Steering wheel controls allow drivers to keep their eyes on the road.
Step 1: Select [SETUP ICON] then [SWC]
Step 2: Select VOL+ on PTA-100
Step 3: Press and hold the function button on the steering wheel, wait until the display shows
paired.
Step 4: Repeat this process until all relevant functions are programmed.
Step 5: Once all functions have been set, exit the SWC interface and back to Home screen
Step 6: Double check if programming was successful by pressing the VOL+ and VOL –on
the steering wheel.
