Asus ProArt PA Series User manual

Mini PC
PA Series
User Manual

COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to
the owners’benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR
LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE
PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2018 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled
to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including
death) and damage to real property and tangible personal property; or any other actual and direct
damages resulted from omission or failure of performing legal duties under this Warranty Statement,
up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort
or infringement under this Warranty Statement.
This limit also applies to ASUS’suppliers and its reseller. It is the maximum for which ASUS, its
suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY
CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3)
SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES
(INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS
INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at https://www.asus.com/support/
First Edition
November 2018
E14479

Contents
About this manual.................................................................................................................4
Conventions used in this manual....................................................................................5
Typography .............................................................................................................................5
Package contents ..................................................................................................................6
Getting to know your Mini PC
Features.....................................................................................................................................10
Front view ................................................................................................................................10
Left view ...................................................................................................................................12
Right view ................................................................................................................................14
Rear view..................................................................................................................................16
Using your Mini PC
Getting started .......................................................................................................................22
Connect the AC power adapters to your Mini PC......................................................22
Connect a display panel to your device........................................................................24
Connect the USB cable from keyboard or mouse.....................................................25
Connect the WiFi antenna to your Mini PC..................................................................26
Turn on your Mini PC ...........................................................................................................27
Clearing the CMOS................................................................................................................28
Turning your Mini PC off .....................................................................................................29
Putting your Mini PC to sleep............................................................................................29
Entering the BIOS Setup......................................................................................................29
Load default BIOS settings.................................................................................................30
Appendix
Safety information.................................................................................................................32
Setting up your system.......................................................................................................32
Care during use......................................................................................................................32
Regulatory notices ................................................................................................................34
ASUS contact information..................................................................................................39

4 ASUS Mini PC PA Series
About this manual
This manual provides information about the hardware and software features
of your Mini PC, organized through the following chapters:
Chapter 1: Getting to know your Mini PC
This chapter details the hardware components of your Mini PC.
Chapter 2: Using your Mini PC
This chapter provides you with information on using your Mini PC.
Appendix
This section includes notices and safety statements your Mini PC.

ASUS Mini PC PA Series 5
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that
can help complete tasks.
WARNING! This message contains important information that must
be followed to keep you safe while performing certain tasks and
prevent damage to your Mini PC's data and components.
Typography
Bold text Indicates a menu or an item to select.
Italic This indicates sections that you can refer to in this manual.

6 ASUS Mini PC PA Series

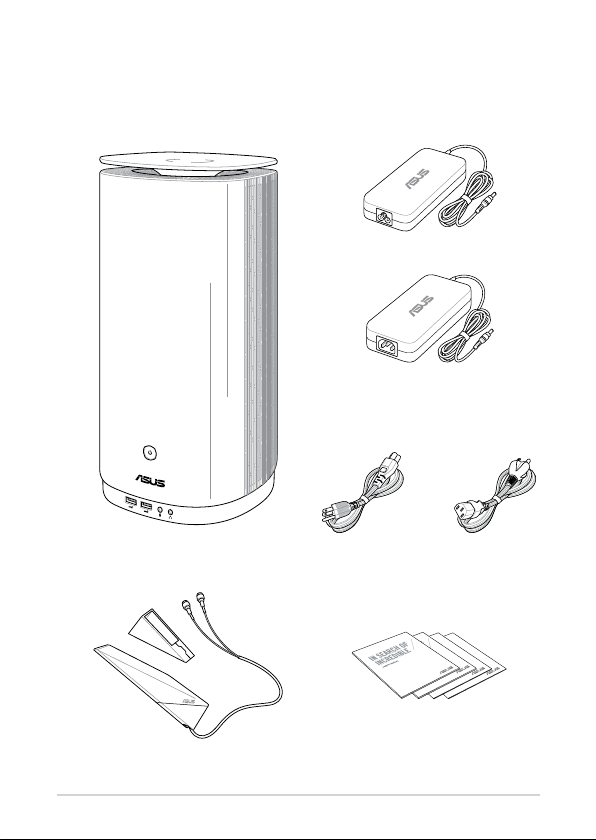

Package contents
Your Mini PC package contains the following items:
AC power adapters*
Mini PC PA Series Power cord*
WiFi antenna Technical documents

ASUS Mini PC PA Series 7
NOTE:
• *Thebundledpoweradaptermayvarybymodelandterritories.
• Somebundledaccessoriesmayvarywithdierentmodels.
For details on these accessories, refer to their respective user
manuals.
• Thedeviceillustrationisforreferenceonly.Actualproduct
specications may vary with models.
• Ifthedeviceoritscomponentsfailormalfunctionduring
normal and proper use within the warranty period, bring the
warranty card to the ASUS Service Center for replacement of
the defective components.

8 ASUS Mini PC PA Series

1
Getting to know your Mini PC

10 ASUS Mini PC PA Series
Features

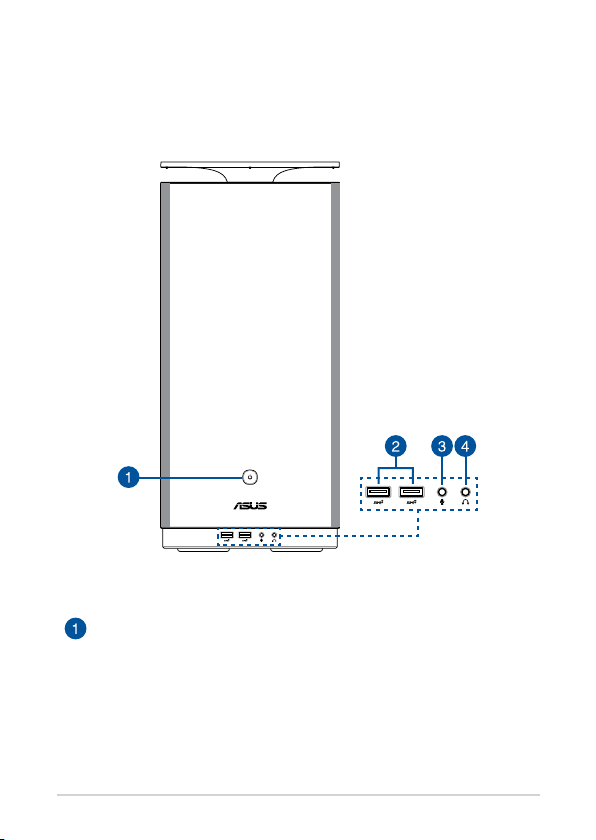

Front view
Power button
ThepowerbuttonallowsyoutoturntheMiniPConoro.
You can use the power button to put your Mini PC to sleep
mode or press it for four (4) seconds to force shutdown
your Mini PC.

ASUS Mini PC PA Series 11
USB 3.1 Gen 2 port
The USB 3.1 Gen 2 (Universal Serial Bus) port provides a
transfer rate up to 10 Gbit/s.
Microphone jack
The microphone jack is designed to connect to a
microphone used for video conferencing, voice narrations,
or simple audio recordings.
Headphone/Headset jack
This port allows you to connect amplied speakers or
headphones. You can also use this port to connect your
headset or an external microphone.

12 ASUS Mini PC PA Series

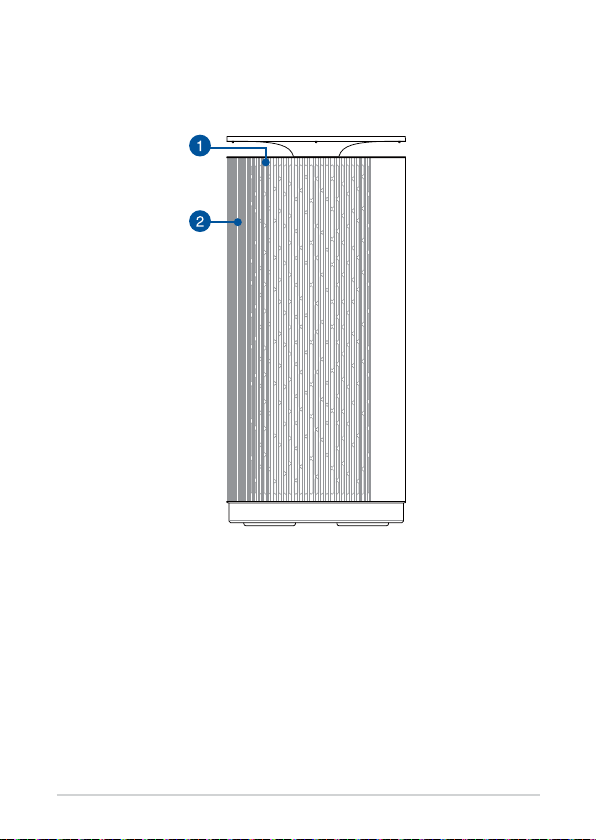

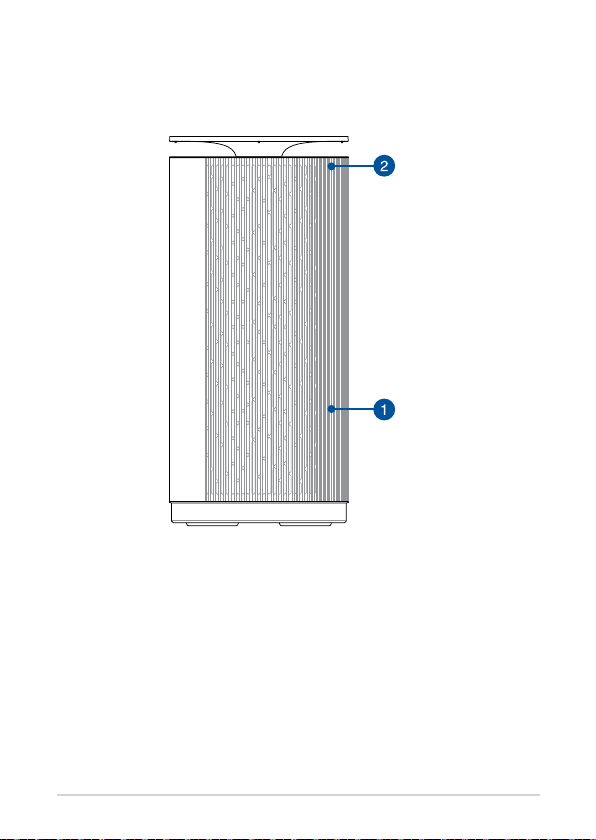

Left view

ASUS Mini PC PA Series 13
Air vents (intake vent)
The air vents allow cooler air to enter your Mini PC chassis.
IMPORTANT: For an optimum heat dissipation and
air ventilation, ensure that the air vents are free
from obstructions.
Air vents (exhaust vent)
The air vents allow your Mini PC chassis to expel hot air
out.
IMPORTANT! For optimum heat dissipation and air
ventilation, ensure that the air vents are free from
obstructions.
CAUTION! Be careful of the hot air expelled at the
air vents as it may cause discomfort or injuries.

14 ASUS Mini PC PA Series
Right view

ASUS Mini PC PA Series 15
Air vents (intake vent)
The air vents allow cooler air to enter your Mini PC chassis.
IMPORTANT: For an optimum heat dissipation and
air ventilation, ensure that the air vents are free
from obstructions.
Air vents (exhaust vent)
The air vents allow your Mini PC chassis to expel hot air
out.
IMPORTANT! For optimum heat dissipation and air
ventilation, ensure that the air vents are free from
obstructions.
CAUTION! Be careful of the hot air expelled at the
air vents as it may cause discomfort or injuries.

16 ASUS Mini PC PA Series

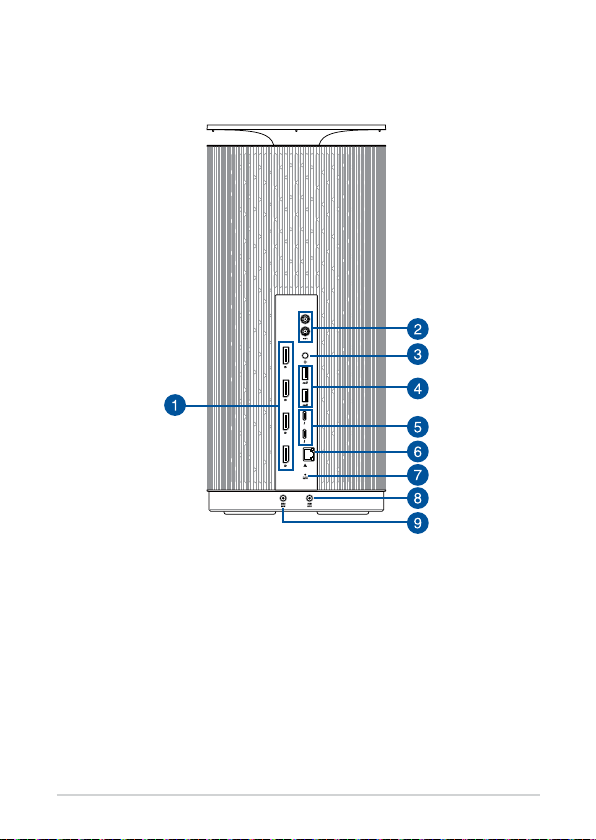

Rear view

ASUS Mini PC PA Series 17
NOTE: These ports may vary depending on the
graphics card.
DisplayPort (on selected models)
This port allows you to connect your Mini PC to an
external display.
Mini DisplayPort (on selected models)
This port allows you to connect your Mini PC to an
external display.
HDMI port (on selected models)
The HDMI (High Denition Multimedia Interface) port
supports a Full-HD device such as an LCD TV or monitor to
allow viewing on a larger external display.
VGA port (on selected models)
This port allows you to connect your Mini PC to an
external display.
DVI port (on selected models)
This port allows you to connect your Mini PC to an
external display.
Wireless antenna jack
The jack is used to connect the supplied wireless antenna
to enhance wireless signal reception.
Audio Output Jack
This stereo audio jack is used to connect the system’s
audio out signal to amplied speakers.

18 ASUS Mini PC PA Series
USB 3.1 Gen 2 port
The USB 3.1 Gen 2 (Universal Serial Bus) port provides a
transfer rate up to 10 Gbit/s.
Thunderbolt 3 port
This Thunderbolt 3 port provides the following: 40 Gbit/s
transfer rate for Thunderbolt 3 devices; USB 3.1 Gen 2,
with a transfer rate up to 10 Gbit/s; DisplayPort 1.4 (4096
x 2304) at 60Hz; and USB power delivery with a maximum
of 5V / 3A output.
LAN port
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for connection to a local network.
Clear CMOS button
This button allows you to clear the BIOS setup information
only when the system hangs due to overclocking.
Power input (230W)
The supplied 230W power adapter converts AC power to
DC power for use with this jack. Power supplied through
this jack supplies power to the Mini PC. To prevent
damage to the Mini PC, always use the supplied power
adapter of the same power rating.
WARNING! The power adapter may become warm
to hot when in use. Do not cover the adapter and
keep it away from your body.

ASUS Mini PC PA Series 19
Power input (180W)
The supplied 180W power adapter converts AC power to
DC power for use with this jack. Power supplied through
this jack supplies power to the Mini PC. To prevent
damage to the Mini PC, always use the supplied power
adapter of the same power rating.
WARNING! The power adapter may become warm
to hot when in use. Do not cover the adapter and
keep it away from your body.
