Asus T3-M2NC51PV - T Series - 0 MB RAM User manual

English
®
T3-M2NC51PV
ASUS PC (Desktop Barebone)
Quick Installation Guide
Copyright © 2006 ASUSTeK COMPUTER INC. All Rights Reserved.

ii
English
System package contents
Check your T3-M2NC51PV system package for the following items. Contact
your retailer immediately if any of the items is damaged or missing.
Features
Front panel (external)
Item description
1. ASUS T3-M2NC51PV barebone system with
•
ASUS motherboard
•
6 x USB 2.0 ports
•
250 W PFC power supply unit
•
2 x IEEE 1394a ports
•
Gigabit LAN port
•
S/PDIF module
•
CPU fan and heatsink assembly
•
7-in-1 storage card reader
•
1 x 5.25” drive bays
•
2 x 3.5” hard disk drive bay
•
LED panel
2. Cables
•
AC power cable
•
IDE cable
•
Serial ATA cable
•
Serial ATA power cable
3. Support CD
4. User guide
5. Optional items
•
Optical drive
(CD-ROM/CD-RW/DVD-ROM/DVD-RW)
Drive door
Power button
HDD LED

iii
English

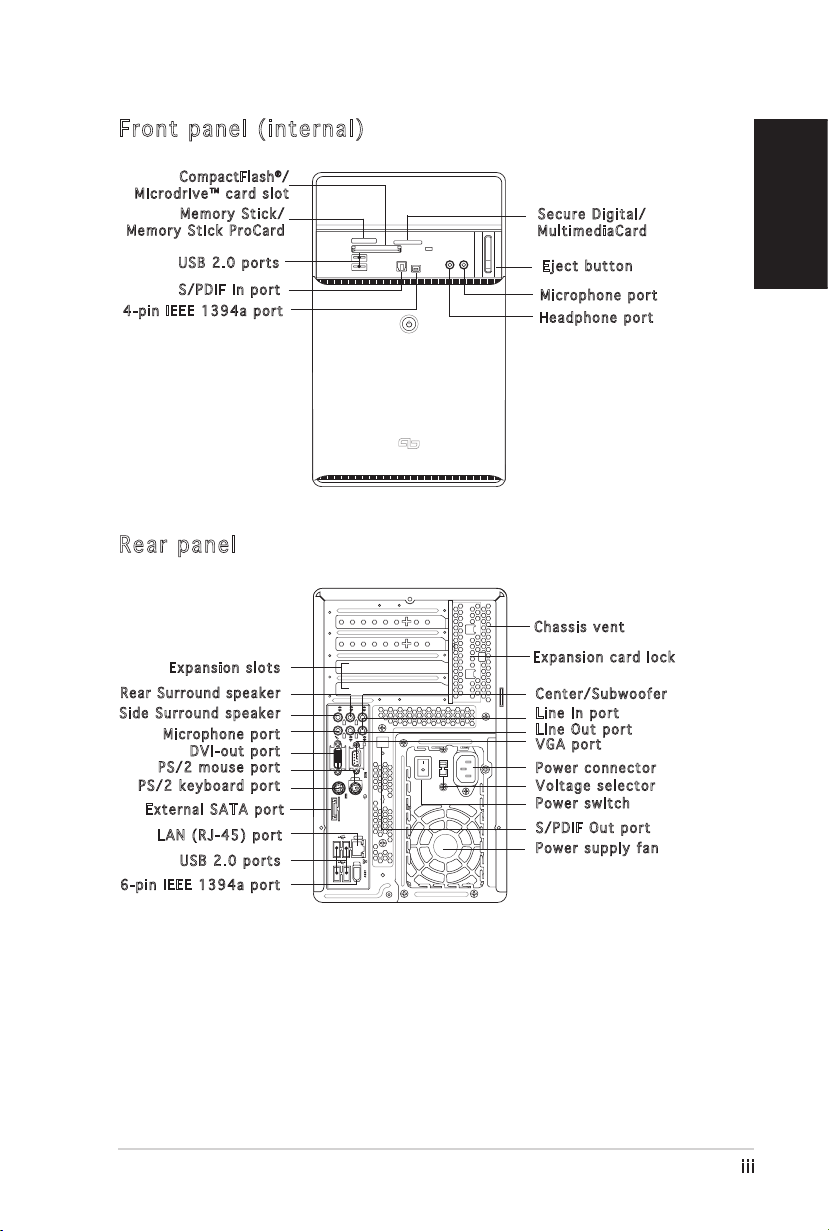

Front panel (internal)
USB 2.0 p ort s
Rear panel
REAR
S P K
LINE
IN
FRONT
MIC IN
SIDE
S P K
C T R
BASS
eSATA
Chassis vent
Power supply fan
Voltage selector
Power connector
Expansion card lock
Eject button
Microphone port
Headphone port
Secure Digital/
MultimediaCard
Memory Stick/
Memory Stick ProCard
CompactFlash®/
Microdrive™ card slot
S/PDIF In port
4-pin I EEE 1 394a por t
USB 2.0 p ort s
6-pin I EEE 1 394a por t
LAN (RJ-45) port
Power switch
External SATA port
PS/2 keyboard port
VGA port
PS/2 mouse port
Rear Surround speaker
Side Surround speaker
Microphone port
DVI-out port
Line Out port
Line In port
Center/Subwoofer
Expansion slots
S/PDIF Out port

iv
English
Installation
IMPORTANT! Refer to the system user guide for installation details and
other system information.

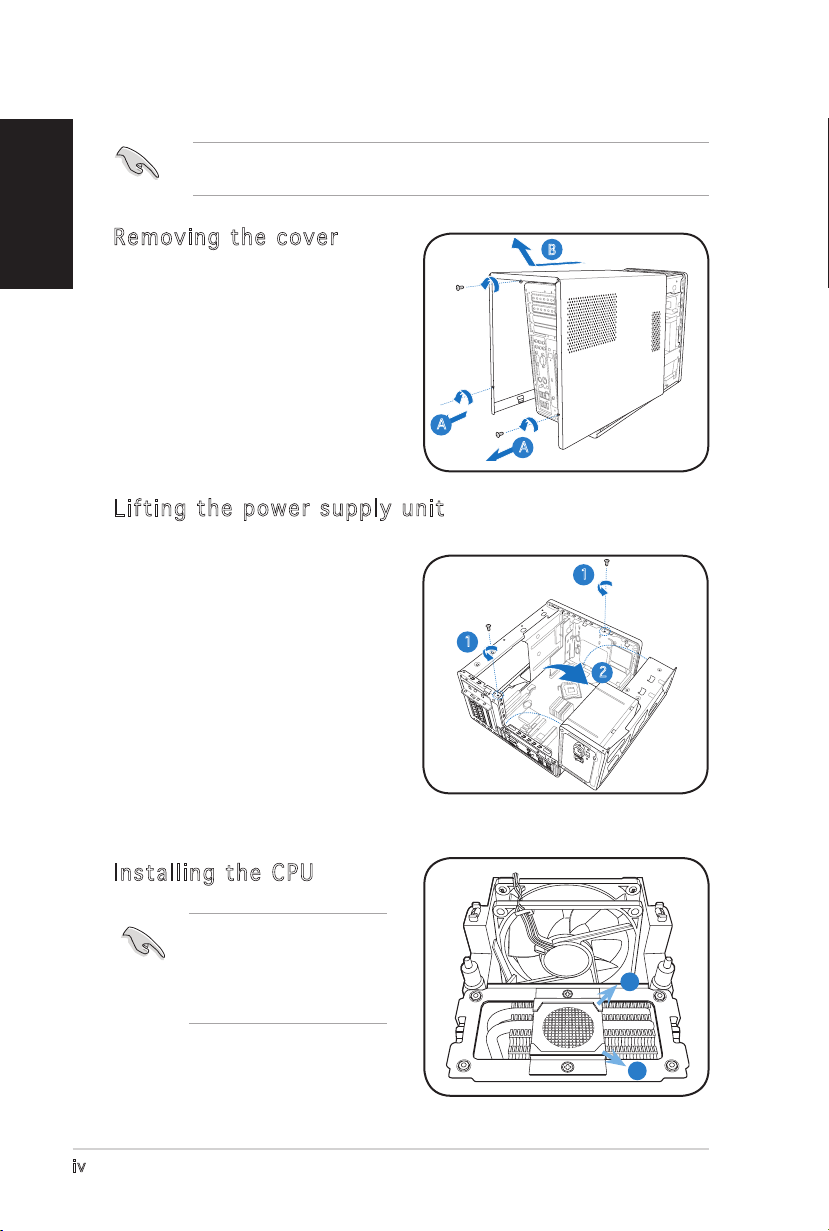

Removing the cover
1. Locate and remove three
cover screws.
A
A
B
2. Pull the cover toward the rear
panel (A), then lift (B).
Lifting the power supply unit
1. Locate and remove two
screws.
2. Lift the PSU in the direction of
the arrow to a 90º angle. 1
1
2

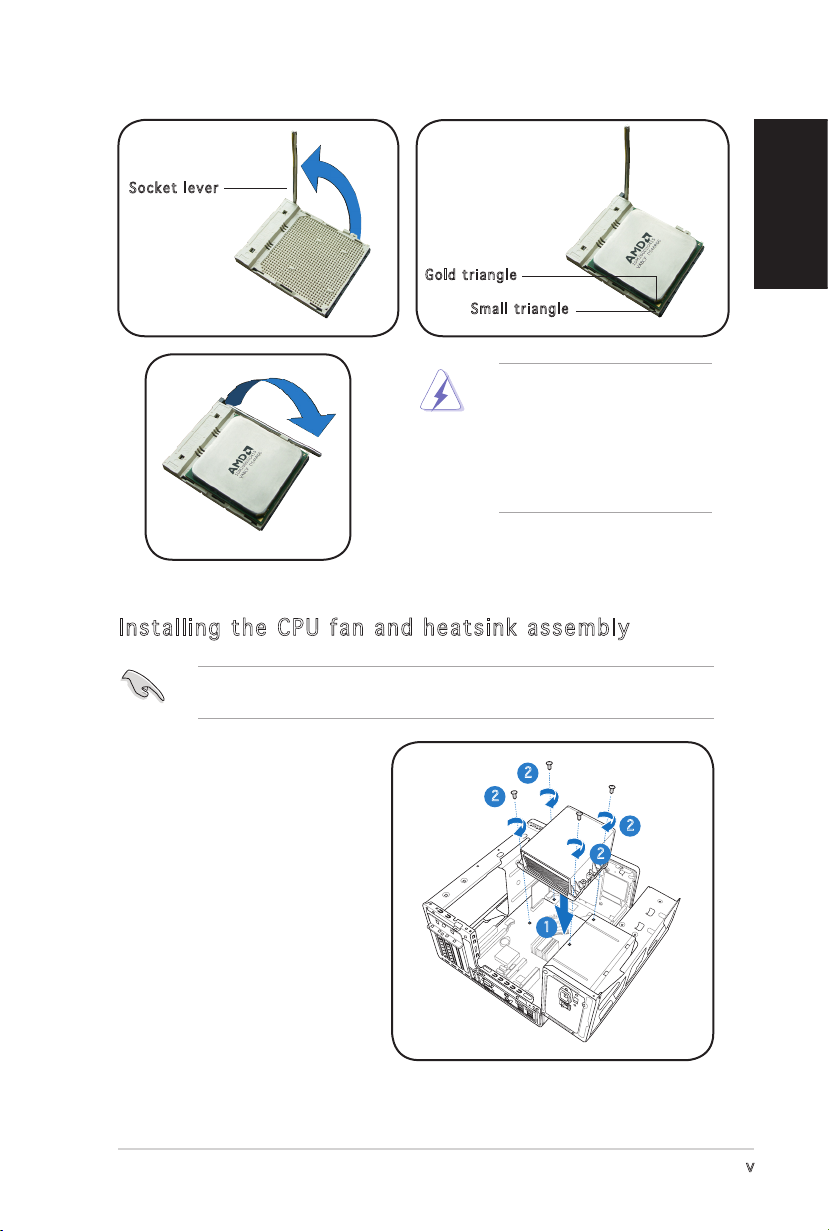

Installing the CPU
IMPORTANT! Before
installing the CPU, remove
the two rubbers (A and B)
attached to the bottom of
the cooler / fan.
A
B

v
English
WARNING! DO NOT eat the
Thermal Interface Material.
If it gets into your eyes or
touches your skin, make sure
to wash it off immediately,
and seek professional medical
help.
Installing the CPU fan and heatsink assembly
Make sure to turn off your computer and unplug the cable from the
power source before installing the CPU fan and heatsink assembly.
1
2
2
2
2
Socket lever
Gold triangle
Small triangle
1. Position the CPU fan
and heatsink assembly
on top of the installed
CPU.
2. Drive in four screws
into the CPU fan screw
holes.
3. Connect the CPU fan
cable to the connector
on the motherboard.

vi
English
Installing memory module(s)
1. Press the
retaining clips of
the DIMM socket
outward.
2. Align a DIMM on
the socket.
3. Insert the DIMM
rmly to the
socket until the
retaining clips snap
back in place.
CAUTION! A DDR DIMM is keyed with a notch so that it ts in only one
direction. Do not force a DIMM into a socket to avoid damaging the DIMM!
Installing expansion cards
1. Locate and remove one metal bracket lock screw.
2. Remove the metal bracket lock.
3. Align the card connector with the slot, then press rmly.
4. Secure the card with one screw.
5. Replace the metal braket lock, then secure it with one screw.
1
2
3
4
5
5

vii
English
Installing a SATA hard disk drive
1. Connect the SATA power
cable to the plug of the power
supply unit.
2. Connect the SATA signal cable
and the power plugs to the
connectors at the back of the
drive.
3. Locate the HDD tray.
4. Insert a hard disk drive (with
the HDD PCB facing the top of
the chassis) to the tray, then
secure it with four screws.
5. Connect the SATA signal cable
to the SATA connector on the
motherboard, and tighten all the
cables with the plastic coils.
Installing an optical drive
1. Place the chassis upright.
2. Insert the optical drive to the
upper 5.25 in drive bay, then
carefully push the drive until
its screw holes align with the
holes on the bay.
2
3 3
3. Secure the optical drive with
four screws on both sides of
the bay.
4. Connect the IDE and the power
plugs to the connectors at the
back of the drive.
2
1
2
4
4
4
4
4

viii
English
REAR
S P K
LINE
IN
FRONT
MIC IN
SIDE
S P K
C T R
BASS
eSATA
Replacing the cover
1. Fit the cover tabs with the
chassis rail and the front panel
tabs (A), then lower the rear
edge of the cover as shown
(B).
2. Secure the cover with three
screws.
Selecting the voltage
The PSU has a 115 V/230 V voltage selector
switch located beside the power connector. Use
this switch to select the appropriate system
input voltage according to the voltage supply in
your area.
NOTE. The voltage selector is set to
230 V by default.
If the voltage supply in your area is 100-127 V,
set the switch to 115 V. If the voltage supply in
your area is 200-240 V, set the switch to 230 V.
WARNING! Setting the switch to 115 V in a 230 V environment will
seriously damage the system!
A
A
B
B

Français
T3-M2NC51PV
ASUS PC (Système barebone)
Guide d’installation rapide
Copyright © 2006 ASUSTeK COMPUTER INC. Tous droits réservés.
®

ii
Français
Contenu du carton
.
Caractéristiques
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

iii
Français
®
®
Port VGA
REAR
S P K
LINE
IN
FRONT
MIC IN
SIDE
S P K
C T R
BASS
eSATA
Port DVI Out

iv
Français
Installation
A
A
2
A
B

v
Français
ATTENTION ! NE MANGEZ
2
2
2
2

vi
Français
2
6

vii
Français
2
2
2

viii
Français
Choisir le voltage
REAR
S P K
LINE
IN
FRONT
MIC IN
SIDE
S P K
C T R
BASS
eSATA
A
A

繁體中文
®
T3-M2NC51PV

ii
繁體中文
產品包裝內容
請檢查您的產品包裝箱內是否包含以下組件,若有任何缺少或損壞,請儘速與您的
經銷商連絡。
產品功能

iii
繁體中文
REAR
S P K
LINE
IN
FRONT
MIC IN
SIDE
S P K
C T R
BASS
eSATA

iv
繁體中文
硬體安裝
A
B
