Asus MB16AWP User manual

MB16AWP
Wireless Portable Monitor
User Guide
SECS
2

ii
First Edition
January 2022
Copyright © 2022 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM
ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN
THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
Contents ...................................................................................................... iii
Notices......................................................................................................... iv
Safety information .................................................................................... viii
Care & Cleaning.......................................................................................... ix
Takeback Services....................................................................................... x
Product information for EU energy label................................................... x
Chapter 1: Product introduction
1.1 Welcome! .................................................................................... 1-1
1.2 Package contents......................................................................... 1-1
1.3 Monitor introduction.................................................................... 1-2
1.3.1 Front/Side view ............................................................... 1-2
Chapter 2: Setup

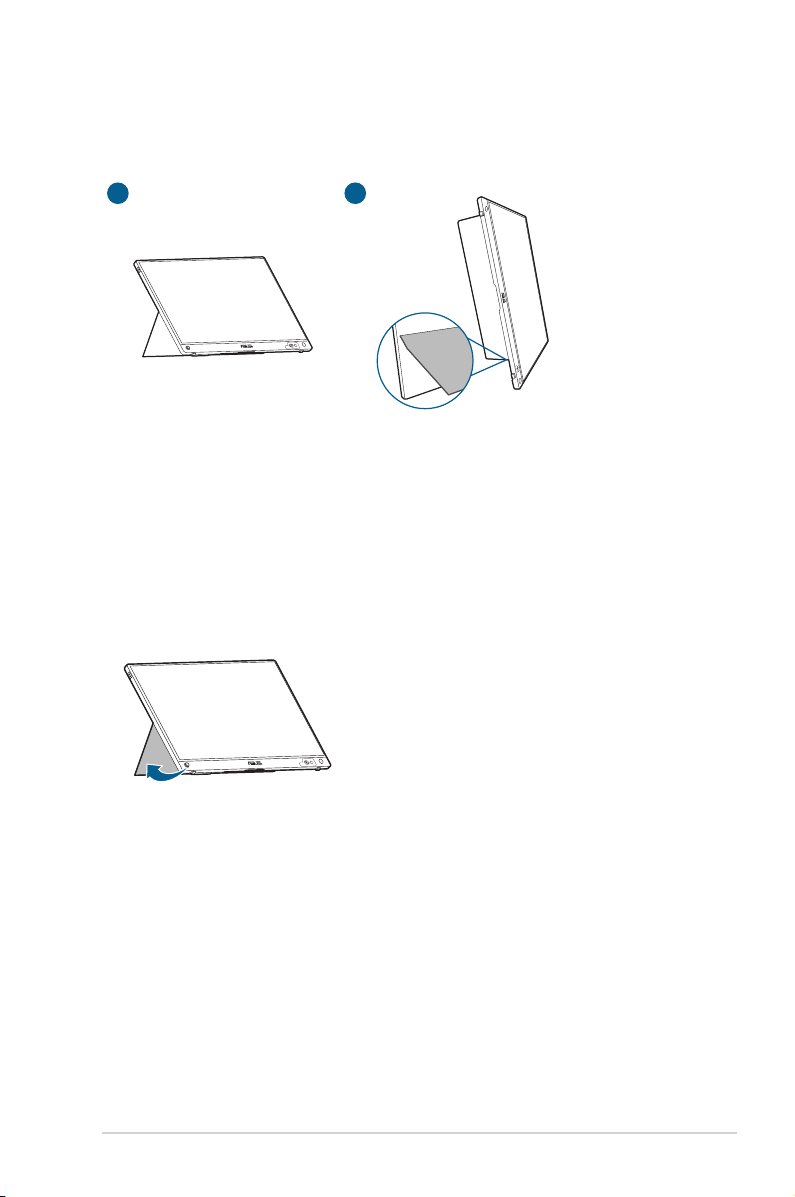

2.1 Monitor standing positions......................................................... 2-1
2.2 Adjusting the monitor.................................................................. 2-1
2.3 Connecting the cables................................................................. 2-2
2.4 Turning on the monitor................................................................ 2-2
2.5 Performing wireless projection .................................................. 2-3

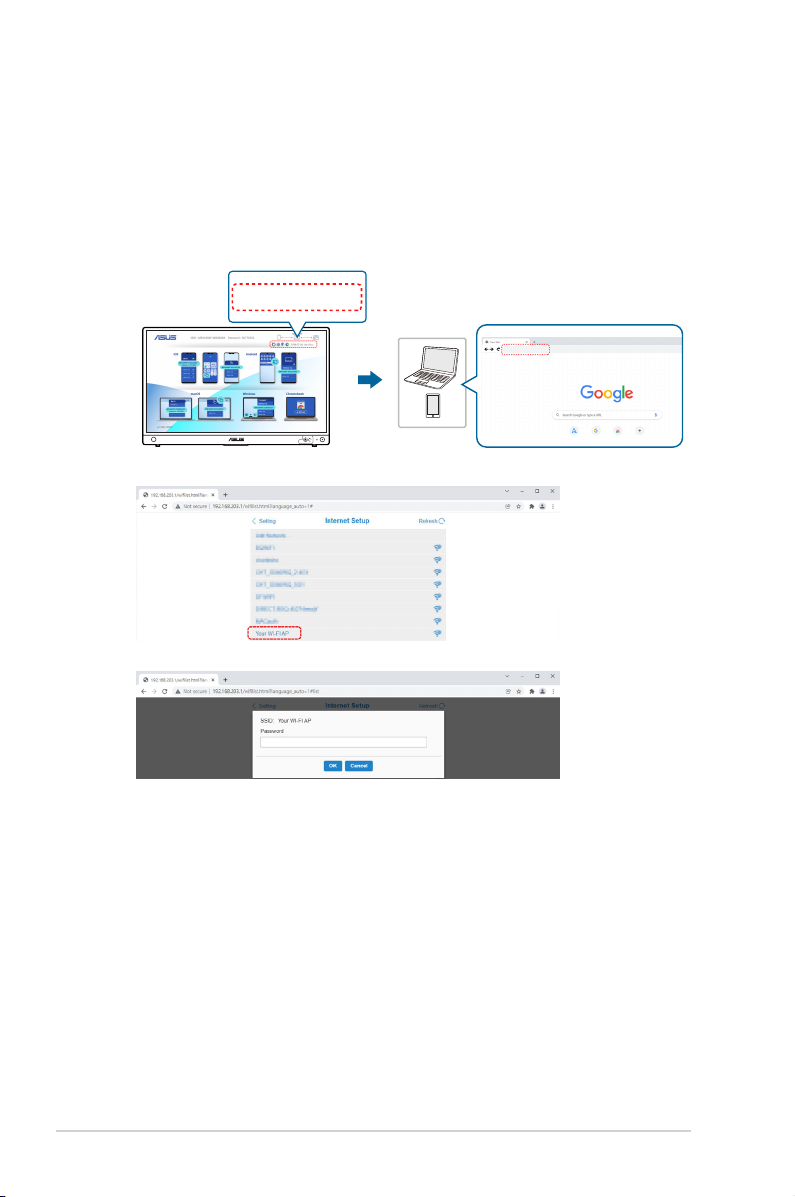

2.6 Connecting the monitor to the Internet...................................... 2-4
2.7 Updatingwirelessprojectionrmware...................................... 2-5
2.8 Announcements........................................................................... 2-6
Chapter 3: General instructions
3.1 OSD (On-Screen Display) menu ................................................ 3-1
3.1.1 How to recongure.......................................................... 3-1
3.1.2 OSD function introduction ............................................... 3-2
3.2 Specicationssummary.............................................................. 3-9
3.3 Outline dimensions.................................................................... 3-11
3.4 Troubleshooting (FAQ).............................................................. 3-12
3.5 Supported operating modes ..................................................... 3-14

iv
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications not expressly approved by the grantee of this
device could void the user’s authority to operate the equipment.
The use of shielded cables for connection of the monitor to the graphics card is
required to assure compliance with FCC regulations. Changes or modications
to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
FCC Caution and Label
• Distance < 20cm, with SAR requirement
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.

v
The exposure standard employs a unit of measurement known as the Specic
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR
are conducted using standard operating positions accepted by the FCC with the
EUT transmitting at the specied power level in different channels.
The FCC has granted an Equipment Authorization for this device with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this device is on le with the FCC and can be found under the
Display Grant section of www.fcc.gov/eot/ea/fccid after searching on "Contains
FCC ID: PANP31ASUS".
For module caution
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may
be installed such that 20cm may be maintained between the antenna and users.
The nal end product must be labeled in a visible area with the following: "Contains
FCC ID: PANP31ASUS” and "Contains IC: 6225A-P31ASUS“
Information for the OEMs and Integrators
The following statement must be included with all versions of this document
supplied to an OEM or integrator, but should not be distributed to the end user.
1) This device is intended for OEM integrators only.
2) Please see the full Grant of Equipment document for other restrictions.
5GHz Device STATEMENT
MASTER EQUIPMENT:
The availability of some specic channels and / or operational frequency bands are
country dependent and are rmware programmed at factory to match the intended
destination. The rmware setting is not accessible by the end user.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
This Class B digital apparatus meets all requirements of the Canadian
Interference - Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Réglement sur le matériel brouiller du Canada.

vi
Canada IC
Canada, Industry Canada (IC) Notices
This device complies with Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
RF Exposure
Distance < 20 cm , with SAR requirement (RSS-102 section 2.6)
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry
Canada (IC) radio frequency exposure limits. The Wireless Device should
be used in such a manner such that the potential for human contact during
normal operation is minimized.
This device has been evaluated for and shown compliant with the IC
Specific Absorption Rate (“SAR”) limits when operated in portable
exposure conditions.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans l est inférieure à la
limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez
l’appareil de sans fil de façon à minimiser les contacts humains lors du
fonctionnement normal.
Ce dispositif a été évalué pour et démontré conforme à la Taux IC
d'absorption spécifique ("SAR") des limites lorsqu'il est utilisé dans des

vii
conditions d'exposition portatifs.
For 5150~5250MHz Band:
This device is for indoor use only when operated in the frequency band
5150 ~5250 MHz
Ce dispositif est limité à une utilisation en intérieur seulement dans la
bande 5150-5250 MHz.
The WiFi operating in the band 5150-5350MHz shall be restricted to indoor
use for country listed below:
UK
Complies with
IMDA Standards
DB103778

viii
Safety information
• Before setting up the monitor, carefully read all the documentation that came
with the package.
• To prevent re or shock hazard, never expose the monitor to rain or moisture.
• Never try to open the monitor cabinet. The dangerous high voltages inside the
monitor may result in serious physical injury.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your retailer.
• Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
• Slots and openings on the back or top of the cabinet are provided for
ventilation. Do not block these slots. Never place this product near or over a
radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated
on the label. If you are not sure of the type of power supply to your home,
consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power standard.
• Do not overload power strips and extention cords. Overloading can result in re
or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the monitor in
any area where it may become wet. Place the monitor on a stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a long period
of time. This will protect the monitor from damage due to power surges.
• Never push objects or spill liquid of any kind into the slots on the monitor
cabinet.
• To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate congured receptacles marked between
100-240V AC.
• If you encounter technical problems with the monitor, contact a qualied
service technician or your retailer.
• Adjustment of the volume control as well as the equalizer to other settings
than the center position may increase the ear-/headphones output voltage and
therefore the sound pressure level.
• The adapter is only used for this monitor, do not use it for other purpose.
Your device uses one of the following power supplies:
- Manufacturer: Delta Electronics Inc., Model: ADP-45HG B

ix
This symbol of the crossed out wheeled bin indicates that the product (electrical,
electronic equipment, and mercury-containing button cell battery) should not
be placed in municipal waste. Please check local regulations for disposal of
electronic products.
AEEEyönetmeliğineuygundur
Care & Cleaning
• Before you lift or reposition your monitor, it is better to disconnect the cables
and power cord. Follow the correct lifting techniques when positioning the
monitor. When lifting or carrying the monitor, grasp the edges of the monitor.
Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor
surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed
with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended
for use with the monitor. Never spray cleaner directly on the screen, as it may
drip inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor:
• You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the previous
screen may remain after switching the image. The screen will recover slowly or
you can turn off the Power Switch for hours.
• When the screen becomes black or ashes, or cannot work anymore, contact
your dealer or service center to x it. Do not repair the screen by yourself!
• (For OLED models) Damage resulting from long-term static images displayed
(also referred as “Image Sticking”) or improper use.
• (For OLED models) Defect of color accuracy shift resulting from display color
decay accelerated by user’s behaviors.
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying
to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.

x
Wheretondmoreinformation
Refer to the following sources for additional information and for product and
software updates.
1. ASUS websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com
2. Optional documentation
Your product package may include optional documentation that may have
been added by your dealer. These documents are not part of the standard
package.
Takeback services
ASUS recycling and takeback programs come from our commitment to the highest
standards for protecting our environment. We believe in providing solutions for
our customers to be able to responsibly recycle our products, batteries and other
components as well as the packaging materials.
Please go to http://csr.asus.com/english/Takeback.htm for detail recycling
information in different region.
Rechargeable battery recycling service in
north America
For US and Canada customers, you can call 1-800-822-8837
(toll-free) for recycling information of your ASUS products'
rechargeable batteries.
Product information for EU energy label

1-1ASUS Wireless Portable Monitor MB16A
1.1 Welcome!
Thank you for purchasing the ASUS®Wireless Portable Monitor!
The latest ASUS Wireless Portable Monitor provides great portability and simplicity
to your daily life, enhancing both of your viewing experience and style.
1.2 Package contents
Check your package for the following items:
Wireless portable monitor
Quick start guide
Warranty card
Power adapter
Power cord
USB Type-C to Type-C cable
HDMI to HDMI mini adapter
Sleeve
ZenScreen tripod hole cover
If any of the above items is damaged or missing, contact your retailer
immediately.

1-2 Chapter 1: Product introduction
1.3 Monitor introduction
1.3.1 Front/Side view
SECS
2
12
9
8
10
11
Main Menu
Close
Volume
Input Select
Brightness
Main Menu
Close
Volume
Input Select
Brightness
3
4
5
6
7
1. Power button/power indicator
• Turns the monitor on (long press for 2 seconds)/off.
• The color denition of the power indicator is as the below table.
Status Description
Blue On mode
Blue ashing Saving mode
Off Off mode - Not charging
Red Off mode - Charging
Green Off mode - Finished charging
2. 5-way button
• Turns on the button functions menu. Enacts the selected OSD menu
item.
• Increases/Decreases values or moves your selection up/down/left/
right.
3. Main Menu
• Press the 5-way button once to enter the button functions menu when the
OSD is off. Press this button again to enter the OSD menu.
4. Close
• Move the 5-way button left to close the button functions menu.
• Move the 5-way button left for over 5 seconds to toggle the Key Lock
function between on and off.
5. Volume
• Move the 5-way button right to enter the volume menu.

1-3ASUS Wireless Portable Monitor MB16A
6. Input Select
• Move the 5-way button up to enter the Input Select menu.
7. Brightness
• Move the 5-way button down to enter the Brightness menu.
8. Earphone jack
9. Mini HDMI port
• This port is for connection with an HDMI compatible device.
10. USB Type-C port
• This port is for connection with an USB Type-C compatible device.
11. USB Type-C port
• This port connects the power adapter.

1-4 Chapter 1: Product introduction

2-1ASUS Wireless Portable Monitor MB16A
2.1 Monitor standing positions
You can stand up the monitor in the following positions.
SECS
2
A B
SECS
2
2.2 Adjusting the monitor
• For optimal viewing, we recommend that you look at the full face of the
monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling when you change its angle.
• You can adjust the monitor’s angle at 0˚ ~ 70˚.
SECS
2
+70°
(Tilt)

2-2 Chapter 2: Setup
2.3 Connecting the cables
A
B
Type-C
Type-C
SECS
2
SECS
2
HDMI
Mini HDMI
or
2.4 Turning on the monitor
Press and hold the power button for 2 seconds. See page 1-2 for the location of
the power button. The power indicator lights up in blue to show that the monitor
is ON. The start up process takes about 30 seconds.
SECS
2
We suggest you charge the monitor before using it for the rst time.

2-3ASUS Wireless Portable Monitor MB16A
When there is no input signal or no action made on the OSD menu for around
6 minutes when the signal source is "Wireless" or for one hour when the signal
source is not HDMI or USB Type-C without power supply, the monitor will turn
off automatically. To turn on the monitor, press and hold the power button for 2
seconds.
2.5 Performing wireless projection
1. Make sure that the signal source for the monitor is "Wireless".
2. For different devices, follow the steps below.
»For Windows OS devices
* Press the Windows logo key + K and choose the monitor.
»For Android devices
* After opening the Quick settings panel, press the Miracast icon and
choose the monitor.
»For iOS devices
1. Select MB16AWP in available Wi-Fi networks.
(SSID MB16AWP-********)
2. Insert the password shown on the monitor.
3. After opening control center, press screen mirroring and choose the
monitor to start projection.
»For MacOS devices
1. Select MB16AWP in available Wi-Fi networks.
(SSID MB16AWP-********)
2. Insert the password shown on the monitor.
3. Activate screen mirroring, and choose the monitor to start
projection.
»For Chromebooks
1. Download “EZCast” extension in Chrome store.
2. Add “EZCast” extension to Chrome.
3. Select MB16AWP in available Wi-Fi networks.
(SSID MB16AWP-********)
4. Insert the password shown on the monitor.
5. Open the EZCast APP.
6. Click Search Devices and select the monitor.
7. Enable the mirroring function to start wireless projection.
Please note that content from platforms with Digital rights management (DRM)
enabled, ex: Hulu, Netix, Apple TV+, Disney+, is unable to be cast using
wireless projection.

2-4 Chapter 2: Setup
2.6 Connecting the monitor to the
Internet
1. Turn on the monitor and make sure that the signal source is "Wireless".
2. Make sure both or your device and the monitor are in the same subnetwork
(connecting MB16AWP in the Wi-Fi settings on your device.).
3. Open your web browser and go to the address of the monitor (192.168.203.1).
SECS
2
http://192.168.203.1
192.168.203.1
4. Select a WiFi network that you want to join.
5. Enter the password if asked.

2-5ASUS Wireless Portable Monitor MB16A
2.7 Updatingwirelessprojectionrmware
1. Make sure that the monitor connects to the Internet.
2. After the monitor successfully connects to the Internet, new IP address will
be assigned to the monitor and displayed on the upper right corner of the
monitor.
3. Connect your device to the same WiFi network as the monitor.
4. Open the web browser on your device and go to the IP address of the monitor
(displayed on the upper right corner of the monitor). If there's newer version
of rmware available, click OK to start the update.
5. Once conrmed, the monitor will start the process and reboot itself when
nished.

2-6 Chapter 2: Setup
If the monitor is up to date with the latest rmware, the following message will
appear.
2.8 Announcements
As this product includes magnet in the structure, there could be potential risk to
cause the damage of computer hard disc and objects that are sensitive to magnet.
Please ensure not to stack the product with the computer when computer is in use
(power on or standby mode) otherwise the hard drive could possibly be inuenced
by the result of permanent data missing or the computer display could be switched
off due to computer auto protection mechanism. When placing this product
together with the computer in a bag, you must have the computer power off to
avoid possible hard drive damage.
SECS
2
SECS
2
