VW242 Series
LCD Monitor
User Guide
July 2010

ii
Table of contents
Notices......................................................................................................... iii
Safety information ...................................................................................... iv
Care & Cleaning.......................................................................................... iv
1.1 Welcome! ...................................................................................... 1-1
1.2 Package contents......................................................................... 1-1
1.3 Assembling the monitor base..................................................... 1-2
1.4 Connect cables............................................................................. 1-3
1.4.1 VW242H.......................................................................... 1-3
1.4.2 VW242T/S/D/N ............................................................... 1-3
1.5 Monitor introduction .................................................................... 1-4
1.5.1 Front of the LCD monitor ................................................ 1-4
1.5.2 Rear of the LCD monitor ................................................. 1-8
2.1 Detaching the arm/stand
(for VESA wall mount).................................................................... 2-1
2.2 Adjusting the monitor.................................................................. 2-2
3.1 OSD (On-Screen Display) menu ................................................. 3-1
3.1.1 Howtorecongure.......................................................... 3-1
3.1.2 OSD Function Introduction.............................................. 3-1
3.2 Specicationssummary.............................................................. 3-5
3.3 Troubleshooting (FAQ)................................................................ 3-6
3.4 Supported Timing List........................................................................3-7
Copyright © 2010 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
tothefollowingtwoconditions:
• Thisdevicemaynotcauseharmfulinterference,and
• Thisdevicemustacceptanyinterferencereceivedincluding
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
ClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimits
aredesignedtoprovidereasonableprotectionagainstharmfulinterference
inaresidentialinstallation.Thisequipmentgenerates,usesandcan
radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordance
withmanufacturer’sinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewill
not occur in a particular installation. If this equipment does cause harmful
interferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrect
theinterferencebyoneormoreofthefollowingmeasures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmenttoanoutletonacircuitdifferentfromthatto
which the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
AsanEnergyStar® Partner,ourcompanyhasdetermined
thatthisproductmeetstheEnergyStar® guidelinesfor
energyefciency.
Canadian Department of Communications Statement
ThisdigitalapparatusdoesnotexceedtheClassBlimitsforradio
noiseemissionsfromdigitalapparatussetoutintheRadioInterference
RegulationsoftheCanadianDepartmentofCommunications.
ThisclassBdigitalapparatuscomplieswithCanadianICES-003.

iv
Safety information
• Beforesettingupthemonitor,carefullyreadallthedocumentationthat
camewiththepackage.
• Topreventreorshockhazard,neverexposethemonitortorainor
moisture.
• Nevertrytoopenthemonitorcabinet.Thedangeroushighvoltages
inside the monitor may result in serious physical injury.
• Ifthepowersupplyisbroken,donottrytoxitbyyourself.Contacta
qualiedservicetechnicianoryourretailer.
• Beforeusingtheproduct,makesureallcablesarecorrectlyconnected
andthepowercablesarenotdamaged.Ifyoudetectanydamage,
contact your dealer immediately.
• Slotsandopeningsonthebackortopofthecabinetareprovidedfor
ventilation. Do not block these slots. Never place this product near or
over a radiator or heat source unless proper ventilation is provided.
• Themonitorshouldbeoperatedonlyfromthetypeofpowersource
indicated on the label. If you are not sure of the type of power supply to
yourhome,consultyourdealerorlocalpowercompany.
• Usetheappropriatepowerplugwhichcomplieswithyourlocalpower
standard.
• Donotoverloadpowerstripsandextensioncords.Overloadingcan
resultinreorelectricshock.
• Avoiddust,humidity,andtemperatureextremes.Donotplacethe
monitor in any area where it may become wet. Place the monitor on a
stable surface.
• Unplugtheunitduringalightningstormorifitwillnotbeusedfora
longperiodoftime.Thiswillprotectthemonitorfromdamagedueto
powersurges.
• Neverpushobjectsorspillliquidofanykindintotheslotsonthe
monitor cabinet.
• Toensuresatisfactoryoperation,usethemonitoronlywithULlisted
computerswhichhaveappropriateconguredreceptaclesmarked
between 100-240V AC.
• Ifyouencountertechnicalproblemswiththemonitor,contacta
qualiedservicetechnicianoryourretailer.
Care & Cleaning
• Beforeyouliftorrepositionyourmonitor,itisbettertodisconnectthecables
andpowercord.Followthecorrectliftingtechniqueswhenpositioningthe
monitor.Whenliftingorcarryingthemonitor,grasptheedgesofthemonitor.
Do not lift the display by the stand or the cord.

v
• Cleaning.Turnyourmonitoroffandunplugthepowercord.Cleanthemonitor
surfacewithalint-free,non-abrasivecloth.Stubbornstainsmayberemoved
with a cloth dampened with mild cleaner.
• Avoidusingacleanercontainingalcoholoracetone.Useacleanerintended
forusewiththeLCD.Neverspraycleanerdirectlyonthescreen,asitmaydrip
inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor:
• Thescreenmayickerduringtheinitialuseduetothenatureoftheuorescent
light.TurnoffthePowerSwitchandturnitonagaintomakesurethatthe
ickerdisappears.
• Youmayndslightlyunevenbrightnessonthescreendependingonthe
desktop pattern you use.
• Whenthesameimageisdisplayedforhours,anafterimageoftheprevious
screenmayremainafterswitchingtheimage.Thescreenwillrecoverslowlyor
you can turn off the Power Switch for hours.
• Whenthescreenbecomesblackorashes,orcannotworkanymore,contact
yourdealerorservicecentertoxit.Donotrepairthescreenbyyourself!
Conventions used in this guide
WARNING:Informationtopreventinjurytoyourselfwhentryingto
complete a task.
CAUTION:Informationtopreventdamagetothecomponentswhen
tryingtocompleteatask.
IMPORTANT:InformationthatyouMUSTfollowtocompleteatask.
NOTE:Tipsandadditionalinformationtoaidincompletingatask.

1-1ASUSLCDMonitorVW242Series
Wheretondmoreinformation
Refertothefollowingsourcesforadditionalinformationandforproductand
software updates.
1. ASUS websites
TheASUSwebsitesworldwideprovideupdatedinformationonASUS
hardware and software products. Refer to http://www.asus.com
2. Optional documentation
Yourproductpackagemayincludeoptionaldocumentationthatmayhave
been added by your dealer. These documents are not part of the standard
package.
1.1 Welcome!
ThankyouforpurchasingtheASUS®VW242SeriesLCDmonitor!
ThelatestwidescreenLCDmonitorfromASUSprovidesacrisper,broader,and
brighterdisplay,plusahostoffeaturesthatenhanceyourviewingexperience.
Withthesefeatures,youcanenjoytheconvenienceanddelightfulvisual
experiencethattheVW242Seriesbringsyou!
1.2 Package contents
CheckyourVW242SeriesLCDpackageforthefollowingitems:
LCD monitor
Monitor stand and base
Support CD
Quick Start Guide
Power cord
VGA cable
DVI cable (VW242H/T/N)
Audio cable (VW242H/T/S)
Ifanyoftheaboveitemsisdamagedormissing,contactyourretailer
immediately.

1-2 Chapter1:ProductIntroduction

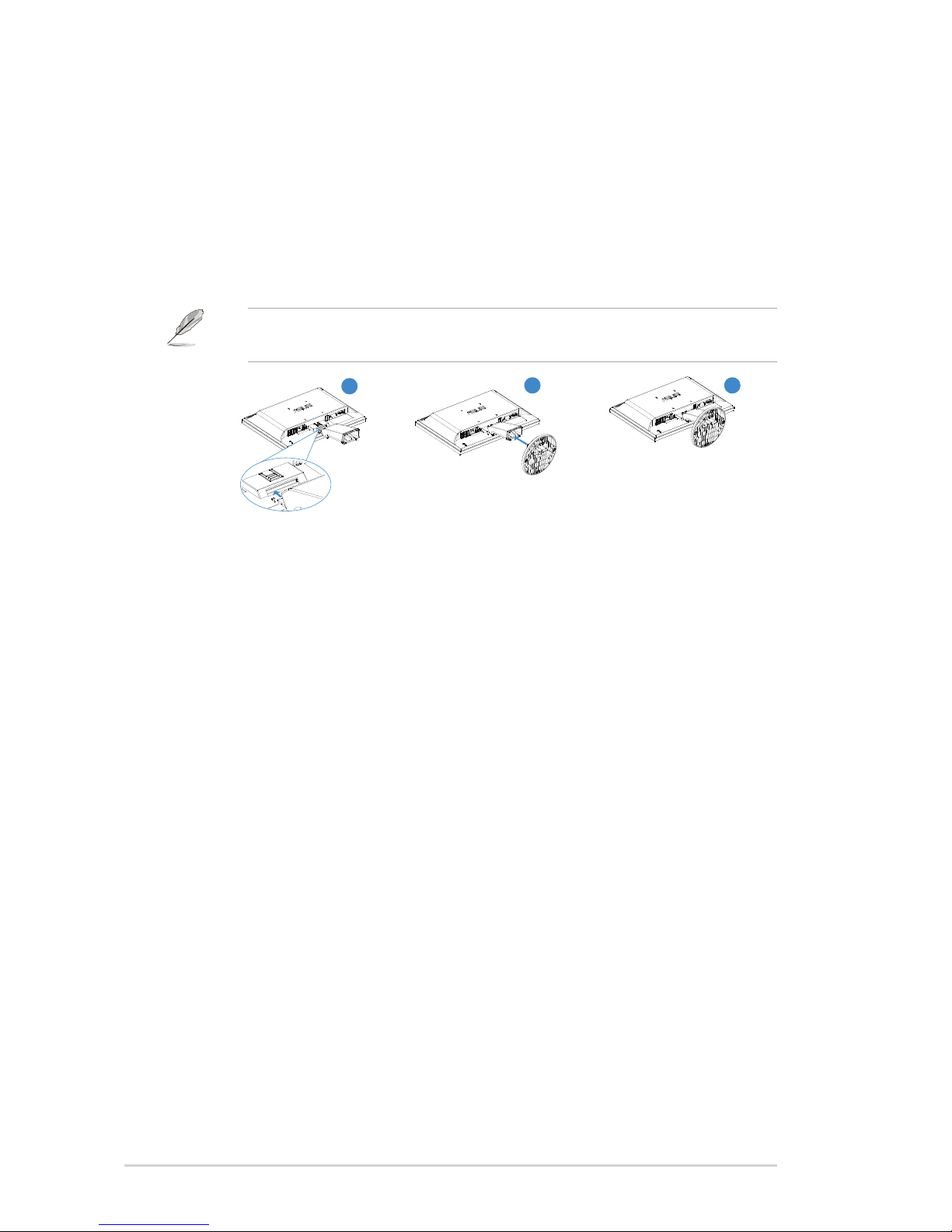

1.3 Assembling the monitor base
To assemble the monitor base:
1. Have the front of the monitor face down on a table.
2. Insert the stand to the monitor which shows as below picture.
3. Connect the base with the monitor. A click indicates that the base has been
connected successfully.
4. Adjustthemonitortotheanglethatismostcomfortableforyou.
We recommend that you cover the table surface with soft cloth to prevent
damagetothemonitor.
12 3

1-3ASUSLCDMonitorVW242Series

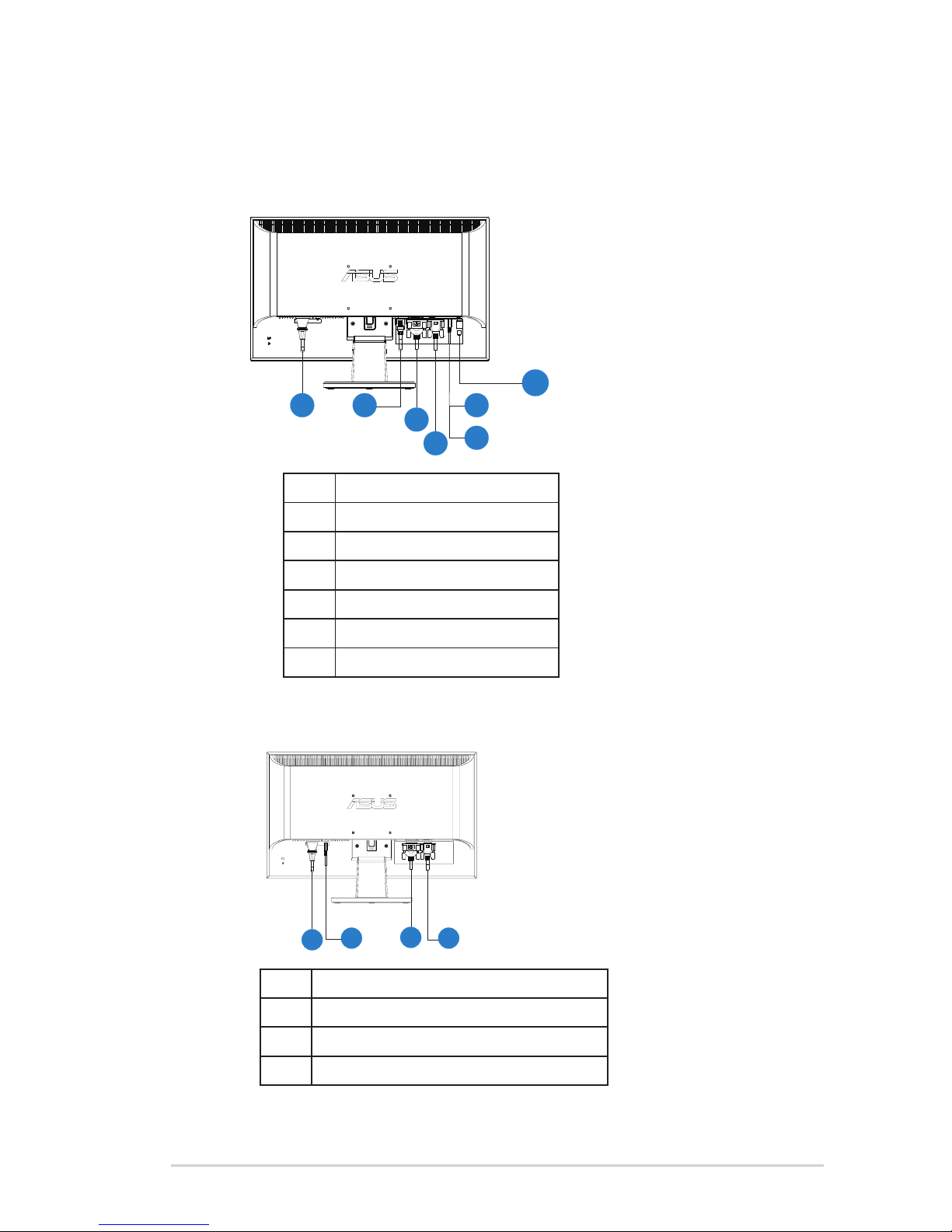

1.4 Connect cables
Connect cables which you need
1.4.1 VW242H
12
3
4
5
6
7
1 AC-IN port
2 HDMI-IN port
3 DVI port
4 VGA port
5 Audio Line - in Port
6 Earphone-out port
7HDMISPDIFOUT
1.4.2 VW242T/S/D/N
1234
1 AC-IN port
2 Audio Line - in Port (VW242T/S)
3 DVI port (VW242T/N)
4 VGA port

1-4 Chapter1:ProductIntroduction
1.5 Monitor introduction

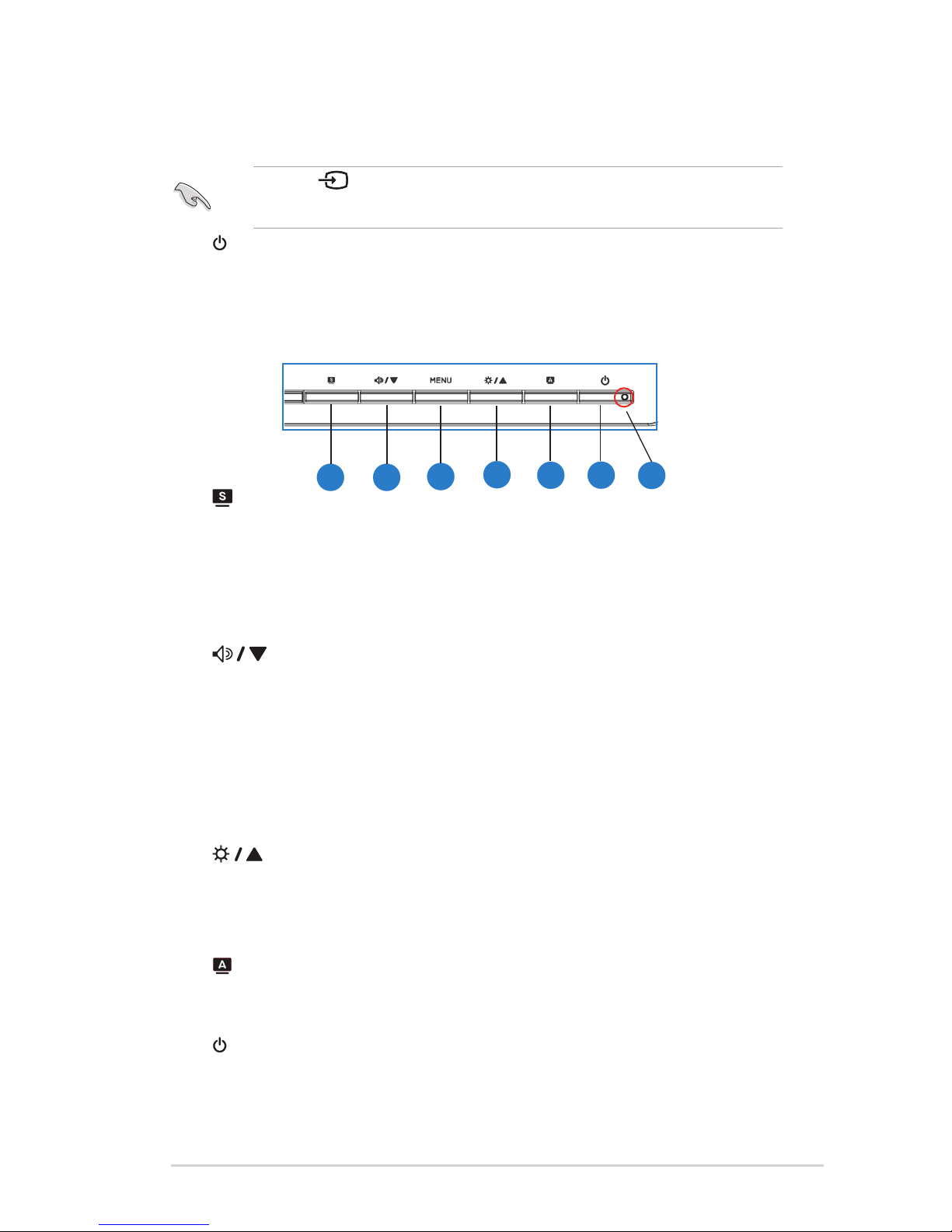

1.5.1 Front of the LCD monitor
1.5.1.1 VW242H/T
457
1 2 36
1. Button:
• Automaticallyadjusttheimagetoitsoptimizedposition,clock,and
phasebylongpressingthisbuttonfor2-4seconds(forVGAmodeonly).
• Usethishotkeytoswitchfromsixvideopresetmodes(SceneryMode,
StandardMode,TheaterMode,GameMode,NightViewMode,and
sRGBMode)withSPLENDID™VideoIntelligenceTechnology.
• ExittheOSDmenuorgobacktothepreviousmenuastheOSDmenu
is active.
2. Button:
• Press this button to decrease the value of the function selected or move
tothenextfunction.
• This is also a hotkey for Volume adjustment.
3 MENUButton:
• Pressthisbuttontoenter/selecttheicon(function)highlightedwhilethe
OSD menu is activated.
4. Button:
• Press this button to increase the value of the function selected or move
to the previous function.
• ThisisalsoahotkeyforBrightnessadjustment.
5 . InputSelectButton:

1-5ASUSLCDMonitorVW242Series
• UsethishotkeytoswitchfromVGA,DVI,HDMIinputsignals.(for
VW242H)
Press (InputSelectbutton)todisplayHDMIsignal
after you connect cable with the monitor.(for VW242H)
6. PowerButton:
• Press this button to turn the monitor on/off.
7. Power Indicator
1.5.1.2 VW242S
457
1 2 36
1. Button:
• Usethishotkeytoswitchfromsixvideopresetmodes(SceneryMode,
StandardMode,TheaterMode,GameMode,NightViewMode,and
sRGBMode)withSPLENDID™VideoIntelligenceTechnology.
• ExittheOSDmenuorgobacktothepreviousmenuastheOSDmenu
is active.
2. Button:
• Press this button to decrease the value of the function selected or move
tothenextfunction.
• This is also a hotkey for Volume adjustment.
3 MENUButton:
• Pressthisbuttontoenter/selecttheicon(function)highlightedwhilethe
OSD menu is activated.
4. Button:
• Press this button to increase the value of the function selected or move
to the previous function.
• ThisisalsoahotkeyforBrightnessadjustment.
5. Button:
• Automaticallyadjusttheimagetoitsoptimizedposition,clock,and
phase (for VGA mode only).
6. PowerButton:
• Press this button to turn the monitor on/off.

1-6 Chapter1:ProductIntroduction
7. Power Indicator
1.5.1.3 VW242D
457
1 2 36
1. Button:
• Usethishotkeytoswitchfromsixvideopresetmodes(SceneryMode,
StandardMode,TheaterMode,GameMode,NightViewMode,and
sRGBMode)withSPLENDID™VideoIntelligenceTechnology.
• ExittheOSDmenuorgobacktothepreviousmenuastheOSDmenu
is active.
2. Button:
• Press this button to decrease the value of the function selected or move
tothenextfunction.
• This is also a hotkey for Contrast adjustment.
3 MENUButton:
• Pressthisbuttontoenter/selecttheicon(function)highlightedwhilethe
OSD menu is activated.
4. Button:
• Press this button to increase the value of the function selected or move
to the previous function.
• ThisisalsoahotkeyforBrightnessadjustment.
5. Button:
• Automaticallyadjusttheimagetoitsoptimizedposition,clock,and
phase (for VGA mode only).
6. PowerButton:
• Press this button to turn the monitor on/off.
7. Power Indicator

1-7ASUSLCDMonitorVW242Series
1.5.1.4 VW242N
457
1 2 36
1. Button:
• Automaticallyadjusttheimagetoitsoptimizedposition,clock,and
phasebylongpressingthisbuttonfor2-4seconds(forVGAmodeonly).
• Usethishotkeytoswitchfromsixvideopresetmodes(SceneryMode,
StandardMode,TheaterMode,GameMode,NightViewMode,and
sRGBMode)withSPLENDID™VideoIntelligenceTechnology.
• ExittheOSDmenuorgobacktothepreviousmenuastheOSDmenu
is active.
2. Button:
• Press this button to decrease the value of the function selected or move
tothenextfunction.
• This is also a hotkey for Contrast adjustment.
3 MENUButton:
• Pressthisbuttontoenter/selecttheicon(function)highlightedwhilethe
OSD menu is activated.
4. Button:
• Press this button to increase the value of the function selected or move
to the previous function.
5 . InputSelectButton:
• UsethishotkeytoswitchfromVGA,DVIinputsignals.
6. PowerButton:
• Press this button to turn the monitor on/off.
7. Power Indicator
Status Description
Blue ON
Amber Standby mode
OFF OFF

1-8 Chapter1:ProductIntroduction

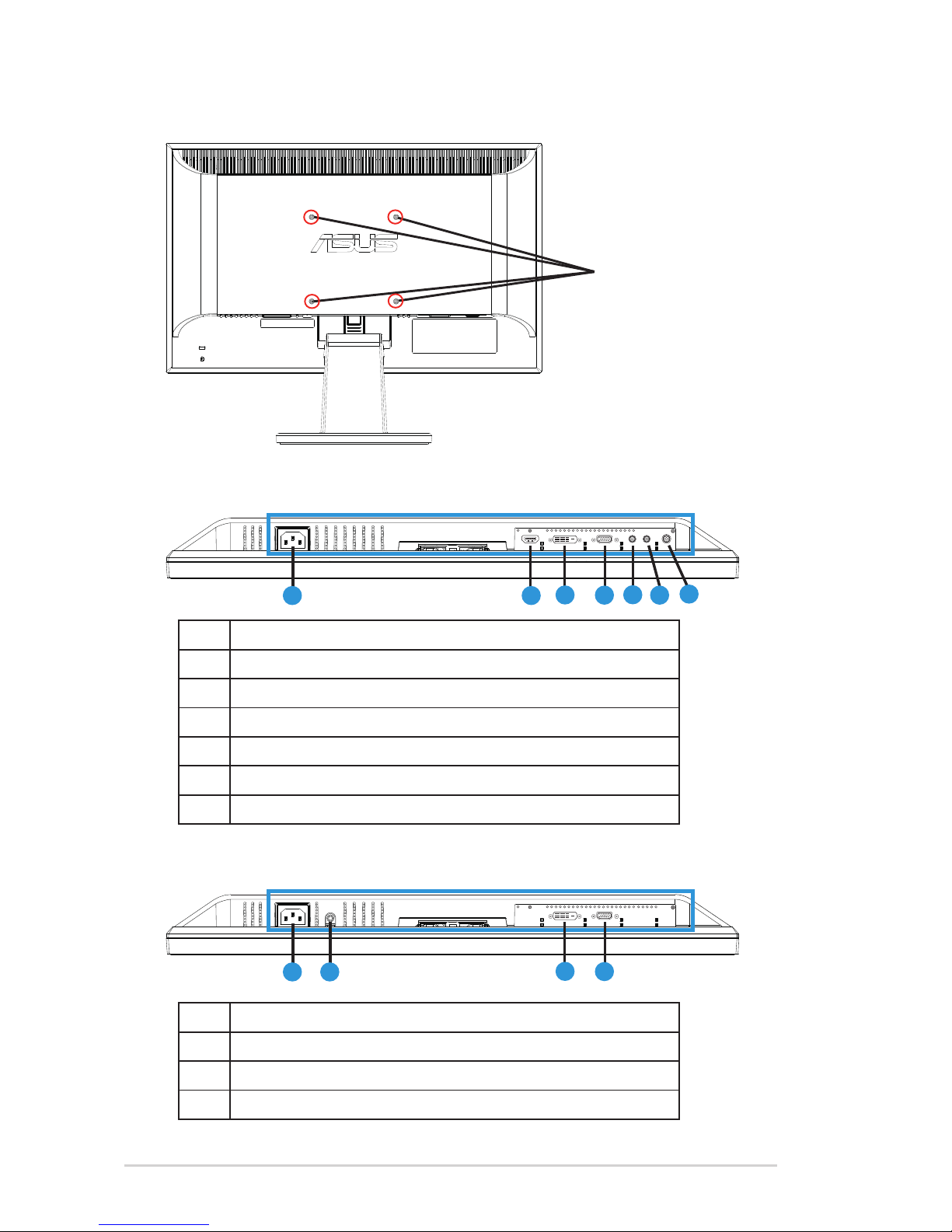

1.5.2 Rear of the LCD monitor
all Mount
Screw holes for
VESA W
1.5.2.1 VW242H
234567
1
1 AC-IN port
2 HDMI-IN port
3 DVI port
4 VGA port
5Audio Line-in port
6 Earphone-out port
7 HDMI SPDIF OUT
1.5.2.2 VW242T/S/D/N
234
1
1 AC-IN port
2Audio Line-in port(VW242T/S)
3 DVI port(VW242T/N)
4 VGA port

2-1ASUSLCDMonitorVW242Series
2.1 Detaching the arm/stand
(for VESA wall mount)
ThedetachablestandoftheVW242SeriesLCDmonitorisspeciallydesignedfor
VESA wall mount.
To detach the arm/stand:
1. Have the front of the monitor face down on a table.
2. Press the plastic release button on the rear of the monitor shows as below
picture.
3. Detach the stand from the monitor.
• Werecommendthatyoucoverthetablesurfacewithsoftclothtoprevent
damagetothemonitor.
• TheVESAwallmountkit(100x100mm)ispurchasedseparately.
• UseonlytheULListedWallMountBracketwithminimumweight/load20
Kg(Screwsize:M4x12mm).

2-2ASUSLCDMonitorVW242Series
2.2 Adjusting the monitor
• Foroptimalviewing,werecommendthatyoulookatthefullfaceofthe
monitor,thenadjustthemonitortotheanglethatismostcomfortableforyou.
• Holdthestandtopreventthemonitorfromfallingwhilechangingitsangle.
• Youcanadjustthemonitor’sanglefrom-5˚to20˚.
-5 ~ 20

3-1 Chapter2:Setup
3.1 OSD (On-Screen Display) menu
3.1.1 Howtorecongure
VW242
Splendid
Color
Input Select
Move Menu Exit
System Setup
Scenery Mode
Standard Mode
Theater Mode
Game Mode
Night View Mode
sRGB
1. PresstheMENUbuttontoactivatetheOSDmenu.
2. Press and tonavigatethroughthefunctions.Highlightandactivate
thedesiredfunctionbypressingtheMENUbutton.Ifthefunctionselected
hasasub-menu,pressand againtonavigatethroughthesub-menu
functions.Highlightandactivatethedesiredsub-menufunctionbypressing
theMENUbutton.
3. Press and tochangethesettingsoftheselectedfunction.
4. ToexittheOSDmenu,pressthe button. Repeat step 2 and step 3 to
adjust any other function.
3.1.2 OSD Function Introduction
1. Splendid
Thisfunctioncontainssixsub-functionsthatyoucanselectforyour
preference.EachmodehastheResetselection,allowingyoutomaintain
yoursettingorreturntothepresetmode.
VW242
Splendid
Color
Input Select
Move Menu Exit
System Setup
Scenery Mode
Standard Mode
Theater Mode
Game Mode
Night View Mode
sRGB
• Scenery Mode:Thisisthebestchoiceforsceneryphotodisplayingwith
SPLENDID™VideoIntelligenceTechnology.

3-2ASUSLCDMonitorVW242Series
• Standard Mode:Thisisthebestchoicefordocumenteditingwith
SPLENDID™VideoIntelligenceTechnology.
• Theater Mode:Thisisthebestchoiceformoviewatchingwith
SPLENDID™VideoIntelligenceTechnology.
• Game Mode:ThisisthebestchoiceforgameplayingwithSPLENDID™
VideoIntelligenceTechnology.
• Night View Mode:Thisisthebestchoiceforplayingdark-scenegame
orwatchingdark-scenemoviewithSPLENDID™VideoIntelligence
Technology.
• sRGB
• In the Standard Mode and sRGB,theSaturation,Color Temp.,Skin
Tone,Sharpness,andASCRfunctionsarenotuser-configurable.
2. Color
Selecttheimagecoloryoulikefromthisfunction.
VW242
Splendid
Color
Input Select
Move Menu Exit
System Setup
Brightness
Contrast
Saturation
Color Temp.
90
80
50
User Mode
Natural
OFF
Skin Tone
Smart View
• Brightness:Theadjustingrangeisfrom0to100.The button is
also a hotkey to activate this function.
• Contrast:Theadjustingrangeisfrom0to100.
• Saturation:Theadjustingrangeisfrom0to100.
• Color Temp.:Containsthreepresetcolormodes(Cool,Normal,Warm)
andoneUserMode.
• Skin Tone:ContainsthreecolormodesincludingReddish,Natural,and
Yellowish.
• Smart view:TheversatileviewingpositionswithSmartViewTechnology
IntheUserMode,colorsofR(Red),G(Green),andB(Blue)are
userconfigurable;theadjustingrangeisfrom0~100.

3-3ASUSLCDMonitorVW242Series

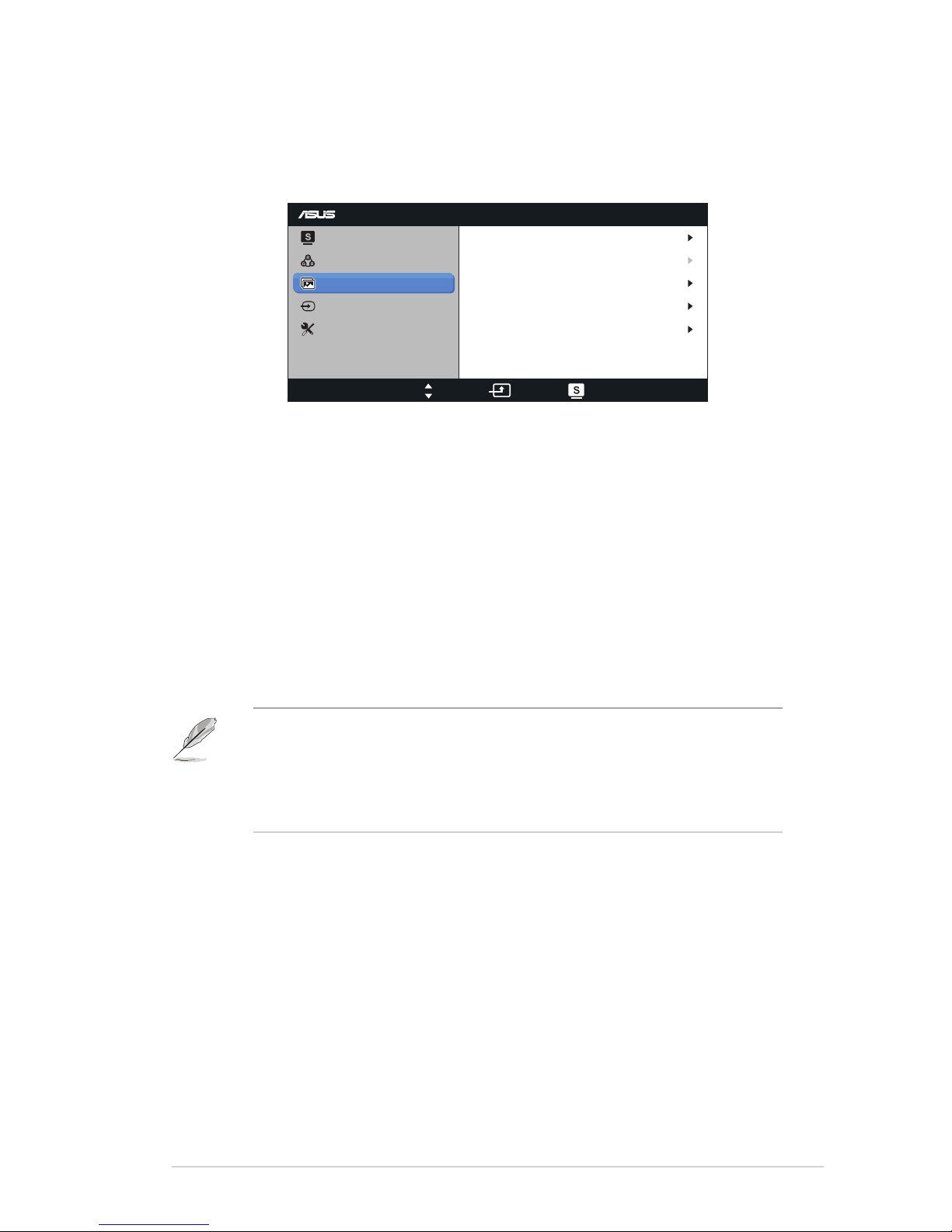

3. Image
YoucanadjusttheimageSharpness,AspectControl,ASCR,Position(VGA
only),andFocus(VGAonly)fromthismainfunction.
VW242
Splendid
Color
Input Select
Move Menu Exit
System Setup Focus
Sharpness
Aspect Control
ASCR
50
Full
Position
OFF
• Sharpness:Adjuststhepicturesharpness.Theadjustingrangeisfrom0
to 100.
• Aspect Control:Adjuststheaspectratioto“Full”,“4:3”,“1:1”,or“Over
Scan”(OnlyavailableforHDMIinput).
• ASCR:SelectYESorNOtoenableordisabledynamiccontrastratio
function.
• Position:Adjuststhehorizontalposition(H-Position)andthevertical
position(V-Position)oftheimage.Theadjustingrangeisfrom0to100
(Only available for VGA input).
• Focus:ReducesHorizonal-linenoiseandVertical-linenoiseoftheimage
byadjusting(Phase)and(Clock)separately.Theadjustingrangeisfrom
0 to 100 (Only available for VGA input).
•Phaseadjuststhephaseofthepixelclocksignal.Withawrongphase
adjustment,thescreenshowshorizontaldisturbances.
•Clock(pixelfrequency)controlsthenumberofpixelsscannedbyone
horizontalsweep.Ifthefrequencyisnotcorrect,thescreenshows
verticalstripesandtheimageisnotproportional.

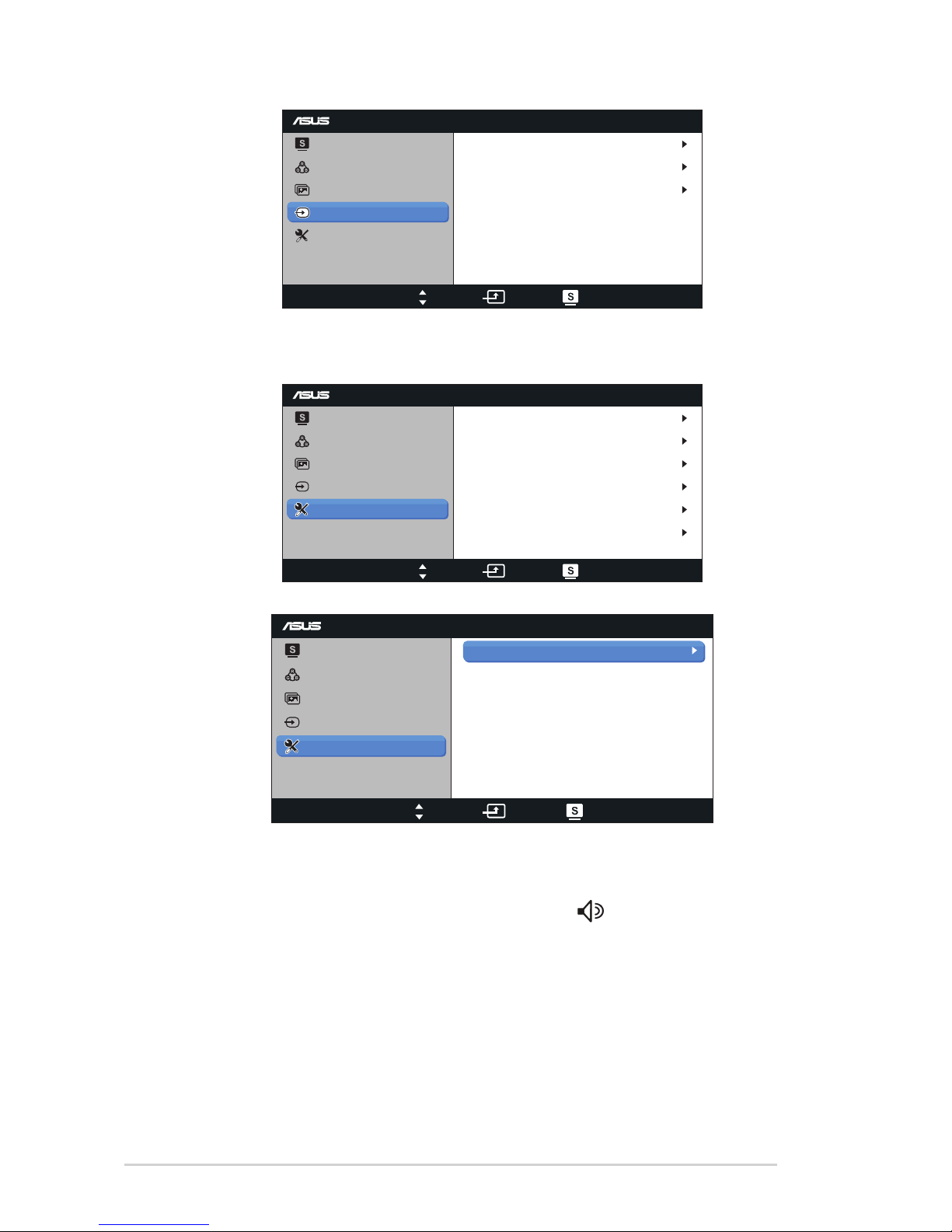

4. Input Select
Select the input source from VGA,DVI,orHDMI (“DVI” for VW242H/T/N
only,“HDMI” for VW242H only).

3-4 Chapter3:GeneralInstruction
VW242
Splendid
Color
Input Select
Move Menu Exit
System Setup
VGA
DVI
HDMI
5. System Setup
Adjuststhesystemconfiguration.
VW242
Splendid
Color
Input Select
Move Menu Exit
System Setup Language
Information
Splendid Demo Mode OFF
OFF
50
English
Volume
ECO Mode
OSD Setup
1/2
All Reset
VW242
Splendid
Color
Input Select
Move Menu Exit
System Setup
2/2
• Splendid Demo Mode:ActivatethedemomodefortheSplendid
function.
• Volume: Theadjustingrangeisfrom0to100. is a hotkey to activate
this function.
• ECO Mode:Power-savingmode
• OSD Setup:Adjuststhehorizontalposition(H-Position),andthevertical
position(V-Position)oftheOSD.Theadjustingrangeisfrom0to100.In
theOSDTimeoutselection,youcanadjusttheOSDtimeoutfrom10to
120.

3-5ASUSLCDMonitorVW242Series
• Language:Thereareelevenlanguagesforyourselection,including
English,German,Italian,French,Dutch,Spanish,Russian,Traditional
Chinese,SimplifiedChinese,Japanese,andKorean.
• Information:Displaysthemonitorinformation.
• All Reset:Selects“Yes”torevertallsettingstothefactorydefaultmode.
3.2 Specicationssummary
Model VW242H VW242T VW242N VW242S VW242D
PanelSize 24”W(61.0cm)
True Resolution 1920x1080(FullHD)
Brightness(Typ.) 200 cd/m2
Contrast Ratio (Typ.) 600:1
ASUSSmartContrast
Ratio (ASCR) 50000:1
ViewingAngle
(CR≥10) 90°(H)/60°(V)
Color Saturation
(NTSC) 72%
Display Colors 16.7 M
Response Time 5ms (On/Off)
Stereo Speaker 2Wx2
RMS
2Wx2
RMS -- 2Wx2 RMS --
HDMI input Yes -- -- -- --
DVI input Yes Yes Yes -- --
D-Sub input Yes Yes Yes Yes Yes
Audio Line-in Yes Yes -- Yes --
Earphone Output Yes -- -- -- --
SPIDIF output Yes -- -- -- --
VoltageRating AC 100-240V
Power Consumption ONMode:<35W,StandbyMode:<0.2W,OffMode:<0.2W
Tilt -5°~+20°
VESAWallMounting 100x100mm
Phys. Dimension
(WxHxD) 568.9x409.1x220mm
BoxDimension
(WxHxD) 630x404x190mm
*Specicationsaresubjecttochangewithoutnotice.
