1-1
ASUS LCD Monitor MX259H Series
1.1 Welcome!
Thank you for purchasing the ASUS®LCD monitor!
The latest widescreen LCD monitor from ASUS provides a crisper,
broader, and brighter display, plus a host of features that enhance your
viewing experience.
With these features, you can enjoy the convenience and delightful visual
experience that the monitor brings to you!
1.2 Package contents
Check your package for the following items:
LCD monitor
Monitor Base
Quick Start Guide
Warranty Card
1x Adapter
1x Power Cord
1x Audio cable (optional)
1x VGA cable
1x HDMI-DVI cable (optional)
1x HDMI cable (optional)
•If any of the above items is damaged or missing, contact your retailer
immediately.
CAUTION

1-2 Chapter 1: Product Introduction
1.3 Assembling the monitor base

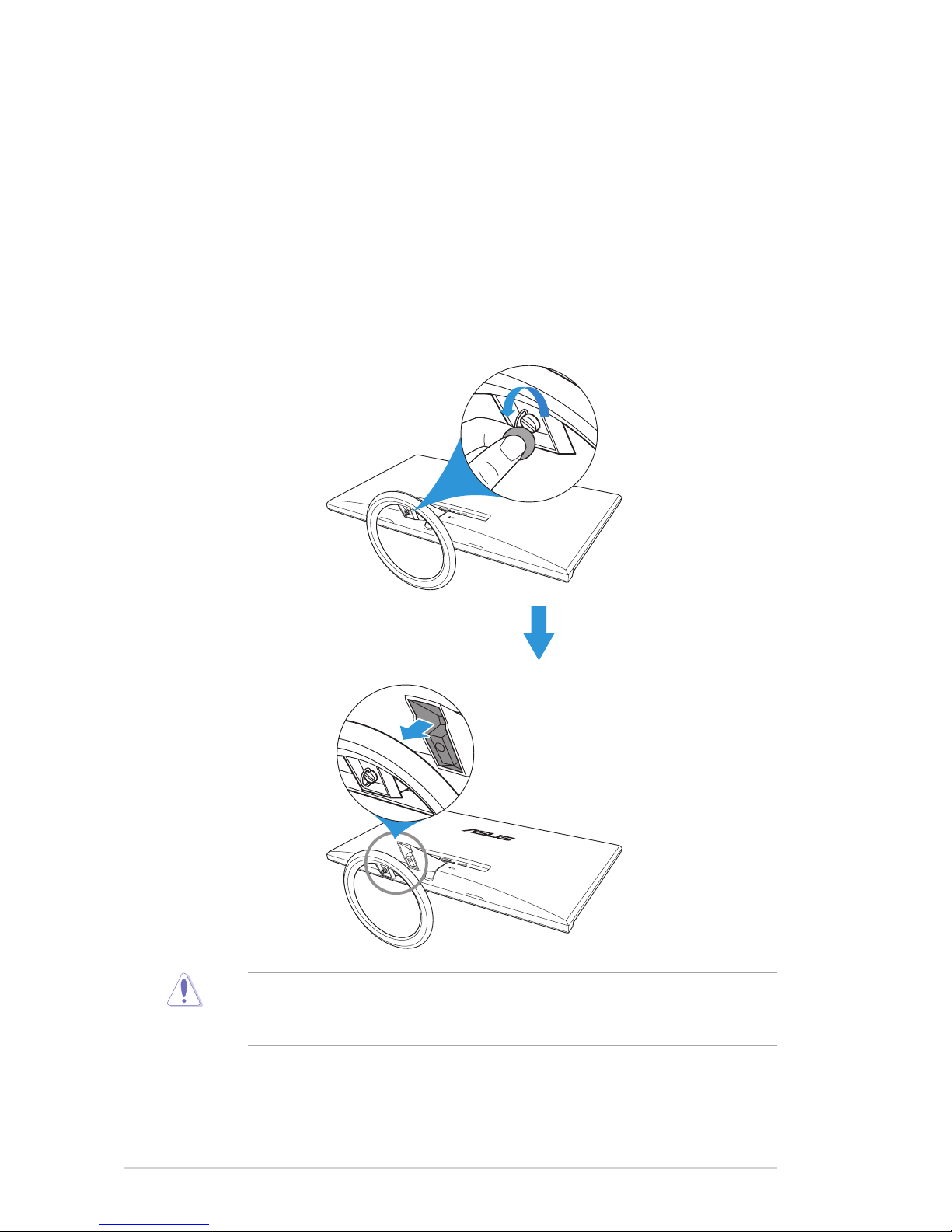

1. Have the front of the monitor face down on a table.
2. Attachthebasetothearmandxwiththescrewtojointhemtightly.
Youcaneasilytightenthescrewbyngers.
3. Adjust the monitor to the angle that is most comfortable for you.
•We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.

1-3
ASUS LCD Monitor MX259H Series
1.4 Connect cables

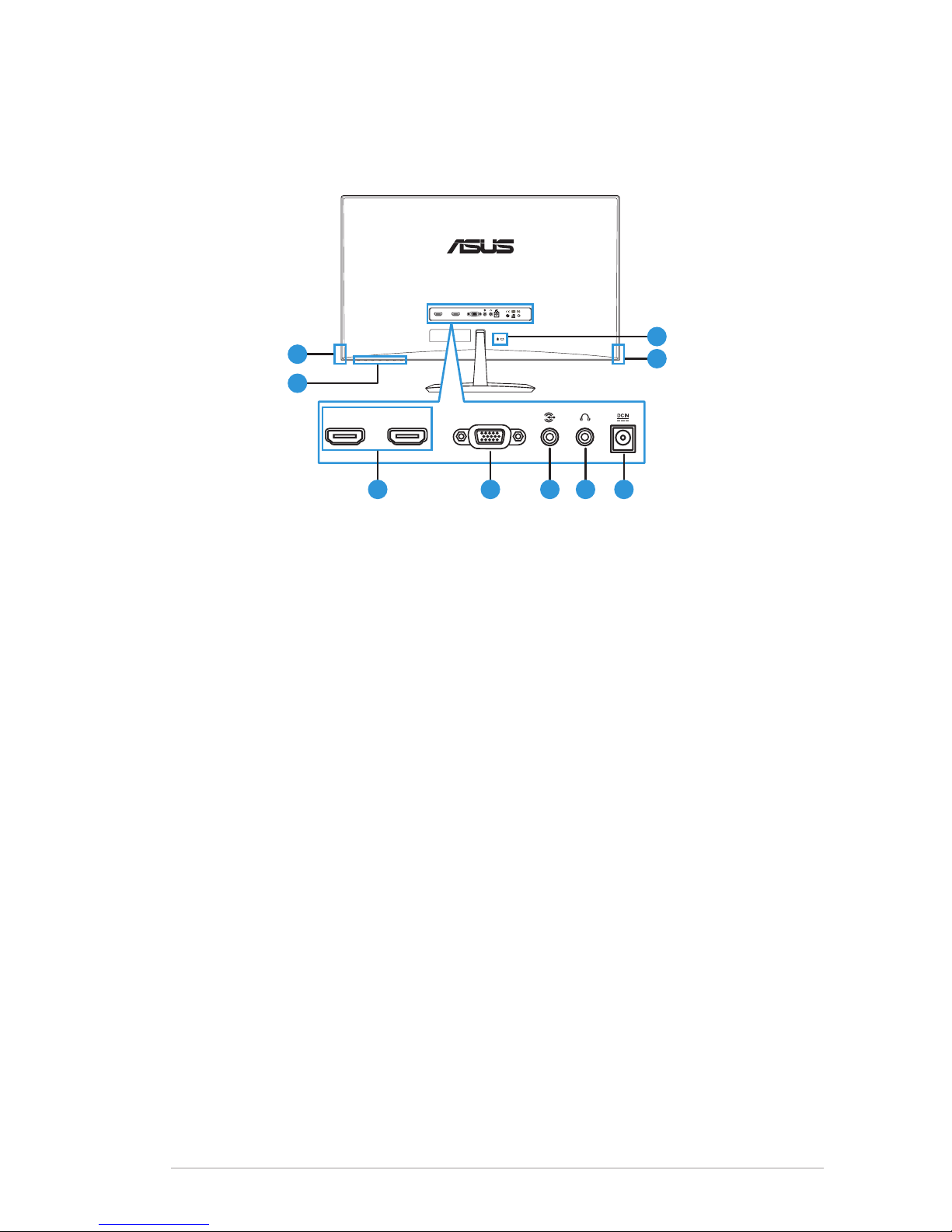

1.4.1 Rear of the LCD monitor
VGA
HDMI-2HDMI-1
R31018
8
1
2
VGA
HDMI-2HDMI-1
1
3 5 6 74
1. Speaker
2. Controls button
3. HDMI ports
4. VGA port
5. Audio-IN port
6. Earphone jack
7. DC-IN port
8. Kensington Lock

1-4 Chapter 1: Product Introduction
1.5 Monitor introduction

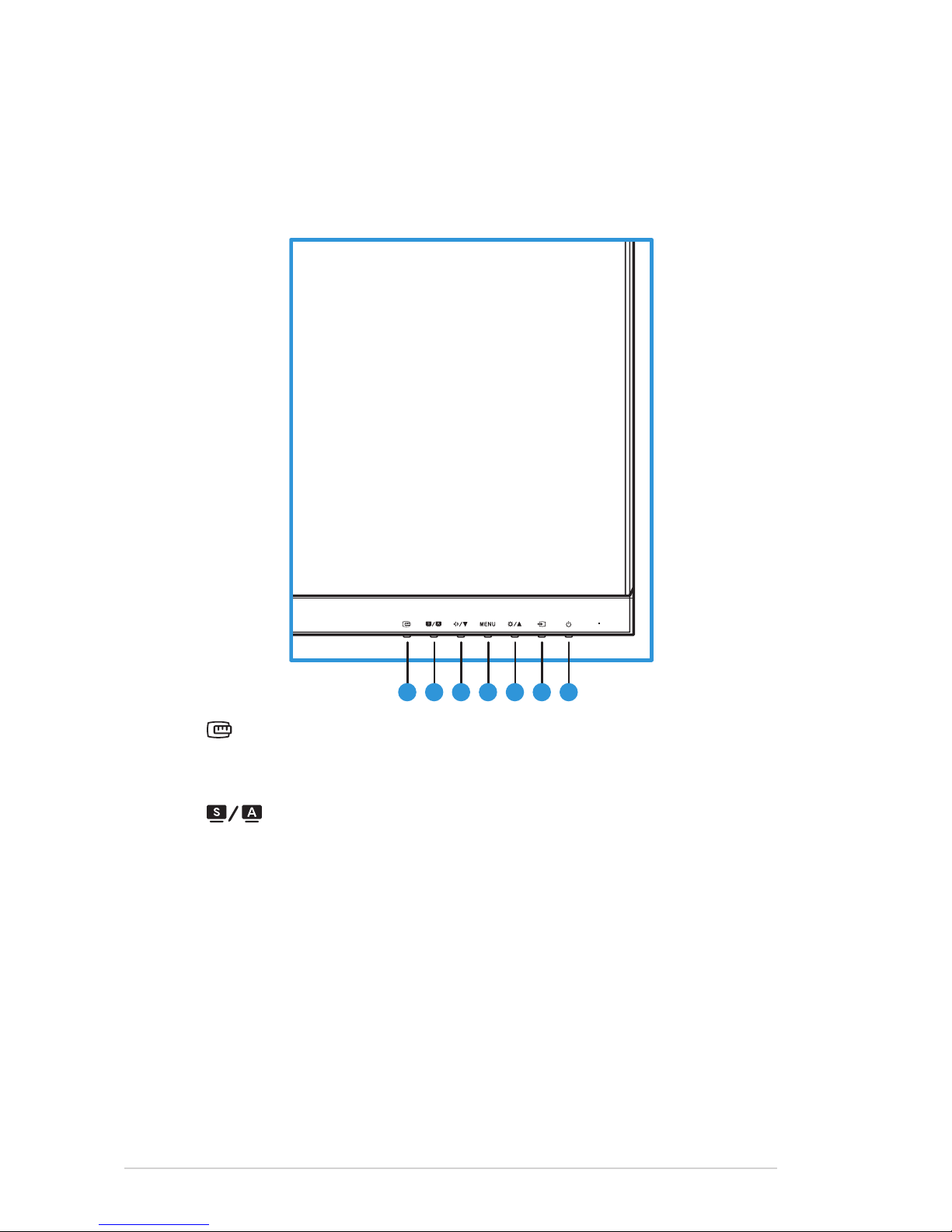

1.5.1 UsingtheControlsbutton
Use the controls button on the back of the monitor to adjust the image
settings.
21 3 456 7
1. Button:
• Activates the QuickFit function. (Please refer to 1.5.2 QuickFit
Function).
2. Button:
• Press this hotkey to switch from eight video preset modes
(Scenery Mode, Standard Mode, Theater Mode, Game
Mode, Night View Mode, sRGB Mode, Reading Mode,
and Darkroom Mode) with SPLENDID™ Video Intelligence
Technology.
• Exit the OSD menu or go back to the previous menu as the OSD
menu is active.
• Automatically adjusts the image to its optimized position, clock,
and phase by pressing this button for 2~4 seconds (for VGA
mode only).

1-5
ASUS LCD Monitor MX259H Series
3. Button:
• Decreases values or moves your selection left/down.
• Volume hotkey
4. MENU Button:
• Turns on the OSD menu.
• Enacts the selected OSD menu item.
5. Button:
• Increases values or moves your selection right/up.
• Brightness hotkey
6. Input Select Button:
• Selects an available input source.
•Press (Input Select button) to display VGA/HDMI signals after you
connect a VGA or HDMI cable with the monitor.
7. Power Button/Power Indicator:
• Press this button to turn the monitor on/off.
• The color definition of the power indicator is as the table below.
Status Description
White ON
Orange Standby / Power saving
OFF OFF

1-6 Chapter 1: Product Introduction
1.5.2 QuickFit Function
The QuickFit function contains three patterns: (1) Grid (2) Paper size
(3)Photo size.
QuickFit has three patterns:
1. Grid pattern: Facilitates designers and users to organize content and
layout on one page and achieve a consistent look and feel.
Alignment Grid
2. Paper size: Provides users to view their documents in real size on the
screen.
A4 Letter
A4 Letter
EXIT
3. Photo size: Provides photographers and other users to accurately
view and edit their photos in real size on the screen.
3x5
2x2
4x6
8x10 5x7

2-1 Chapter 2: Setup
2.1 Detaching the base
To detach the base, perform the following:
1. Disconnect power and signal cables. Carefully put the front of the
monitor face down on a clean table.
2. Useyourngerstoloosenthescrewlocatedatthebottomofthe
base, and remove the base from the stand.
3. Or, you may directly use a screwdriver to remove the screw that
secures the base to the stand, and detach the base from the stand.
• We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
• Hold the base while removing the screw.

3-1 Chapter 3: General Instruction
3.1 OSD (On-Screen Display) menu
3.1.1 Howtorecongure
MX259
1/2
Splendid
Color
Input Select
System Setup
Scenery Mode
Standard Mode
Theater Mode
Game Mode
Night View Mode
sRGB
Move Menu Exit
Blue Light Filter
1. Press the MENU button to activate the OSD menu.
2. Press or to navigate through the functions. Highlight
and activate the desired function by pressing the MENU button. If
the function selected has a sub-menu, press or again to
navigate through the sub-menu functions. Highlight and activate the
desired sub-menu function by pressing the MENU button.
3. Press or to change the settings of the selected function.
4. To exit the OSD menu, press the button. Repeat step 2 and
step 3 to adjust any other function.

3-2
ASUS LCD Monitor MX259H Series
3.1.2 OSD Function Introduction
1. Splendid
This function contains eight sub-functions that you can select for
your preference. Each mode has the Reset selection, allowing you to
maintain your setting or return to the preset mode.
MX259
1/2
Splendid
Color
Input Select
System Setup
Scenery Mode
Standard Mode
Theater Mode
Game Mode
Night View Mode
sRGB
Move Menu Exit
Blue Light Filter
(Page 1/2)
MX259
2/2
Splendid Reading Mode
Darkroom Mode
Move Menu Exit
Color
Input Select
System Setup
Blue Light Filter
(Page 2/2)
• Scenery Mode: This is the best choice for scenery photo display
with SPLENDID™ Video Enhancement.
• Standard Mode: This is the best choice for document editing
with SPLENDID™ Video Enhancement.
• Theater Mode: This is the best choice for movies with
SPLENDID™ Video Enhancement.
• Game Mode: This is the best choice for games playing with
SPLENDID™ Video Enhancement.
• Night View Mode: This is the best choice for dark-scene games
or movies with SPLENDID™ Video Enhancement.

3-3 Chapter 3: General Instruction
• sRGB Mode: This is the best choice for viewing photos and
graphics from PCs.
• Reading Mode: This is the best choice for book reading with
SPLENDID™ Video Intelligence Technology.
• Darkroom Mode: This is the best choice for a weak ambient
light environmen with SPLENDID™ Video Intelligence
Technology.
• In the Standard Mode, the Saturation, Skin Tone, Sharpness, and ASCR
functionsarenotuser-congurable.
• In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness,
Brightness,ContrastandASCRfunctionsarenotuser-congurable.
• In the Reading Mode, the Saturation, SkinTone, ASCR, contrast, and Color
Tempfunctionsarenotuser-congurable.

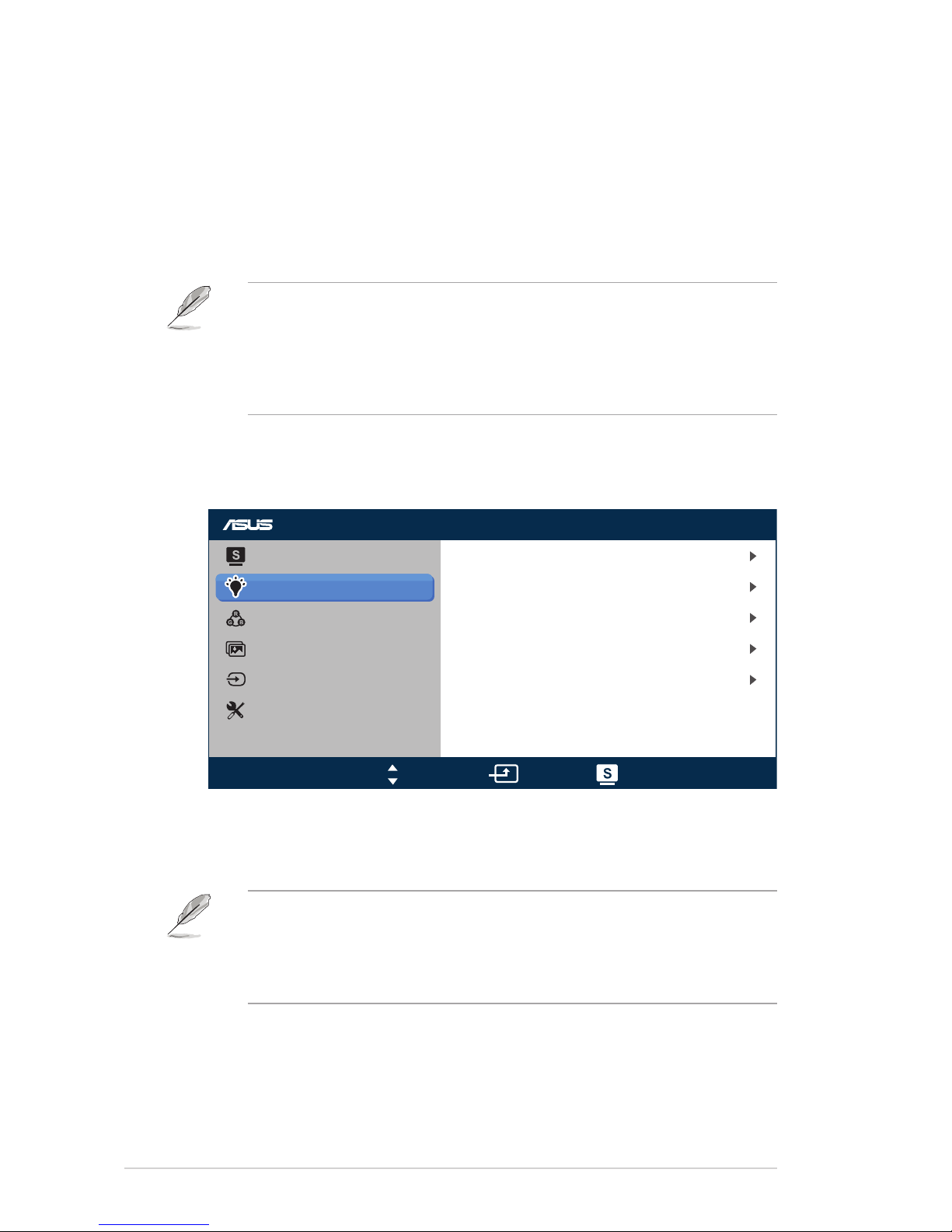

2. Blue Light Filter
Reduce the energy level of blue light emitted from LED backlight.
MX259
Splendid
Color
Input Select
System Setup
Level 0
Level 1
Level 2
Level 3
Level 4
Move Menu Exit
Blue Light Filter
• Level 0: No change.
• Level 1~4: The higher the level, the more blue light will be
reduced.
• When Blue Light Filter is activated, the default settings of Standard Mode
will be automatically imported.
• BetweenLevel1toLevel3,theBrightnessfunctionisuser-congurable.
• Level 4 is optimized setting. It is compliance with TUV Low Blue Light
Certication.TheBrightnessfunctionisnotuser-congurable.

3-4
ASUS LCD Monitor MX259H Series

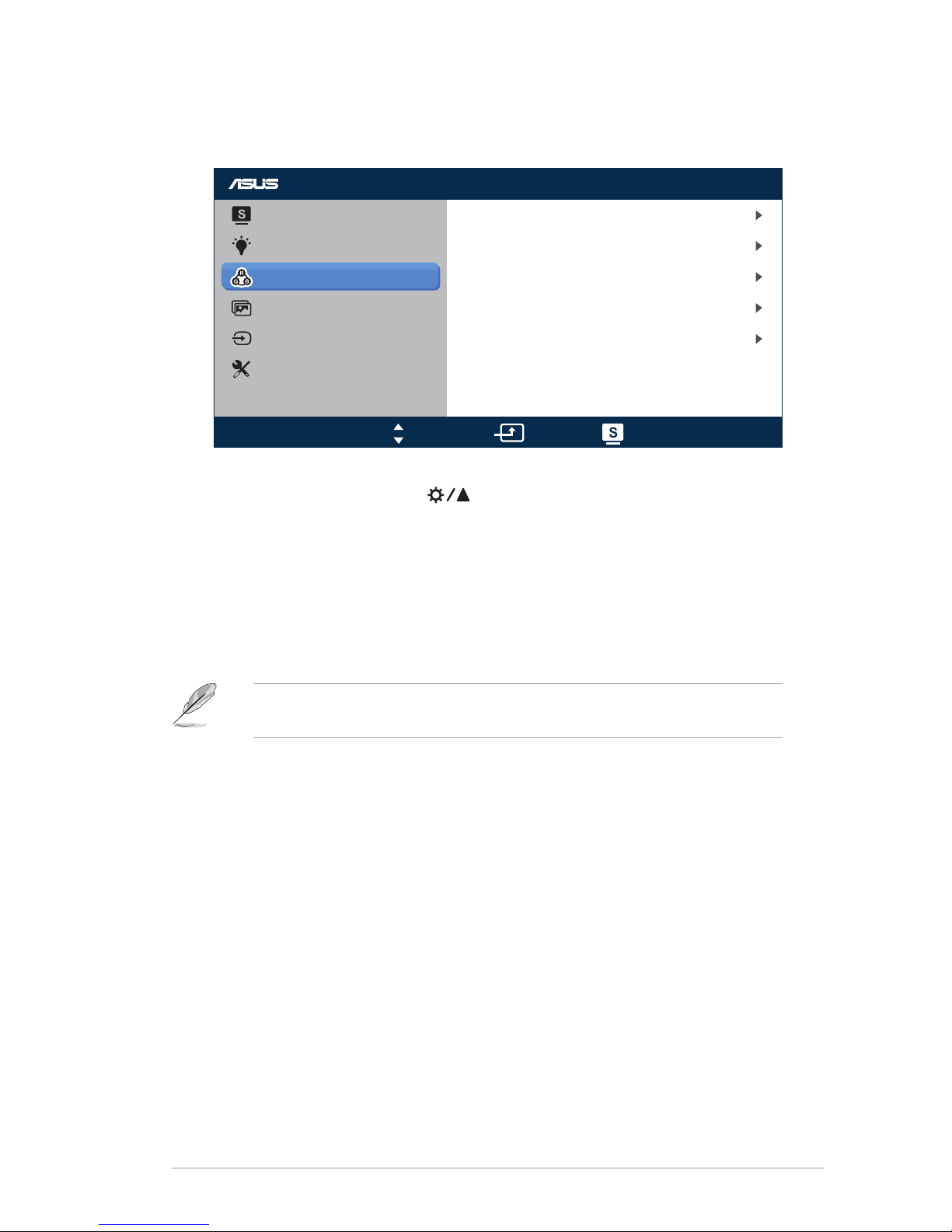

3. Color
Select the image color you like from this function.
MX259
Splendid
Color
Input Select
System Setup
Brightness
Contrast
Saturation
Color Temp.
100
80
User Mode
50
NaturalSkin Tone
Move Menu Exit
Blue Light Filter
• Brightness: Adjust the brightness level. The adjusting range
is from 0 to 100. The button is a hotkey to activate this
function.
• Contrast: Adjust the contrast level. The adjusting range is from
0 to 100.
• Saturation: Adjust the saturation level. The adjusting range is
from 0 to 100.
• Color Temp.: Select the desired color temperature. Available
options: Cool, Normal, Warm, and UserMode.
• In the User Mode, colors of R (Red), G (Green), and B (Blue) are user-
congurable;theadjustingrangeisfrom0~100.
• Skin Tone: Select the desired skin tone. Available options:
Reddish, Natural, and Yellowish.

3-5 Chapter 3: General Instruction
4. Image
You can adjust Sharpness, Trace Free, Aspect Control, ASCR, Position
(VGA only), and Focus (VGA only) from this menu.
MX259
Splendid
Color
Input Select
Move Menu Exit
System Setup
Sharpness 60
60
Full
OFF
Trace Free
Aspect Control
ASCR
Position
Focus
Blue Light Filter
• Sharpness: Adjust the picture sharpness. The adjusting range
is from 0 to 100.
• Trace Free: Use this function to speed up the response time by
Over Drive technology. The adjusting range is from lower 0 to
faster 100.
• Aspect Control: adjust the aspect ratio to full, 4:3, 1:1 or
OverScan.
• 4:3 is only available when input source is in 4:3 format.
• OverScan is only available for the HDMI input source.
• ASCR: Select ON or OFF to enable or disable dynamic contrast
ratio function.
• Position: Adjust the horizontal postition (H-Position) and the
vertical position (V-Position) of the image. The adjusting range is
from 0 to 100 (only available for VGA input).
• Focus: Reduce the Horizonal-line noise and Vertical-line noise
of the image by adjusting (Phase) and (Clock) separately. The
adjusting range is from 0 to 100.
• Phase adjusts the phase of the pixel clock signal. With a wrong phase
adjustment, the screen shows horizontal disturbances.
• Clock (pixel frequency) controls the number of pixels scanned by one
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the image is not proportional.

3-6
ASUS LCD Monitor MX259H Series
5. Input Select
Select the input source.
MX259
Splendid
Color
Input Select
System Setup
VGA
HDMI1
HDMI2
Move Menu Exit
Blue Light Filter
6. System Setup
Adjustthesystemconguration.
MX259
Splendid
Color
Input Select
System Setup
Language
Information
Splendid Demo Mode OFF
70
OFF
English
1/2
Volume
ECO Mode
OSD Setup
Move Menu Exit
Blue Light Filter
(Page 1/2)
