Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter1:Productintroduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter2:BIOSinformation
This chapter discusses changing system settings through the BIOS Setup menus.
Detailed descriptions fo the BIOS parameters are also provided.
iv

Where to find more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
completing a task.
CAUTION: Information to prevent damage to the components when
completing a task
IMPORTANT: Instructions that you MUST follow to complete a
task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text Indicates a menu or an item to select.
Italics Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
v

A78M-E specifications summary
(continued on the next page)
Package contents
Check your motherboard package for the following items.
Motherboard ASUS A78M-E motherboard
Cables 2 x Serial ATA 6.0 Gb/s cables
Accessories 1 x I/O Shield
Application DVD Support DVD
Documentation User Guide
If any of the above items is damaged or missing, contact your retailer.
APU AMD®FM2+ socket for AMD®A-Series/Athlon™ series processors
Supports CPU up to 4 cores
AMD®Turbo Core Technology 3.0 support
• TheAMD®Turbo Core Technology 3.0 support depends on the APU types.
• Refertowww.asus.com for the AMD®APU support list.
Chipset AMD®A78 FCH
Memory 2 x 240-pin DIMM slots support maximum 32GB unbuffered non-ECC
DDR3 2400(O.C.)/2133/1866/1600/1333 MHz memory modules
Dual-channel memory architecture
Supports AMD Memory Prole (AMP) memory
• HyperDIMMsupportissubjecttothephysicalcharacteristicsofindivudal
APUs.
• Themaximum32GBmemorycapacitycanbesupportedwith16GBorabove
DIMMs. ASUS will update the memory QVL once the DIMMs are available in the
market.
• Refertowww.asus.comforthelatestMemoryQVL(QualifiedVendorsList).
• Whenyouinstallatotalmemoryof4GBcapacityormore,Windows®32-bit
operation system may only recognize less than 3GB. We recommend a
maximum of 3GB system memory if you are using a Windows®32-bit operating
system.
Graphics Integrated AMD Radeon™ R/HD 8000/ HD 7000 Series Graphics in
A-Series APU
Multi-VGA output support: HDMI, DVI, D-Sub ports
- Supports HDMI with max. resolution of
4096x2160@24Hz/1920x1200@60Hz
- Supports Dual-link DVI with max. resolution of 2560x1600@60Hz
- Supports D-Sub with max. resolution of 1920x1600@60Hz
- Maximum shared memory of 2G
- Supports AMD®Dual Graphics technology
• Refertohttp://www.amd.com/us/products/technologies/dual-graphics/Pages/
dual-graphics.aspx#3 for the discrete GPUs that support Dual Graphics
technology.
• OnlyFM2+APUcansupportupto4096x2160resolutiondisplayviaHDMIport.
Expansion slots 1 x PCI Express 3.0/2.0 x16 slot*
1 x PCI Express 2.0 x1 slot
1 x PCI slot
*OnlyFM2+processorscansupportPCIe3.0.
vi

A78M-E specifications summary
(continued on the next page)
Storage AMD®A78 FCH:
- 6 x Serial ATA 6 Gb/s connectors with RAID 0, RAID 1, RAID 10 and
JBOD support
LAN Realtek®8111GR PCIe Gigabit LAN controller
Audio Realtek® ALC887-VD 7.1-Channel High Denition Audio CODEC
• UseachassiswithHDaudiomoduleinthefrontpaneltosupporta
7.1-channel audio output.
USB AMD®A78 FCH:
- 4 x USB 3.0 ports*(2 ports at the back panel [blue], 2 ports at mid-
board)
- 6 x USB 2.0 ports (2 ports at the back panel, 4 ports at mid-board)
* Supports ASUS USB 3.0 Boost
ASUS unique features ASUS 5X Protection
- ASUS motherboards safeguard your PC with 5X Protection:
DIGI+VRM, DRAM Fuse, ESD Guards, High-Quality 5K-Hour Solid
Capacitors, and Stainless Steel Back I/O to ensure the best quality,
reliability, and durability.
ASUSDIGI+VRM
- ASUS DIGI+ VRM: Digital Power Design for the APU
- ASUS 3+2 Phase Power Design
ASUS DRAM Fuse
- Enhanced DRAM overcurrent protection and short circui damage
prevention
ASUS ESD Guard
- Strong ESD Protection for extended component lifespan
ASUS High-Quality 5K-Hour Solid Capacitors
- 2.5x Long Lifespan with excellent durability
ASUS Stainless Steel Back I/O
- 3x More durable corrosion-resistant coating
ASUS Exclusive Features
- ASUS EPU
- ASUS USB 3.0 Boost
- ASUS AI Charger
- ASUS Disk Unlocker
- ASUS AI Suite 3
- ASUS Anti Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution
- ASUS Fan Xpert
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS My Logo 2
vii

A78M-E specifications summary
Rear panel I/O ports 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x HDMI port
1 x DVI-D port
1 x D-Sub output port
1 x LAN (RJ-45) port
2 x USB 3.0/2.0 ports (blue)
2 x USB 2.0/1.1 ports
3-jack 7.1-channel audio I/O ports
Internal connectors 1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB ports
2 x USB 2.0/1.1 connectors support additional 4 USB ports
6 x SATA 6.0 Gb/s connectors
1 x System panel connector
1 x Internal speaker connector
1 x 4-pin CPU Fan connector
1 x 4-pin Chassis Fan connector
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x 24-pin EATX power connector
1 x 4-pin ATX 12V power connector
1 x COM connector
1 x TPM connector
1 x Clear CMOS jumper
BIOS features 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS
2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree
BIOS 3, My Favorites, Quick Note, Last Modied Log, F12 PrintScreen
function, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence
Detect) memory information
Support DVD Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)
OS support Windows®8.1/ 8.1 64-bit
Windows®8/ 8 64-bit
Windows®7/ 7 64-bit
Windows®XP
Form factor mATX form factor: 8.9 in. x 7.4 in. (22.6 cm x 18.8 cm)
Specications are subject to change without notice.
viii

ASUS A78M-E 1-1
Product introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
to static electricity.
• HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.
• Wheneveryouuninstallanycomponent,placeitonagroundedantistaticpadorinthe
bag that came with the component.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switched off or the power cord is detached from the power supply. Failure to do so
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the system
isON,insleepmode,orinsoft-offmode.Thisisareminderthatyoushouldshutdown
thesystemandunplugthepowercablebeforeremovingorplugginginanymotherboard
component. The illustration below shows the location of the onboard LED.
A78M-E
A78M-E Onboard LED
SB_PWR
ON
Standby Power Powered Off
OFF

1-2 Chapter 1: Product introduction
A78M-E
Place this side
towards the rear
of the chassis
1.2 Motherboard overview
Beforeyouinstallthemotherboard,studythecongurationofyourchassistoensurethatthe
motherboardts.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage to motherboard components.
1.2.1 Placement direction
Wheninstallingthemotherboard,placeitintothechassisinthecorrectorientation.Theedge
with external ports goes to the rear part of the chassis as indicated in the image.
1.2.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Donotovertightenthescrews!Doingsocandamagethemotherboard.

ASUS A78M-E 1-3
1.2.3 Motherboard layout
SB_PWR
9
A78M-E
PCIEX16
PCIEX1_1
PCI1 F_PANEL
SPEAKER
COM CLRTC
USB56 USB34
AAFP
SPDIF_OUT
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
BATTERY
Super
I/O
ALC
887
8111
GR
64Mb
BIOS
22.6cm(8.9in)
AMD®
A78
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA6G_2
SATA6G_1
SATA6G_3
SATA6G_4 SATA6G_5 SATA6G_6
AUDIO
KBMS
HDMI
LAN_USB12
USB3_12
18.8cm(7.4in)
DVI_VGA
SOCKET FM2+
DIGI
+VRM
TPM
USB3_34
42 31 51
7
2
6
8
1011121315 14 7

1-4 Chapter 1: Product introduction
1.2.4 Layout contents
1.3 Accelerated Processing Unit (APU)
ThismotherboardcomeswithaFM2+socketdesignedforAMD®A-seriesandAthlon™
series processors.
EnsurethatyouuseanAPUdesignedfortheFM2+socket.TheAPUtsinonlyone
correctorientation.DONOTforcetheAPUintothesockettopreventbendingthepinsand
damagingtheAPU!
A78M-E
A78M-E CPU socket FM2+
Connectors/Jumpers/Slots/LED Page
1. CPUandchassisfanconnectors(4-pinCPU_FAN,and4-pinCHA_FAN) 1-15
2. ATXpowerconnectors(24-pinEATXPWR,4-pinATX12V) 1-16
3. TPMconnector(20-1pinTPM) 1-15
4. AMDFM2+socket 1-4
5. DDR3DIMMslots 1-8
6. Speakerconnector(4-pinSPEAKER) 1-18
7. SATA6.0Gb/sconnectors(7-pinSATA6G_1~6) 1-17
8. Systempanelconnector(10-1pinF_PANEL) 1-18
9. StandbypowerLED(SB_PWR) 1-1
10. USB2.0connectors(10-1pinUSB34,USB56) 1-20
11. USB3.0connector(20-1pinUSB3_34) 1-20
12. ClearRTCRAM(2-pinCLRTC) 1-12
13. Serialportconnector(10-1pinCOM) 1-19
14. Digitalaudioconnector(4-1pinSPDIF_OUT) 1-17
15. Frontpanelaudioconnector(10-1pinAAFP) 1-19

ASUS A78M-E 1-5
1.3.1 APU installation
1
43
2

1-6 Chapter 1: Product introduction
12
53 4
1.3.2 APU heatsink and fan assembly installation
ApplytheThermalInterfaceMaterial
totheAPUheatsinkandAPU
before you install the heatsink and
fan if necessary.
To install the APU heatsink and fan assembly

ASUS A78M-E 1-7
To uninstall the APU heatsink and fan assembly
5
3
1
4
2

1-8 Chapter 1: Product introduction
1.4.2 Memory configurations
Youmayinstall1GB,2GB,4GB,and8GBunbufferednon-ECCDDR3DIMMsintotheDIMM
sockets.
• YoumayinstallvaryingmemorysizesinChannelAandChannelB.Thesystem
mapsthetotalsizeofthelower-sizedchannelforthedual-channelconguration.Any
excessmemoryfromthehigher-sizedchannelisthenmappedforsingle-channel
operation.
• AlwaysinstallDIMMswiththesameCASlatency.Foroptimalcompatibility,we
recommendthatyouinstallmemorymodulesofthesameversionordatecode(D/C)
fromthesamevendor.Checkwiththeretailertogetthecorrectmemorymodules.
• Duetothememoryaddresslimitationon32-bitWindows®OS,whenyouinstall4GB
ormorememoryonthemotherboard,theactualusablememoryfortheOScanbe
about3GBorless.Foreffectiveuseofmemory,werecommendthatyoudoanyofthe
following:
- Useamaximumof3GBsystemmemoryifyouareusinga32-bitWindows®OS.
 - Installa64-bitWindows®OSifyouwanttoinstall4GBormoreonthe
motherboard.
• ThismotherboarddoesnotsupportDIMMsmadeupof512Mb(64MB)chipsorless.
1.4 System memory
1.4.1 Overview
ThismotherboardcomeswithtwoDoubleDataRate3(DDR3)DualInlineMemoryModules
(DIMM)sockets.
ADDR3modulehasthesamephysicaldimensionsasaDDR2DIMMbutisnotched
differentlytopreventinstallationonaDDR2DIMMsocket.DDR3modulesaredevelopedfor
better performance with less power consumption.
ThegureillustratesthelocationoftheDDR3DIMMsockets:
Channel Sockets
ChannelA DIMM_A1
ChannelB DIMM_B1

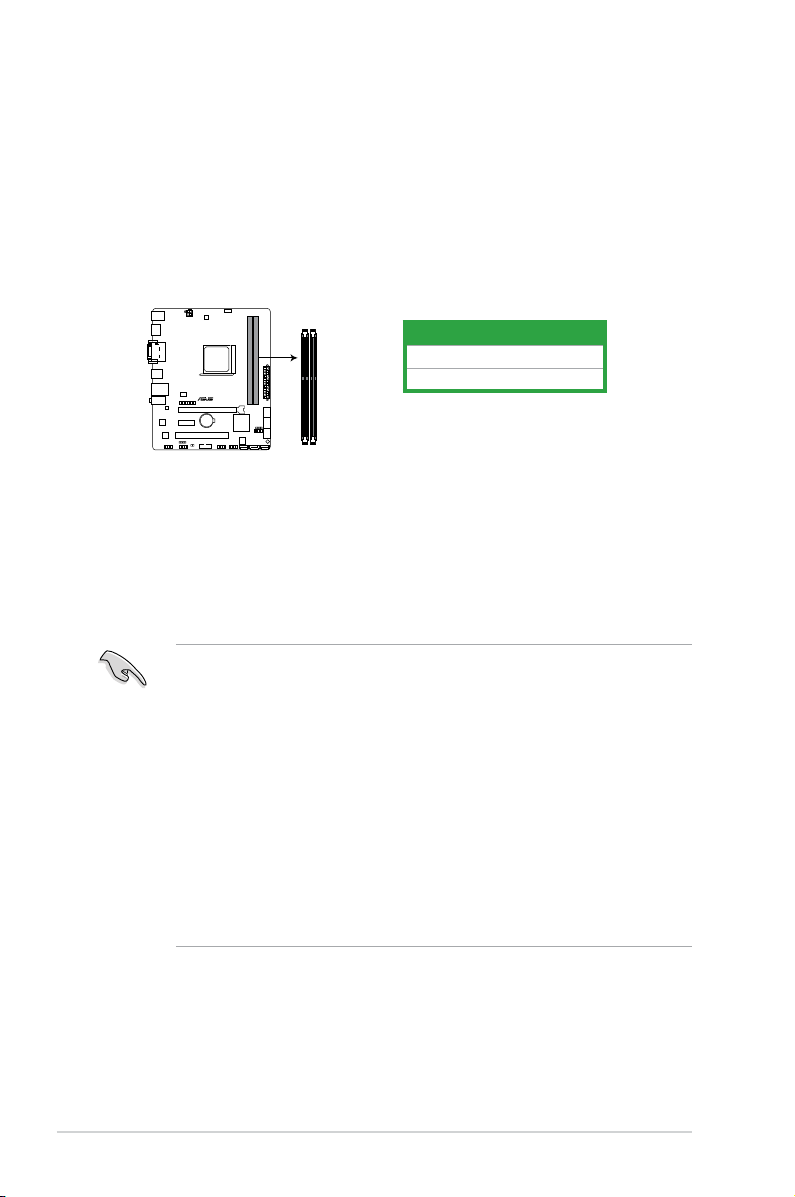

A78M-E
A78M-E 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_B1

ASUS A78M-E 1-9
• ThedefaultmemoryoperationfrequencyisdependentonitsSerialPresenceDetect
(SPD),whichisthestandardwayofaccessinginformationfromamemorymodule.
Underthedefaultstate,somememorymodulesforoverclockingmayoperateata
lowerfrequencythanthevendor-markedvalue.Tooperateatthevendor-marked
oratahigherfrequency,refertosection2.5 Ai Tweaker menu for manual memory
frequencyadjustment.
• Forsystemstability,useamoreefcientmemorycoolingsystemtosupportafull
memoryload(2DIMMs)oroverclockingcondition.
• VisittheASUSwebsiteat:www.asus.comforthelatestQVL.
1.4.3 Installing a DIMM
1
2
3

1-10 Chapter 1: Product introduction
1.5 Expansion slots
Inthefuture,youmayneedtoinstallexpansioncards.Thefollowingsub-sectionsdescribe
the slots and the expansion cards that they support.
Unplugthepowercordbeforeaddingorremovingexpansioncards.Failuretodosomay
cause you physical injury and damage motherboard components.
1.5.1 Installing an expansion card
To install an expansion card:
1. Beforeinstallingtheexpansioncard,readthedocumentationthatcamewithitand
make the necessary hardware settings for the card.
2. Removethesystemunitcover(ifyourmotherboardisalreadyinstalledinachassis).
3. Removethebracketoppositetheslotthatyouintendtouse.Keepthescrewforlater
use.
4. Alignthecardconnectorwiththeslotandpressrmlyuntilthecardiscompletely
seated on the slot.
5. Securethecardtothechassiswiththescrewyouremovedearlier.
6. Replacethesystemcover.
1.5.2 Configuring an expansion card
Afterinstallingtheexpansioncard,congureitbyadjustingthesoftwaresettings.
1. TurnonthesystemandchangethenecessaryBIOSsettings,ifany.SeeChapter2for
informationonBIOSsetup.
2. AssignanIRQtothecard.
3. Installthesoftwaredriversfortheexpansioncard.
WhenusingPCIcardsonsharedslots,ensurethatthedriverssupport“ShareIRQ”orthat
thecardsdonotneedIRQassignments.Otherwise,conictswillarisebetweenthetwoPCI
groups,makingthesystemunstableandthecardinoperable.
To remove a DIMM
B
A
A

ASUS A78M-E 1-11
1.5.3 PCI slot
ThePCIslotsupportscardssuchasaLANcard,SCSIcard,USBcard,andothercardsthat
complywithPCIspecications.
1.5.4 PCI Express 2.0 x1 slot
ThismotherboardsupportsPCIExpressx1networkcards,SCSIcards,andothercardsthat
complywiththePCIExpressspecications.
1.5.5 PCI Express x16 slot
ThismotherboardsupportsPCIExpressx16networkcards,SCSIcards,andothercardsthat
complywiththePCIExpressspecications.
IRQ assignments for this motherboard
A B C D E F G H
PCIEx16_1 – – shared – – – – –
PCIEx1_1 shared – – – – – – –
PCI1slot – – – – shared – – –
RealtekLANcontroller – – shared – – – – –
HDaudio shared – – – – – – –
SATAcontroller – – – shared – – – –
OnChipXHCIcontroller1 – – shared – – – – –
OnChipXHCIcontroller2 – shared – – – – – –
OnChipUSBEHCI1/2/3 – shared – – – – – –
OnChipUSBOHCI – – shared – – – – –

1-12 Chapter 1: Product introduction
1.6 Jumpers
Clear RTC RAM (2-pin CLRTC)
ThisjumperallowsyoutocleartheRealTimeClock(RTC)RAMinCMOS.Youcan
cleartheCMOSmemoryofdate,time,andsystemsetupparametersbyerasingthe
CMOSRTCRAMdata.TheonboardbuttoncellbatterypowerstheRAMdatain
CMOS,whichincludesystemsetupinformationsuchassystempasswords.

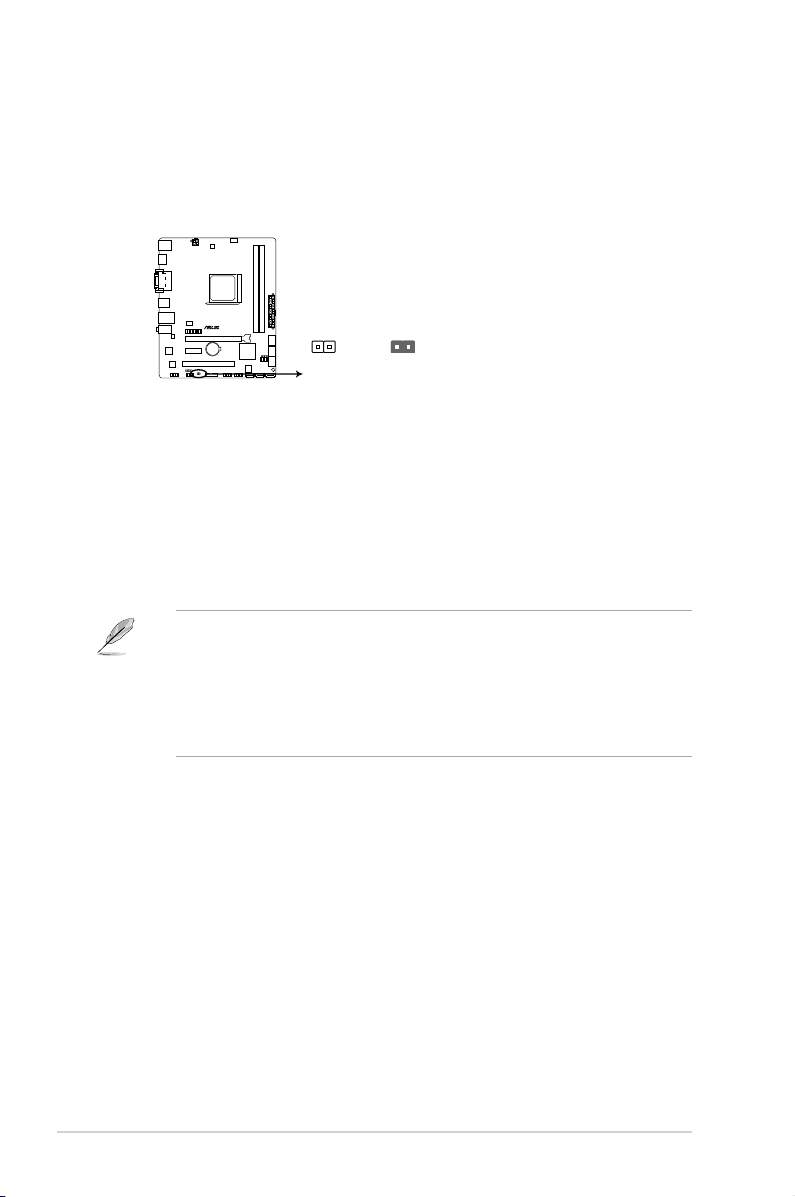

A78M-E
A78M-E Clear RTC RAM
1 2 1 2
Normal
(Open)
Clear CMOS
(Short)
CLRTC
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Useametalobjectsuchasascrewdrivertoshortthetwopins.
3. Plug the power cord and turn ON the computer.
4. Holddownthe<Del>keyduringthebootprocessandenterBIOSsetuptore-
enter data.
• Ifthestepsabovedonothelp,removetheonboardbatteryandshortthetwopins
againtocleartheCMOSRTCRAMdata.AfterclearingtheCMOS,reinstallthe
battery.
• YoudonotneedtocleartheRTCwhenthesystemhangsduetooverclocking.For
systemfailureduetooverclocking,usetheCPUParameterRecall(C.P.R.)feature.
Shutdownandrebootthesystem,thentheBIOSautomaticallyresetsparameter
settingstodefaultvalues.
