Asus AAEON UP Xtreme 7100 Edge User manual

Last Updated: November 15, 2023
UP Xtreme 7100 Edge
Maker Board System
UPX-EDGE-ASL01
User’s Manual 1st Ed

Preface II
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
Copyright Notice
This document is copyrighted, 2023. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at
any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design without notice to its
users.

Preface III
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
Acknowledgement
All other products’ name or trademarks are properties of their respective owners.
⚫Microsoft®, Windows®, Windows® 10 IoT Enterprise, and Windows® IoT Core
are registered trademarks of Microsoft Corp.
⚫Intel® and Atom® are registered trademarks of Intel Corporation
⚫Core™ is a trademark of Intel Corporation
⚫Yocto Project® is a trademark of The Linux Foundation.
⚫Linux® is a registered trademark of Linus Torvalds in the U.S. and other
countries.
⚫Ubuntu and Canonical are registered trademarks of Canonical Ltd.
All other product names or trademarks are properties of their respective owners.

Preface IV
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
Packing List
Before setting up your product, please make sure the following items have been
shipped:
Item
Quantity
⚫UP Xtreme 7100 Edge (UPX-EDGE-ASL01)
1
⚫DC in Phoenix Block Connector
1
⚫RS-232/422/485 Block
1
⚫DIO/GPIO Phoenix Connector
1
⚫CAN Phoenix Connector
2
If any of these items are missing or damaged, please contact your distributor or sales
representative immediately.

Preface V
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
About this Document
This User’s Manual contains all the essential information, such as detailed descriptions
and explanations on the product’s hardware and software features (if any), its
specifications, dimensions, jumper/connector settings/definitions, and driver installation
instructions (if any), to facilitate users in setting up their product.
Users may refer to the product page at AAEON.com for the latest version of this
document.

Preface VI
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this
manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the device.
3. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
4. Always completely disconnect the power before working on the system’s
hardware.
5. No connections should be made when the system is powered as a sudden rush
of power may damage sensitive electronic components.
6. If the device is not to be used for a long time, disconnect it from the power
supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray detergents.
9. Make sure the device is installed near a power outlet and is easily accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent falls
12. Do not cover the openings on the device to ensure optimal heat dissipation.
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is running
15. Never pour any liquid into the openings. This could cause fire or electric shock.
16. As most electronic components are sensitive to static electrical charge, be sure to
ground yourself to prevent static charge when installing the internal components.
Use a grounding wrist strap and contain all electronic components in any
static-shielded containers.

Preface VII
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
17. If any of the following situations arises, please the contact our service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described in
this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH
TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES
(SEE CHAPTER 1) TO PREVENT DAMAGE.

Preface VIII
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received including interference that may cause
undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions and your local government’s recycling or
disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur.
Recycler les batteries usées en accord avec les instructions du fabricant et les directives
gouvernementales de recyclage.

Preface IX
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
AAEON System QO4-381 Rev.A0
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件
×
○
○
○
○
○
外部信号
连接器及线材
×
○
○
○
○
○
外壳
○
○
○
○
○
○
中央处理器
与内存
×
○
○
○
○
○
硬盘
×
○
○
○
○
○
液晶模块
×
○
○
○
○
○
光驱
×
○
○
○
○
○
触控模块
×
○
○
○
○
○
电源
×
○
○
○
○
○
电池
×
○
○
○
○
○
本表格依据 SJ/T 11364 的规定编制。
○ ：表示该有毒有害物质在该部件所有均质材料中的含量均在
GB/T 26572标准规定的限量要求以下。
×：表示该有害物质的某一均质材料超出了GB/T 26572的限量要求，然而该部件
仍符合欧盟指令2011/65/EU 的规范。
备注：
一、此产品所标示之环保使用期限，系指在一般正常使用状况下。
二、上述部件物质中央处理器、内存、硬盘、光驱、电源为选购品。
三、上述部件物质液晶模块、触控模块仅一体机产品适用。

Preface X
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
China RoHS Requirement (EN)
Hazardous and Toxic Materials List
AAEON System QO4-381 Rev.A0
Component
Name
Hazardous or Toxic Materials or Elements
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Hexavalent Chromium (Cr(VI))
Polybrominat ed biphenyls (PBBs)
Polybrominat ed diphenyl ethers (PBDEs)
PCB and
Components
X
O
O
O
O
O
Wires &
Connectors for
Ext.Connections
X
O
O
O
O
O
Chassis
O
O
O
O
O
O
CPU & RAM
X
O
O
O
O
O
HDD Drive
X
O
O
O
O
O
LCD Module
X
O
O
O
O
O
Optical Drive
X
O
O
O
O
O
Touch Control
Module
X
O
O
O
O
O
PSU
X
O
O
O
O
O
Battery
X
O
O
O
O
O
This form is prepared in compliance with the provisions of SJ/T 11364.
O: The level of toxic or hazardous materials present in this component and its parts is
below the limit specified by GB/T 26572.
X: The level of toxic of hazardous materials present in the component exceed the
limits specified by GB/T 26572, but is still in compliance with EU Directive 2011/65/EU
(RoHS 2).
Notes:
1. The Environment Friendly Use Period indicated by labelling on this product is
applicable only to use under normal conditions.
2. Individual components including the CPU, RAM/memory, HDD, optical drive, and
PSU are optional.
3. LCD Module and Touch Control Module only applies to certain products which
feature these components.

Preface xi
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
Table of Contents
Chapter 1 - Product Specifications.......................................................................................... 1
1.1 Specifications............................................................................................................ 2
Chapter 2 –Hardware Information ....................................................................................... 4
2.1 Dimensions ............................................................................................................... 5
2.2 Jumpers and Connectors....................................................................................... 6
2.3 List of Jumpers and Connectors........................................................................... 7

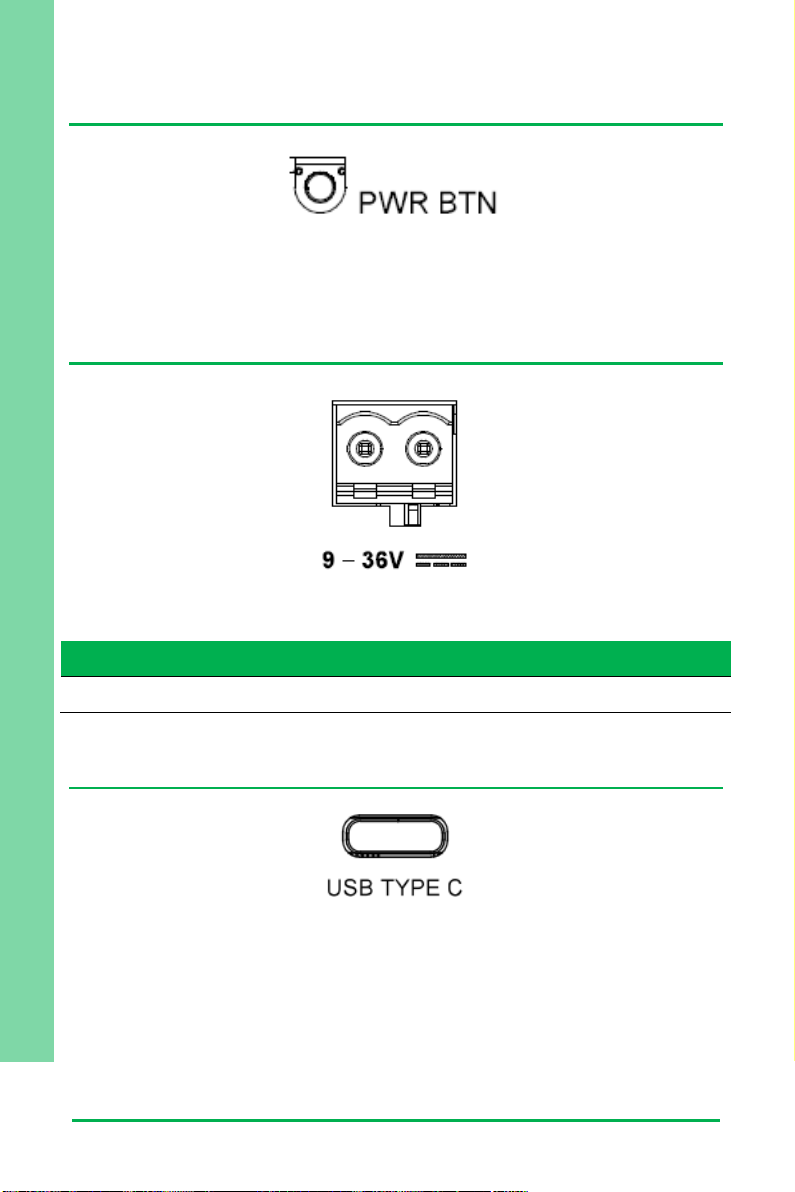

2.3.1 Power Button (1)........................................................................................... 8
2.3.2 9-36V DC in (2) ............................................................................................ 8
2.3.3 USB 3.2 (Type-C) (3).................................................................................... 8

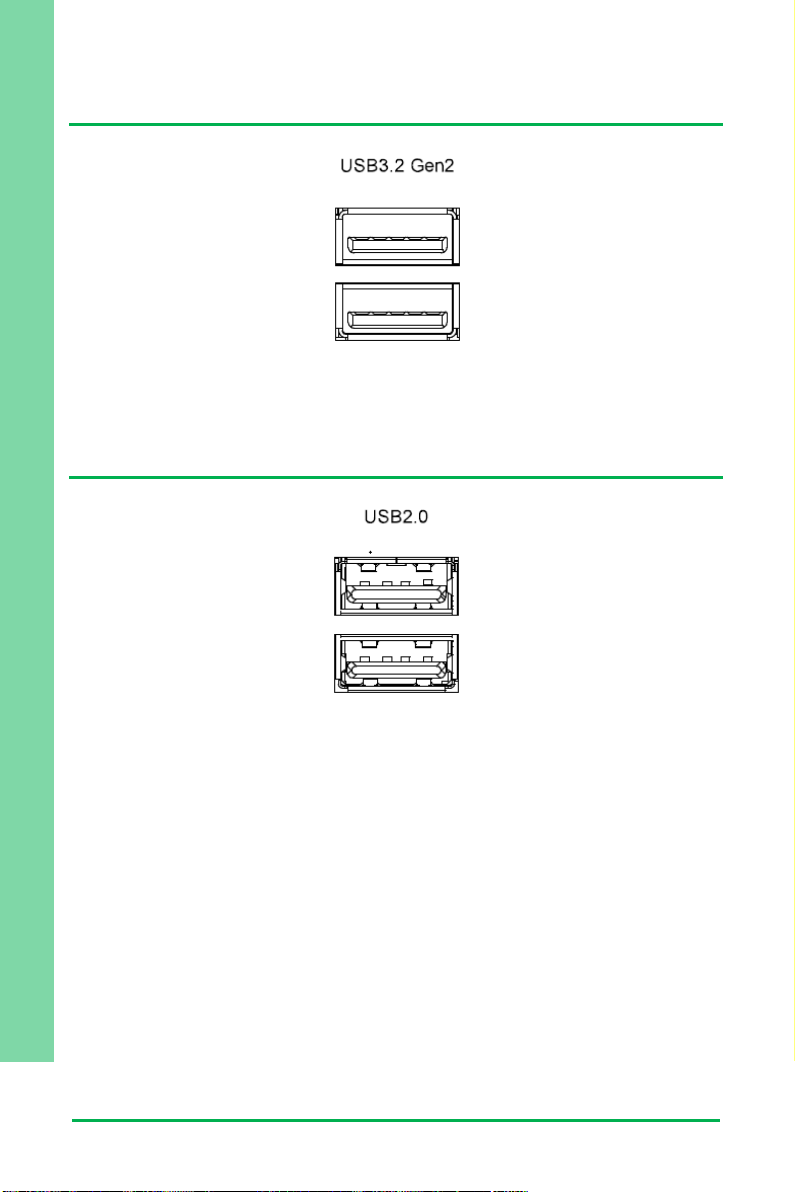

2.3.4 USB 3.2 Gen 2 (Type-A) (4/5).................................................................... 9
2.3.5 USB 2.0 (6/7)................................................................................................. 9
2.3.6LAN 1 (Intel® I226-IT) (8)..........................................................................10
2.3.7 LAN 2 (Intel® I226-IT) (9).........................................................................10
2.3.8 Digital I/O & GPIO (10/11).......................................................................... 11
2.3.8.1 Digital I/O (10) ................................................................................ 11
2.3.8.2 GPIO (11)..........................................................................................12
2.3.9 CAN (13)........................................................................................................14
2.3.10 CAN Term (DIP Switch) (14).......................................................................15
2.3.11 COM (15).......................................................................................................16
2.4 List of Internal Slots ................................................................................................18
Chapter 3 –Enable CAN Function ....................................................................................... 19
3.1 Enable CAN Function ...........................................................................................20
Appendix A –Cables and Connectors.................................................................................21
A.1 List of Cables and Connectors............................................................................22
Appendix B –Power Adapter Configuration...................................................................... 23
B.1 Connecting 2-Pin DC Connector with DC Adapter .......................................24

Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
Chapter 1
Chapter 1 - Product Specifications

Chapter 1 –Product Specifications 2
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
1.1 Specifications
System
CPU
Intel® Core™ i3-N305
Intel® Processor N97
Memory
Up to 16GB LPDDR5
Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors
Storage
Up to 64GB eMMC
Ethernet
2.5GbE x 2 (Intel® I226-IT)
WIFI/BT
Optional with M.2 2230 E-Key x 1
Expansion
M.2 3052 B-Key x 1 with Nano SIM Slot (USB 3.0)
M.2 2230 E-Key x 1 (USB 2.0/PCIe)
M.2 2280 M-Key x 1 (PCIe Gen 3 [x2])
24V 8-in/8-out Digital I/O x 1 via Terminal Block
(Output current: 500mA per channel)
6-pin 2-Channel CAN 2.0B x 1 via Terminal Block (10 ~
1000 kbps)
SATA 6Gb/s x 1
Security
Onboard TPM 2.0
OS Support
Ubuntu 22.04 LTS (Kernel 5.15 and kernel 5.19)
Others
CAN LED Indicator x 2
DIP Switch for CANBus function x 1
I/O
USB
USB 3.2 (Type-A) x 2
USB 2.0 (Type-A) x 2
USB 3.2 Gen 2 (Type-C) x 1 (Supports DP alt mode)
Display Port
DP 1.4a x 1 (via USB Type-C)

Chapter 1 –Product Specifications 3
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
I/O
Ethernet
RJ-45 x 2
COM
RS-232/422/485 x 1 (Terminal Block, Default RS-232)
Audio
—
GPIO
6-pin GPIO x 1 via Terminal Block
Power Supply
Power Requirement
9-36V
Power Supply Type
AT/ATX (AT as default)
Power Consumption
52W ~ 55W
Mechanical
Mounting
75mm x 75mm VESA Mount
Wall Mount Kit (Optional)
Dimensions (W x H x D)
5.98” x 4.8” x 1.7” (152mm x 124mm x 40mm)
Net Weight
2.21 lb. (1.0Kg)
Gross Weight
3.31 lb. (1.5Kg)
Environmental
Operating Temperature
32°F ~ 131°F (0°C ~ 55°C)/0.5m/s airflow
Storage Temperature
-4°F ~ 158°F (-20°C ~ 70°C)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
MTBF
421,998
Certification
CE/FCC Class A, RoHS Compliant, REACH

Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
Chapter 2
Chapter 2 –Hardware Information

Chapter 2 –Hardware Information 5
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
2.1 Dimensions

Chapter 2 –Hardware Information 6
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
2.2 Jumpers and Connectors
Front I/O
Rear I/O

Chapter 2 –Hardware Information 7
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
2.3 List of Jumpers and Connectors
Please refer to the table below for all of the board’s jumpers and connectors that you
can configure for your application.
Label
Function
1
Power Button
2
9-36V DC in
3
USB Type C (DP 1.4a)
4
USB 3.2 Type A-1
5
USB 3.2 Type A-2
6
USB 2.0 Type A-1
7
USB 2.0 Type A-2
8
LAN 1
9
LAN 2
10
8-in/8-out Digital I/O
11
6-pin GPIO
12
CAN LED
13
CAN
14
CAN Switch
15
COM Port
Note: Please refer to the user manual of UP Xtreme 7100 for the detailed PCBA-level
internal connector pin definition.

Chapter 2 –Hardware Information 8
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
2.3.1 Power Button (1)
Power button can be used to switch system on/off.
2.3.2 9-36V DC in (2)
One DC two-pole terminal block supporting a DC power range of 9 ~ 36V.
Pin
Signal
Pin
Signal
1
9 –36V DC_IN
2
GND
2.3.3 USB 3.2 (Type-C) (3)
The USB Type-C port provides one USB 3.2 signal with Display Port 1.4a support.

Chapter 2 –Hardware Information 9
Maker Board System UP Xtreme 7100 Edge UPX-EDGE-ASL01
2.3.4 USB 3.2 Gen 2 (Type-A) (4/5)
The port provides two USB 3.2 Gen 2 interfaces.
2.3.5 USB 2.0 (6/7)
The port provides two USB 2.0 interfaces.
