Asus H610M-IM-A User manual

Industrial Motherboard
H610M-IM-A

ii
E20262
First Edition
May 2022
Copyright © 2022 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
Chapter 1 Product overview
1.1 Package contents......................................................................... 1-1
1.2 Features ........................................................................................ 1-1
1.3 Specifications............................................................................... 1-2
Chapter 2 Motherboard information
2.1 Before you proceed ..................................................................... 2-1
2.2 Motherboard layout...................................................................... 2-2
2.3 Central Processing Unit (CPU) ................................................... 2-4
2.3.1 Installing the CPU ........................................................... 2-5
2.3.2 CPU heatsink and fan assembly installation................... 2-7
2.4 System memory ........................................................................... 2-9
2.5 Jumpers ...................................................................................... 2-11
2.6 Connectors ................................................................................. 2-13
2.6.1 Rear panel connectors.................................................. 2-13
2.6.2 Internal connectors ....................................................... 2-15
Chapter 3 BIOS setup
3.1 BIOS setup program .................................................................... 3-1
3.1.1 BIOS menu screen.......................................................... 3-2
3.2 Main menu .................................................................................... 3-2
3.2.1 System Date [Day MM/DD/YYYY] .................................. 3-2
3.2.2 System Time [HH:MM:SS] .............................................. 3-2
3.3 Advanced menu ........................................................................... 3-3
3.3.1 PCH-FW Conguration ................................................... 3-3
3.3.2 Trusted Computing ......................................................... 3-3
3.3.3 CPU Conguration .......................................................... 3-4
3.3.4 Graphics Conguration ................................................... 3-5
3.3.5 PCI Express Conguration.............................................. 3-5
3.3.6 Super IO Conguration ................................................... 3-6
3.3.7 Serial Console Conguration .......................................... 3-7
3.3.8 SATA Conguration ........................................................ 3-9
3.3.9 Network Stack Conguration ........................................ 3-10
3.3.10 USB Conguration ........................................................ 3-10
3.3.11 NVMe Conguration...................................................... 3-11
3.3.12 Onboard Devices Conguration.................................... 3-11

iv
3.3.13 APM Conguration........................................................ 3-11
3.3.14 EzFlash ......................................................................... 3-12
3.3.14 Watchdog Timer............................................................ 3-12
3.4 Hardware Monitor menu ............................................................ 3-13
3.5 Security menu ............................................................................ 3-13
3.6 Boot menu .................................................................................. 3-15
3.7 Exit menu.................................................................................... 3-16
Save Changes & Exit ................................................................... 3-16
Discard Changes & Exit ............................................................... 3-16
Save Changes & Reset................................................................ 3-17
Discard Changes & Reset............................................................ 3-17
Save changes .............................................................................. 3-17
Discard changes .......................................................................... 3-17
Restore Defaults .......................................................................... 3-17
Save as User Defaults ................................................................. 3-17
Restore User Defaults.................................................................. 3-17
Appendix
Notices.......................................................................................................A-1
Service and Support.................................................................................A-5

1-1
Chapter 1: General information
1.1 Package contents
Check your industrial motherboard package for the following items.
1 x ASUS H610M-IM-A Industrial Motherboard
1 x SATA 6.0 Gb/s cable
2 x M.2 screw package
1 x ASUS I/O Shield
NOTE: If any of the above items is damaged or missing, contact your
distributor or sales representative immediately.
1.2 Features
• LGA1700 socket for Intel®Core™ i9/i7/ i5/ i3, Pentium®, and Celeron®
Processors
• Two Dual Channel DDR4 3200/2933/2666/2400/2133 MHz Non-ECC
U-DIMMs up to 64GB
• 4 x SATA 6.0 Gb/s, 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 5 x USB 2.0, 6
COM ports
• 1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0/2.0 x4 slot, 2 x PCI slots, 1 x full/half
mini-PCIe slot, 1 x M.2 Socket 3 with Key M, 2242/2260/2280 (SATA/PCIe x4
mode)
• Multi-display: 2 x HDMI, 1 x DisplayPort, 1 x VGA
Chapter 1
Product overview

H610M-IM-A
1-2
1.3 Specifications
(continued on the next page)
CPU
LGA1700 socket for Intel®Core™ i9/i7/ i5/ i3, Pentium®, and
Celeron®Processors
Supports up to 65W
Chipset Intel®H610 Chipset
Memory 2 x U-DIMM, max.64GB, DDR4 3200/2933/2666/2400/2133 MHz
SDRAM
Graphics
Integrated graphics processor - Intel®HD Graphics support
Multi-VGA output support: VGA/HDMI®/DisplayPort ports*
- Supports HDMI®1.4b output with a maximum resolution of
4096 x 2160 @ 60Hz
- Supports DisplayPort 1.2a output with a maximum resolution
of 4096 x 2160 @ 60Hz
-Supports VGA output with a maximum resolution of 1920 x
1200 @ 60 Hz
* The system supports up to three displays simultaneously.
Expansion slots
1 x PCIe 5.0 x16 slot
1 x PCIe 3.0/2.0 x4 slot (x1 mode)
2 x PCI slots
1 x full/half mini-PCIe slot
Storage
4 x SATA Gen 3.0, up to 6.0 Gb/s ports
1 x M.2 Socket 3 with M key, type 2242/2260/2280 (SATA/PCIe
x4 mode)
* SATA_4 port shares bandwidth with M.2 slot.
LAN
2 x LAN (RJ45) ports:
1 x Intel®i219V
1 x Realtek 8111H
Audio Realtek ALC 897 High Denition Audio
Line-Out, Mic in
Rear I/O ports
2 x HDMI®ports
1 x DisplayPort
1 x VGA port
2 x USB 3.2 Gen 2 ports
2 x USB 3.2 Gen 1 ports
2 x LAN (RJ45) ports
2 x COM ports (RS232/422/485)
2 x Audio jacks
Internal I/O
connectors
4 x COM headers (RS232)
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x USB 2.0 Xstick connector

1-3
Chapter 1: General information
Internal I/O
connectors
1 x CPU Fan header (PWM mode)
1 x Chassis Fan header (PWM mode)
1 x Chassis intrusion header
1 x Front Panel Audio header (AAFP)
1 x System Panel header
1 x Clear CMOS header
1 x Speaker header
1 x GPIO header (8-bit)
1 x AT/ATX mode selection jumper
1 x PS/2 Keyboard/Mouse header
1 x 24-pin ATX power connector
1 x 8-pin ATX power connector
1 x SPI TPM header
1 x I2C header
Watch dog timer Yes
Power
requirement AT/ATX mode
Operation
Temperature 0~60°C
Non-Operation
Temperature -40~85°C
Relative Humidity 10%~95% (non-coagulation)
OS support
Windows®10 (64bit )
Windows®10 IoT Enterprise
Ubuntu
RedHat Enterprise
Fedora Workstation
OpenSUSE
Certification CE, FCC
Form Factor micro-ATX Form Factor, 9.6”x 9.6” (24.4cm x 24.4cm)
NOTE: Specications are subject to change without notice.

H610M-IM-A
1-4

2-1
Chapter 2: Motherboard information
Chapter 2
Motherboard information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
CAUTION!
• Unplug the power cord from the wall socket before touching any
component.
• Before handling components, use a grounded wrist strap or touch a safely
grounded object or a metal object, such as the power supply case, to avoid
damaging them due to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.
• Before you install or remove any component, always remove the AC power
by unplugging the power cord from the power outlet. Failure to do so may
cause severe damage to the motherboard, peripherals, or components.

H610M-IM-A
2-2
I2C
PCIEX16(G5)
PCIEX4(G3)
PCI_2
PCI_1
ASM
1083
TPM
128Mb
BIOS
SPEAKER
CHASSIS
F_PANEL
AT_ATX_SEL
MPCIE
AAFP
COM1_SEL
COM2_SEL
ATX_PWR
CPU_FAN
CHA_FAN
RTL
8111H
WGI219V
Super
I/O
ALC
897
DIGI+
VRM
24.4cm(9.6in)
24.4cm(9.6in)
DDR4 DIMM_A (64bit, 288-pin module)
LGA1700
2280 2260 2242
M.2(SOCKET3)
M.2(SOCKET3)
PCIE SATA
3.0 X4 V
DDR4 DIMM_B (64bit, 288-pin module)
AUDIO
GPIO_CON
LAN2_U32G1_34
LAN1_U32G2_12
Intel®
H610
EATX12V
COM4COM3 COM5 COM6 USB_56 USB_78 USB_9 SATA6G_3SATA6G_4
SATA6G_2 SATA6G_1
KBMS_CON
BATT_CON
CLRTC
HDMI2
DP_HDMI1
VGA
COM2 COM1
31 2 74 5 46
1
8 13 121619 15 14
3
1
8
1
9
1
11
1
10
17
18
21
20
22
23
24
2.2 Motherboard layout
Place this side
towards the rear
of the chassis
NOTE: Place nine screws into the holes indicated by circles to secure the
motherboard to the chassis.
CAUTION! Do not overtighten the screws! Doing so can damage the
motherboard.

2-3
Chapter 2: Motherboard information
Connectors/Jumpers/Slots Page
1. COM RING/+5V/+12V selection (COM1/2_SEL) 2-12
2. RTC Battery header (2-pin BATT_CON) 2-15
3. ATX Power connectors (24-pin EATXPWR, 8-pin ATX12V) 2-15
4. CPU and chassis fan headers (4-pin CPU_FAN, 4-pin CHA_FAN) 2-16
5. M.2 slot (SOCKET 3) 2-16
6. Intel® LGA1700 CPU socket 2-4
7. DDR4 U-DIMM slots 2-9
8. SATA 6.0 Gb/s ports (7-pin SATA6G_1-4) 2-17
9. TPM header (14-1 pin TPM) 2-17
10. I2C header (6-1 pin I2C) 2-18
11. Speaker header (4-1 pin SPEAKER) 2-18
12. Chassis Intrusion header (4-1 pin CHASSIS) 2-19
13. System Panel header (10-1 pin F_PANEL) 2-20
14. Clear RTC RAM (2-pin CLRTC) 2-11
15. MPCIE slot 2-21
16. PS/2 Keyboard & Mouse header (8-pin KBMS_CON) 2-21
17. USB 2.0 headers / connector (10-1pin USB56, USB78, USB9) 2-22
18. COM Port headers (10-1 pin COM3 - COM6) 2-22
19. Front Panel Audio header (10-1 pin AAFP) 2-23
20. PCI slots
21. AT/ATX mode selection (3-pin AT_ATX_SEL) 2-12
22. PCIe 3.0/2.0 x4 slot (x1 mode)
23. General Purpose Input/Output header (GPIO_CON) 2-23
24. PCIe 5.0 x16 slot

H610M-IM-A
2-4
IMPORTANT: Unplug all power cables before installing the CPU.
CAUTION!
• Ensure that you install the correct CPU designed for LGA1700 socket only.
DO NOT install a CPU designed for other sockets on the LGA1700 socket
• Upon purchase of the motherboard, ensure that the PnP cap is on
the socket and the socket contacts are not bent. Contact your retailer
immediately if the PnP cap is missing, or if you see any damage to the PnP
cap/socket contacts/motherboard components. ASUS will shoulder the cost
of repair only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return
Merchandise Authorization (RMA) requests only if the motherboard comes
with the cap on the LGA1700 socket.
• The product warranty does not cover damage to the socket contacts
resulting from incorrect CPU installation/removal, or misplacement/loss/
incorrect removal of the PnP cap.
2.3 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA1700 socket designed for
the Intel®Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3, Pentium®, and Celeron®
Processors.
LGA1700

2-5
Chapter 2: Motherboard information
Take caution when lifting the load
lever, ensure to hold onto the load
lever when releasing the load
lever. Letting go of the load lever
immediately after releasing it may
cause the load lever to spring
back and cause damage to your
motherboard.
2.3.1 Installing the CPU
• Ensure that you install the correct CPU designed for LGA1700 socket only.
DO NOT install a CPU designed for LGA1155, LGA1156, LGA1151, and
LGA1200 sockets on the LGA1700 socket.
• ASUS will not cover damages resulting from incorrect CPU installation/
removal, incorrect CPU orientation/placement, or other damages resulting
from negligence by the user.
B
A
1

H610M-IM-A
2-6
2 3
45
B
A
B
A

2-7
Chapter 2: Motherboard information
2.3.2 CPU heatsink and fan assembly installation
CAUTION! Apply the Thermal
Interface Material to the CPU
heatsink and CPU before you
install the heatsink and fan if
necessary.

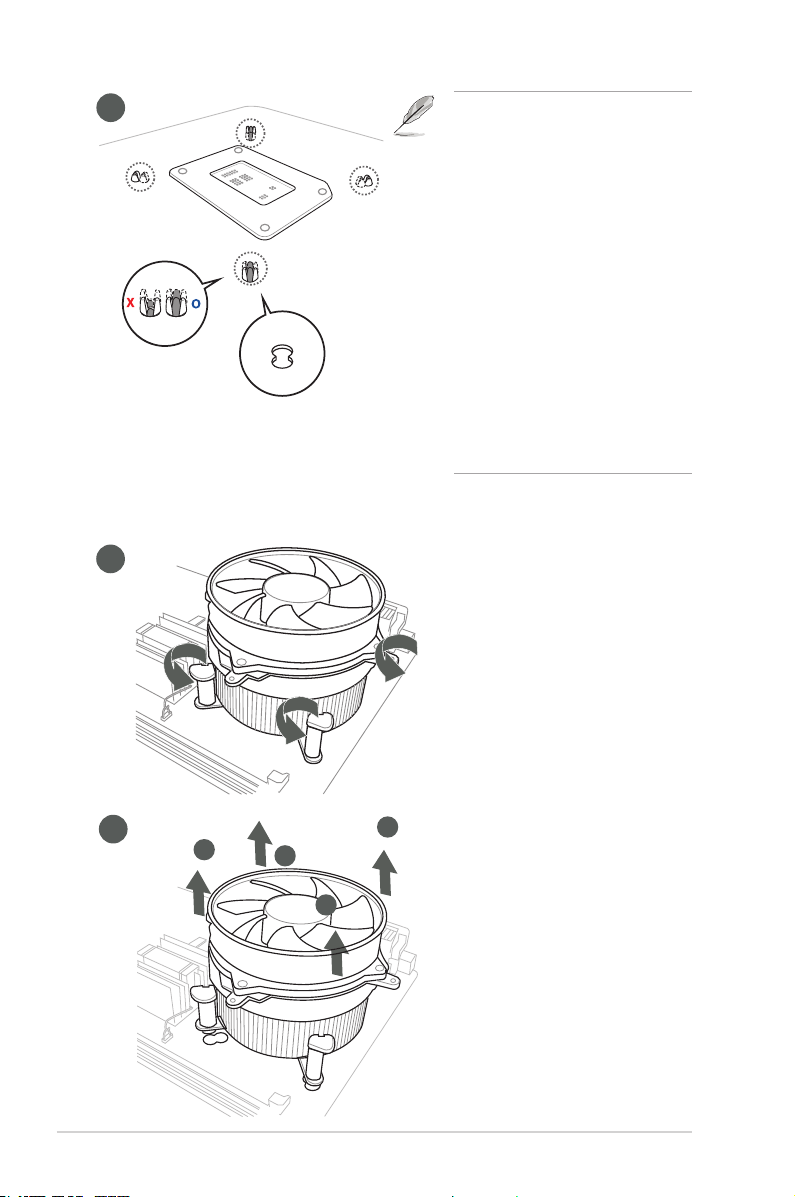

To install the CPU heatsink and fan assembly
B
A
A
B
1
2
3

H610M-IM-A
2-8
A
B
B
A
To uninstall the CPU heatsink and fan assembly
2
1
LGA1200
LGA1700
4• We recommend using a
LGA1700 compatible cooling
system on an Intel®600 series
motherboard.
• Additional holes for LGA1200
compatible cooling systems
are also available on ASUS’
Intel®600 series motherboards,
however, we still strongly
advise consulting with your
cooling system vendor
or manufacturer on the
compatibility and functionality of
the cooling system.
• Push-pin type LGA1200
compatible cooling systems
cannot be installed to this
motherboard.

2-9
Chapter 2: Motherboard information
2.4 System memory
This motherboard comes with two Double Data Rate 4 (DDR4) Dual Inline Memory
Module (DIMM) sockets. The gure below illustrates the location of the DDR4
DIMM sockets:
Channel Sockets
Channel A DIMM_A
Channel B DIMM_B
DIMM_A DIMM_B

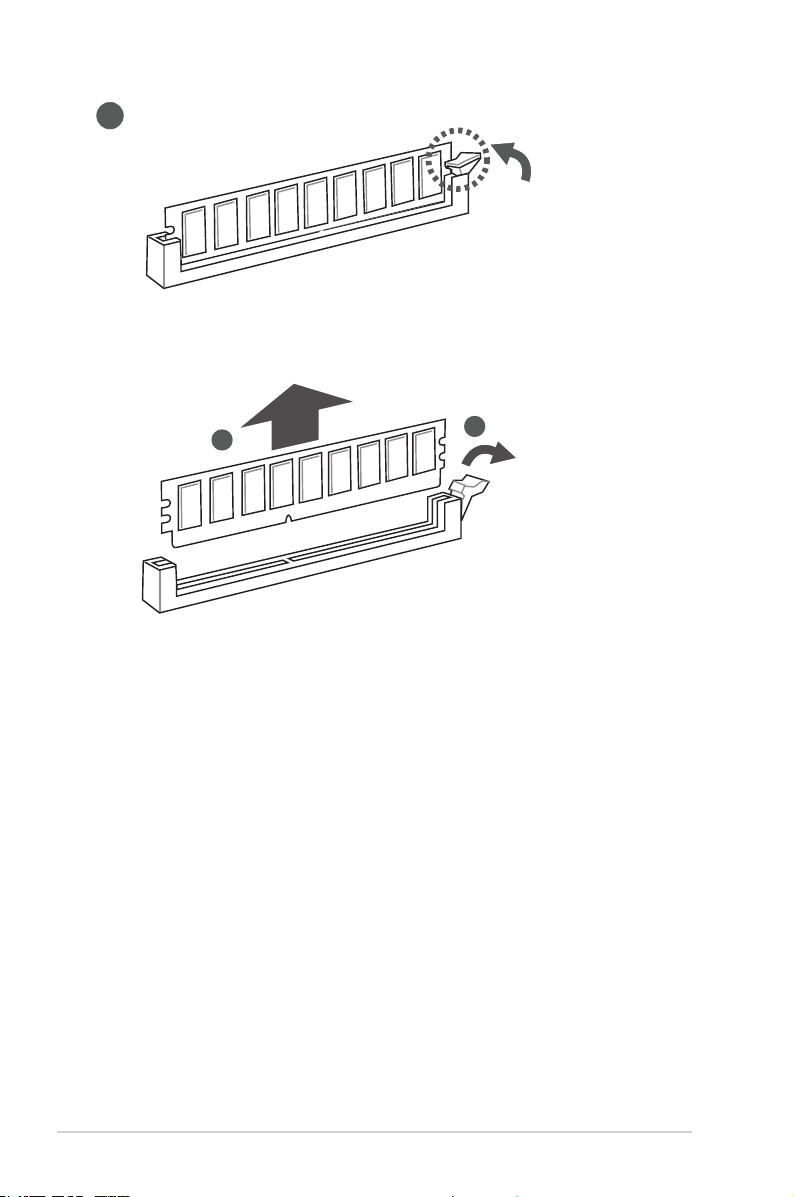

Installing a DIMM
1
2
A
B
A

H610M-IM-A
2-10
To remove a DIMM
3
A
B

2-11
Chapter 2: Motherboard information
2.5 Jumpers

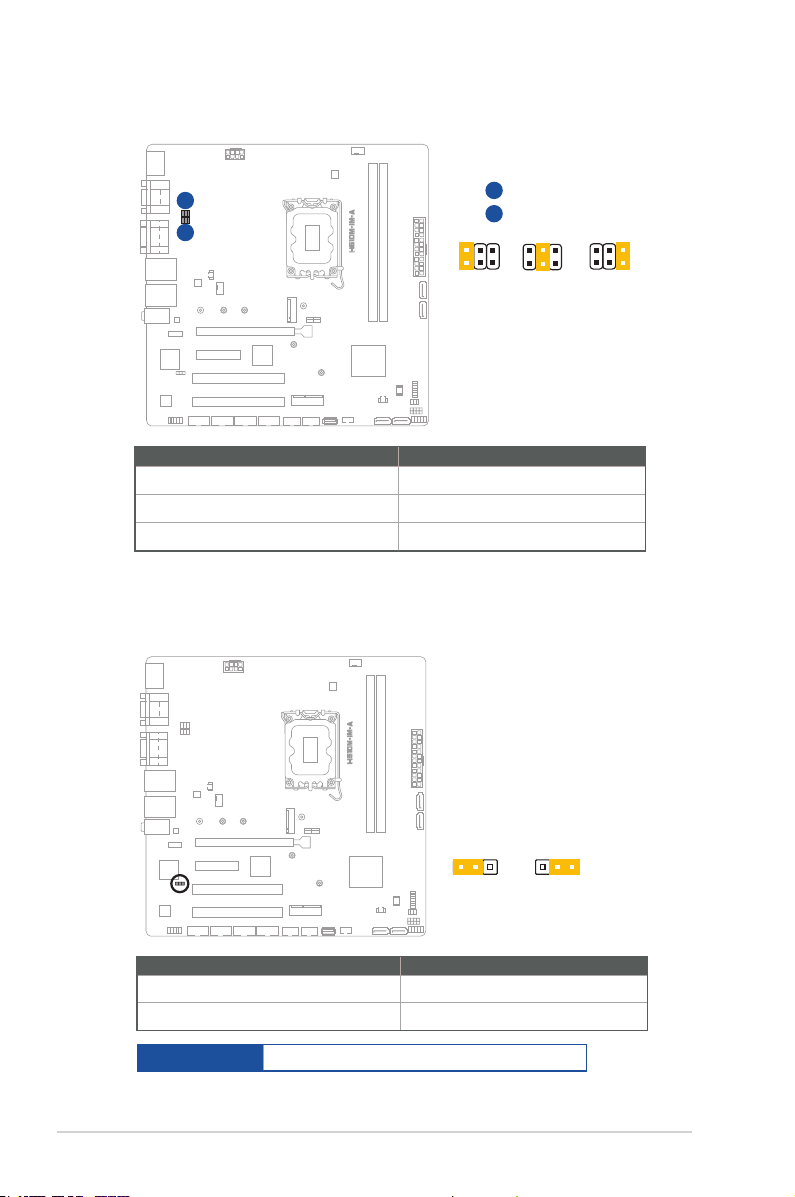

1. Clear RTC RAM (2-pin CLRTC)
This header allows you to clear the CMOS RTC RAM data of the system
setup information such as date, time, and system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Use a metal object such as a screwdriver to short the two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup
to re-enter data.
NOTE: If the steps above do not help, remove the onboard battery and move
the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS,
reinstall the battery.
+3V_BAT_RTC
GND
CLRTC
PIN 1
Connector type HEADER 1x2p, 2.54mm pitch, S/T

H610M-IM-A
2-12

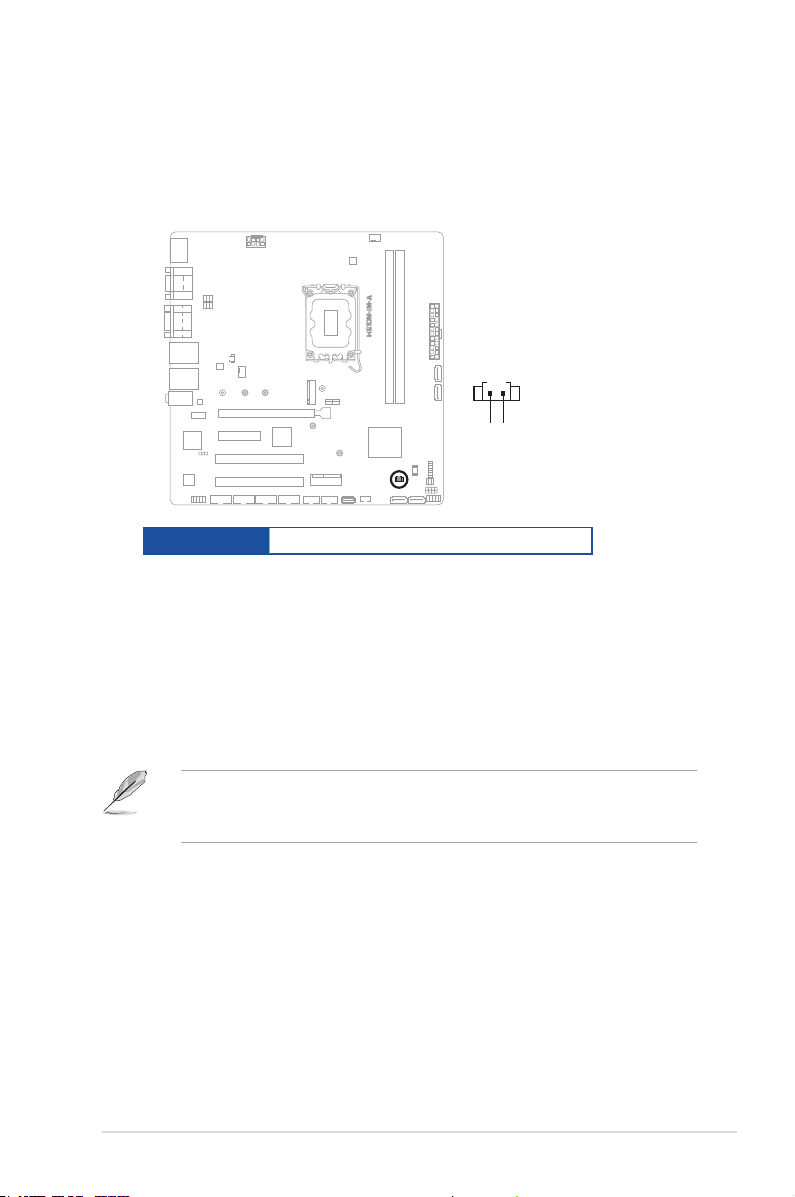

3. AT/ATX mode selection (3-pin AT_ATX_SEL)
Pins
1-2 (Default) ATX mode
2-3 AT mode
21 2 3
ATX mode
(Default)
AT mode
AT_ATX_SEL
Connector type HEADER 1x3p, 2.54mm pitch, S/T
2. COM Ring/+5V/+12V selection jumper (6-pin COM1/2_SEL)
Setting Pins
+12V 1-2
+5V 3-4
Ring (Default) 5-6
RI
(Default)
+5V+12V
COM2_SEL
1
2
3
4
5
6
B
COM1_SEL
A
B
A
