Asus H97M-E User manual

H97M-E
Motherboard

ii
E9092
First Edition
April 2014
Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Productwarrantyorservicewillnotbeextendedif:(1)theproductisrepaired,modiedoraltered,unless
suchrepair,modicationofalterationisauthorizedinwritingbyASUS;or(2)theserialnumberofthe
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrightsoftheirrespectivecompanies,andareusedonlyforidenticationorexplanationandtothe
ownersbenet,withoutintenttoinfringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either
(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source
codewewouldbemuchobligedifyougiveusanoticationtotheemailaddress[email protected], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).
ii

iii
Contents
Contents
Safety information...................................................................................................... iv
About this guide......................................................................................................... iv
Package contents....................................................................................................... vi
H97M-E specifications summary .............................................................................. vi
Product introduction 1-1
1.1 Before you proceed...................................................................................... 1-1
1.2 Motherboard overview .................................................................................1-1
1.3 Central Processing Unit (CPU).................................................................... 1-3
1.4 System memory............................................................................................ 1-6
1.5 Expansion slots............................................................................................ 1-9
1.6 Jumpers.......................................................................................................1-10
1.7 Connectors..................................................................................................1-11
1.8 Onboard LEDs ............................................................................................1-19
1.9 Software support........................................................................................ 1-20
BIOS information 2-1
2.1 Managing and updating your BIOS............................................................. 2-1
2.2 BIOS setup program.....................................................................................2-6
2.3 My Favorites................................................................................................2-10
2.4 Main menu................................................................................................... 2-11
2.5 Ai Tweaker menu ........................................................................................ 2-11
2.6 Advanced menu.......................................................................................... 2-13
2.7 Monitor menu.............................................................................................. 2-14
2.8 Boot menu................................................................................................... 2-15
2.9 Tools menu .................................................................................................2-16
2.10 Exit menu ....................................................................................................2-16
Appendices A-1
Notices ..................................................................................................................... A-1
ASUS contact information...................................................................................... A-3
iii

Safety information
Electrical safety
 Topreventelectricalshockhazard,disconnectthepowercablefromtheelectricaloutlet
before relocating the system.
 When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
 Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
 Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
 Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
 Ifthepowersupplyisbroken,donottrytoxitbyyourself.Contactaqualiedservice
technician or your retailer.
Operation safety
 Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
 Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
 To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
 Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
 Place the product on a stable surface.
 Ifyouencountertechnicalproblemswiththeproduct,contactaqualiedservice
technician or your retailer.
About this guide
Thisuserguidecontainstheinformationyouneedwheninstallingandconguringthe
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter1:Productintroduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter2:BIOSinformation
This chapter discusses changing system settings through the BIOS Setup menus.
Detailed descriptions fo the BIOS parameters are also provided.
iv

Where to find more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Yourproductpackagemayincludeoptionaldocumentation,suchaswarrantyyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
completing a task.
CAUTION: Information to prevent damage to the components when
completing a task
IMPORTANT: Instructions that you MUST follow to complete a
task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text Indicates a menu or an item to select.
Italics Usedtoemphasizeawordoraphrase.
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
v

H97M-E specifications summary
(continued on the next page)
CPU LGA1150 socket for the 4th, New 4th & 5th Generation Intel® Core™ i7 / i5
/ i3, Pentium®, and Celeron®processors
Supports 22nm CPU
Supports Intel®Turbo Boost Technology 2.0*
*The Intel®Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel®CPU support list.
Chipset Intel®H97 Express Chipset
Memory 4xDIMM,max.32GB,DDR31600/1333MHz,non-ECC,un-buffered
memory
Dual-channel memory architecture
Supports Intel®ExtremeMemoryProle(XMP)
* Due to Intel®chipset limitation, DDR3 1600 MHz and higher memory modules
on XMP mode will run at the maximum transfer rate of DDR3 1600 MHz.
** Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Expansion slots 1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
3 x PCI Express 2.0 x1 slots
Graphics Integrated Graphics Processor - Intel®HD Graphics support
Multi-VGA output support: HDMI, DVI-D, RGB port
SupportsHDMIwithmax.resolutionof4096x2160@24Hz/2560x1600
@60Hz
SupportsDVI-Dwithmax.resolutionof1920x1200@60Hz
SupportsRGBwithmax.resolutionof1920x1200@60Hz
Supports up to three displays simultaneously
Supports Intel® InTruTM 3D/Quick Sync Video / Clear Video HD
Technology/InsiderTM
Maximum shared memory 512MB
Package contents
Check your motherboard package for the following items.
Motherboard ASUS H97M-E motherboard
Cables 2 x Serial ATA 6.0 Gb/s cables
Accessories 1 x I/O Shield
Application DVD Support DVD
Documentation User Guide
If any of the above items is damaged or missing, contact your retailer.
vi

H97M-E specifications summary
Storage Intel®H97 Express Chipset with RAID 0, 1, 5, 10 and Intel®
Rapid Storage Technology 13 support
- 4 x SATA 6.0 Gb/s ports (gray)
- 1 x M.2 Socket 3
- Supports Intel®Smart Response Technology, Intel®Rapid Start
Technology, and Intel®Smart Connect Technology*
* The M.2 Socket 3 supports M Key and type 2260/2280 storage devices.
* These functions will work depending on the CPU installed.
LAN Realtek®8111GR Gigabit LAN controller
Audio Realtek®ALC8877.1-channelhighdenitionaudioCODECfeaturing
Crystal Sound 2
- Audio Shielding: Ensures precision analog/digital separation and
greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right
channels to guard the quality of the sensitive audio signals
- Audioamplier:Providesthehighest-qualitysoundforheadphone
and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural
andimmersivesoundwithexceptionalclarityanddelity
- Unique de-pop circuit: Reduces start-up popping noise to audio
outputs
- Supports Jack-Detection and Front Panel Jack-Retasking
* Use a chassis with HD audio module in the front panel to support an
7.1-channel audio output.
USB Intel®H97 Express Chipset - supports ASUS USB 3.0 Boost
- 6xUSB3.0/2.0ports(2portsatmid-board;4portsatbackpanel,
blue)
- 8xUSB2.0/1.1ports(6portsatmid-board;2portsatbackpanel)
ASUS unique features High Performance
ASUS 5X Protection
- ASUS DIGI+ VRM - 4 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit
damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with
excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant
coating
UEFI BIOS
- Most advanced options with fast response time
M.2 onboard
- The latest transfer technologies with up to 10 Gb/s data transfer
speeds
ASUS Fan Xpert 2+
- Ultimate cooling and quietness
ASUS EPU
- EPU
(continued on the next page)
vii

H97M-E specifications summary
ASUS Special
Features
Interactive HomeCloud
Media Streamer
- Pipe music or movies from your PC to a smart TV
- Media Streamer app for portable smartphone/tablet, supporting iOS 7
and Android 4.0 system
Gaming Scenario
Crystal Sound 2
- Fawless audio that makes you part of the game
Steam Support
- Compatible with the most fun gaming platform under Windows®
system
ASUS Exclusive Features
- USB 3.0 Boost
- Ai Charger
- AI Suite 3
- Disk Unlocker
EZ DIY
Push Notice
- Monitor your PC status with smart devices in real time
UEFI BIOS EZ Mode
- featuring friendly graphics user interface
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design
- ASUS DIMM
- ASUS Q-Slot
ASUS Quiet Thermal
Solution
ASUS Quiet Thermal Design
- ASUS Fan Xpert 2+
- Stylish Fanless Design: PCH Heat-sink
Rear panel I/O ports 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x HDMI port
1 x DVI-D port
1 x RGB port
1 x LAN (RJ-45) port
4 x USB 3.0/2.0 ports (blue)
2 x USB 2.0/1.1 ports
3-jack 7.1-channel audio I/O ports
(continued on the next page)
viii

H97M-E specifications summary
Internal connectors 1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB ports
3 x USB 2.0/1.1 connectors support additional 6 USB ports
4 x SATA 6.0 Gb/s connectors (gray)
1 x M.2 socket 3 (for M Key, type 2260/2280 devices)
1 x 4-pin CPU Fan connector (PWM mode)
2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM
mode) coolers control
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x Speaker connector
1 x S/PDIF out header
1 x Chassis intrusion connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x COM connector
1 x TPM connector
1 x Chassis intrusion connector
1 x Clear CMOS jumper
BIOS features 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS
2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree
BIOS3,MyFavorites,QuickNote,LastModiedlog,F12PrintScreen,
F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect)
memory information
Manageability WfM 2.0, DMI 2.7, WOR by PME, PXE
Support DVD Drivers
ASUS utilities
ASUS EZ Update
Anti-virus software (OEM version)
OS support Windows®8.1
Windows®8
Windows®7
Form factor uATX form factor: 9.6 in. x 7.8 in. (24.4 cm x 19.8 cm)
Specicationsaresubjecttochangewithoutnotice.
ix

x

Product introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
 Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
 Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
to static electricity.
 HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.
 Wheneveryouuninstallanycomponent,placeitonagroundedantistaticpadorinthe
bag that came with the component.
 Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switched off or the power cord is detached from the power supply. Failure to do so
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
1.2 Motherboard overview
Beforeyouinstallthemotherboard,studythecongurationofyourchassistoensurethatthe
motherboardts.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage to motherboard components.
1.2.1 Placement direction
Wheninstallingthemotherboard,placeitintothechassisinthecorrectorientation.Theedge
with external ports goes to the rear part of the chassis as indicated in the image.
1.2.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Donotovertightenthescrews!Doingsocandamagethemotherboard.
ASUS H97M-E 1-1

H97M-E
Place this side
towards the rear
of the chassis
1.2.3 Motherboard layout
H97M-E
PCIEX16
PCIEX1_1
PCIEX1_2
PCIEX1_3
Realtek
8111GR
ASM
1442K
USB910 USB1112 USB1314
AAFP
EATXPWR
CPU_FAN
BATTERY
Super
I/O
ALC
887
KBMS
DVI_VGA
64Mb
BIOS
SB_PWR
CLRTC
SPEAKER
SPDIF_OUT
F_PANEL
19.8cm(7.8in)
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
SATA6G_2SATA6G_1
SATA6G_4SATA6G_3
AUDIO
LAN_USB78
USB3_34
HDMI
USB3_56
CHA_FAN1
CHA_FAN2
24.4cm(9.6in)
LGA1150
DIGI
+VRM
COM
EATX12V
USB3_12
Intel
®
H97
TPM
M.2(SOCKET3)
21 3 41
11 9 1213141516
17
2
5
8
7
6
CHASSIS
10
1-2 Chapter 1: Product introduction

1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN1/2) 1-13
2. ATXpowerconnectors(24-pinEATXPWR,8-pinEATX12V) 1-16
3. LGA1150CPUsocket 1-3
4. DDR3DIMMslots 1-6
5. USB3.0connector(20-1pinUSB3_12) 1-15
6. M.2Socket3 1-16
7. Speakerconnector(4-pinSPEAKER) 1-18
8. Intel®H97SerialATA6.0Gb/sconnectors(7-pinSATA6G_1-4) 1-14
9. ClearRTCRAM(3-pinCLRTC) 1-10
10. Chassisintrusionconnector(4-1pinCHASSIS) 1-19
11. Systempanelconnector(10-1pinF_PANEL) 1-18
12. USB2.0connectors(10-1pinUSB910,USB1112,USB1314) 1-17
13. Serialportconnector(10-1pinCOM) 1-13
14. TPMconnector(20-1pinTPM) 1-17
15. Digitalaudioconnector(4-1pinSPDIF_OUT) 1-14
16. Frontpanelaudioconnector(10-1pinAAFP) 1-15
17. StandbypowerLED(SB_PWR) 1-19

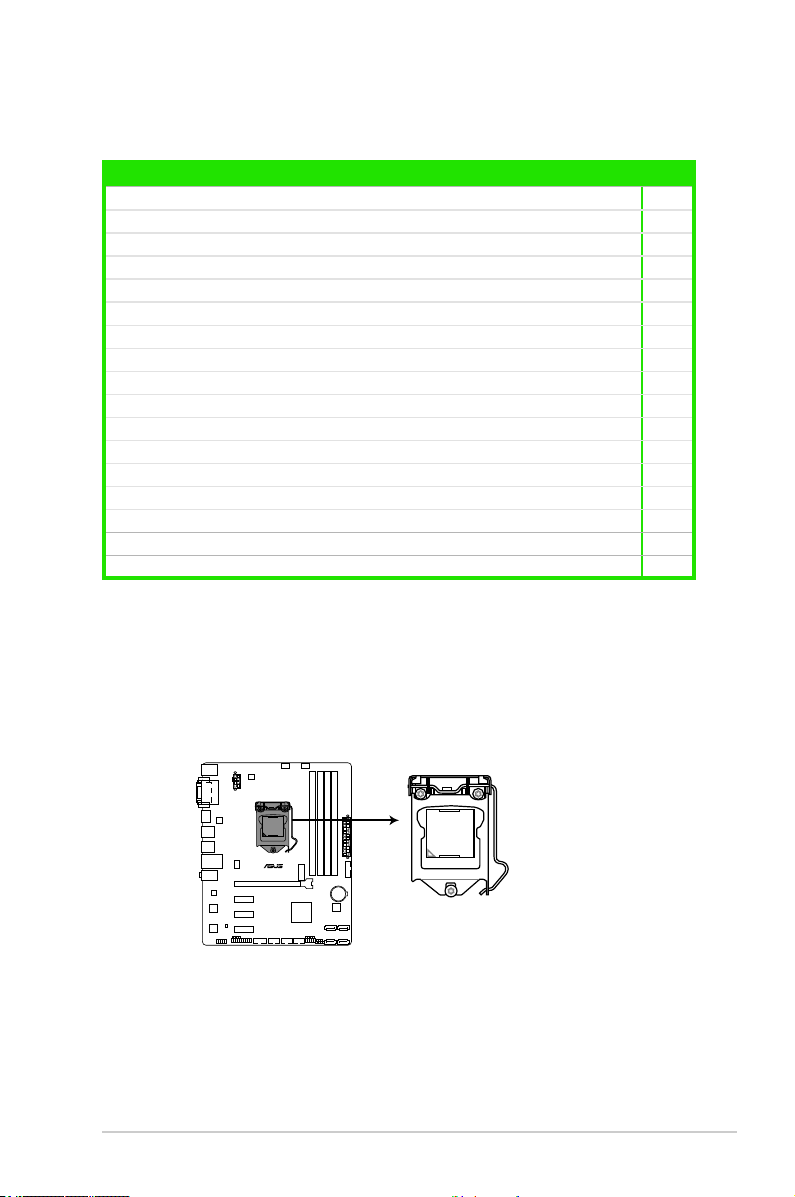

1.3 Central Processing Unit (CPU)
ThismotherboardcomeswithasurfacemountLGA1150socketdesignedforthe4th,New
4th&5thGenerationIntel®Corei7/i5/i3,Pentium® andCeleron®processors.
H97M-E
H97M-E CPU socket LGA1150
ASUS H97M-E 1-3

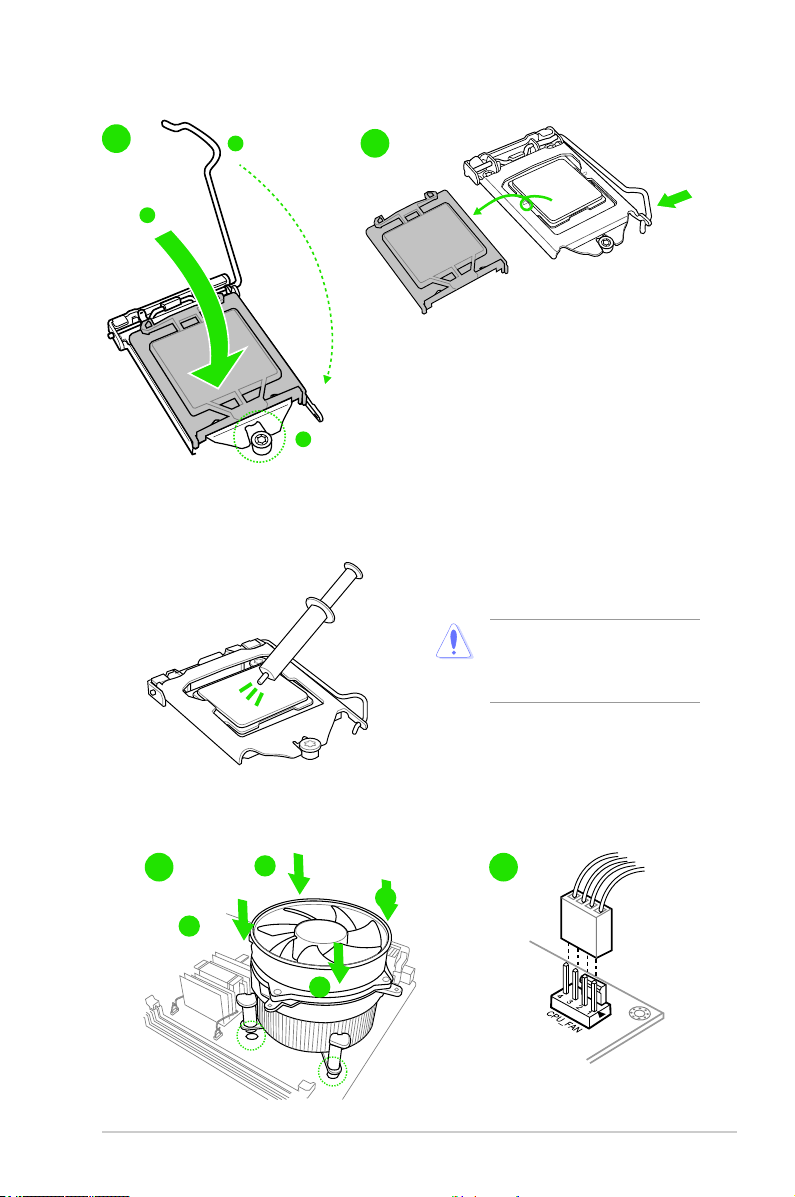

1.3.1 Installing the CPU
1
23
A
B
UnplugallpowercablesbeforeinstallingtheCPU.
 EnsurethatyouinstallthecorrectCPUdesignedfortheLGA1150socketonly.DO
NOTinstallaCPUdesignedforLGA1155andLGA1156socketsontheLGA1150
socket.
 Uponpurchaseofthemotherboard,ensurethatthePnPcapisonthesocketand
thesocketcontactsarenotbent.ContactyourretailerimmediatelyifthePnPcap
ismissing,orifyouseeanydamagetothePnPcap/socketcontacts/motherboard
components.ASUSwillshoulderthecostofrepaironlyifthedamageisshipment/
transit-related.
 Keepthecapafterinstallingthemotherboard.ASUSwillprocessReturnMerchandise
Authorization(RMA)requestsonlyifthemotherboardcomeswiththecaponthe
LGA1150socket.
 Theproductwarrantydoesnotcoverdamagetothesocketcontactsresultingfrom
incorrectCPUinstallation/removal,ormisplacement/loss/incorrectremovalofthePnP
cap.
1-4 Chapter 1: Product introduction

A
B
C
5
4
1.3.2 CPU heatsink and fan assembly installation
ApplytheThermalInterfaceMaterial
totheCPUheatsinkandCPU
before you install the heatsink and
fan if necessary.
To install the CPU heatsink and fan assembly
2
B
A
A
B
1
ASUS H97M-E 1-5

3 4
A
B
B
A
To uninstall the CPU heatsink and fan assembly
2
1
1.4 System memory
1.4.1 Overview
ThismotherboardcomeswithfourDoubleDataRate3(DDR3)DualInlineMemoryModule
(DIMM)sockets.ThegureillustratesthelocationoftheDDR3DIMMsockets:
Channel Sockets
ChannelA DIMM_A1andDIMM_A2
ChannelB DIMM_B1andDIMM_B2
H97M-E
H97M-E 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
1-6 Chapter 1: Product introduction

1.4.2 Memory configurations
Youmayinstall2GB,4GB,and8GBunbufferednon-ECCDDR3DIMMsintotheDIMM
sockets.
 YoumayinstallvaryingmemorysizesinChannelAandChannelB.Thesystem
mapsthetotalsizeofthelower-sizedchannelforthedual-channelconguration.Any
excessmemoryfromthehigher-sizedchannelisthenmappedforsingle-channel
operation.
 AccordingtoIntelCPUspec,DIMMvoltagebelow1.65Visrecommendedtoprotect
theCPU.
 AlwaysinstallDIMMswiththesameCASlatency.Foroptimalcompatibility,we
recommendthatyouinstallmemorymodulesofthesameversionordatecode(D/C)
fromthesamevendor.Checkwiththeretailertogetthecorrectmemorymodules.
 Duetothememoryaddresslimitationon32-bitWindows®OS,whenyouinstall4GB
ormorememoryonthemotherboard,theactualusablememoryfortheOScanbe
about3GBorless.Foreffectiveuseofmemory,werecommendthatyoudoanyofthe
following:
- Useamaximumof3GBsystemmemoryifyouareusinga32-bitWindows®OS.
 - Installa64-bitWindows®OSifyouwanttoinstall4GBormoreonthe
motherboard.
 Formoredetails,refertotheMicrosoftsupportsiteat:
http://support.microsoft.com/kb/929605/en-us.
 ThismotherboarddoesnotsupportDIMMsmadeupof512Mb(64MB)chipsorless
(memorychipcapacitycountsinMegabit,8Megabit/Mb=1Megabyte/MB).
 ThedefaultmemoryoperationfrequencyisdependentonitsSerialPresenceDetect
(SPD),whichisthestandardwayofaccessinginformationfromamemorymodule.
 DuetoIntel®chipsetlimitation,DDR31600MHzandhighermemorymodulesonXMP
modewillrunatthemaximumtransferrateofDDR31600MHz.
 Forsystemstability,useamoreefcientmemorycoolingsystemtosupportafull
memoryload(4DIMMs)condition.
 VisittheASUSwebsiteat:www.asus.comforthelatestQVL.
ASUS H97M-E 1-7

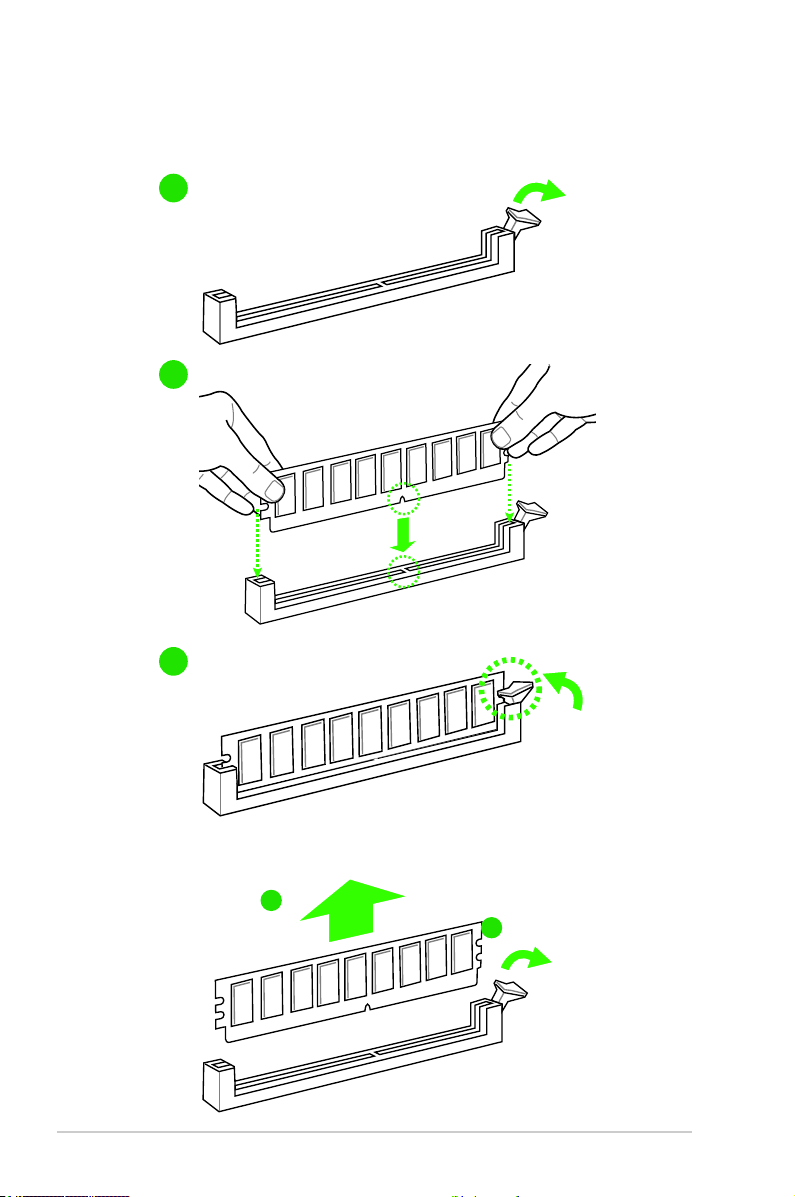

1.4.3 Installing a DIMM
To install a DIMM
1
2
3
To remove a DIMM
B
A
1-8 Chapter 1: Product introduction

1.5 Expansion slots
Inthefuture,youmayneedtoinstallexpansioncards.Thefollowingsub-sectionsdescribe
the slots and the expansion cards that they support.
Unplugthepowercordbeforeaddingorremovingexpansioncards.Failuretodosomay
cause you physical injury and damage motherboard components.
1.5.1 Installing an expansion card
To install an expansion card:
1. Beforeinstallingtheexpansioncard,readthedocumentationthatcamewithitand
make the necessary hardware settings for the card.
2. Removethesystemunitcover(ifyourmotherboardisalreadyinstalledinachassis).
3. Removethebracketoppositetheslotthatyouintendtouse.Keepthescrewforlater
use.
4. Alignthecardconnectorwiththeslotandpressrmlyuntilthecardiscompletely
seated on the slot.
5. Securethecardtothechassiswiththescrewyouremovedearlier.
6. Replacethesystemcover.
1.5.2 Configuring an expansion card
Afterinstallingtheexpansioncard,congureitbyadjustingthesoftwaresettings.
1. TurnonthesystemandchangethenecessaryBIOSsettings,ifany.SeeChapter2for
informationonBIOSsetup.
2. AssignanIRQtothecard.
3. Installthesoftwaredriversfortheexpansioncard.
WhenusingPCIcardsonsharedslots,ensurethatthedriverssupportShareIRQorthat
thecardsdonotneedIRQassignments.Otherwise,conictswillarisebetweenthetwoPCI
groups,makingthesystemunstableandthecardinoperable.
1.5.3 PCI Express 2.0 x1 slots
ThismotherboardsupportsPCIExpress2.0x1networkcards,SCSIcards,andothercards
thatcomplywiththePCIExpressspecications.
1.5.4 PCI Express 3.0/2.0 x16 slot
ThismotherboardhasaPCIExpress3.0/2.0x16slotthatsupportsPCIExpress3.0/2.0x16
graphiccardscomplyingwiththePCIExpressspecications.
ASUS H97M-E 1-9

IRQ assignments for this motherboard
A B C D E F G H
PCIEx16_1 shared – – – – – – –
PCIEx1_1 – – – shared – – – –
PCIEx1_2 shared – – – – – – –
PCIEx1_3 – shared – – – – – –
LAN – – shared – – – – –
USB2.0controller1 – – – – – – – shared
USB2.0controller2 – – – – shared – – –
USB3.0controller – – – – – shared – –
HDaudio – – – – – – shared –
SATAcontroller1 – – – shared – – – –
SATAcontroller2 – – – shared – – – –
1.6 Jumpers
Clear RTC RAM (3-pin CLRTC)
ThisjumperallowsyoutocleartheRealTimeClock(RTC)RAMinCMOS.Youcan
cleartheCMOSmemoryofdate,time,andsystemsetupparametersbyerasingthe
CMOSRTCRAMdata.TheonboardbuttoncellbatterypowerstheRAMdatain
CMOS,whichincludesystemsetupinformationsuchassystempasswords.
To erase the RTC RAM:
1. TurnOFFthecomputerandunplugthepowercord.
2. Movethejumpercapfrompins1-2(default)topins2-3.Keepthecaponpins2-3
forabout5-10seconds,thenmovethecapbacktopins1-2.
3. PlugthepowercordandturnONthecomputer.
4. Holddownthe<Del>keyduringthebootprocessandenterBIOSsetuptore-
enter data.
ExceptwhenclearingtheRTCRAM,neverremovethecaponCLRTCjumperdefault
position.Removingthecapwillcausesystembootfailure!
H97M-E
H97M-E Clear RTC RAM
12 2 3
Normal
(Default)
Clear RTC
CLRTC
1-10 Chapter 1: Product introduction
