Asus MEW User manual

R
MEW
Socket 370 Intel®810 Motherboard
USER’S MANUAL

2ASUS MEW User’s Manual
USER'S NOTICE
Product Name: ASUS MEW
Manual Revision: 1.06 E386
Release Date: May 1999
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITYOR FITNESS FORAPAR-
TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI-
NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing byASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
• QuickStart and JumperFree are trademarks of ASUSTeK Computer Inc.
• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.
• IBM and OS/2 are registered trademarks of International Business Machines.
• Symbios is a registered trademark of Symbios Logic Corporation.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contactASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANYERRORSORINACCURACIESTHATMAYAPPEARINTHISMANUAL, INCLUD-
ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved.

ASUS MEW User’s Manual 3
ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
Tel (English): [phone] ext. 706
Tel (Chinese): [phone] ext. 111
Fax: [phone]
Email: [email protected]
Newsgroup: news2.asus.com.tw
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address: 6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]
Technical Support
Fax: [phone]
BBS: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address: Harkort Str. 25, 40880 Ratingen, BRD, Germany
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
Hotline: [phone]
BBS: 49-2102-448690
Email: [email protected]
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

4ASUS MEW User’s Manual
CONTENTS
1. INTRODUCTION ............................................................................. 7
1.1 How this manual is organized..................................................... 7
1.2 Item Checklist ............................................................................. 7
2. FEATURES ........................................................................................ 8
2.1 The ASUS MEW Motherboard................................................... 8
2.1.1 Specifications..................................................................... 8
2.1.2 Specifications–Optional Components................................ 9
2.1.3 Performance ..................................................................... 10
2.1.4 Intelligence....................................................................... 11
2.2 ASUS MEW Part Definitions ................................................... 12

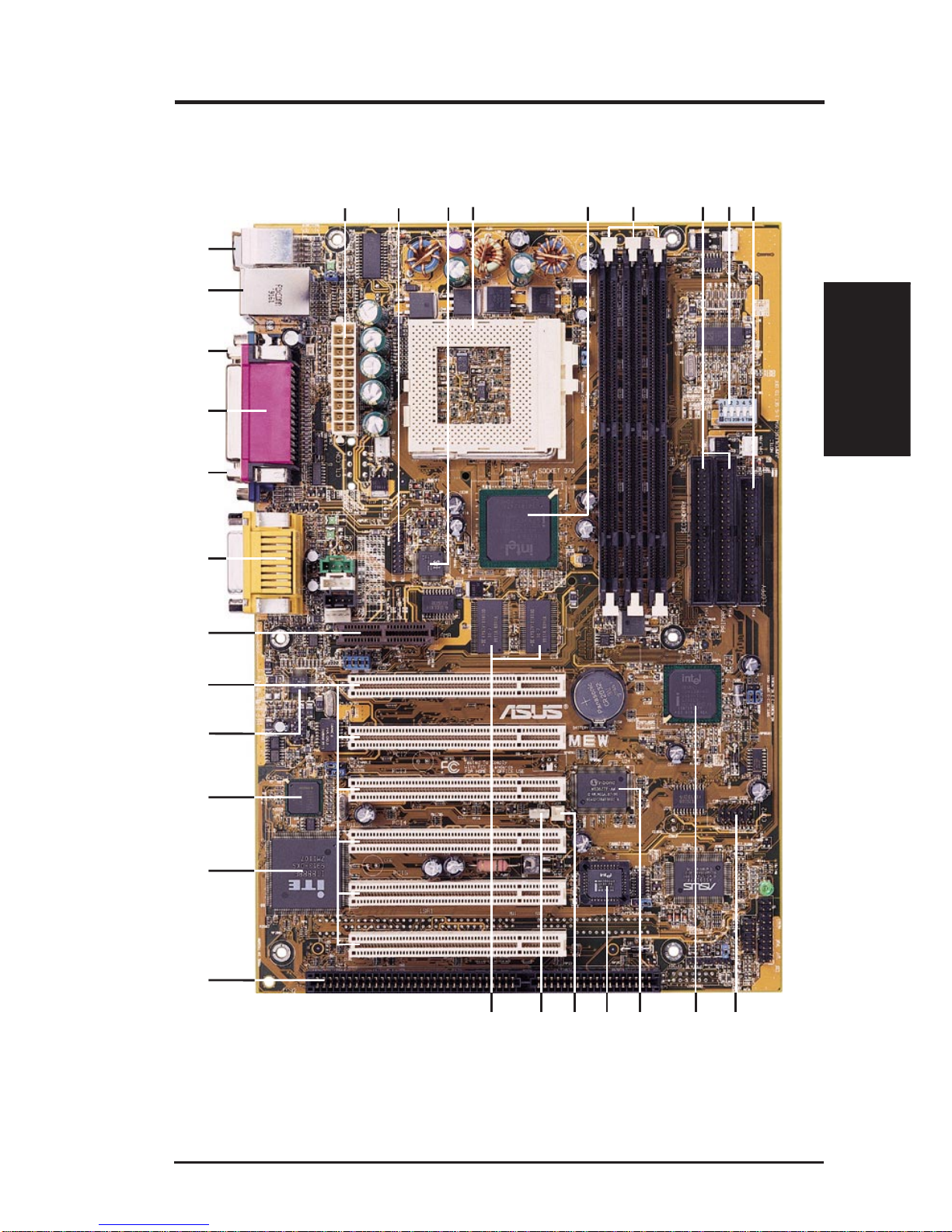

2.3 ASUS MEW Part Locations ..................................................... 13
3. HARDWARE SETUP ..................................................................... 14

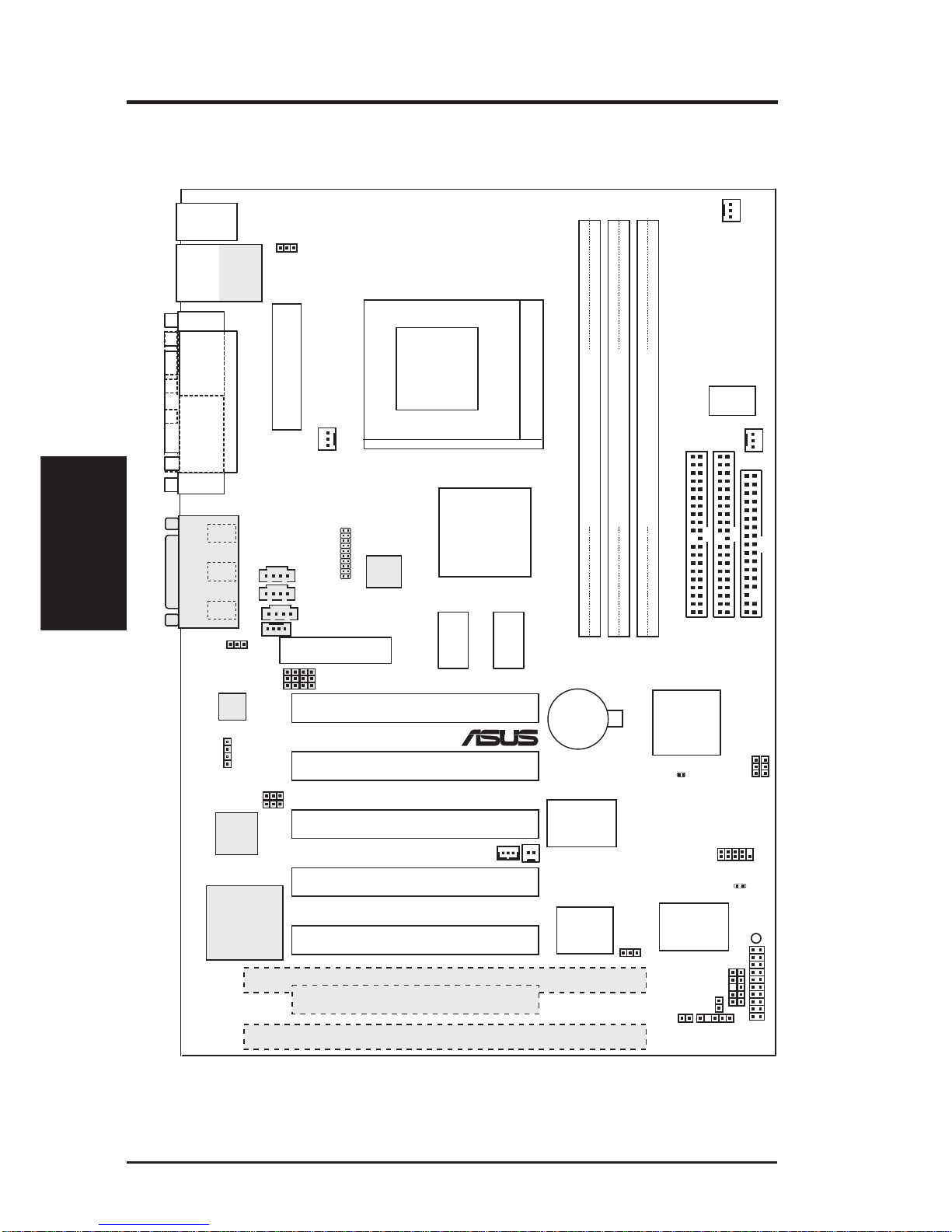

3.1 Motherboard Layout ................................................................. 14
3.2 Layout Contents ........................................................................ 15
3.3 Hardware Setup Procedure ....................................................... 17
3.4 Motherboard Settings................................................................ 17
3.5 System Memory (DIMM) ......................................................... 24
3.5.1 General DIMM Notes ...................................................... 24
3.5.2 DIMM Memory Installation ............................................ 25
3.6 Central Processing Unit (CPU) ................................................. 26
3.7 Expansion Cards ....................................................................... 27
3.7.1 Expansion Card Installation Procedure............................ 27
3.7.2 Assigning IRQs for Expansion Cards .............................. 27
3.7.3 Assigning DMA Channels for ISA Cards ........................ 28
3.7.4 Audio Modem Riser (AMR) Slot .................................... 28
3.8 External Connectors.................................................................. 29
3.9 Power Connection Procedures .................................................. 43
4. BIOS SETUP.................................................................................... 44
4.1 Managing and Updating Your BIOS ......................................... 44
4.1.1 Upon First Use of the Computer System ......................... 44
4.1.2 Updating BIOS Procedures.............................................. 45
4.2 BIOS Setup Program ................................................................ 47
4.2.1 BIOS Menu Bar ............................................................... 48
4.2.2 Legend Bar....................................................................... 48
4.3 Main Menu................................................................................ 50
4.3.1 Primary & Secondary Master/Slave ................................ 51
4.4 Advanced Menu ........................................................................ 56
4.4.1 Chip Configuration .......................................................... 58
4.4.2 I/O Device Configuration ................................................ 61
4.4.3 PCI Configuration............................................................ 63
4.4.4 Shadow Configuration ..................................................... 66

ASUS MEW User’s Manual 5
CONTENTS
4.5 Power Menu .............................................................................. 67
4.5.1 Power Up Control ............................................................ 69
4.5.2 Hardware Monitor............................................................ 71
4.6 Boot Menu ................................................................................ 72
4.7 Exit Menu ................................................................................. 74
5. SOFTWARE SETUP........................................................................ 77
ASUS Smart Motherboard Support CD............................................ 77
Software Setup Contents................................................................... 78
Support CD Content Descriptions .................................................... 79
Operating Systems ............................................................................ 81
5.1 Intel LANDesk Client Manager (LDCM) .................................. 82
5.2 ASUS PC Probe .......................................................................... 83
5.3 ASUS Update .............................................................................. 84
5.4 Driver .......................................................................................... 85
5.4.1 Network Driver Setup (LAN model only) ....................... 85
5.4.2 VGA Driver Setup............................................................ 86
5.4.3 Audio Driver Setup (audio model only) .......................... 87
5.5 Other ........................................................................................... 88
5.5.2 INF Update Utility for 810 Chipset ................................. 88
5.5.3 Intel Security Controller Driver ....................................... 89
5.5.4 YAMAHA S-YXG50 ....................................................... 90
5.5.5 Microsoft DirectX 6.0 Driver .......................................... 91
5.5.6 PC-cillin 98 V4.06 ........................................................... 92
5.5.7 Adobe Acrobat Reader V4.0 ............................................ 93
5.6 ASUS DMI Utility ...................................................................... 94
5.7 Flash BIOS Utility (DOS)........................................................... 95
5.8 Uninstalling Programs ................................................................ 96
6. SOFTWARE REFERENCE ............................................................ 97
6.1 ASUS PC Probe .......................................................................... 99
6.2 ASUS Update ............................................................................ 105
6.3 Display Properties..................................................................... 107
6.4 YAMAHA S-YXG50 ................................................................ 111
6.5 Desktop Management Interface (DMI)..................................... 113
6.6 Hardware Information............................................................... 116
7. APPENDIX...................................................................................... 117
7.1 Glossary .................................................................................... 117

6ASUS MEW User’s Manual
FCC & DOC COMPLIANCE
FederalCommunications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
CanadianDepartment of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Cana-
dian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003

ASUS MEW User’s Manual 7
1.INTRODUCTION
Sections/Checklist
1.1 How this manual is organized
This manual is divided into the following sections:
1) INTRODUCTION Manual information and checklist
2) FEATURES Product information and specifications
3) HARDWARE SETUP Instructions on setting up the motherboard
4) BIOS SETUP Instructions on setting up the BIOS software
5) SOFTWARE SETUP Instructions on setting up the included software
6) SOFTWARE REFERENCE Reference material for the included software
7) APPENDIX Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
please contact your retailer.
(1) ASUS Motherboard
(1) 40-pin ribbon cable for internal UltraDMA/33 IDE drives
(1) 80-pin ribbon cable for internal UltraDMA/66 or UltraDMA/33 IDE drives
(Note: The 80-pin ribbon cable is designed with a 40-pin connector.)
(1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy drives
(1) Bag of spare jumper caps
(1) Support CD with drivers and utilities
(1) This Motherboard User’s Manual
I/O Shield (for LAN model only)
Serial COM2 connector with bracket (for non-LCD model only)
LCD panel & Serial COM2 connector with bracket (for LCD model only)
ASUS IrDA-compliant Infrared module (optional)
ASUS Consumer Infrared set (optional)
1. INTRODUCTION

8ASUSMEWUser’sManual
2. FEATURES
Specifications
2.FEATURES
2.1 The ASUS MEW Motherboard
The MEW motherboard from ASUS is carefully designed for the demanding PC
user who wants many smart features in a small package. So what’s so smart about
the ASUS MEW motherboard?
2.1.1 Specifications
•Latest Intel Socket 370 Processor Support! Supports Intel’s Celeron proces-
sor designed for Socket 370 and packaged in Plastic Pin Grid Array (PPGA).
•Latest Intel 810-DC100 Chipset! Features 100MHz FSB Intel 810-DC100
chipset (GMCH & ICH) with integrated 4MB, 32-bit 100MHz SDRAM display
cache controller and a 24-bit 230MHz RAMDAC graphics controller.
•IntegratedGraphics!Controller supports 3D hyper pipelined architecture, par-
allel data processing and compression, precise pixel interpolation, full 2D hard-
ware acceleration, and motion video acceleration. Onboard 4MB SDRAM dis-
play cache allows up to 1024x768x16bit color for 3D graphics and
1600x1200x8bit color for 2D graphics.
•ASUS Graphics Driver!You can gain about 12% performance over that of the
standard graphics driver (2D highend graphics WinMark) usingASUS’custom
graphics driver. ASUS custom graphics driver also provides more features and
provides selection of higher refresh rates and resolutions.
•VersatileMemorySupport! DRAM controller supports asymmetrical address-
ing and three DIMM sockets support Intel PC100-compliant SDRAMs (16, 32,
64, 128, or 256MB) up to 512MB. (supports a maximum of 4 sides)

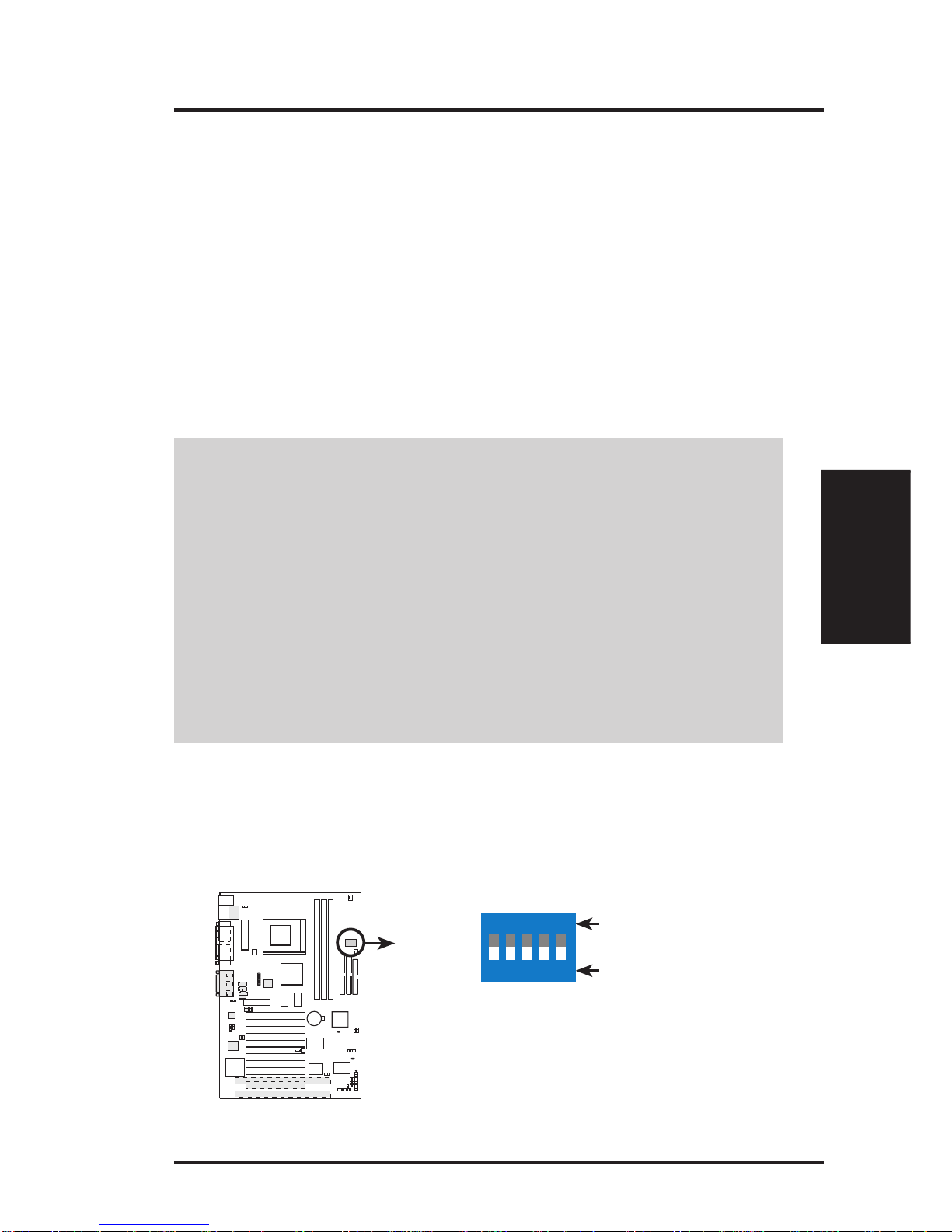

• JumperFree™ Mode!Allows processor settings and easy overclocking of fre-
quency and Vcore voltage all through BIOS setup when JumperFree™ mode is
enabled. Easy-to-use DIP switches instead of jumpers are included incase you
want to manually adjust the processor’s external frequency.
•Smart Slots! Optional five 32-bit PCI (rev 2.2) with two 16-bit ISA expansion
slots, 6 PCI with 1 ISA, or 6 PCI with no ISA. PCI supports up to 133MB/sec
maximum throughput. Each PCI slot can support a Bus Master PCI card (such
as SCSI or LAN cards).
• Latest Low Pin Count Multi-I/O: Provides two high-speed UART compatible
serial ports and one parallel port with EPP and ECP capabilities.
• Integrated IDE! Controller supports UltraDMA/66 up to 66MB/s, UltraDMA/
33 up to 33MB/s, and PIO Mode 4 up to 17MB/s.
• Desktop Management Interface (DMI) V2.3! Supports DMI through BIOS,
which allows hardware to communicate within a standard protocol creating a
higher level of compatibility. (Requires DMI-enabled components.)
•Peripheral Wake-Up! Supports Wake-On-LAN, Wake-On-Ring, Keyboard
Wake-Up, BIOS Wake-Up, and wake-up by infrared remote control.
•AMR Slot! Audio Modem Riser slot supports a very affordable audio and/or
modem riser card.

ASUS MEW User’s Manual 9
2. FEATURES
2.FEATURES
Specifications-Optional
• Around-the-ClockIntrusionDetection!Chassisintrusion circuitry canlogchas-
sis panel open events into LDCM (available in near future for this motherboard).
The onboard battery supports detection even when normal power is removed
and through a new design, battery drain is even lower than the RTC used for
keeping time!
•Firmware Hub! Provides security and other latest power computing features.
•Monitoring for your PC’s Health! Provided ASUS PC Probe or Intel LDCM
(this motherboard requires v6.0 available in the near future) allows PC health
monitoring.
•Enhanced ACPI & Anti-Boot Virus Protection! Programmable BIOS (Flash
EEPROM),offeringenhancedACPIforWindows 98 compatibility, built-in firm-
ware-based virus protection, and autodetection of most devices for virtually au-
tomatic setup.
•Smart BIOS! 4Mb firmware gives a new easy-to-use interface which provides
more control and protection over the motherboard. Provides Vcore and CPU/
SDRAM frequency adjustments, boot block write protection, and HD/SCSI/MO/
ZIP/CD/Floppy boot selection. Hardware random number generator supports
new security software for data protection and secured Internet transactions.
• Wired for Management (WfM) V2.0! Supports remote monitor, diagnosis,
and management (Alert-On-LAN) in network configuration.
2.1.2 Specifications–Optional Components
The following onboard components are optional at the time of purchase:
•Smart Audio! Software Audio and Hardware AC’97 V2.1 CODEC compliant,
AnalogDevice’s 3Dsoundcircuitry,sample rate conversion from 7kHzto48kHz.
Full audio output can be directed to the chassis’ internal speaker in order to save
space, save money, and reduce complications associated with external speakers.
•3D PositionalAudio! Brings new levels of realism to games with sounds being posi-
tioned interactively around the user, making them truly part of the 3D virtual experi-
ence. Better music reproduction is possible with MIDI utilizing Wavetable synthesis.
• Smart Networking! Features the Intel 82559 Fast-Ethernet LAN Controller
(fully integrated 10BASE-T/100BASE-TX). Supports TCO function.
•Space Savings! Digital Flat Panel (DFP) Interface gives a direct digital connec-
tion for connecting a digital flat panel (analog flat panel must be connected to
the VGA-out connector) to your PC. This interface transmits sharp, bright im-
ages by eliminating digital-to-analog and analog-to-digital conversions, which
can accumulate noise and degrade image quality.
•No Messy Wires! Integrated consumer IR and Standard IR supports an optional
remote control package for wireless interfacing with external peripherals, per-
sonal gadgets, or an optional remote controller.

10 ASUSMEWUser’sManual
2. FEATURES
Performance
2.FEATURES
2.1.3 Performance
•UltraPerformance! Onboard IDE Bus Master controller with two connectors
thatsupport fourIDE devicesintwo channels.Supports UltraDMA/66, UltraDMA/
33 (IDE DMA Mode 2), PIO Modes 3 & 4, and supports Enhanced IDE devices,
such as Tape Backup, CD-ROM, CD-R/RW, and LS-120 drives.
• Dual Speeds! CPU frequency can operate at either 66MHz or 100MHz while
systemmemory operatesat either100MHzor66MHz.(100MHzCPUwith 66MHz
SDRAM setting not supported) This asynchronous design can optimize the VGA
performance under shared memory configuration. Of course 100MHz/100MHz
synchronous host/DRAM clock is recommended for maximum performance.
• DoubleorQuadrupletheIDETransferSpeed!IDEtransfersusingUltraDMA/
33 Bus Master IDE can handle rates up to 33MB/s and up to 66MB/s using
UltraDMA/66 technology. The best of all is that these new technology is com-
patible with existing ATA-2 IDE specifications so there is no need to upgrade
current IDE devices or cables.
•Concurrent PCI! Concurrent PCI allows multiple PCI transfers from PCI mas-
ter buses to memory to CPU.
• SDRAM Optimized Performance! ASUS smart series motherboards support the
newgenerationmemory,SynchronousDynamicRandomAccessMemory(SDRAM),
which increases the data transfer rate to 800MB/s max using PC100 SDRAM.
• ACPIReady!ACPI (Advanced ConfigurationandPowerInterface) is alsoimple-
mented on all ASUS smart series motherboards. ACPI provides more Energy
Saving Features for future operating systems (OS) supporting OS Direct Power
Management (OSPM) functionality.With these features implemented in the OS,
PCs can be ready around the clock, yet satisfy all the energy saving standards.
To fully utilize the benefits of ACPI, an ACPI-supported OS such as Windows
98 must be used.
• Suspend and Go! Suspend-to-RAM (STR) provides maximum power savings
as an alternative to leaving the computer ON and QuickStart™ so that you do
not fall asleep waiting for system bootup. (STR requires OS support and does
not support ISA cards; ISA cards may fail to work coming out of STR mode.)
• New Compliancy! Both the BIOS and hardware levels of the motherboard meet
PC’99 compliancy (on model without ISA). The new PC’99 requirements for
systems and components are based on the following high-level goals: Support for
Plug and Play compatibility and power management for configuring and manag-
ing all system components, and 32-bit device drivers and installation procedures
forWindows95/98/NT. Color-codedconnectors and descriptiveiconsmake iden-
tification easy as required by PC’99.
•Highest Audio Quality! AC’97 DAC/ADC built into the audio CODEC reduces
noisetoimprove audio qualityandperformance for aSNR (signal to noise ratio) of
+90dB. These features greatly improve voice synthesis and recognition.
•Extreme Graphics! The integrated motion compensation allows for smooth
MPEG1 or MPEG2 video playback. Fast 3D graphics engine allows for an ex-
citing gameplay experience.

ASUS MEW User’s Manual 11
2.1.4 Intelligence
• Fan Status Monitoring and Alarm! To prevent system overheat and system
damage, the CPU, power supply, and system fans can be monitored for RPM
and failure. All the fans are set for its normal RPM range and alarm thresholds.
•Temperature Monitoring and Alert! To prevent system overheat and system
damage, this motherboard supports Socket 370 processor thermal sensing and
auto-protection.
•Voltage Monitoring andAlert! System voltage levels are monitored to ensure
stable current to critical motherboard components. Voltage specifications are
more critical for future processors, so monitoring is necessary to ensure proper
system configuration and management.
• System ResourcesAlert! (Requires the future release of LDCM v6.0) Today’s
operating systems such as Windows 98, Windows NT, and OS/2, require much
more memory and hard drive space to present enormous user interfaces and run
large applications. The system resource monitor will warn the user before the
system resources are used up to prevent possible application crashes. Sugges-
tions will give the user information on managing their limited resources more
efficiently.
• DualFunction PowerButton!Through BIOS, the power button can be defined
as the “Stand by” (a.k.a. Suspend or Sleep) button or as the Soft-Off (see ATX
Power Switch for more information) button. Regardless of the setting, pushing
the power button for more than 4 seconds will enter the Soft-Off mode.
• Remote Ring On (requires modem)! This allows a computer to be turned on
remotely through an internal or external modem. With this benefit on-hand, users
can access any information from their computers from anywhere in the world!
• Message LED (requires ACPI OS support)! Chassis LEDs now act as infor-
mation providers. Through the way a particular LED illuminates, the user can
determine the stage the computer is in. A simple glimpse provides useful infor-
mation to the user.
• Peripheral Power Up! Keyboard or Mouse power up can be enabled or dis-
abled through BIOS setup to allow the computer to be powered ON using your
keyboard or mouse click.
2. FEATURES
Intelligence
2.FEATURES

12 ASUSMEWUser’sManual
ATX Power Connector for connection to anATX power supply
LCD Header for LCD connector set (LCD model only)
LCD Chipset (on LCD model only)
Socket 370 for Intel Celeron 370 processors
Intel 810-DC100 (GMCH-DC100) Integrated Graphics Chipset
Three DIMM Sockets
Primary and Secondary IDE Connectors
Feature Setting DIPSwitches
Floppy Disk Drive Connector
Serial COM2 Header
Intel I/O Controller Hub (ICH)
Low Pin Count Multi-I/O Chipset
Four Mbit Firmware Hub (programmable BIOS)
Wake-On-Ring Connector
Wake-On-LAN Connector
Onboard high-speed 4MB SDRAM for integratedAGPVGA
One or Two ISA Slot(s) (on ISA model only)
PCI to ISA Bridge (on ISA model only)
Intel 82559 Fast-Ethernet Chipset (on LAN model only)
AC’97 V2.1Audio CODEC
Five or Six PCI Slots (optional at the time of purchase)
Audio Modem Riser (AMR) Connector
Joystick, Midi, Line Out, Line In, Microphone In Connectors
VGA Monitor Output Connector
Parallel Connector
Serial COM1 Connector
LAN (RJ45) and USB Connectors (LAN optional)
PS/2 Mouse, PS/2 Keyboard Connectors
2. FEATURES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
2.2 ASUS MEW Part Definitions
The following are part descriptions for the motherboard parts shown on the next
page.
Part Definitions
2.FEATURES

ASUS MEW User’s Manual 13
2.3 ASUS MEW Part Locations
2. FEATURES
2.FEATURES
Part Locations
7645
1
27
25
23
22
21
24
18
19
26
28
1112131415
17
8 9
16
23
20
10
NOTE: The ISA model is shown above. ISA slots are optional at the time of pur-
chase. The model without ISAwill have 6 PCI slots.

14 ASUSMEWUser’sManual
3. HARDWARE SETUP
Motherboard Layout
3.H/WSETUP
(Grayed items are optional at the time of purchase.)
3.1 Motherboard Layout
COM1
PARALLEL PORT
VGA
PS/2
T: Mouse
B: Keyboard
CPU_FAN
Intel 810
Graphics &
Memory
Controller
01
DIMM1 (64/72 bit, 168-pin module)
0 1
PWR_FAN
WOR
WOL_CON
CHA
VIDEO
TAD
Socket 370
GAME_AUDIO
Mic
In
Line
Out
Line
In
CHA_FAN
CD
AUX
SMB
PCI Slot 1
PCI Slot 2
PCI Slot 4
PCI Slot 3
Panel
IDE LED
FLOPPY
SECONDARY
IDE
PRIMARY
IDE
ISA Slot 1 (ISA1)
ISA Slot 2 (ISA2)
ATX Power Connector
IR
CLRTC
Intel I/O
Controller
Hub (ICH)
01
DIMM2 (64/72 bit, 168-pin module)
2 3
01
DIMM3 (64/72 bit, 168-pin module)
3 2
CR2032 3V
Lithium Cell
CMOS Power
Row
DIP
Switches
PCI Slot 5
INT
MIC
COM2
LAN_EN
LAN_PWR
INT_SPKA
Audio Modem Riser
(AMR)
Bottom:
USB1
USB 2
Multi-I/O
®
MEW
4Mbit
Firmware
Hub
ASUS
ASIC
with Hardware
Monitor
STB_PWR
Audio
Codec
Intel Fast
Ethernet
Audio Codec Setting
2 MB
SDRAM
2 MB
SDRAM
LCDHD
PCI to ISA
Bridge
LCD
Encoder
RT2
PCI Slot 6
JEN
VIO
Top:
RJ45
SAFE_MD NO_REBOOT

ASUS MEW User’s Manual 15
3. HARDWARE SETUP
3.2 Layout Contents
Motherboard Settings
1) JEN p.18 JumperFree™ Mode (Enable/Disable)
2) VIO p.19 Voltage I/O Setting (Normal/+3.66V)
3) AUDIO CODEC p.19 Onboard Audio Setting (Enable/Disable)
4) LAN_EN p.20 Onboard LAN Setting (Enable/Disable)
5) LAN_PWR p.20 Onboard LAN Power Setting (Normal/Standby)
6) SAFE_MD p.21 Safe Mode (Enable/Disable)
7) NO_REBOOT p.21 Automatic Timeout Reboot (Enable/Disable)
8) DSW p.22 CPU External Clock (BUS) Frequency Setting
Expansion Slots
1) DIMM1, DIMM2, DIMM3 p.23 168-Pin DIMM Memory Support
2) Socket 370 p.25 Central Processing Unit (CPU) Socket
3) ISA1, ISA2 p.26 16-bit ISA Bus Expansion Slots (optional)
4) PCI1, PCI2, PCI3, PCI4, PCI5 p.26 32-bit PCI Bus Expansion Slots (optional PCI6)
5) AMR p.28 Audio Modem Riser Slot
Connectors
1) PS2KBMS p.29 PS/2 Mouse Connector (6-pin female)
2) PS2KBMS p.29 PS/2 Keyboard Connector (6-pin female)
3) USB p.30 Universal Serial Bus Ports 1 & 2 (Two 4-pin female)
4) PRINTER p.30 Parallel Port Connector (25-pin female)
5) COM1 p.30 Serial Port COM1 Connector (9-pin male)
6) VGA p.31 Monitor (VGA) Output Connector (15-pin female)
7) GAME_AUDIO p.31 Joystick/MIDI Connector (15-pin female) (optional)
8) GAME_AUDIO p.31 Audio Port Connectors (Three 1/8” female) (optional)
9) RJ45 p.31 Fast-Ethernet Port Connector (RJ45) (optional)
10) PRIMARY/SECONDARYIDE p.32 Primary/Secondary IDE Connectors (Two 40-1pins)
11) FLOPPY p.32 Floppy Disk Drive Connector (34-1pins)
12) WOL_CON p.33 Wake-On-LAN Connector (3 pins)
13) WOR p.33 Wake-On-Ring Connector (2 pins)
14) IDE LED p.34 IDE Activity LED (2 pins)
15) CHA_, CPU_, PWR_FAN p.34 Chassis,CPU,PowerSupplyFanConnectors(Three3-pin)
16) VIDEO, AUX, CD, TAD p.35 Internal Audio Connectors (Four 4-pins) (optional)
17) INT_SPKA p.35 Internal Speaker Connectors (4-pins) (optional)
18) IR (CIR/SIR) p.36 Infrared Module Connector (10-1 pins)
19) COM2 p.36 Serial Port COM2 Header (10-1 pins)
Layout Contents
3.H/WSETUP

16 ASUS MEW User’s Manual
20) SMB p.37 SMBus Connector (5-1 pins)
21) LCDHD p.37 Digital LCD Header (20 pins) (optional)
22) INT MIC p.38 Internal Microphone Connector (3 pins)
23) CHA p.39 Chassis Intrusion Connector (2 pins)
24) ATXPWR p.39 ATX Power Supply Connector (20 pins)
25) SPEAKER (PANEL) p.41 System Warning Speaker Connector (4 pins)
26) KEYLOCK (PANEL) p.41 Keyboard Lock Switch Lead (2 pins)
27) PLED (PANEL) p.41 System Power LED Lead (3-1 pins)
28) RESET (PANEL) p.41 Reset Switch Lead (2 pins)
29) PWRSW (PANEL) p.41 ATX Power / Soft-Off Switch Lead (2 pins)
30) SMI (PANEL) p.41 System Management Interrupt Switch Lead (2 pins)
31) LED (PANEL) p.41 System Message LED (2 pins)
3. HARDWARE SETUP
Layout Contents
3.H/WSETUP

ASUS MEW User’s Manual 17
3. HARDWARE SETUP
Motherboard Settings
3.H/WSETUP
3.3 Hardware Setup Procedure
Before using your computer, you must complete the following steps:
• Check Motherboard Settings
• Install Memory Modules
• Install the Central Processing Unit (CPU)
• Install Expansion Cards
• Connect Ribbon Cables, Panel Wires, and Power Supply
3.4 Motherboard Settings
This section explains in detail how to change your motherboard’s function settings
through the use of switches and/or jumpers.
WARNING! Computer motherboards and expansion cards contain very delicate
Integrated Circuit (IC) chips. To protect them against damage from static electric-
ity, you should follow some precautions whenever you work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do
nothave one, touch both of your hands to a safely grounded object or to a metal
object, such as the power supply case.
3. Hold components by the edges and try not to touch the IC chips, leads or con-
nectors, or other components.
4. Placecomponentsona grounded antistatic pad or onthebagthatcame with the
component whenever the components are separated from the system.
Motherboard Feature Settings (DSW)
Besides jumper settings, some of the motherboard’s onboard functions are adjusted
through the DIP switches. The white block represents the switch’s position. The
example below shows all the switches in the OFF position.
1. Frequency Selection
2. Frequency Selection
3. Frequency Selection
4. Frequency Selection
5. Frequency Selection
MEW DIP Switches
DSW
OFF
ON
ON
12345
0 10 10 1
MEW

18 ASUS MEW User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3.H/WSETUP
1) JumperFree™ Mode (JEN)
This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
NOTE: In JumperFree™ mode, all dip switches (DSW) must be set to OFF.
Setting JEN
Disable (Jumper) [1-2] (default)
Enable (JumperFree) [2-3]
MEW JumperFree™ Mode Setting
Jumper JumperFree
123 123
JEN
0 10 10 1
R
MEW

ASUS MEW User’s Manual 19
3. HARDWARE SETUP
Motherboard Settings
3.H/WSETUP
2) Voltage I/O Setting (VIO)
This jumper allows you to select the voltage supplied to the DRAM, chipset,
PCI, and the CPU’s I/O buffer. The default voltage should be used unless pro-
cessor overclocking requires a higher voltage.
Setting VIO
Normal [1-2] (default)
3.66V [2-3]
MEWVIO Setting
Normal Add 0.1 Volt
123 123
VIO
0 10 10 1
R
MEW
WARNING! Using a higher voltage may help when overclocking but may result
in the shortening of your computer component’s life. It is strongly recommended
that you leave this setting on its default.
3) Onboard Audio Setting (available on audio model only)
The onboard audio CODEC may be enabled or disabled using all of these jump-
ers. Disable the onboard audio CODEC if you are using an ISA or PCI audio card
on any of the expansion slots or a primaryAMR on theAMR slot (seeAMR Slot
laterinthis section).Ifusingan ISAor PCIaudioexpansion card, OnboardAC’97
Audio Controller in 4.2 I/O Device Configuration must also be disabled.
Setting AUDIO CODEC
Enable [1-2] [1-2] [1-2] [1-2]
Disable [2-3] [2-3] [2-3] [2-3]
MEW Audio Codec Setting
DisableEnable
1
2
3
1
2
3
SPK
ADN# AUD_EN1
AUD_EN2
SPK
ADN# AUD_EN1
AUD_EN2
0 10 10 1
R
MEW

20 ASUS MEW User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3.H/WSETUP
4) Onboard LAN Setting (LAN_EN) available on LAN model only
The onboard LAN may be enabled or disabled by this jumper.
Setting LAN_EN
Enable [1-2] (default)
Disable [2-3]
MEW LAN Setting
Enable Disable
123 123
LAN_EN
0 10 10 1
R
MEW
5) Onboard LAN Power Setting (LAN_PWR) available on LAN model only
The onboard LAN power may be set to normal or standby power. Select Nor-
mal if you do not have a power supply with 720mA standby power. Selecting
Standby will allow the use of Wake-On-LAN but may not allow system bootup
if the power supply’s standby power is insufficient.
Setting LAN_PWR
Normal [1-2] (default)
Standby [2-3]
MEW LAN Power Setting
Normal Standby
(STB)
123 123
LAN_PWR
0 10 10 1
R
MEW
